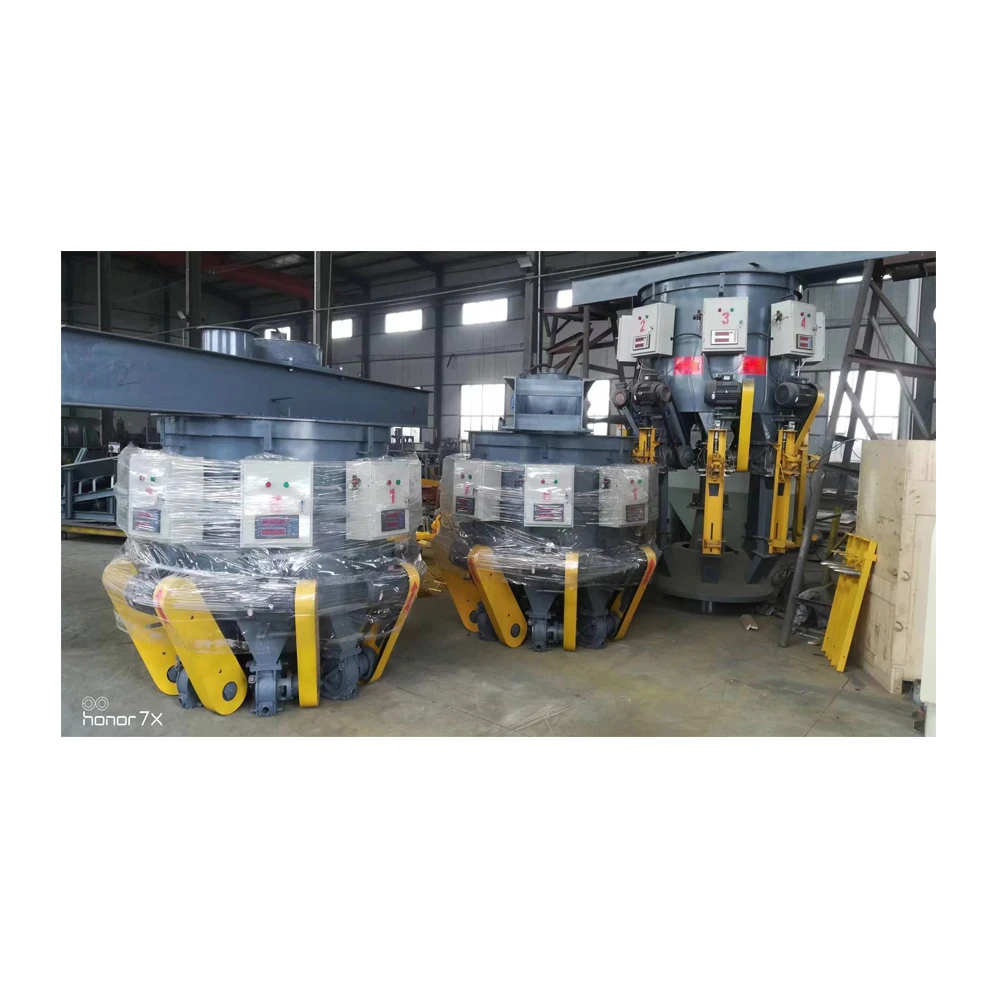

Цена со скидкой автоматическая машина для упаковки гипса 8 12 установка измельчения и цементного клинкера
554 637,50 ₽

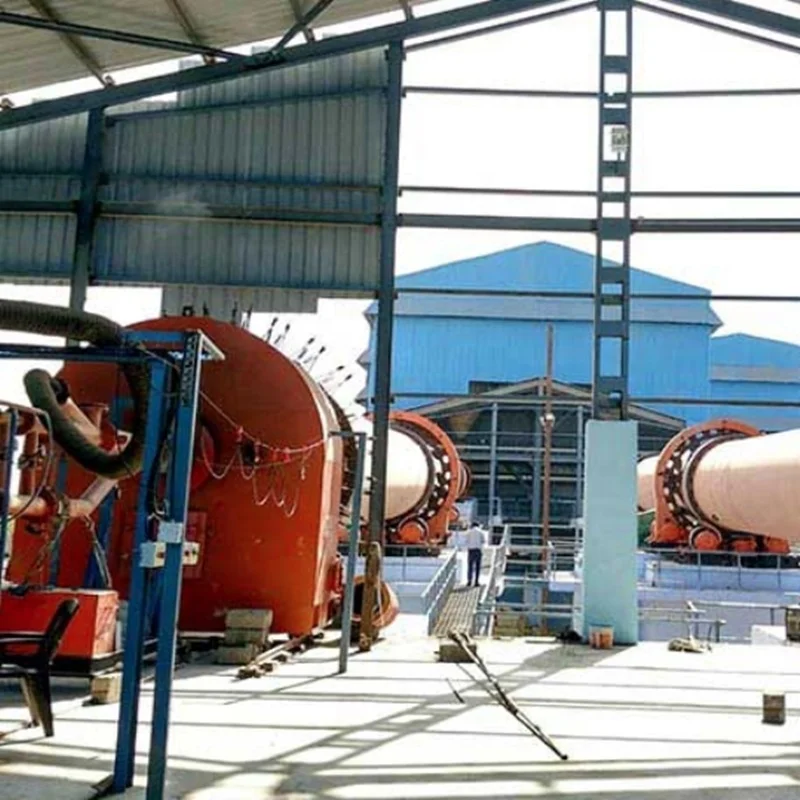

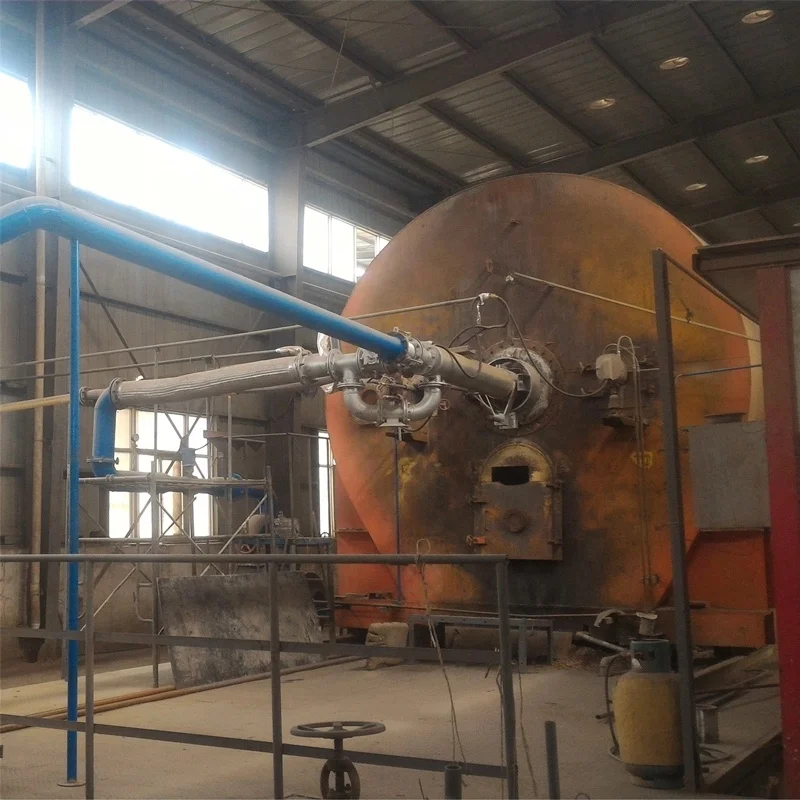

100 400M3PD китайская Вращающаяся печь для обжига глины LECA
- Категория: >>>
- Поставщик: Henan Hongke Heavy Machinery Co. Ltd.
Сохранить в закладки 10000007728208:
Описание и отзывы
Характеристики
100-400M3PD China Rotary Kiln Specification for LECA Clay Calcination Rotary Kiln
Product Overview
LECA Clay Calcination Rotary Kiln is one of the most important equipment for lightweight aggregate family. The main raw material of it are all kinds of clay, mudstone, slate, coal gangue, fly ash, shale, sludge and industrial solid waste.

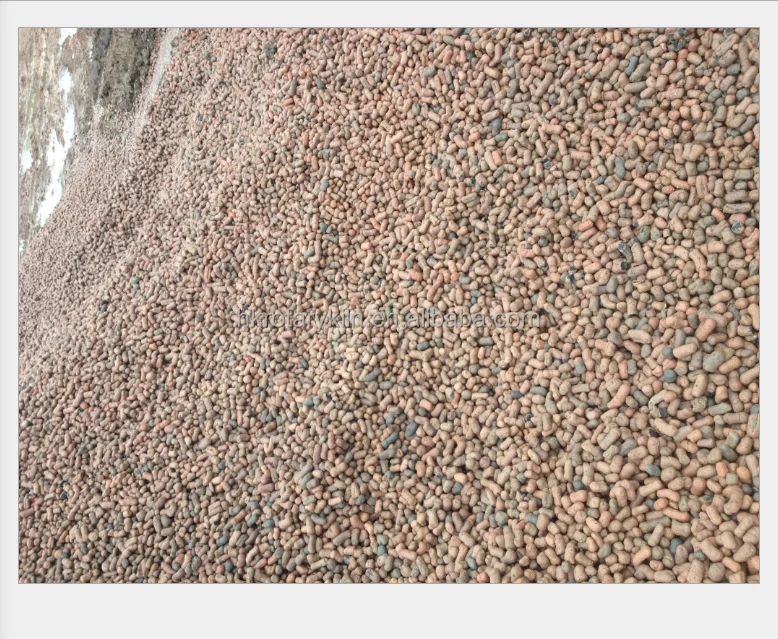

After processing to make granulation and roasting, it becomes artificial lightweight aggregate.
LECA Clay Calcination Rotary Kiln is composed of raw material storage bin, dust control chamber, induced fan, main kiln body,coal injection system, control cabinet and so on.
The feeder in the lower part of the raw material bin, the rotary speed of kiln body and the amount of arch coal are all stepless speed regulation, with the purpose of adjusting technological parameters and obtain the maximum output under the premise of ensuring the product quality.
The auxiliary equipments for producing shale ceramsite include: crusher, filter machine, belt conveyer, loading machine,
discharging machine, etc.
The auxiliary equipments for producing fly ash and clay ceramsite are: wheel mill, double shaft mixer, granulator, screen machine, belt conveyor, etc.
After processing to make granulation and roasting, it becomes artificial lightweight aggregate.
LECA Clay Calcination Rotary Kiln is composed of raw material storage bin, dust control chamber, induced fan, main kiln body,coal injection system, control cabinet and so on.
The feeder in the lower part of the raw material bin, the rotary speed of kiln body and the amount of arch coal are all stepless speed regulation, with the purpose of adjusting technological parameters and obtain the maximum output under the premise of ensuring the product quality.
The auxiliary equipments for producing shale ceramsite include: crusher, filter machine, belt conveyer, loading machine,
discharging machine, etc.
The auxiliary equipments for producing fly ash and clay ceramsite are: wheel mill, double shaft mixer, granulator, screen machine, belt conveyor, etc.
PRODUCT PROCESS
1.Plastic process: suitable for clay and clay raw materials. The process is: clay → plasticizing, levelling→ calcining→ roll to make granulation → cooling → the finished product.
2, Slurry pelletizing process: suitable for fly ash or other powdered raw materials, its process: fly ash →mixing and levelling→pelletizing → calcining → cooling→ the finished product.
3, Grinding and pelletizing process: suitable for shale, Shales and coal gangue and other raw materials, its process:
shale-drying→ grinding→, pre-wetting→pelletizing→ calcining →cooling→the finished product
4, Crushing (dry process) technology: suitable for shale and other raw materials, The process is as follows: Shale→ crushing and grading→ calcining→ cooling→ the finished product.
PRODUCT SPECIFICATIONS
Model | Rotary Kiln Size | Speed（r/min） | Power（kw） | Capacity（m³/D） | Weight（T） | Remarks | ||||
Dia.（m） | Length（m） | Slope（%） | ||||||||
HK30 | 2 | 16 | 3.5 | 0.5-3.6 | 22 | 100-150 | 59 | ---- | ||
1.5 | 20 | 18.5 | ---- | |||||||
HK40 | 2.2 | 18 | 3.5 | 0.5-3.6 | 30 | 150-200 | 85 | ---- | ||
1.6 | 22 | 22 | ---- | |||||||
HK50 | 2.5 | 25 | 3.5 | 0.5-3.6 | 30 | 250-300 | 150 | ---- | ||
3 | 20 | 45 | ---- | |||||||
HK60 | 2.6 | 26 | 3.5 | 0.5-3.6 | 37 | 350-400 | 243 | ---- | ||
3.2 | 22 | 55 | ---- | |||||||
FEATURES AT A GLANCE
The combustion temperature, combustion atmosphere and combustion time can be adjusted and controlled flexibly to better adapt to the technological requirements
LECA Clay Calcination Rotary Kiln has the advantages of uniform heating of materials, full reaction, good product, good quality, stable and reliable operation of equipment, high adjustability and simple operation and maintenance.

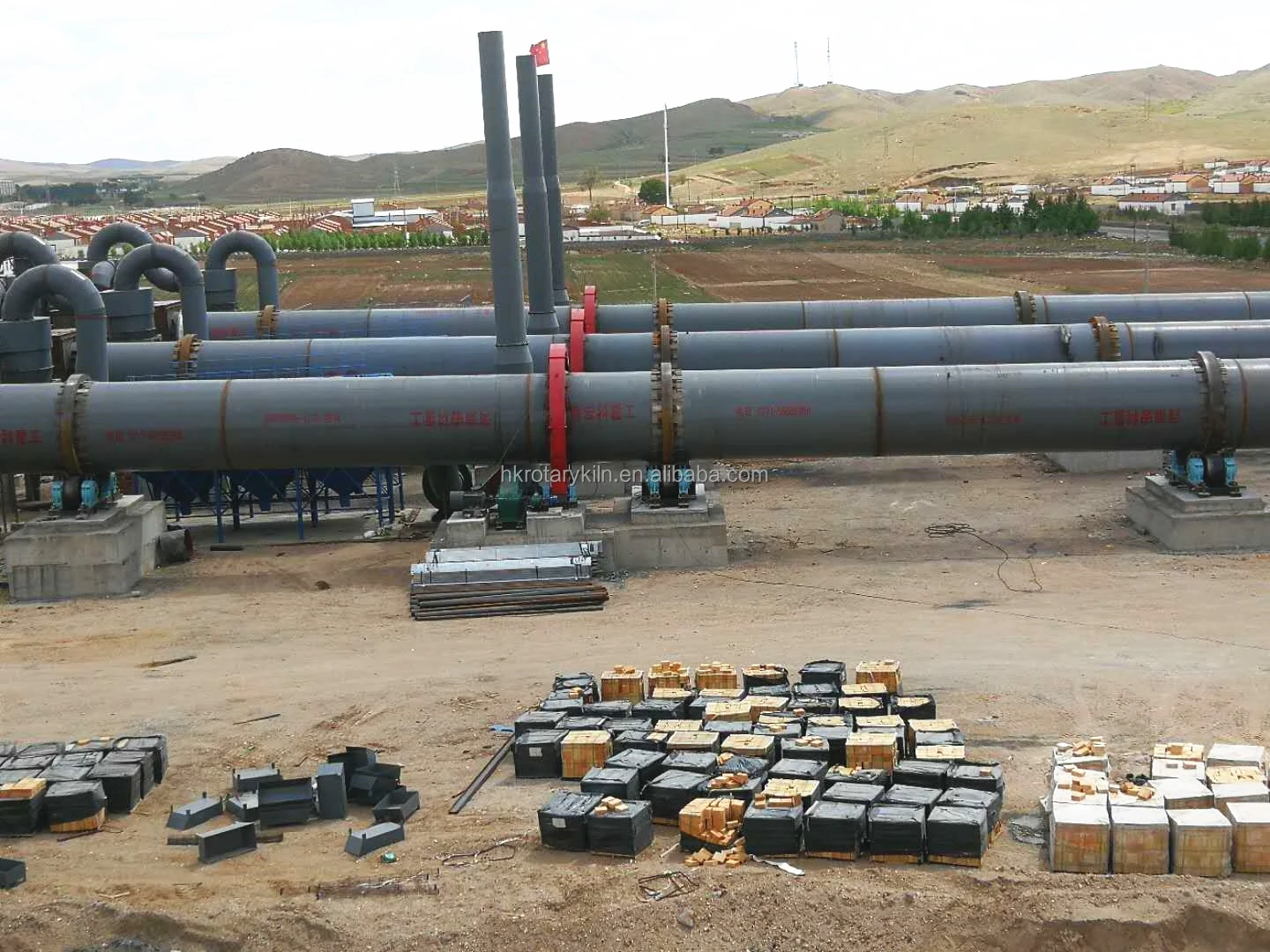

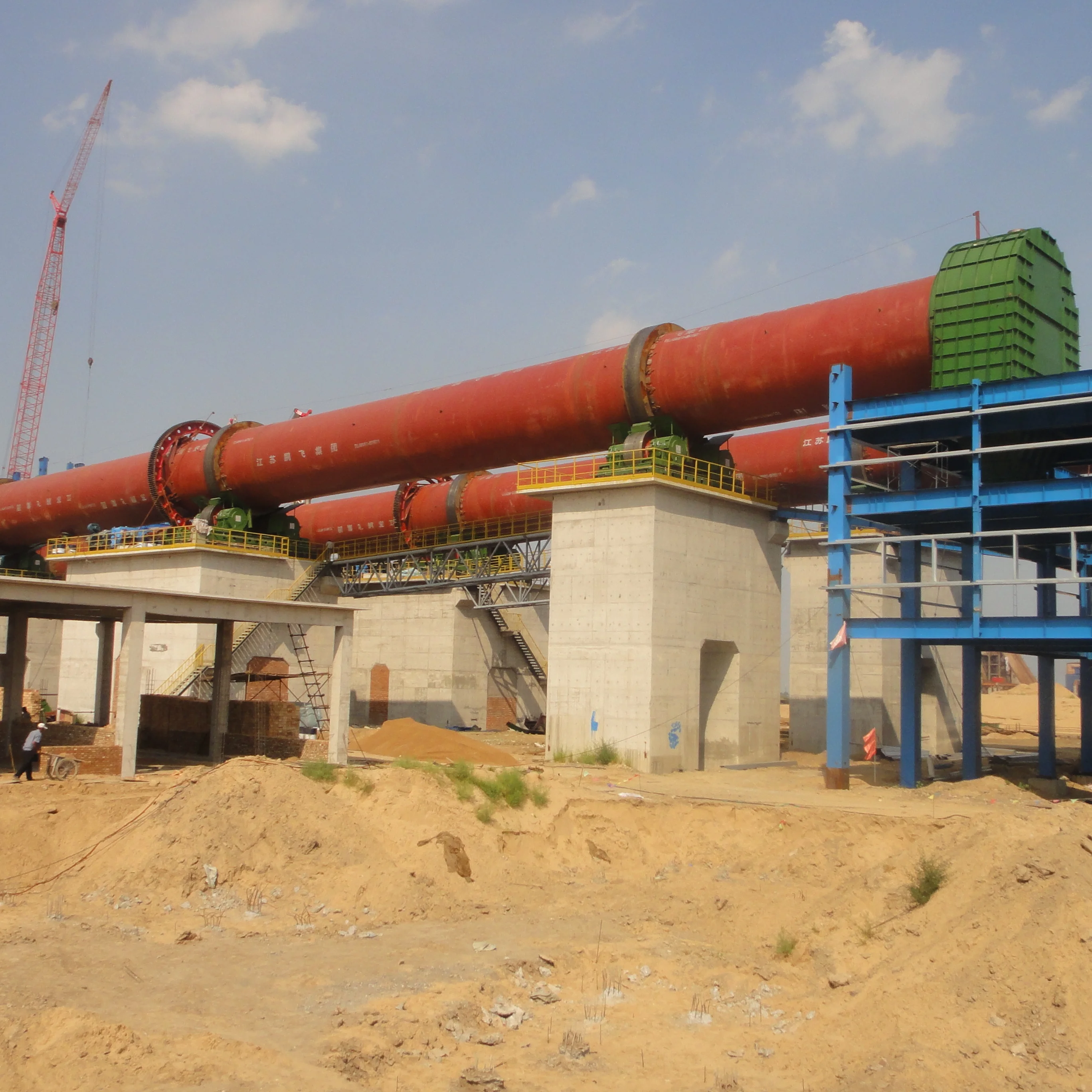

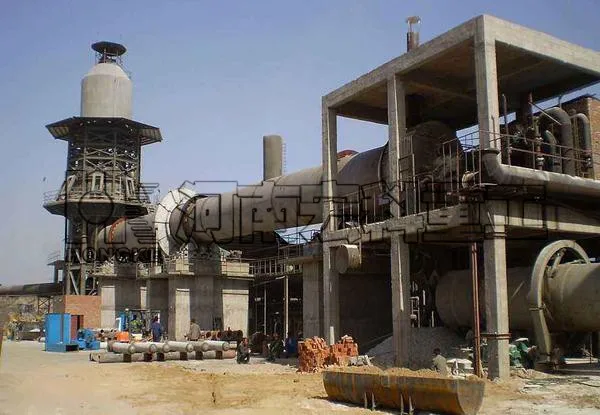

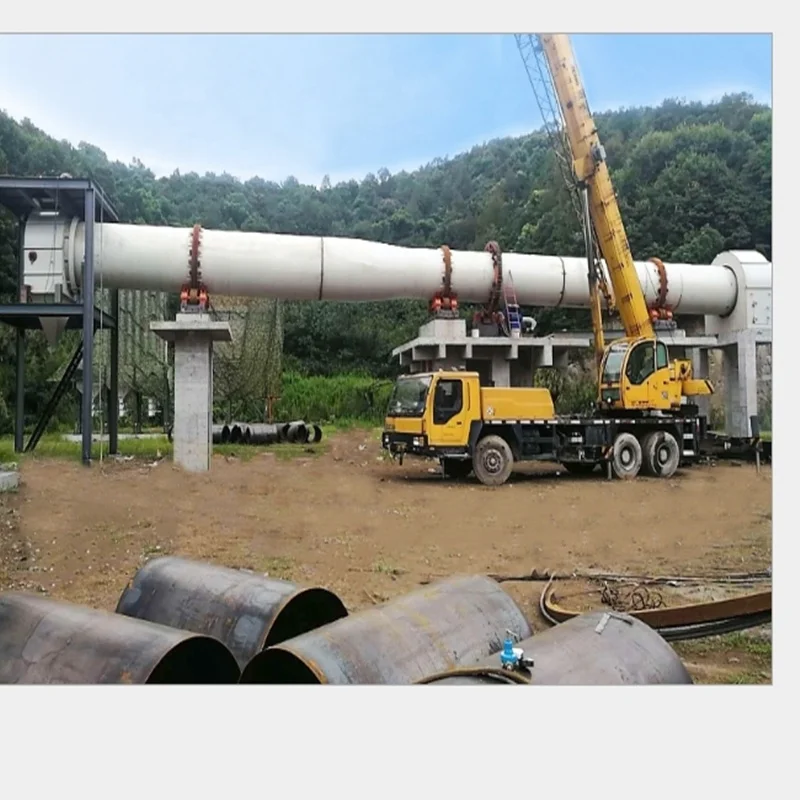

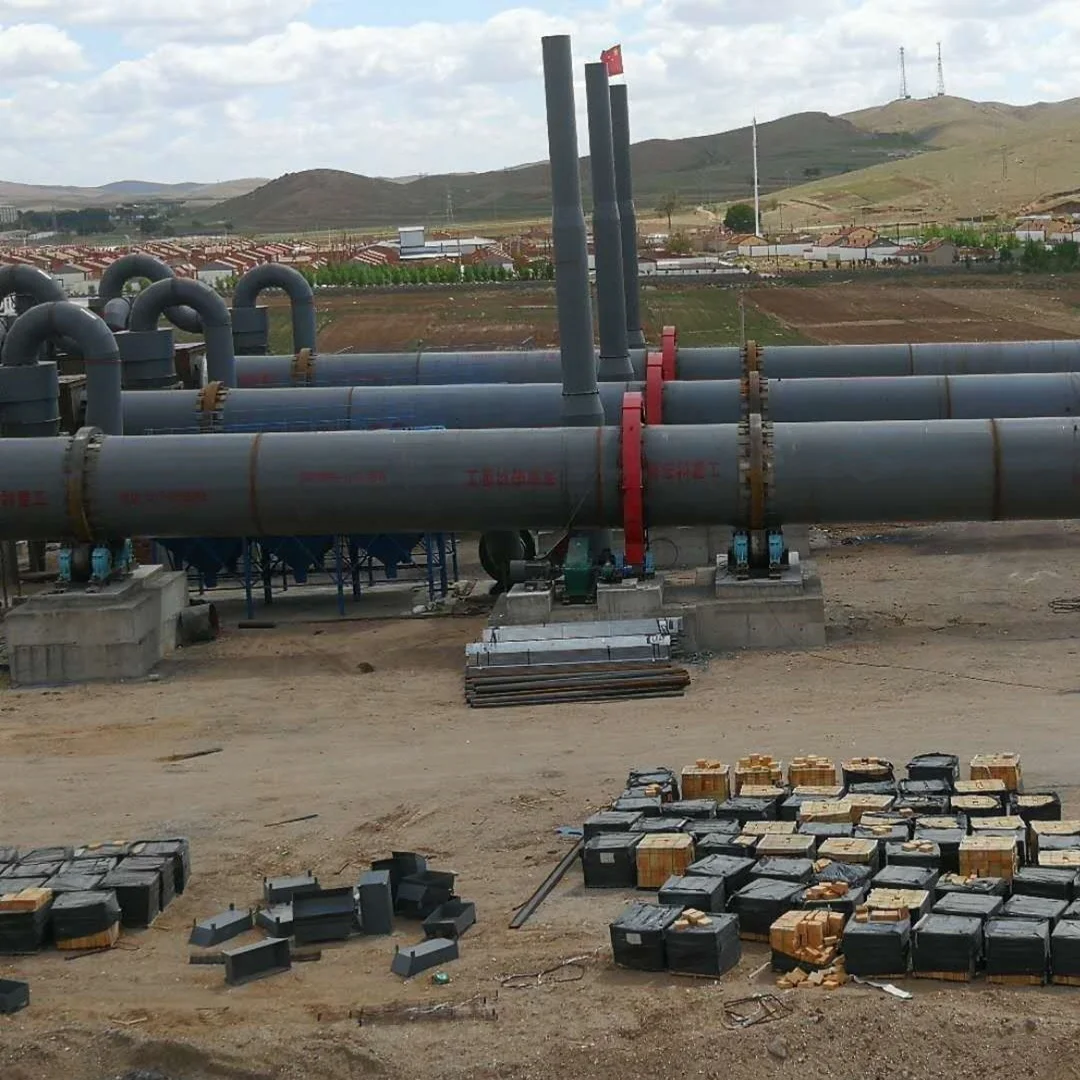

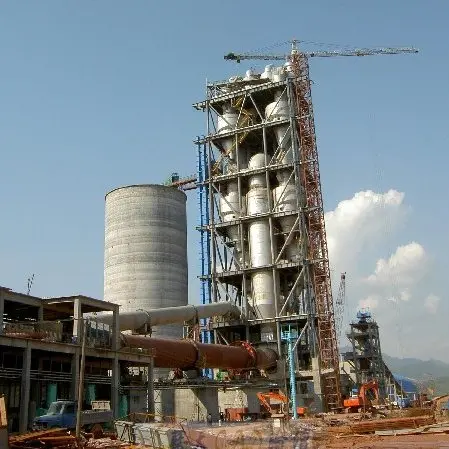

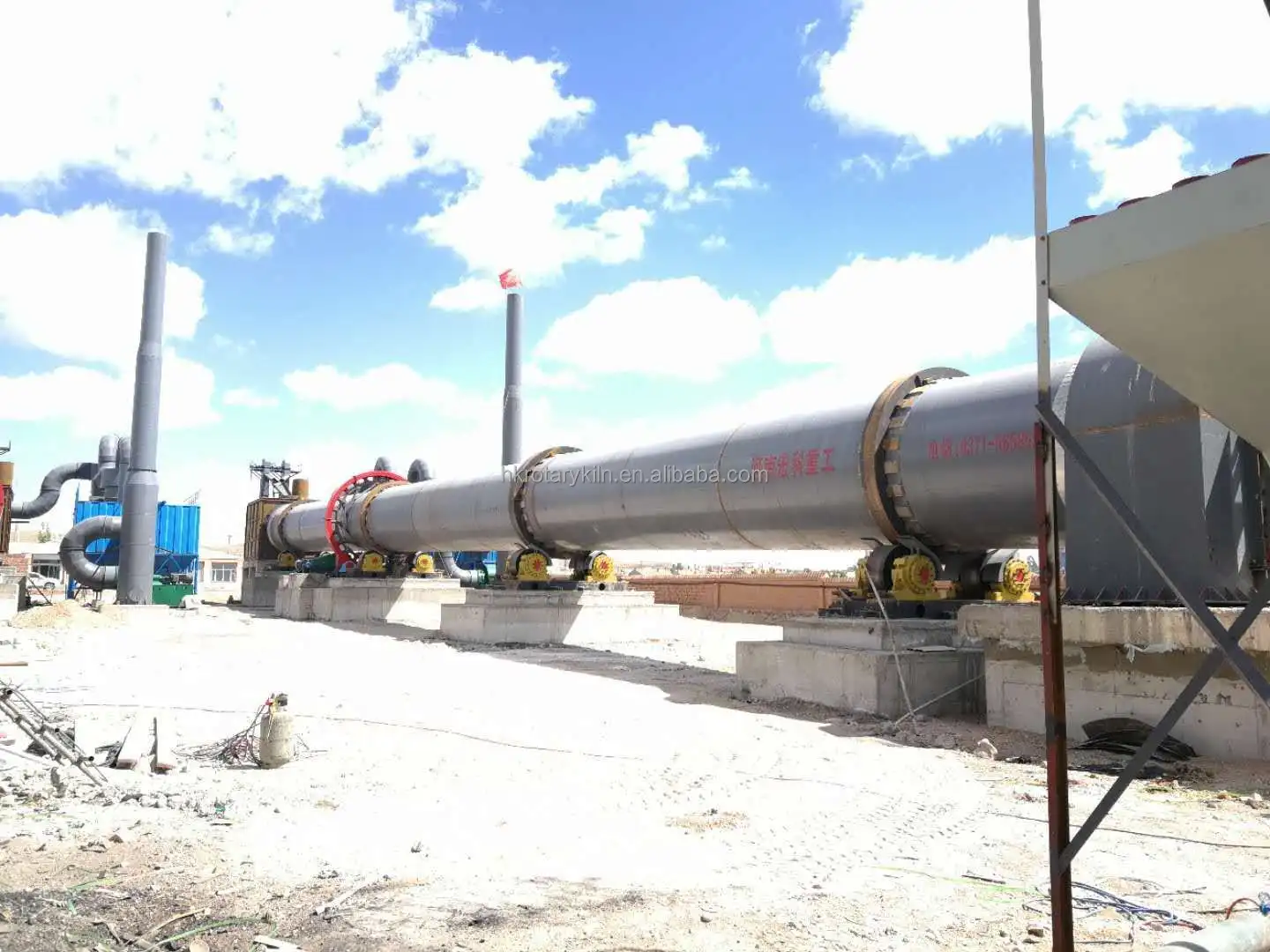

Successful Project

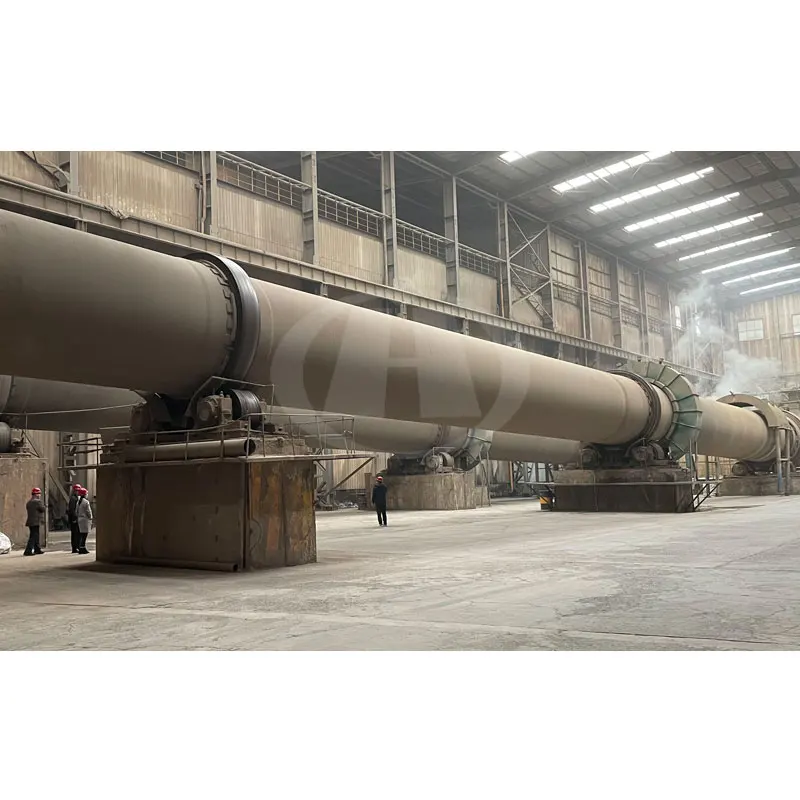

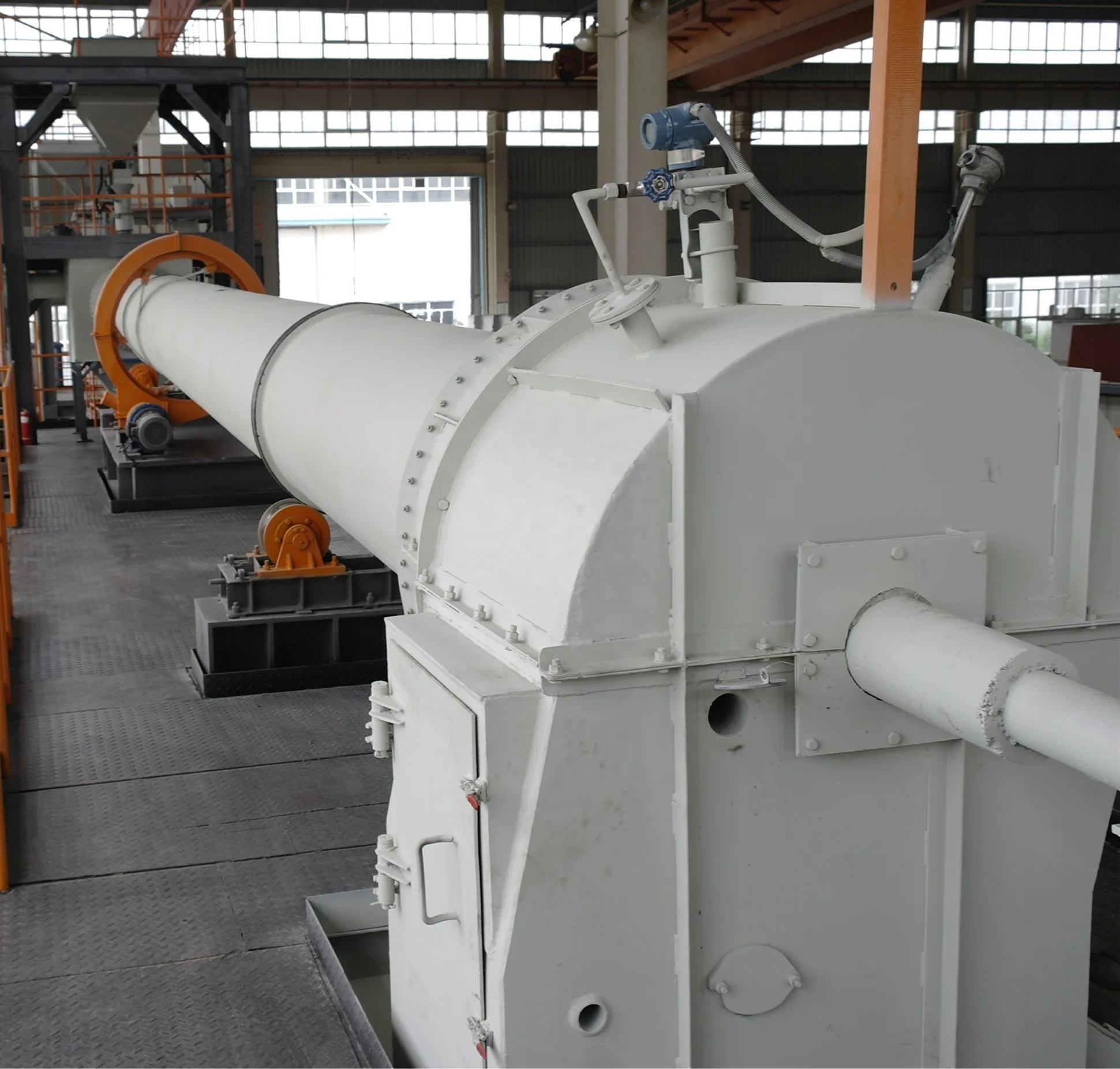

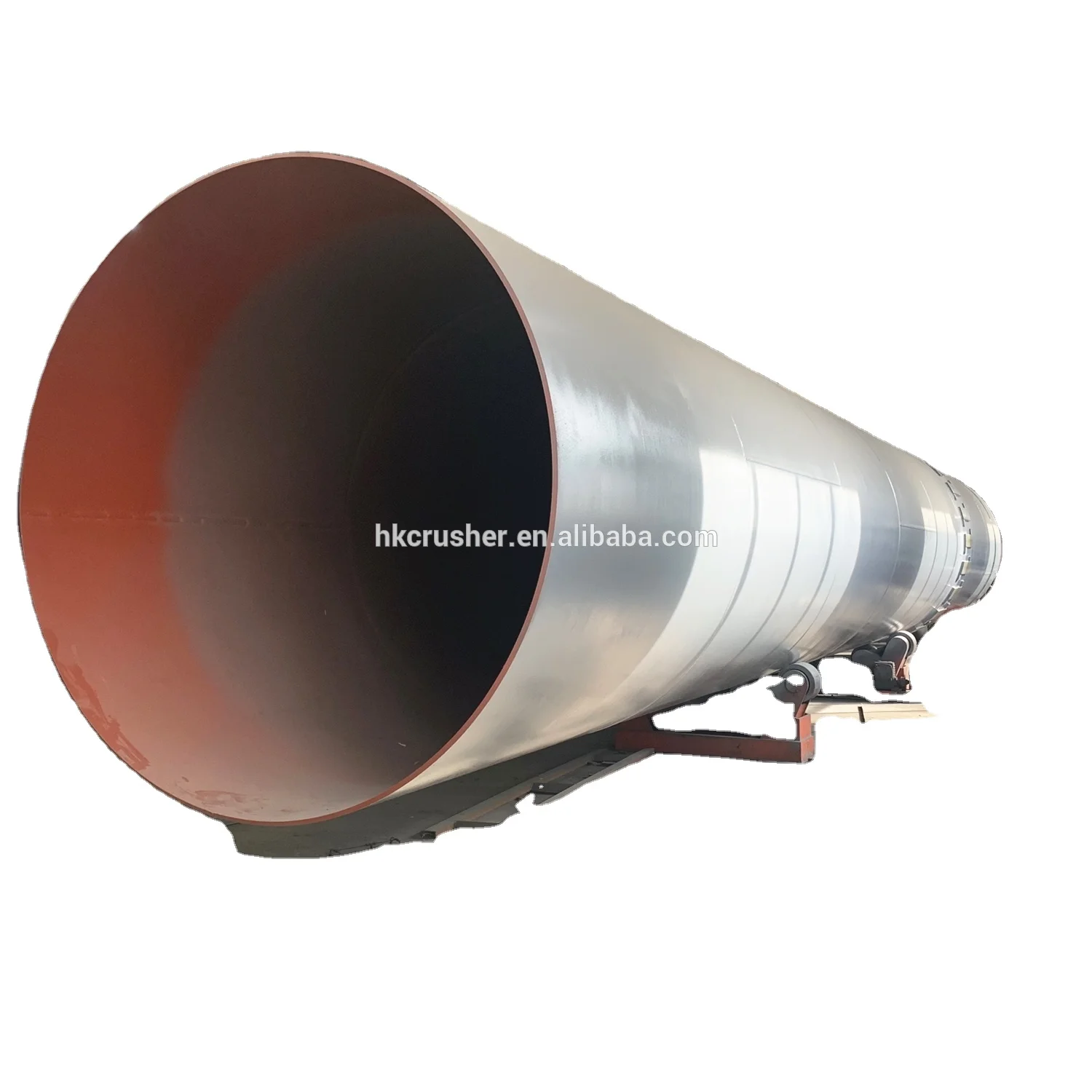

Factory Workshop Pictures
COMPANY PROFILE
Henan Hongke Heavy Machinery Co., Ltd. is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing.
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on, such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill,stone production line, mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you!
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on, such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill,stone production line, mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you!
FAQ
1. What is the minium order quantity?
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foudation drawing, installation service, work training as well as other service according to the
customer's requirements.
4.How long is the delivery time?
About 15 days after we receive the payment.
5. What are the payment terms?
T/T, L/C are the best, it can be adjustable according to different situations.
--------------------------------------------------------------------------------------
Kindly Note:
1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1). Size and content analysis of raw material
2). Capacity ( t/h)
3). Heating Source ( Coal, natural gas or oil)
Upon we got your message we shall give you our favorable offer in short time.
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foudation drawing, installation service, work training as well as other service according to the
customer's requirements.
4.How long is the delivery time?
About 15 days after we receive the payment.
5. What are the payment terms?
T/T, L/C are the best, it can be adjustable according to different situations.
--------------------------------------------------------------------------------------
Kindly Note:
1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1). Size and content analysis of raw material
2). Capacity ( t/h)
3). Heating Source ( Coal, natural gas or oil)
Upon we got your message we shall give you our favorable offer in short time.
Похожие товары
Лидер продаж цементная клинкерная установка Chian с производительностью 300-5000 в день
Хорошая производительность 200 тонн/d цементная Вращающаяся печь Цена клинкерный цементный завод
1 375 836,25 ₽

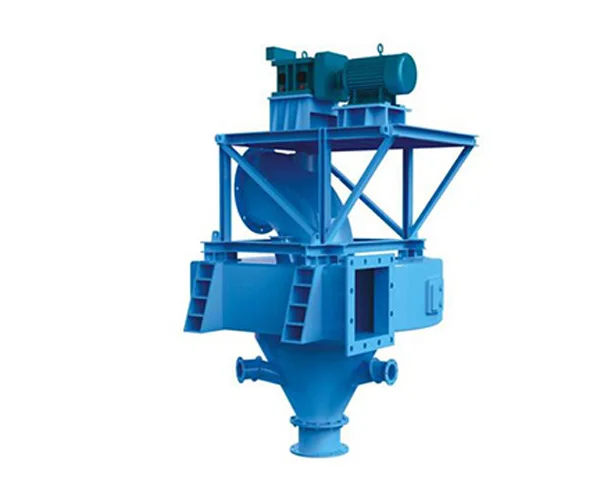

Промышленный коллектор O-Sepa сепаратор мелкодисперсный порошок магнитный воздушный классификатор машина для добычи железной руды тантал ниобий
