1 кВА кВт стойка тип башни онлайн ИБП с ЖК дисплеем однофазный вход/выход чистая Синусоидальная волна длинное резервное питание Промышленное использование

1 кВА кВт стойка тип башни онлайн ИБП с ЖК дисплеем однофазный вход/выход чистая Синусоидальная волна длинное резервное питание Промышленное использование

Категория: Batteries >>>
Поставщик: POWERCOM CO. LTD.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Overviews

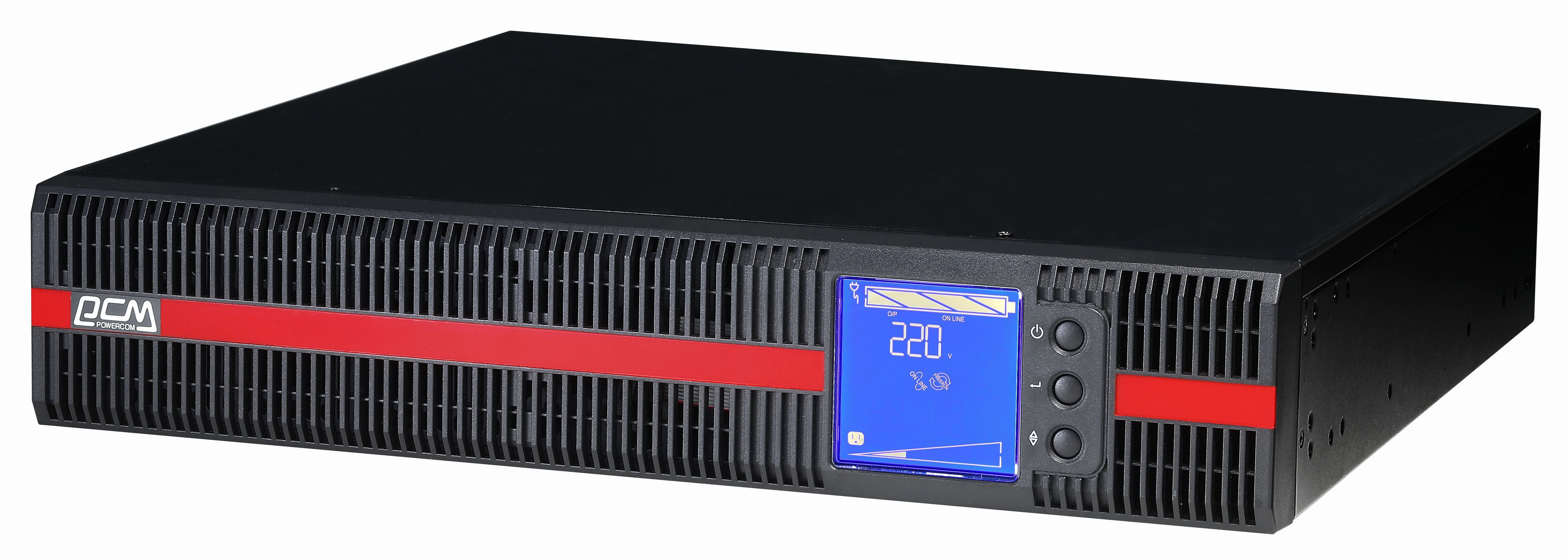

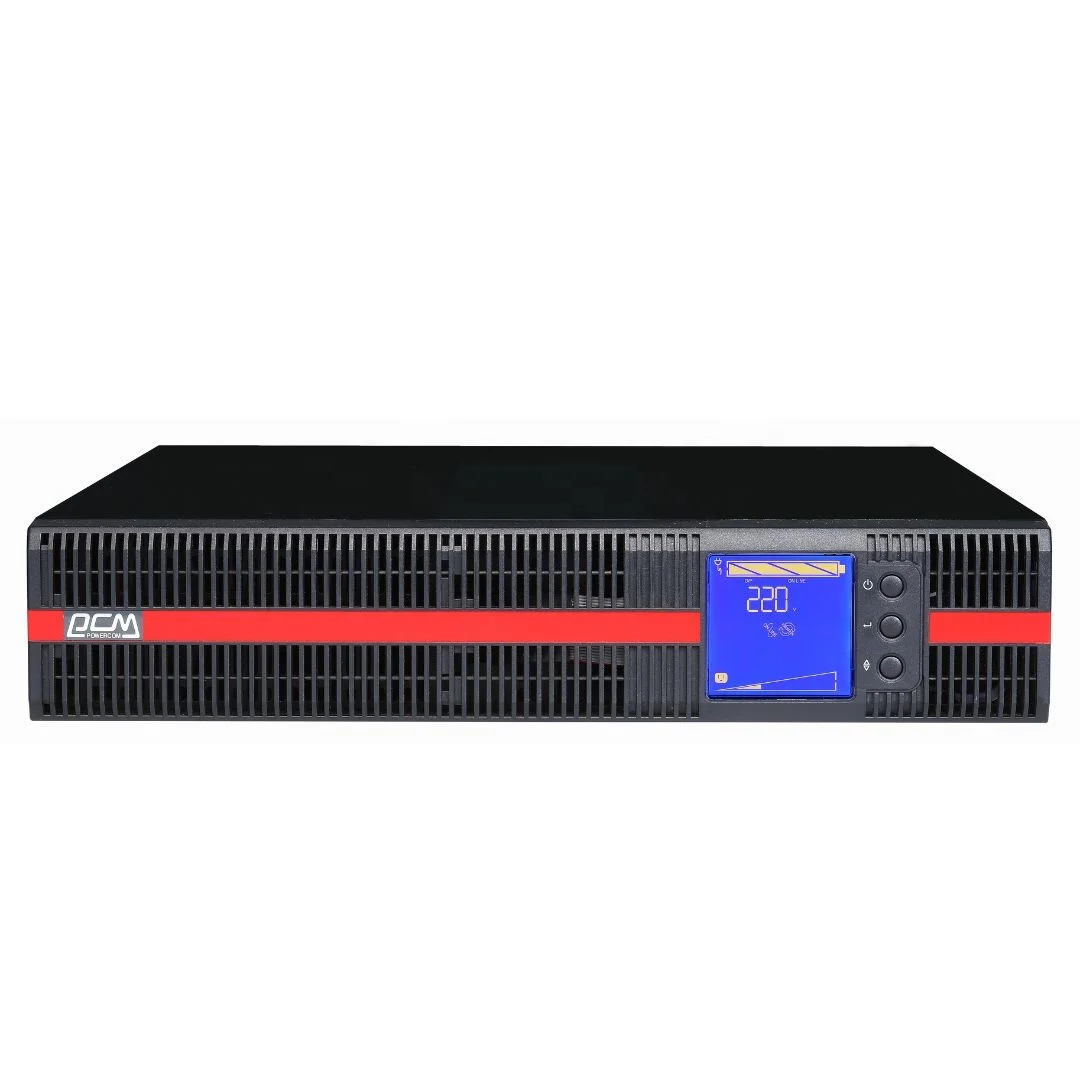

POWERCOM MRT online series output high quality power factor 1.0 current, providing reliable protection and great UPS performance for users. This series is equipped with an auto-self rotated LCD display for clearly informing indications.

In addition, multi-sections fan regulation design for reducing the operating noise. And the UPS management systems are able to schedule UPS program, monitor UPS on-time status by portable device.

MRT UPS is the best choice of safe-guard for server, data center, storage equipment and network equipment.

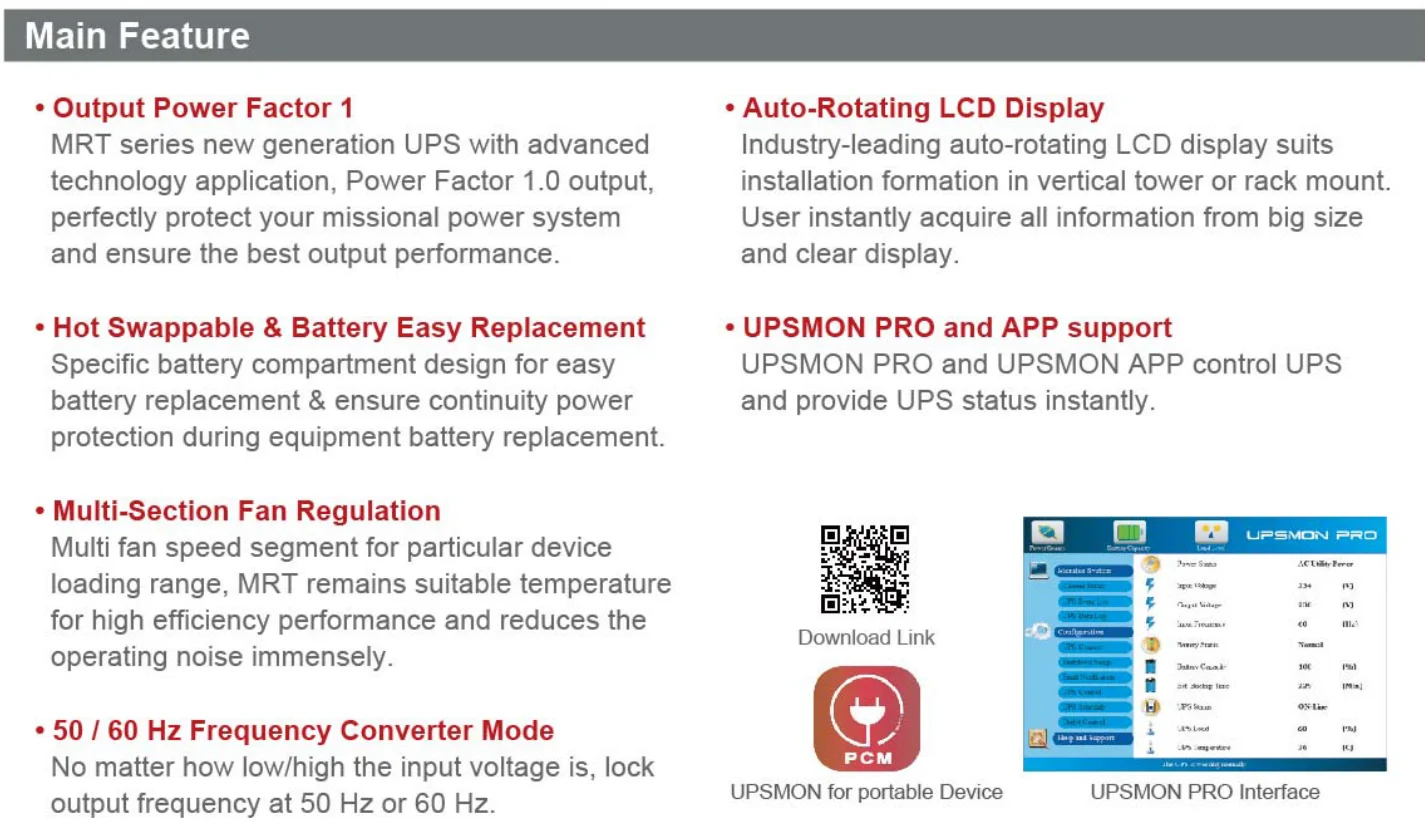

Features:

- Power Factor 1.0

- Pure sine wave output with double conversion technology

- Extremely low THD suitable for delicate instruments

- Diagram LCD with auto-rotation for better user experience

- Hot swappable battery replacement for easy maintenance

- Overload, surge, short circuit protection

Model

MRT-1000

MRT-1500

MRT-2000

MRT-3000

MRT-6000

MRT-10K

Configuration

Capacity (VA)

1000 VA

1500 VA

2000 VA

3000 VA

6000 VA

10 KVA

Capacity (Watts)

1000 W

1500 W

2000 W

3000 W

6000 W

10 KW

Form

Rack and Tower Type

Phase

Single Phase

Energy Saving

Yes - ECO Mode Efficiency >94%

Input

Voltage

100 / 110 / 120 / 127 or 208 / 220 / 230 / 240 VAC

208 / 220 / 230 / 240 VAC

Input Voltage Range

60 - 144 VAC, < 25% Load 120 - 276 VAC, < 25% Load
70 - 144 VAC, < 50% Load 140 - 276 VAC, < 50% Load
80 - 144 VAC, < 75% Load 160 - 276 VAC, < 75% Load

90 - 144 VAC, < 100% Load 180 - 276 VAC, < 100% Load

^{120 - 276 VAC, < 25% Load
140 - 276 VAC, < 50% Load
160 - 276 VAC, < 75% Load
180 - 276 VAC, < 100% Load}

Input Frequency Range

50 / 60 Hz (Auto Sensing)

Input Power Factor

>0.97

Cold Start

Yes

Output

Rated Power Factor

1.0

Waveform

Pure Sine Wave

Voltage

_{100* / 110* / 120 / 127 VAC ± 2% or 208* / 220 / 230 / 240 VAC ± 2%}

^{208* / 220 / 230 / 240 VAC ± 2%}

Frequency

50 / 60 Hz ±0.25 Hz

Transfer Time

0 ms

Harmonic Distortion

≦ 2.5% THD at Linear Load

≦ 3% THD at Linear Load

Crest Factor

3 : 1

EPO Function

Option

Protection

Overload(Line Mode)

105% - 120% for 30 seconds 121% - 150% for 10 seconds

Overload(Battery Mode)

_{101% - 109% for 10 seconds 110% - 120% for 3 seconds}

Surge Protection

IEC 61000-4-5 Level 3

Bypass

Internal Bypass (Automatic and Manual)

Short Circuit Protection

_{UPS Output Cut Off Immediately}

Battery

Type

12V 7Ah

12V 9Ah

12V 7Ah

12V 9Ah

12V 5Ah

12V 9Ah

Intermal Batt.

Yes

Yes

Yes

Yes

External Batt.

External Batt.

Quantity

3

3

6

6

20

20

Sealed, Maintenance Free

_Yes

Typical Recharge Time

4 hr to 90%

External Battery Module

_Option

External Battery Connector

_Option

Management & Communication

LCD Control Panel

Yes

Communication Port

RS 232, USB B type

SNMP Slot

Option

Audible Alarms

Yes

Physical(Power Module)

Dimensions (WxDxH) (mm)

_{428 x 425 x 84}

_{428 x 635 x 84}

Weight (kgs)

14.7

16.2

26.2

29

15.8

20

Shipping Dimensions (mm)

_{546 x 552 x 206}

_{550 x 750 x 220}

Shipping Weight (kgs)

17.5

19

30

33.4

19.6

24

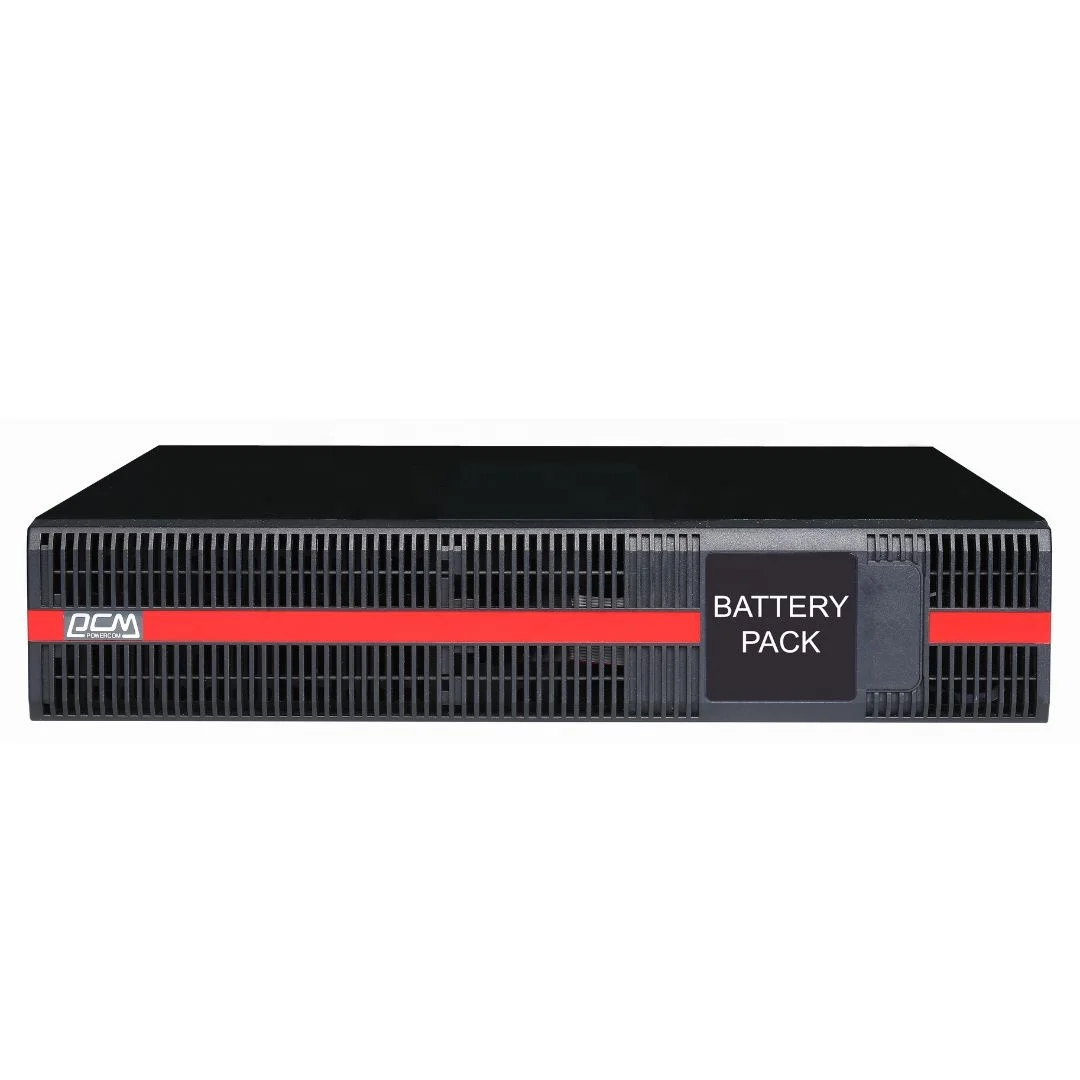

Physical(Batt. Module)

Dimensions (WxDxH) (mm)

_{428 x 425 x 84}

_{428 x 635 x 84}

428 x 635 x 84 (2U)

428 x 657 x 130 (3U)

Weight (kgs)

20.7

37.3

42

68

Shipping Dimensions (mm)

_{546 x 552 x 206}

_{500 x 750 x 220}

500 x 750 x 220

590 x 830 x 370

Shipping Weight (kgs)

23.4

40.8

45.6

83

Company Information

POWERCOM professional UPS manufacture is your power solution.
