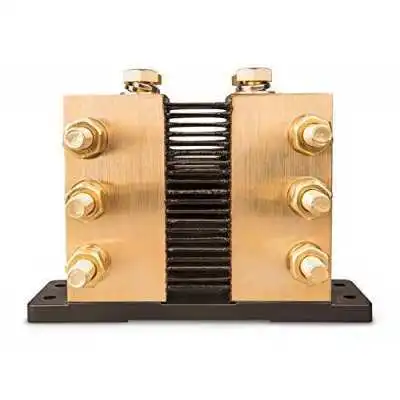

Шунт Victron 6000A/50mV - SHU602050200
294,21 $

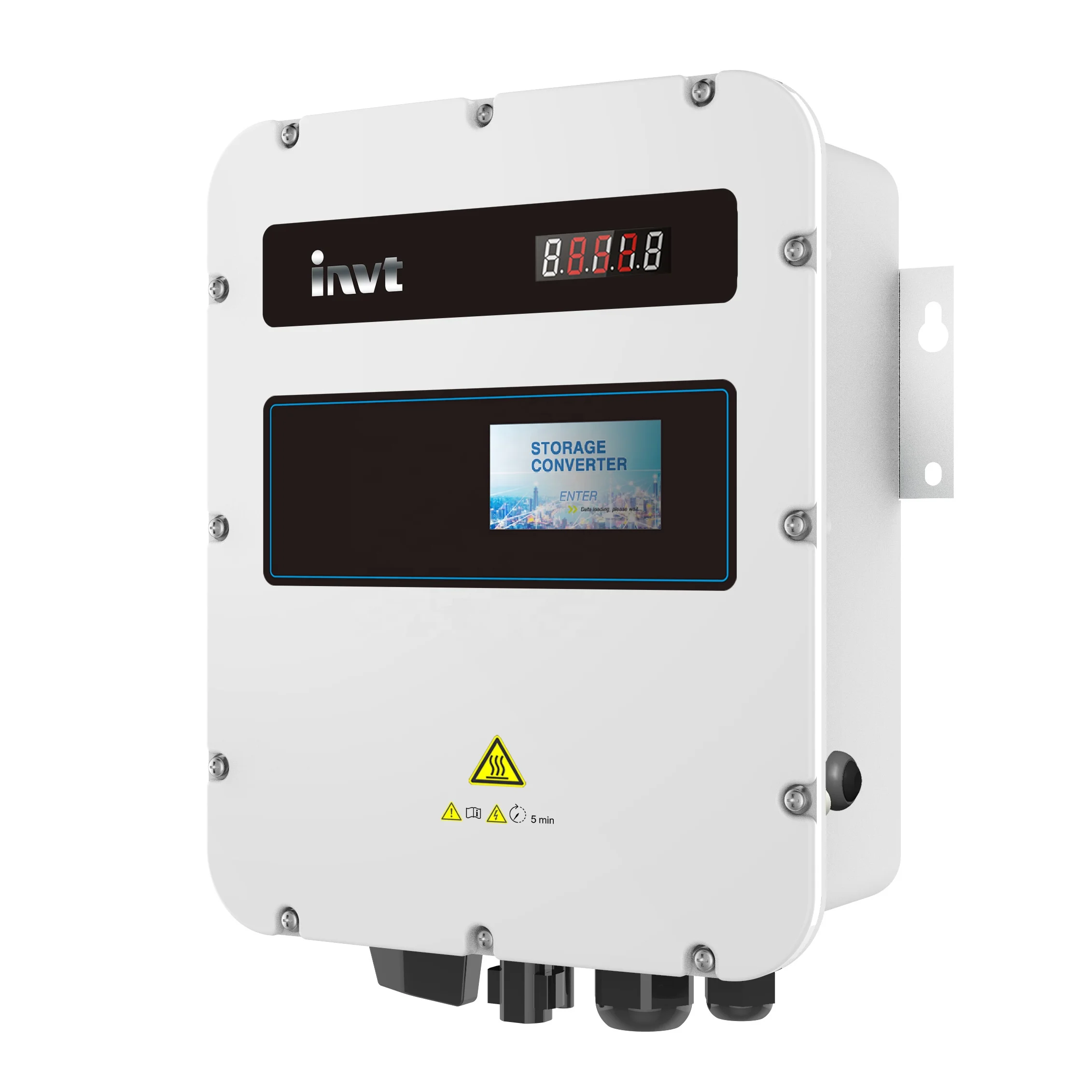

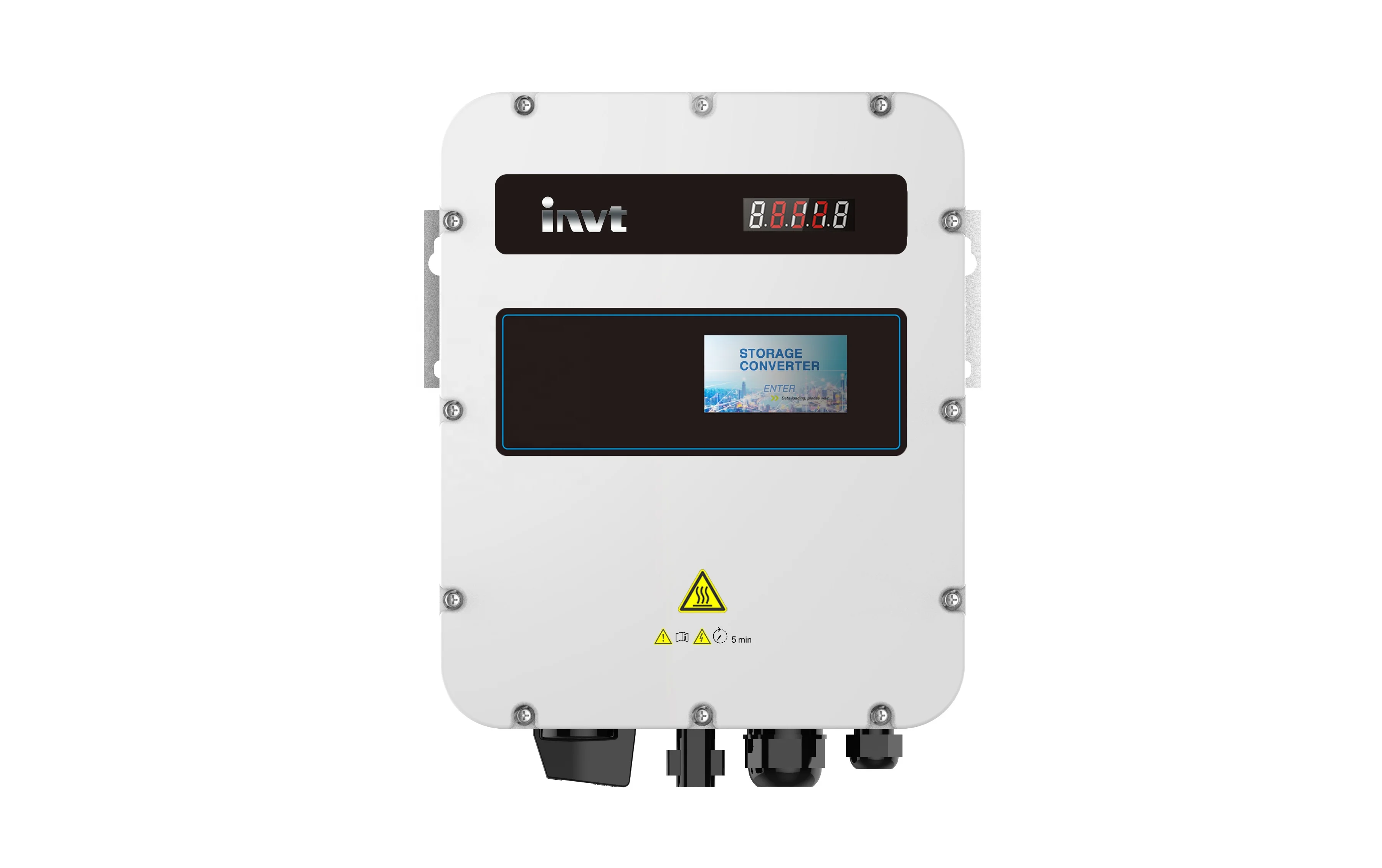

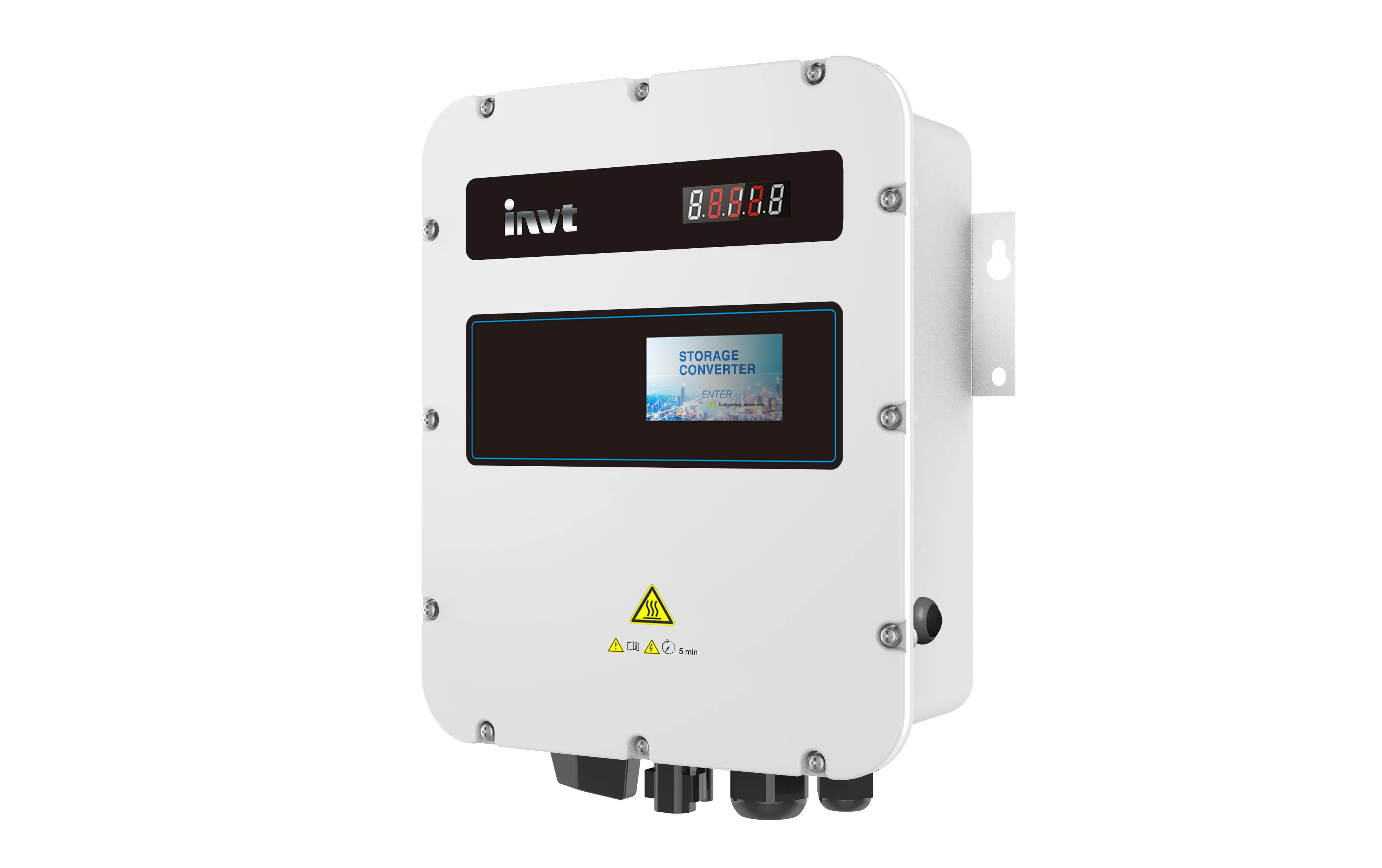

Инвертор частоты INVT SPC Series control 380 В
- Категория: >>>
- Поставщик: Shenzhen Invt Electric Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 10000008372396:
Описание и отзывы
Характеристики
Solar Pumping Controller
Product Introduction
SPC
3AC 220V 2.2kW, 3AC 380V 4kW/7.5kW (DC input only)
1. Advanced MPPT function
2. Protection level: IP65 or IP00 (for SKD)
3. Integrated with GPRS
4. Optional DC switch
5. Multiple protection functions: dry runing, lower sunshine, lightning protection, etc
6. Support multiple types of motors
6. Support multiple types of motors
Technical Specification
Basic characteristics | Input voltage and power(kW) | DC 450V(Max.): 2.2kW DC 800V(Max.):4kW/7.5kW | |
Recommended MPP voltage range | 220V: 200~400V 380V: 300~750V | ||
Support motor type | AM,SM,BLDC | ||
Control mode (Asynchronous motor) | VF/SVC | ||
Overload capability | 120% of rated current: 1 minute 150% of rated current: 10 seconds | ||
Structure characteristics | Installation | Wall mounting | |
Degrees of protection | IP00/IP65 | ||
Cooling method | Natural cooling | ||
Hardware configuration characteristics | Analog input | / | |
Digital input | 2 | ||
Analogue output | / | ||
Relay output | 1 | ||
Communication | RS485 | ||
DC input | Standard | ||
AC input | / | ||
DC/AC input Automatically switch | / | ||
LED keyboard | External LED keyboard | ||
GPRS moduel | Built-in | ||
DC switch | Built-in | ||
Technical features | MPPT efficiency | 99% | |
Water level control | √ | ||
Automatic Hibernation and start function | √ | ||
Protection | Lower-sunshine alarm，Overload/Lower-load protection，Over current protection，Over voltage protection，Water level protection，etc. | ||
FAQ
Q: What is the function of the DC reactor and when should I choose it?
A: The DC reactor is located between the rectifier bridge and the capacitor to reduce the harmonic components in the input current, and reduce the surge current, so it can improve the power factor of the inverter. INVT GD20/GD350 series 18.5~110kW already built-in DC reactors, other series need to be equipped with external ones.
A: The DC reactor is located between the rectifier bridge and the capacitor to reduce the harmonic components in the input current, and reduce the surge current, so it can improve the power factor of the inverter. INVT GD20/GD350 series 18.5~110kW already built-in DC reactors, other series need to be equipped with external ones.
DC joint burn out: it is caused by poor quality of connector or nonstandard construction
Possible causes:
1. If the DC connector is not inserted firmly, the contact resistance of the conductive part of the male and female head is too high, and the current will generate heat and cause ablation and melting;
2. Although the DC connectors of different brands can be inserted normally, the size and tolerance of the connectors will have large deviations, the contact resistance of male and female heads is too large, and the IP protection level is reduced;
3. The male and female head metal pins and pins are not standardized, only a part of the wire core is crimped, or the length of the wire core is not enough, or the wire core is not firmly pressed, or the wire core is wrapped with insulation layer;
4. Part of the project design is not considered properly, and there are some redundant PV panels. The current flowing through the joint exceeds its rated current after the excess PV panels are connected;
5. The construction process is not standardized. After the series connection, the positive and negative poles are reversed, and connected to inverter without polarity detection
Solutions:
1. Improve the electrical safety awareness of the construction personnel, do not pull out the connector during the operation, and fully lock the connector when installation;
2. Strengthen the skill training of construction personnel, use professional tools to improve the quality of male and female pin and pin core crimping;
3. The male and female connectors must use the original connector provided by INVT, and do not mix different brands of connectors;
4. If there are redundant PV panels that need to be connected to other series, it is recommended to consult the technical personnel of the inverter manufacturer first;
5. Before connecting the PV panel strings to the inverter, it is necessary to use a multimeter to measure whether the polarity is correct, whether the open circuit voltage is normal, whether the positive and negative poles are short circuited to the ground, and then connect the inverter if there is no problem;
Possible causes:
1. If the DC connector is not inserted firmly, the contact resistance of the conductive part of the male and female head is too high, and the current will generate heat and cause ablation and melting;
2. Although the DC connectors of different brands can be inserted normally, the size and tolerance of the connectors will have large deviations, the contact resistance of male and female heads is too large, and the IP protection level is reduced;
3. The male and female head metal pins and pins are not standardized, only a part of the wire core is crimped, or the length of the wire core is not enough, or the wire core is not firmly pressed, or the wire core is wrapped with insulation layer;
4. Part of the project design is not considered properly, and there are some redundant PV panels. The current flowing through the joint exceeds its rated current after the excess PV panels are connected;
5. The construction process is not standardized. After the series connection, the positive and negative poles are reversed, and connected to inverter without polarity detection
Solutions:
1. Improve the electrical safety awareness of the construction personnel, do not pull out the connector during the operation, and fully lock the connector when installation;
2. Strengthen the skill training of construction personnel, use professional tools to improve the quality of male and female pin and pin core crimping;
3. The male and female connectors must use the original connector provided by INVT, and do not mix different brands of connectors;
4. If there are redundant PV panels that need to be connected to other series, it is recommended to consult the technical personnel of the inverter manufacturer first;
5. Before connecting the PV panel strings to the inverter, it is necessary to use a multimeter to measure whether the polarity is correct, whether the open circuit voltage is normal, whether the positive and negative poles are short circuited to the ground, and then connect the inverter if there is no problem;
Похожие товары
Самая низкая цена 30 кВт Ac 3 трехфазный водяной насос Солнечный насосный инвертор
Асинхронный двигатель насоса б/у 110 Гц 1.5KW однофазный благодаря солнечной энергии и плавного пуска двигателя функция солнечный инвертор
65,00-74,00 $
Однофазный 220 В AC solar DC вход 3 фазы 380 Выход 5.5KW VFD солнечный насос инвертор
160,00-166,00 $

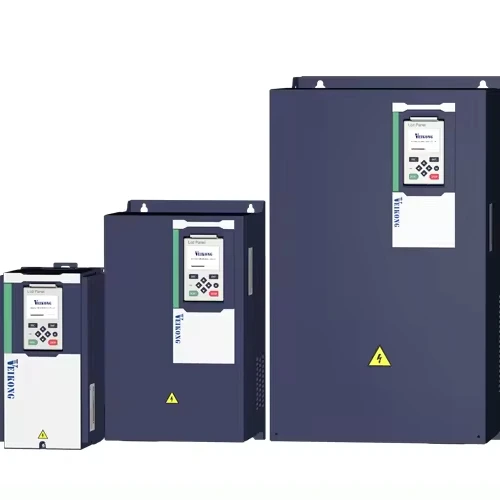

Инвертор VEIKONG солнечный насос инвертор 380 В переменной частоты для солнечной накачки переменного тока
75,00 $
ODM высококачественный 3-фазный 1 5 кВт новый солнечный насос инвертор для водяного насоса 1Hp
47,50-55,00 $
Однофазный трехфазный инвертор 0 75 кВт 1 5 2 4 солнечный насос для насосной системы
120,00 $

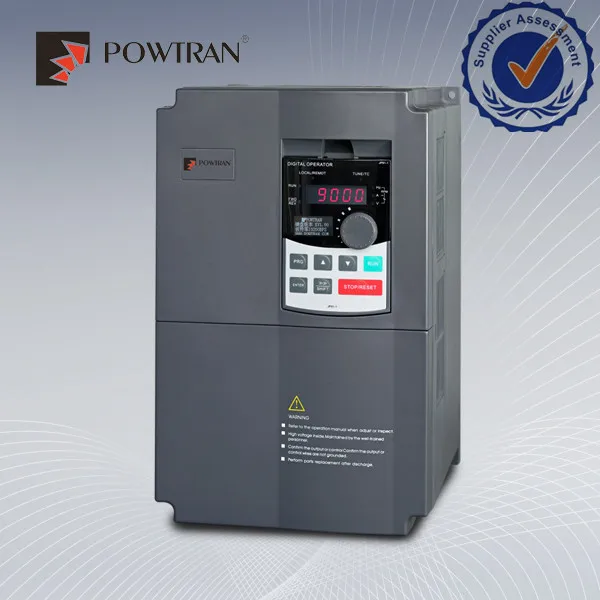

Powtran со слежением за максимальной точкой мощности блок управления водяным насосом на солнечной инвертор 0.75kw 1.5kw 2.2KW 3.7KW 5.5KW 7.5KW 11KW 15KW
