Bolida & Rotex промышленная машина для гранулирования с вертикальным кольцом большой емкости Прямая поставка

New Design Hot Sale Automatic Lubrication Biomass Wood Pellet Machine

Product Item: YGKJ560

Power:132

Pellet Size:6-12mm

Dimension:2200*1280*1640

Weight:5.8t

Product Descritption:

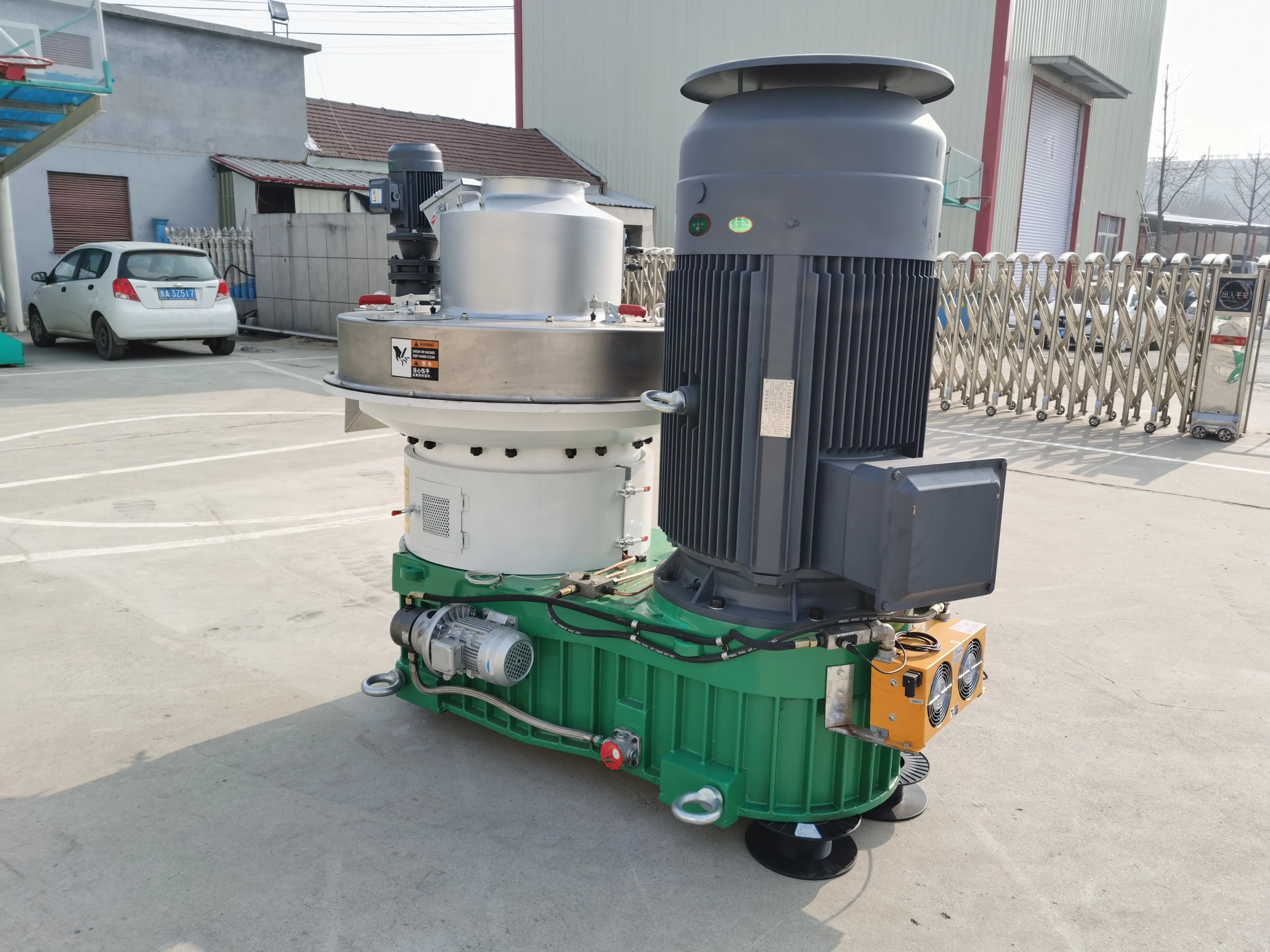

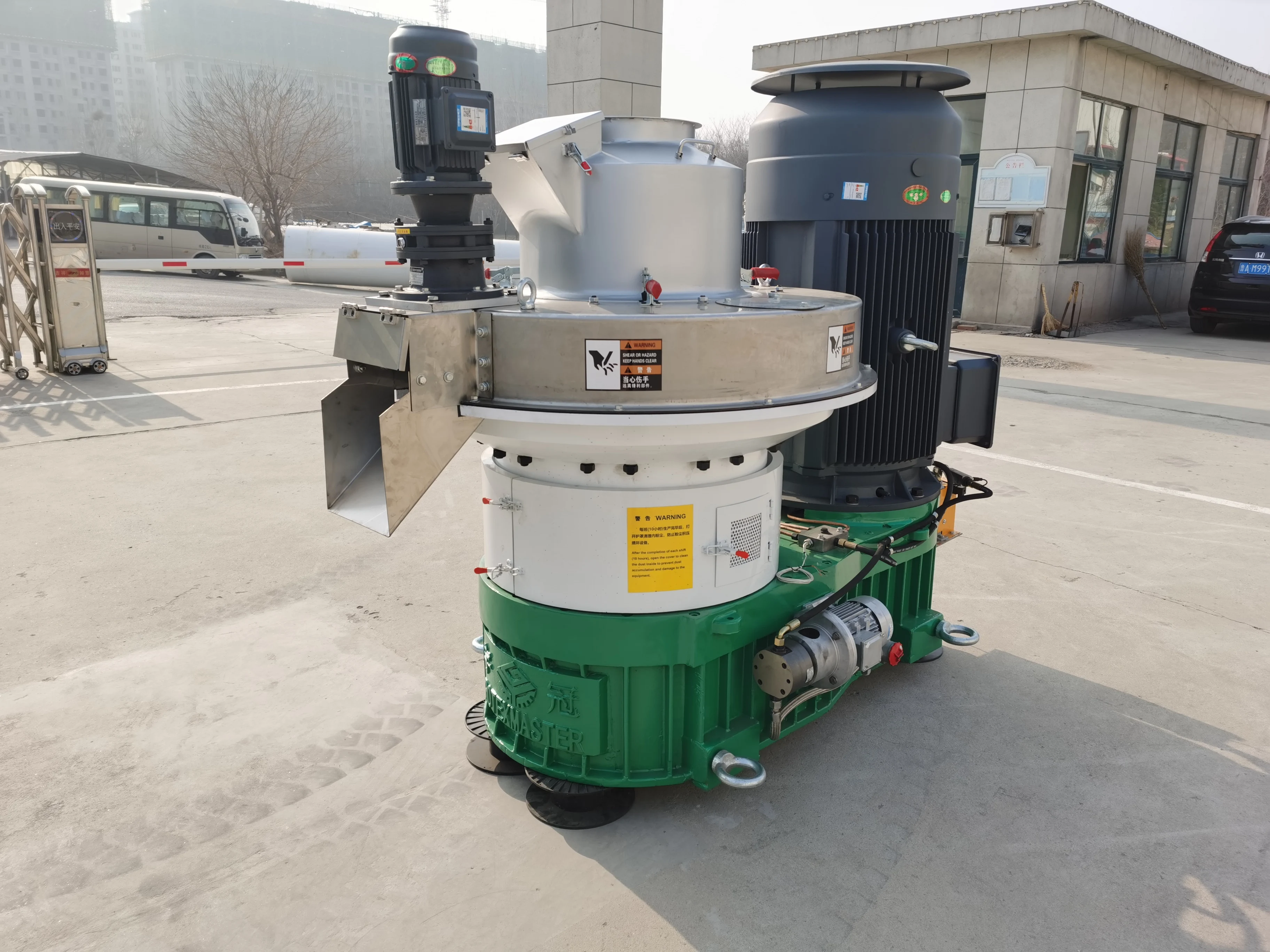

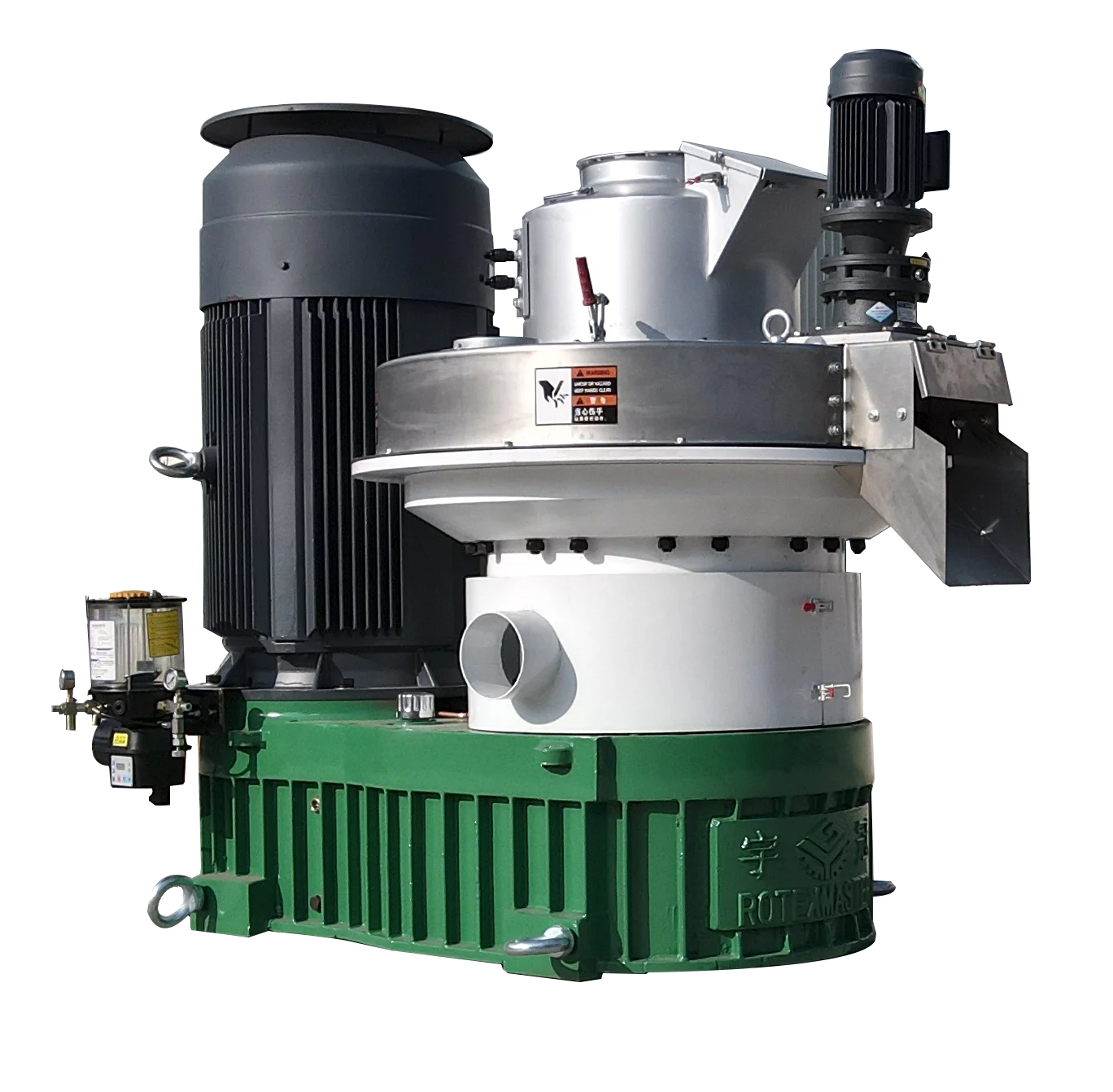

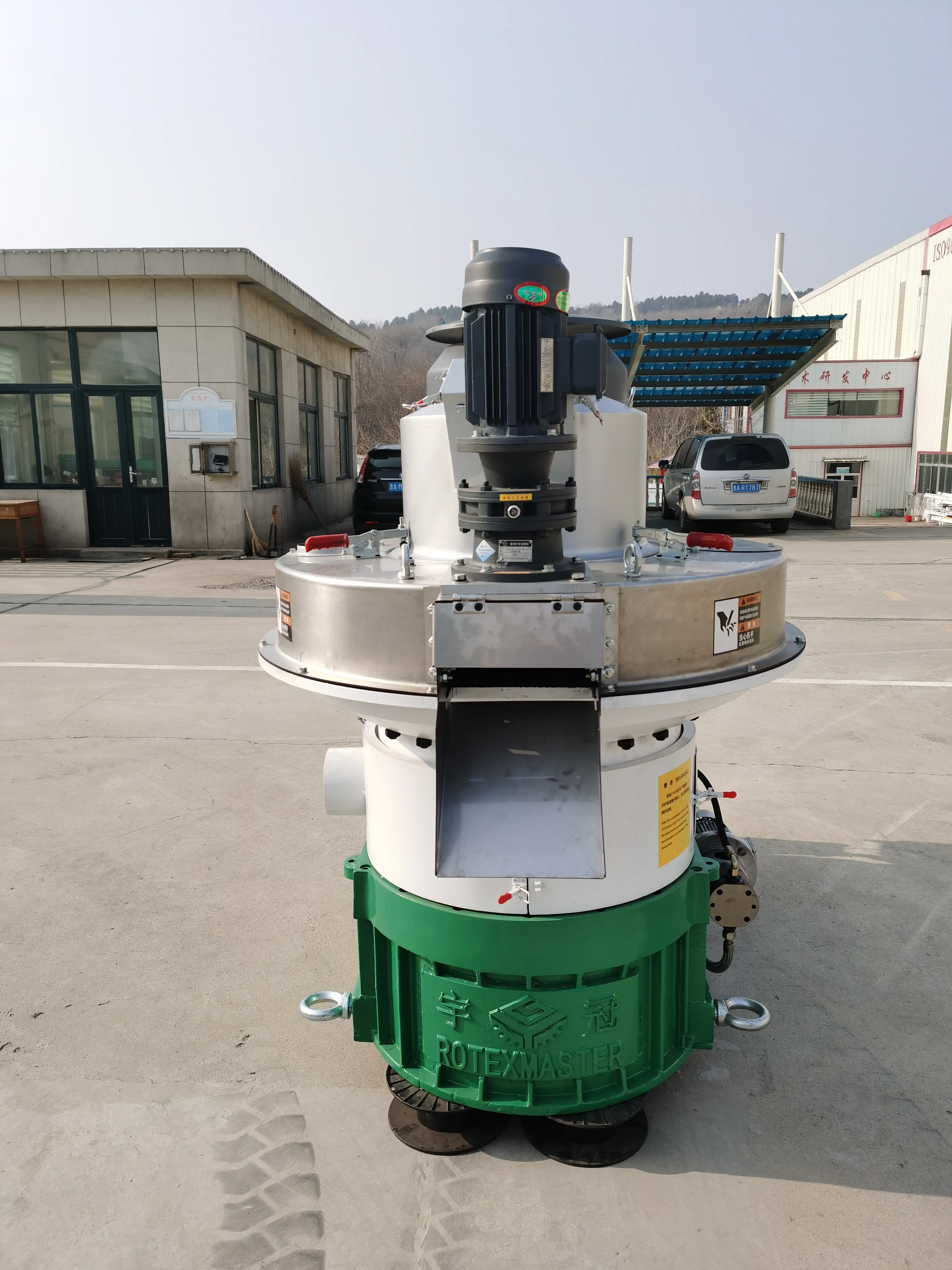

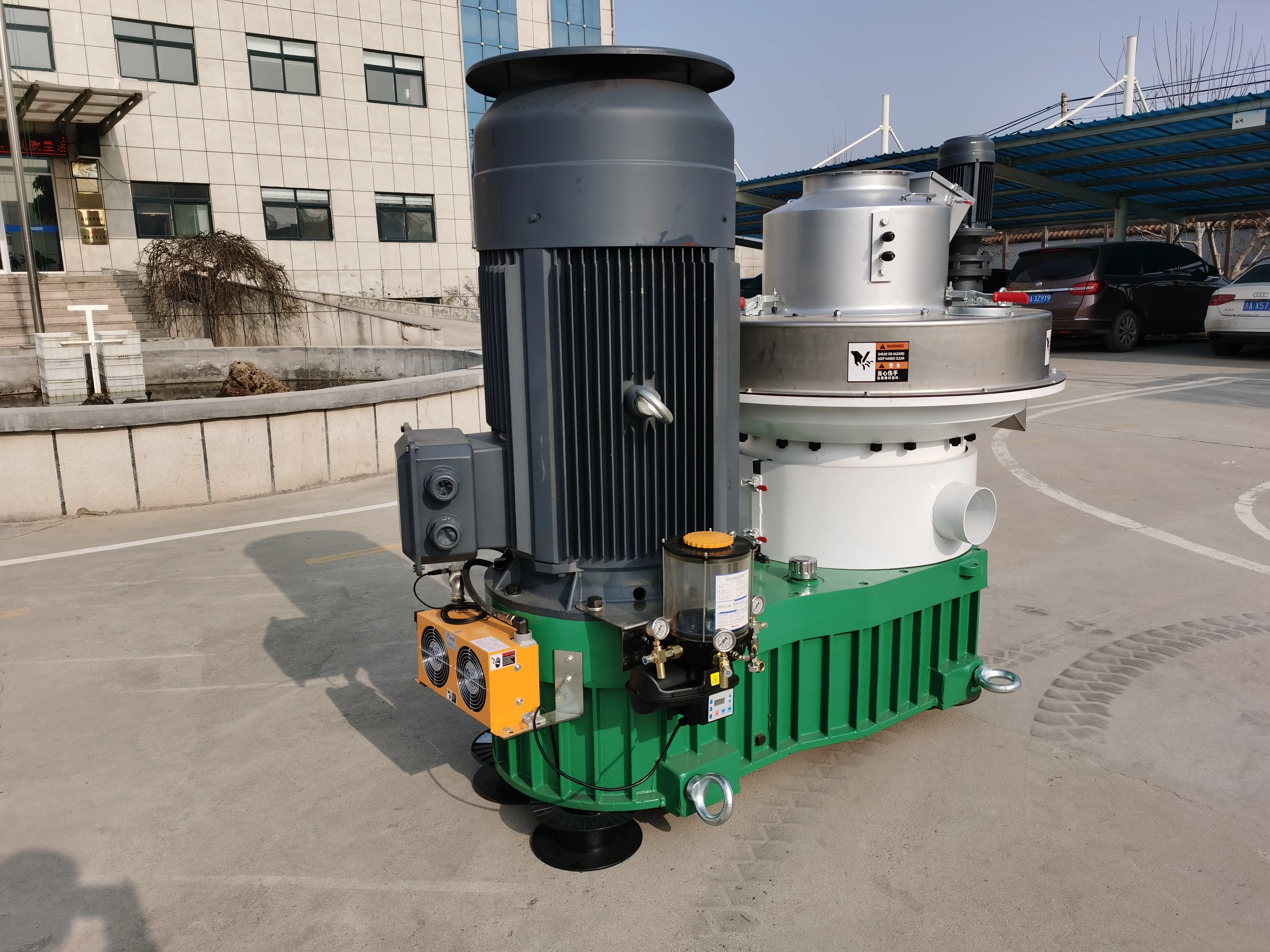

The rotexmaster new generation vertical wood pellet machine(also wood pellet mill) is the latest generation wood pellet machine in China. The wood pellet machine adopts a large modulus hard toothed helical gearbox, strengthened spindle, strong power output, equipment stable operation, low failure rate, low production cost.

Wood pellet machine suitable for: eucalyptus, pine, birch, poplar, fruit, crop straw, bamboo chips, rice husk, waste wood plate, etc

The finished pellets is biomass energy as biofuel, which can replace coal, oil, gas, etc., widely used in power plant, boiler, and heating system.

Advantages of the new generation of wood pellet machine:

1.Parallel vertical installation reduce energy consumption loss

The motor and main shaft of wood pellet machine supplier are parallel vertical installed , which can reduce energy consumption loss in the process of transmission, more output power, higher transformation of energy efficiency.

2. Siemens Brand Motor:

This kind of motor of wood pellet machine is frequency and has thick copper coil, motor of wood pellet maker won’t be burned due to instantaneous current.

3.Casting material of gearbox with high stability

Gearbox shell of pellet press adopts casting with good rigidity, good heat dissipation, Low heat distortion and high stability.

4.High automation, no need to take care

Control panel, tablet computer and mobile APP of wood pellet making machine can be used to monitor the temperature of critical parts and the electric current of the equipment

5.Cooling system of gearbox enhance the internal bearing life

Gearbox Lubricant of the wood pellet machine adopts bypass water cooling system to avoid oil temperature is too high, greatly enhance the internal bearing life.

6. Reducer drive of wood pellet machine strengthen with 3 level.

7. Stainless steel Die of wood pellet machine with high wear resistance and high capacity.

As a biolomass equipment manufacture company, Rotex Machinery always works on the biomass fuel solution, after our R&D longly research, we have worked out a whole pellet production line, and we can provide our custom one-stop service of pellet plant.

In the whole pellet production line, pellet machine is the crucial equipment, all other equipment associated served the pelleting and guarantee the raw material before reach the pelletizing section can meet the request of water content, size request.

Associated Product

Drum Wood Chipper YMPJ216/218/2113  Power 55/110/315kw

 High Efficiency Hammer Mill   YGFS65*55/65*75/65*100   Capcaity 1-2t/2-3t/3-4t

Rotary Dryer YGHG1.2*12/1.5*12/1.8*18/2.0*18/2.2*24/2.5*24/3.0*24

Biomass Burner YSKR45/60/90/120/180/240                           Hot Air Stove YLRL120/240/360/480/600

Counter Flow Cooler YSKLN1.2/1.5/2.5/4/6
