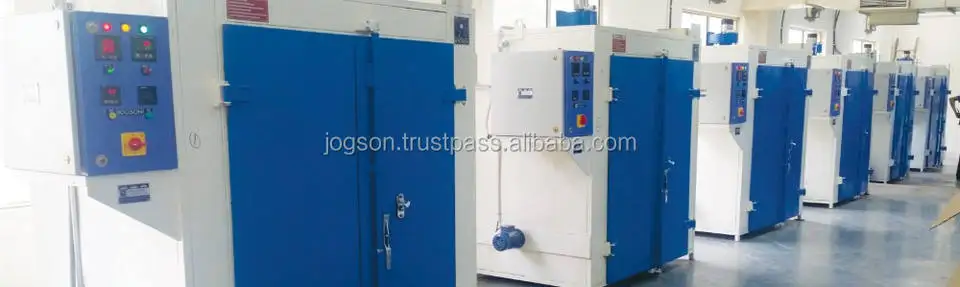

Высокоэффективная машина для сушки горячим воздухом предназначенная почти всех типов натуральной и искусственной пряжи изготовленной в Индии

Construction : Exterior is made of fully insulated mild steel square pipe and covered with mild steel sheet with powder coated paint finish. Interior, the insulation is covered with galvanized sheet duly coated with high temperature resistant coating.

Insulation : All sides of drier cabinet are fully insulated with 50 mm thick glass wool for preventing Heat Loss / Heat leakage.

Doors : Front open able hinged doors, insulated with 50 mm thick glass wool & door are lined with silicon rubber gasket for preventing any heat loss.

Locking : In case of single door cabinet, spring and roller type latch is provided & in case of double door cabinet, container type rod locking assembly is provided for effective secure seal.

Air Circulation : Forced air circulation is done by specially designed re-circulation blowers fitted inside the drier for better uniformity of temperature inside the chamber.

Ventilation : Very efficient electric De-humidifier operated with digital timer is provided along with adjustable manual air damper.

Heating : Various heating methods are offered as per the requirement such as electric heating, heating by thermic fluid or steam with fin type heat exchanger.

Carrier Trolley : For loose hanks carrier trolley is provided with aluminum hanger for hanging the hanks. Removable trays are provided for drying loose fiber and trims. Creel type trolley is provided for drying cones and bobbins. Drier is designed with foldable ramp for loading/unloading the carrier trolley.

Automatic Power Control Panel : Equipped with JOGSON Temperature Programmer TPR-14 which controls up to 8 programs with battery backup, blower fan On/Off, rate of temperature rise, hold time, operator call and memory retention in case of power failure.

Long way back, in 1985, JOGSON moved its hands to touch the soul of threads around them. From then, there is no looking back.

In the last three decades, JOGSON has contributed relentlessly to design and manufacture high quality, cost-effective & reliable machines for yarn dyeing, conditioning, laundry and drying.

Riding on intensive Research and development programme, JOGSON is dedicated to improvise existing machines, their manufacturing process with latest equipments and instrument, adopting innovative technologies for better sustainability and providing impeccable service and support.

The JOGSON group abides to International Standards of quality control and safety in every step of design, manufacturing and assembly. All machines are in compliance with local technical regulatory authorities. Certifications like CE, TUV, ASME, IBR are provided according to customer's requirement.

Further more, JOGSON operates under the standards of ISO 9001 since 2000.
