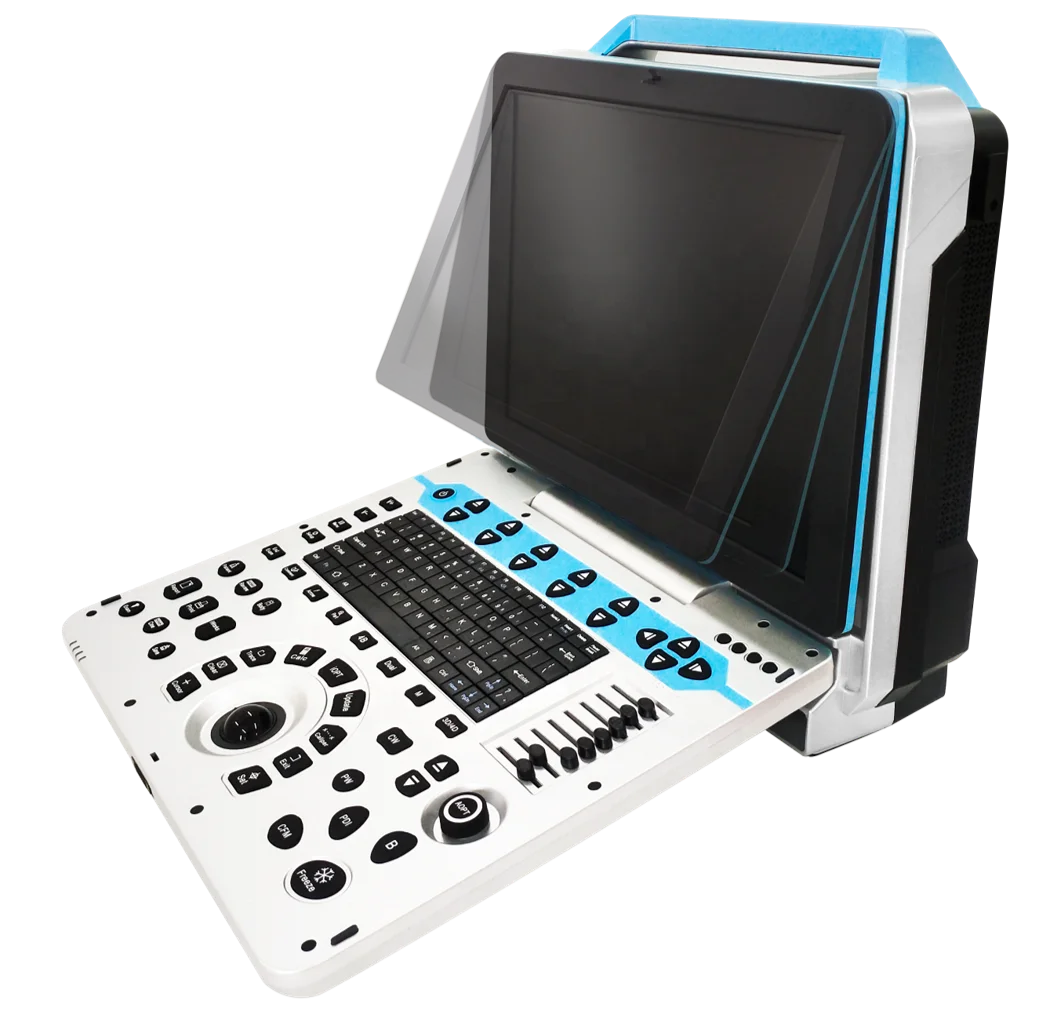

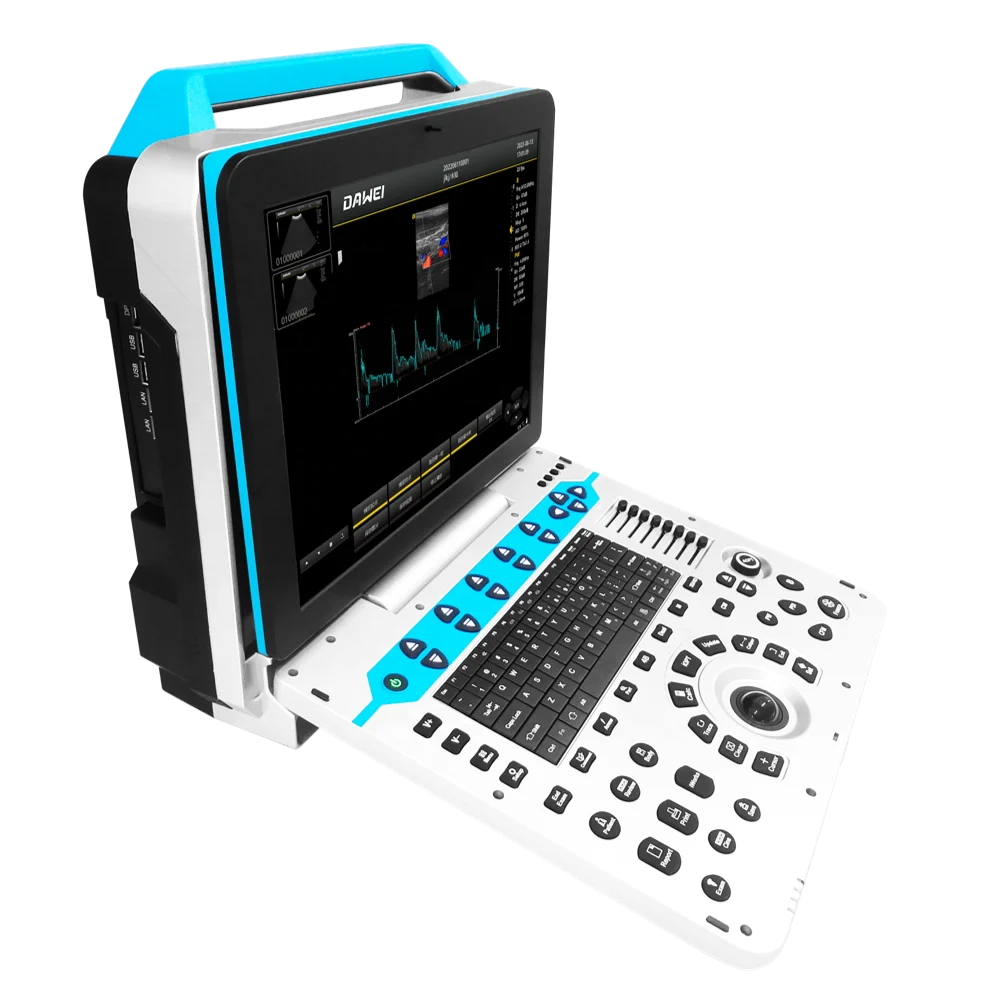

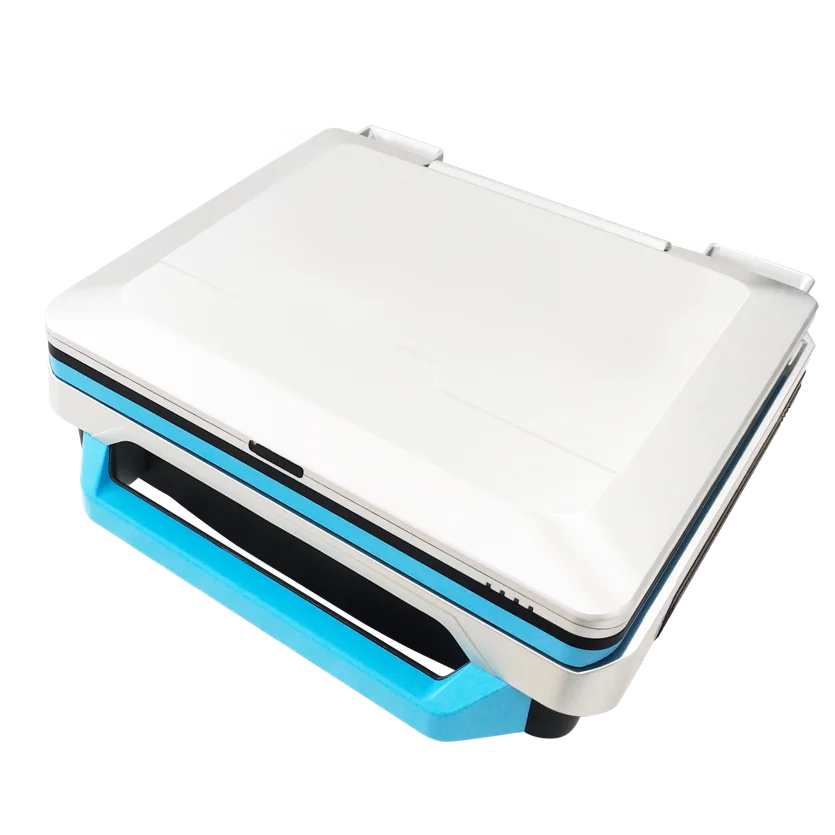

Портативная Высококачественная сердечно сосудистая ветеринарная ультразвуковая система

Портативная Высококачественная сердечно сосудистая ветеринарная ультразвуковая система

Категория: >>>
Поставщик: Dawei Veterinary Medical (Jiangsu) Co. Ltd.Dawei Ltd.

Цена:306 077,94-510 197,94 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Application:

It's applicable for animals' examination and diagnosis on digestive system,
reproductive system, urinary system for animal hospitals and scientific institutions.

·Tissue Harmonic Imaging (THI)

·B/C real-time split screen mode

·Spatial Compound Imaging
·Color Doppler Imaging (CFM, TDI, PDI) ·Spectral Doppler Imaging (PW, HPRF PW, CW) ·Gain: 0-100, Step 1 adjustable
·Four-dimensional Supersonic Image Formation

·Color Frame correlation: 0-12, 12 levels adjustable

·Presettable Conditions:Preset optimal image inspection conditions to reduce adjustment during operation.

·One Key Smart Optimization

Probe Options

CONVEX PROBE

Used for abdominal organs and pregnancy examination of pigs, sheep and large dogs.

MICRO-CONVEX PROBE

Used for abdominal organ and pregnancy examination of cats and small and medium-sized dogs.

LINEAR PROBE

Used for abdominal organs, musculoskeletal and subcutaneous tissues of small animals.

RECTAL PROBE

Used for pregnancy check and reproductive system of cattle and horses.

BACK FAT PROBE

Used for back fat and muscles of pigs and cattle.

PHASED ARRAY PROBE

Used for cardiac diagnosis.

Imaging

Micron imaging technology

Micron imaging technology, real-time tracking of specific signals at the edges of different tissues, to achieve edge enhancement, and monitor each pixel at the same time; optimize the internal signal of the organization and perfectly integrate the edge information and the internal pixel information of the organization to restore the real and delicate, excellent level contrast Two-dimensional image.

Harmonic imaging technology（THI）

It improves image clarity by improving tissue contrast resolution, spatial resolution, and eliminating near-field artifacts. It is mainly used for the diagnosis of cardiovascular and abdominal diseases. It plays an important role in evaluating the lesion area and boundary division of patients with imaging difficulties. The technology has been fully approved by clinicians. Harmonic technology retains the second harmonic signal to the greatest extent based on removing the fundamental signal, which increases the signal strength by more than 30% compared with the traditional signal processing, reduces noise and artifacts, and improves the contrast resolution of tissue images.

Trapezoid imaging

rapezoid imaging is a kind of expanded imaging, which is transformed into a trapezoid based on the original rectangle, and the left and right sides are expanded to a certain extent, achieving a wider field of view.
The principle of ultrasound imaging is to scan the human body with ultrasonic sound beams, and obtain images of internal organs by receiving and processing the reflected signals.

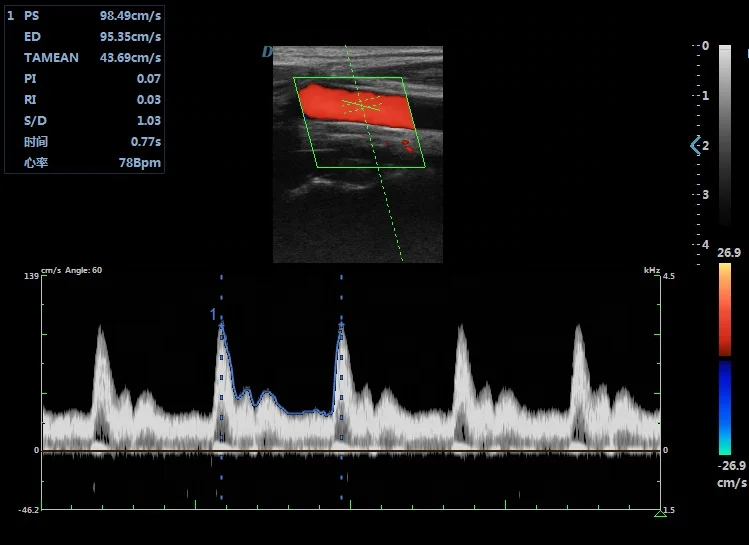

Automatic spectrum tracking measurement technology

Ultrasound Doppler technology is used in the ultrasound system for examining the heart and arteries and veins. It is necessary to extract relevant parameters from the Doppler spectrogram to evaluate the hemodynamic status of the heart and blood vessels. The disadvantage of manual detection is that the operator's marking of the peak velocity is relatively monotonous and time-consuming, with poor repeatability and low estimation accuracy; and during the detection, in order to mark the peak velocity, the operator needs to interrupt the acquisition of Doppler signals, which makes it impossible to estimate in real time.
This host contains an automatic envelope detection module, which can automatically track the time-related changes of the peak blood flow velocity and average velocity, and display them in real time on the Doppler spectrogram.

Weight	8600g
Size	376.7166.7386.4mm
Interface	4USB, 1Audio, 2RJ-45, 1HDMI, 1*DP
Display	15-inch medical display
Display mode	B, BB, 4B, M, BM
Color doppler display mode	B/C, B/C/M, B/POWER, B/C/PW

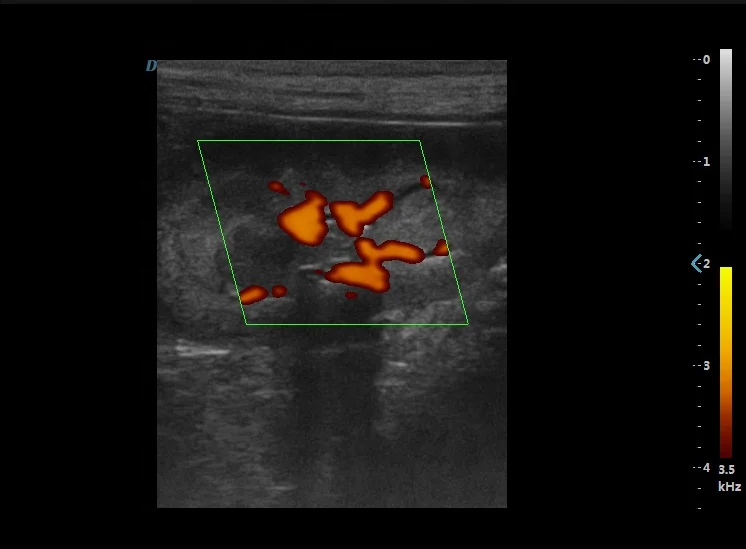

Imaging	Coherent Contrast imaging（CCI） B/C/D Real-time three synchronous imaging Power Doppler imaging（PDI） Direct power Doppler imaging（DPDI） Tissue Doppler imaging（TDI） Strain rate imaging (SRI)
Language	中文, English, français, Русский, Español
System	Win 10
Obstetric measurement	Bovine(BTD, BUD), Equine(EGSD, ESD), Swine(HLA, SLA), Ovine(SCRL), Canine(HD, BD, GSD, CRL), Feline(HD, BD)

Packing & Delivery

Standard configuration

machine (including one lithium battery);

one probe;

one operation manual;

one adapter;

one aluminum suitcase.

Company Profile

Dawei Medical (Jiangsu) Co.,Ltd. is a professional manufacturer of Full Digital Veterinary Black and White Ultrasonic Scanner, Veterinary Full Digital Color Doppler Ultrasound System, Veterinary Patient Monitor and Veterinary Digital X-ray, which focuses on R&D, Production and Marketing.Dawei was founded in 2006 and built the manufacturing basement in Xuzhou Dawei Ultrasound Industry Park, and also have two R&D centers in Shanghai and Shenzhen.
After more than 10 years, Dawei has developed into a leading domestic manufacturer of High-tech Ultrasound Equipment. Now our products are sold to more than 30 domestic provinces and exported to over 160 countries and regions."Profession creates more splendidness." Dawei has met the standards of ISO13485, received CE certification, and also gainedvarious of invention patents and software copyrights.

Dawei Pet Medical (Jiangsu) Co., Ltd. is a holding subsidiary of Dawei Medical. Dawei Pet Medical (Jiangsu) Co., Ltd. is committed to the production, research and development and marketing services of animal medical equipment. Products include: veterinary ultrasound, veterinary DR, veterinary monitor, veterinary electrocardiograph, animal husbandry medical equipment, etc.

Production Line

Matherboard

Probe Assembly

Warehouse

Certifications

ISO

FAQ

Which organs can be diagnosed by P5-VET?

It's applicable for animals' examination and diagnosis on digestive system, reproductive system, urinary system for animal hospitals and scientific institutions.
How long can it be used for a full charge？
It can be used for four hours when fully charged.
What is the waterproof rating of probe?
IP7(soaking-proof)
What is the warranty？
Two-year free warranty, lifetime paid warranty.
What kind of technical support is provided？
We provide online technical support, all your problems are solved satisfactorily.
