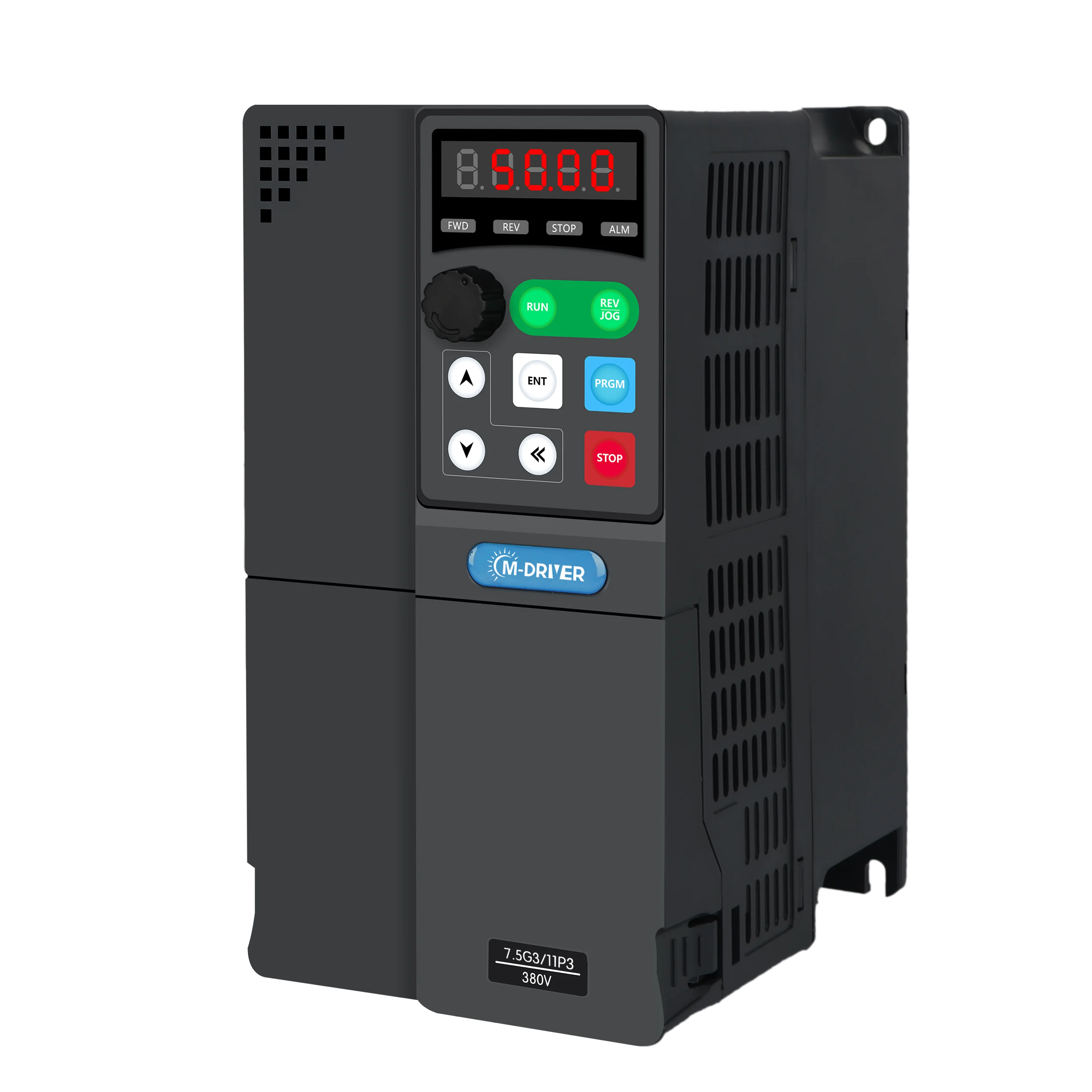

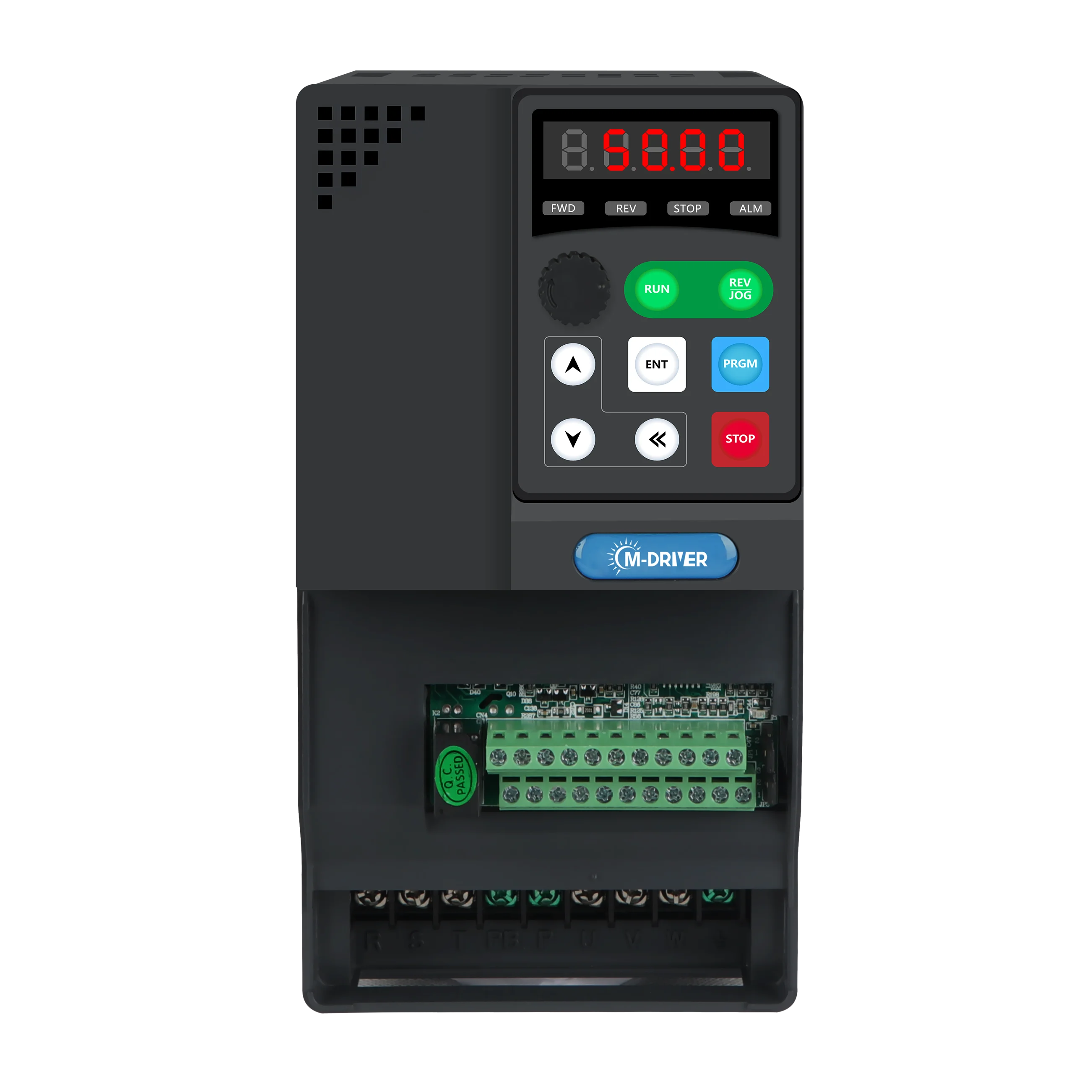

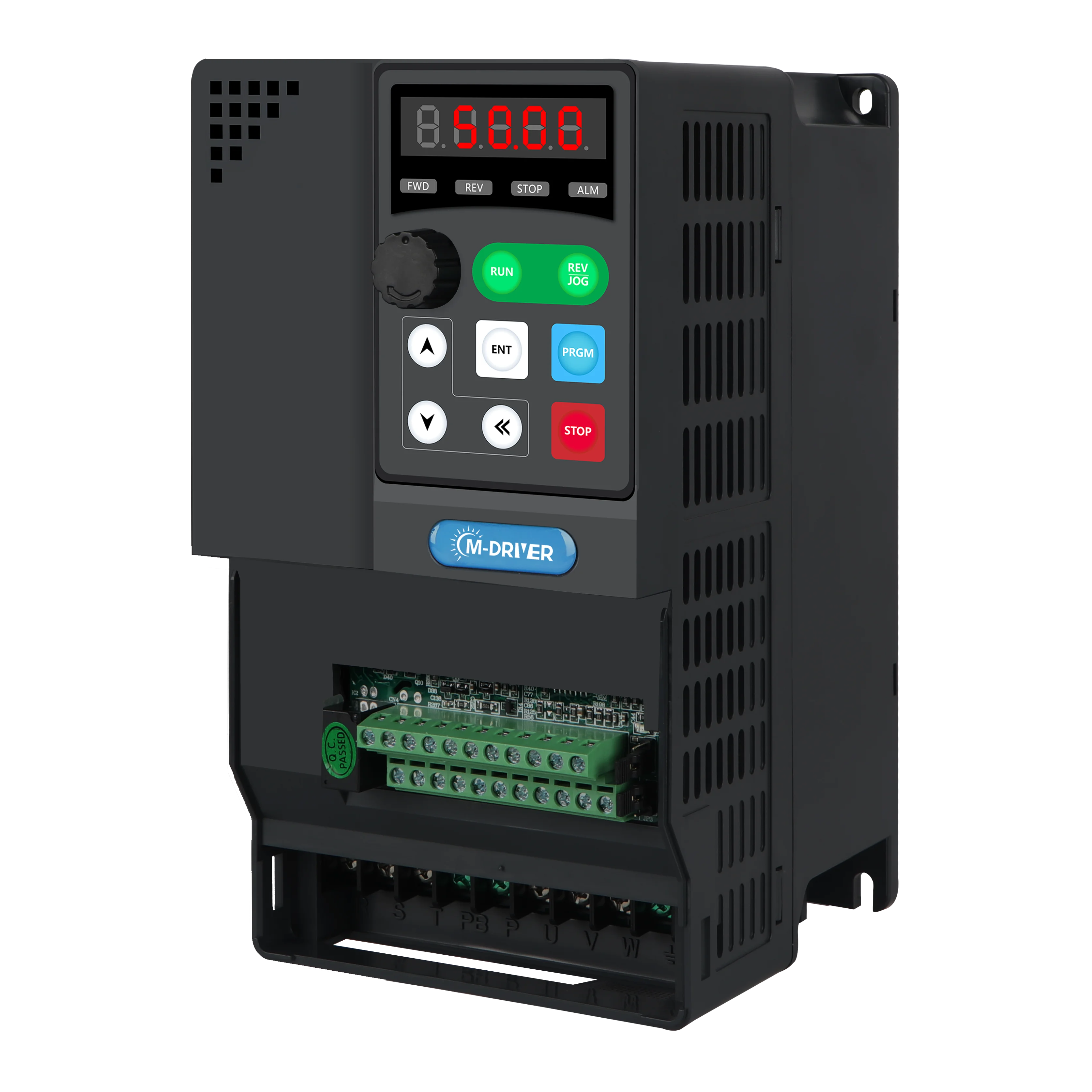

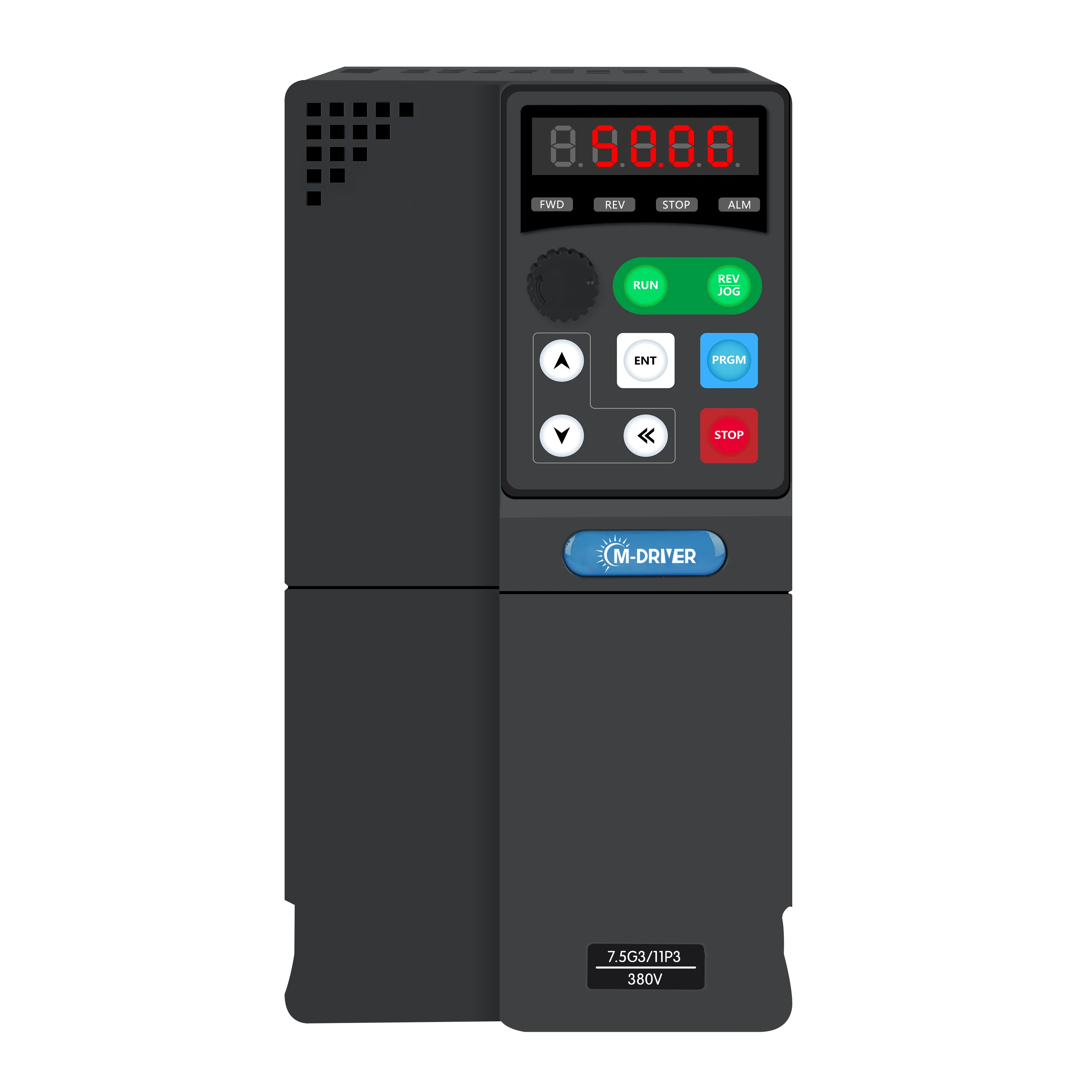

PV500 серии 3 фазы солнечный инвертор водяного насоса 4kw 5.5kw 7.5kw С Гибридный ac/dc вход
- Категория: >>>
- Поставщик: Shenzhen M-Driver Technology Co. Ltd.
Сохранить в закладки 10000008956192:
Описание и отзывы
Характеристики
Product Description
Model | PV500-0055G3, PV500-0075G3 |
Input voltage | 250V~800V DC, 3PH 380V AC |
Output voltage | 3PH 0~380V AC |
Output frequency | 0~500Hz(0~50hz in default) |
Recommended VOC input | 650V~750V DC |
Recommended power input | 1.5~2 times the power of the pump |
Recommended Solar panel array | 500W, 50V voc solar panel 13x2 |
PV500 series inverters solar pumping inverter
M-driver Power solar pumping system consists of solar pumping inverter, pump and PV array. Consider that storing water is more efficient than storing electricity, the system is designed to directly drive the pump without battery which can reduce the construction and operating cost and routine maintenance effectively.
Solar pumping inverter can implement the control of the whole system operation, which drives the pump by converting DC power produced by the PV array to AC power. This inverter can adjust the output frequency according to the solar irradiation intensity in real time to implement the MPPT (maximum power point tracking).
Solar pumping inverter can implement the control of the whole system operation, which drives the pump by converting DC power produced by the PV array to AC power. This inverter can adjust the output frequency according to the solar irradiation intensity in real time to implement the MPPT (maximum power point tracking).
Features
1.Broad voltage and power range is supported
0.75kw to 110kw (220Vac) , 0.75kw to 630kw (380V~480V ac)
2.Easy to use, just plug and work
3. Multiple protective measures
PV polarity reverse warning, auto derating against over temperature
4.Advanced MPPT algorithms
tracking the PV array output by maximum power point
5. Supports AC&DC input
The system is powered by the solar panels regularly. When the sunlight is not good, the system can also be powered by AC grid
6.Dry run protection
If there's no water in the ground, the water pump will stop working automatically and when the water comes, the system starts to work automatically
7. Auto sleep&Wake:
The pump will slow down automatically when the sunlight is weak , and it will sleep and wake automatically as the sunlight is strong
8. Smart water level control
The water level in the tank can also be controlled . The inverter will sleep when the water level is above maximum water level and it will wake up automatically when it's under the minimum water level.

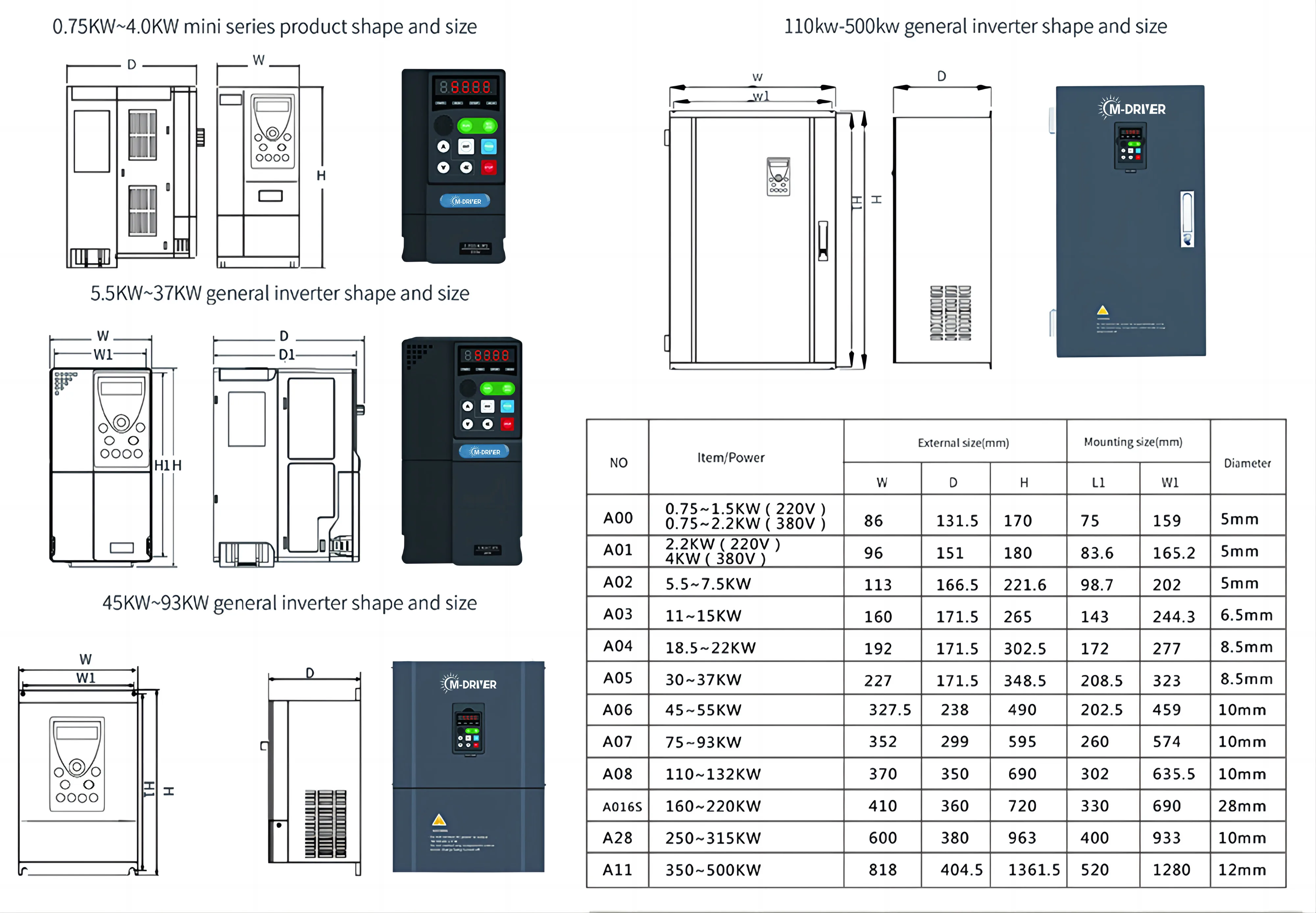

Type | Drive motor | Power capacity | Input current | Output current | Shape case | |||||
KW | HP | A | A | |||||||
Single-phase power supply :220V ,50/60Hz | ||||||||||
PV500-0007G1 | 0.75 | 1 | 4.2 | 4 | A00 | |||||
PV500-0015G1 | 1.5 | 2 | 14 | 7 | A00 | |||||
PV500-0022G1 | 2.2 | 3 | 23 | 10 | A01 | |||||
Three- phase power supply: 220V, 50/60Hz | ||||||||||
PV500-0040G2 | 4 | 5 | 18.1 | 16 | A02 | |||||
PV500-0055G2 | 5.5 | 7.5 | 28 | 25 | A03 | |||||
PV500-0075G2 | 7.5 | 10 | 37.1 | 32 | A03 | |||||
PV500-0110G2 | 11 | 15 | 49.8 | 45 | A04 | |||||
PV500-0150G2 | 15 | 20 | 65.4 | 60 | A05 | |||||
PV500-0185G2 | 18.5 | 25 | 81.6 | 75 | A05 | |||||
PV500-0220G2 | 22 | 30 | 97.7 | 90 | A06 | |||||
PV500-0300G2 | 30 | 40 | 122.1 | 110 | A07 | |||||
PV500-0370G2 | 37 | 50 | 157 | 150 | A07 | |||||
PV500-0450G2 | 45 | 60 | 185 | 170 | A07 | |||||
PV500-0550G2 | 55 | 70 | 215 | 210 | A08 | |||||
PV500-0750G2 | 75 | 100 | 320 | 300 | A09 | |||||
Three-phase power supply: 380V , 50/60Hz | ||||||||||
PV500-0007G3 | 0.75 | 1 | 3.4 | 3.1 | A00 | |||||
PV500-0015G3 | 1.5 | 2 | 5 | 3.8 | A00 | |||||
PV500-0022G3 | 2.2 | 3 | 5.8 | 5 | A00 | |||||
PV500-0040G3 | 4 | 5 | 10.5 | 8.5 | A01 | |||||
PV500-0055G3 | 5.5 | 7.5 | 14.6 | 13 | A02 | |||||
PV500-0075G3 | 7.5 | 10 | 20.5 | 17 | A02 | |||||
PV500-0110G3 | 11 | 15 | 26 | 25 | A03 | |||||
PV500-0150G3 | 15 | 20 | 32 | 32 | A03 | |||||
PV500-0185G3 | 18.5 | 25 | 38.5 | 38 | A04 | |||||
PV500-0220G3 | 22 | 30 | 46.5 | 45 | A04 | |||||
PV500-0300G3 | 30 | 40 | 62 | 60 | A05 | |||||
PV500-0370G3 | 37 | 50 | 76 | 75 | A05 | |||||
PV500-0450G3 | 45 | 60 | 92 | 90 | A06 | |||||
PV500-0550G3 | 55 | 70 | 113 | 110 | A06 | |||||
PV500-0750G3 | 75 | 100 | 157 | 150 | A07 | |||||
PV500-0930G3 | 93 | 125 | 180 | 170 | A07 | |||||
PV500-1100G3 | 110 | 150 | 214 | 210 | A08 | |||||
PV500-1320G3 | 132 | 175 | 256 | 250 | A08 | |||||
PV500-1600G3 | 160 | 210 | 307 | 300 | A09 | |||||
PV500-1850G3 | 185 | 250 | 385 | 340 | A09 | |||||
PV500-2000G3 | 200 | 260 | 385 | 380 | A09 | |||||
PV500-2200G3 | 220 | 300 | 430 | 415 | A09 | |||||
PV500-2500G3 | 250 | 350 | 470 | 468 | A10 | |||||
PV500-2800G3 | 280 | 370 | 525 | 520 | A10 | |||||
PV500-3150G3 | 315 | 400 | 590 | 585 | A10 | |||||
PV500-3550G3 | 355 | 470 | 650 | 650 | A11 | |||||
PV500-4000G3 | 400 | 530 | 725 | 725 | A11 | |||||
PV500-4500G3 | 450 | 595 | 820 | 820 | A11 | |||||
PV500-5000G3 | 500 | 650 | 980 | 980 | A11 | |||||
PV500-5600G3 | 560 | 750 | 1000 | 1000 | A11 | |||||
PV500-6300G3 | 630 | 850 | 1200 | 1200 | A11 | |||||

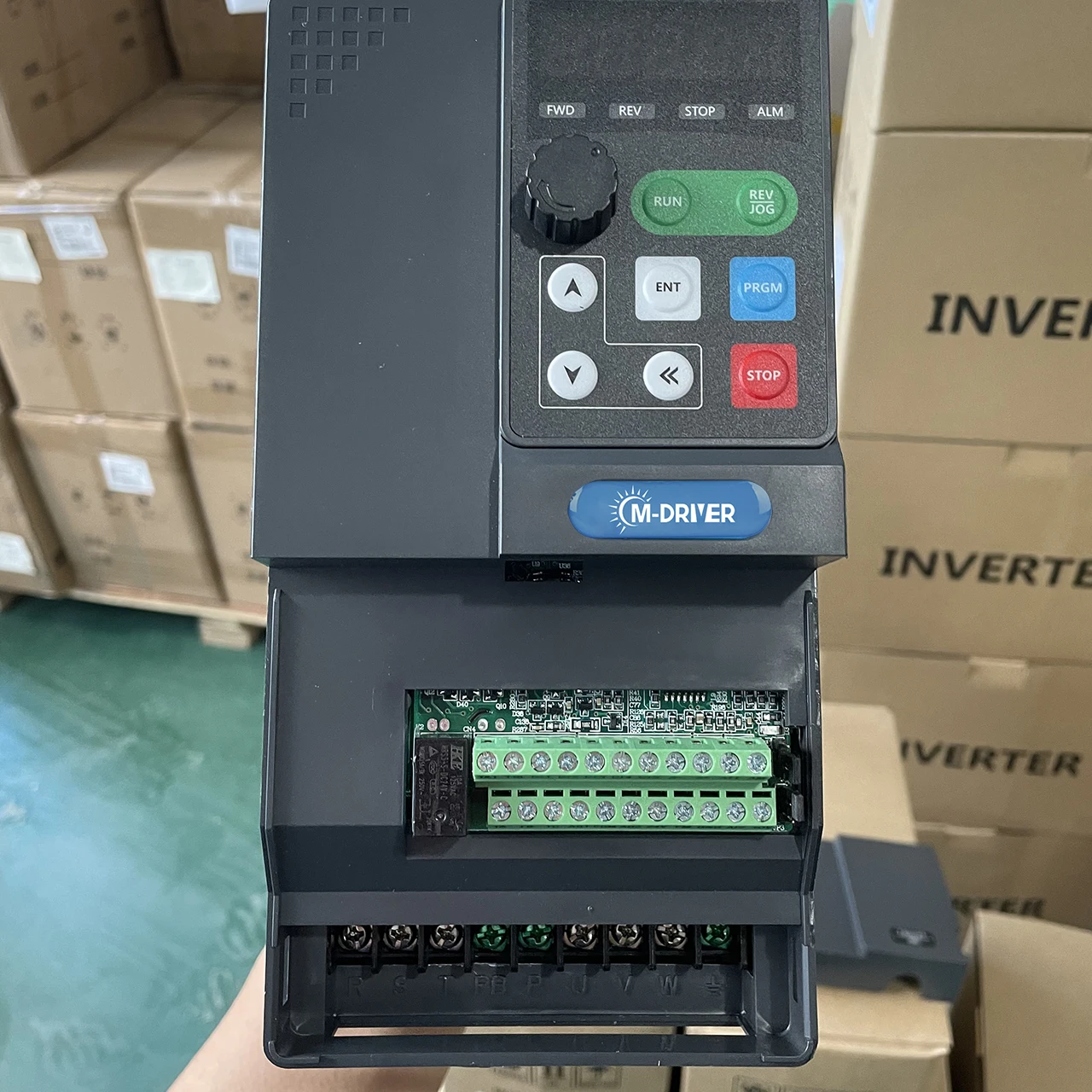

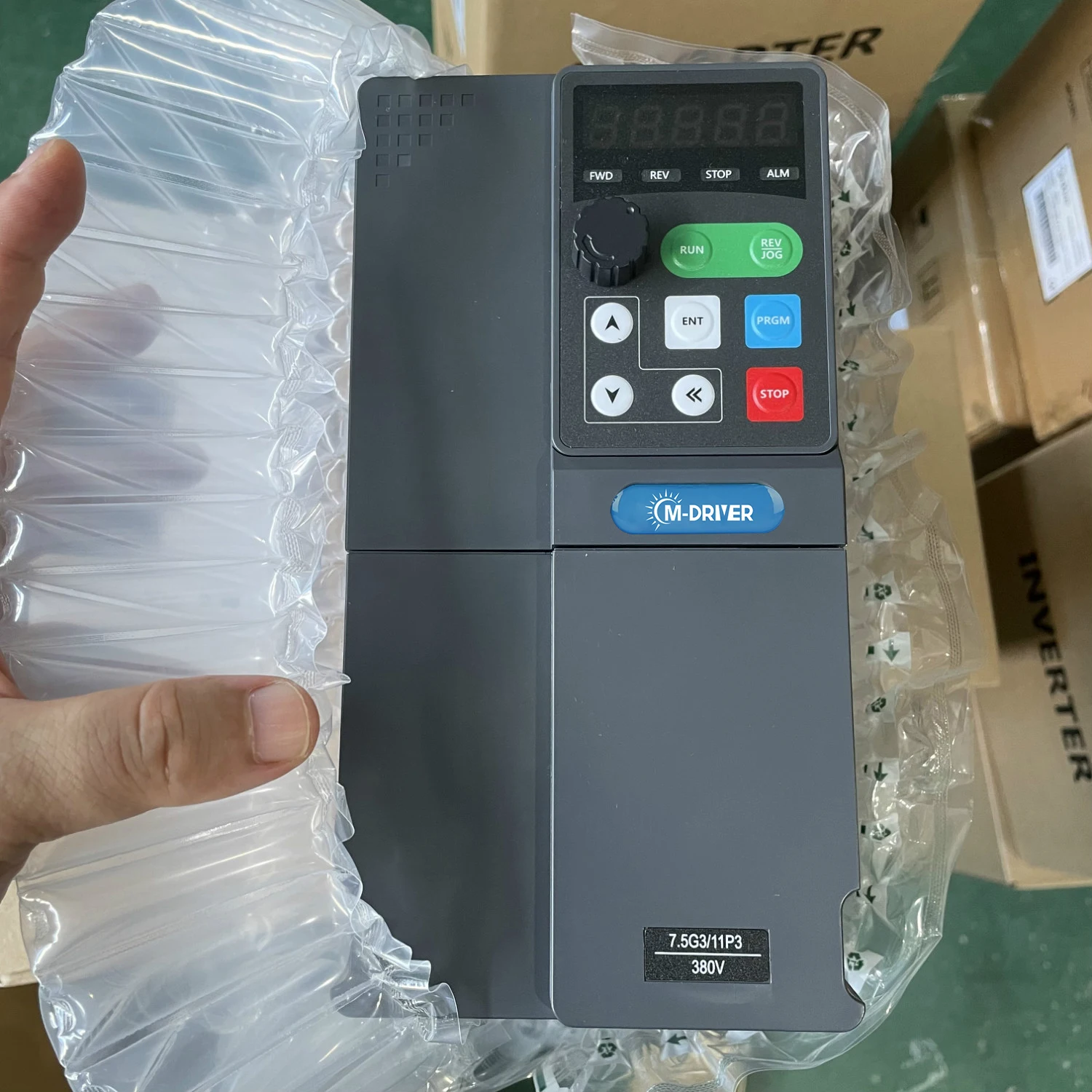

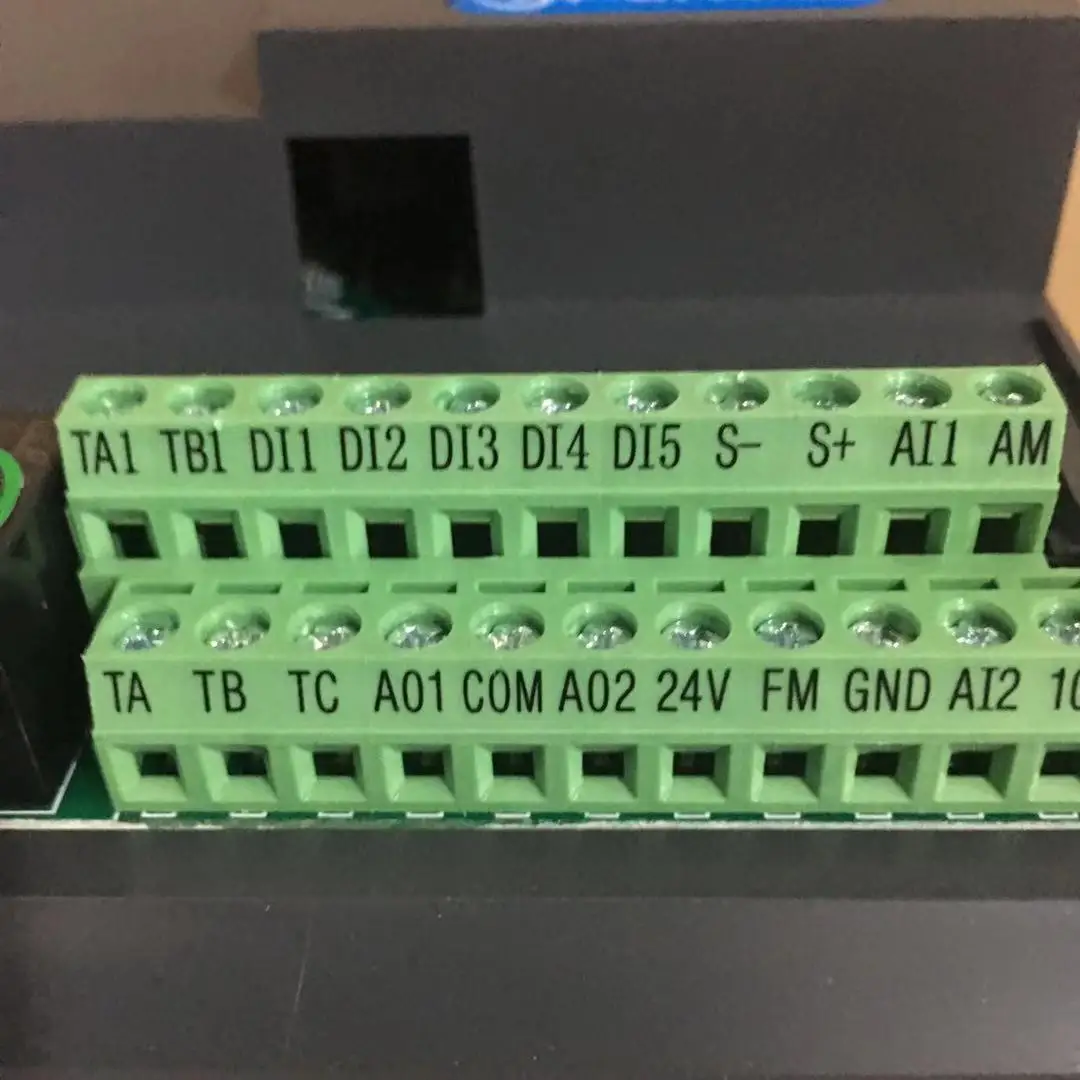

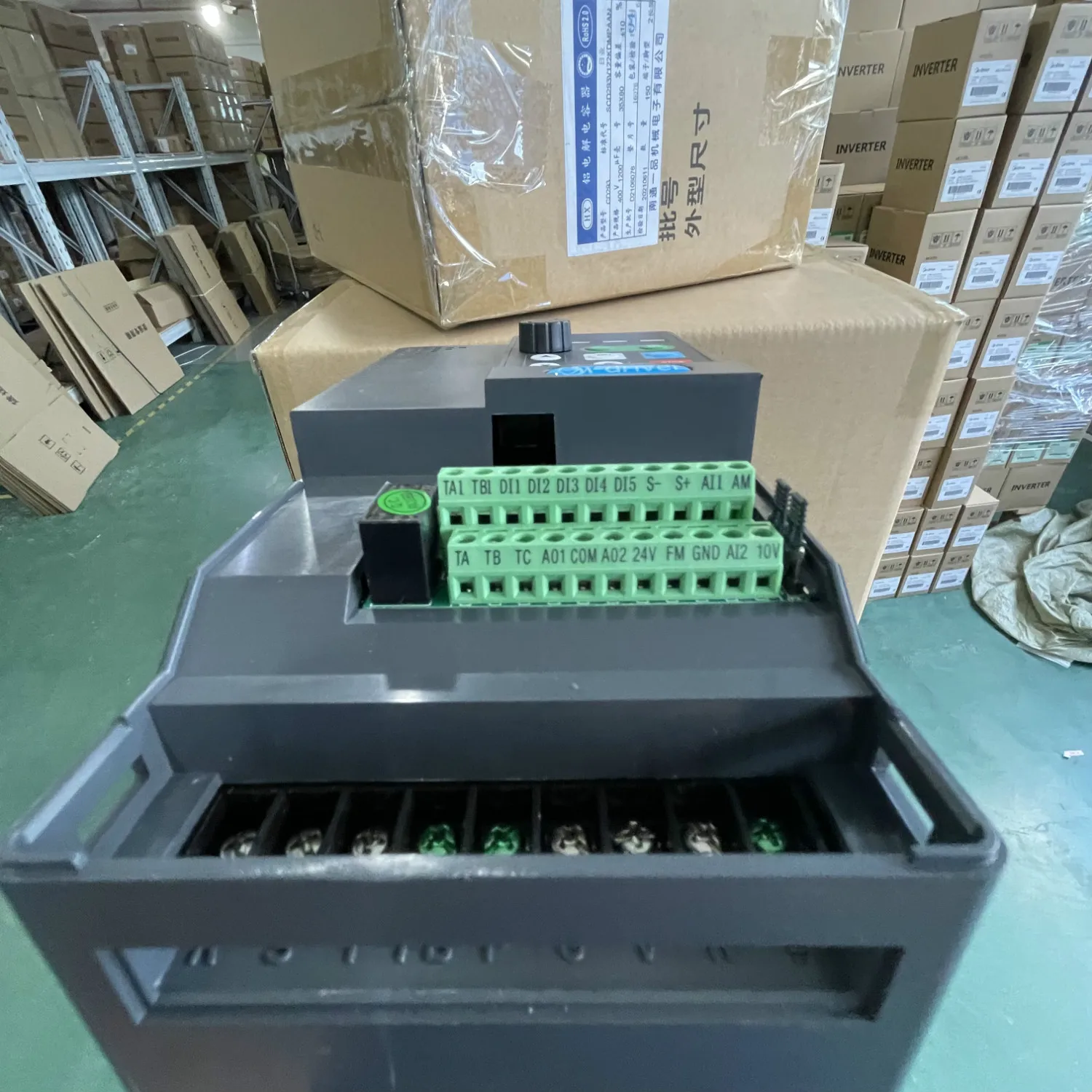

Detailed Images

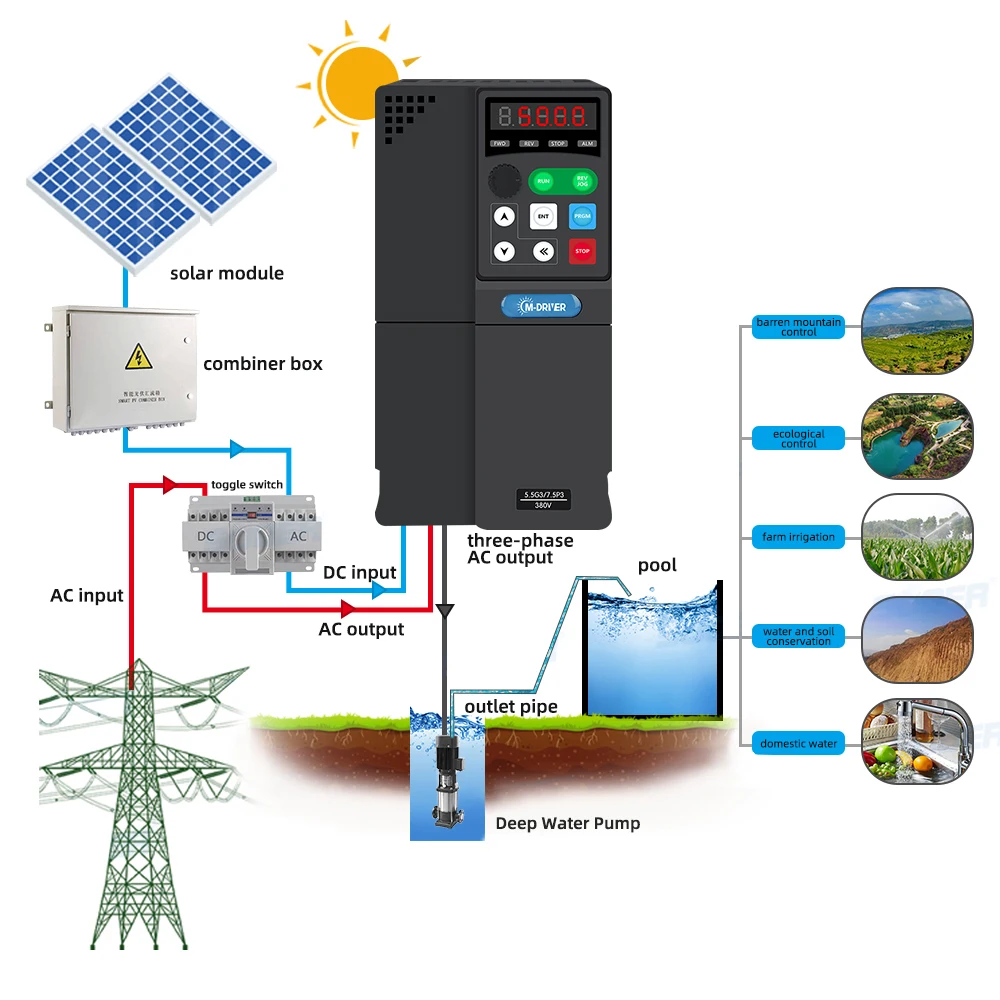

Connection diagram

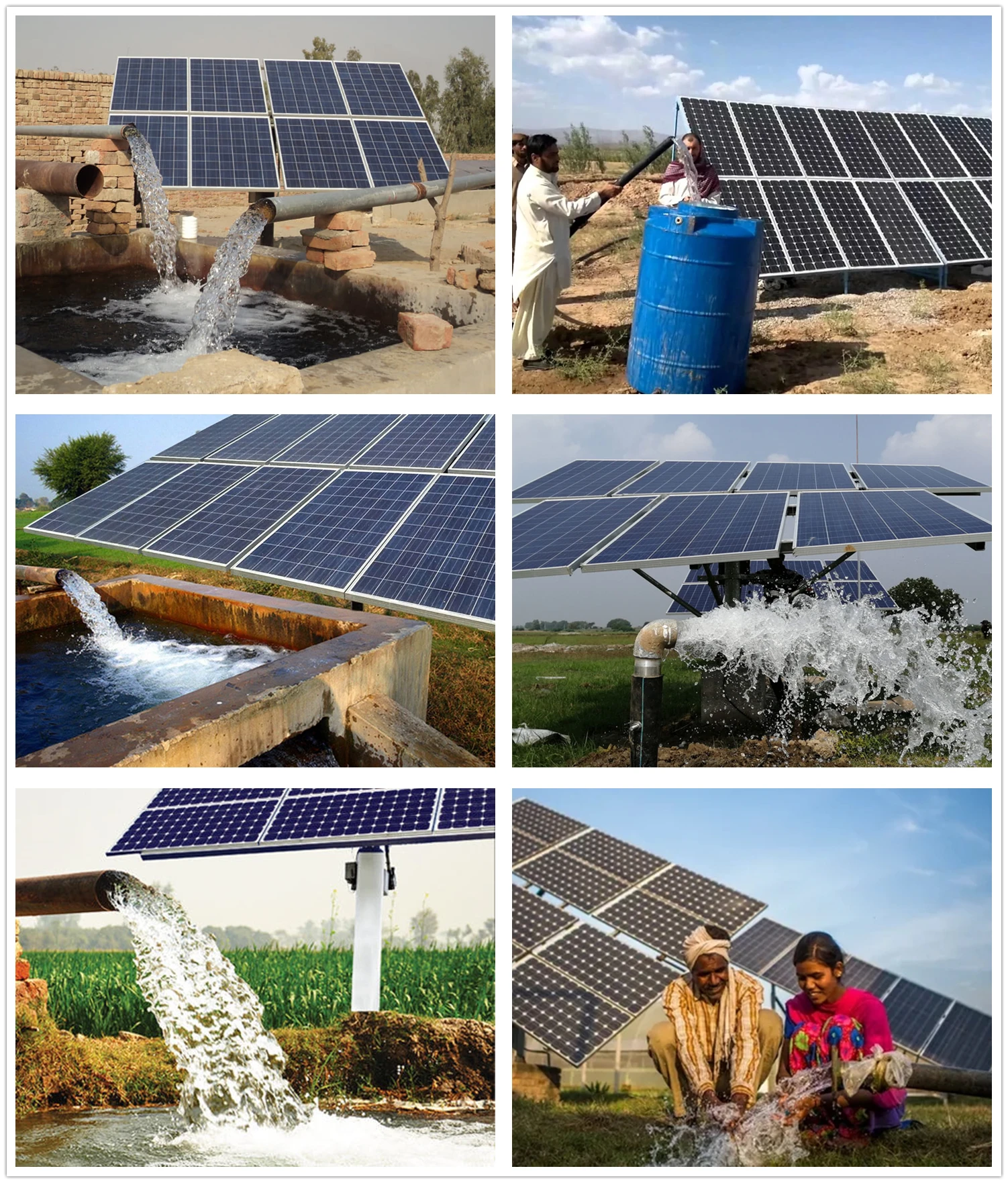

Application
Packing&Shipping
Packed by carton box or wooden box. 0.4kw-75kw VFD models are packed by carton box , 93kw-630kw VFD models are packed by woodn box. Thickened shockproof foam is filled inside for better protection.
