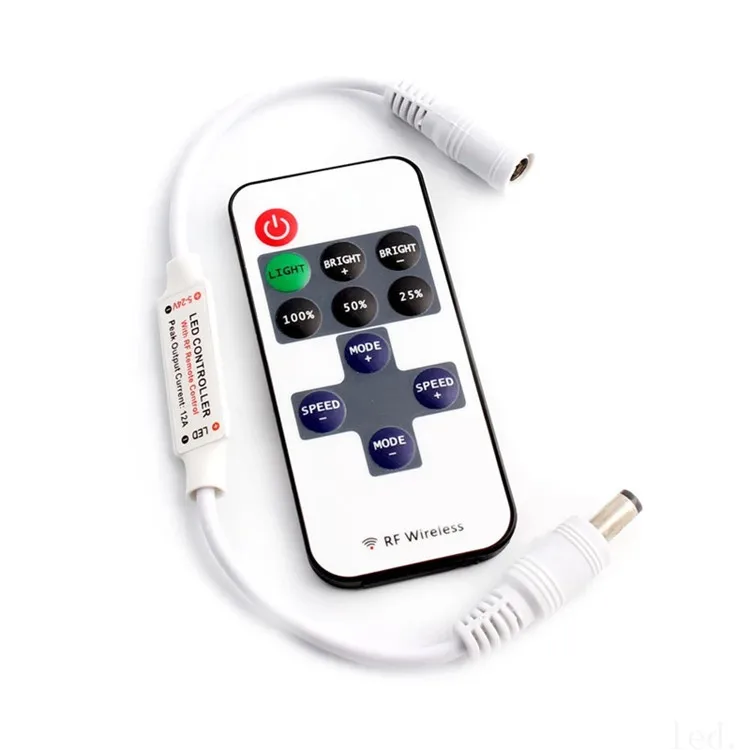

Миниатюрный беспроводной пульт дистанционного управления с 11 клавишами светодиодный диммер для 5 В 12 24 постоянного тока 3528 5050 одноцветная Светодиодная
1,00 $ - 1,20 $
Новинка (приглушенный/ССТ/RGB/ RGBW/ RGB CCT) RF полносенсорный дистанционный светодиодный контроллер
- Категория: >>>
- Поставщик: Shenzhen Lesterlighting Technology Company Limited
Сохранить в закладки 10000009061044:
Описание и отзывы
Характеристики
Product Description
Product Specifications
Product name：RF Full Touch Remote LED Controller（DIM/ CCT/ RGB/ RGBW/ RGB+CCT）
Product name：RF Full Touch Remote LED Controller（DIM/ CCT/ RGB/ RGBW/ RGB+CCT）
1.Product Description:
This is a high-performance RF full touch remote controller, which is adopting
the most advanced PWM control technology, With the technology of the RF
high frequency wireless remote control, it has the characteristics of low power
consumption, long distance transmission, and strong anti-interference
ability ,high speed telecommunications, etc. It has the memory function. It is
widely used in LED RGB strip light, LED module, LED lamp house and so on.

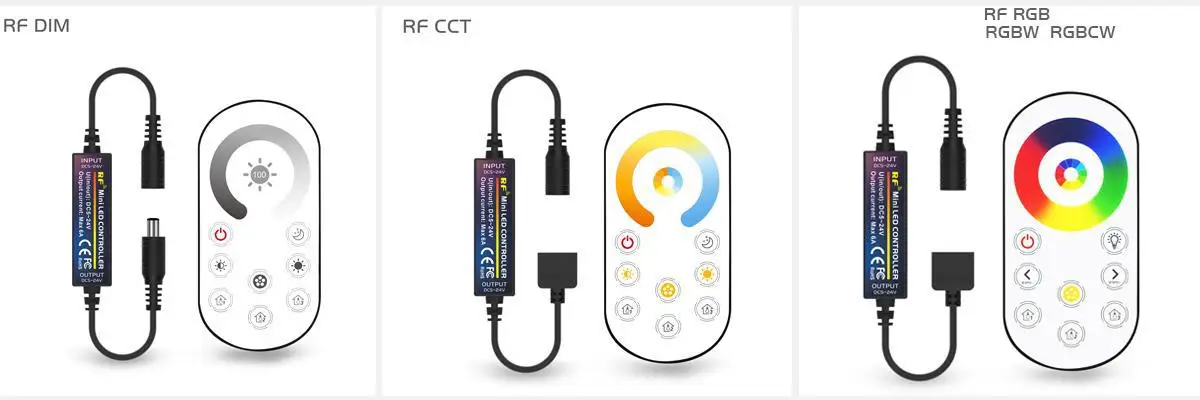

RF Touch remote controller has 5 types, which form a series. The products of
this series can be used to control five types of light bars: Dimmer, color
temperature, RGB, RGBW, RGB+CCT. It can realize fade, jump, fade in and
fade out, flash, blasting flash etc. dynamic lighting effects according to
customers' actual needs. And a variety of static colors can be chosen from.
This is a high-performance RF full touch remote controller, which is adopting
the most advanced PWM control technology, With the technology of the RF
high frequency wireless remote control, it has the characteristics of low power
consumption, long distance transmission, and strong anti-interference
ability ,high speed telecommunications, etc. It has the memory function. It is
widely used in LED RGB strip light, LED module, LED lamp house and so on.
RF Touch remote controller has 5 types, which form a series. The products of
this series can be used to control five types of light bars: Dimmer, color
temperature, RGB, RGBW, RGB+CCT. It can realize fade, jump, fade in and
fade out, flash, blasting flash etc. dynamic lighting effects according to
customers' actual needs. And a variety of static colors can be chosen from.
The main features of the controller are:
1. Compact body and convenient wiring;
2. Simple and clear operation,
3. Compatible with full touch remote, one touch to change color and modes;
4. Diversified dynamic mode;
5. Soft dimming effect.
1. Compact body and convenient wiring;
2. Simple and clear operation,
3. Compatible with full touch remote, one touch to change color and modes;
4. Diversified dynamic mode;
5. Soft dimming effect.
2. Technical Parameters:
● Product name: RF full touch remote controller
● Working temperature：-20-60℃
● Input voltage：DC5~24V
● Connection mode：Common anode
● controller size：L55.7×W16.6×H10.7mm
● Net weight： 50g
● Gross weight：56g
● Static power consumption：<0.5W
● Output current：<2A/CH max:6A
● Output power: Max: 5V:<30W,12V:<72W, 24V:<144W
● Product name: RF full touch remote controller
● Working temperature：-20-60℃
● Input voltage：DC5~24V
● Connection mode：Common anode
● controller size：L55.7×W16.6×H10.7mm
● Net weight： 50g
● Gross weight：56g
● Static power consumption：<0.5W
● Output current：<2A/CH max:6A
● Output power: Max: 5V:<30W,12V:<72W, 24V:<144W
3.Connection description:
(1) Power input interface: adopt 5.5*2.1mm DC female connector ( use thick
pure copper wires, can full load 6A, the regular dc connector can only load 3A）
(2）Output interface: Adopt DC male/ 4pin /5pin/ 6pin female led connector
DIM: DC male connector
CCT: 4pin female connector
RGB: 4pin female connecto
RGBW：5pin female connector
RGB+CCT：6pin female connector
1. Connection description：
(1) Dimmer
(2) CCT/RGB/RGBW/RGB+CCT
Note: Please according to the actual controller’s wire sequence to
corresponding led lights, just make sure the arrows of controller and light are
inserted accordingly.
(1) Power input interface: adopt 5.5*2.1mm DC female connector ( use thick
pure copper wires, can full load 6A, the regular dc connector can only load 3A）
(2）Output interface: Adopt DC male/ 4pin /5pin/ 6pin female led connector
DIM: DC male connector
CCT: 4pin female connector
RGB: 4pin female connecto
RGBW：5pin female connector
RGB+CCT：6pin female connector
1. Connection description：
(1) Dimmer
(2) CCT/RGB/RGBW/RGB+CCT
Note: Please according to the actual controller’s wire sequence to
corresponding led lights, just make sure the arrows of controller and light are
inserted accordingly.
4.Remote function and mode list:
(1) DIM
(2) CCT
No. Dynamic modes
1 Warm white fade
2 Neutral white fade
3 Cool white fade
4 Warm white Jump
Mode1 Mode2 Mode3 Mode 4
Fade Jump Flash Loop
5 Neutral white Jump
6 Cool white Jump
7 Warm white + neutral white
(1) DIM
(2) CCT
No. Dynamic modes
1 Warm white fade
2 Neutral white fade
3 Cool white fade
4 Warm white Jump
Mode1 Mode2 Mode3 Mode 4
Fade Jump Flash Loop
5 Neutral white Jump
6 Cool white Jump
7 Warm white + neutral white
alternating fade
8 Warm white+ neutral white+ cool
white three color alternating fade
9 Warm white+ neutral white+ cool
white three color alternating jump
10 All modes loop
(3) RGB
No. Mode No. Mode
1 3 colors jump 6 3 colors flash
2 7 colors jump 7 7 colors flash
3 3 colors fade 8 3 colors strobe
4 7 colors fade 9 7 colors strobe
5 7 colors breath gradient
(4) RGBW
4. Dynamic mode list (9)
No. Mode No. Mode
1 3 colors jump 6 3 colors flash
2 7 colors jump 7 7 colors flash
3 3 colors fade 8 3 colors strobe
4 7 colors fade 9 7 colors strobe
5 7 colors breath gradient
(5) RGB+CCT
White light: 2700k,3200k,4000k,5000k,5500k,6500k.
Static colors (19) :
No. Static Mode No. Static Mode No. Static Mode
1 Red 8 Warm white+red 15 Cool white+green
2 Green 9 Warm white+green 16 Cool white+blue
3 Blue 10 Warm white+blue 17 Cool white+yellow
4 Yellow 11 Warm white+yellow 18 Cool white+purple
5 Purple 12 Warm white+purple 19 Cool white+cyan
6 Cyan 13 Warm white+cyan
7 White 14 Cool white+red
Dymamic mode list (9):
No. Mode No. Mode
1 3 colors jump 6 3 colors flash
2 7 colors jump 7 7 colors flash
3 3 colors fade 8 3 colors strobe
4 7 colors fade 9 7 colors strobe
5 7 colors breath gradient
8 Warm white+ neutral white+ cool
white three color alternating fade
9 Warm white+ neutral white+ cool
white three color alternating jump
10 All modes loop
(3) RGB
No. Mode No. Mode
1 3 colors jump 6 3 colors flash
2 7 colors jump 7 7 colors flash
3 3 colors fade 8 3 colors strobe
4 7 colors fade 9 7 colors strobe
5 7 colors breath gradient
(4) RGBW
4. Dynamic mode list (9)
No. Mode No. Mode
1 3 colors jump 6 3 colors flash
2 7 colors jump 7 7 colors flash
3 3 colors fade 8 3 colors strobe
4 7 colors fade 9 7 colors strobe
5 7 colors breath gradient
(5) RGB+CCT
White light: 2700k,3200k,4000k,5000k,5500k,6500k.
Static colors (19) :
No. Static Mode No. Static Mode No. Static Mode
1 Red 8 Warm white+red 15 Cool white+green
2 Green 9 Warm white+green 16 Cool white+blue
3 Blue 10 Warm white+blue 17 Cool white+yellow
4 Yellow 11 Warm white+yellow 18 Cool white+purple
5 Purple 12 Warm white+purple 19 Cool white+cyan
6 Cyan 13 Warm white+cyan
7 White 14 Cool white+red
Dymamic mode list (9):
No. Mode No. Mode
1 3 colors jump 6 3 colors flash
2 7 colors jump 7 7 colors flash
3 3 colors fade 8 3 colors strobe
4 7 colors fade 9 7 colors strobe
5 7 colors breath gradient
5.Attention:
1.How to save Scene ?
First, choose the color or modes, then long press the Scene DIY 1/2/3 button,
the light flashes means scene save successfully. (Can open the scene when
the remote is in shut-down state.
2.Controller’s input voltage is DC5~24V, never connect to others or AC220V,
Please do not overload, the total max output current is 6A;
3. Before using the infrared remote, the insulating film should removed.
4. Please don’t reverse the power input connection of both cathode and anode,
please switch on again only when it is in right connection and no short circuit.
5. Please power off the device if you don’t use it for a quit long time, don’t place
in high dust, high temperature environment.
1.How to save Scene ?
First, choose the color or modes, then long press the Scene DIY 1/2/3 button,
the light flashes means scene save successfully. (Can open the scene when
the remote is in shut-down state.
2.Controller’s input voltage is DC5~24V, never connect to others or AC220V,
Please do not overload, the total max output current is 6A;
3. Before using the infrared remote, the insulating film should removed.
4. Please don’t reverse the power input connection of both cathode and anode,
please switch on again only when it is in right connection and no short circuit.
5. Please power off the device if you don’t use it for a quit long time, don’t place
in high dust, high temperature environment.
Related Products
Company Introduction
Lesterlighting Technology Co., Ltd. is located in Asia's largest LED and EL parts. We are a professional manufacturer of led
controllers, led products, decoration lights, EL light, set design, development, manufacturing as a professional manufacturer.We focus on a series of fashion accessories, a wide range of diversity, reasonable price and on-time
delivery.
controllers, led products, decoration lights, EL light, set design, development, manufacturing as a professional manufacturer.We focus on a series of fashion accessories, a wide range of diversity, reasonable price and on-time
delivery.
Packing&Shipping
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 1-5 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 1-5 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Похожие товары

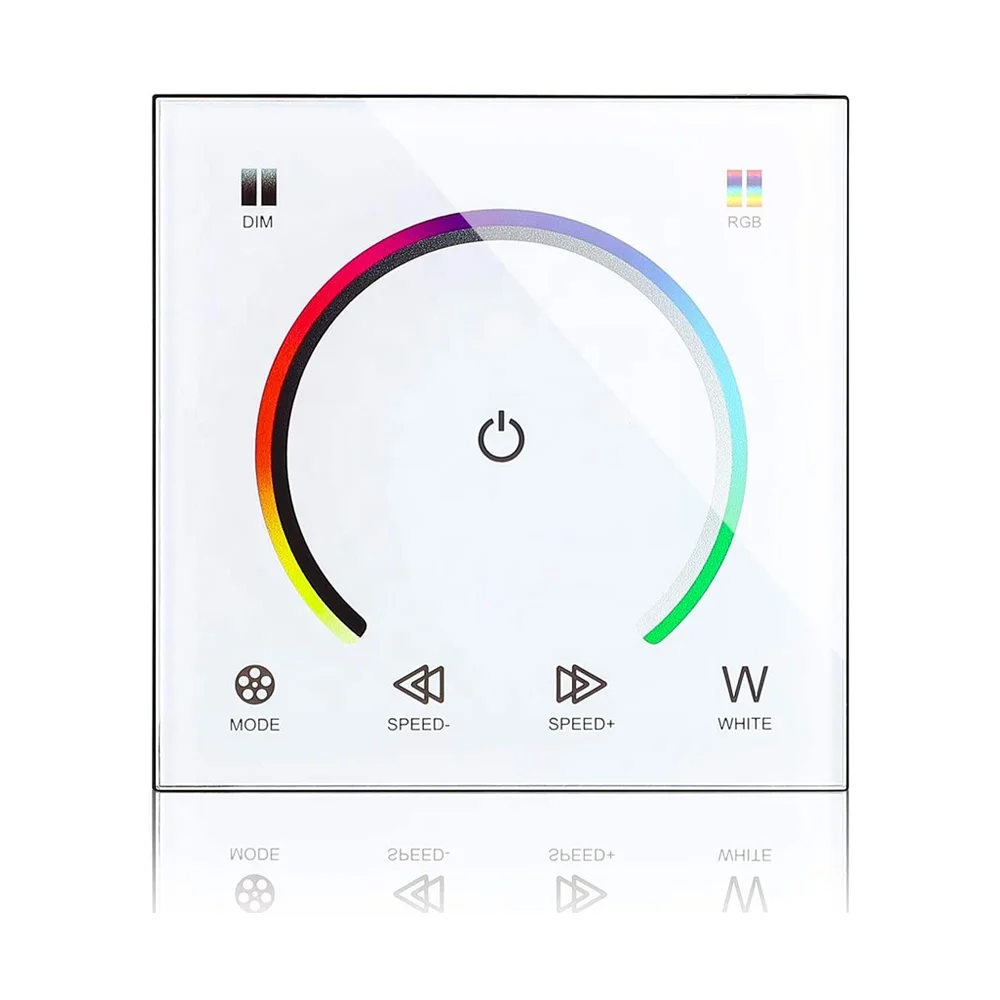

Панель управления светодиодными лампами RGB стеклянная сенсорная панель настенное крепление диммер светодиодами для светодиодных ламп SMD 5050
8,00 $ - 19,99 $
DC 12V 24V 30A PWM светодиодный светильник Диммер/360W-720W одноцветный светодиодный диммер контроллер

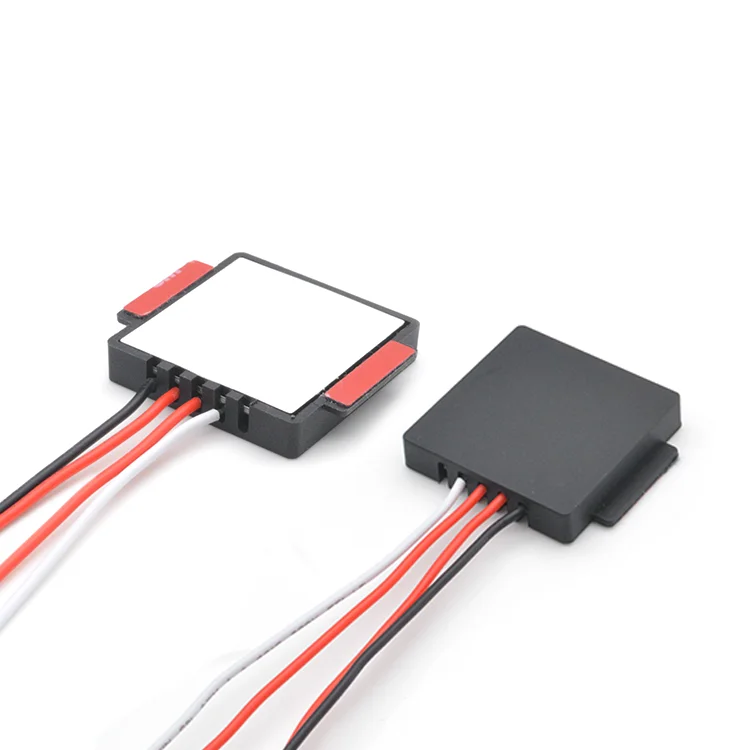

Новый продукт TSS01-3A, на одной пуговице, сенсорные выключатели для умное зеркало с Предотвращение запотевания ванная комната зеркала переключатель

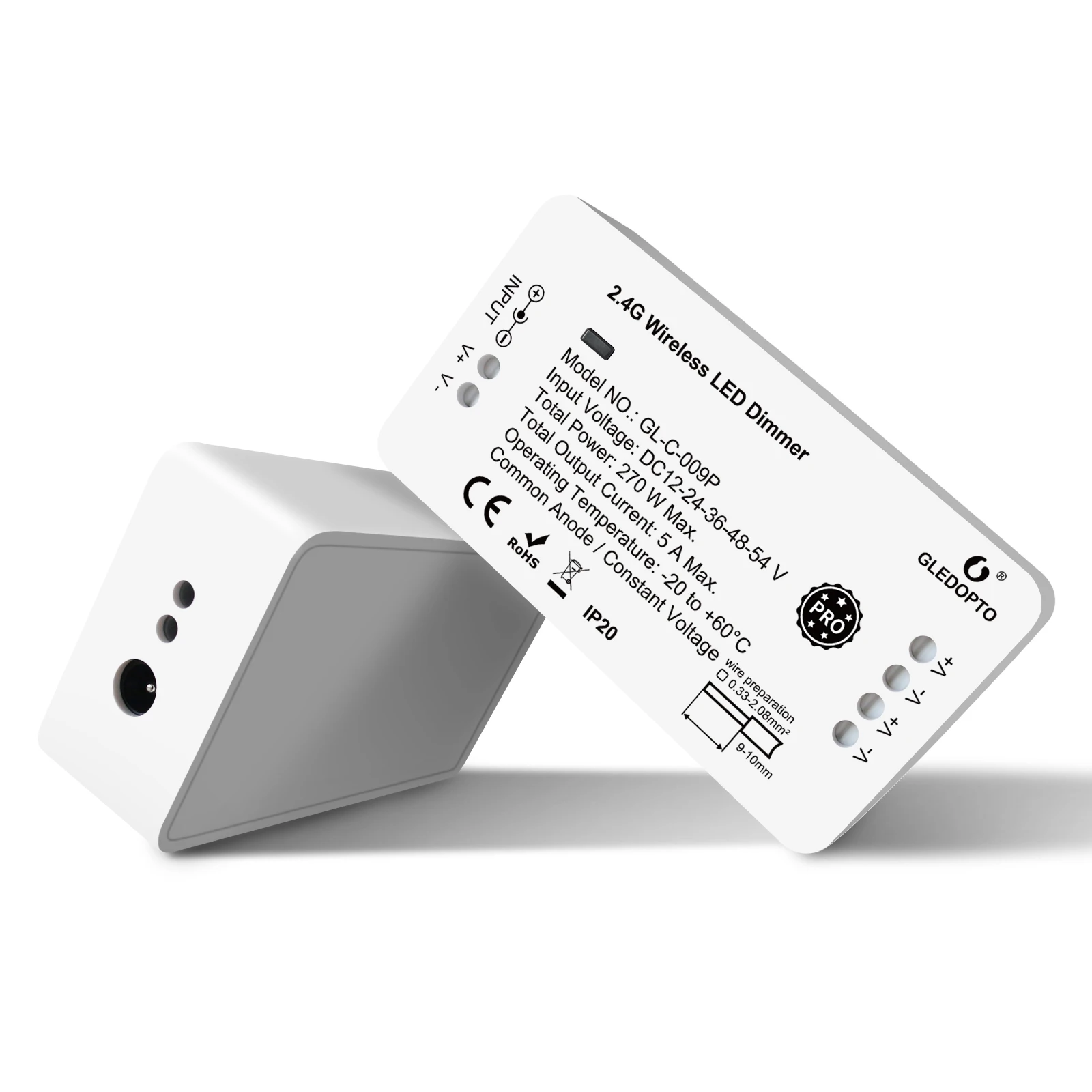

Gledopto zigbee контроллер Диммер 12-54 В для светодиодной ленты пульт дистанционного управления smart led dimmer
6,50 $ - 7,80 $

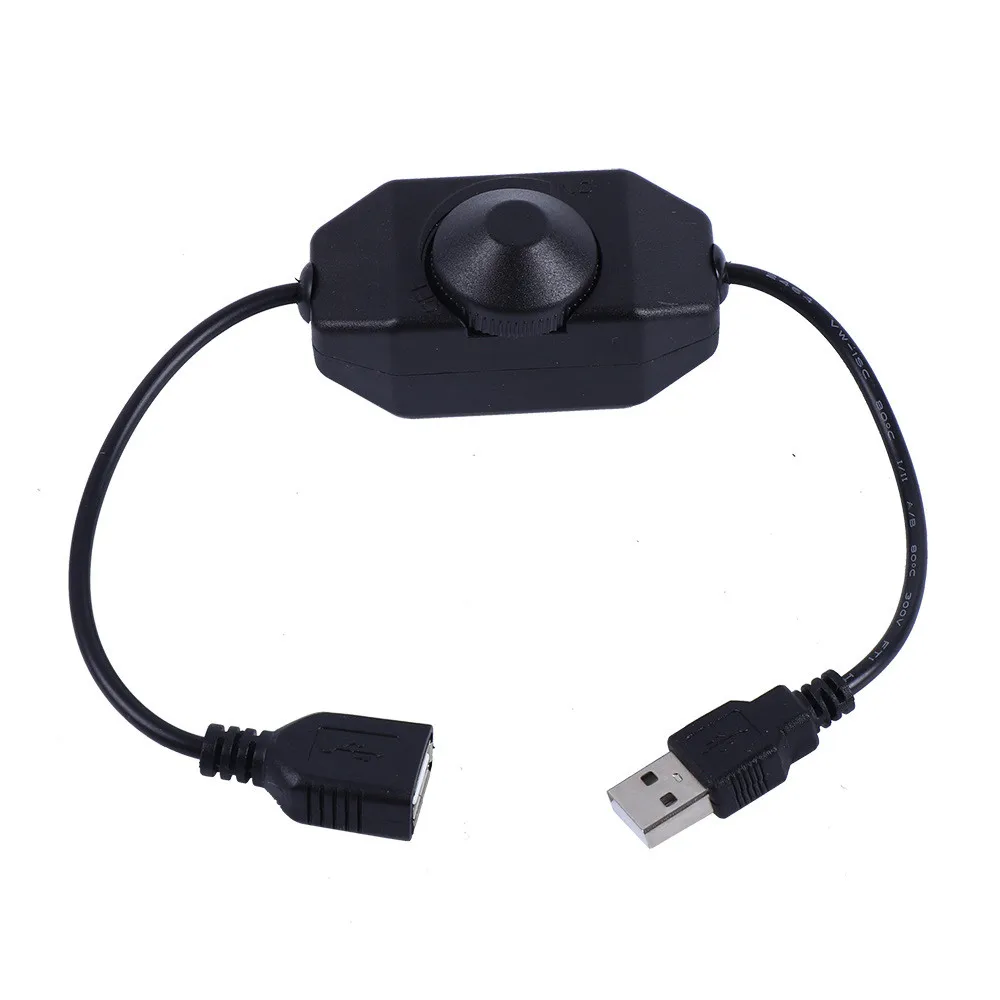

5 В DC Светодиодный переключатель диммер USB световая панель регулировка яркости линия

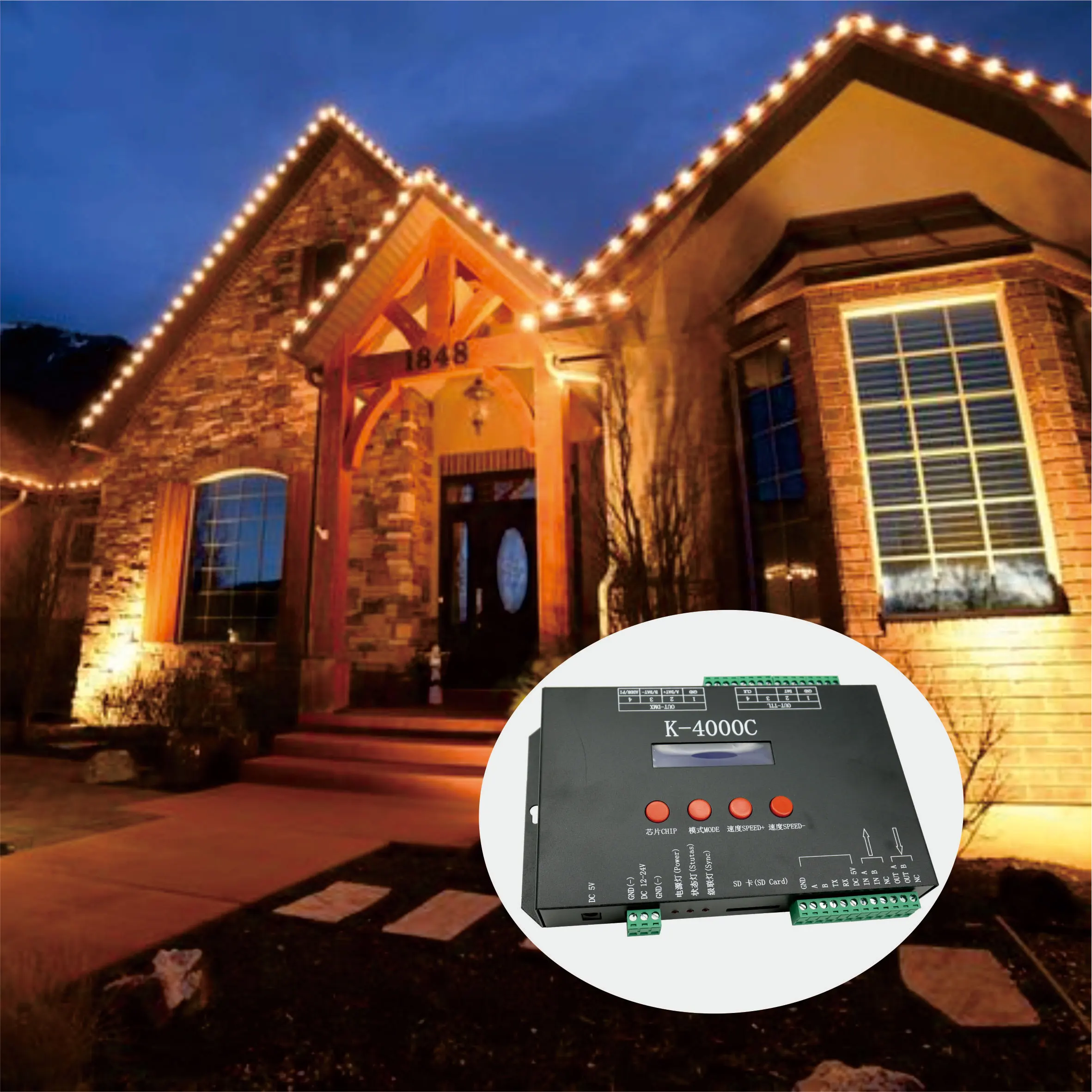

Aglare K-4000C SD-карта пиксельный светодиодный контроллер SPI DMX DC5V DC12-24V программируемый Rgbw

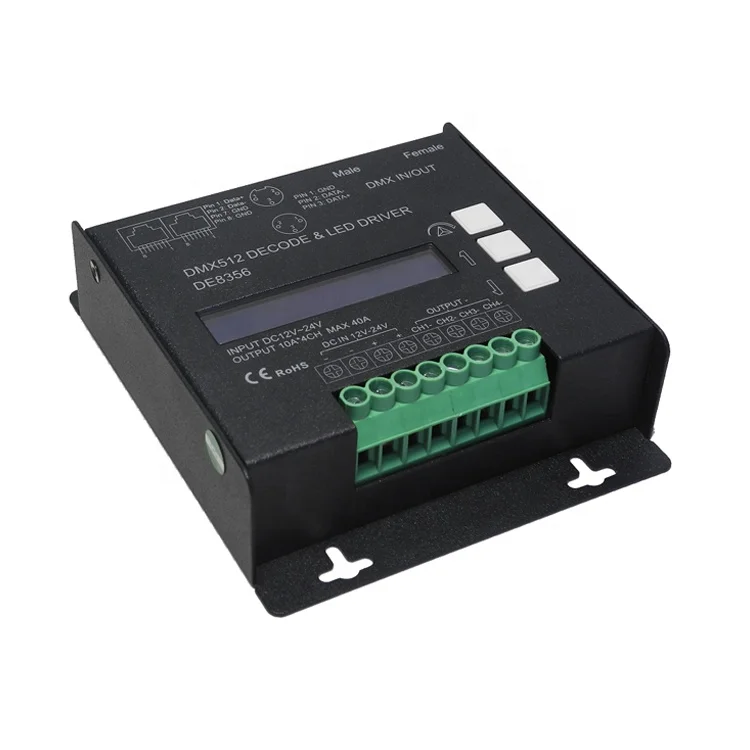

DMX512 Контроллер освещения Max RGBW LCD дисплей декодер DE 8356 rgbw dmx512 декодер
Новые поступления
Новинки товаров от производителей по оптовым ценам
300 Вт безопасный для посудомоечной машины 5-скоростной турбо с крючками для теста, венчик, электрический ручной миксер
571,11-666,30 ₽
Медицинский портативный прибор для гемодиализа катетер и кровообращения диализа почек ухода за здоровьем
Многофункциональная роскошная водонепроницаемая палатка из брезента для кемпинга однокомнатная всесезонная с настраиваемым размером новый стиль рынка Ближнего Востока
45 688,76-56 159,10 ₽
Санитарно-гигиеническое сиденье для
Счетчик купюр с низким уровнем шума на тонкопленочных транзисторах, автоматическое определение разных валют, 4,2 дюйма
50 448-52 351,70 ₽
Ожерелье из нержавеющей стали изящное ожерелье с чакрами на заказ модное позолоченное ювелирное изделие водонепроницаемой подвеской без
121,84-217,03 ₽
Мужские спортивные кроссовки с логотипом
856,67-999,45 ₽
OEM ODM, настоящее изобретение, персонализированный прямой автоматический открытый пользовательский логотип, рекламный зонт для гольфа с логотипом для отелей
842,39-938,53 ₽
