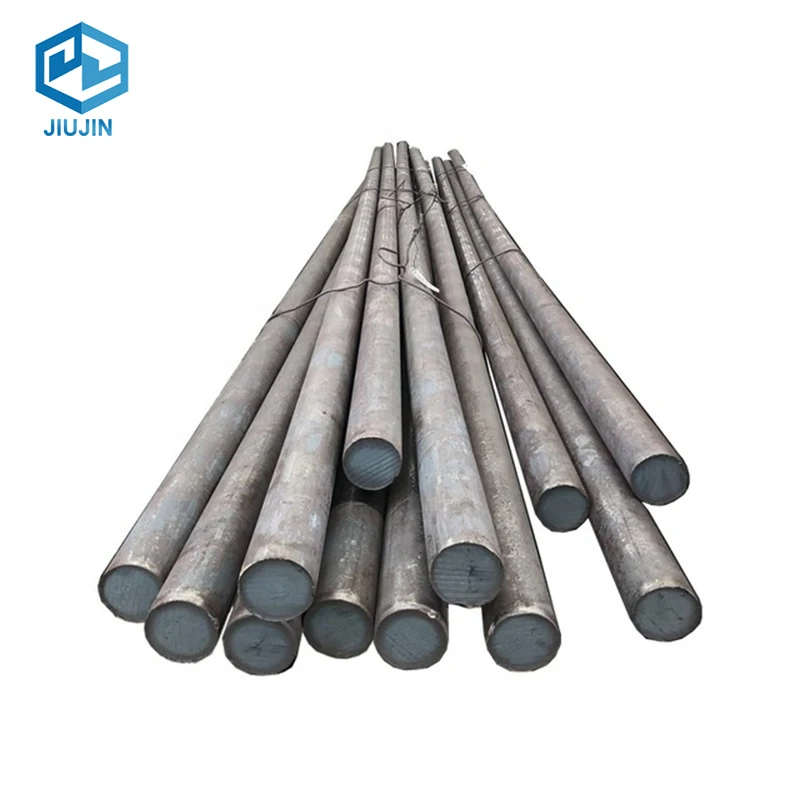

Hot Forged Cr12 D3 1.2080 SKD1 Die Steel Material Round Bar
1: D3 steel introduction
D3 tool steel is a 12% chrome alloy steel. D3 cold work steel has very high wear resistance against abrasive and adhesive wear due to the high volume of hard carbides in the steel matrix, medium toughness, dimensionally stable, high compressive strength, not secondary hardenable. Type AISI D3 cold works tool steel is oil-quenched; though small sections can be gas quenched after austenitization using vacuum.
2: D3 Steel equivalent
Country | Germany | USA | Japan | China |
Standard | EN ISO 4957 | ASTM A681 | JIS 4404 | GB/T 1299 |
Grade | X210Cr12/1.2080 | D3 | SKD1 | Cr12 |
3: D3 steel chemical composition
Grade | C | Si | Mn | P | S | Cr | V | C0 |
D3 | 2.0-2.35 | 0.1-0.6 | 0.1-0.6 | 0.03 | 0.03 | 11-13.5 | 1.1 | / |
1.2080 | 1.9-2.2 | 0.1-0.6 | 0.2-0.6 | 0.03 | 0.03 | 11-13 | / | / |
SKD1 | 1.9-2.2 | 0.1-0.6 | 0.2-0.6 | 0.03 | 0.03 | 11-13 | / | / |
Cr12 | 2-2.3 | 0.4 | 0.4 | 0.03 | 0.03 | 11.5-13.5 | / | 1.0 |
4: D3 steel mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.
5: D3 steel overviews
Size | Round | Dia 8-800mm |
Plate/Flat/Block | Thickness 2mm-300mm | |
Width 200mm-800mm | ||
Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | |
Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | |
Delivery condition | Forged; Hot rolled; Cold drawn | |
Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
Payment terms | T/T;L/C;/Money gram/ Paypal | |
Trade terms | FOB; CIF; C&F; etc.. | |
Delivery time | 30-45 days | |
Application | D3 used for highly stressed cutting, punching tools for thin sheets,shear blades for cutting, profile rolles, drawing and deep drawing tools,stone processing tools, knives for paper and plastics, shear knives for thin sheets,deep drawing, pressure pads, highly wear-resistant plastic moulds etc.. |
6: Delivery condition

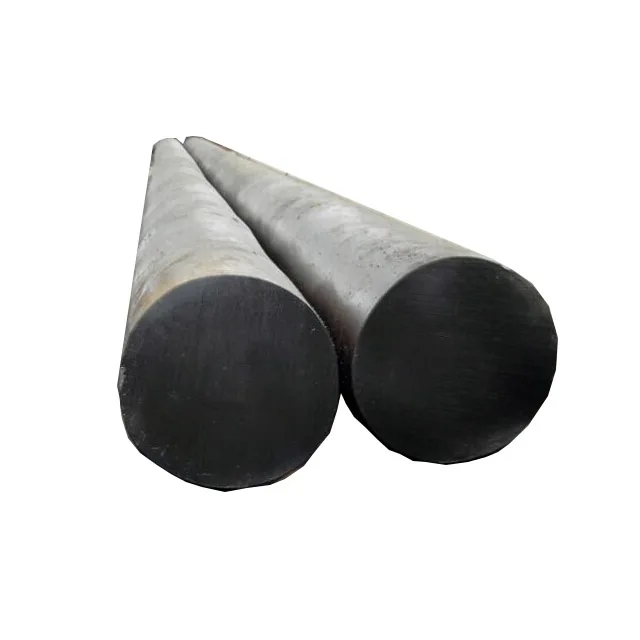

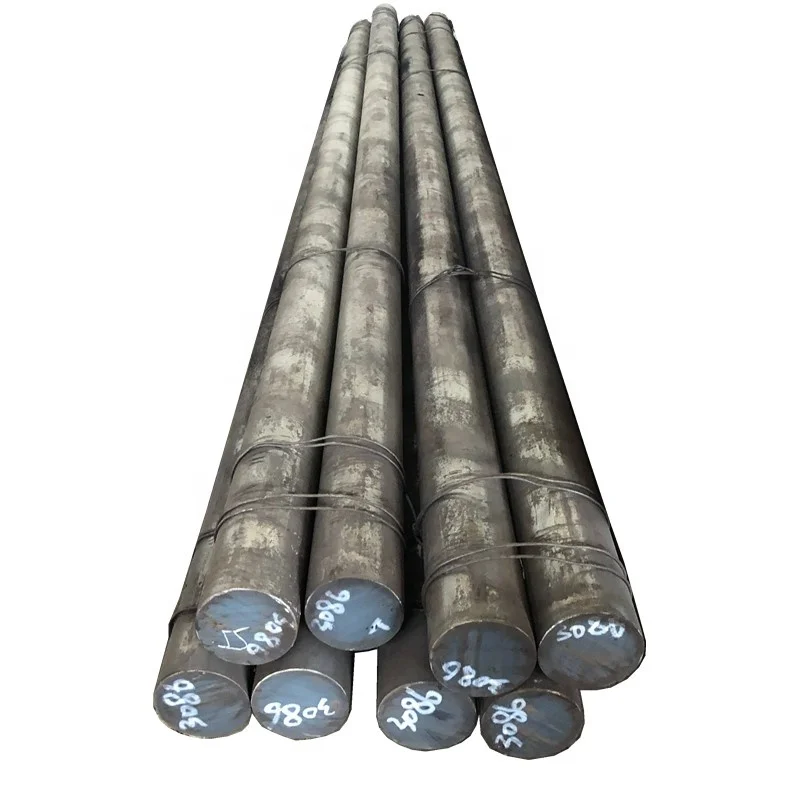

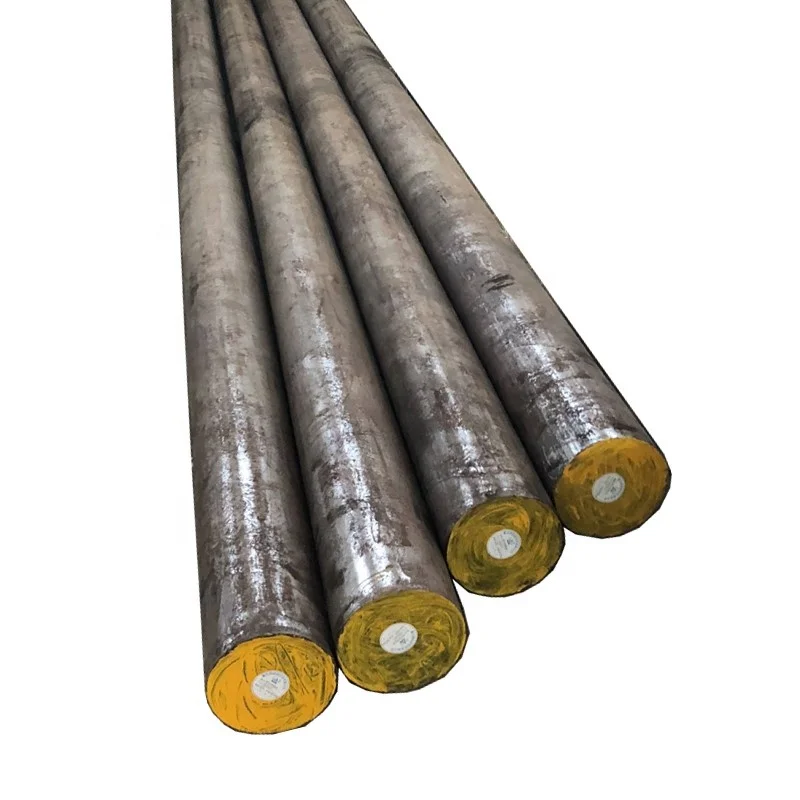

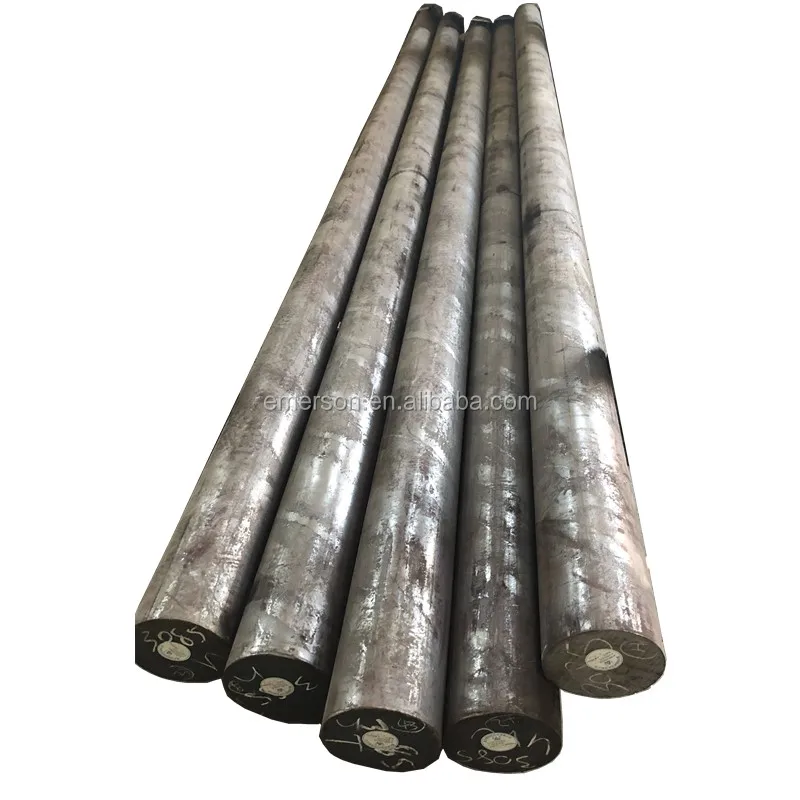

For hot forged bar, usually the delivery condition is hot forged, annealed rough turned/Black surface.
For hot rolled bar, usually the delivery condition is hot rolled, annealed, Black surface.
For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface
For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.
Hunan Qilu Metal Co., Ltd has the capacity to forge round steel, steel flat, square steel, module, shaft and roller, etc. The main specifications of the products include Φ80-1000mm forging materials and 80-1200mm square billets and which the maximum piece weight can reach 50T.
Company Main Products:(If you do not find the product you need, please contact us)
Cold Work Tool Steel | DIN 1.2080,DIN 1.2379,DIN 1.2436,DIN 1.2210,JIS SKS3,AISI O2 |
Hot Work Tool Steel | H13,DIN 1.2714,DIN 1.2767,DIN 1.2344(H13),DIN 1.2713 |
Engineering Steel | AISI 1020,AISI 1045,AISI1050,AISI 5140,AISI 4130,AISI 4140(40CrMo4),AISI 4340, DIN 1.5919,AISI 8620,S235JR,S355JR |
Plastic Mould Steel | P20,P20+S,P20+Ni,DIN 1.2083,DIN 1.2316,DIN 1.2085 |
Spring Steel | AISI 9260,AISI 5160,AISI 6150,65MN,55CrMnA |
Stainless Steel | 316L,201,301,304,316,410,420,430,431,440C,SUS630(DIN1.4542) |
High Speed Steel | DIN 1.3343(M2),DIN 1.3243(M35),DIN 1.3247,DIN 1.3265 |
Hunan Qilu Metal Co., Ltd were already engaged in exporting steel for 11 years, could supply a great variety of hot forged, hot rolled and cold drawn Steels, including engineering steel, cold work tool steel, hot work tool steel, plastic mold steel, spring steel, high speed steel, stainless steel etc., besides Qilu Metal also has their own heating treatment shop and machining shop to provide heating and cutting service.

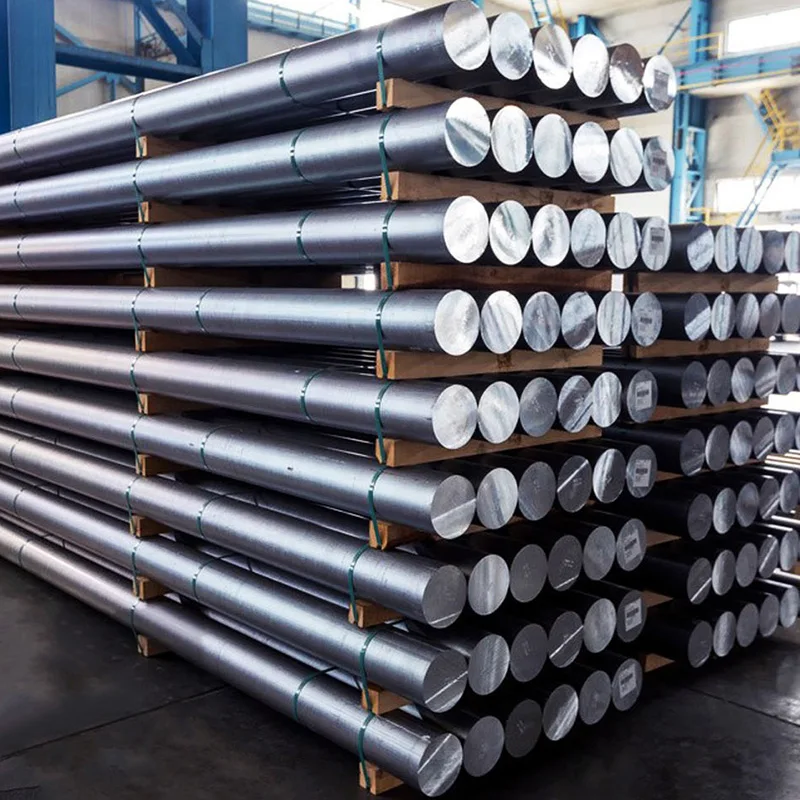

Since 2008 year, Hunan Qilu Metal has the right to export all FORGED STEEL behalf of Qilu Speical Steel Co.,ltd which is specialized in smelting and forging of special steel since 1965 year, now Qilu special steel is one of the biggest manufacturer of forged product in China.The forged products are used in Automotive, Aerospace, Power Generation, Oil & Gas, Transportation and Industrial. We already set up the warehouse in Wuxi and Dongguan city, more than 20000 tons ex-stock could be supplied with kinds of size.
Qilu Metal is the professional one-stop steel manufacturer, stockist and exporter in China, our customers spread all over the world, include West Europe, North America, South America, Asia, Middle Asia, Africa, Australia, etc.
The company owns advanced special steel smelting facilities and forging processing equipments, the main steel-making equipment include 2 sets of 50t ultra-high power electric arc furnaces,2 sets of 60t LF refining furnaces,1 set of 60t vacuum degassing refining furnace and 4 sets of 1-20t electroslag re-melting furnaces.
The main forging equipments mainly include:3 sets of 5t electro-hydraulic hammers, 1 set of high-speed forging units of 800t,1600t,2000t and 4500t respectively.
Q1:Are you trading company or manufacturer ?
We are professional manufacturer for many years. we can provide a wide range of steel products.
Q2:What is alloy steel round bar export packing?
Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.
Q3.What is your MOQ?
We accept small order,if it is stock,any quantities can be accepted.
Q4.What is your lead time?
Depends actual order,around 20-35 days,or negotiation.
Q5.Can you supply sample?
Yes,we can.Sample fee according to your size.
Q6:What certificates do you have?
ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate
Q7: How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement,we will work out a best price soon.
Any interests in our company and products, please feel free to contact us for quotation. We warmly welcome you to our factory.
