Автоматический контроль PLC 11 моторов машина для тонкой полировки стекла

Автоматический контроль PLC 11 моторов машина для тонкой полировки стекла

Категория: Glass Production Machinery >>>
Поставщик: Liaoda (LAD) Glass Machinery Co. Ltd.Liaoda Ltd.

Цена:1 357 613,60-1 380 624,00 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

PLC control automatic control 11 motors glass fine polishing machine

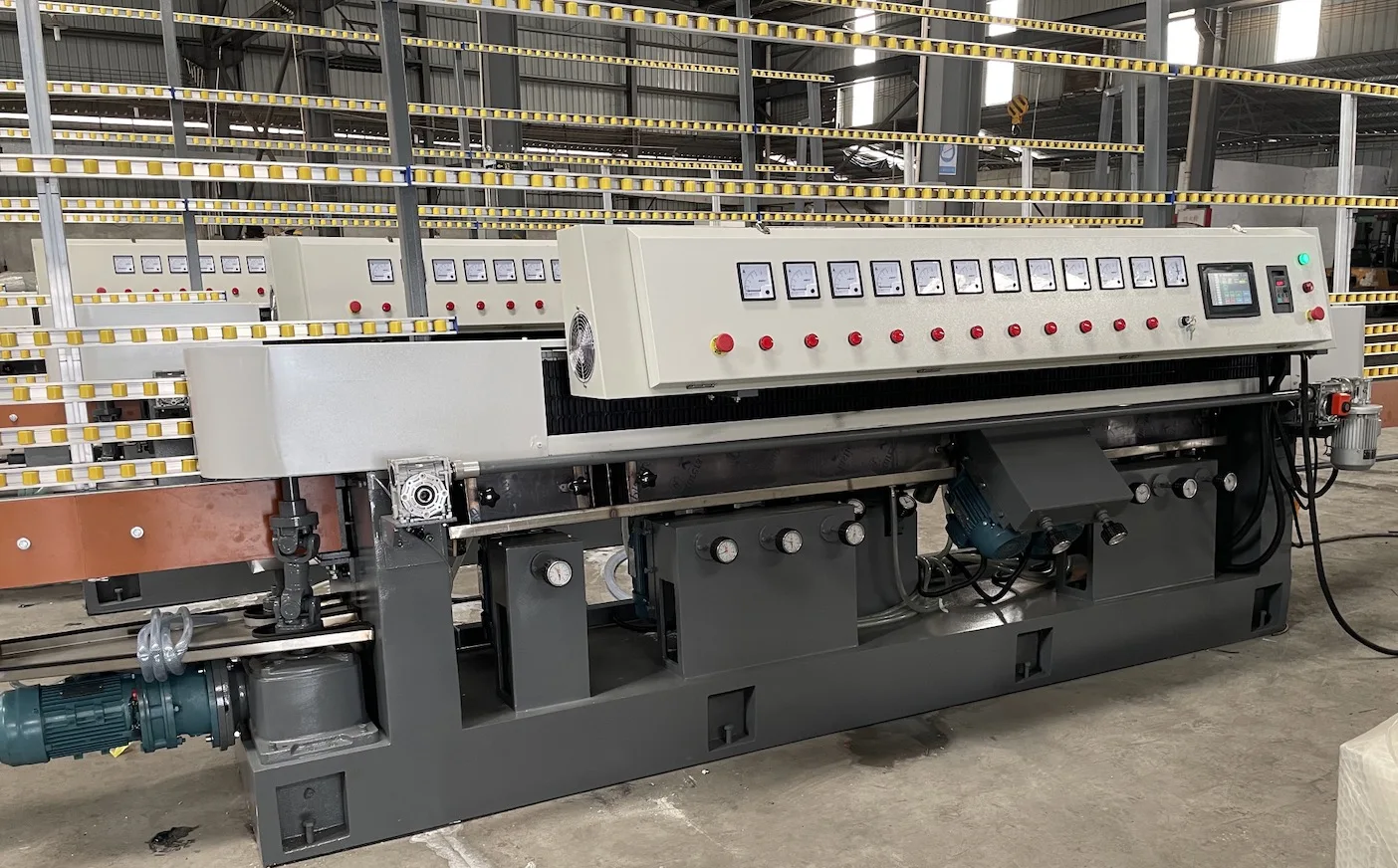

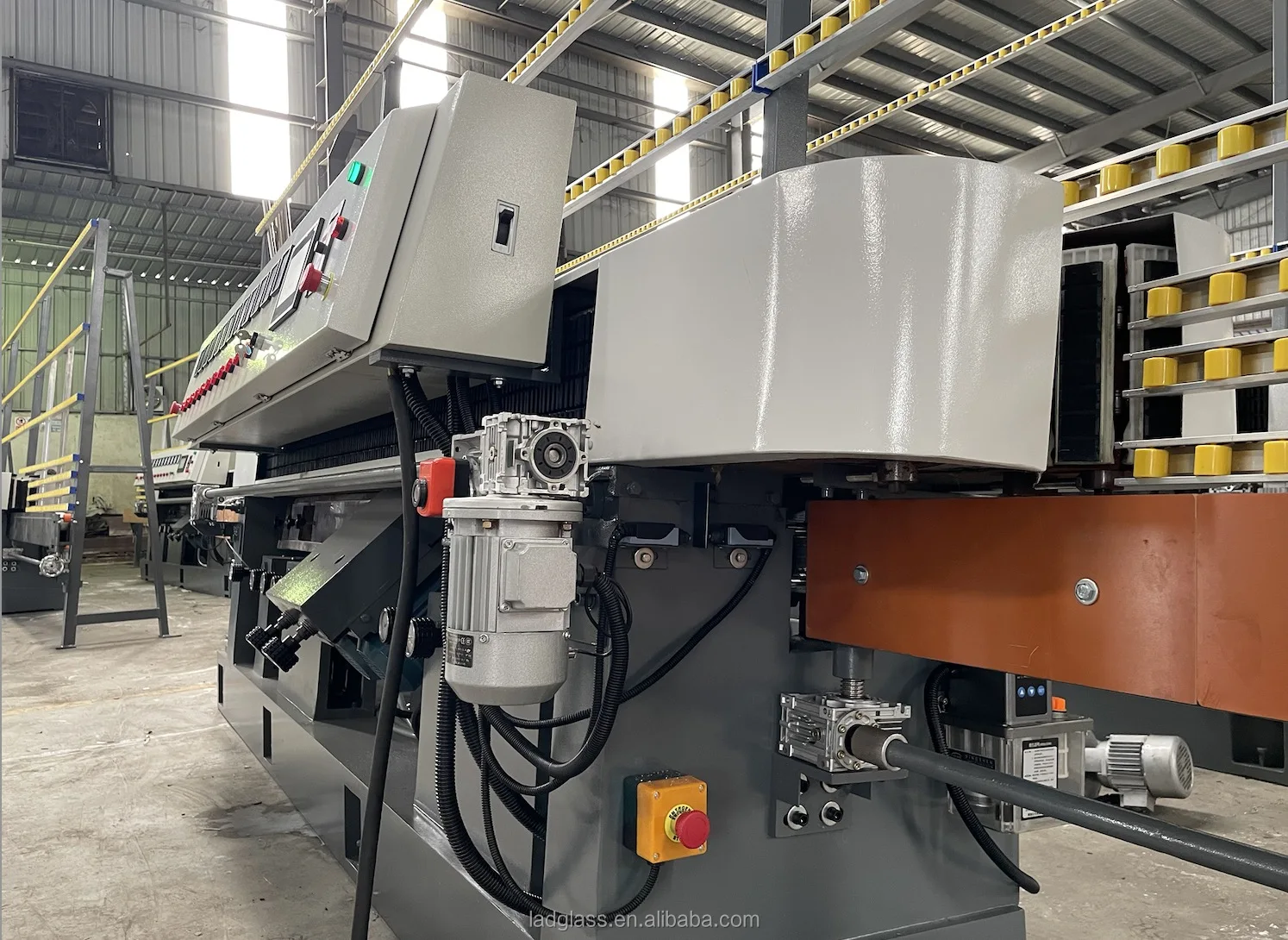

Photo 1.jpg

l Processes rectilinear glass plates in various sizes and thicknesses;

l The grinding (roughing), finishing resin and fillets can be performed simultaneously;

l The same thickness as the glass sheet can be continuously processed, so that the machine allows having a larger volume of production lines hardening processes, rolling processes and other processing.

Item	Specification
Maximum flat edging level:	3mm
Maximum arrising width:	2.5mm
Arrise angle:	45°
Min. glass size:	80x80mm
Glass thickness:	3-26mm
Installed power	18kw
Working speed	0.8-6.0m/min
Weight	3000kg
Worktable height	750mm
Overall dimension (L.W.H)	6800x1000x2600mm

Position	Name	Position	Name
1	Diamond wheel	7	BD wheel
2	Diamond wheel	8	Resin wheel
3	Resin wheel	9	Yew wheel
4	Resin wheel	10	Yew wheel
5	BD wheel	11	Felt wheel
6	Resin wheel

1. Machine basement	Cast steel
2. Thickness adjustment	Electric control
3. Speed adjustment	Converter control
4. Motor control	On/off bottom
5. Motors	Mingliang, CDQC, ABB motors for option
6. Belt	trimming belt or chain for option
7. Front rail height adjustment	Yes
8. Stainless steel water tank	Yes
9. Aluminum or steel glass rack for option	Yes

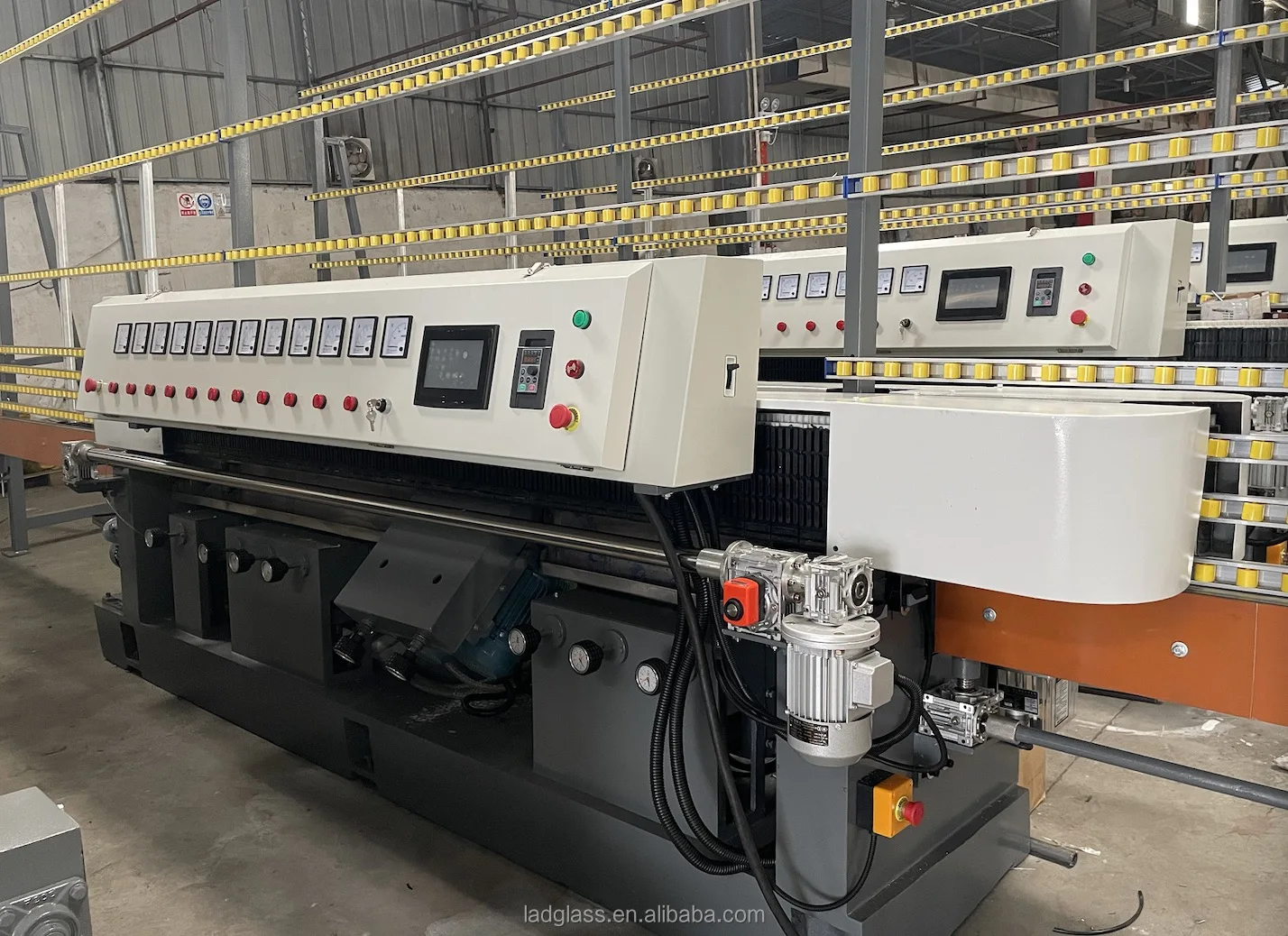

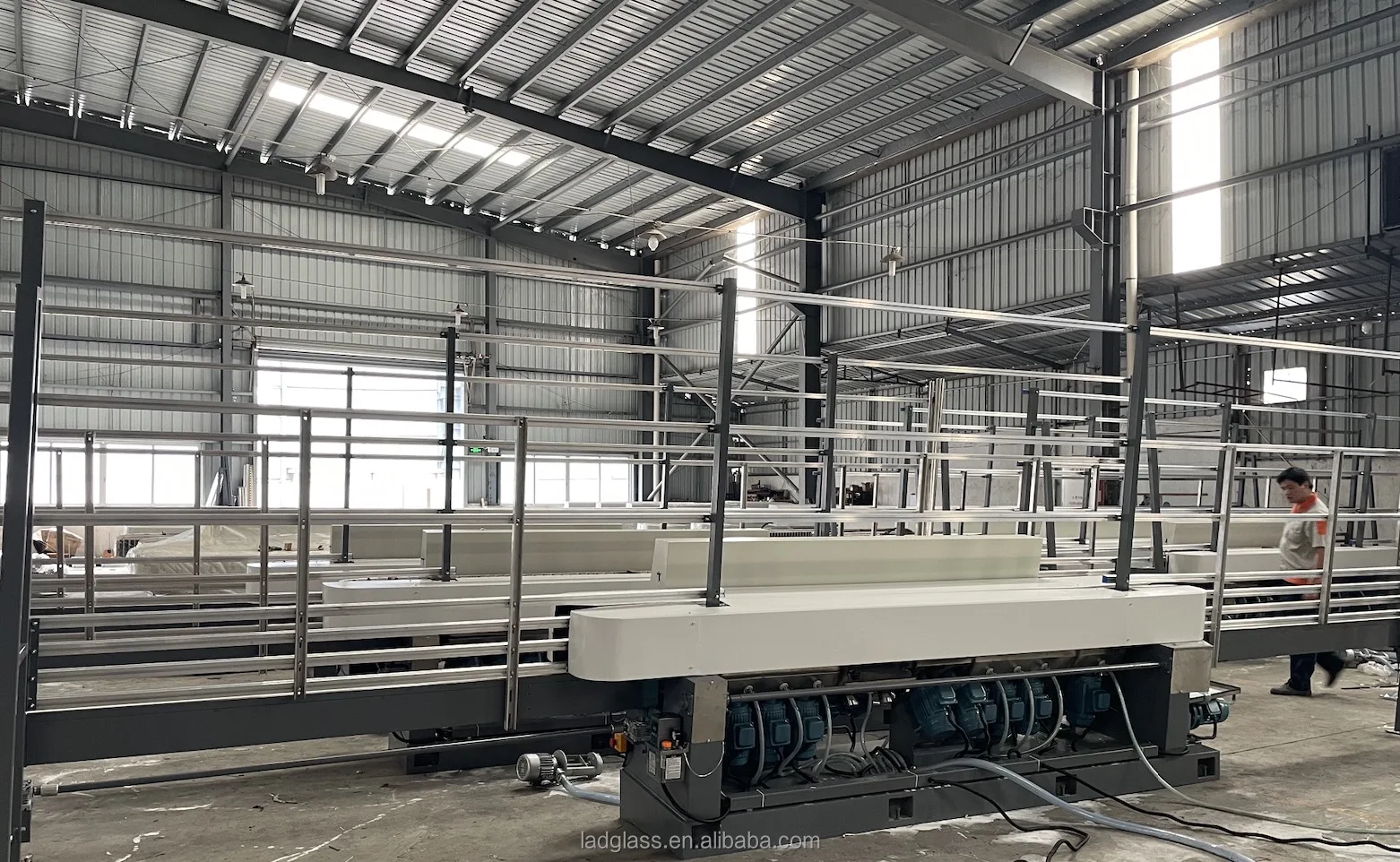

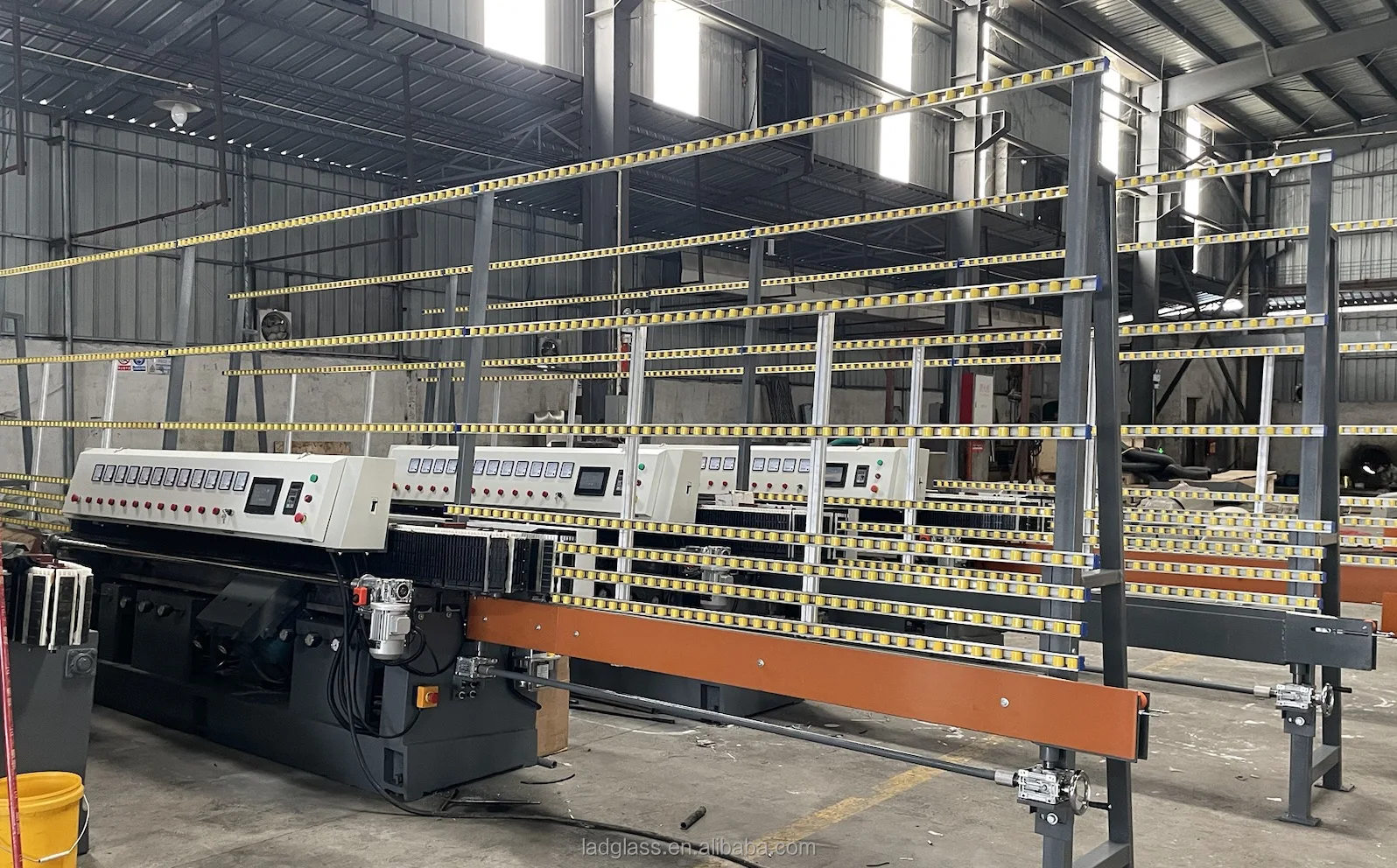

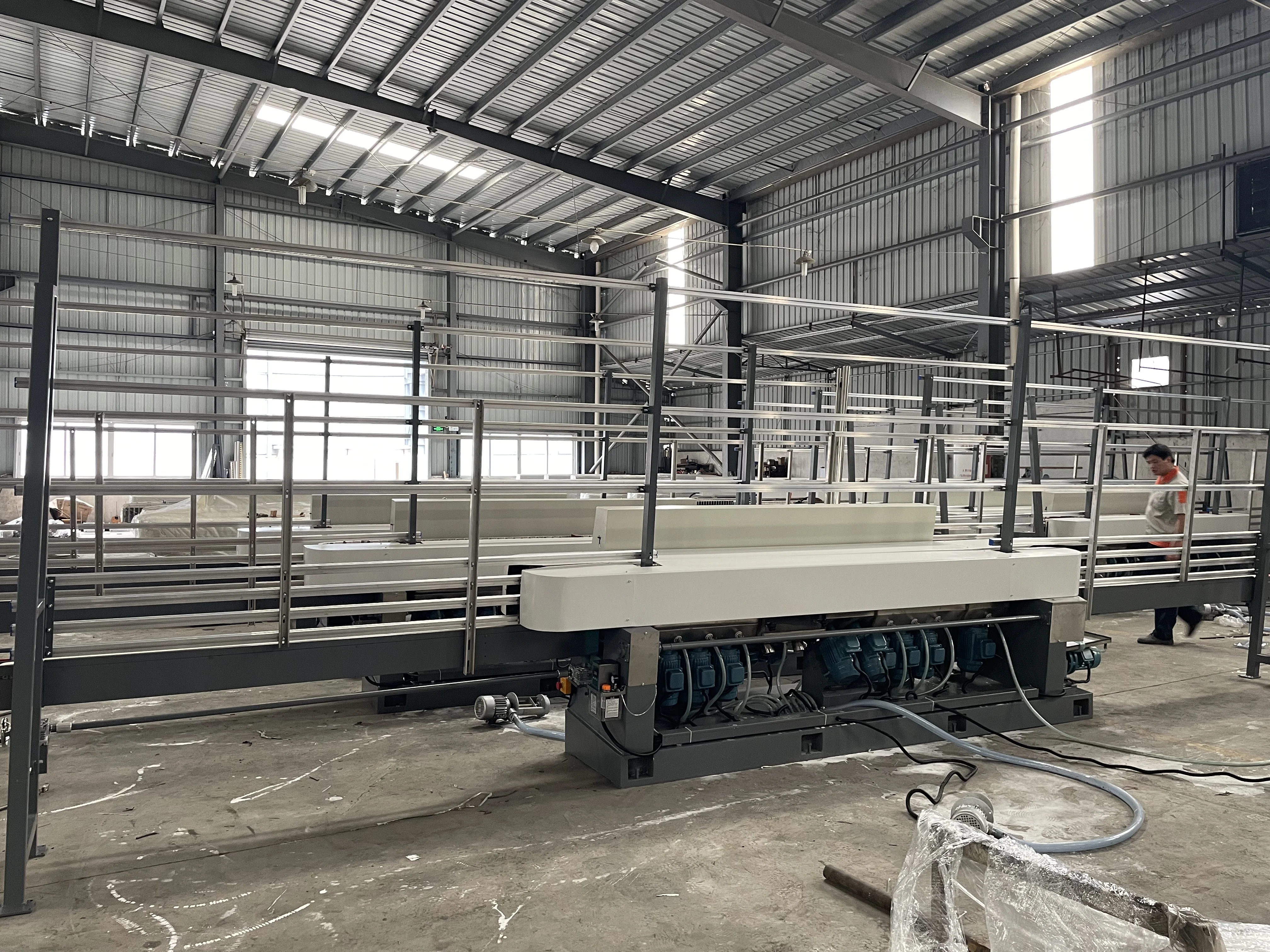

Machine in workshop

10.

Warranty and Service.

1 year warranty for the machine

Life time technical support and parts

English version machine operation manual, machine operation video and on site service if necessary

.jpg

We are a factory specialized in manufacturing of glass cold & hot processing machines.

The main products include glass cutting machine, glass double edging machine, glass vertical edging machine, vertical beveling machine, glass drilling machine, glass shape edging machine, glass sandblasting machine and glass flat/bent tempering furnace.

The factory started production of glass processing machines since year 2000.

All of our machines have CE certifications and thousands of our machines are working well all in customer’s factories over the world .

We have our own export team and service team. We are glad to support our high quality glass processing machines and give our instant, sufficient service to you!
