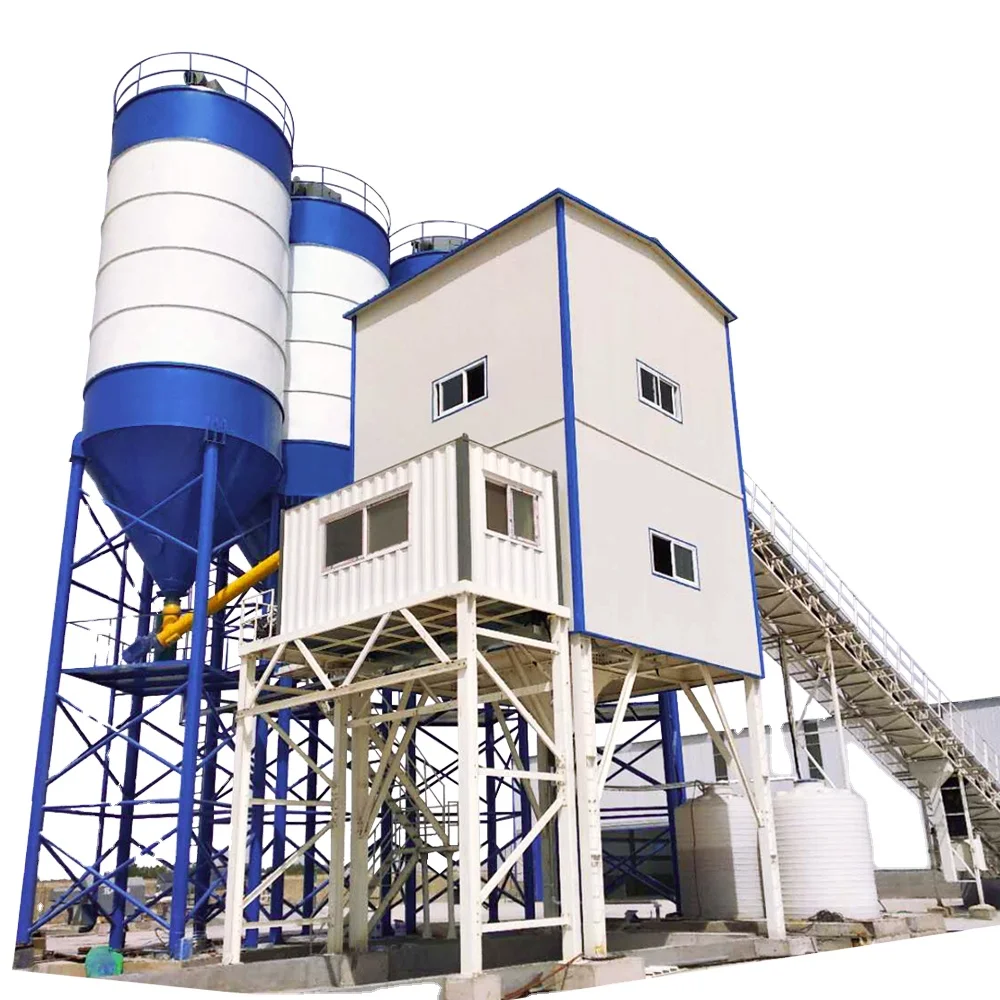

Низкая стоимость 2 бункеров бетонный/цементный станок фиксированный бункер, установленный в России, установка для смешивания бетонных заводов
15 753 078,80 ₽ - 16 184 670,00 ₽

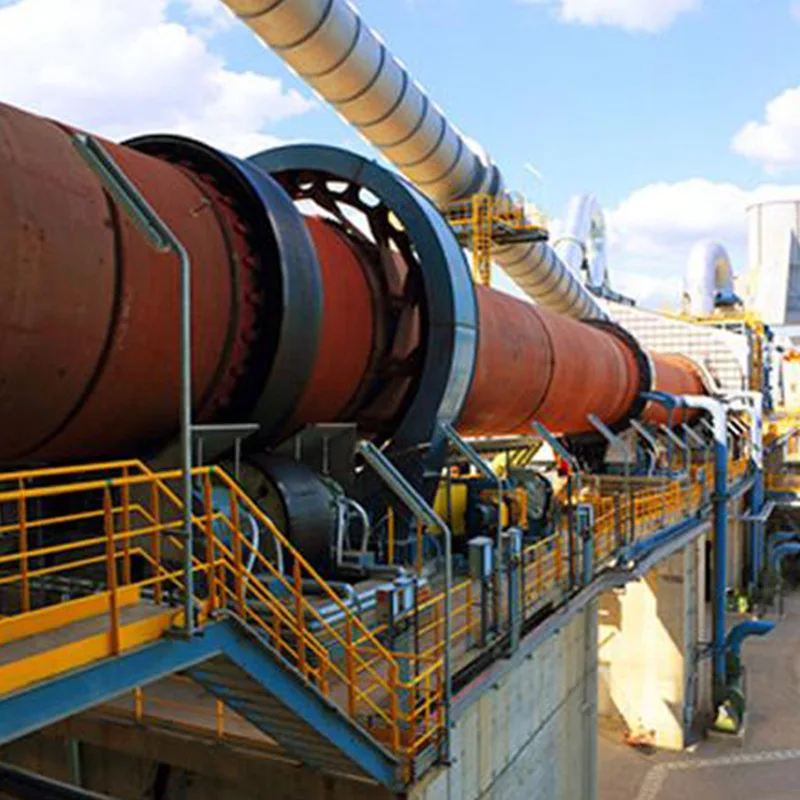

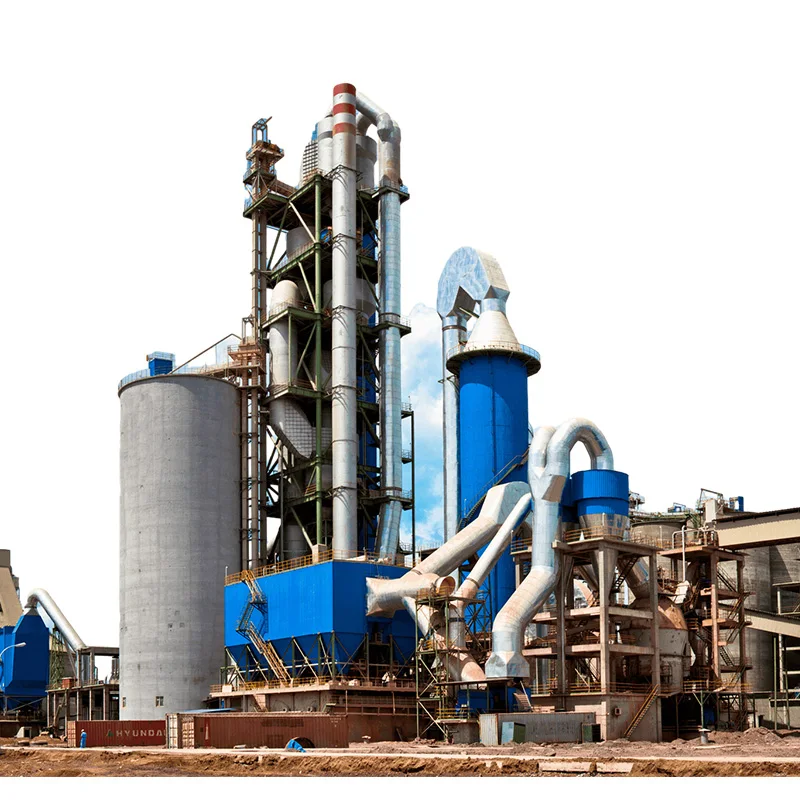

Вращающаяся печь для печи с активированным углем/Магнетитом/литием/железной рудой/сульфатом бария
- Категория: >>>
- Поставщик: Zhengzhou Sinoma Engineering Technology Co. Ltd.
Сохранить в закладки 10000015262247:
Описание и отзывы
Характеристики
Product Description

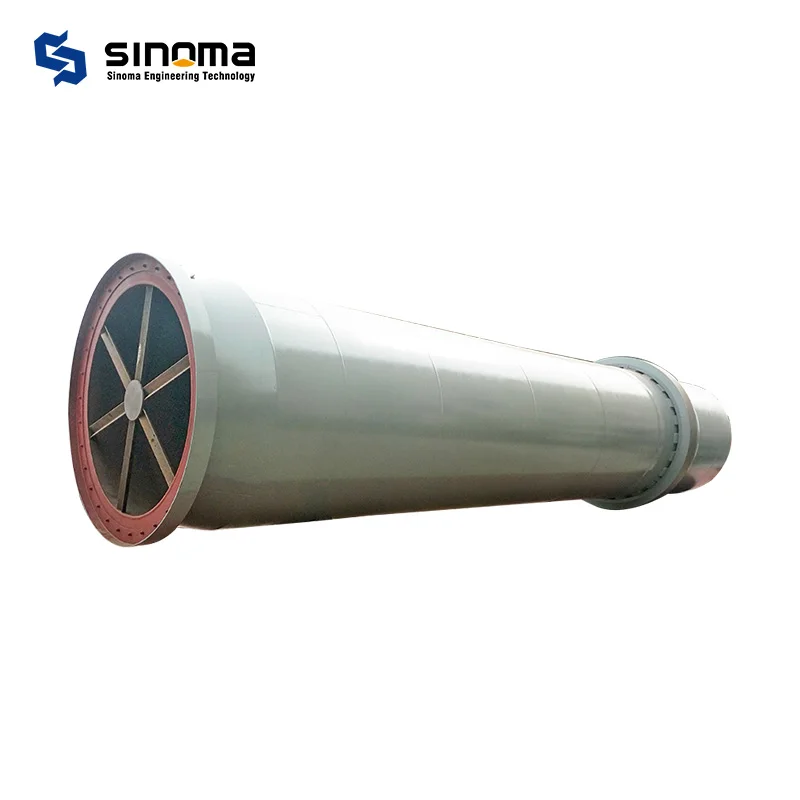

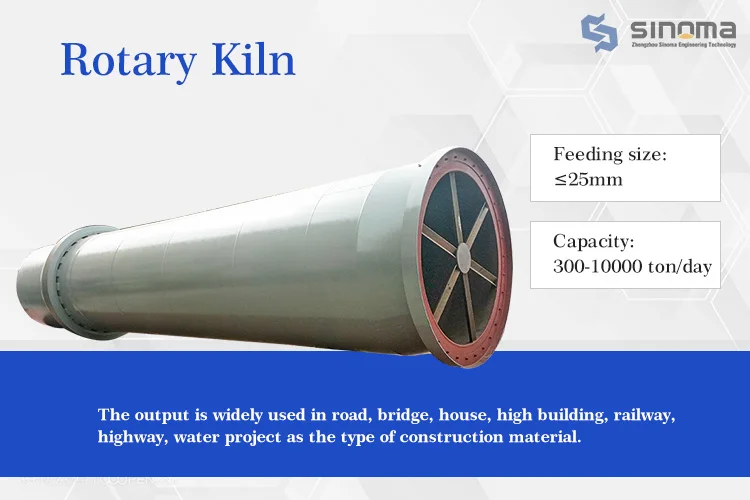

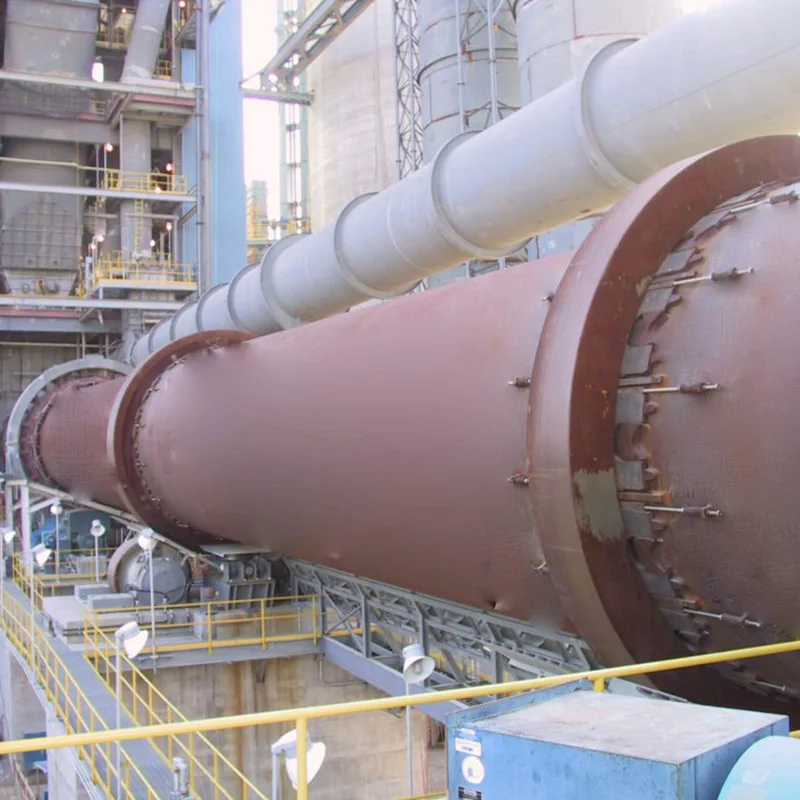

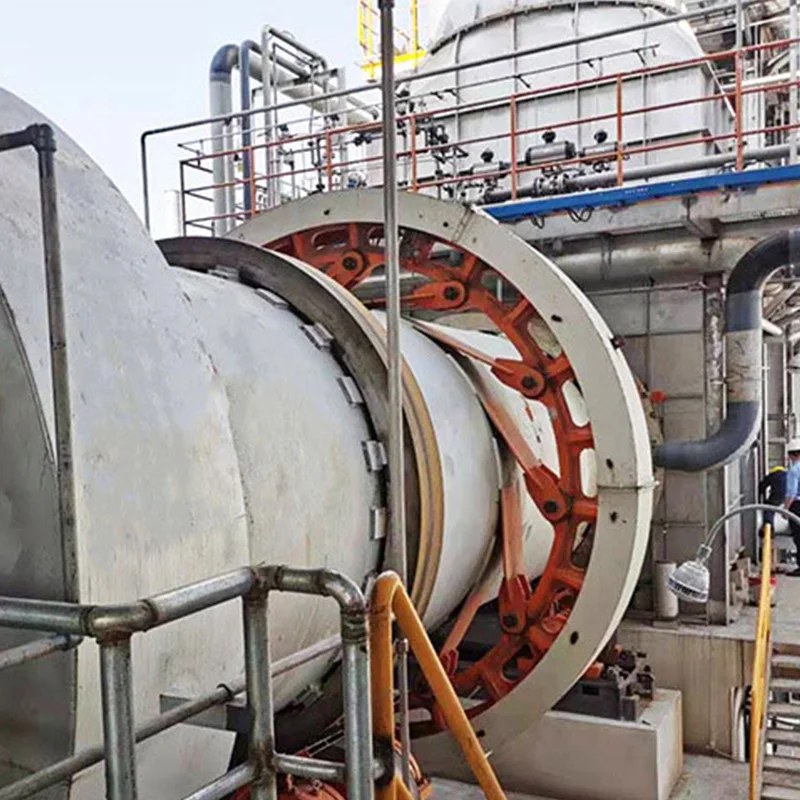

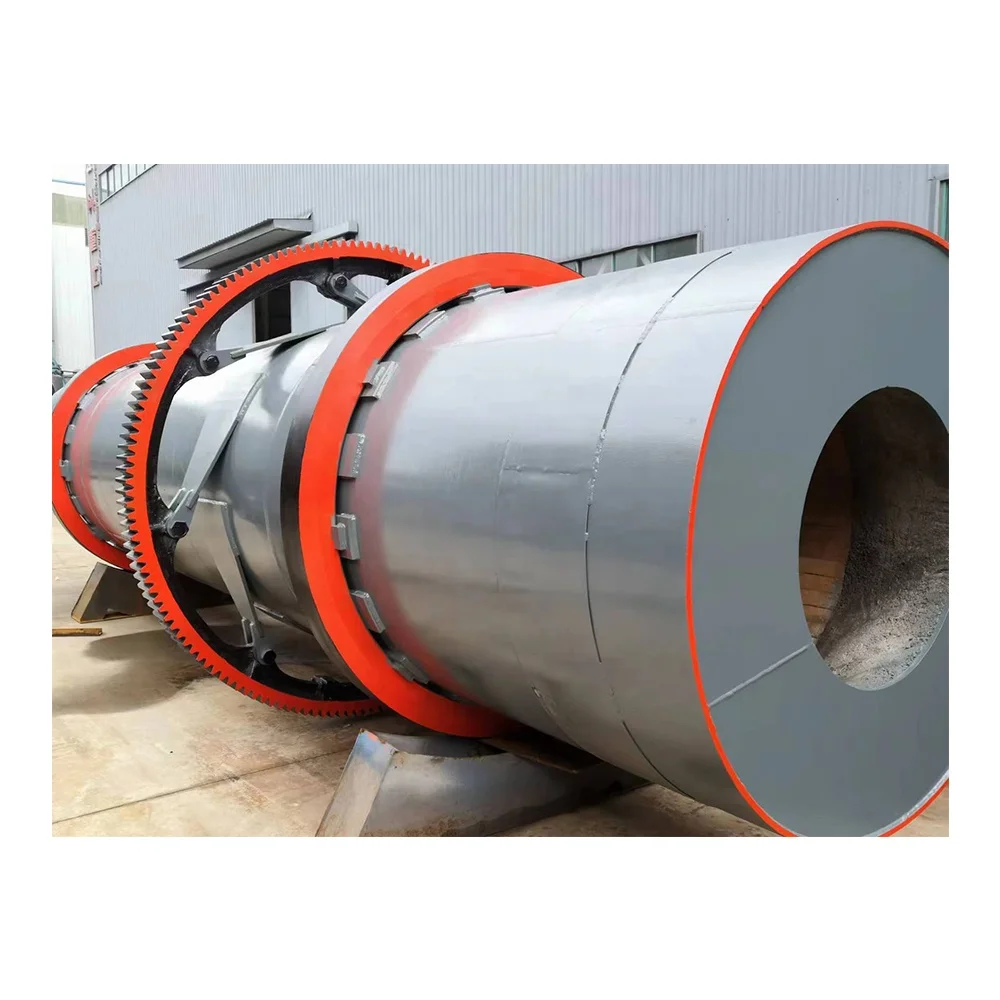

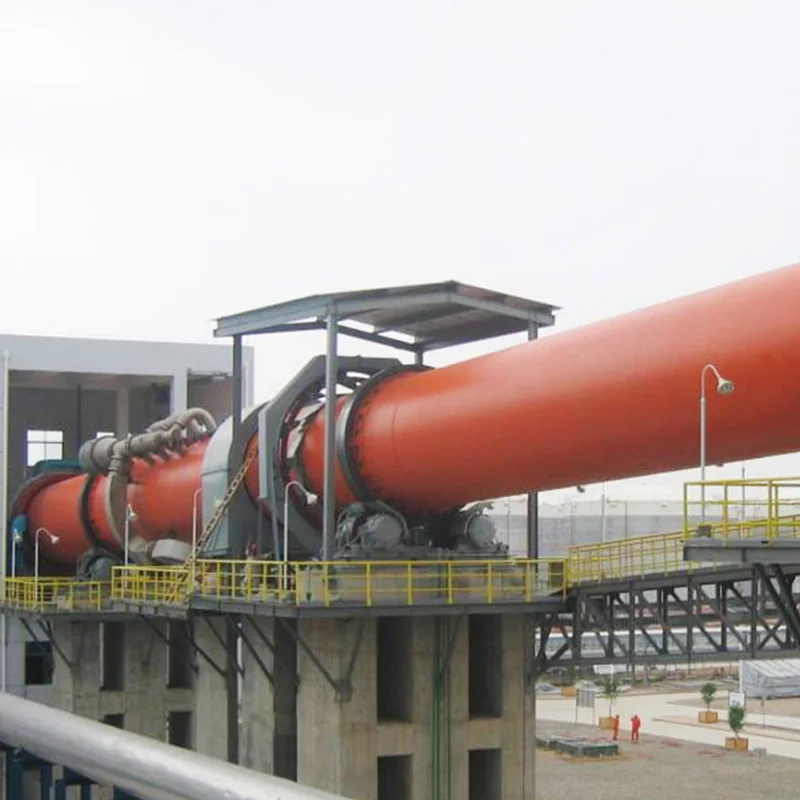

Rotary kiln is a type of large mining equipment .According to different processing materials, it can be divided into: cement rotary kiln, metallurgical chemical rotary kiln and lime rotary kiln according to. Cement rotary kiln is the main equipment for cement clinker's dry/wet production line. The applicable materials include limestone, calcium carbonate, copper ore and other materials.It’s widely used in chemical industry, metallurgy, etc.

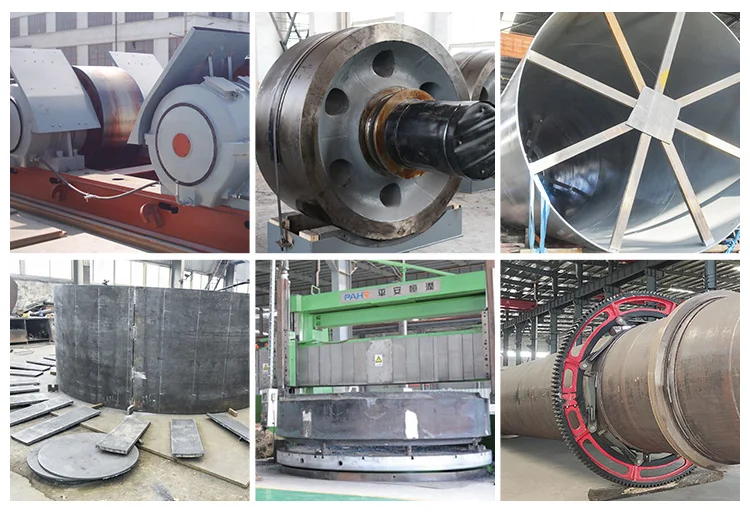

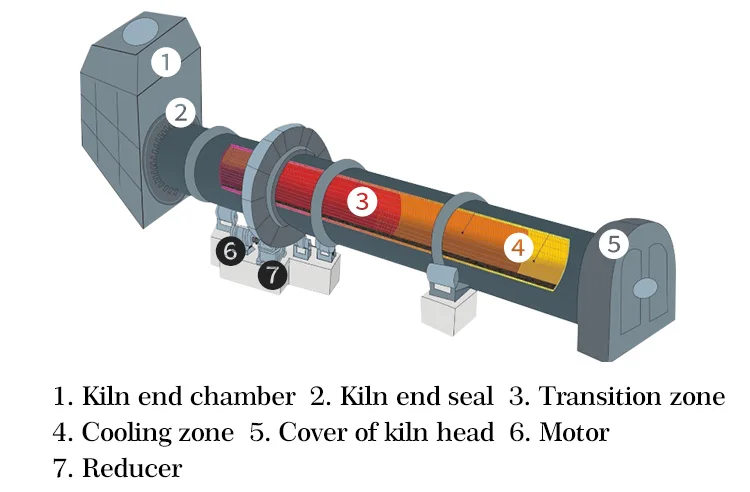

Details Images
Features:
1. The rotary kiln can process materials such as kaolin, lime, cement, zinc oxide, bauxite and ores, it is an important calcining equipment.
2. Large capacity, 300-8000 TPD, all available, suitable for different enterprises;
3. High calcining efficiency and good quality.
4. The rotary kiln adopts an electrified control operation system, convenient to operate.
5. Good environmental protection measures.
2. Large capacity, 300-8000 TPD, all available, suitable for different enterprises;
3. High calcining efficiency and good quality.
4. The rotary kiln adopts an electrified control operation system, convenient to operate.
5. Good environmental protection measures.
Product Paramenters
Model | Diameter (m) | Length (m) | Capacity (t/d) | Kiln Speed (r/min) | Motor Power (kw) | Total Weight (t) |
Ф3.2x50 | 3.2 | 50 | 1000 | 0.398-3.975 | 190 | 235 |
Ф3.3x52 | 3.3 | 52 | 1200 | 0.391-3.91 | 190 | 281 |
Ф3.5x54 | 3.5 | 54 | 1650 | 0.43-4.3 | 220 | 334 |
Ф4.0x60 | 4 | 60 | 2500 | 0.396-3.96 | 315 | 487 |
Ф4.2x60 | 4.2 | 60 | 2800 | 0.4165-4.165 | 420 | 576 |
Ф4.3x64 | 4.3 | 64 | 3200 | 0.449-4.49 | 450 | 585 |
Ф4.5x66 | 4.5 | 66 | 4000 | 0.41-4.1 | 560 | 710 |
Ф4.7x72 | 4.7 | 72 | 5000 | 0.45-4.5 | 710 | 825 |
Ф4.8x72 | 4.8 | 72 | 5000 | 0.403-4.03 | 630 | 847 |
Ф4.8x74 | 4.8 | 74 | 5000 | 0.35-4.0 | 630 | 841 |
Ф5.0x60 | 5 | 60 | 5500 | 0.4-4 | 710 | 787 |
Ф5.2x61 | 5.2 | 61 | 6000 | 0.38-3.79 | 800 | 859 |
* Note: The capacity may vary with different materials and feeding sizes. Technical parameters are subject to change without notice.
Application Areas&Materials
Application:
1. Cement industry: Calcining cement clinker, the main equipment of cement manufacturing.
2. Metallurgical industry: roasting metal ores such as iron ore and sulfide ore to obtain the required metal elements.
3. Chemical industry: calcine active lime, high alumina stone, aluminum sulfate and other chemical raw materials.
4. Ceramic industry: remove moisture and organic matter from ceramic raw materials to dry and sinter the raw materials.
5. Environmental protection: Dispose of solid waste such as hazardous waste, medical waste, and sludge.
2. Metallurgical industry: roasting metal ores such as iron ore and sulfide ore to obtain the required metal elements.
3. Chemical industry: calcine active lime, high alumina stone, aluminum sulfate and other chemical raw materials.
4. Ceramic industry: remove moisture and organic matter from ceramic raw materials to dry and sinter the raw materials.
5. Environmental protection: Dispose of solid waste such as hazardous waste, medical waste, and sludge.

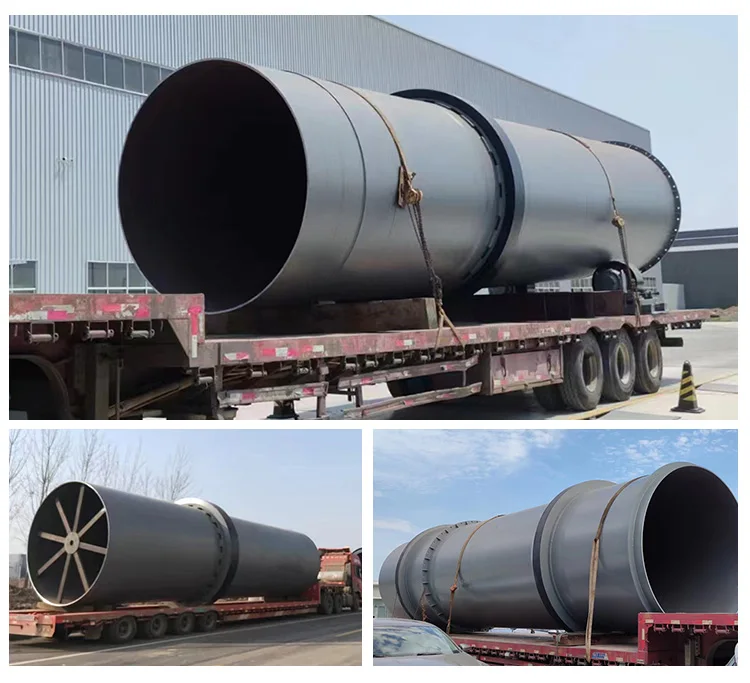

Packing & Delivery
Company Profile
Zhengzhou Sinoma Engineering Technology Co., Ltd. is a large-scale equipment manufacturer that integrates researching & development, production and sales together. Our equipment includes cement making machine, rotary kiln, concrete equipment, stone crusher, grinding mill machine, sand maker and sand washer, auxiliary equipment, which are widely used in the area of building, mining, cement making, construction, etc. We are the largest EPC supplier for new aggregate production-line in China.
FAQ
1. What is your payment method?
30% TT in advance, and the rest amount to be paid before goods leave factory by T/T. The other payment methods can also be discussed with our sales manager.
2. How is the device packaged and shipped?
The package is suitable for both land and sea. We can also choose a special package depending on your needs.
3. How long is the production time?
7-10 days for the stock, 15-30 days for immediately production.
4. How long is the warranty? Does your company supply the spare parts?
One year. We supply spare parts for you with lowest price.
5. If I need the complete crushing plant, can you help us to build it?
Yes, we can help you set up a complete production line and give you the best professional design. We had already build many big quarry projects in China & Overseas.
6. What can you buy from us?
Cement making machine/Rotary Kiln /Concrete Mixing Station/Jaw Crusher/Cone Crusher/Vibrating Screen/Sand Making Machine/Mobile Stone Crusher Plant/Vibrating Feeder/Fine Sand Recovery Machine/ Sand Washer Machine/Impact Crusher/Vertical Shaft Impact Crusher/Hammer Crusher/Belt Conveyor/Stone Crushing Plant/Mobile Stone Crusher.
30% TT in advance, and the rest amount to be paid before goods leave factory by T/T. The other payment methods can also be discussed with our sales manager.
2. How is the device packaged and shipped?
The package is suitable for both land and sea. We can also choose a special package depending on your needs.
3. How long is the production time?
7-10 days for the stock, 15-30 days for immediately production.
4. How long is the warranty? Does your company supply the spare parts?
One year. We supply spare parts for you with lowest price.
5. If I need the complete crushing plant, can you help us to build it?
Yes, we can help you set up a complete production line and give you the best professional design. We had already build many big quarry projects in China & Overseas.
6. What can you buy from us?
Cement making machine/Rotary Kiln /Concrete Mixing Station/Jaw Crusher/Cone Crusher/Vibrating Screen/Sand Making Machine/Mobile Stone Crusher Plant/Vibrating Feeder/Fine Sand Recovery Machine/ Sand Washer Machine/Impact Crusher/Vertical Shaft Impact Crusher/Hammer Crusher/Belt Conveyor/Stone Crushing Plant/Mobile Stone Crusher.
Похожие товары
Разгрузочная станция для супермешков, разгрузчик больших пакетов, изготовленный на заказ, упаковочная машина для больших тонных пакетов с объемом 1 т, FIBC PP материал
647 278,91 ₽
Большая Великобритания (Великобритания) сушилка для креветок Cif Цена

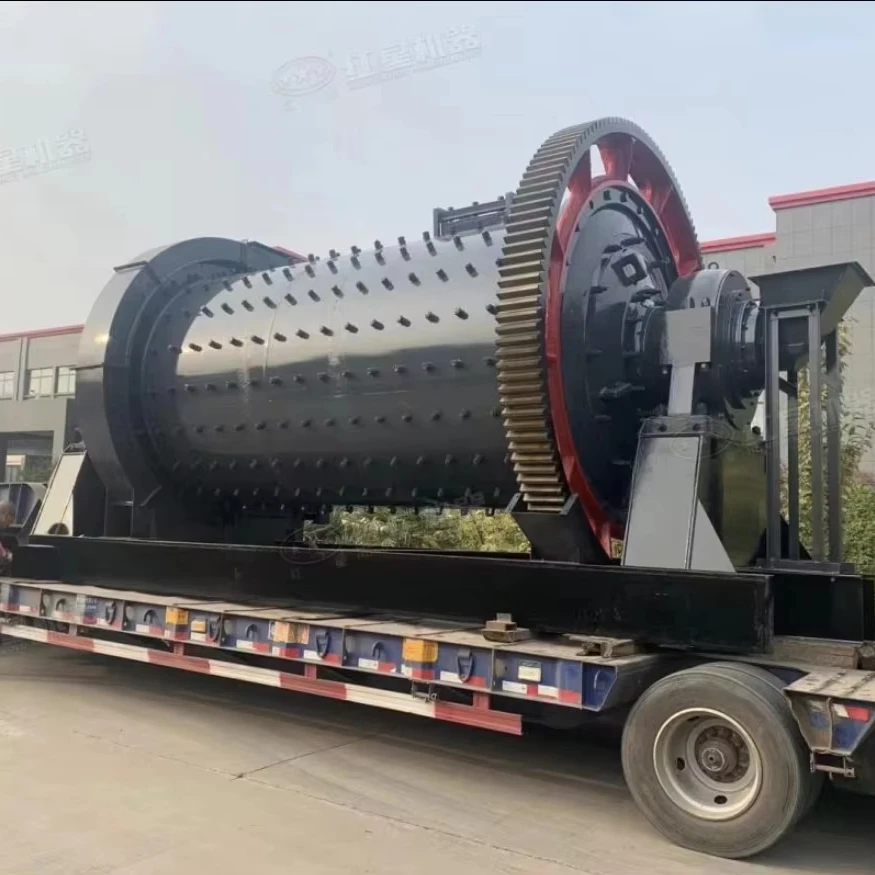

Фабрика Zhengzhou, угольная мельница, минеральный измельчитель, ветряные угольные мельницы, шаровая мельница, оборудование для переработки руды
