Wall Board Machinery Decorative Concrete Wall Panel Machine Plasterboard Manufacturer Fiber Cement Board Making Machine

Product Parameters

1. Fuel: natural gas,coal,heavy oil or diesel.

2.Main material: Cement,fiber;
                         Silica sand,cement,fiber;
                         Silica sand,lime,fiber;

Main Features

1) Product is in accordance with national standard Reinforced Fiber Calcium Silicate Board JC/T564- 2000 of China Material cement, glass fiber, paper pulp, quartz sand,calcium oxide.
2) Density: ≤ 1.5g/cm2  without press  > 1.5g/cm2  with press
3) Rupture strength: 15-28 Mpa
4) Thickness: 2-30 mm
5) Panel size: 1220*2440*T(2-30) mm
6) Thermal conductive index: 0.24W/MK(JC/T54)
7) Moisture content: ≤ 10%
8)Water absorption rate:19%
9) Water consumption: 450m3/day
10)Steam construction: 2.0 ton/hour

Product Application
Fiber Reinforced Calcium Silicate Board(press board) is a new construction material which

has been pulping, molding, compression, maintenance and so on. It is based on cement and

assist with proper fiber reinforced material. The products are widely used in variety kinds of industrial and domestic construction fields such as external, internal walls, ceilings, sound

 insulation, and waterproof board for special facility. Combined with keel and filler, it also can used for some framework light board system construction, high-rise building, old building, old building renew, light type workshop, control room and

laboraty. Because of its good features like less building cycle, less energy, notable economic benefit, fiber reinforced cement board are favorable all over the world.

The whole production line of Factory Fiber Cement Board Making Machine Fiber Cement Board Production Line Cement Fiber Board Exterior Wall Panel Fiber Cement Board Plant Machinery/ Fiber Ceiling Board Production Line/Fiber Cement Board Machine

Raw material processing System
Raw material conveying system,raw material weighing system,pulp system ,silica grinding system,Proportioning system.

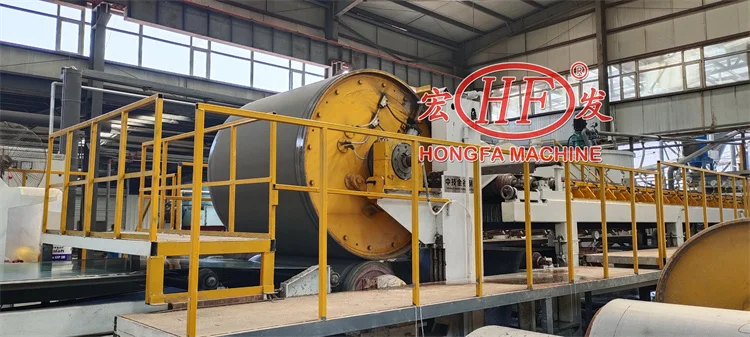

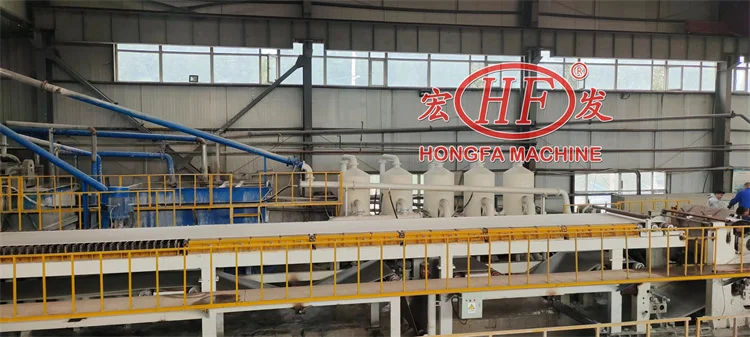

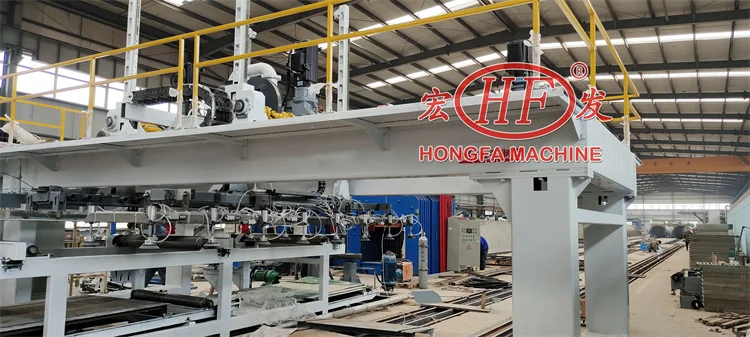

Sheet Making System
Premixer,Round sieve cylinder cage system,Machine head system,Board blanket catcher , Super high pressure water cutting system,4 position stacker system, four- position demoulding system,lift platform system,Pump, motor, reducer, bearing and so on.

Press Machine System
There are two kinds of press machine, up lift and down press, up lift is more popular. Press machine is composed of 6 pressing cylinders and 2 lift cylinders, prefill valve is used to control the oil discharge and refule of 6 main cylinders, which is controled by hydraulic station and electric system to ensure the press and lift process of cylinder. Pressure sensor will indicate the press and balance of cylinder, PLC control can be set by multi mode, gear, time and walking distance.

Autoclave And Drying

/Advanced Autoclave For Cement Board Heat Resistant Fiber Cement Board Making

Machine Calcium Silicate Board Production Line
Board blanket is sent to autoclave to be steamed by winch after demoulding, steaming process include pressure increasing, pressure stablization and pressure release, pressure stablization is most important, which lasts 12-15hous, pressure 0.8-1.1MPa, silica inside board will react with lime and water to form Tobermorite and some hard okenite, hydrated product formed by CaO and SiO2 will consolidate quartz power and reinforcement fiber to get more strength.

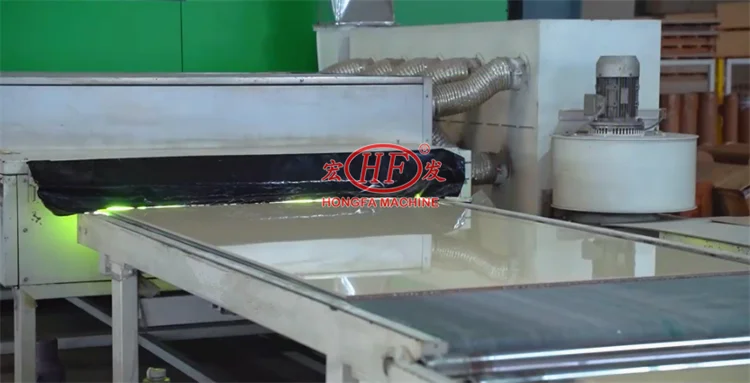

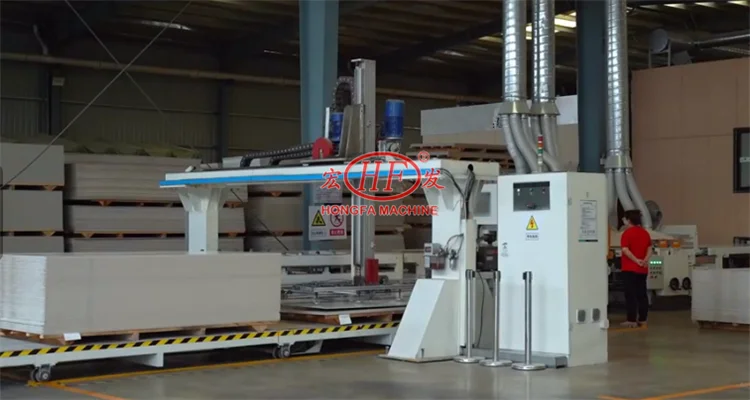

Composition:board loader, dryer, sanding machine, polishing machine, squaring and chamfering machine, board palletizing machine, and dust remover.

Boiler
Boiler is kind of equipmetn to produce steam and exchange heat with hot water, the burning of fuel release much heat energy, which is transferred to water by thermal transmission and transform water into steam or hot water. Most factory use coal, natural gas and Gasoline to supply energy to boiler in Casium silicate board industry, steam pressue 16KG.

Electrical Equipment of Factory Fiber Cement Board Making Machine Fiber Cement Board Production Line Cement Fiber Board Exterior Wall Panel
Ø Composition: PLC, frequency conversion, indicating screen, switch, button, electric control cabinet, wire, cable and so on. Ø Detailed information see instruction.

Application of fiber cement board

A leader developer& Manufacturer of Construction Material Machinery.
Main business Range & Products:
Hongfa Products: Fiber cement board /Calicum Silicae Boad Production Line, Lightweight Wall Panel Production Line, AAC Block Production Line, Full

Automatic Concrete Block Production Line, Artificial Quartz Plate Production Line,Organic

fertilizer equipment, hydroelectric power plant, Portland Cement Plant, Sugar cane sugar extraction equipment,Quicklime kiln equipment.Concrete Pipe Machine, Concrete Tile Machine, Concrete

pipe machine, Bidirectional Hydraulic Brick Maker, Mining Machinery,  Concrete Batching plant,  Stereo Parking Equipment,etc

Hongfa Strengths
More than 30 years experience. 1500 employee (50+engineers)
2) Total 4 factories with 440,000M2 and annual sell above USD100 Million .
3) 10,000 customers and fulfillment to over 120 countries.
4) Continuous service and logistics system.
5) High quality products and competitive price.We hope we can cooperate with each other and establish a win-win business relationship.

Q: How can you guarantee the production quality ?
A: Our production quality follow China construction machinery standard JGJ33-2012. We have 30 years experience on producing the machines and will be inspected by QC
team for each shipment. We have strictly quality control system in our production process. We
have 4 times inspection for each finished product before package Third part inspection acceptable.
