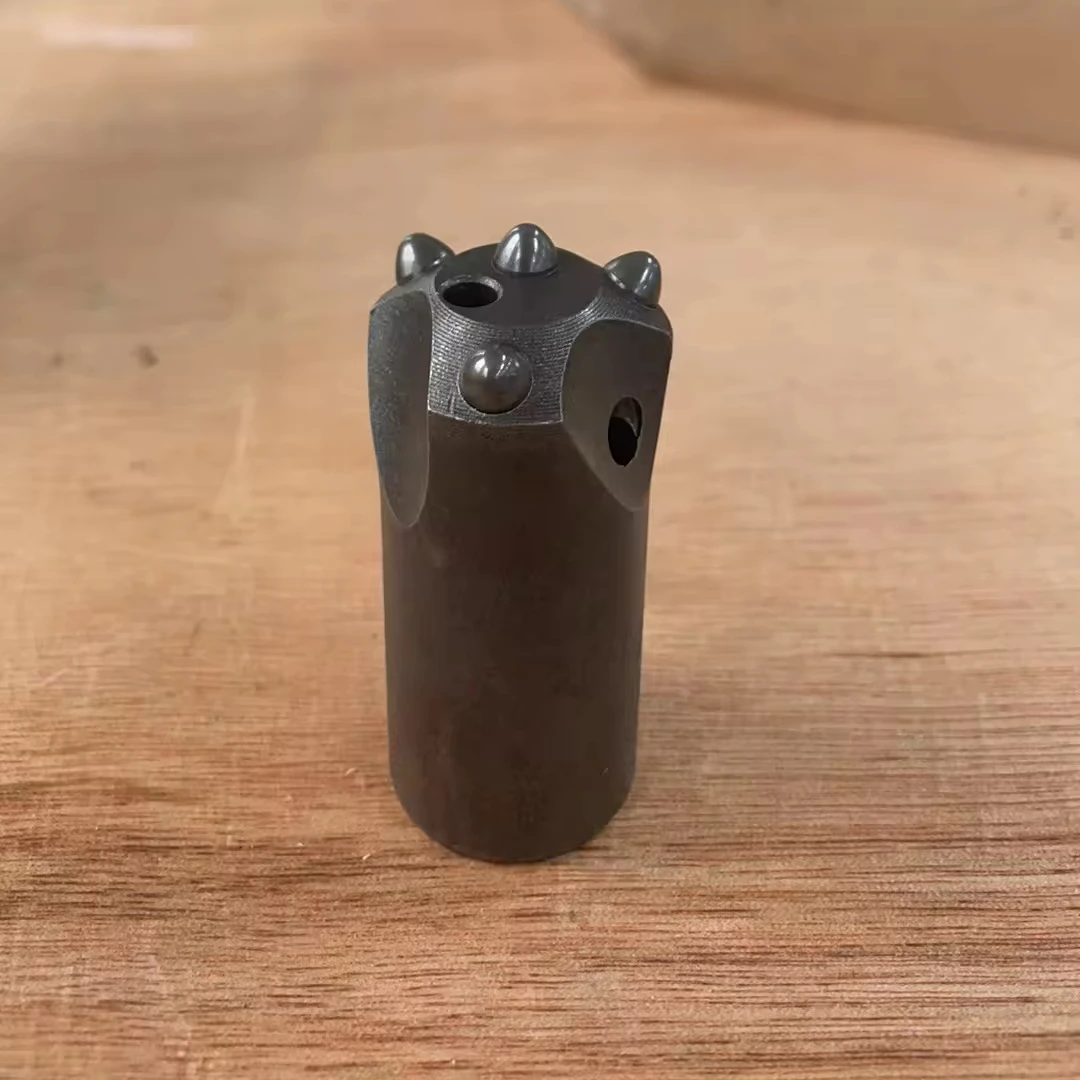

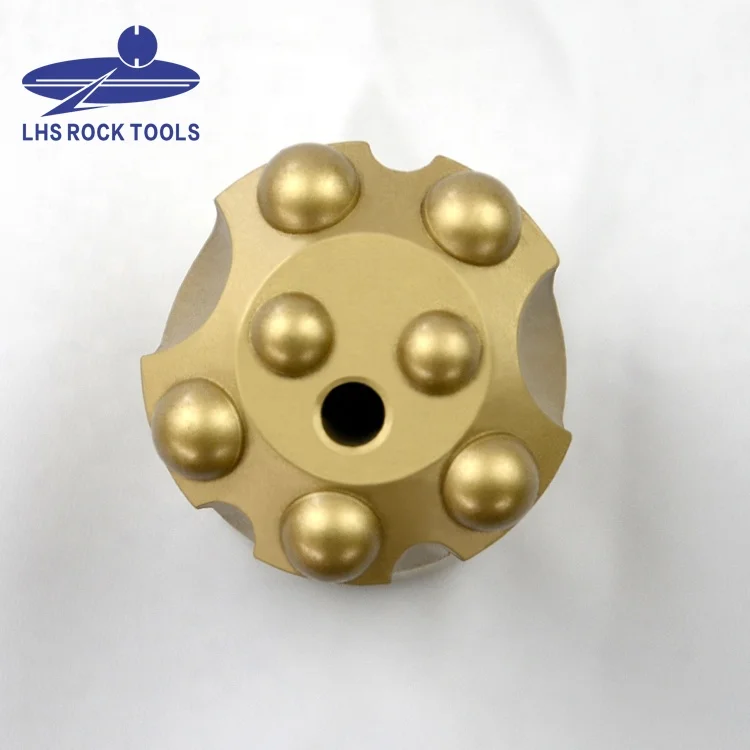

C-тип 43 мм R32 резьбовые биты из карбида вольфрама для подземного туннеля
2 302,62 ₽ - 2 467,09 ₽
Буровое долото для подземного шахтного долота
- Категория: >>>
- Поставщик: Changsha Tianhe Drilling Tools And Machinery Co. Ltd.
Сохранить в закладки 10000016486420:
Описание и отзывы
Характеристики
Product Overview

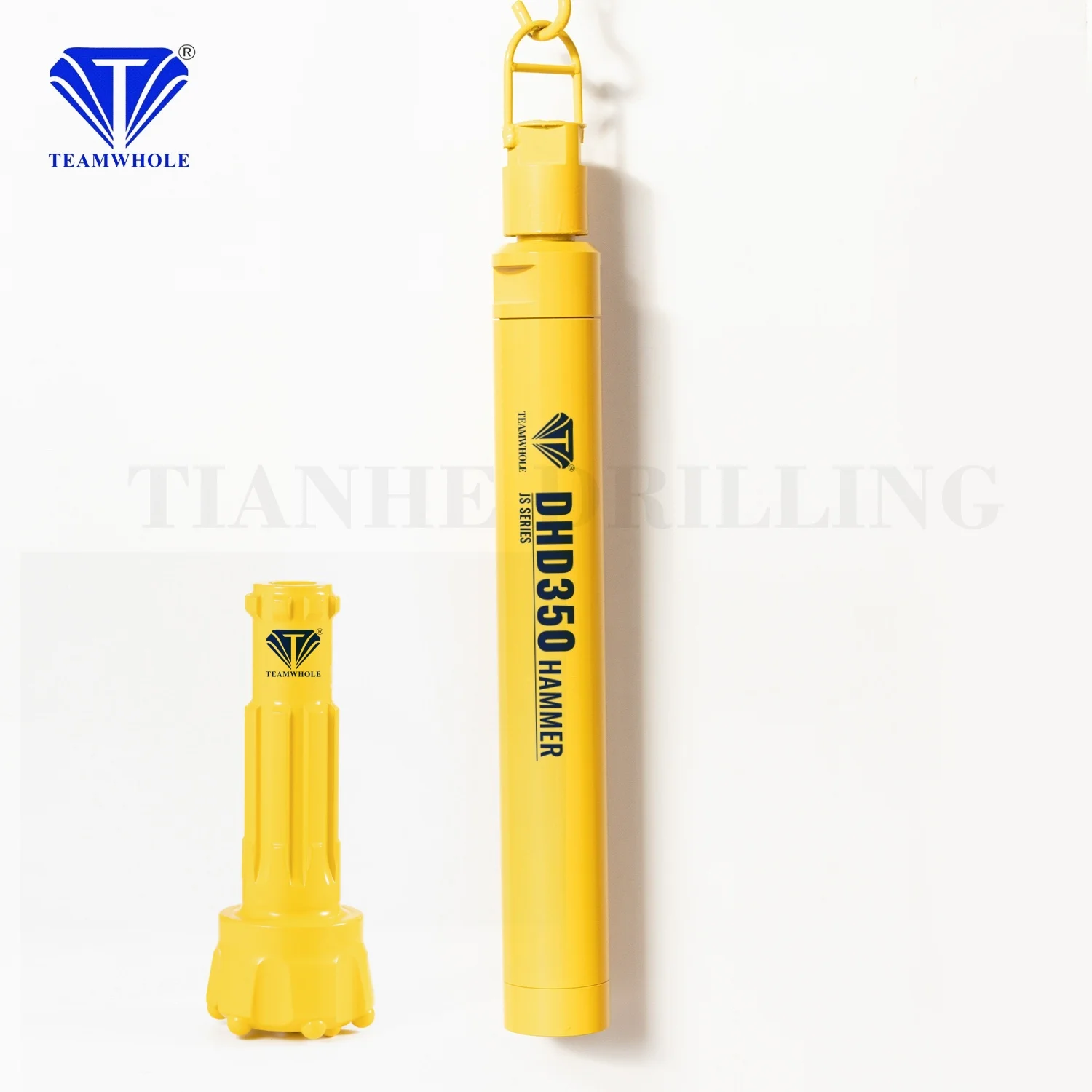

TEAMWHOLE JS 6INCH DTH HAMMER
The JS series DTH hammer is a new type of high pressure hammer which developed by our company. It is one of the most cost-effective DTH hammer in China. This series of hammer are match to bit without foot valve.
☆Compatible with the bits of COP/DHD/SD/QL/MISSION series
☆Simple piston structure increases it's lifetime
☆Adopt valveless air distribution,simple structure makes it easy for dis-assembly
☆Faster drilling speed and less power consumption.
☆Adopt fine alloy steel and apply hardening treatment on the spare parts,which prolongs DTH hammer lifetime and lifts reliability.
☆Compatible with the bits of COP/DHD/SD/QL/MISSION series
☆Simple piston structure increases it's lifetime
☆Adopt valveless air distribution,simple structure makes it easy for dis-assembly
☆Faster drilling speed and less power consumption.
☆Adopt fine alloy steel and apply hardening treatment on the spare parts,which prolongs DTH hammer lifetime and lifts reliability.
FEATURES AT A GLANCE
6inch DTH Hammer
Structure
Other hammer Model
PRODUCT SPECIFICATIONS
JS-DHD SERIES DTH HAMMER SPECIFICATION | DHD SHNAK DTH HAMMER SPECIFICATION | ||||||||||||
Bit shank | Length (mm) | Thread | OD/mm | Work pressure | Rec.Hole Range(mm) | Air consumption(m³/min at 18bar) | Weight (kg) | ||||||
DHD3.5 | 863 | API 2 3/8"REG | 80 | 2.0Mpa | 90mm-115mm | 7 | 22 | ||||||
DHD340 | 967 | API 2 3/8"REG | 99 | 2.5Mpa | 105mm-130mm | 11 | 38.5 | ||||||
DHD350 | 1070 | API 3 1/2"REG | 126 | 2.8Mpa | 140mm-152mm | 16 | 70 | ||||||
DHD360 | 1164 | API 3 1/2"REG | 148.5 | 3.0Mpa | 152mm-190mm | 20 | 101.5 | ||||||
DHD380 | 1366 | API 4 1/2"REG | 185 | 3.0Mpa | 203mm-254mm | 30 | 195 | ||||||
DHD112 | 1698.5 | API 6 5/8"REG | 275 | 3.0Mpa | 305mm-380mm | 70 | 560 | ||||||
JS-QL SERIES DTH HAMMER SPECIFICATION | ||||||||||||||
Bit shank | Length (mm) | Thread | OD/mm | Work pressure | Rec.Hole Range(mm) | Air consumption(m³/min at 18bar) | Weight (kg) | |||||||
QLX40 | 967 | API 2 3/8"REG | 99 | 2.5Mpa | 105mm-130mm | 7 | 38.5 | |||||||
QL50 | 1070 | API 3 1/2"REG | 126 | 2.8Mpa | 105mm-130mm | 11 | 70 | |||||||

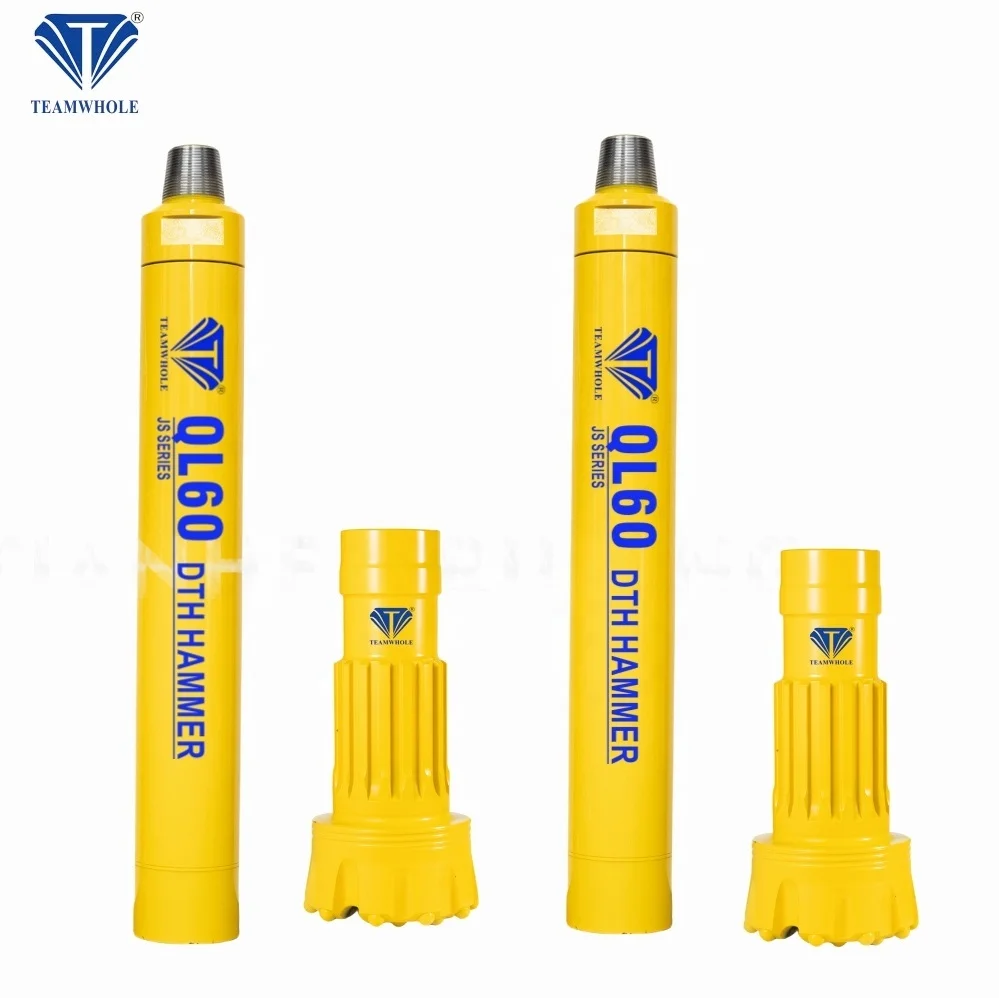

QL60 | 1164 | API 3 1/2"REG | 148.5 | 3.0Mpa | 152mm-190mm | 16 | 101.5 | |||||||
QL80 | 1366 | API 4 1/2"REG | 185 | 3.0Mpa | 203mm-254mm | 30 | 195 | |||||||
QL120 | 1698.5 | API 6 5/8"REG | 275 | 3.0Mpa | 305mm-380mm | 70 | 560 | |||||||
JS-SD SERIES DTH HAMMER SPECIFICATION | ||||||||||||||
Bit shank | Length(mm) | Thread | OD/mm | Work pressure | Rec.Hole Range(mm) | Air consumption(m³/min at 18bar) | Weight (kg) | |||||||
SD4 | 967 | API 2 3/8"REG | 99 | 2.5Mpa | 105mm-130mm | 7 | 38.5 | |||||||
SD5 | 1070 | API 3 1/2"REG | 126 | 2.8Mpa | 105mm-130mm | 11 | 70 | |||||||
SD6 | 1164 | API 3 1/2"REG | 148.5 | 3.0Mpa | 152mm-190mm | 16 | 101.5 | |||||||
SD8 | 1366 | API 4 1/2"REG | 185 | 3.0Mpa | 203mm-254mm | 30 | 195 | |||||||
SD10 | 1522 | API 5 1/2"REG | 220 | 3.0Mpa | 254mm-305mm | 45 | 295 | |||||||
SD12 | 1698.5 | API 6 5/8"REG | 275 | 3.0Mpa | 305mm-380mm | 70 | 560 | |||||||
JS-MISSION SERIES DTH HAMMER SPECIFICATION | ||||||||||||||
Bit shank | Length(mm) | Thread | OD/mm | Work pressure | Rec.Hole Range(mm) | Air consumption(m³/min at 18bar) | Weight (kg) | |||||||
MISSION40 | 967 | API 2 3/8"REG | 99 | 2.5Mpa | 105mm-130mm | 7 | 38.5 | |||||||
MISSION50 | 1070 | API 3 1/2"REG | 126 | 2.8Mpa | 105mm-130mm | 11 | 70 | |||||||
MISSION60 | 1164 | API 3 1/2"REG | 148.5 | 3.0Mpa | 152mm-190mm | 16 | 101.5 | |||||||
MISSION80 | 1366 | API 4 1/2"REG | 185 | 3.0Mpa | 203mm-254mm | 30 | 195 | |||||||
TEAMWHOLE Large diameter of DTH Hammer | ||||||||||||||
Bit shank | Length(mm) | Thread | OD/mm | Work pressure | Rec.Hole Range(mm) | Air consumption(m³/min at 18bar) | Weight(kg) | |||||||
TK12 (NUMA120) | 1698.5 | API 6 5/8"REG | 275 | 3.5Mpa | 305mm-380mm | 30.8 | 553 | |||||||
TK14 (NUMA125 | 1954 | API 7 5/8"REG | 330 | 3.5Mpa | 400mm-500mm | 85 | 553 | |||||||
TK18 (NUMA180) | 1954 | HEX | 406 | 3.5Mpa | 500mm-600mm | 110 | 1488 | |||||||
TK24 (NUMA240) | 2543.5 | HEX | 525 | 3.5Mpa | 600mm-1000mm | 130 | 2598 | |||||||
PRODUCT CONFIGURATION
TOP SUB
Piston
CHUCK SLEEVE
Successful Project
Geothermal in Europe
Water Well in Mongolia
Blasting in Africa
Recommend Products
Changsha Tianhe Drilling Tools and Machinery Co.,Ltd
Changsha Tianhe Drilling Tools and Machinery Co.,Ltd was established in 2002,located in Industrial Development
Zone,Ningxiang,Changsha,China.The company has over 60,000 square meters workshop and more than100 technological backbone and 50 experts with more than 20years of DTH rock drilling tools experience.
It mainly manufactures DTH hammers and bits with capacity of drilling holes from 3" to 43"(76-1100mm)in diameters, DTH drilling tools with large diameters for deep holes drilling,Eccentric(ODEX)casing system and Concentric casing system, Reverse circulation hammers and bits, accessories of rock drills and some other equipments. The products are widely used in mining, water well engineering, construction, geological exploration, geothermal drilling, oil and gas and other fields.
The company's advanced production equipment and analytical instruments can ensure the products
reliable quality and stable performance. Ail of our products are produced according to quality management system ISO9001:2015.Our products are exported to South America, Africa, Europe, Australia, Middle East and other places.
Zone,Ningxiang,Changsha,China.The company has over 60,000 square meters workshop and more than100 technological backbone and 50 experts with more than 20years of DTH rock drilling tools experience.
It mainly manufactures DTH hammers and bits with capacity of drilling holes from 3" to 43"(76-1100mm)in diameters, DTH drilling tools with large diameters for deep holes drilling,Eccentric(ODEX)casing system and Concentric casing system, Reverse circulation hammers and bits, accessories of rock drills and some other equipments. The products are widely used in mining, water well engineering, construction, geological exploration, geothermal drilling, oil and gas and other fields.
The company's advanced production equipment and analytical instruments can ensure the products
reliable quality and stable performance. Ail of our products are produced according to quality management system ISO9001:2015.Our products are exported to South America, Africa, Europe, Australia, Middle East and other places.
FAQ
Q1：Are you a manufacturer?
A1：Yes,our company was established in 2002,located in Industrial Development
Zone,Ningxiang,Changsha,China.The company has over 60,000 square meters workshop and more than100 technological backbone and 50
experts with more than 20years of DTH rock drilling tools experience.
Q2：What products you mainly produce?
A2：Our main products include DTH hammer and bits(diameter from 76mm to 1000mm),Drill pipes,
RC hammer and bits,RC rods,button bits,shank adapter etc top hammer drilling tools,eccentric and concentric casing system,casing tube,shock absorber, stablizer etc all of DTH rock drilling tools.
We have most wide range of drilling tools in China.
Q3：Where have you exported and what was your annual export amount?
A3：By the end of 2022 we have exported to 100 countries such as Russia,Mexico,Italy,Chile,Brasil,South Korea etc.
Q4：What kind of payment terms do you offer?
A4：We offer different payment terms, including T/T, D/A, A/P, L/C, and O/A,etc.
Q5：Do you offer OEM service?
A5：Yes,we have a flexible business model, providing OEM service
A1：Yes,our company was established in 2002,located in Industrial Development
Zone,Ningxiang,Changsha,China.The company has over 60,000 square meters workshop and more than100 technological backbone and 50
experts with more than 20years of DTH rock drilling tools experience.
Q2：What products you mainly produce?
A2：Our main products include DTH hammer and bits(diameter from 76mm to 1000mm),Drill pipes,
RC hammer and bits,RC rods,button bits,shank adapter etc top hammer drilling tools,eccentric and concentric casing system,casing tube,shock absorber, stablizer etc all of DTH rock drilling tools.
We have most wide range of drilling tools in China.
Q3：Where have you exported and what was your annual export amount?
A3：By the end of 2022 we have exported to 100 countries such as Russia,Mexico,Italy,Chile,Brasil,South Korea etc.
Q4：What kind of payment terms do you offer?
A4：We offer different payment terms, including T/T, D/A, A/P, L/C, and O/A,etc.
Q5：Do you offer OEM service?
A5：Yes,we have a flexible business model, providing OEM service
Похожие товары

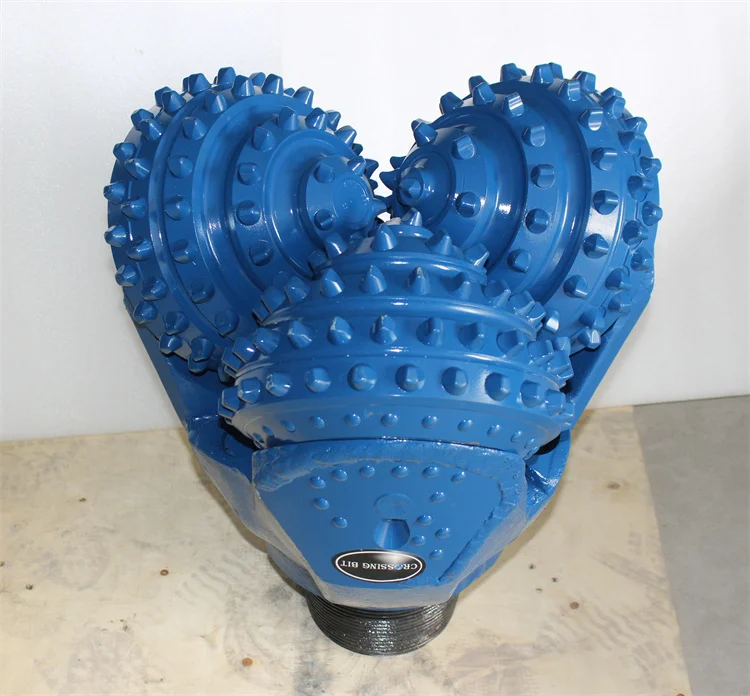

TCI рок бит IADC537 кнопка tricone для нефтяной скважины и водяной
126 095,66 ₽

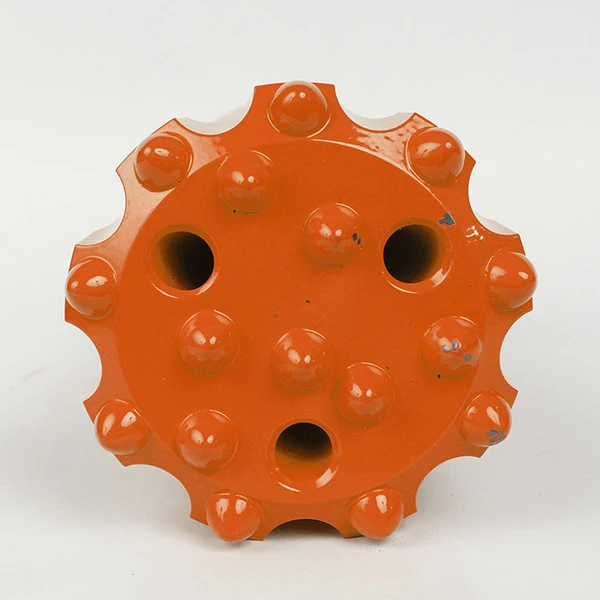

Буровое долото для бурения горных пород на 7 градусов 32 мм
328,95 ₽ - 1 096,49 ₽
30 мм Маленькая коническая кнопка сверло для jack hammer rock
361,84 ₽ - 548,25 ₽
R25-32 T38 T45 T51 GT60 115 мм 102 89 76 64 Резьбовые сверла Retrac кнопка бит для деталей горной машины
3 837,70 ₽

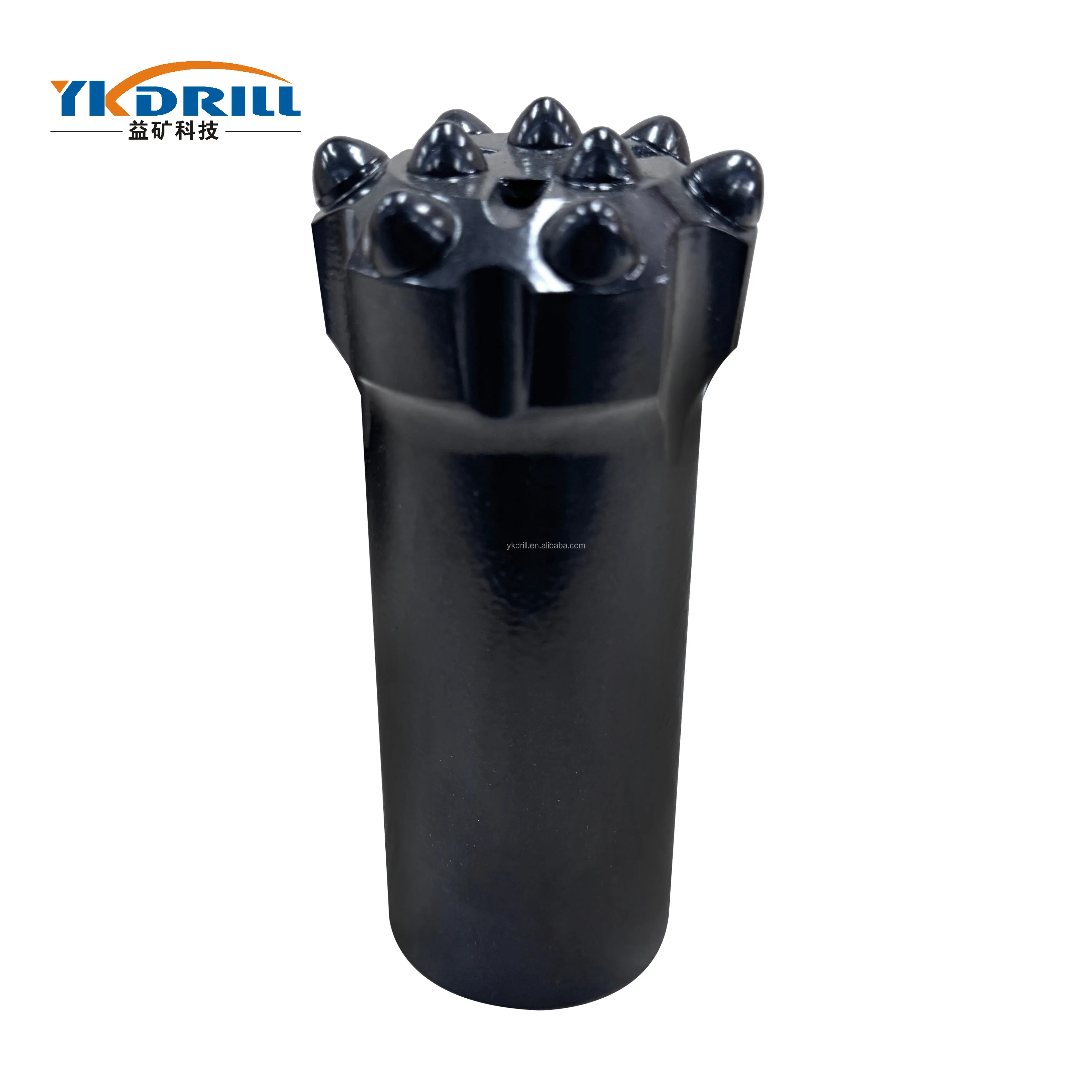

Цена завода R32 45 мм 48 51 твердосплавная кнопка для дрейфующих и туннелирования
2 521,92 ₽ - 2 741,21 ₽

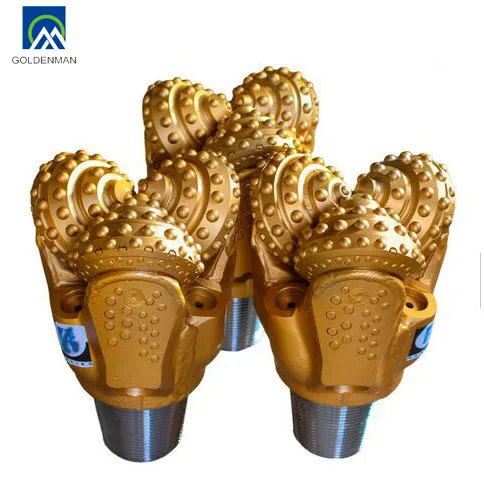

Бурение нефтяных месторождений уплотненный подшипник бурение скважин твердые горные скважины Буровое Карбидное долото

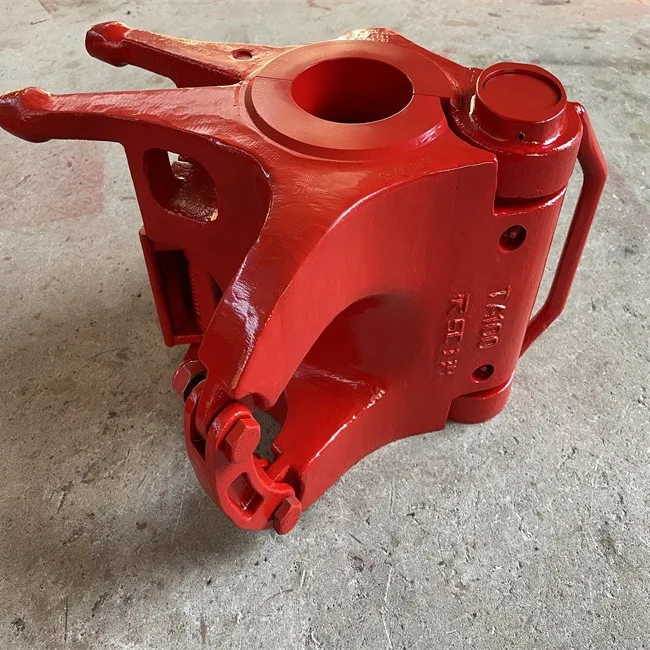

Горячая распродажа API 8C Сплит TA серии 89 мм утолщенный внешний подъемник для труб
