Автоматизированная машина для разметки дорожных линий

Сохранить в закладки 10000016793414:


Цена:114 427,71-190 712,85 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики






Product Description







1. Paint barrels: double stainless steel heating insulation barrels, capacity 100 kg, plug-in manually mixer devices, removable devices.


2. Glass Bead storage box: 10 kg / box.


3. Glass beads beads sow browser: synchronous clutch spread with speed gearshift device.


4. Crossed Doo: High-precision ultra-thin material manufacturing, scraper-type structure, the standard configuration of 150 mm.Be exchangeable.


5. Landing knife: Carbide, with eccentric sleeve device can adjust the thickness of the scope marking :1-2.5 mm.


6. Tire: Alloy Wheel Unit, a special heat-resistant rubber, after the last round with positioning devices for the body along a straight line direction.


7. Heating method: liquefied petroleum gas.


8. Subscript Line Width: engineering requirements in accordance with the replacement of different specifications crossed hopper.





Product Paramenters


















































Model


360


380


Capacity of Paint Tank


55 L / 100 kg


55 L / 100 kg


Glass beads dispenser


10 kg


10 kg


Marking shoes


50/100/150/200/250/300/400/450 mm


Dimension


1250*900*950 mm


1200*900*1000 mm


Net Weight


110kg


100 kg


Heating Fuel


carry 10 kg to 15 kg   liquefied petroleum gas with one gas tank


Line thickness


1-5 mm


Marking Speed


500-1200 m/h

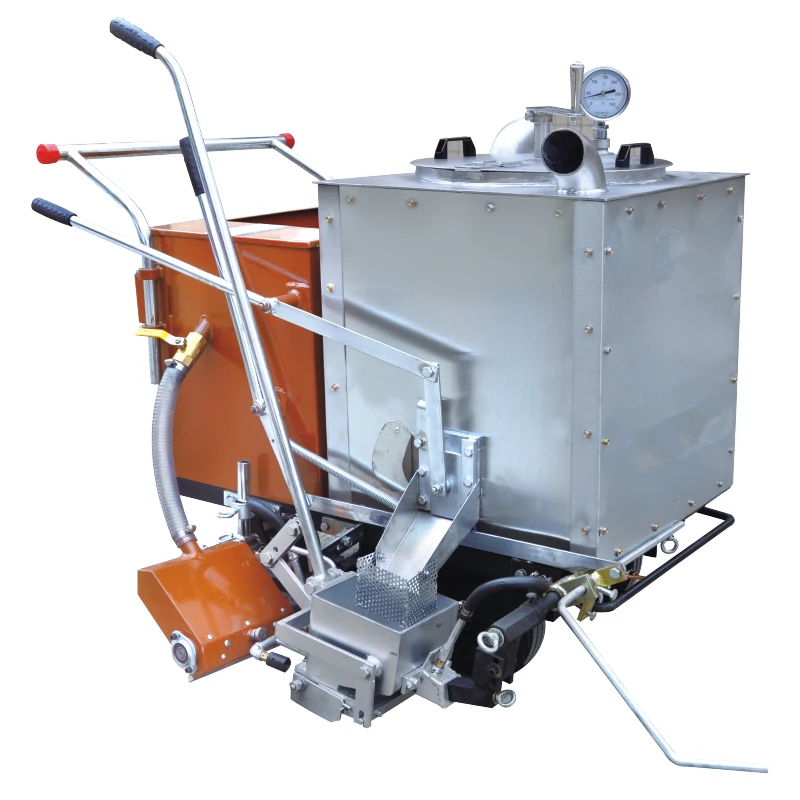

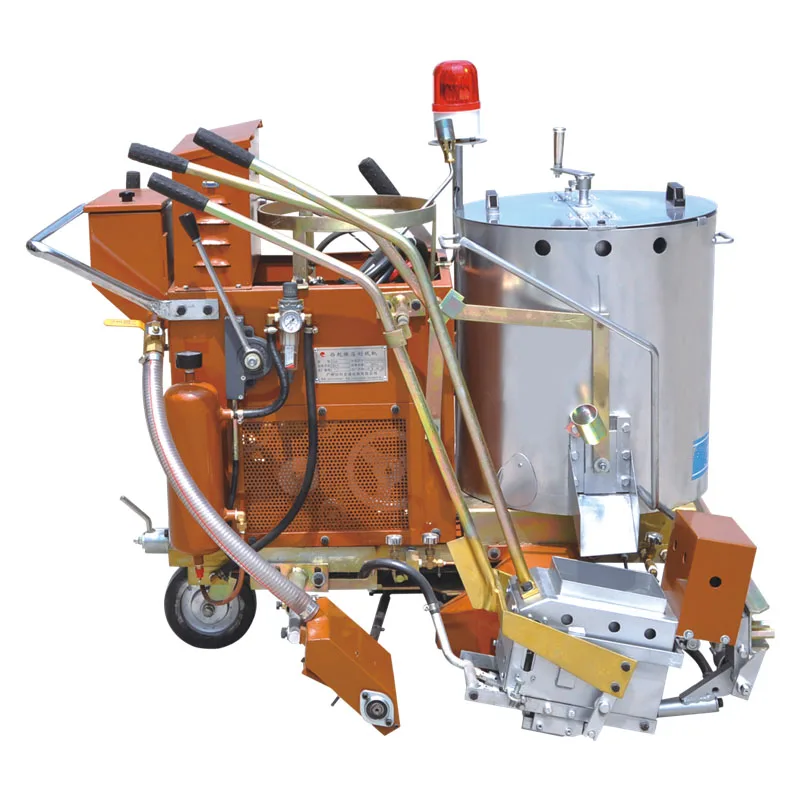

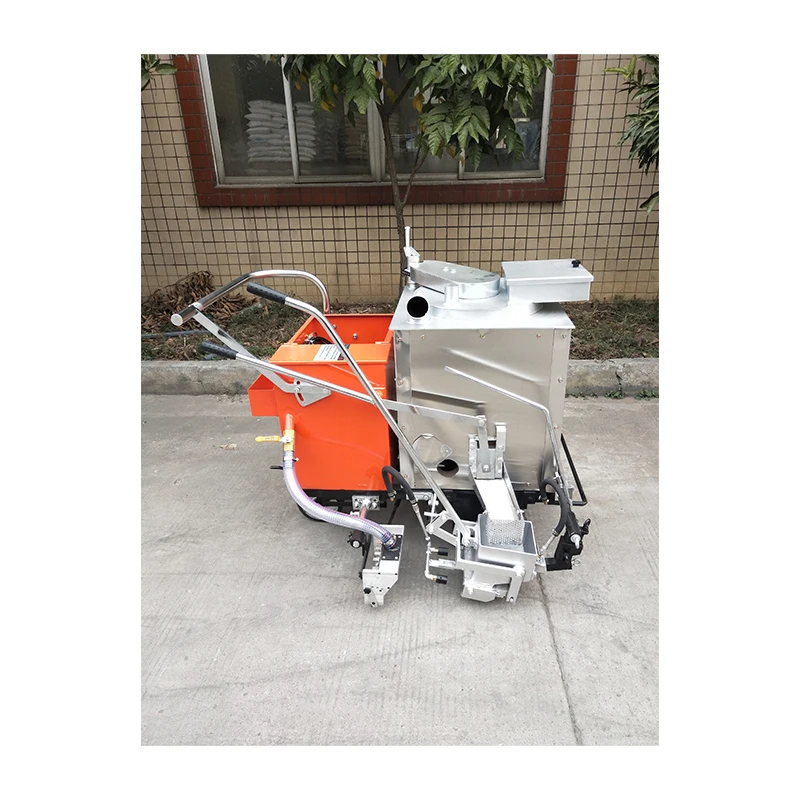

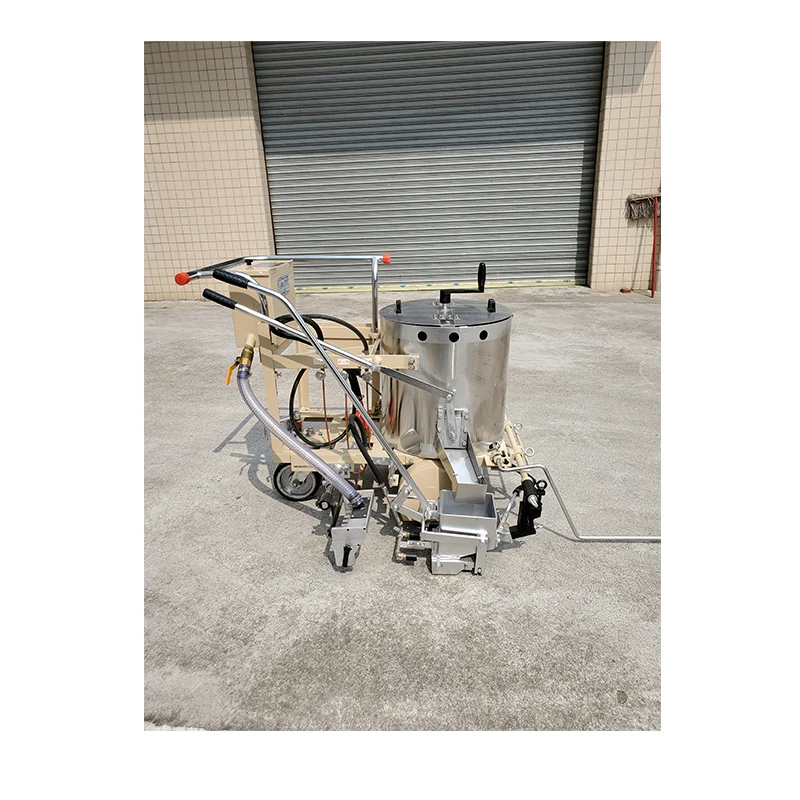

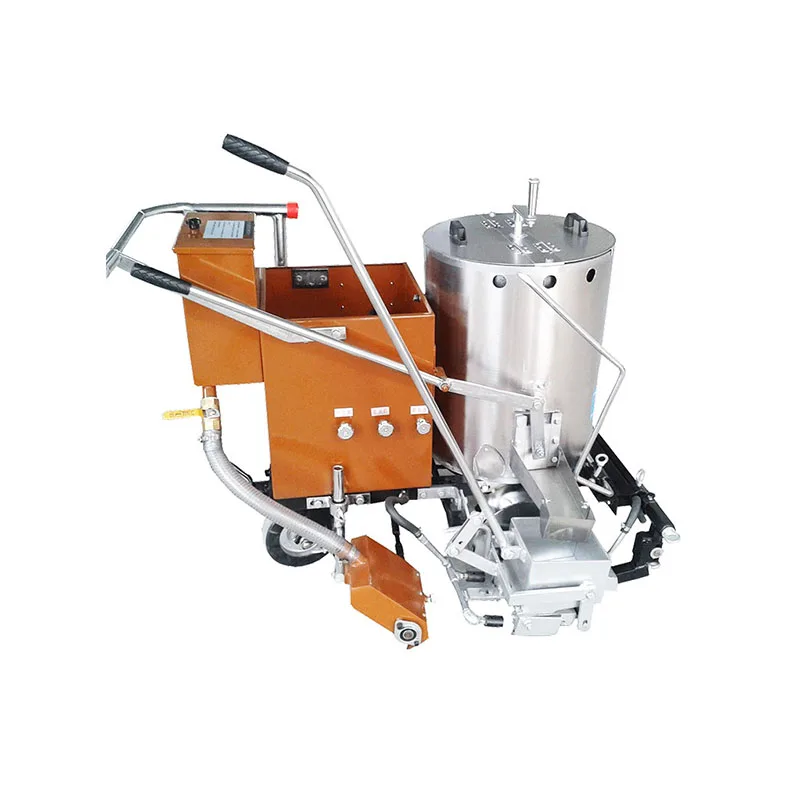

Detailed Images
