Автоматический Электрический нагреватель мгновенного душа для домашнего и гостиничного настенного пластикового корпуса

Automatic Electric Heater Instant Shower for Household and Hotel Wall Mounted Plastic Housing

• Backflow is prevented by a special design inside.


• Splashproof design (IP24) isolates electricity from water.


• Micro-sensitive switch on-off device withstands high current.


• Fire retardant materials and high-pressure tolerance design.


• Space saving by its elegant small size and lightweight design.


• Patented design wiring boxes and hidden inlet and outlet pipes are safe and convenient.


• The pressure relief system prevents harm incurred by excessive water pressure at 7 kgf/cm² ± 0.5.


• Auto cut-off of power supply device averts damage caused by abnormally high temperature.


• The water overflow system equipped in the heating element tank avoids malfunction when heating with a short water supply.

Optional: Super Guider electric leakage circuit breaker.

Installation

• Install the unit on the wall in an upright position; avoid lying down or upside down.

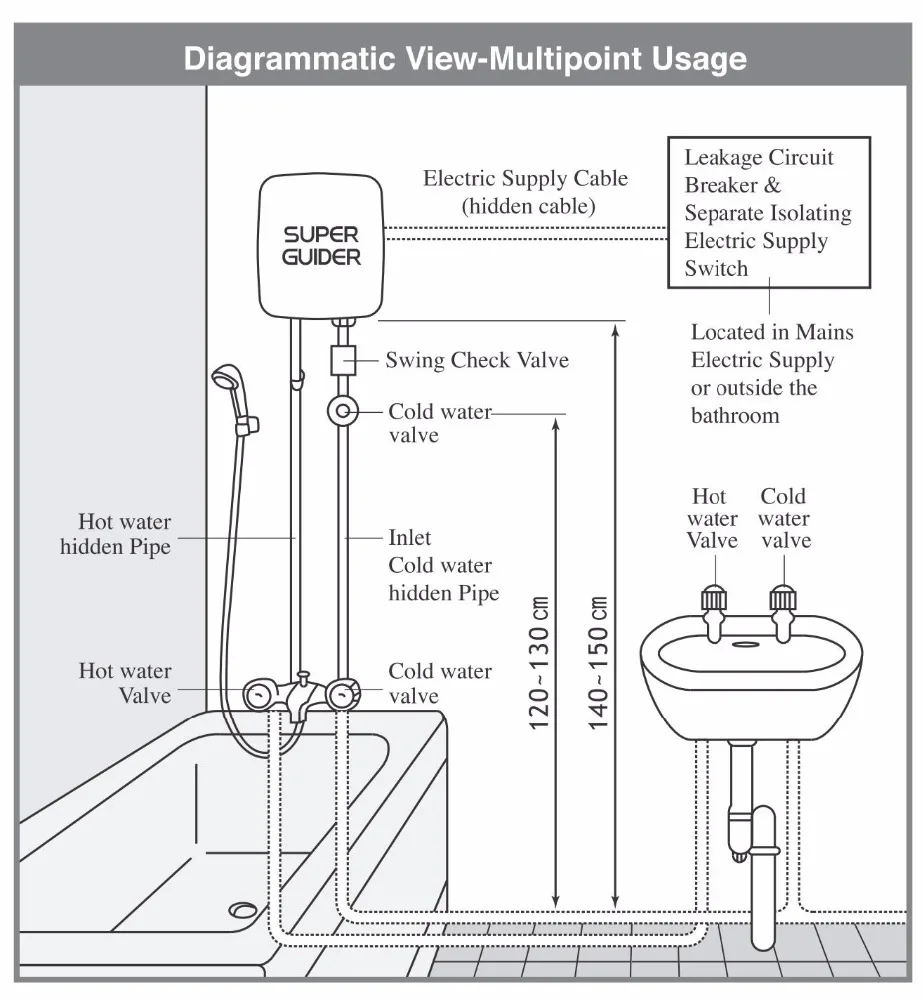

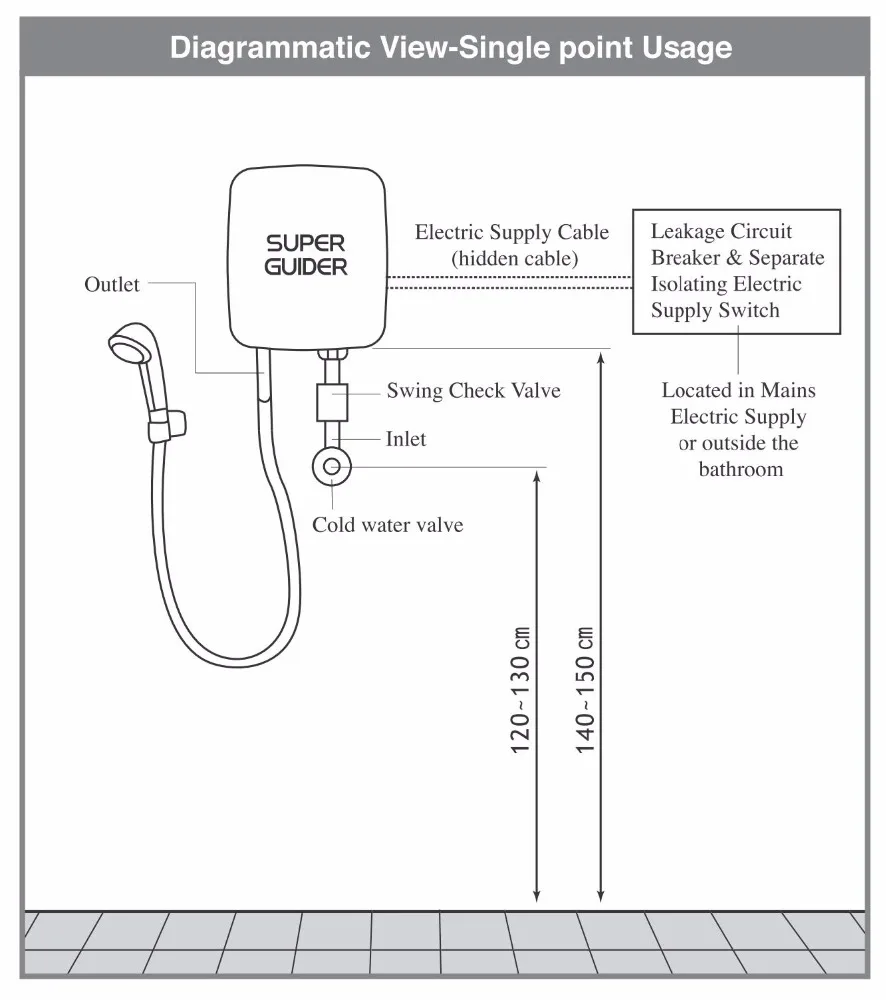

• There are 2 installation methods: single-point usage and multipoint usage. Note: The former option can lower the possibility of malfunction and extend the life span of unit.


• Install a cold water valve and a swing check valve in the supply pipe work to prevent backflow.

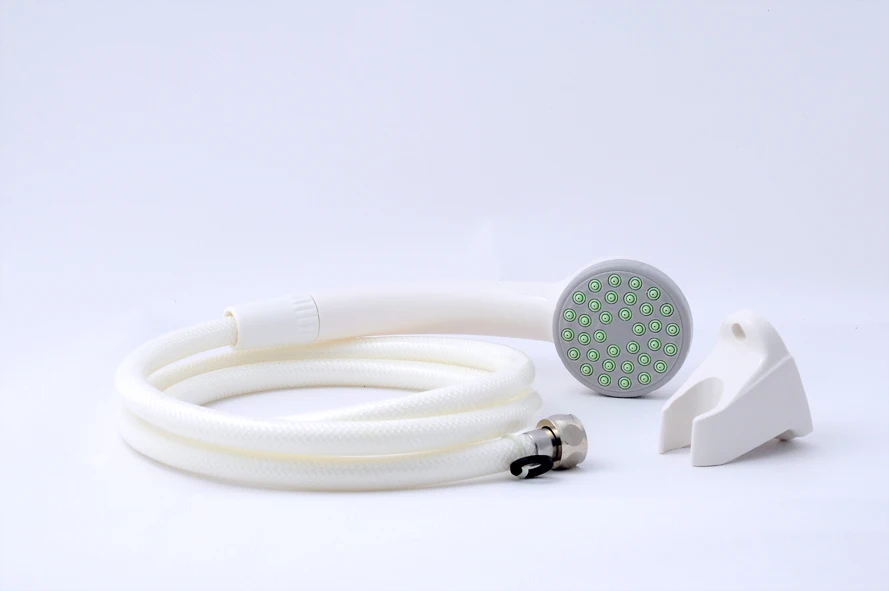

• Link the shower head and the water heater with the hose provided.


• For first-time use after installation, please allow water to flow into the water heater so that the water heater contains water before electricity is connected, at the same time, it can help to clean impurities from the pipeline.


• Install No Fuse Breaker (40A) in accordance with amperage required for the model to prevent electrical overloads.


• To comply with Electrical Regulations, it is highly recommended to install Super Guider’s leakage circuit breaker in the switchboard or next to the water heater.


• Power cord entry points are on the top and on the side of the base brim of the water heater unit, which needs to be cut off to extend out the cord.


• Route the cords (8mm² standard cords according to the model for safety purposes) into the water heater and connect the earth cord to terminal “E”, the neutral cord to terminal “N”, and the live cord to terminal “L”.


• NOTE: the water heater must be earthed.


• Turn on the electric supply at the isolating switch.

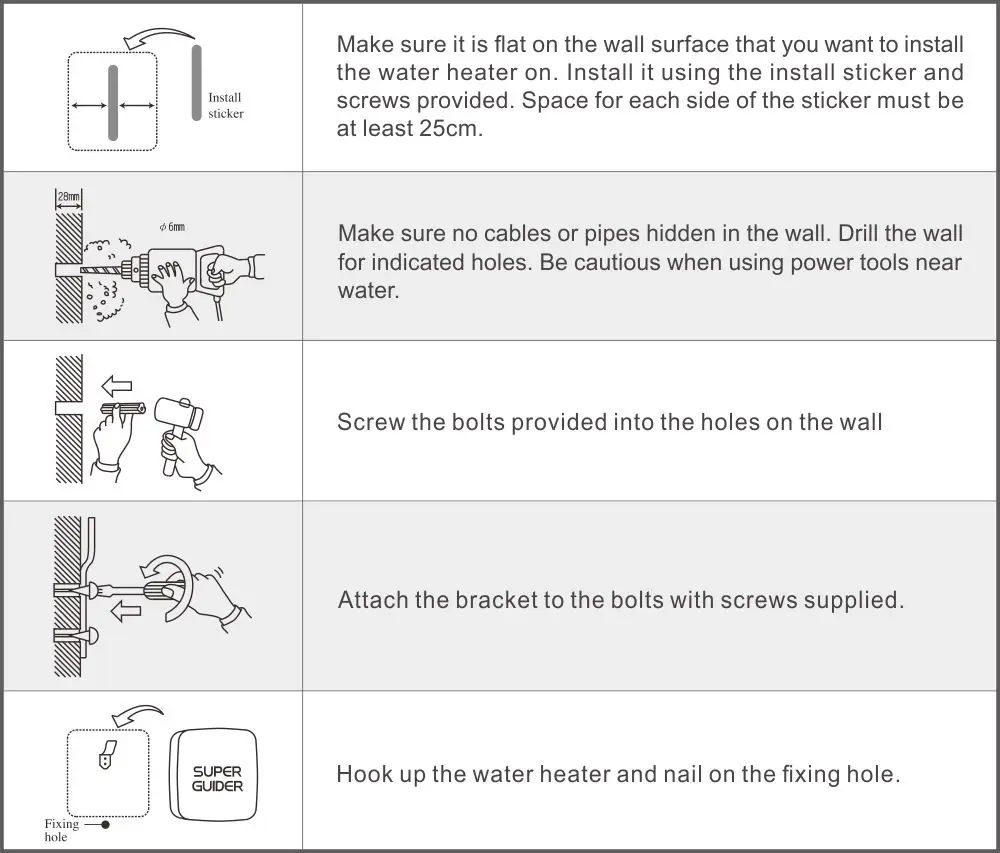

 Unit Installation Steps

Q1: Can we make our color box or logo?

A1: Yes. You can customize your color box and logo, but we have the MOQ quantity requirements.

Q2: Are you the manufacturer?

A2: Yes.  We are a manufacturer with over 35 years of professional R & D team and production experience.

Q3: How can I get a sample to check the quality?

A3: We welcome any sample request, please feel free to contact us or leave your messages to discuss the details.

Q4: What kind of payment methods do you accept?

A4: Trade Assurance by Alibaba.com, T/T and L/C, 30% deposit when placing the order, 70% balance before shipment.

Q5: What’s your MOQ?

A5: The minimum order is a 20' container. But we also accept small orders for your marketing needs. Don't hesitate to contact us for details; all messages will be replied to soon.

Q6: How about the shipment?

A6: Samples shipping by FedEx, or shipping by sea or by air, it depends on your requirement.

Q7: How about the lead time?

A7: The sample is about one week, and the 20' container is about 4-6 weeks after payment.
