Источник питания постоянного тока 40 Вт для светодиодного света

Сохранить в закладки 10000018456744:


Цена:732,13 ₽ - 854,15 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Your Lighting Partner




Electrical Ballast
Antron has established reputation in fluorescent ballasts in the market on T5, T8, T10, T12, CFL, Biax PLL and UV lamp ballasts. Our ballast meet UL, CE, FCC and RoHs regulations.
LED Driver
Antron developed, manufactured and customized LED drivers that were highly valued by worldwide customers. Our driver meet UL, CE, CEC, FCC and RoHs regulations.
Emergency LED Driver
Antron provided multiple solutions on emergency backup system recent years. It is our hot sale product in the market. Our emergency pack meet UL, CEC, FCC and RoHs regulations.

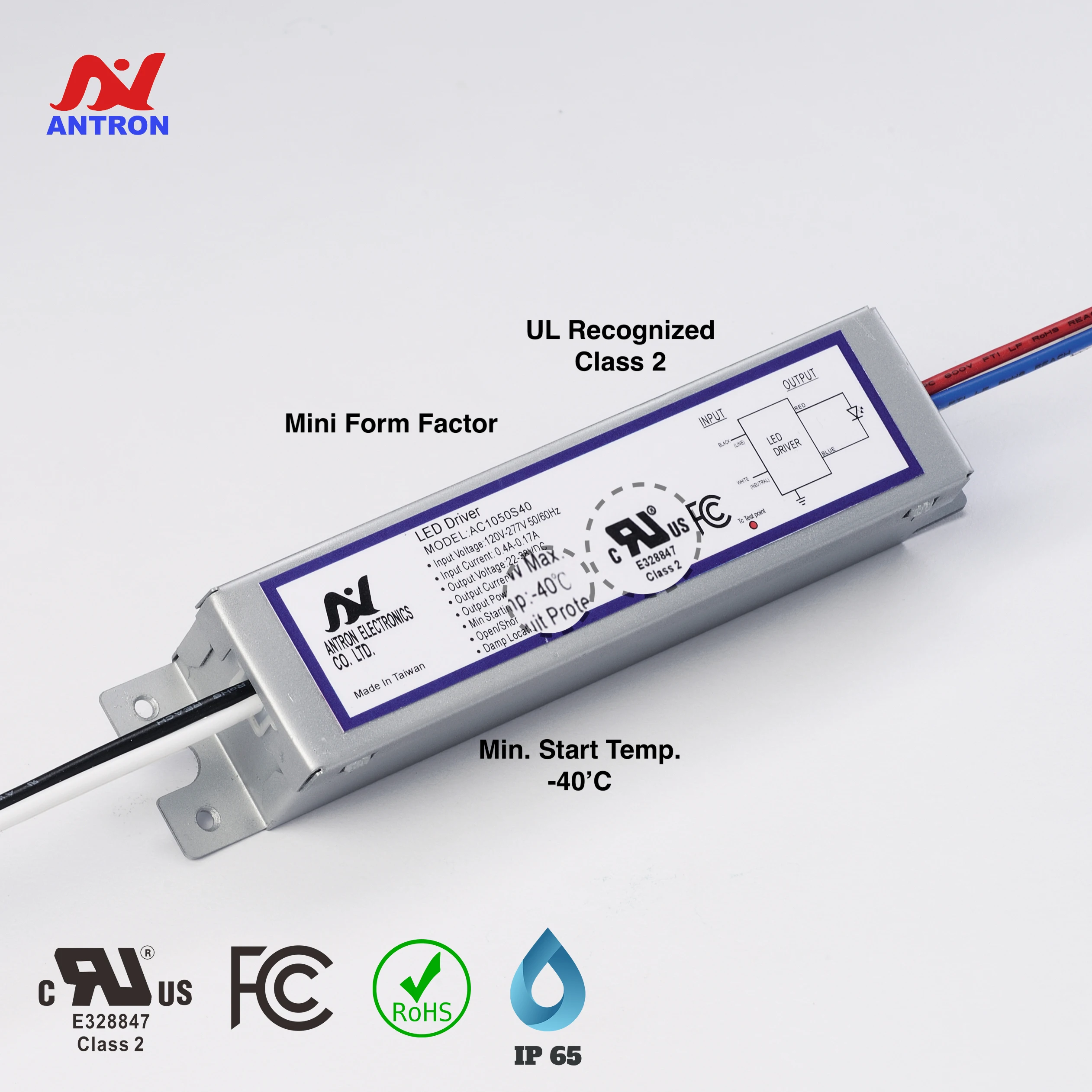

Product Features


- Universal input voltage 120-277Vac

- Mini form factor

- Low cost and high reliability
- Flicker Free, PFC and Isolated design
- Open/Short/Over-Voltage/Over-Temperature protection

- 2kV surge protection

- Suitable for UL dry and damp location
- 5 years warranty





Electrical Spec


Model Series

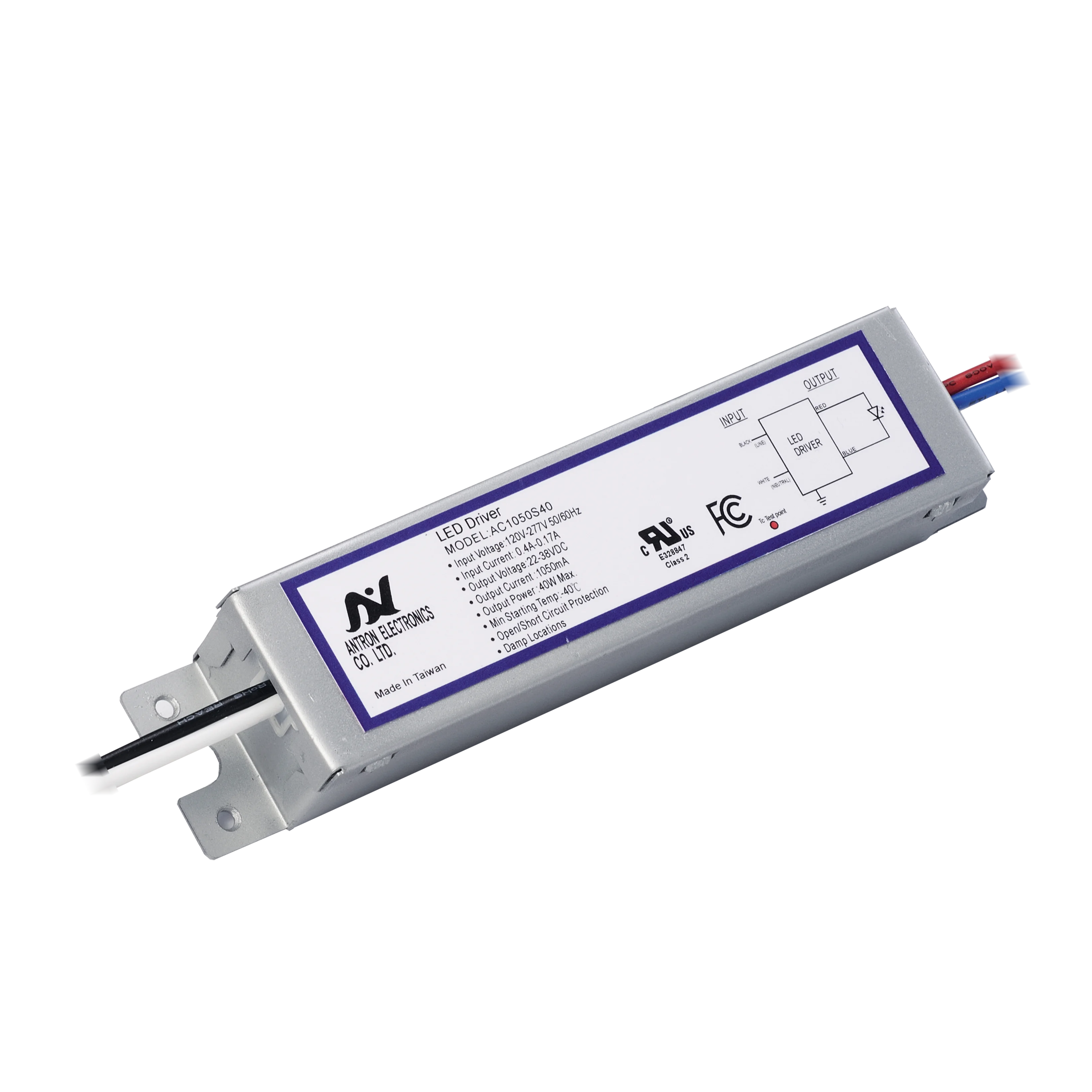

AC1050S40






AC Input
Input Voltage
120-277 Vac
Input Frequency
60Hz
Leakage Current
<0.75mA
Turn On Time
<1s
Inrush Current
<35A
Power Factor
>0.9
THD
<20%




DC Output
Output Current
1.05A
Output Voltage
22-38V
Output Power
40W
Output Current Tolerance
±5%
Output Current Ripple
<5%
Efficiency
@Highest Vin
88%



Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over-Voltage
Output current decade mode, recovers automatically after fault condition is removed.
Over-Temperature
Shut down o/p voltage, re-power on to recover.
Surge
2kV


Environment
Operation Temperature
Tcase
-40°C~90°C
Storage Temperature
Tcase
-40°C~90°C
Humidity
 10%~90%




Safety
Safety Approval
UL8750
 UL1310
UL/cUL Class 2
V
Withstand Voltage
I/P-O/P: 2.0K Vac, I/P-FG: 2.0K Vac, O/P-FG: 0.5K Vac
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG:100Mohm/500VD
Noise
Sound Rating Class A

EMC
EMI
FCC Part 15 class A, UL8750, CSA C22.2 No. 250.13-14, ICES-005 Issue 4
EMS
FCC Part 15 class A, UL 8750, ICES-005 Issue 4


Model Series
Case Code
L
W
H
Unit
AC1050S40
AM188
154
32
29
mm






Packing & Delivery




Packing Information

5 to 100 pieces per carton depends on model.
Individual packing is optional.



Our Company










Our Service


Excellent Quality

Our LED drivers and ballasts are highly reliable with overall return rate below 0.3%. Antron promise we can return two placements for one fail with the new order. We are confident our products is reliable and you can enjoy the high quality of powered by Antron.

Note:
1. The policy is exclusive for Alibaba customers.
2. OEM/ODM is not applicable.


Experienced R&D and QC System

Founded in 1984, Antron has established reputation in fluorescent ballasts and continuously dedicated to be the leading expert in LED drivers globally. With more than 30 years of experience in lighting power supply, Antron developed, manufactured and customized LED drivers, fluorescent ballasts and emergency LED drivers that were highly valued by worldwide customers.


Product Warranty and Liability

To start with, Antron has more than 30 years of experience in the lighting industry. Most of our competitors only accept mass order rather than low-volume orders. But to us, any amount of order is great order. We do not discriminate. We are proud of our top-quality product, most of our products also have 5 years warranty. Besides, we have $5 millions product liability insurance that secures our clients’ rights and interests.



We can do more.

In addition to our current products, Antron specializes in adapting our products to meet individual specifications that represented by the rapid mass market. If our existing products assortment does not  meet your exact needs, we can quickly and economically modify, adapt and design.




Certifications






FAQ


Why should I choose Antron?

We are a professional LED driver manufacturer with more than 32 years experience. We have an experienced R&D team, high-quality production line, mature QC control process. Quality, Service and Innovation are the core value of Antron.


We are actively looking for long term partner and welcome you to join us.



What is your minimum order quantity (MOQ)?

There is no minimum order restriction.



What is your lead time?

The delivery time will be 1~45 days depends on the product and quantity.



Can we be your distributor?

We are very welcome you can become our family.



Can you provide OEM/ODM service?

OEM and ODM are welcome.

We have a strong R&D team can quickly design and modify what you need.
