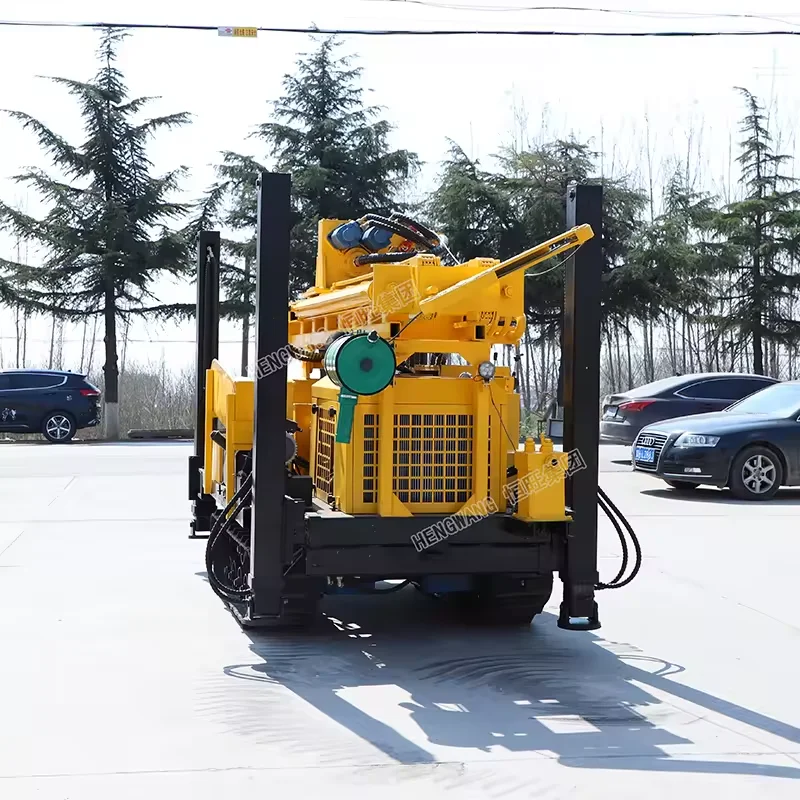

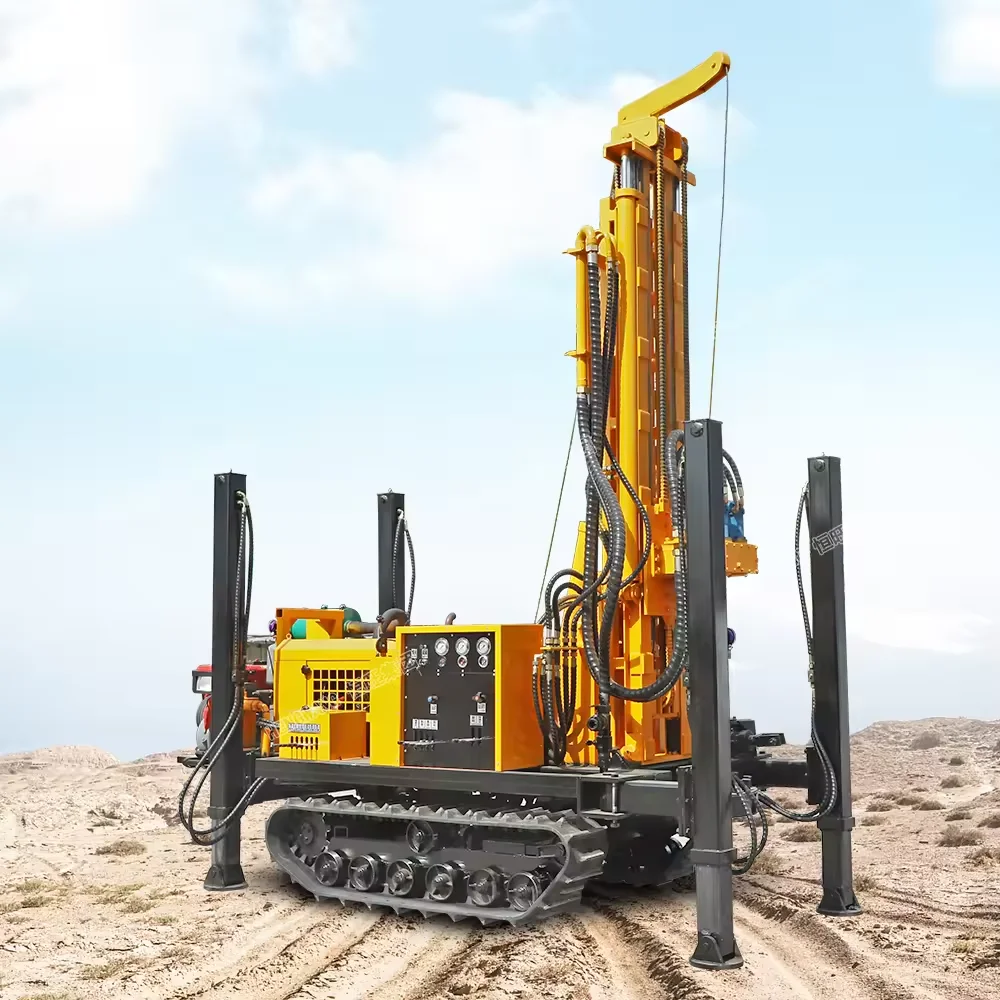

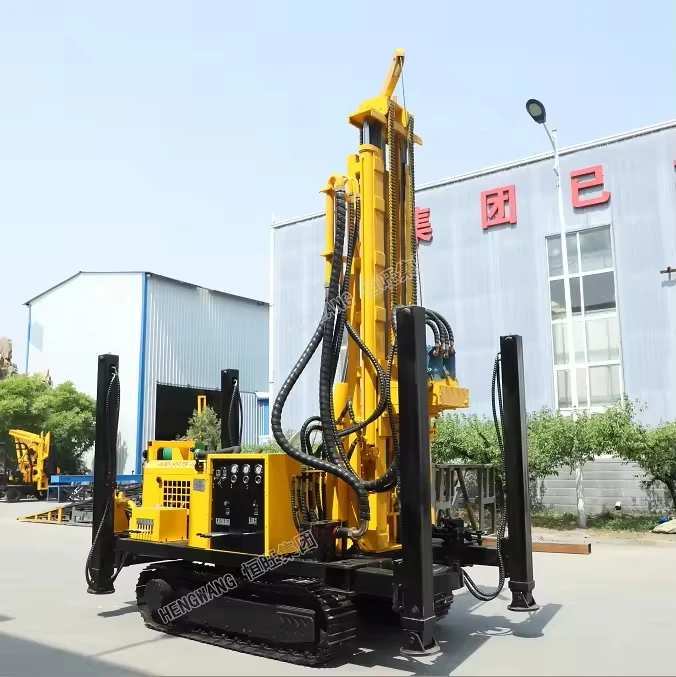

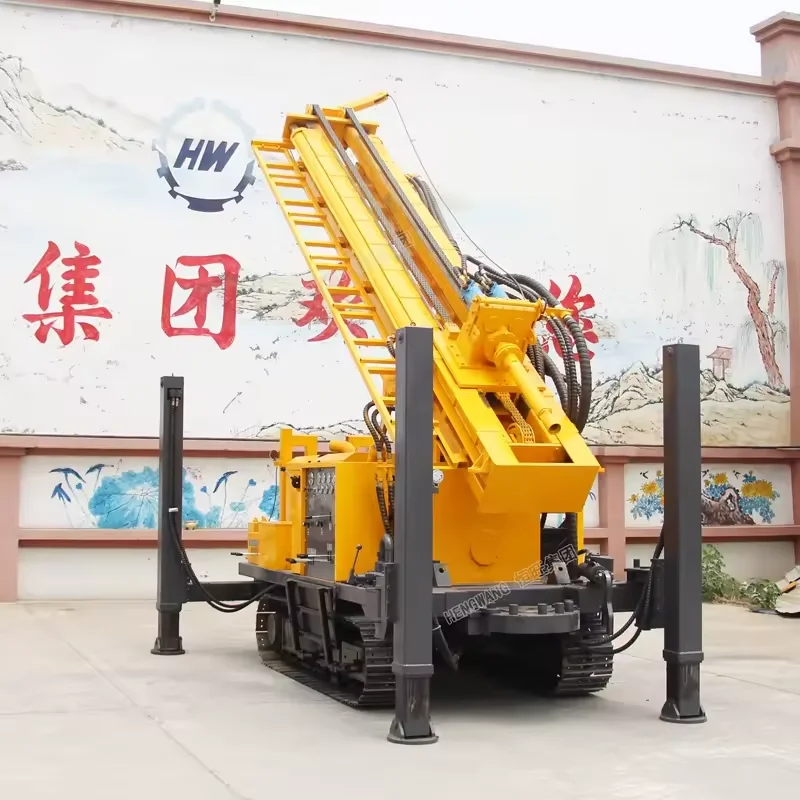

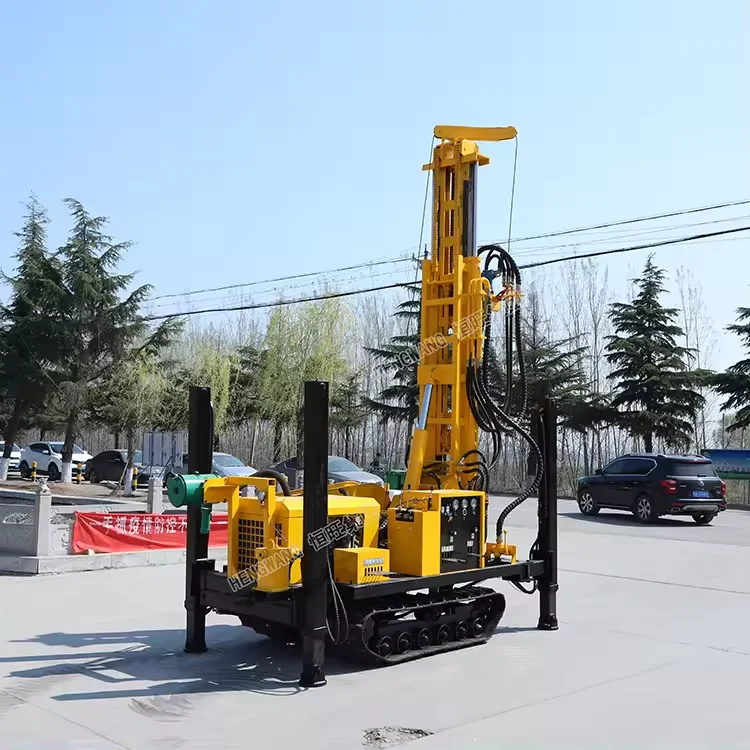

2024 Новое поступление машина для глубоководного бурения скважин/Буровая установка водяных скважин/буровое оборудование нефтяных скважин
- Категория: >>>
- Поставщик: Constant Heavy Industry Machinery (jining) Co. Ltd.
Сохранить в закладки 10000019110419:
Описание и отзывы
Характеристики
Product Description

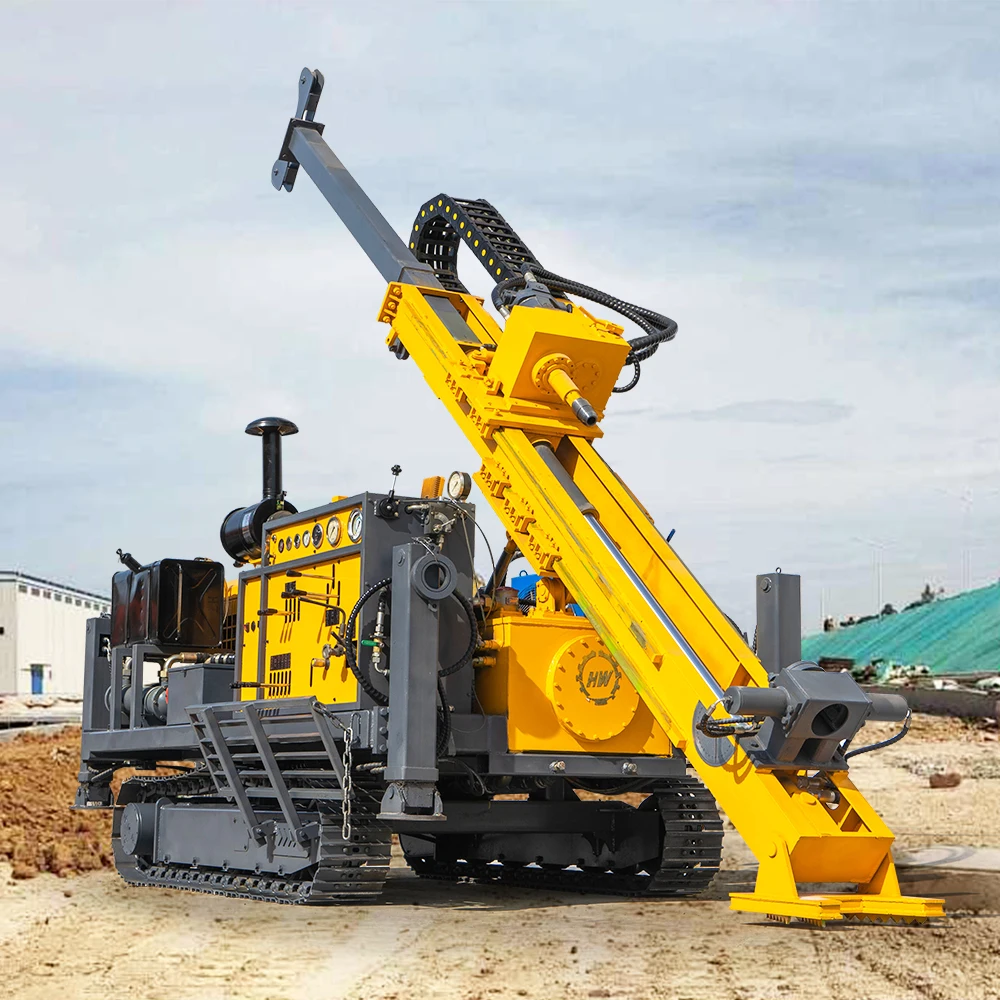

dth rock water well borehole drilling rig machine
It is mainly suitable for drilling wells, agricultural irrigation wells, geothermal air conditioning holes and other well holes,It
is especially suitable for water intake projects in mountainous and rocky strata. The efficiency is more than ten times higher than that of the traditional rotary drilling rig, and the economic benefit created for the user is very considerable. Especially to solve the soil air DTH drilling difficulties, the construction problems of rotary drill hard rock layer, gravel layer, able to work effectively in a variety of geological structure, to achieve the perfect combination of water and pneumatic drill.
When drilling rock , it need use together with air compressor . drilling speed can be 20m /hour .
When drilling soil , it can use mud pump finish mud pump drilling .
It is mainly suitable for drilling wells, agricultural irrigation wells, geothermal air conditioning holes and other well holes,It
is especially suitable for water intake projects in mountainous and rocky strata. The efficiency is more than ten times higher than that of the traditional rotary drilling rig, and the economic benefit created for the user is very considerable. Especially to solve the soil air DTH drilling difficulties, the construction problems of rotary drill hard rock layer, gravel layer, able to work effectively in a variety of geological structure, to achieve the perfect combination of water and pneumatic drill.
When drilling rock , it need use together with air compressor . drilling speed can be 20m /hour .
When drilling soil , it can use mud pump finish mud pump drilling .
Technical Parameters
max.220m drill depth ,drill diameter usually 152-254mm .
when drilling soil use mud pump , when drilling rock use together with air compressor .
Rubber crawler and metal crawler optional .
when drilling soil use mud pump , when drilling rock use together with air compressor .
Rubber crawler and metal crawler optional .
Model | HW-220L | |||||
Drilling diameter (mm ) | 130-294 | |||||
Drilling depth (m) | 220 | |||||
One-time advance length of the drill(mm) | 3000 | |||||
Traveling speed （km/h ) | 2.5 | |||||
Climbing ability (max ) | 30° | |||||
Minimum Ground Clearance (mm） | 250 | |||||
Working Air Pressure (mpa ) | 1.7 - 2.5 | |||||
Air consumption(m³/min) | 15 - 27 | |||||
Main machine power （kw) | Yunnei 60Kw | |||||
Rotary Speed (rpm) | 48 - 70 | |||||
Rotary torque (Nm) | 4200-5600 | |||||
Overall weight （kg ) | 4200 | |||||
Dimension (mm ) | 3800*1700*2350 | |||||

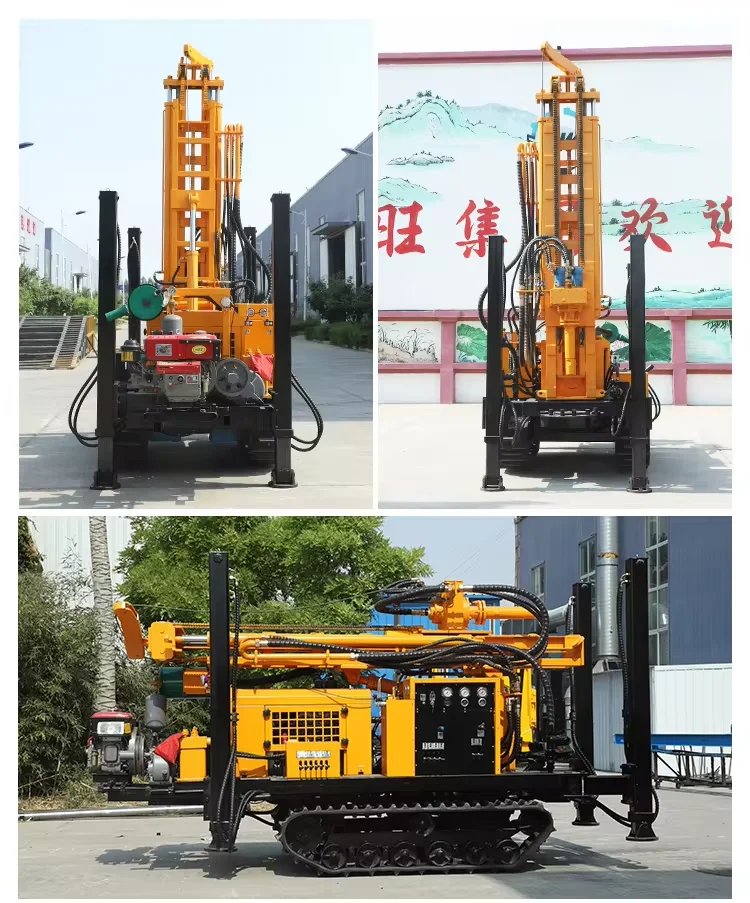

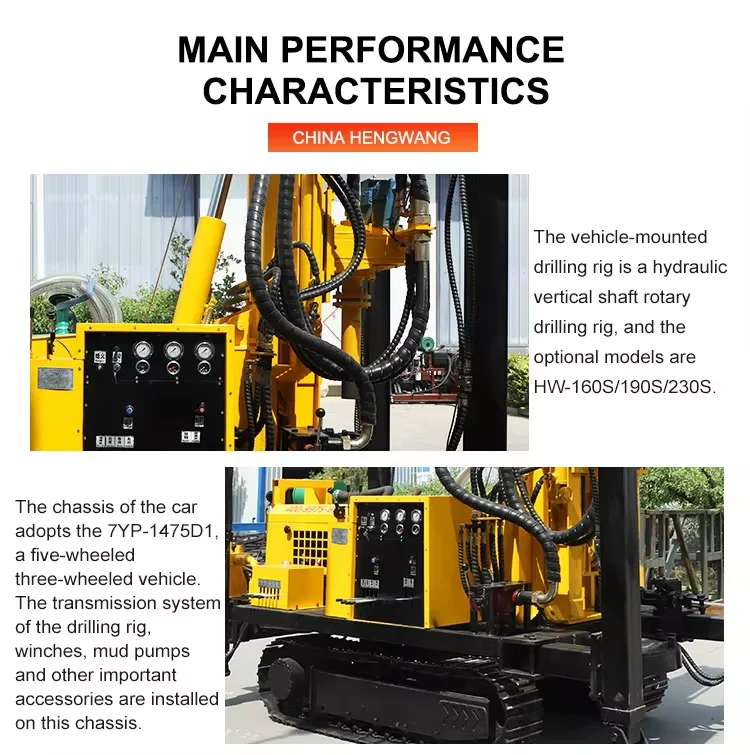

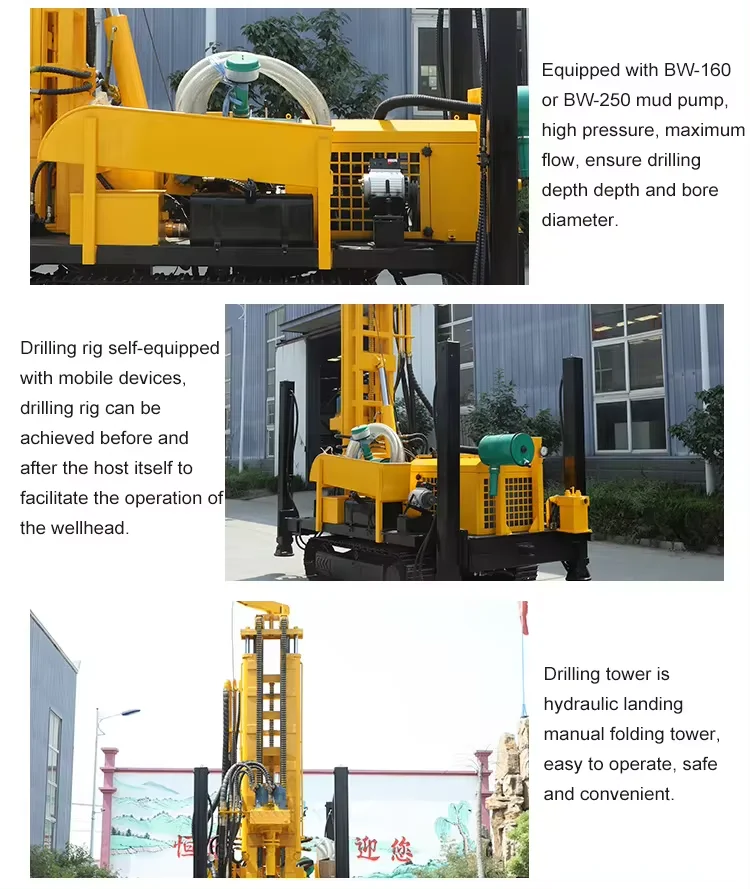

Detailed Images
Advantage :
1.Diesel engine use Yunnei diesel engine.
2.Walking device:walking motor with reducer ,long service life.
3.Hydraulic oil pump : parallel type gear box ,Oil pump monomer separation ,enough power supply.
4.Power head unit:gear box cast in one piece,two motor offer power,have big torque
5. chassis:Professional excavator chassis,big weight bearing capacity ,wide chain plate have small injure to road surface.have rubber and steel crawler .
6.lifting force :Composite arm have small volume ,long stroke.two oil cylinder lifting have big lifting force
The drilling rig mainly adopts mechanical transmission, the other for the hydraulic transmission, can effectively use the power,reduce the overall power loss, making drilling low cost. the drilling rig adopts advanced structure, reasonable layout, easy to maintain and repair. the drilling rig, in the hydraulic system, reserves part of the functional interface, so the function can be extended according to different user's technical requirements.
1.Diesel engine use Yunnei diesel engine.
2.Walking device:walking motor with reducer ,long service life.
3.Hydraulic oil pump : parallel type gear box ,Oil pump monomer separation ,enough power supply.
4.Power head unit:gear box cast in one piece,two motor offer power,have big torque
5. chassis:Professional excavator chassis,big weight bearing capacity ,wide chain plate have small injure to road surface.have rubber and steel crawler .
6.lifting force :Composite arm have small volume ,long stroke.two oil cylinder lifting have big lifting force
The drilling rig mainly adopts mechanical transmission, the other for the hydraulic transmission, can effectively use the power,reduce the overall power loss, making drilling low cost. the drilling rig adopts advanced structure, reasonable layout, easy to maintain and repair. the drilling rig, in the hydraulic system, reserves part of the functional interface, so the function can be extended according to different user's technical requirements.

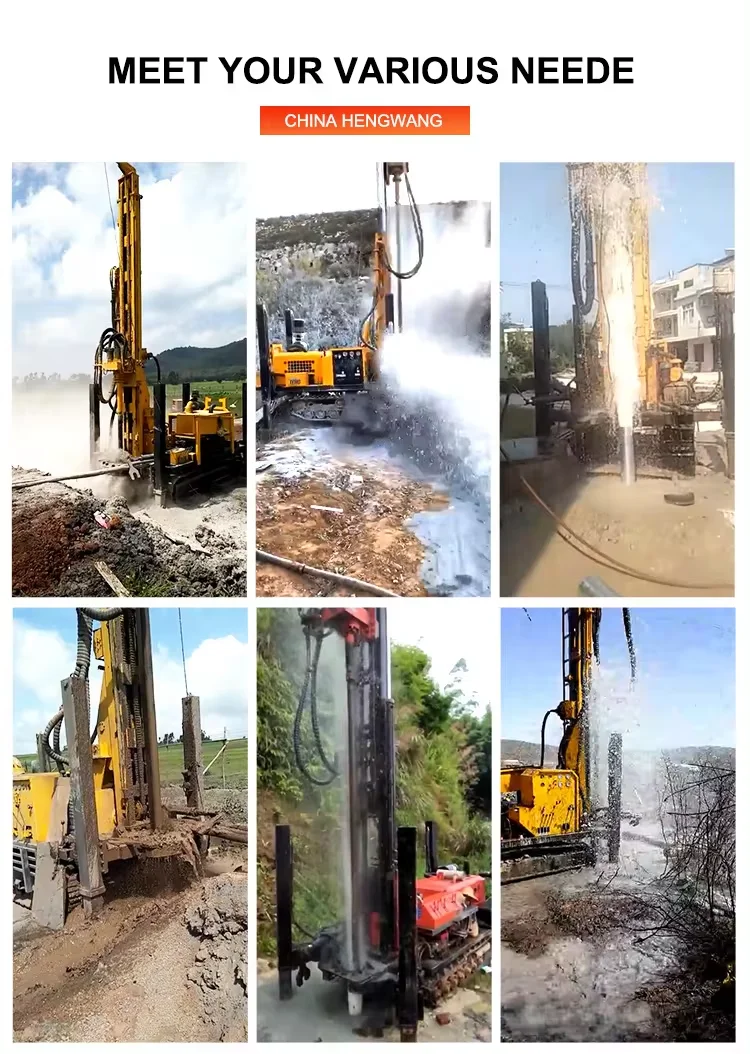

Product Usage
Air and mud pump water well drilling rig machine :
our pneumatic drilling rig mainly used in rock geology .it need use together with air
compressor.when drilling soil , it need use mud pump drilling .
it is easy operate and have high drilling efficiency .
our pneumatic drilling rig mainly used in rock geology .it need use together with air
compressor.when drilling soil , it need use mud pump drilling .
it is easy operate and have high drilling efficiency .

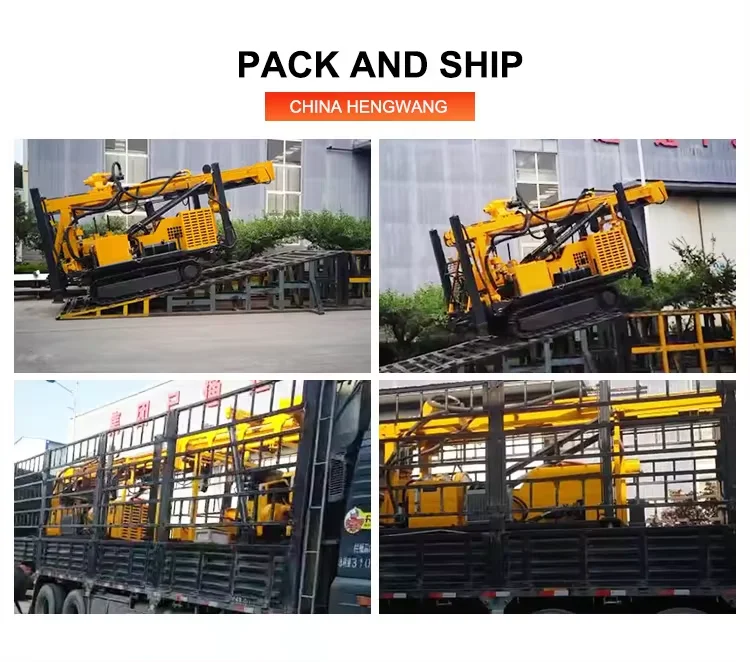

Packing & Delivery
Pneumatic drilling rig mainly loading in 20GP container or 40HQ container .
Our Company
Shandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery , driling machine and conctruction machinery design,manufacture and installation of an integrated enterprise.
Our company produces the piling machinery a total of 10 major series more than 20 varieties,water well driling rig
machine,Construction machinery and other hydraulic products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.
Our company produces the piling machinery a total of 10 major series more than 20 varieties,water well driling rig
machine,Construction machinery and other hydraulic products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.
Похожие товары
Усовершенствованная пневматическая буровая установка 600 м гидравлическая алмазная буровая машина
1 850 865,00 ₽ - 2 429 808,55 ₽
HW YDX 600 усовершенствованная геологоразведочная алмазная буровая установка для бурения минеральных скважин
2 960 397,16 ₽
Новый продукт, XDY-800 алмазная буровая установка, гидравлическая минеральная Разведочная бурильная установка
3 229 145,38 ₽ - 3 399 100,40 ₽
Многофункциональный гидравлический гусеничный буровой станок с 1000 метрами глубиной
4 221 463,40 ₽
Высококачественная гидравлическая алмазная буровая установка глубиной 2000 м для образцов ядра шахты
Пневматическая машина для бурения скважин гусеничного типа, ротационная буровая установка 35 м для добычи полезных ископаемых
1 973 671,20 ₽ - 2 412 264,80 ₽

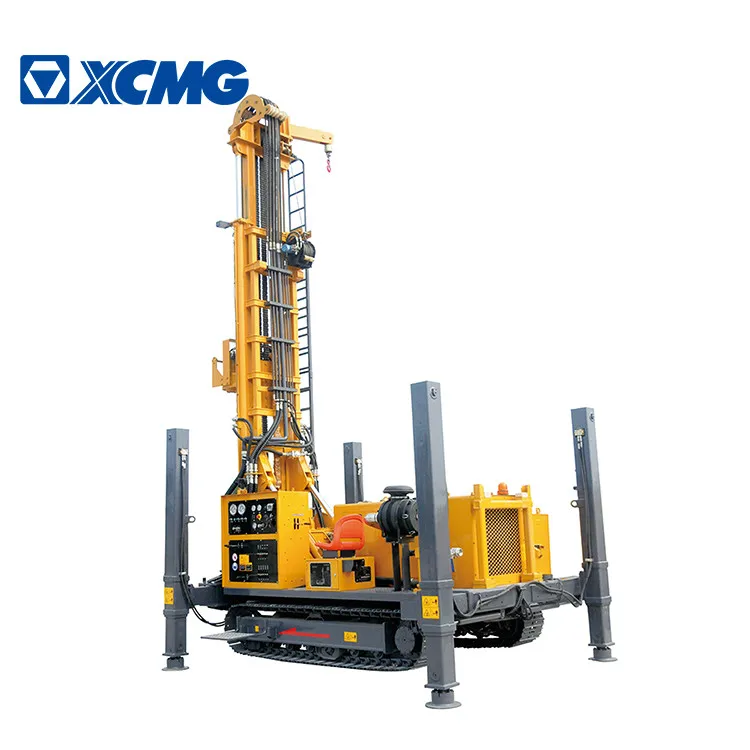

XCMG использованный XSL5/280 глубина 500 м гусеничный тип буровая установка для водяных скважин для продажи
