Cryogenic Pumps for Oxygen, Nitrogen, Argon, and LNG Dewar Bottles - Pressurization and Gas Filling System Pumps
400L/H 500L/H LO2 Cryogenic Liquid Oxygen Transfer Pump With Vaporizer For Storage Tank Liquid
Product Description
Cryogenic centrifugal pump
Centrifugal pump is a pump where liquid moves and required head forms by means of centrifugal force raising as a result of impeller blades effect on fluid.
Cryogenic pumps are classified as single-staged with one impeller and multi-staged with several impellers however with the same working principle.
Cryogenic centrifugal pumps are used for large amounts of liquefied industrial gas (liquid oxygen, liquid argon, liquid nitrogen)pumping. It is also reasonable to use pumps of such a type for liquid pumping from one capacity to another.
Centrifugal pump is a pump where liquid moves and required head forms by means of centrifugal force raising as a result of impeller blades effect on fluid.
Cryogenic pumps are classified as single-staged with one impeller and multi-staged with several impellers however with the same working principle.
Cryogenic centrifugal pumps are used for large amounts of liquefied industrial gas (liquid oxygen, liquid argon, liquid nitrogen)pumping. It is also reasonable to use pumps of such a type for liquid pumping from one capacity to another.
Advantages of Our Cryogenic Centrifugal Pumps:
Cryogenic stainless steel bearing life 16,000 hours;
Reliable mechanical and labyrinth seals;
Frequency converter provides the necessary speed range of the pump;
Volutes and impellers are made of copper alloy to guarantee high performance pumps;
High cavitation resistance;
Reliable mechanical and labyrinth seals;
Frequency converter provides the necessary speed range of the pump;
Volutes and impellers are made of copper alloy to guarantee high performance pumps;
High cavitation resistance;
Main Technical Parameters:
Flow range: 5-500 m3/h
Head: 10- 1100 m
Speed: 960-5000 rpm
Liquids (gases): LO2, LN2 , LAr, LNG/CNG and others
Flow range: 5-500 m3/h
Head: 10- 1100 m
Speed: 960-5000 rpm
Liquids (gases): LO2, LN2 , LAr, LNG/CNG and others

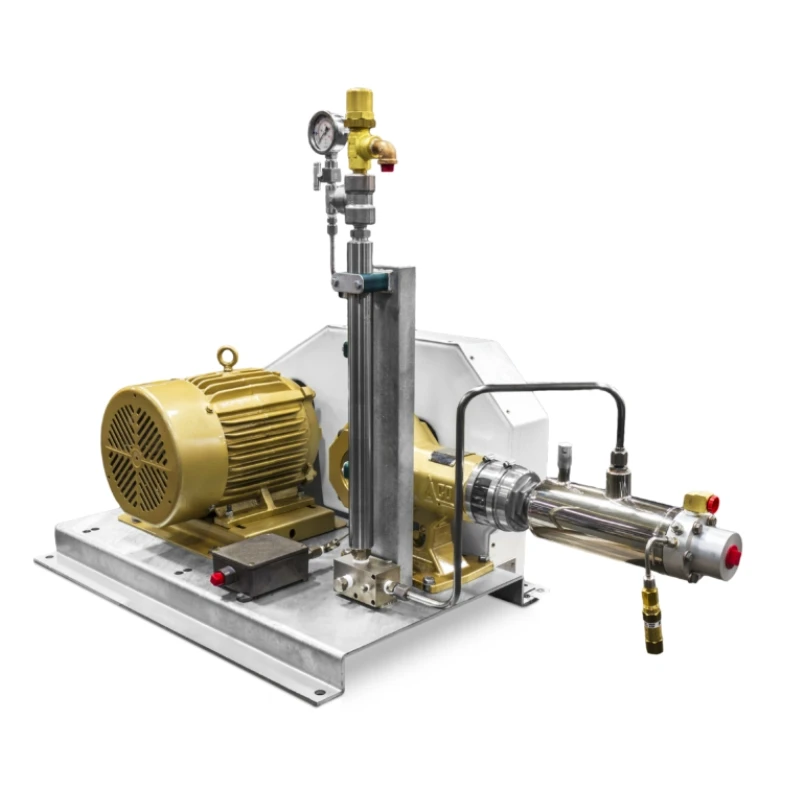

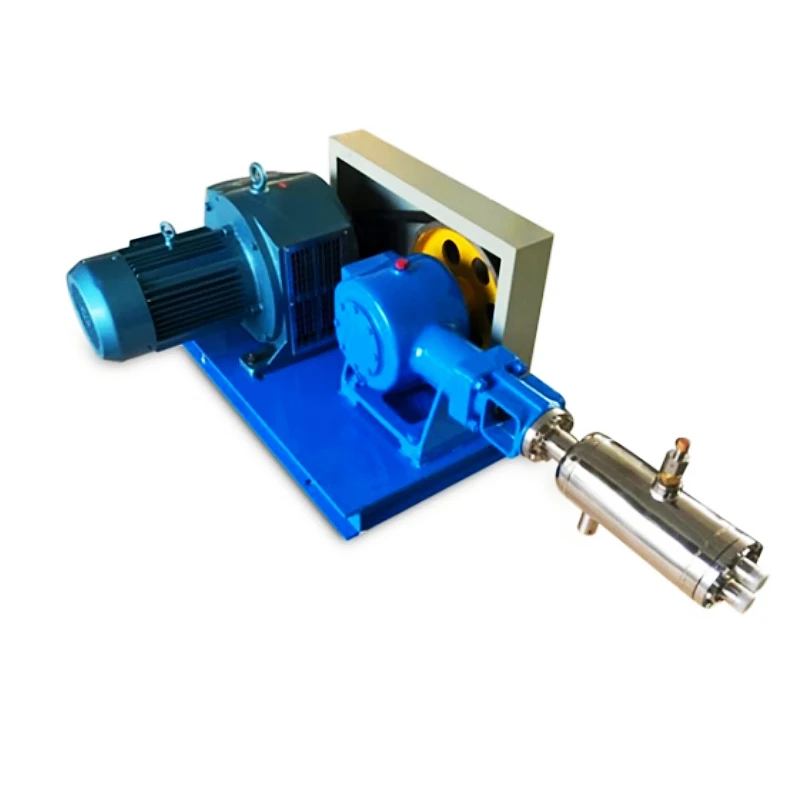

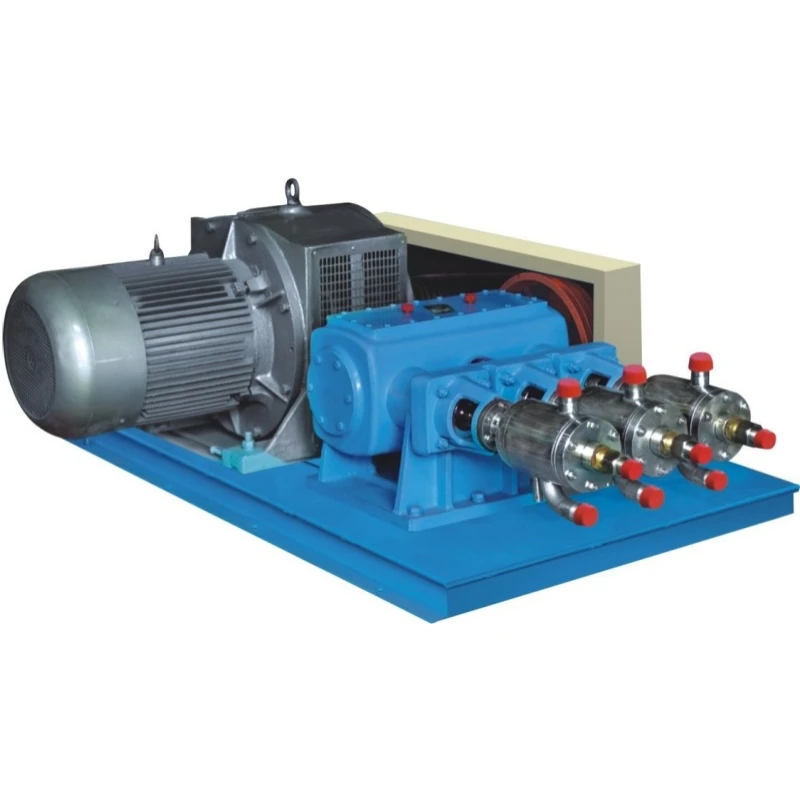

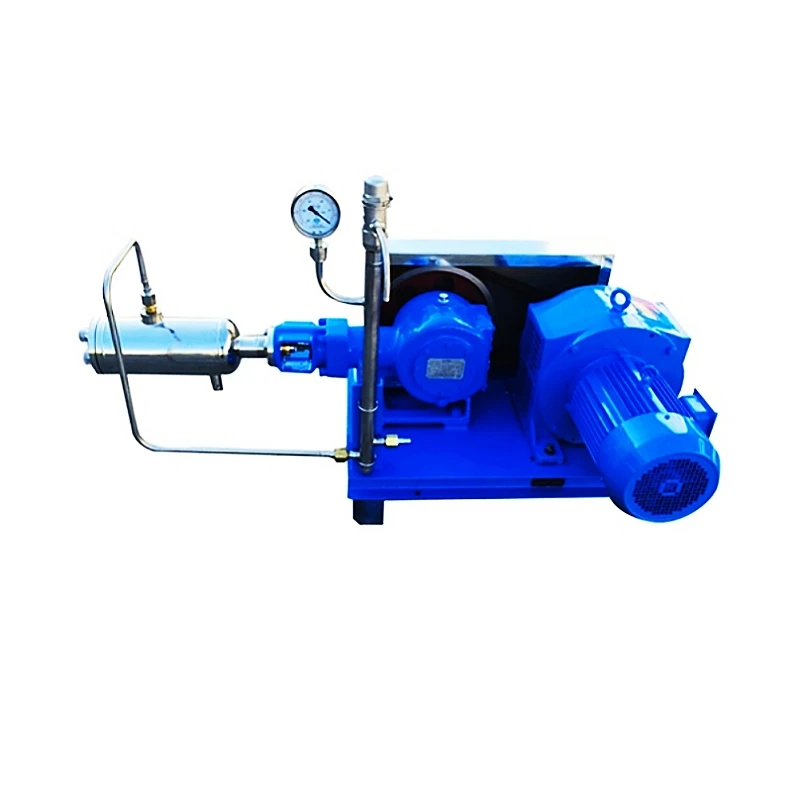

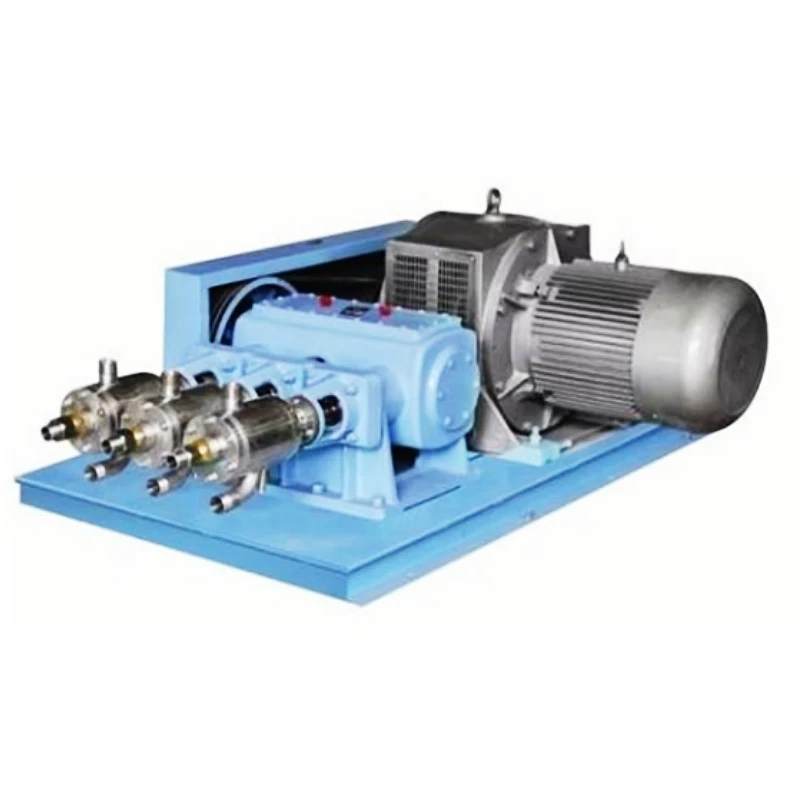

Cryogenic piston pump
Piston pumps are designated for conversion of motor mechanical energy into pumped fluid mechanical energy. Pump fluid suction is caused by low pressure formation in a process chamber during a piston right motion and with closed discharge valve
Cryogenic piston pumps can be both of a single low-temperature section type and a multiple low-temperature section type.
Cryogenic piston pumps are used for buffer reservoir filling, cryogenic cylinder filling, as well as for industrial and medical bottle filling with gaseous products. It is reasonable to use pumps of such a type also in severe application (industrial application of LNG and CO2) where high pressure is a significant factor.
Cryogenic piston pumps can be both of a single low-temperature section type and a multiple low-temperature section type.
Cryogenic piston pumps are used for buffer reservoir filling, cryogenic cylinder filling, as well as for industrial and medical bottle filling with gaseous products. It is reasonable to use pumps of such a type also in severe application (industrial application of LNG and CO2) where high pressure is a significant factor.
Advantages of Our Piston Pump:
Single or multiple cold end design to meet various flow rates, reduce the flow impulse;
Ex-proof electric devices as motors and control units to meet the LNG working conditions;
Specially seals ensure a long time of free maintenance to the cold end, up to 3500 hours;
Multiple cold end design to fulfill high flow service;
Vacuum jacketed cold end minimizes heat loss and lowers liquid's vaporization;
Interlocking system ensure protection from wrong operations;
24-hour persistent performing;
All electric components are configured as per anti-explosion requirements;
The piston seal is made of special material and the service life of the piston seal is over 4000 hours;
Low discharge pressure fluctuation;
Fast precooling ;
The simple pump head module design facilitates maintenance;
The pump has the design of new type gland packing and ultra-long service life;
Maintenance is convenient: it merely takes two hours to perform a routine maintenance;
Single or multiple cold end design to meet various flow rates, reduce the flow impulse;
Ex-proof electric devices as motors and control units to meet the LNG working conditions;
Specially seals ensure a long time of free maintenance to the cold end, up to 3500 hours;
Multiple cold end design to fulfill high flow service;
Vacuum jacketed cold end minimizes heat loss and lowers liquid's vaporization;
Interlocking system ensure protection from wrong operations;
24-hour persistent performing;
All electric components are configured as per anti-explosion requirements;
The piston seal is made of special material and the service life of the piston seal is over 4000 hours;
Low discharge pressure fluctuation;
Fast precooling ;
The simple pump head module design facilitates maintenance;
The pump has the design of new type gland packing and ultra-long service life;
Maintenance is convenient: it merely takes two hours to perform a routine maintenance;
Technical Details:
Flow rate: | 100-35 000 L/h |
Working Pressure: | 35-150Mpa |
Fluid: | LN2O/LN2/LO2/LAr/LNG |
Temp: | -196°C |
Project Case
Test Platform
Workshop Show
Company Profile
Wobo's products cover the fields of new energy, energy, metallurgy, petrochemical, electronics, food, machinery, building
materials, medicine, new materials, petrochemical, chemical fiber, heat treatment, glass, national defense and aerospace, and are sold to more than 100 countries and regions. We strive to provide products with the highest quality and service, and complete with the highest standards. All our products have undergone rigorous testing, and now we have obtained CE,ISO,ASME . Our goal is 100% customer satisfaction,we will provide high-quality productsand value-added services.
materials, medicine, new materials, petrochemical, chemical fiber, heat treatment, glass, national defense and aerospace, and are sold to more than 100 countries and regions. We strive to provide products with the highest quality and service, and complete with the highest standards. All our products have undergone rigorous testing, and now we have obtained CE,ISO,ASME . Our goal is 100% customer satisfaction,we will provide high-quality productsand value-added services.
Product packaging
Certifications
