Автоматизация Micro SOFC водородный топливный элемент модуль высокой температуры 100 кВт твердосоксидный 5
- Категория: >>>
- Поставщик: WOBO Industrial Group Inc
Сохранить в закладки 10000019841315:
Описание и отзывы
Характеристики
Solid Oxide Fuel Cell
Wholesale High Power 5Kw Sofc Fuel Cell SOEC SOFC For Distributed Generation
Products Description

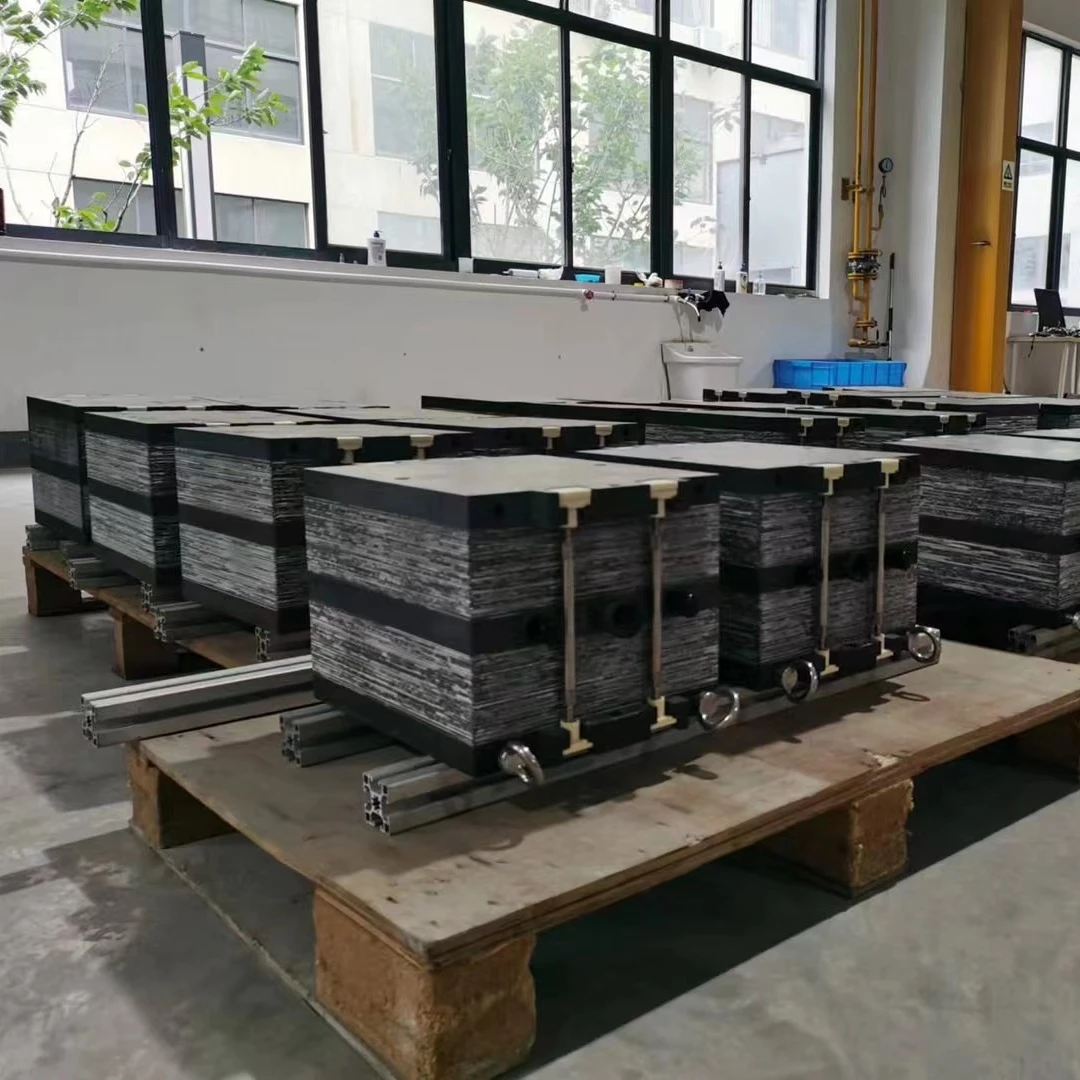

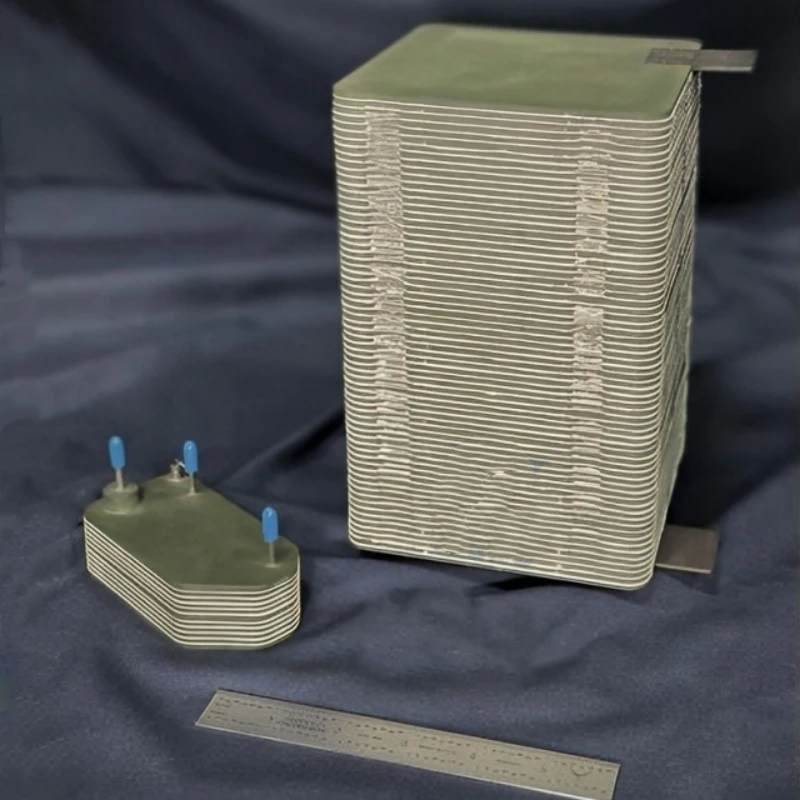

SOFC (Solid Oxide Fuel Cell/Solid Oxide Fuel Catalog) is a high -energy -efficiency power generation device. By generating the chemical reactions of fuel (hydrogen) and oxygen, recycling accompanying thermal energy, and providing energy with heat. The battery stack is the core part of the SOFC unit that connects dozens of ceramic batteries into the SOFC unit.
Product Paramenters
Model | WB-101 | WB-102 | WB-103 | ||||||
Power(W) | 300W | 1000W | 2.5kW | 5kW | 50W | 100W | |||
Number of cells | 12 | 36 | 24 | 48 | 6 | 12 | |||
Size（mm） | 220×186×75 | 220×186×178 | 352×320×135 | 352×320×238 | 200×165×46 | 200×165×69 | |||
Weight(kg) | ≤13kg | ≤25kg | ≤57kg | ≤88kg | ≤8kg | ≤12kg | |||
Operating temperature | 750℃ | 750℃ | 750℃ | 750℃ | 850℃ | 850℃ | |||
Technical Principles
The solid oxide fuel cell uses electronics and generates electricity through several basic steps
1 Natural gas is reorganized by steam. This chemical reaction produces hydrogen (H2), carbon monoxide (CO), carbon dioxide (CO2) and steam (H2O). Some unresolved natural gas will be left in the mixture.
2 The element mixture from the regulator enters the fuel cell on the anode side. At the same time, air (including oxygen) enters fuel cells on the cathode side.
3 The combination of oxygen in the air and free electrons, forming oxide ions in the cathode. Oxide ions with free electrons move from the cathode to anode through electrolyte.
4 In anode, oxide ions and hydrogen react to generate water (steam), and react with carbon monoxide (CO) to generate carbon dioxide (CO2).
5 The reaction involved in step 4 releases free electrons. These free electrons reach the cathode through the external circuit and generate electrical energy.
2 The element mixture from the regulator enters the fuel cell on the anode side. At the same time, air (including oxygen) enters fuel cells on the cathode side.
3 The combination of oxygen in the air and free electrons, forming oxide ions in the cathode. Oxide ions with free electrons move from the cathode to anode through electrolyte.
4 In anode, oxide ions and hydrogen react to generate water (steam), and react with carbon monoxide (CO) to generate carbon dioxide (CO2).
5 The reaction involved in step 4 releases free electrons. These free electrons reach the cathode through the external circuit and generate electrical energy.
Product Advantage
1. Much selective
SOFC can use natural gas, synthesis gas (CO, H2 and other mixed gas), biomass gas (such as biogas), etc., or can also use coal -to -gas, coalbed methane, shale gas, industrial by -production gas, etc. The efficiency of traditional fossil
energy conversion, reduce CO2 emissions, and achieve the clean and efficient utilization of fossil energy.
energy conversion, reduce CO2 emissions, and achieve the clean and efficient utilization of fossil energy.
2.High electrolytic efficiency
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
3. Thermal power connection to improve energy utilization efficiency
The power generation scale of the micro -thermal power connection system is usually 1 to 5 kW, which can directly use the electric energy and thermal energy of natural gas to provide a single user. When the power is rich, the power can be sold to the power grid. Save once energy consumption and improve energy utilization efficiency.
4. Compatible with traditional fuel
SOFC can use traditional fuel, but its startup time is long, suitable for auxiliary power devices for luxury cars, leisure cars
and heavy trucks.
and heavy trucks.
5. Can be used for portable power supply
SOFC -based micro -power generation systems are also expanding to the field of portable power supply, mainly because SOFC has higher power density [than power density is the ability to describe the battery that can release greater energy in an instant. ],Micro -Tube SOFC can meet the rapid startup requirements.
Production Process
Product Detection System
Hardware and software solutions for SOFC test beds
In a system, the unit under test (UUT) or device under test (DUT) is the stack or module along with the complete BoP. The output power is typically DC for automotive or mobile applications and AC for grid-connected applications. System test beds are to be used to perform performance testing of your final system and to determine operating strategies for the highest possible efficiency on the one hand, and also to identify those areas that are causing degradation or underutilization of your system. To perform all these activities, To perform all these activities, we hardware and software tools for test beds together with our dedicated test bed automation.
Product Application
Company Profile
Wobo's products cover the fields of new energy, energy, metallurgy, petrochemical, electronics, food, machinery, building materials, medicine, new materials, petrochemical, chemical fiber, heat treatment, glass, national defense and aerospace, and are sold to more than 100 countries and regions.
We strive to provide products with the highest quality and service, and complete with the highest standards. All our products have undergone rigorous testing, and now we have obtained CE,ISO,ASME . Our goal is 100% customer satisfaction,we will provide high-quality productsand value-added services.
FAQ
Warranty Policy
* Warranty Period: All products come with 18 months free warranty from the date of purchase.
* Warranty Coverage: During the warranty period, we will repair or replace parts free of charge for defects related to product quality.
* Out-of-Warranty: Repairs after the warranty period will incur a fee. Please contact customer service for details.
Return and Exchange Policy
* Return/Exchange Conditions: If there is a quality issue or if the product does not match the order, please contact customer service within 7 days of receiving the item to request a return or exchange.
* Return/Exchange Process: Call our customer service hotline or send an email to request a return or exchange. We will provide you with the return address and instructions.
Technical Support
* Support Service: We offer 24/7 technical support via phone, email, and online chat.
* Remote Support: Technical assistance is available through phone, email, and online chat.
* On-Site Support: For issues requiring on-site attention, we will arrange for a technician to visit.
Customer Feedback
* We value your feedback. Please share your experience via our customer service hotline or email. Your input helps us improve our service quality.
Training and Support
* New Customer Training: After purchase, we provide detailed training and user guides for the product.
* Extended Warranty: You can choose to purchase an extended warranty for additional coverage.
* Custom Services: We offer personalized customization services based on your needs. Please consult customer service for details.
* Warranty Period: All products come with 18 months free warranty from the date of purchase.
* Warranty Coverage: During the warranty period, we will repair or replace parts free of charge for defects related to product quality.
* Out-of-Warranty: Repairs after the warranty period will incur a fee. Please contact customer service for details.
Return and Exchange Policy
* Return/Exchange Conditions: If there is a quality issue or if the product does not match the order, please contact customer service within 7 days of receiving the item to request a return or exchange.
* Return/Exchange Process: Call our customer service hotline or send an email to request a return or exchange. We will provide you with the return address and instructions.
Technical Support
* Support Service: We offer 24/7 technical support via phone, email, and online chat.
* Remote Support: Technical assistance is available through phone, email, and online chat.
* On-Site Support: For issues requiring on-site attention, we will arrange for a technician to visit.
Customer Feedback
* We value your feedback. Please share your experience via our customer service hotline or email. Your input helps us improve our service quality.
Training and Support
* New Customer Training: After purchase, we provide detailed training and user guides for the product.
* Extended Warranty: You can choose to purchase an extended warranty for additional coverage.
* Custom Services: We offer personalized customization services based on your needs. Please consult customer service for details.
