Product Description

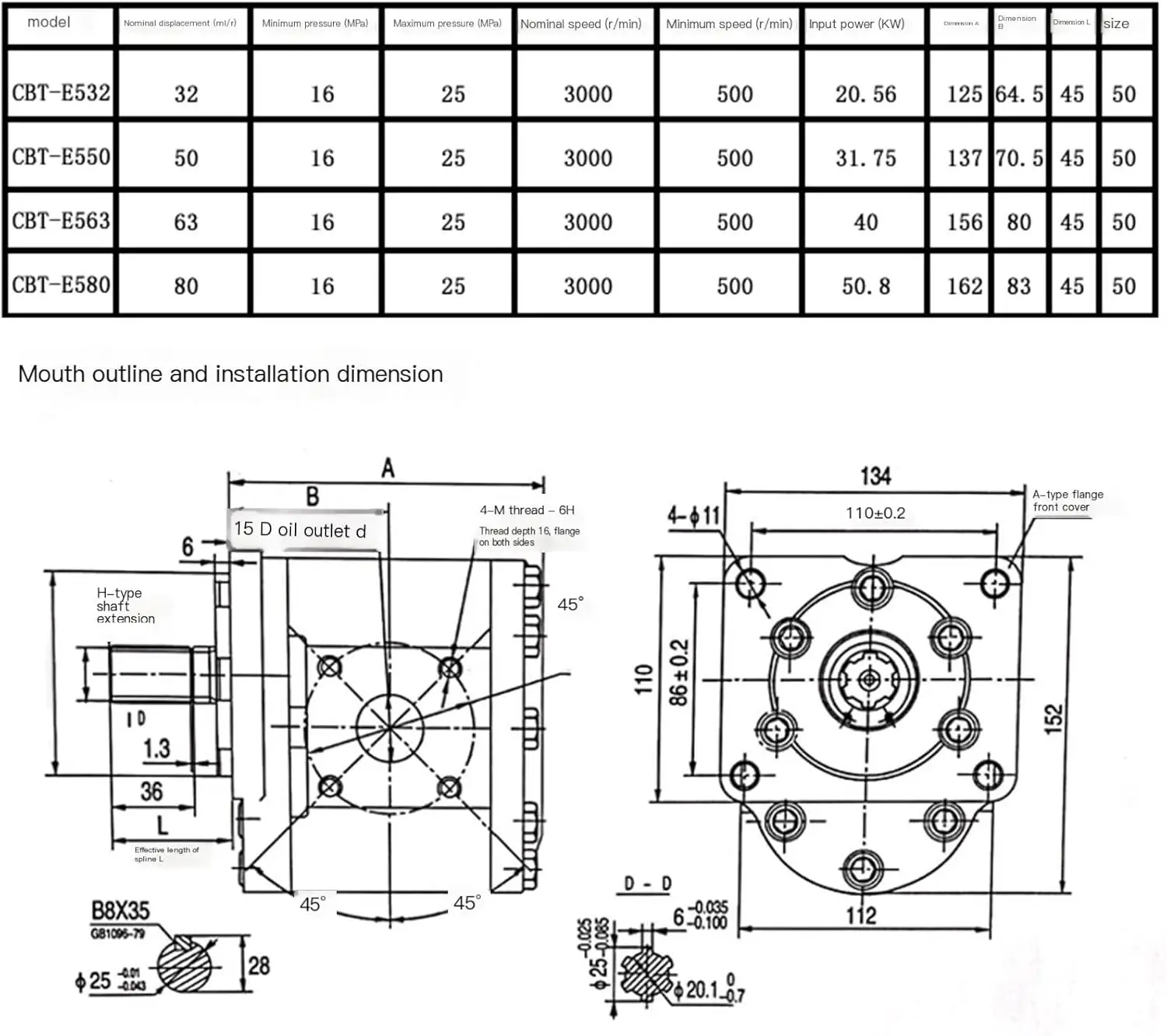

 Product model: CBT- F5** series medium and high pressure gear pump


CBT-F532 CBT-F563 CBT-F525 CBT-F580 CBT-F550



Fixed size: 86x110mm
Body weight: about 6-8KG .
Nominal displacement: 32-80ml/r
Pressure: 16-25MPa
Direction of rotation: left-handed/right-handed
Material: High-strength aluminum alloy (die-cast aluminum)
Shaft extension form: flat key/spline
Volumetric efficiency: 93>%
Hydraulic gear pump:
A gear pump uses the meshing of gears to pump fluid by displacement.
They are one of the most common types of pumps for hydraulic fluid power applications.
Gear pumps are positive displacement (or fixed displacement), meaning they pump a constant amount of fluid for each revolution.





CBT-F5 Hydraulic Gear Pump – High Efficiency & Durability


The CBT-F5 series hydraulic gear pump is a reliable, high-performance solution designed for a wide range of industrial and agricultural machinery applications. Engineered for long-lasting operation, it offers consistent pressure and smooth flow in various hydraulic systems.


Key Features:



  • High Efficiency: Delivers optimized hydraulic performance with minimal power loss.

  • Durable Construction: Built with high-quality alloy materials, ensuring resistance to wear and long-term usage.

  • Compact Design: Space-saving, lightweight, and easy to install in a variety of machines.

  • Low Noise Operation: Precision engineering minimizes vibration and operational noise.

  • Wide Application: Ideal for forklifts, loaders, tractors, and construction machinery.


Technical Specifications:



  • Displacement: Ranging from 5 to 50 cm³/rev, suitable for different hydraulic systems.

  • Working Pressure: Maximum operating pressure of 25 MPa for reliable performance.

  • Flow Rate: Ensures smooth hydraulic flow across multiple applications.

  • Mounting: Available in multiple mounting options to fit your equipment requirements.


Applications:



  • Agricultural Machinery: Tractors, harvesters, and plowing machines.

  • Construction Equipment: Forklifts, loaders, and excavators.

  • Industrial Machinery: Hydraulic presses, lifts, and power systems.


Why Choose CBT-F5?



  • Cost-effective: High-performance at an affordable price.

  • Reliable Performance: Ensures consistent output for heavy-duty use.

  • Customization: Tailored to your specific hydraulic system needs.
