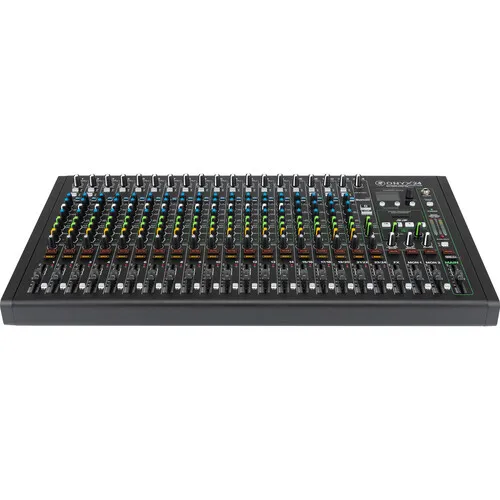

Хит продаж 24 канальный аналоговый микшер премиум класса Onyx24 с многодороженым USB

Сохранить в закладки 10000020405764:


Цена:38 376,94 ₽ - 43 859,36 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

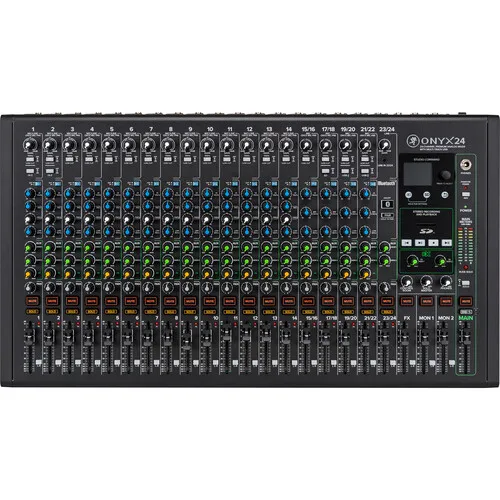

M a c k i ONYX24 Analog Mixer Specs




Key Specs












































Number of Analog Input Channels
24 (14 Mono / 5 Stereo)

Number of Mic Preamps
18

Analog Output Channels
2x Stereo Master Output
2x Stereo Control Room/Monitor Output
2x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output



Mix Routing
1x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup

EQ
3-Band Semi-Parametric (Mono Channels)
3-Band Shelving/Notch/Peak (Stereo Channels)

Built-In Effects
No

USB I/O
1x USB-B (Audio Playback, Host Connection, Recording)

Wireless
No

Max Multitrack Recording
24 Tracks

Rack Mountable
No




Mixer
































Number of Analog Input Channels
24 (14 Mono / 5 Stereo)

Number of Mic Preamps
18

Analog Output Channels
2x Stereo Master Output
2x Stereo Control Room/Monitor Output
2x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output

Mix Routing
1x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup

Faders & Level Adjustment
19x 2.4" / 60 mm Channel Fader
1x 2.4" / 60 mm FX Fader
2x 2.4" / 60 mm Bus/Subgroup Fader
1x 2.4" / 60 mm Master Fader

Meters
Main Meter:
2x 12-Segment LED

Meter Range
-30 dB to +20 dB Peak/Clip




Signal Processing
















































Gain/Trim Range
+60 dB

Input Pad
No

Input Polarity
No

Dynamic Processing
No

Sidechain Filters
No

EQ
3-Band Semi-Parametric (Mono Channels)
3-Band Shelving/Notch/Peak (Stereo Channels)

EQ Parameters
Mono Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 100 Hz to 8 kHz
Low: ±15 dB at 80 Hz
Stereo Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 2.5 kHz
Low: ±15 dB at 80 Hz

Graphic EQ
Yes

Filters
Input Channels:
1x High-Pass: 100 Hz

Solo/Mute
Solo per Input Channel
Mute per Input Channel, Bus, FX Bus, Master

Built-In Effects
No




Digital Audio








Sample Rates
96 kHz

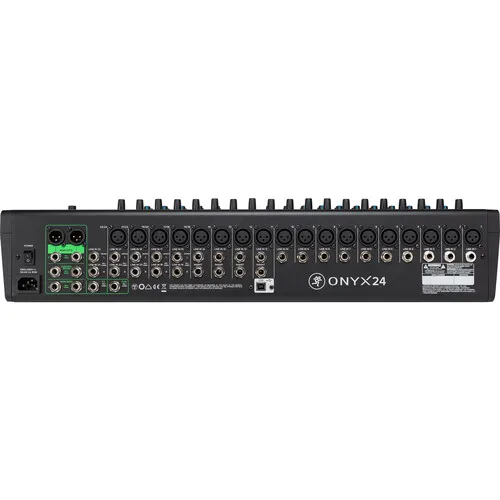

Connectivity
































Analog Inputs
18x XLR 3-Pin Balanced Mic Input
14x 1/4" TRS Balanced/Unbalanced Line Input
4x 1/4" TRS Unbalanced Line Insert
2x 1/4" TRS Balanced/Unbalanced Hi-Z Input
10x 1/4" TRS Balanced/Unbalanced Stereo Line Input (4 Stereo Pairs)
1x 1/4" TRS Footswitch Input

Analog Outputs
2x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)
2x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)
2x 1/4" TRS Balanced/Unbalanced Stereo Monitor Output (1 Stereo Pair)
2x 1/4" TRS Balanced/Unbalanced Mono Aux/Monitor Output
1x 1/4" TRS Balanced/Unbalanced FX Send

Phantom Power
+48 V (Applied to All Inputs)

Digital I/O
No

MIDI I/O
No

USB I/O
1x USB-B (Audio Playback, Host Connection, Recording)

Wireless
No




Recording












Max Multitrack Recording
24 Tracks

Media Support
SD




Compatibility








OS Compatibility
No




Power












AC Power I/O
1x IEC Input

Power Consumption
55 W




Physical
















Rack Mountable
No

Dimensions
25.2 x 5.4 x 14" / 64 x 13.7 x 35.6 cm

Weight
20.3 lb / 9.2 kg




Packaging Info












Package Weight
24.96 lb

Box Dimensions (LxWxH)
28.1 x 16.9 x 10"






Packaging & Shipping


 Onyx24 mackie2.jpgOnyx24 mackie1.jpgOnyx24 mackie.jpgOnyx24 mackie3.jpgOnyx24 mackie1.jpgOnyx24 mackie.jpg
