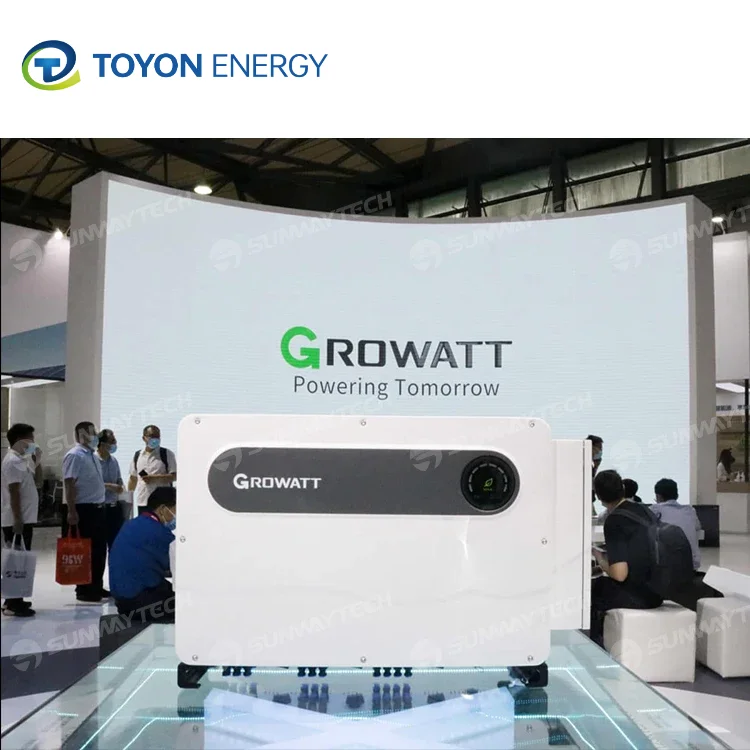

Солнечный инвертор Growatt Max 100 125KTL3 X LV на сетке 3 фазный MPPT 100 кВт 110 120 125 солнечный с функцией Wi Fi
- Категория: >>>
- Поставщик: Toyon Energy Co. Ltd.
Сохранить в закладки 10000021021823:
Описание и отзывы
Характеристики
Product Description
Datasheet | MAX 100KTL3-X LV | MAX 110KTL3-X LV | MAX 120KTL3-X LV | MAX 125KTL3-X LV | ||||
Input data (DC) | ||||||||
Max. recommended PV power | 100000W | 110000W | 120000W | 125000W | ||||
Max. DC voltage | 1100V | |||||||
Start voltage | 195V | |||||||
Nominal voltage | 600V | |||||||
MPPT voltage range | 180V-1000V | |||||||
No. of MPP trackers | 10 | |||||||
No. of PV strings per MPP tracker | 2 | |||||||
Max. input current per MPP tracker | 32A | |||||||
Output data (AC) | ||||||||
Nominal AC voltage | 220V/380V, 230V/400V (340-440V) | |||||||
Max. output current | 158.8A @400V 167.1A@380V | 174.6A @400V 183.8A@380V | 190.5A @400V 200.5A@380V | 198.5A@400V 208.9A@380V | ||||
Adjustable power factor | 0.8leading…0.8lagging | |||||||
THDi | <3% | |||||||
AC grid connection type | 3W+N+PE | |||||||
Efficiency | ||||||||
MAX. efficiency | 98.8% | |||||||
European efficiency | 98.4% | 98.5% | 98.5% | 98.5% | ||||
MPPT efficiency | 99.9% | |||||||
Protection devices | ||||||||
DC reverse polarity protection | YES | |||||||
AC/DC surge protection | YES | |||||||
AC/DC surge protection | Type II / Type II | |||||||
General data | ||||||||
Dimensions (W / H / D) | 970/640/345mm | |||||||
Weight | 84KG | |||||||
Cooling | Smart air cooling | |||||||
Protection degree | IP66 | |||||||
DC connection | H4/MC4 (Max.6mm²) | |||||||
AC connection | OT Terminal (Max. 240mm²) | |||||||
Display | LED/WIFI+APP | |||||||
Warranty: 5 / 10 years | Yes/Optional | |||||||
Products Series
On Grid Inverter
3-6KW
2 MPPTs
Single Phase 220-240V 50/6Hz
Single Phase 220-240V 50/6Hz
On Grid Inverter
15-40KW
3/4 MPPTs
Three Phase 380-415V 50/6Hz
Three Phase 380-415V 50/6Hz
On Grid Inverter
50-70KW
3 MPPTs
Three Phase 380-415V 50/6Hz
Three Phase 380-415V 50/6Hz
On Grid Inverter
50-250KW
6-10 MPPTs
Three Phase 380-415V/460-500V 50/6Hz
Three Phase 380-415V/460-500V 50/6Hz
Off Grid Inverter
3KW/5KW
Single Phase
220-240V 50/60Hz
Up to 6 units in parallel

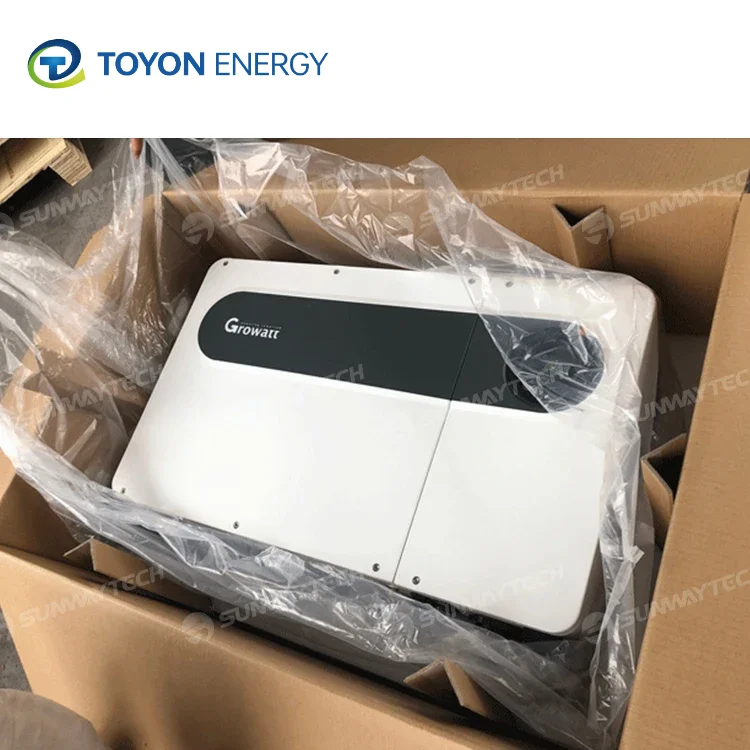

Packing & Delivery
Why Choose Us
Why Choose Us
Toyon Energy is a professional factory leader in the PV industry, we offer solar photovoltaic all in one system and one-stop services with competitive prices and fast delivery time and we insure our quality is second to none.
* Higher power generation
* Competitive price
* High quality standard
* Stable supply chain guarantee
* Customized service
FAQ
1.What main products can you provide?
We can provide many series of solar products,mainly producing the solar panels, solar inverters,power wall,lithium ion
batteries,gel batteries and also all in one solar system solution according to your needs.
2. How is your technical support?
We can provide lifetime online support through WhatsApp/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime.
3. What about the lead time?
We can always deliver within 5-15 working days.The common products we always have the stock, it can be sent out within 15 days. While the big order needs to negotiate the finish production time and promise it to our customers.
4. Can you provide OEM service?
Yes, as a professional solar system manufacturer, we can provide customer-made service with OEM and on-site installation comprehensive support, and after-sales services.
5. How can we guarantee quality?
We can provide a pre-production sample before mass production and also final inspection before shipment. We can also provide 24-hour after-sales service. Regardless of the time difference, we will solve the problem for you as soon as possible.
6. What's the payment term?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.
Accepted Payment Type: T/T, L/C, PayPal.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
We can provide many series of solar products,mainly producing the solar panels, solar inverters,power wall,lithium ion
batteries,gel batteries and also all in one solar system solution according to your needs.
2. How is your technical support?
We can provide lifetime online support through WhatsApp/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime.
3. What about the lead time?
We can always deliver within 5-15 working days.The common products we always have the stock, it can be sent out within 15 days. While the big order needs to negotiate the finish production time and promise it to our customers.
4. Can you provide OEM service?
Yes, as a professional solar system manufacturer, we can provide customer-made service with OEM and on-site installation comprehensive support, and after-sales services.
5. How can we guarantee quality?
We can provide a pre-production sample before mass production and also final inspection before shipment. We can also provide 24-hour after-sales service. Regardless of the time difference, we will solve the problem for you as soon as possible.
6. What's the payment term?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.
Accepted Payment Type: T/T, L/C, PayPal.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
