Products Description
Brief introduction for ball mill
This machine works in both dry and wet methods intermittently, to mill, mix and discharge materials such as feldspar, quartz and clay. The slurry can pass through 1000 sieve pore. It's a kind of super fine grinding mill, so the feed material should be in medium size to get best grinding efficiency and economic profit.
Applications for ball mill
1. TCQ ball mill is a mini type powder processing machine for milling the materials into powders after they are crushed.
2. It is widely applied to the production of cements, silicate products, building materials, fireproof materials, fertilizers,
glass, ceramics as well as nonferrous and ferrous metal processing industries.
3. It could carry out dry and wet millings on different materials.
2. It is widely applied to the production of cements, silicate products, building materials, fireproof materials, fertilizers,
glass, ceramics as well as nonferrous and ferrous metal processing industries.
3. It could carry out dry and wet millings on different materials.
Working principle for ball mill
1. Our TCQ type ball mill is of horizontal, cylindrical and tubular structure.
2. It comes with two cabins and is a grate a bll mill.
3. The materials are evenly fed through the charging device to first warehouse where there are step scales boards, corrugated scale boards and different specification of steel balls.
4. When the cylinder rotates, the centrifugal force produced causes the steel balls to impact and grind the materials in the ball mill.
5. The materials are then lead to the second cabin for further milling until into powders and are discharged from the outlet
2. It comes with two cabins and is a grate a bll mill.
3. The materials are evenly fed through the charging device to first warehouse where there are step scales boards, corrugated scale boards and different specification of steel balls.
4. When the cylinder rotates, the centrifugal force produced causes the steel balls to impact and grind the materials in the ball mill.
5. The materials are then lead to the second cabin for further milling until into powders and are discharged from the outlet
PRODUCT SPECIFICATIONS
Model name | Capacity t/h | Speed r/min | Motor KW | Weight T |
TCQ600*700 | 0.05 | 50 | 2.2-4 | 1 |
TCQ800*600 | 0.075 | 42 | 3-5.5 | 1.5 |
TCQ900x1200 | 0.2 | 36 | 5.5-11 | 2.6 |
TCQ1200x1400 | 0.5 | 32 | 11-18.5 | 4.3 |
TCQ1500*1800 | 1 | 28 | 15-22 | 6.5 |
TCQ1800*2100 | 1.5 | 26 | 18.5-30 | 8.8 |
TCQ2100*2100 | 2.5 | 2 | 22-37 | 13 |
Details Images
Ceramic grinding balls
Ceramic media material suitable for grinding over 20 kinds of material

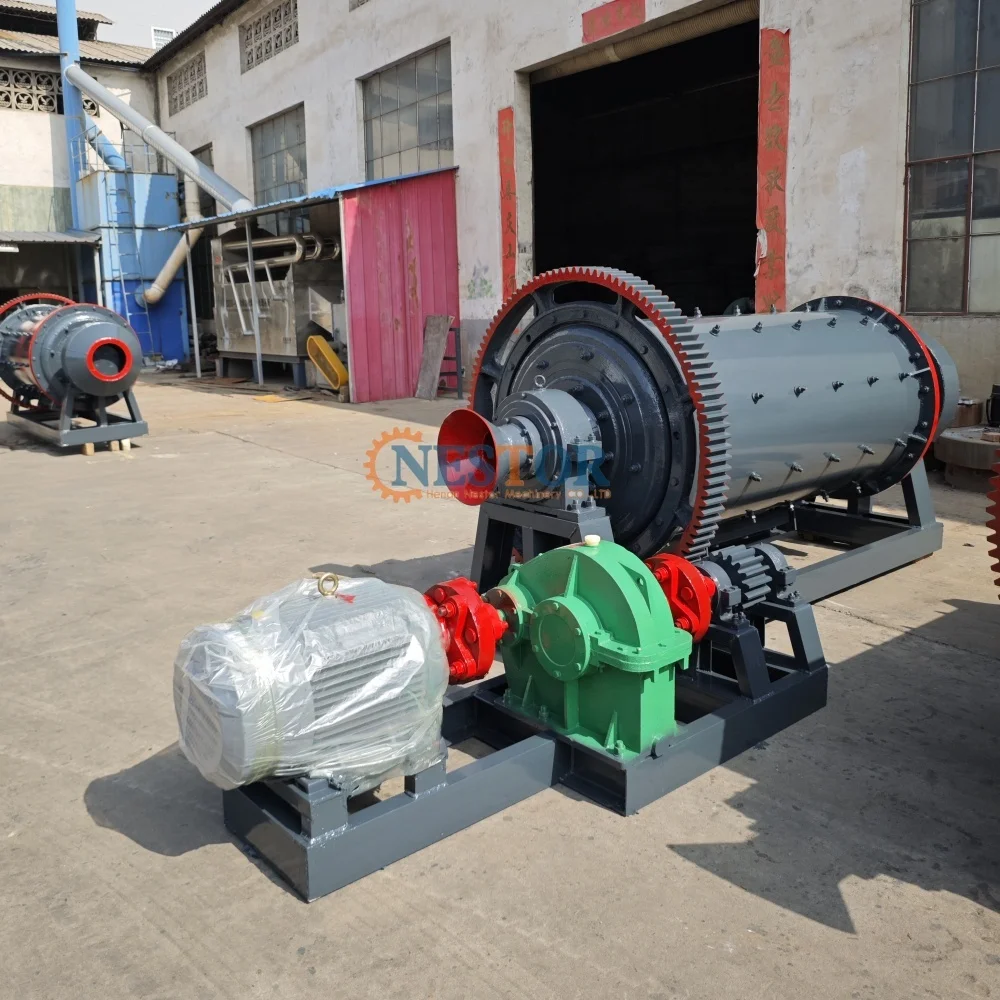

Motor
famous brand of motor from China
1 years warranty of motors.
Ceramic lining plate
Alumina ceramic bricks and balls, normal Al2O3 content no less than 92%
Packing and delivery
Related Products
HAMMER CRUSHER
HYDRAULIC SAND MAKING MACHINE
VSI SAND MAKING MACHINE
GOLD SHAKING TABLE
VERTICAL COMPOUND CRUSHER
MAGNETIC SEPARATOR
Company Profile
Henan NESTOR Machinery CO., LTD
was founded in 1980, is located in the West Development Zone of Gongyi city, convenient transportation, well-equipped enterprises, high-quality employees, able to undertake Kingdom of Dali, small machinery design and processing, manufacturing business, our products are exported all over the country to produce various types of ball mills, crushers, wet mills, magnetic separators, classifiers, flotation machines and other mineral processing equipment, mainly used for gold, silver, lead, zinc, iron, molybdenum, antimony, etc. , impact crusher, hydraulic cone crusher, Heavy Hammer crusher, rotary crusher, compound crusher, Double Shaft Shredder, mobile crushing station, Ball Mill, sand-making and sand-washing equipment, fine sand recycling machine, belt conveyor, vibrating screen, dryer, rotary kiln, cement brick machine, etc. . And to undertake a complete set of stone sand production lines, mineral processing production lines, the installation of turnkey projects, products by the new and old customers alike, in recent years by the State Mine Machinery Quality Supervision and Inspection Center in accordance with national standards test products are qualified. The purpose of our factory: Customer First, Quality First, to quality of survival, to user benefits for Development, product technology tracking service. Founding a foundry industry with core competitive ability and core value is a new strategic goal for the enterprises after China's entry into WTO. We adhere to the customer focus and beyond the expectations
of customers for business philosophy, in good faith and pragmatic, wholeheartedly welcome customers from all over the world to visit, co-development, create brilliant.
of customers for business philosophy, in good faith and pragmatic, wholeheartedly welcome customers from all over the world to visit, co-development, create brilliant.
