Parker клапан управления направлением D3W серии (AP) Часть # SD3W020BNJW гидравлический
- Категория: >>>
- Поставщик: Anhui Nabor Mechanical And Electrical Equipment Co. Ltd.
Сохранить в закладки 10000021456569:
Описание и отзывы
Характеристики
Product Paramenters
Directional Control Valve
Directional Control Valve - D3W Series(AP)
Part #: SD3W020BNJW
(in stock)
The directional control valve series D1VW in NG06 (CETOP 03 / NFPA D03) provides high functional limits up to 80 l/min in combination with a very low, energy-saving pressure drop due to optimized flow passages. The maximum pressure is 350 bar. A wide variety of spools and options allows to design an unlimited number of hydraulic circuits. The D1VW is available with a soft shift option for smooth operation. An additional orifice in the solenoid anchor dampens the shifting time. The D1VW*EE with explosion proof solenoids is based on the standard D1VW series. It is not only ATEX certified (explosion proof class is Ex e mb II T4 Gb for use in zone 1 and 2) but also equipped with IECEx compliant solenoids which are certified in accordance with IECEx standard for equipment class 2 G. All explosion proof solenoids are DC design. The valves for AC operate with integrated rectifier. Markets: • Industrial Features/Benefits: • Compact, proven design that represents our long-term experience in hydraulics • Wide range of spools - fits all hydraulic systems • Shortest lead time - no warehousing necessary • Optional soft shift option - for smooth operation • Optional manual override • Optional ex proof version Applications: • Suitable for general hydraulic applications | ||||
Specification
Input Voltage: | 24 VDC | Maximum Operating Pressure: | P, A, B: 350; T: 210 bar |
Connection Type: | Connector as per EN 175301-803, solenoid identification as per ISO 9461 (code W) | Maximum Flow Rate: | 150(depending on spool, see shift limits) L/min |
Product Series: | S Series | Solenoid Option: | Omit - manual override (standard) |
Spool Position: | B - 2 positions, spring offset in position b, operated in position a | Ingress Protection Rating: | IP65 in accordance with EN 60529 (with correctly mounted plug-in connector) |
Material - Seals: | N - NBR | Weight: | 4.8 kg |
Spool Code: | 020 | Maximum Operating Temperature: | 50 °C |
Product Type: | Directional spool valve | Minimum Operating Temperature: | -25 °C |
Actuation Type: | Solenoid | Body Material: | Gray Iron |
Size: | DIN NG10 / CETOP 05 / NFPA D05 nom | ||
Interface Type: | DIN 24340 A10 / ISO 4401 / CETOP RP 121-H / NFPA D05 |
PARKER Valves Categories: | ||||
* Valves Accessories / Kits | * Gate Valves | * Purge Valves | ||
* Valve Terminals / Controls | * Globe Valves | * Safety Valves | ||
* Manifolds | * Hydraulic Valves | * Shut Off Valves | ||
* Angle Valves | * Logic Valves | * Shuttle Valves | ||
* Ball Valves | * Metering Valves | * Servo Valves | ||
* Butterfly Valves | * Miniature Valves | * Solenoid Valves | ||
* Check Valves | * Needle Valves | * Spool Valves | ||
* Cartridge Valves | * Pilot Valves | * Throttle Valves | ||
* Counterbalance Valves | * Plug Valves | * Ultra High Purity Valves | ||
* Directional Control Valves | * PFA Valves | * Instrumentation Valves | ||
* Electronic Valves | * Pressure Control Valves | * Double Block and Bleed Valves | ||
* Fieldbus / Industrial Networks | * Pressure Relief Valves | * Dump and Soft Start Valves | ||
* Flow Control Valves | * Proportional Valves | ... | ||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Anhui Nabor Mechanical and Electrical Equipment Co., Ltd. is a global service provider and industrial product supplier
specializing in industrial automation control. We cater to users in various industries including aviation, metallurgy, water
conservancy, and electric power.
specializing in industrial automation control. We cater to users in various industries including aviation, metallurgy, water
conservancy, and electric power.
We primarily sell products from brands such as PARKER, REXROTH, ATOS, VICKERS, HAWE, and AVENTICS, including valves, pumps, motors, amplifiers and so on related Hydraulic parts.
Our business philosophy is centered around internationalization, efficient management, cost optimization, team stability, and long-term customer relationships.
We strive to meet diverse customer needs with high-quality products, competitive prices, and efficiency. We are committed to becoming a premier industrial products trading company in China, integrating trade services and global procurement. We welcome collaboration with colleagues from all over the world to create success together.
FAQ
1. who are we?
We are based in Anhui, China, start from 2021, but we start HYDRAULIC BUSINESS SINCE 2004 in Shanghai city, sell to South Asia(4.00%),Mid East(1.00%),Eastern Asia(1.00%). There are total about 11-50 people in our office.
We are based in Anhui, China, start from 2021, but we start HYDRAULIC BUSINESS SINCE 2004 in Shanghai city, sell to South Asia(4.00%),Mid East(1.00%),Eastern Asia(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
hydraulic valve,hydraulic pum,amplifiers,motors,hydraulic...
4. why should you buy from us not from other suppliers?
We mainly sell PARKER, REXROTH, ATOS, VICKERS, HAWE, AVENTICS and other brand products, including various valves, pumps, motors and amplifiers in the industrial field.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Cash;
Language Spoken:English,Spanish,German, Chinese
- 20+ years of industry professional experience
- Over $10 million in inventory
- Quality assurance
- On-time delivery
- Superior price
- Timely after-sales service;
3.what can you buy from us?hydraulic valve,hydraulic pum,amplifiers,motors,hydraulic...
4. why should you buy from us not from other suppliers?
We mainly sell PARKER, REXROTH, ATOS, VICKERS, HAWE, AVENTICS and other brand products, including various valves, pumps, motors and amplifiers in the industrial field.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Cash;
Language Spoken:English,Spanish,German, Chinese
Похожие товары
Сервоклапан серии D634 D661 D662 D663 D634-319C/R40KO2M0NSP2MOOG сервопривод гидравлический регулирующий клапан
352 666,88 ₽
D633-357B гидравлический клапан D662 D661 D634 D635 D633 D664 серии R16KA1M0NSM2 электро-гидравлический сервоклапан управления потоком
138 862,59 ₽ - 140 405,51 ₽
Rexroth пропорциональный клапан соленоида с болтом Gh263-035

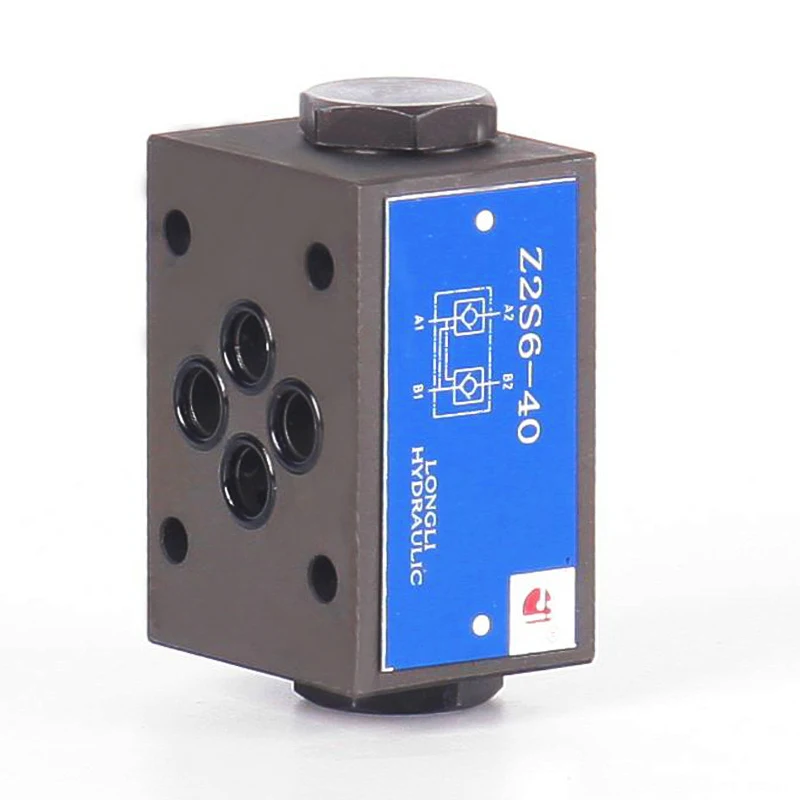

Z2S6 гидравлический Rexroth высокого давления пилотным обратный реле вилочный погрузчик клапан управления

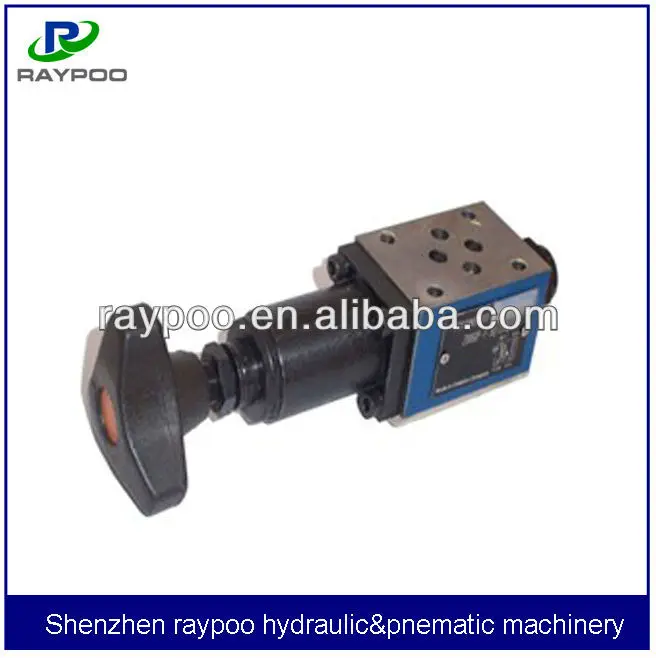

zdr6 модульная редукционный клапан
