fiberglass sectional SMC FRP water tank storage container

fiberglass sectional SMC FRP water tank storage container

Категория: >>>
Поставщик: Dezhou ATE Composites Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

sectional SMC GRP sectional water tank is sheet molding compound glass fiber reinforced plastic sectional water tank. It is also called FRP water tank (fiberglass reinforced plastic water tank). It is suitable for drinking water, living water, fire water and Industrial water storage facilities, etc.

Description:	SMC FRP (GRP) sectional water tank
HS Code:	3925100000
Standard:	JCT658-2007
	EN13280-2001
	ISO 8605-2001
Panel Specification:	1000x1000mm
	1000x500mm
	500x500mm
	1500x1000mm
	1500x500mm
thickness of panel:	4mm to 22mm
Material of panel:	polyester resin system specified in BS EN13121-1-2003
Material of panel:	glass fiber reinforcement is tpye "E" glass specified in ISO 2078
Production engineering:	SMC (sheet moulding compound) ISO 8605-2001
Bolts and nuts:	GBT5783-2000 , ISO4017-1999
capacity:	0.125m³--2000m³
installation:	bolt connection
Accesseries:	bracing system, vent, jointing sealant, manhole, ladder, inlet and outlet, overflow, U steel base, etc.

watertank03

Advantages of SMC GRP water tank: light weight, no corrosion, no leakage, good water quality, wide application range, long service life, good thermal insulation performance, beautiful appearance, convenient installation, convenient cleaning and maintenance, and strong adaptability, etc.

watertank05

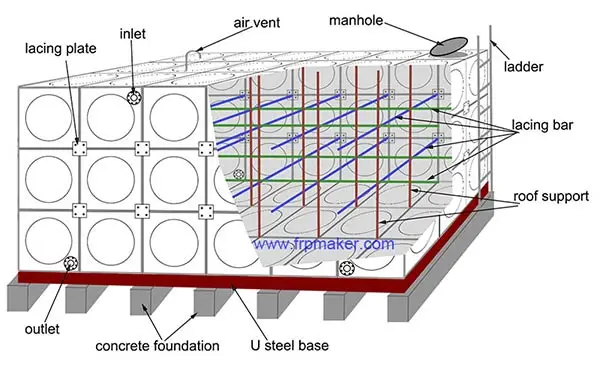

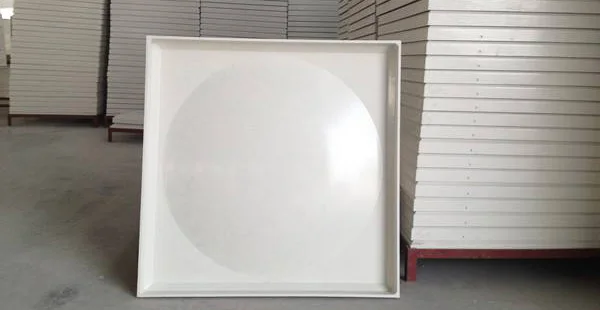

GRP SMC sectional water tank is assembled by SMC tank panel, sealing materials, metal structure and pipe system. The size of SMC water tank panel as follows:
1000x1000mm,
1000x500mm,
500x500mm,
1500x1000mm,
1500x500mm
the thinckness of the panel as follows:
4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, etc.
The water tank can be assembled with the size 0.125m³~2,000m³, depend on your requirement
