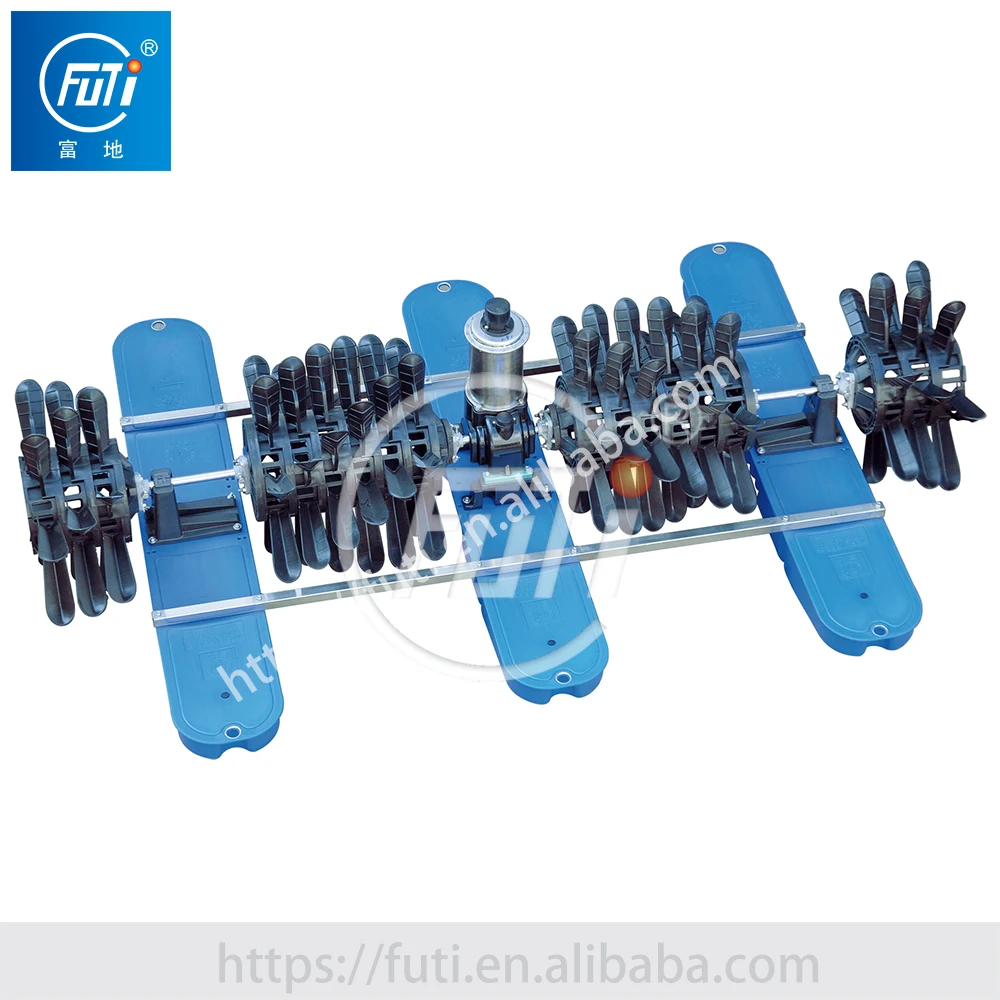

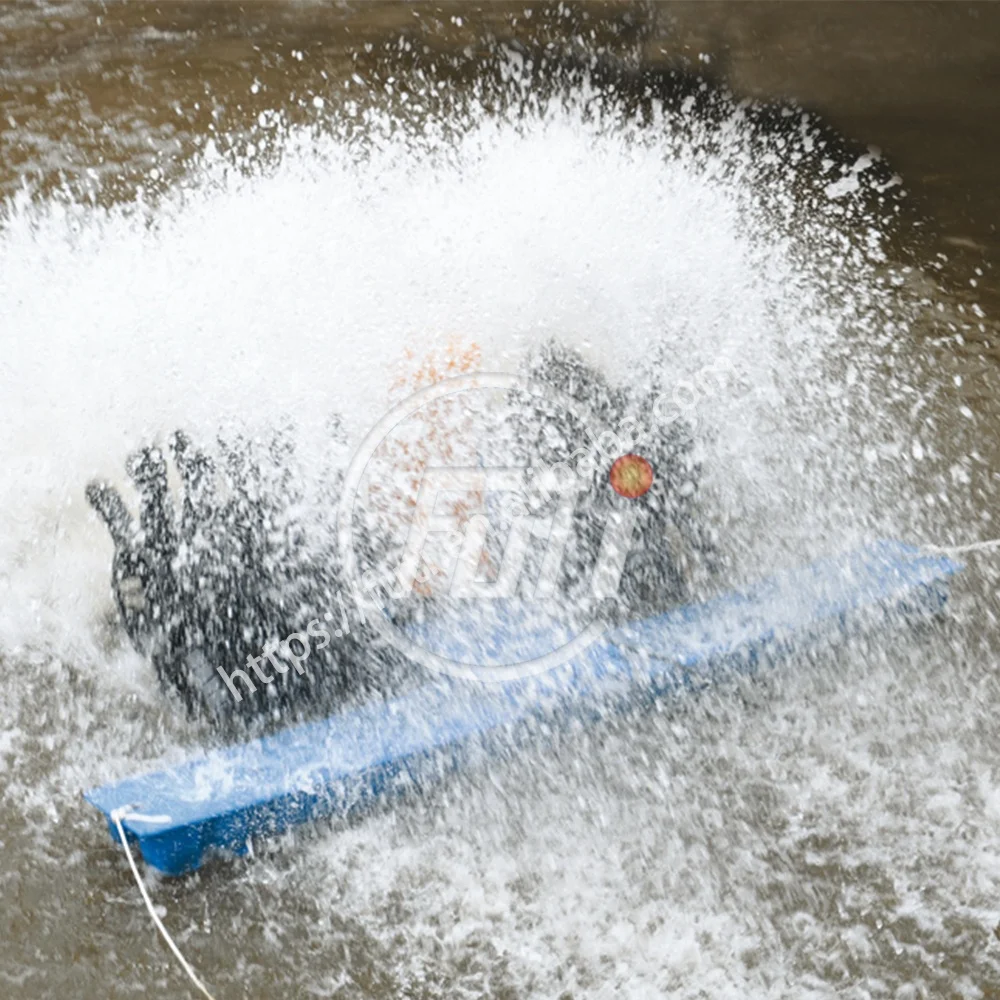

FUTI HIGH OXYGEN 3HP surface aerator

Категория: Aquaculture Machine Aerators >>>
Поставщик: Zhejiang Fordy Machinery Co. Ltd.

Цена:$355.00*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Overview

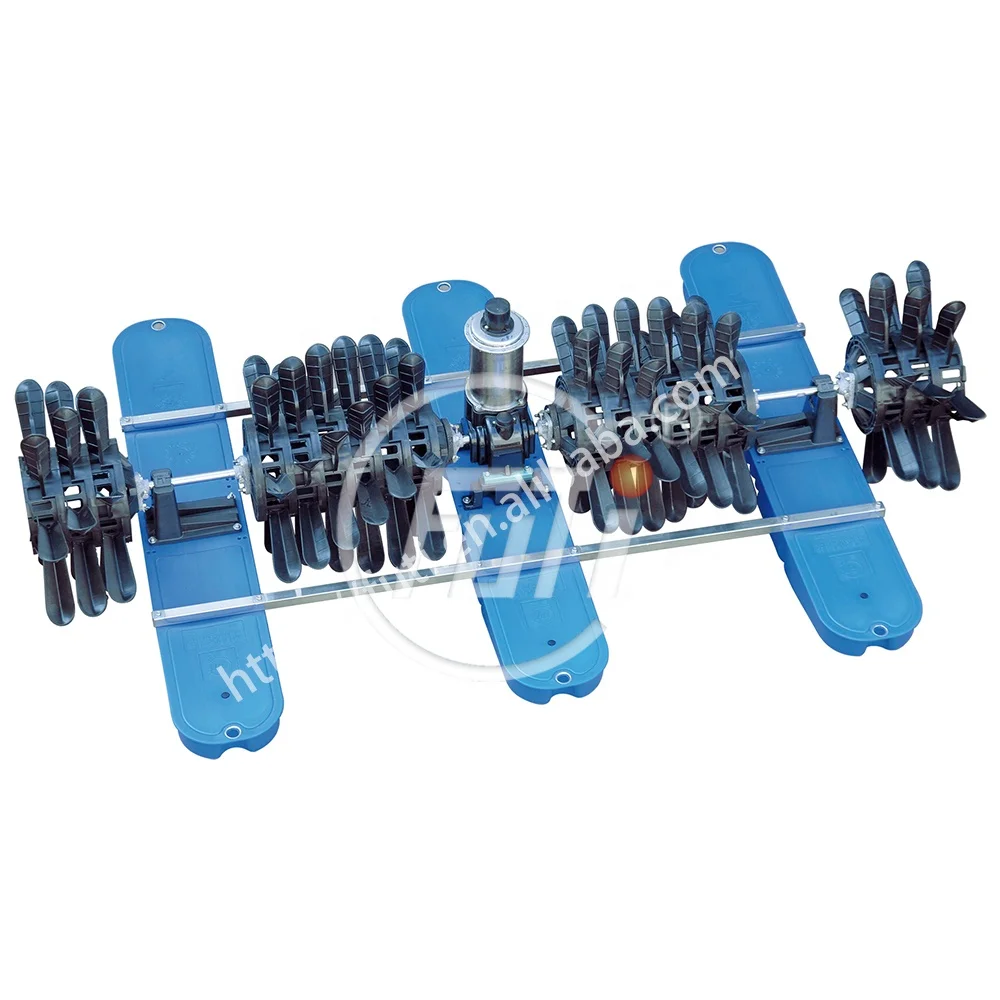

HIGH EFFICIENCY PADDLEWHEEL AERATOR GSC-2.2

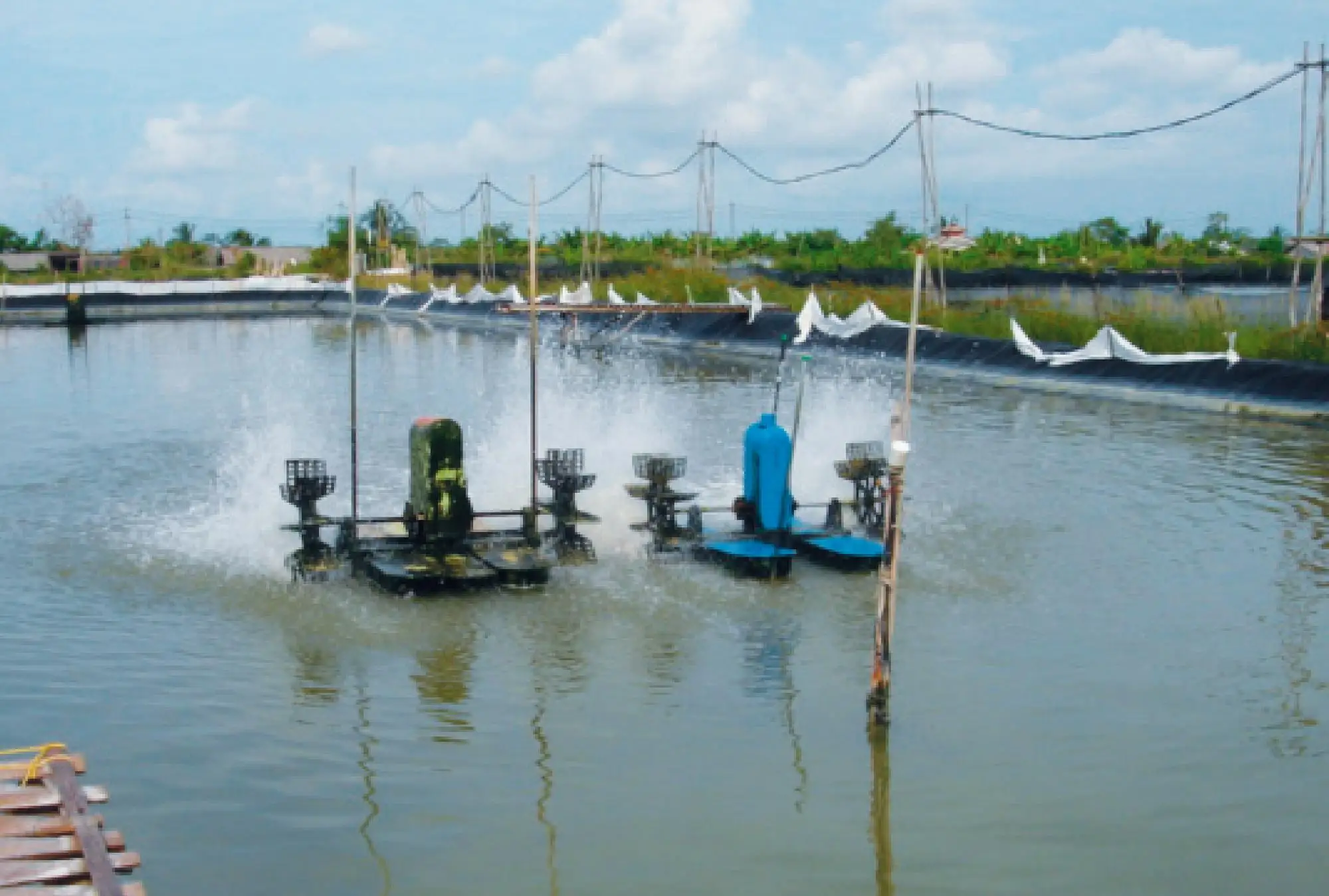

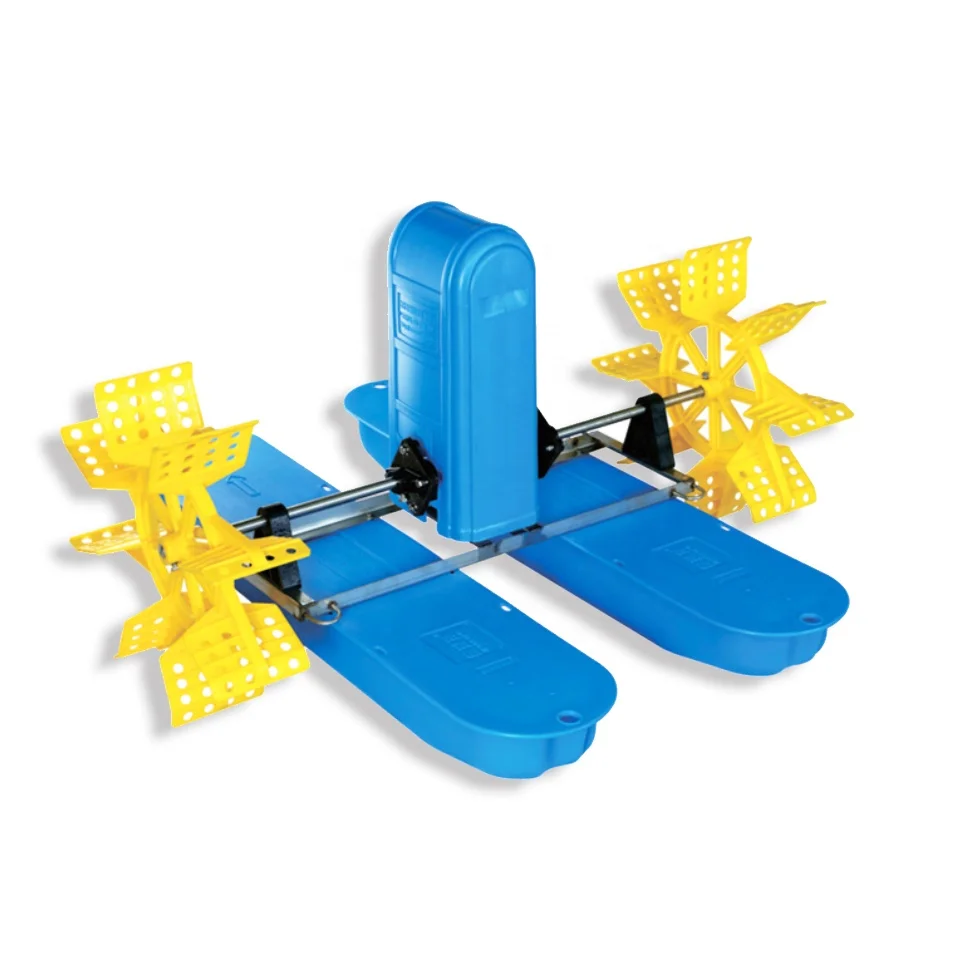

Paddlewheel aerator is most widely used aerator in the world, It is composed of five parts: motor, reducer, float,frame and
impellers. when it works, impellers' rotation is driven by the motor after the reducer decreases the speed. The impellers flap the water and splash, which pressures the air into the water, to produce strong force, on one hand if forces the surface water to the deep pond, on the other hand, pushes the water backward. When the impellers leave the water, lift the carried water up into the air, causing a strong splash, dissolving oxygen in the air and then falls back into the pond, so paddle wheel aerator can benefit shrimp living environment and meanwhile, discharge the pond residues, It almost becomes the standard equipment for shrimp ponds

FEATURES AT A GLANCE

STAINLESS STEEL 316 MOTOR HOUSING

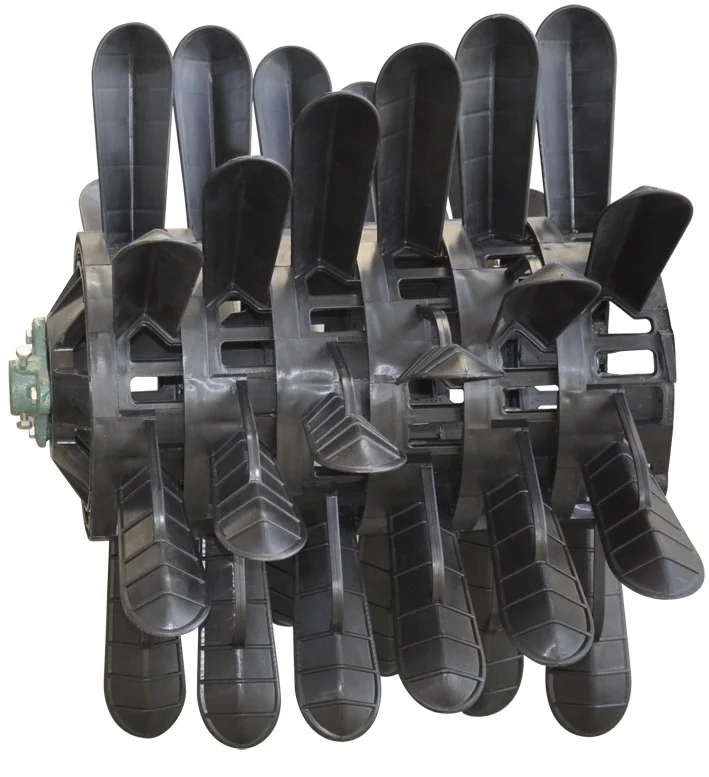

9-IN-1 STACKABLE IMPELLER
SAFETY AND SS 304 FRAME
SIMPLE CONTROL AND INSTALLATION
EASY MAINTENANCE
HIGH EFFICIENCY
MORE OXYGEN

6-IN-1 IMPELLER

3-IN-1 IMPELLER

STAINLESS STEEL MOTOR

PRODUCT SPECIFICATIONS

No	Item	Data	Details
1	Power	2.2 KW
2	motor	SS 316 housing	3HP/2.2KW 3 phase, voltage can be made according to your requiry,100% new copper,
3	impeller	nylon	2 pcs 9-IN-1 impeller confirmation of toughness against corrosion & UV resistance.100% new raw materials
4	float	HDPE	HDPE float made of 100% new HDPE material, resist impact, acid-alkalinity & sun exposure No influence of water 1600285178MM
5	shaft	ss solid
6	coupling	three holes

after introducing and absorbing technology, China mainland first arcuate bevel gear paddlewheel aerator was invented by ZHEJIANG FORDY MACHINERY CO., LTD in 2000. Futi paddle wheel aerators abandoned the original worm gear and worm driven mode, which increased power efficiency from 1.5kw/kw.h to 1.60kg/kw.h. And by years promotion, almost all reducers adopt this arcuate bevel
gear driven mode in this field. This Futi technology has become the wealth of the whole society. With the improvement of the field standard, the original standard for paddle wheel aerators no longer meets the current evaluation requirements. so ZHEJIANG FORDY MACHINERY CO., LTD revised current paddle wheel aerator standard with China Fisheries Machinery Equipment Quality
Supervision and Inspection Center. And it's going to be enacted and carried out soon

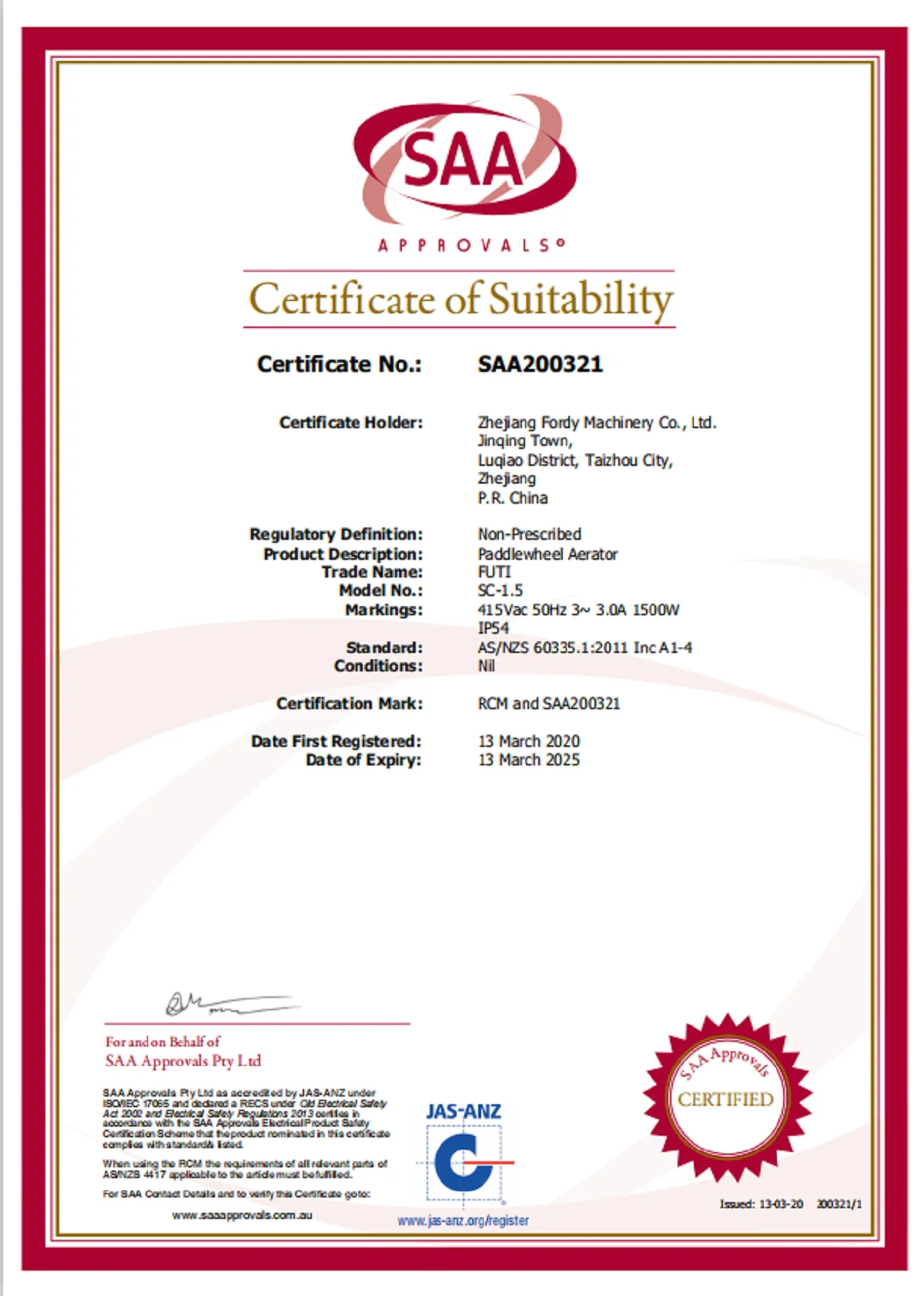

Futi persists for perfection for products, has been developing and improving products for decades, got over 20 patents only for paddle wheel aerator series. Futi paddle wheel aerator has passed CE certification and SAA certification. Futi motors of paddlewheel aerator meet the IE3 requirements stipulated by the European motor standard IEC 60034-30-1-2014. Futi paddle wheel aerator has reached highest power efficiency record 1.926 kg/kw.h in fishery industrial field. which is 54% higher than standard
1.25kg/kw.h and save 50% energy. This record pushes technical indicator to a new height

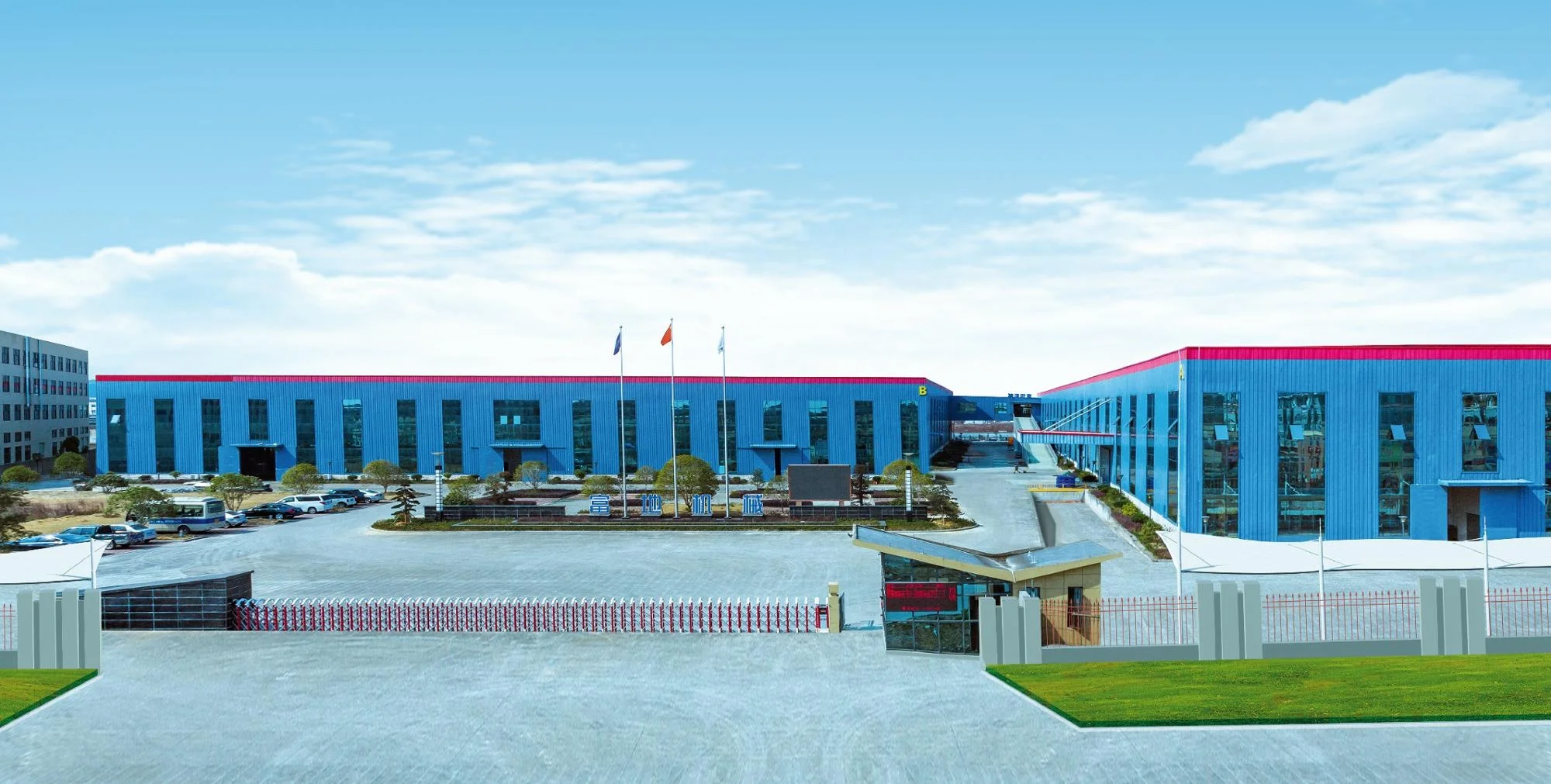

Company Profile

address: XIXIA NEW VILLAGE, LUNAN STREET,LUQIAO DISTRICT, TAIZHOU CITY,ZHEJIANG PROVINCE 318050

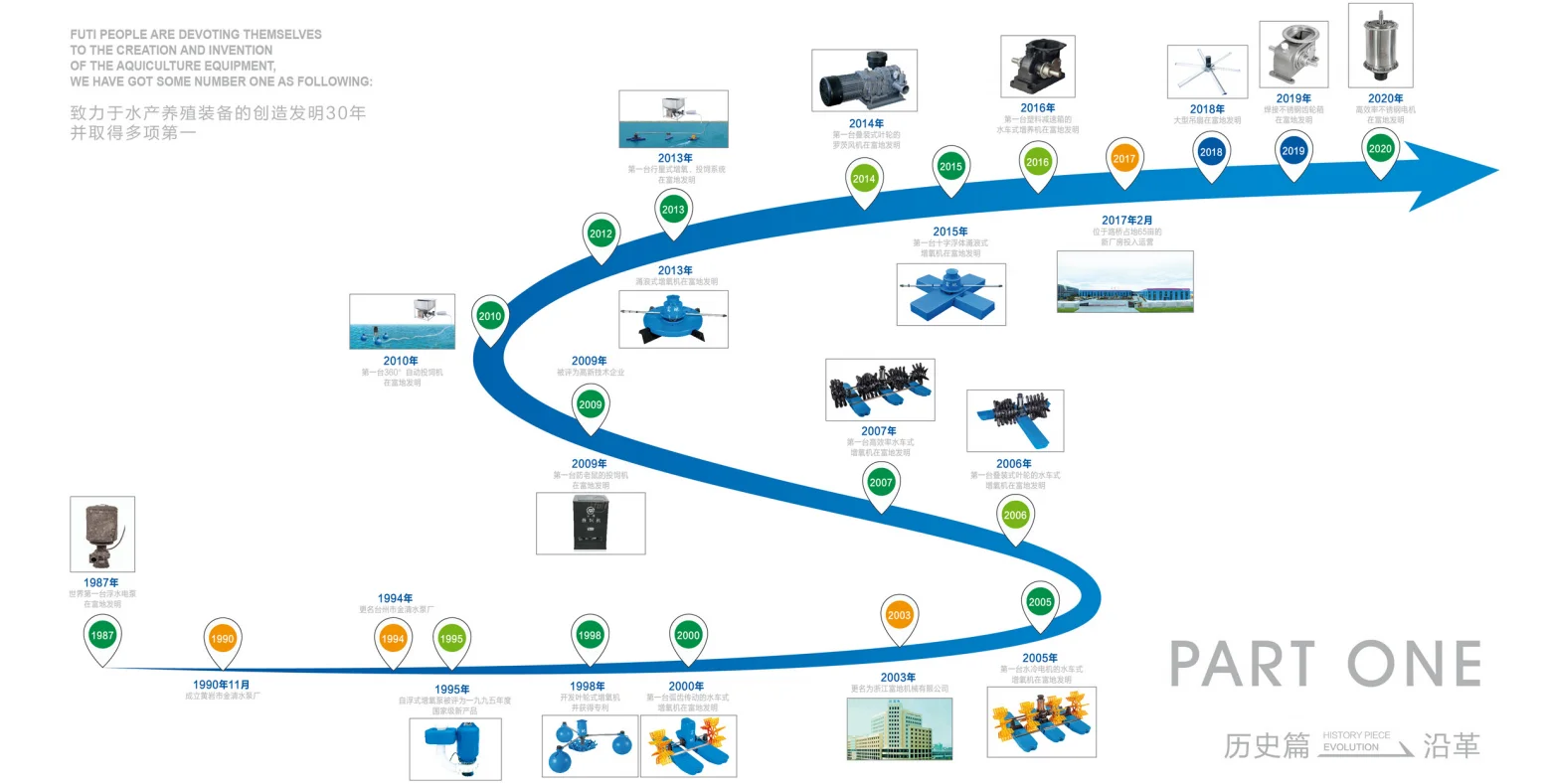

History: Built in 1990, 32 years experience of manufacturing the aerators, motors,pumps and spare parts

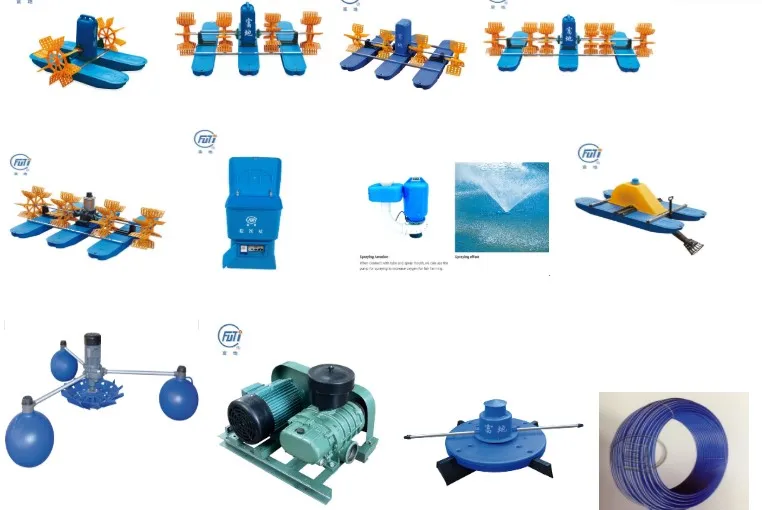

Products: FUTI brand motors, paddle wheel aerators, impeller aerator, air jet aerators, wave maker aerators, spraying
aerators,floating pumps, splash aerators, industrial fan, feeder machine, roots blower, multi impeller aerators, aeration type aerators,surface aerators and all kinds of aerator spare parts and accessories

Main market: FUTI paddle wheel aerator export to all over the world, especially for India, Australia, Germany, Peru, Indonesia, Vietnam, Brunei, Malaysia,Philippine, Bangladesh, Thailand, Sri Lanka, Iraq, Egypt, Mexico, Brazil, Honduras,Colombia and Ecuador.

Manufacturing Technique
