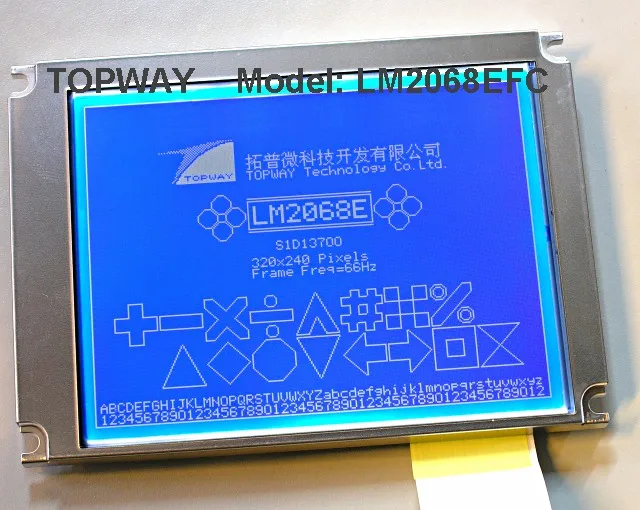

320x240 3 8 дюймовый графический ЖК дисплей COG Тип ЖК модуль (LM2068E)

Сохранить в закладки 10501035:


Цена:306,05 ₽ - 3 060,41 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

Product Description

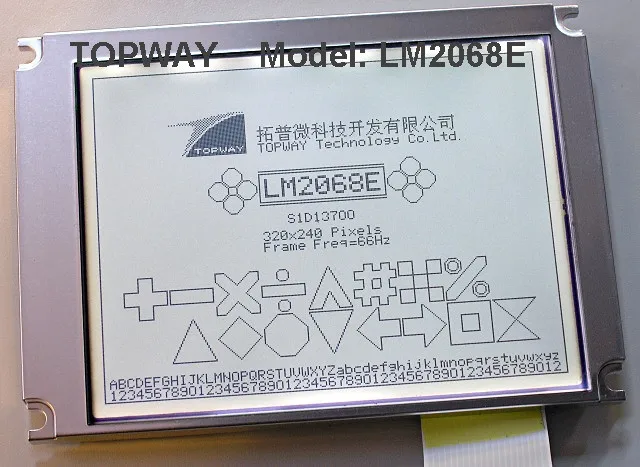

320x240 graphics lcd module  LM2068E

Main Parameters
Item 320x240 graphics LCD Module
Model nameLM2068
Pixel76800
Resolution320x240
BrightnessWhite BL
Outline Size99.5(W)x71.75(H)x10.4(D) mm
Viewing Area79.8(W)x60.6(H) mm
Active Area76.785(W)x57.585(H) mm
Dots320x240
Pitch0.24mm
Drive Power Supply Voltage3.3V/5V
Viewing Angle9.00 o'clock
Operation Temperature-20°C ~ +70°C
Storage Temperature-30°C~ +80°C
Display Mode

White background with Black words

Blue background with White words

FPC Lenght137mm
ICS1D13700
IC PackagingCOG

Main features of this new design as follows,

1. 3.8inch, smart size of 320*240dots Graphics LCM
2. FSTN Positive, High contrast;
3. High Efficient White LED backlight replace CCFL,
4. Long life time White LED backlight,Reduce the EMI ,reduce the noice,Save the system cost,
5. More stable and easy to use.
6. Reduce power consumption.
7. Single 3V/5V Power Supply ( no need DC-Dc invert).
8. Many Choices:
1) LM2068: no controller and no backlight.

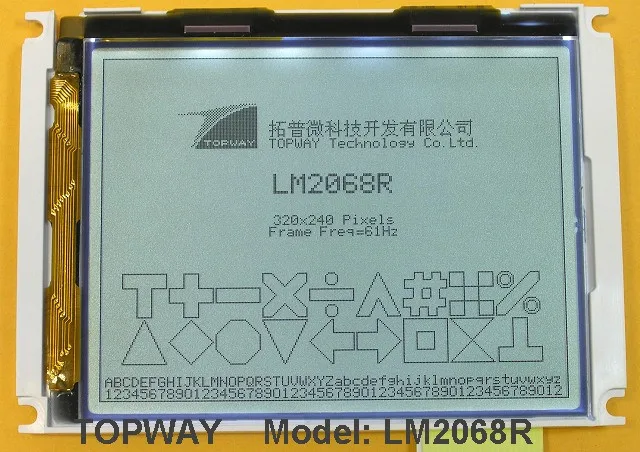

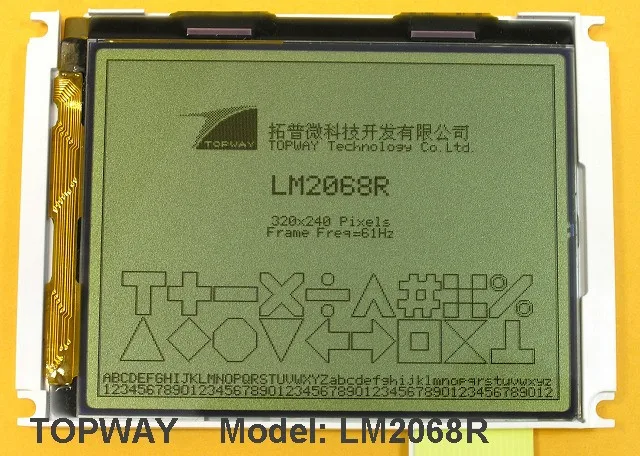

2) LM2068R: Built in RA8803 Controller(Chinese char ROM inside).





Company Information

Shenzhen TOPWAY Technology Co., Ltd

//www.topwaydisplay.com/

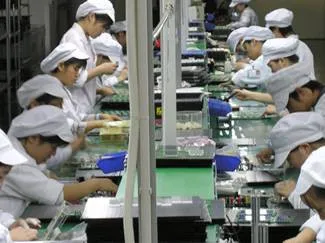

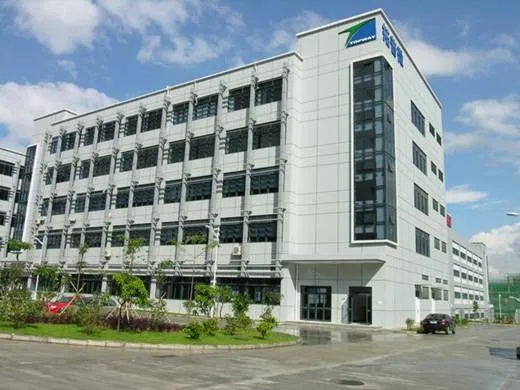

company.jpgchanxian5chanxian2

  • lFounded in Y1996 for LCD panel design
  • lStarted COB LCM production in Y1998
  • lStarted TAB LCM design and production in Y2000
  • lStarted oversea  business in Y2004
  • lGot ISO9001 certification in Y2008
  • lCertified as Hi-Tech Company by Shenzhen Government in Y2008
  • Become China Top10 LCD manufacturer start from Y2010
