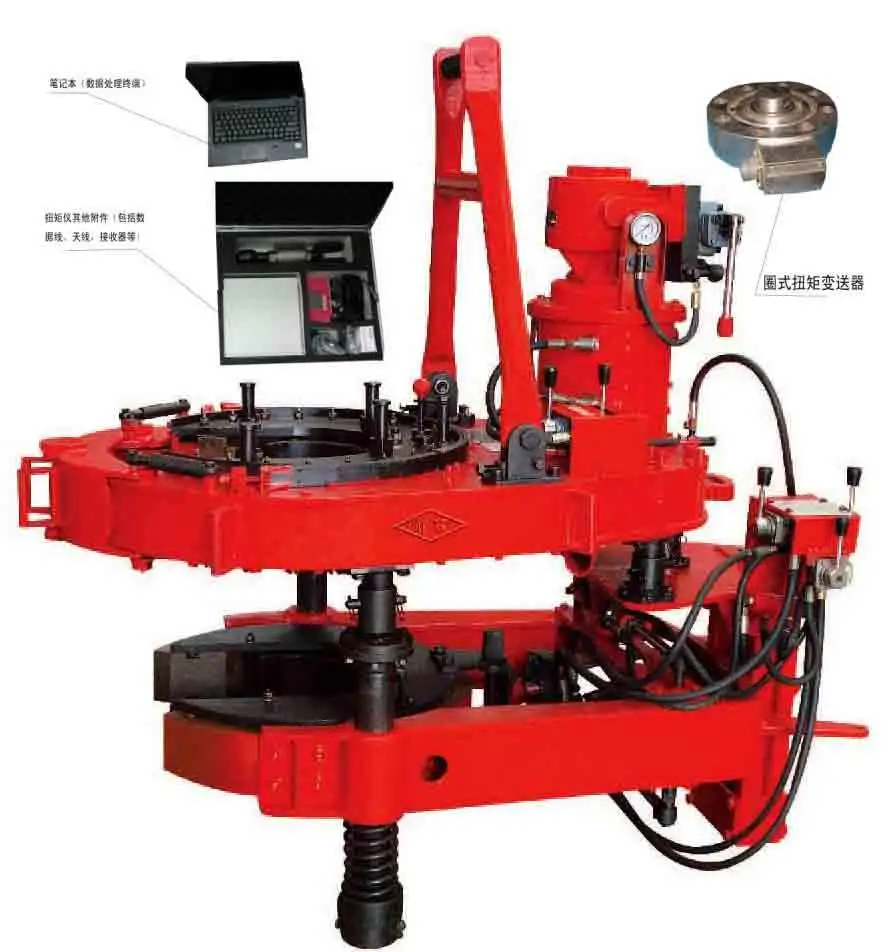

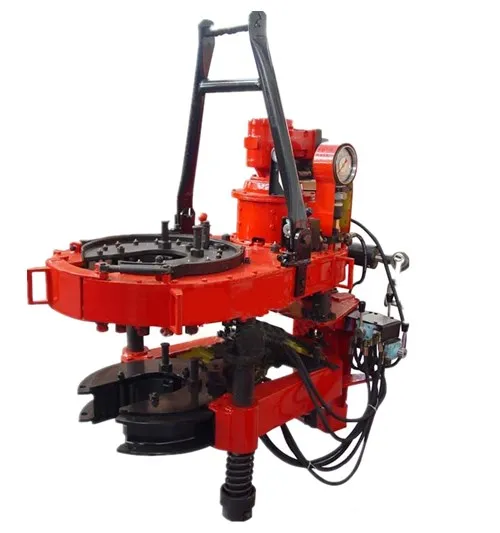

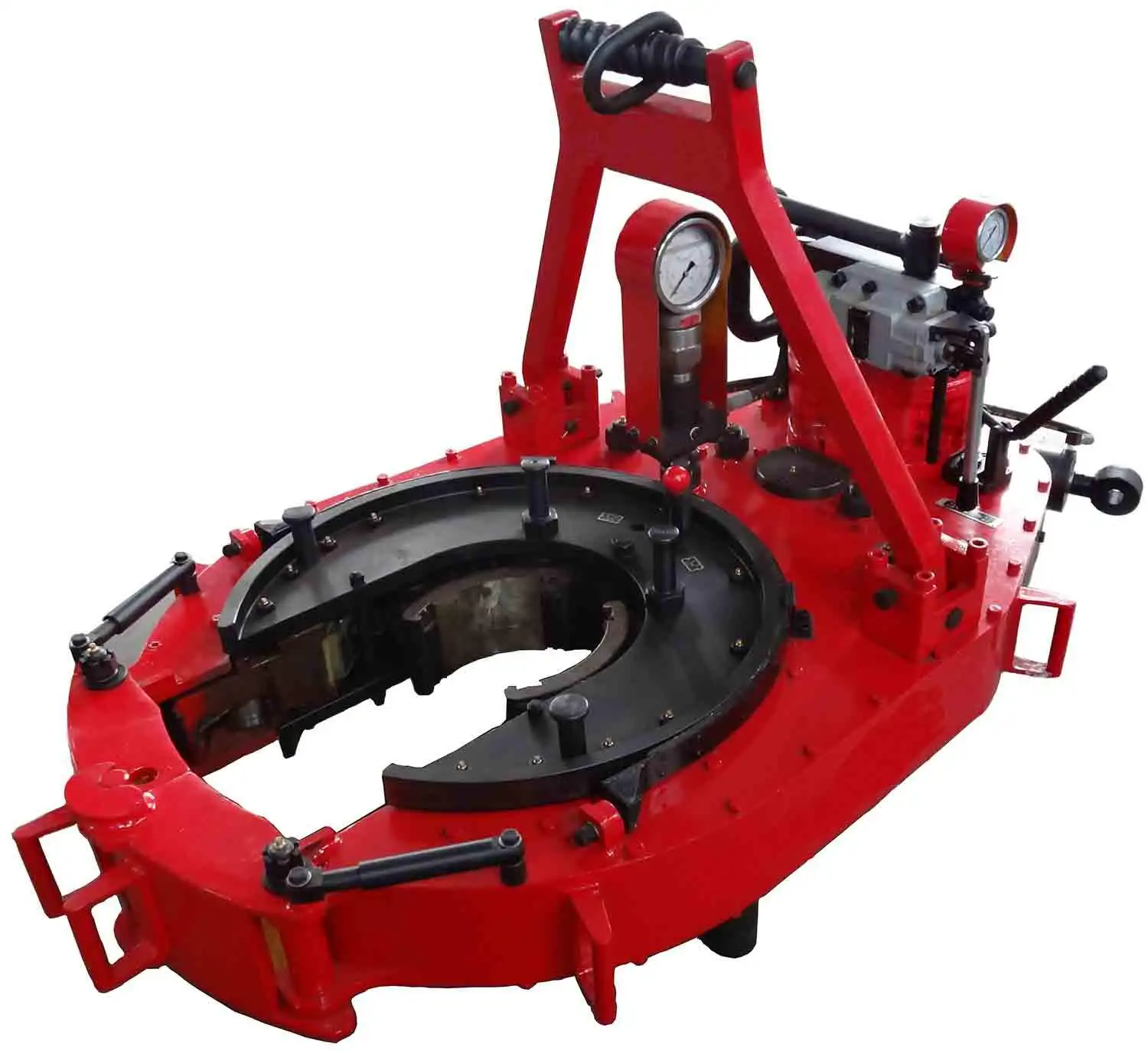

TQ340 35Y гидравлические щипцы для буровых установок
- Категория: >>>
- Поставщик: RUGAO YAOU IMPORT & EXPORT TRADE CO. LTD
Сохранить в закладки 1090164415:
Описание и отзывы
Характеристики
Products Description

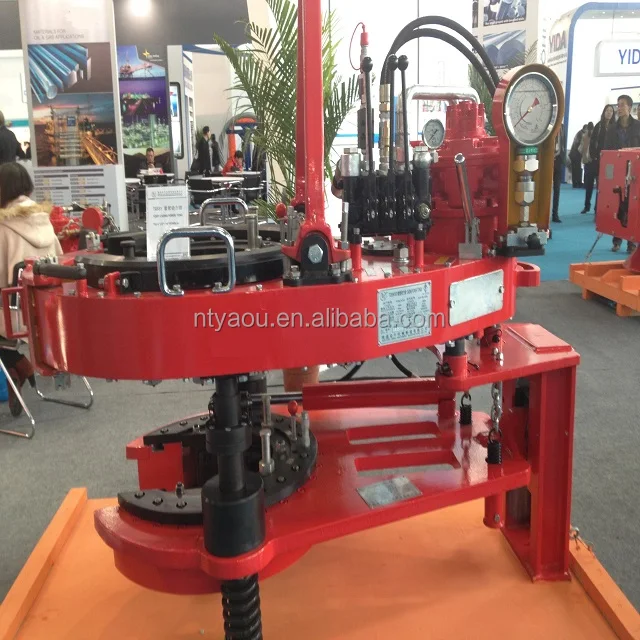

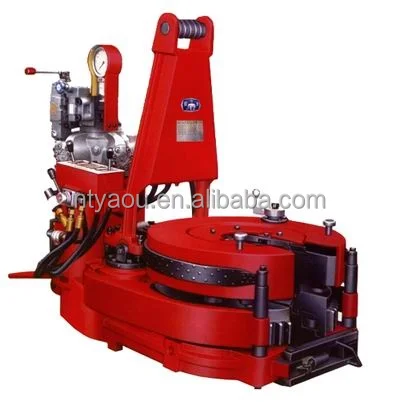

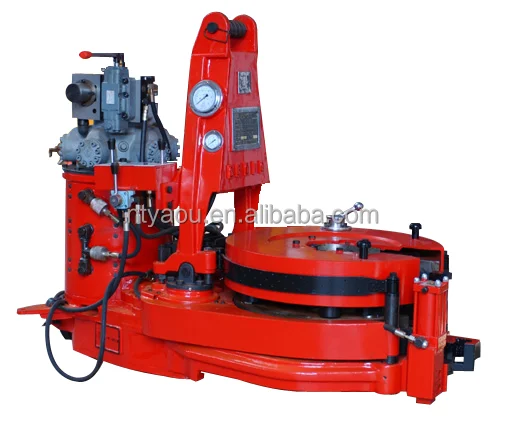

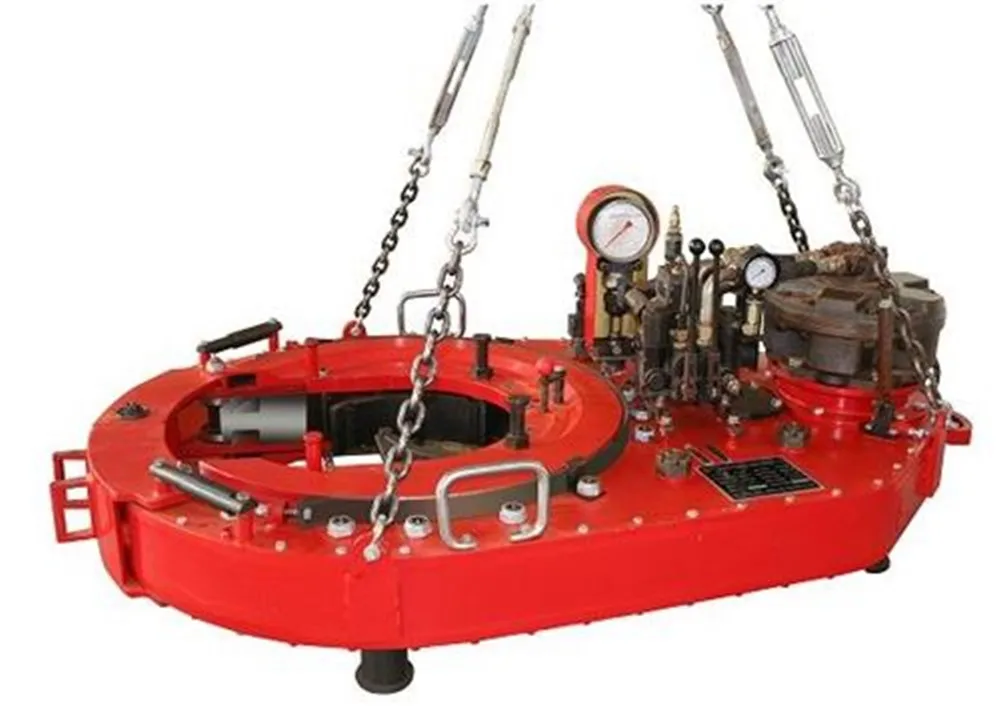

TQ340-35 CASING TONGS
TQ series of casing tongs are widely used for making-up or breaking-out of casings or pipes. The casing tong features
high-efficiency, safety, reliability, labor-saving, and can ensure connection quality. Tong head is designed as open and is fitted with two jaws which can ensure reliable gripping. Air tyre clutch is utilized as gearshifting mechanism, so it is possible to change gear under running. The series of casing tongs can be configured with torque device to perform computer monitoring and managing on pressure, torque and rounds. The casing tong has been granted with National Invention Patent. The casing tongs are designed and manufactured according to SY/T5074 and API Spec 7K “Specification for Drilling Equipment”
TQ series of casing tongs are widely used for making-up or breaking-out of casings or pipes. The casing tong features
high-efficiency, safety, reliability, labor-saving, and can ensure connection quality. Tong head is designed as open and is fitted with two jaws which can ensure reliable gripping. Air tyre clutch is utilized as gearshifting mechanism, so it is possible to change gear under running. The series of casing tongs can be configured with torque device to perform computer monitoring and managing on pressure, torque and rounds. The casing tong has been granted with National Invention Patent. The casing tongs are designed and manufactured according to SY/T5074 and API Spec 7K “Specification for Drilling Equipment”
Model | TQ178-16 | TQ340-35 | TQ356-55 | ||||
Size range | mm | 101.6~178 | 114.3~340 | 114.3~356 | |||
in | 4~7 | 4 | 4 | ||||
~13 | ~14 | ||||||
Max.pressure | MPa | 18 | 18 | 16.6 | |||
psi | 2610 | 2610 | 2400 | ||||
Working flow | L/min | 110~160 | 110~160 | 110~160 | |||
gpm | 29.3~42.7 | 29.3~42.7 | 29.3~42.7 | ||||
Air pressure | MPa | 0.5-0.9 | 0.5-0.9 | 0.5-0.9 | |||
psi | 72-130 | 72-130 | 72-130 | ||||
Max. torque | Hi. gear | kN.m | 2.4~3 | 2.5~3 | 3.4~4.5 | ||
ft.lbf | 1770~2210 | 1844~2210 | 2506~3319 | ||||
Mid.gear | kN.m | — | 6.0~7.5 | — | |||
ft.lbf | 4425~5530 | ||||||
Low gear | kN.m | 14.5~17.5 | 32~40 | 45~57.4 | |||
ft.lbf | 10694~12900 | 23600~29500 | 33190~42400 | ||||
Speed | High gear | rpm | 54~79 | 60~86 | 52~76 | ||
Mid. Gear | rpm | — | 21~30 | — | |||
Low gear | rpm | 9~13.1 | 3.6~5.3 | 3.9~5.6 | |||
Size | mm | 1450×760×740 | 1580×900×880 | 1590×950×900 | |||
in | 57×30×29.1 | 62.2×35.4×34.6 | 62.6×37.4×35.4 | ||||
Weight | kg | 580 | 780 | 850 | |||
lb | 1280 | 1720 | 1870 | ||||
Marketing Campaign

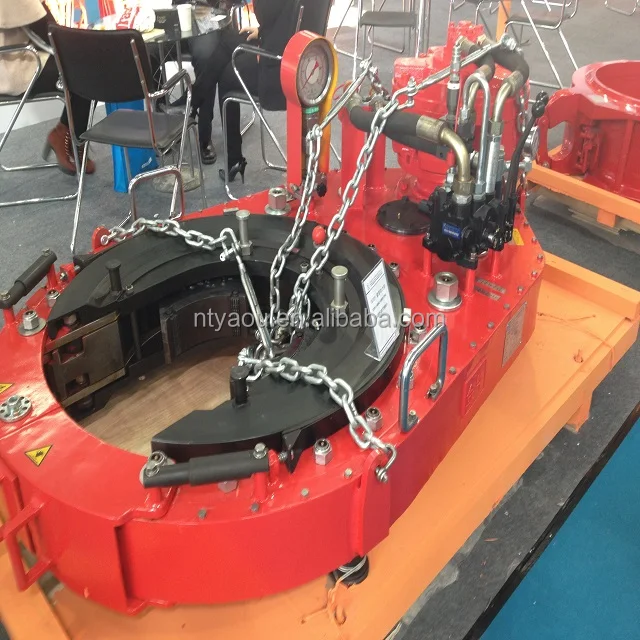

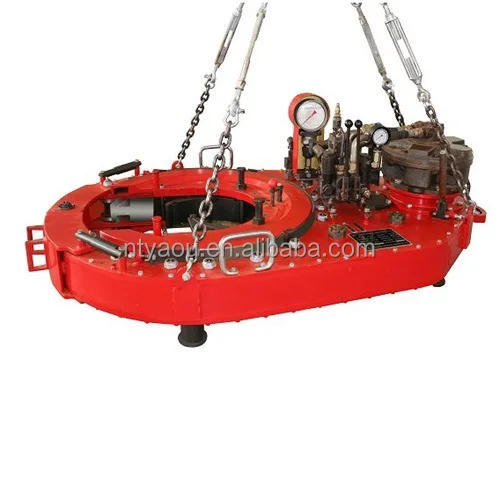

Details Images

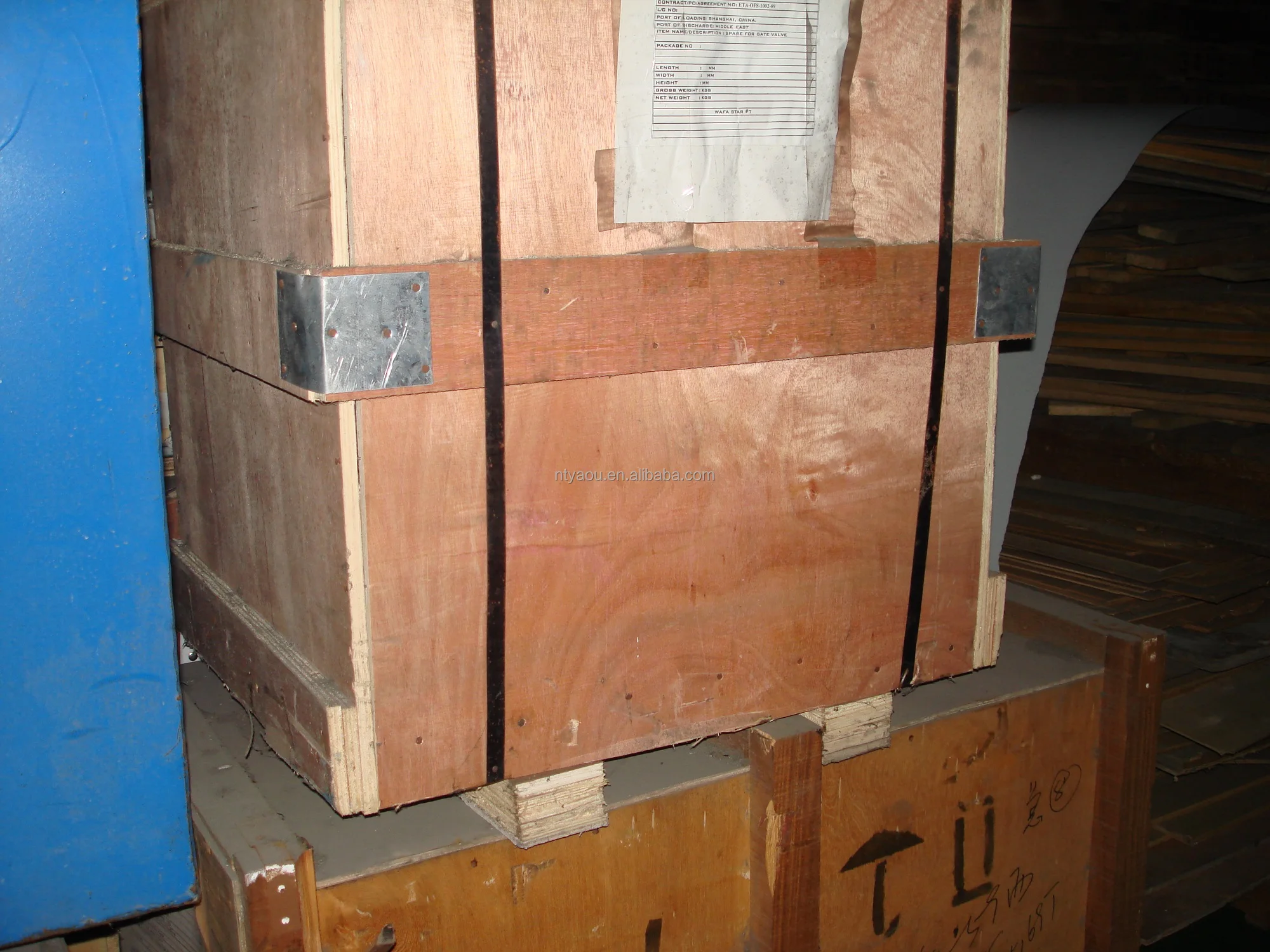

Product packaging
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Company Profile
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Certifications
Recommend Products
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
