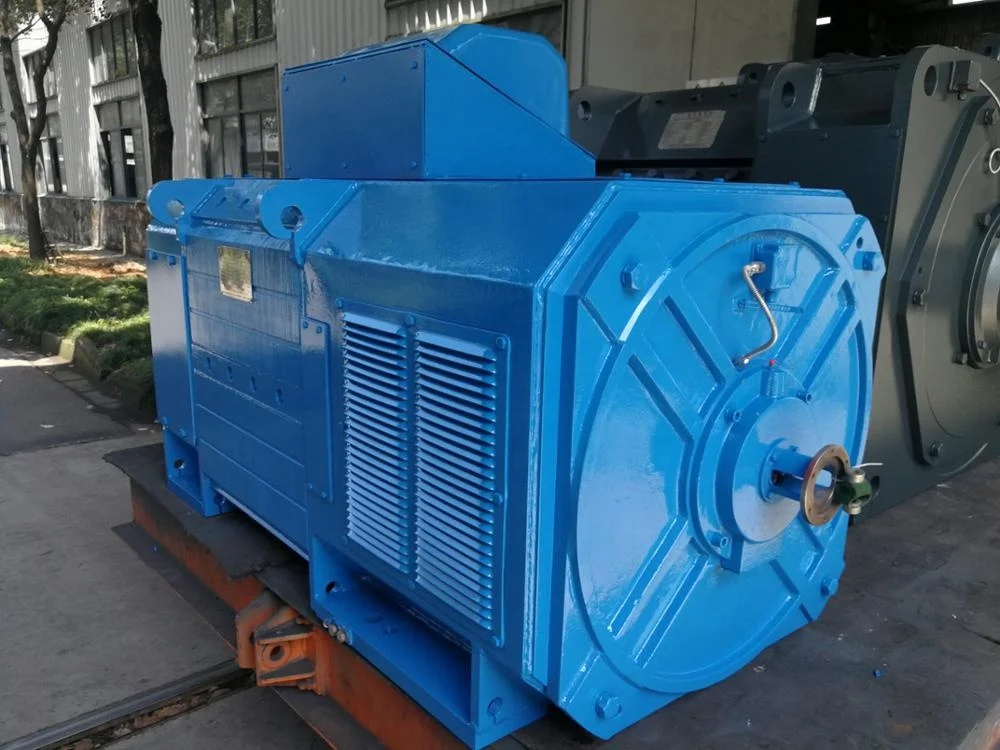

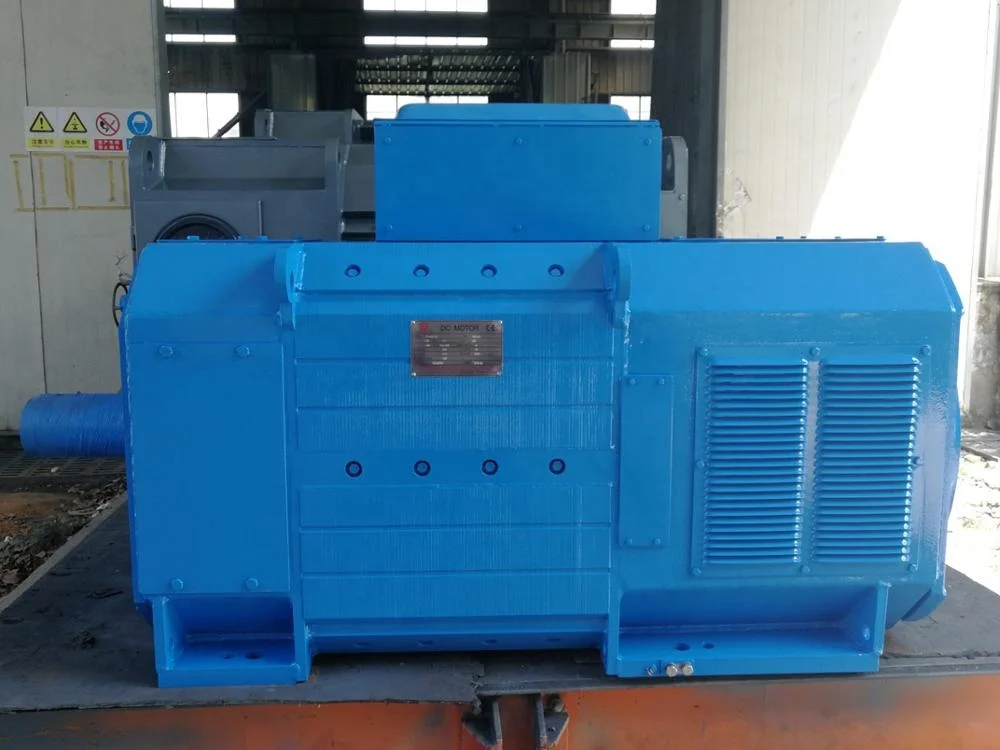

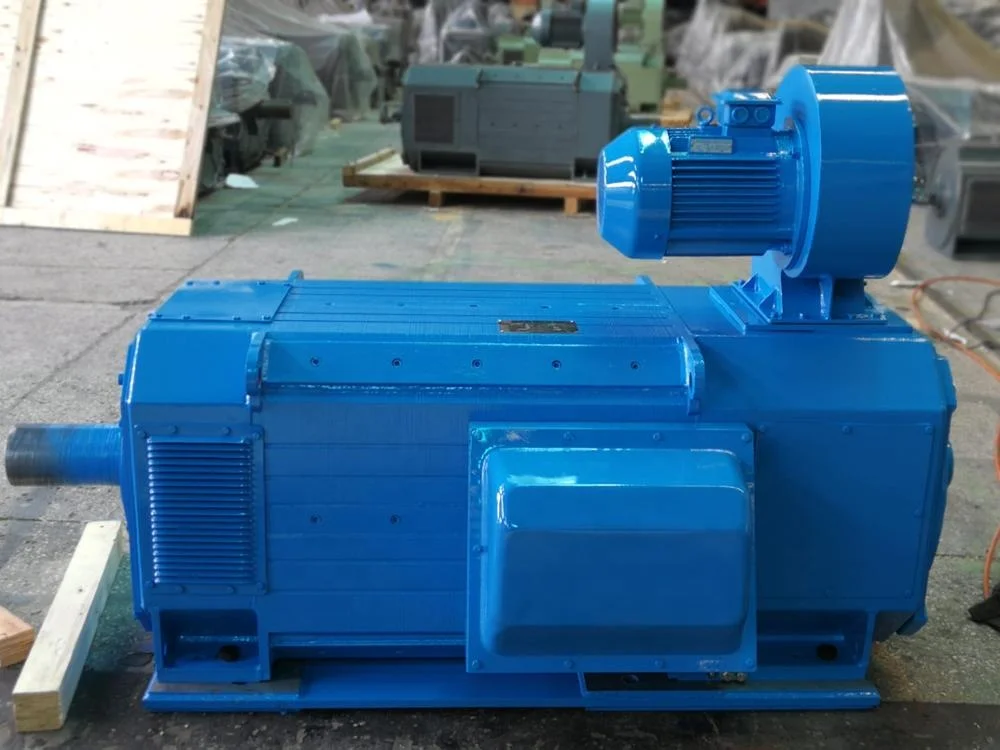

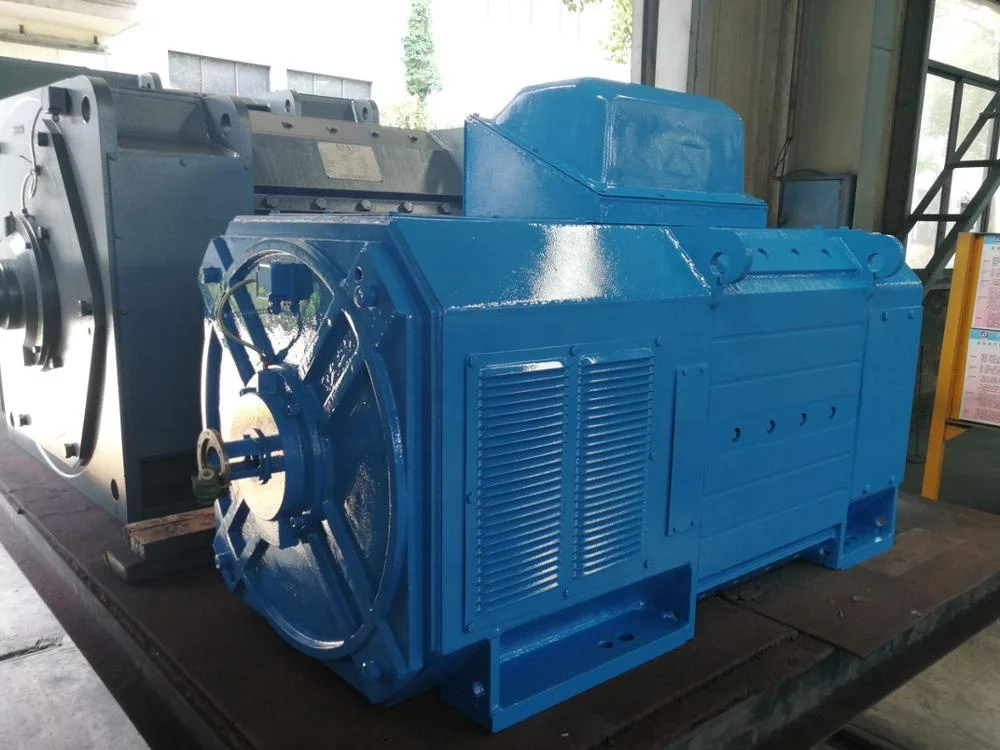

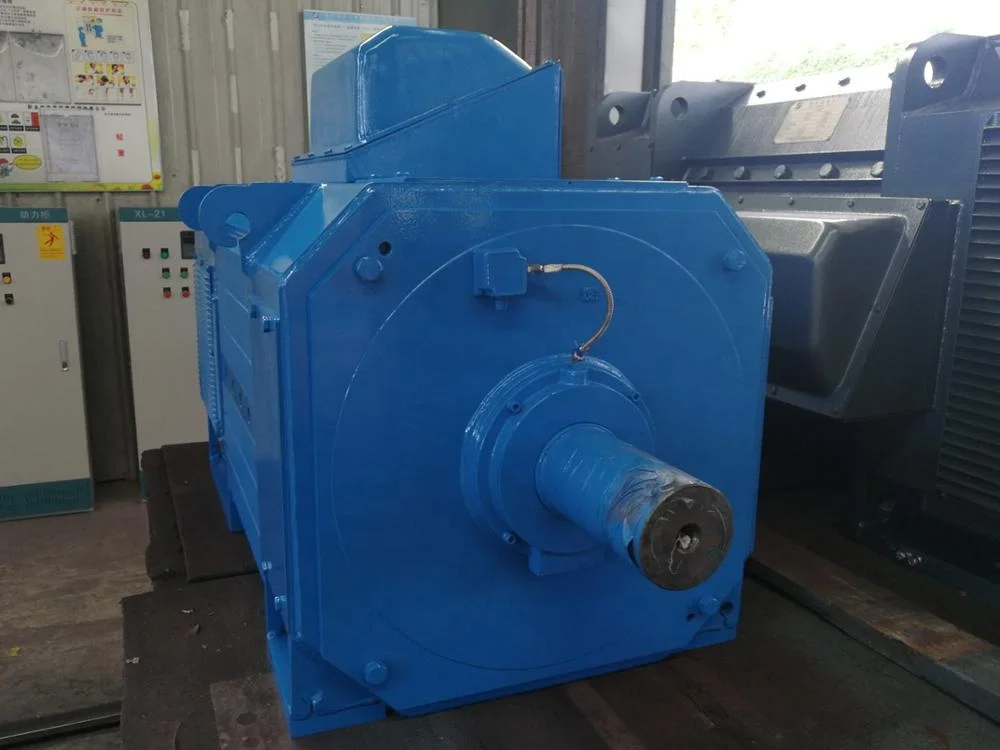

Z Series Large Size Rolling Mill DC Motor

· Features and application

The insulation class of the motor is F, using of reliable insulation structure and nonmenstruum vacuum pressure impregnated, guaranteeing the stable performance of insulation and good heat dissipation.

 · Performance

1.Data listed in the technical data sheet should be employed under the following conditions:
    a) Altitude above sea level maximal1,000m;
    b) Cooling air temperature maximal 40C; Cooling water temperature   maximal 32C;
    c) The motor can be installed under foul situation, but the right cooling   method of cooling method of cooling and defend class must be chosen. If the situation is special, need humid tropic, please negotiate.
    d) The motor is suitable for 3-phase bridge style smoothing reactor, also can adopt power supply of DC generator.
    e) The motor accord with GB755 “The ration and performance of the   rotating electrical machinery”, IEC60034-1 “The ration and performance of the rotating electrical machinery” and JB/T9577 “Technical requirements of Z series middle motor electromotor”;
2. The standard rated voltage of the electromotor are 440V, 550V, 660V, 750V etc. Voltage of other classes can also be derived according specific situation, but must be negotiated when ordering.
3. The basic excitation style is separately excited, the excited voltage is 220V, Voltage of other classes can also be derived according specific situation, but must be negotiated when ordering.
4. Short time overload capacity of motor.
    Motor can be divided into two kinds according to the use
    First kind (A): ordinary industrial DC motor; Second kind (B): metal rolling mill DC motor.

a) First kind (A) motor can endure the overload (1min) according to table 3
table 3

 b) First kind (B) motor can endure the overload (1min) according to table 4
table 4
