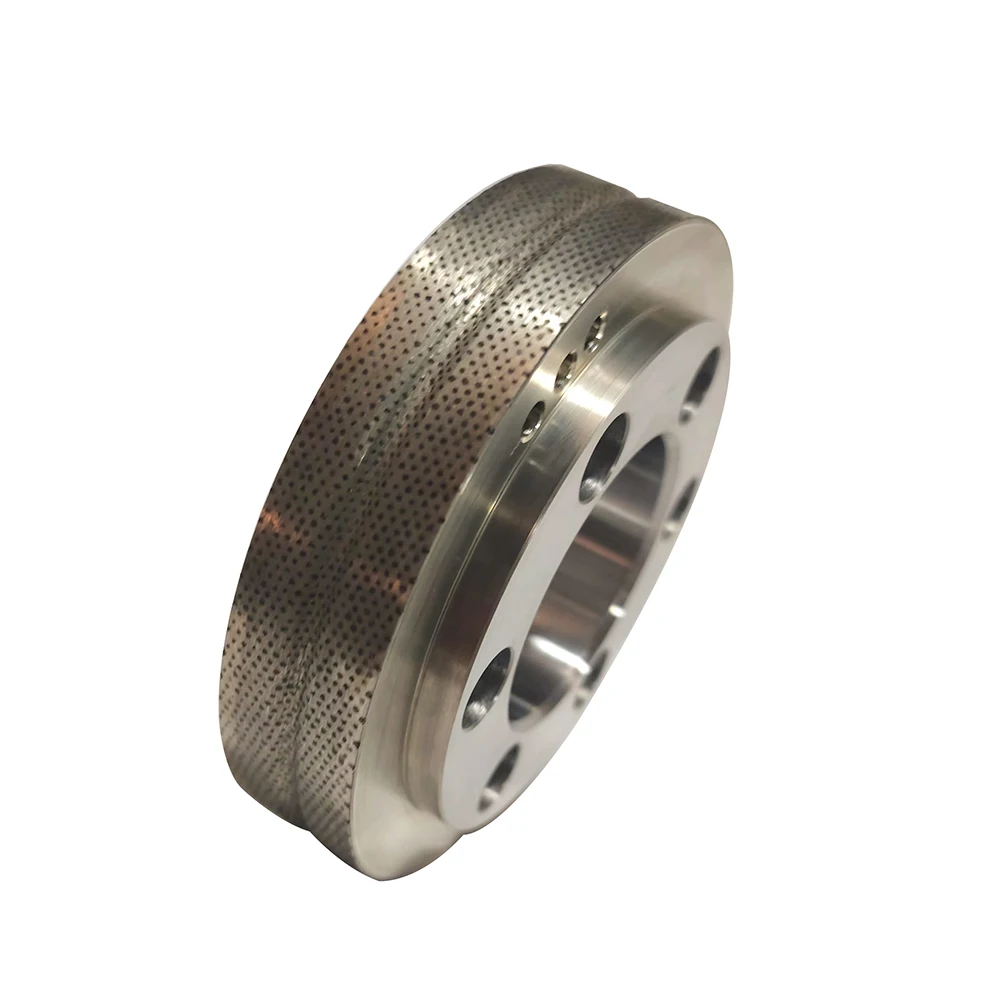

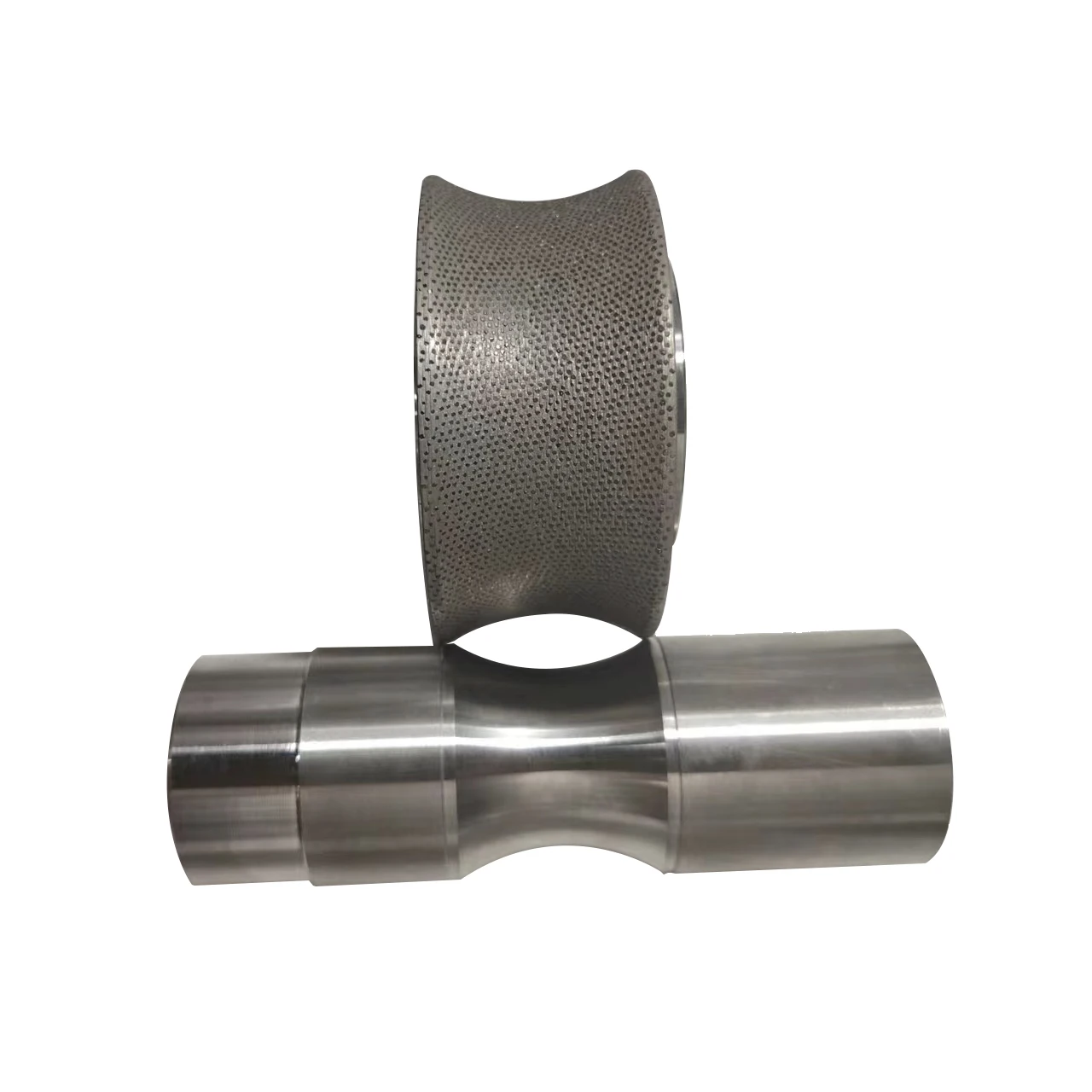

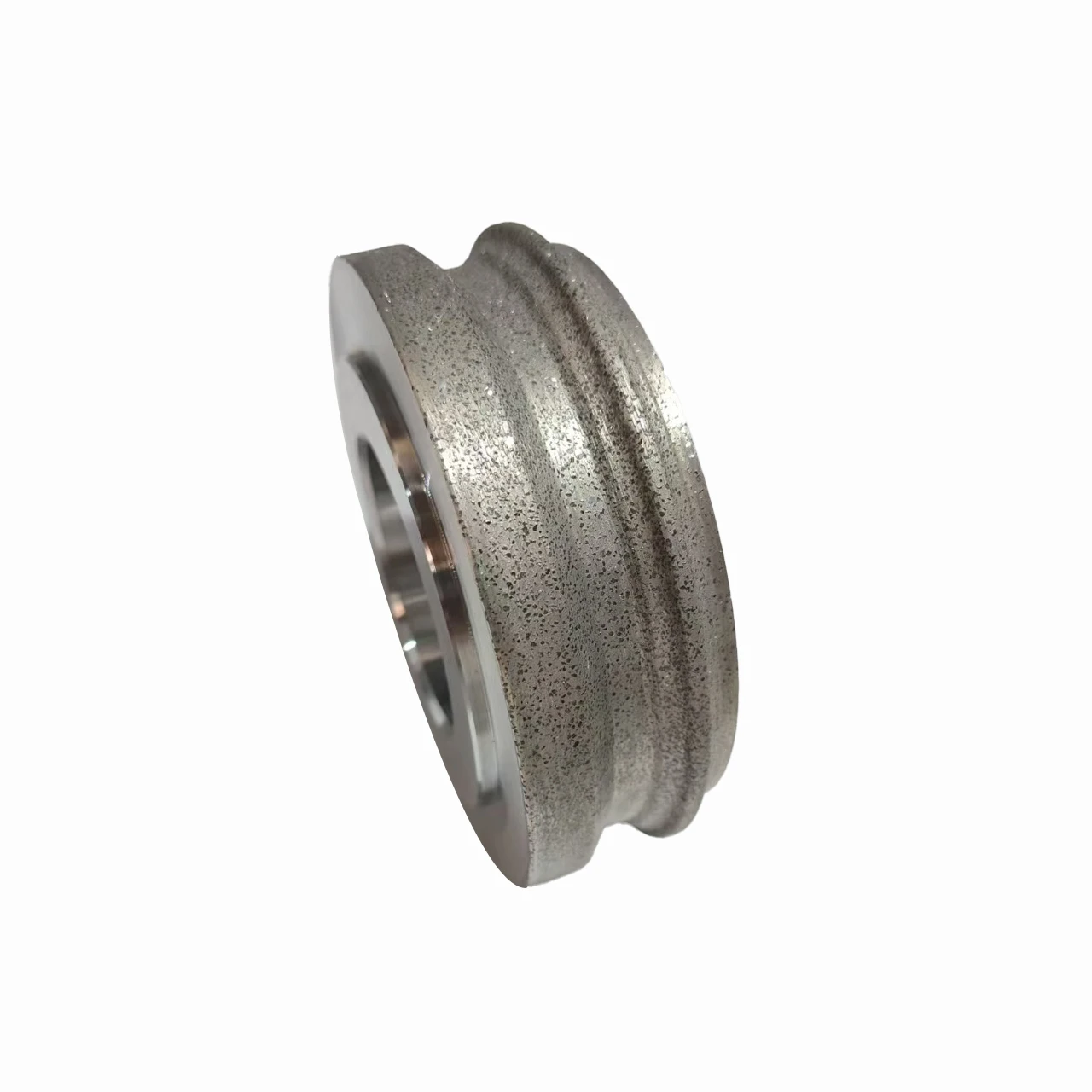

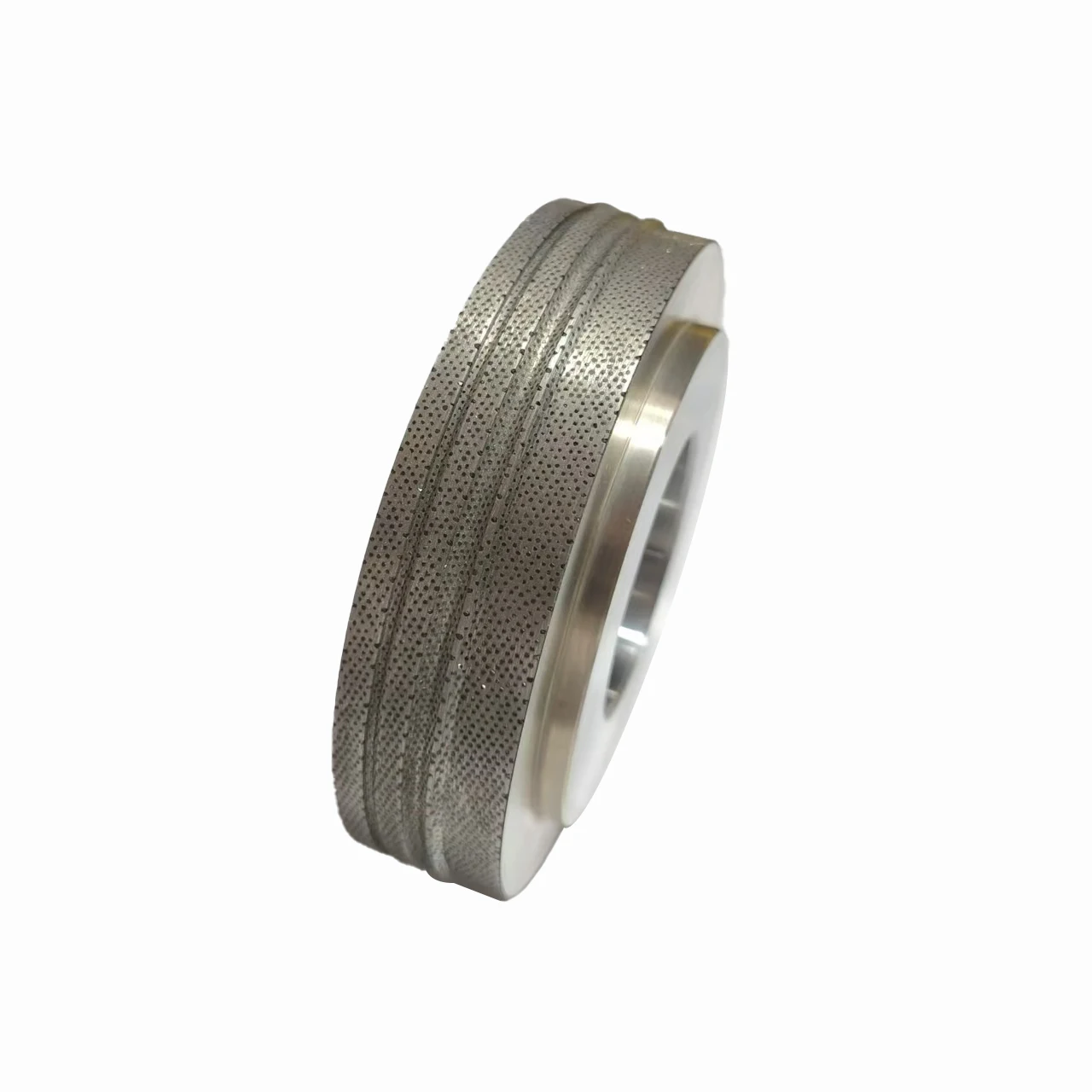

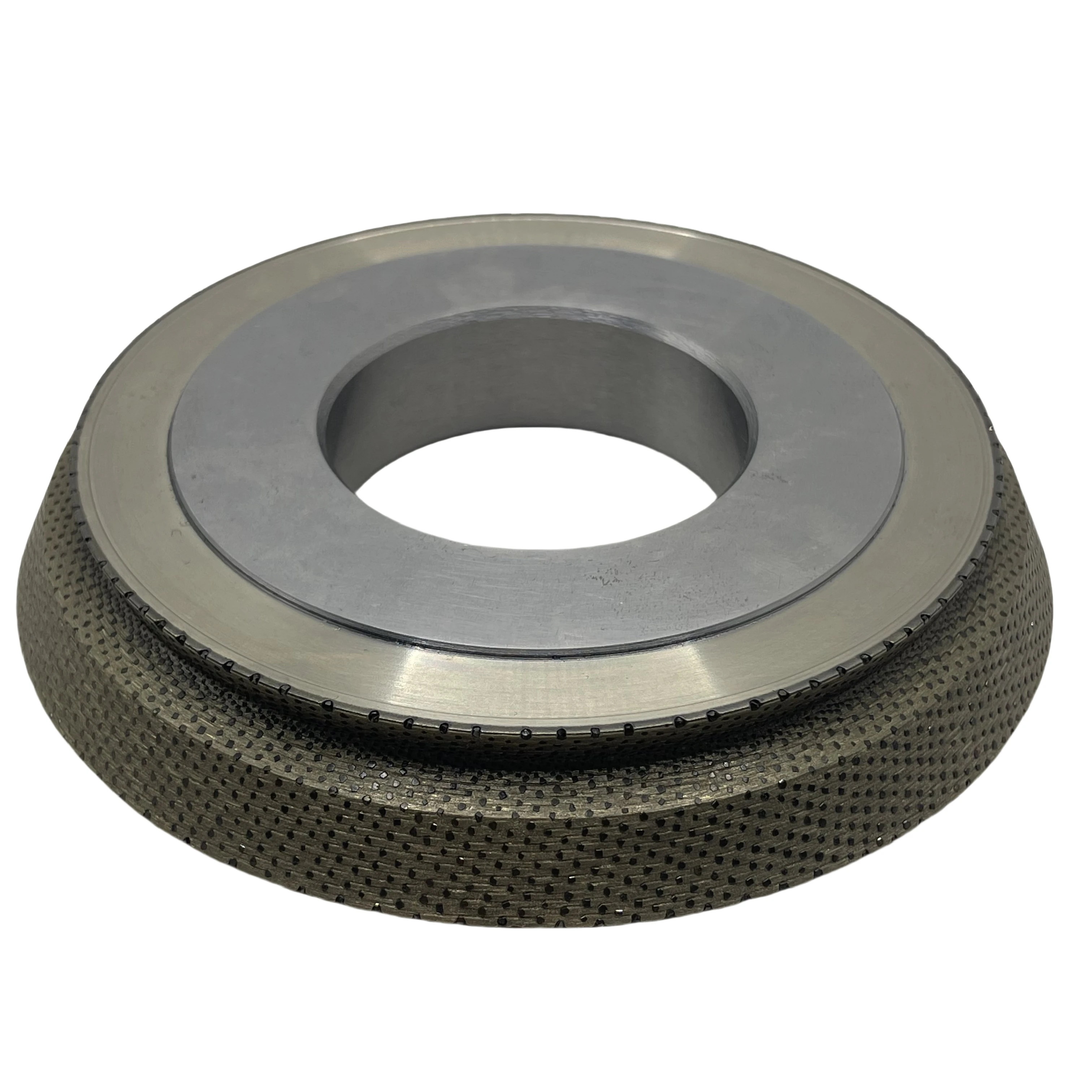

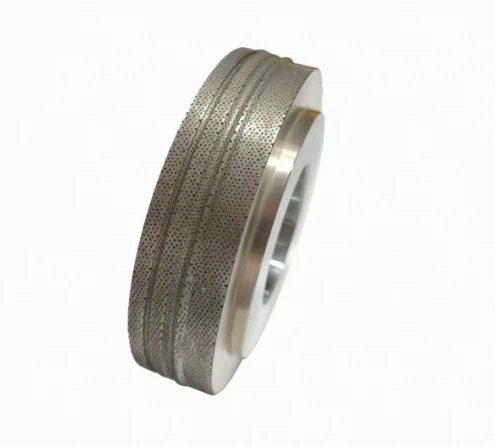

roller diamond dresser    diamond dressing  wheels Finishing grinding wheel tool

      In the ball screw industry Gear industry, machine tool industry, wind power bearing, automobile wheel hub bearing, guide rail transmission, automobile parts and other industries widely use silicon carbide white corundum, brown corundum, chromium corundum for shaping and dressing with consolidated grinding tools or superhard CBN grinding wheels. High precision and high-grade diamond rollers are widely used for dressing (including shaping and sharpening). The processing rate, high service life and Low cost grinding wheel dressing tool. It is mainly used for dressing white corundum and silicon carbide grinding wheels with complex profile. Diamond roller with high performance price ratio for ball screw gear grinding shaping and dressing diamond roller is a shaping grinding wheel dressing tool with high precision, long service life and low cost for mass shaping grinding in machining.

Diamond wheel dressing forming grinding wheel has the advantages of fast dressing speed, long service life, simple operation, shape and size of machined parts, stable roughness and so on.

Main technical indexes of Jingyue high quality diamond roller (diamond working surface)

Runout: 0.002mm ~ 0.004mm;

Straightness: 0.002mm ~ 0.004mm;

Cylindricity: 0.002mm ~ 0.004mm;

Flatness: 0.002 ~ 0.005;

Tolerance range of line profile: 0.002mm ~ 0.005mm;

Difference range of radius dimension: R ± 0.004mm ~ 0.002mm;
