Иридий 9603 короткий трансивер передачи данных спутниковый модем

Иридий 9603 короткий трансивер передачи данных спутниковый модем

Категория: >>>
Поставщик: Global Telesat Communications Limited

Цена:150,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

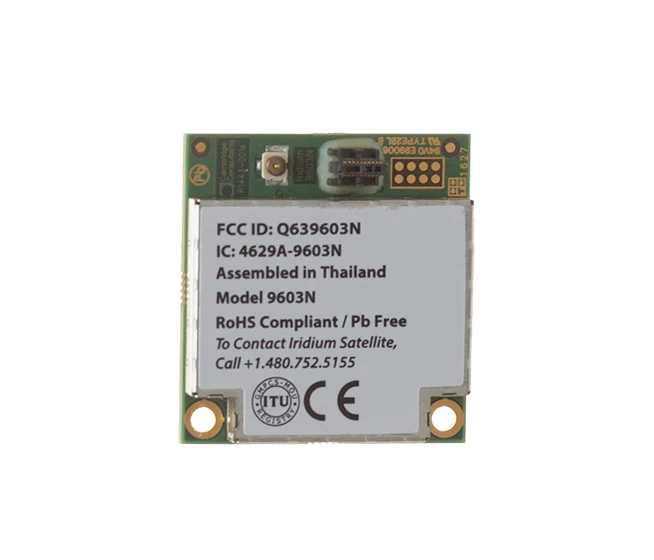

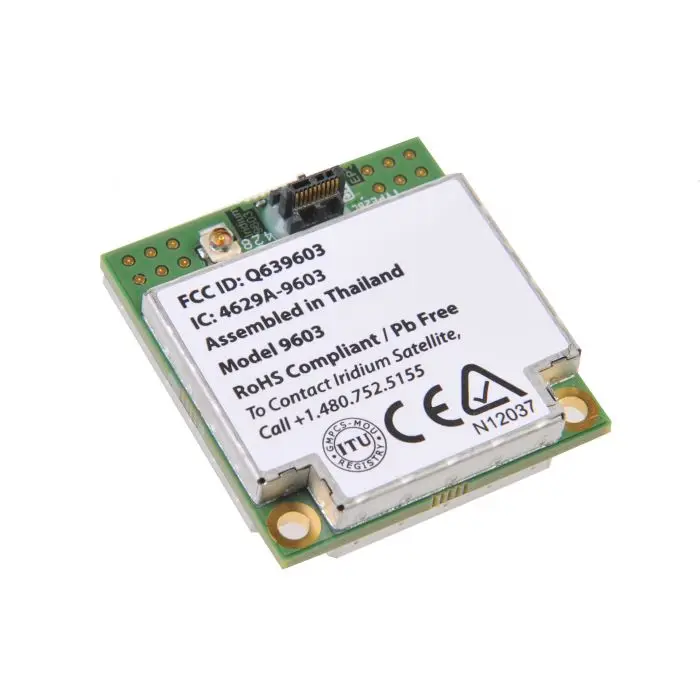

The Iridium SBD 9603
Allows the user to take advantage of Iridium global network and also gives the capability of two way communications.

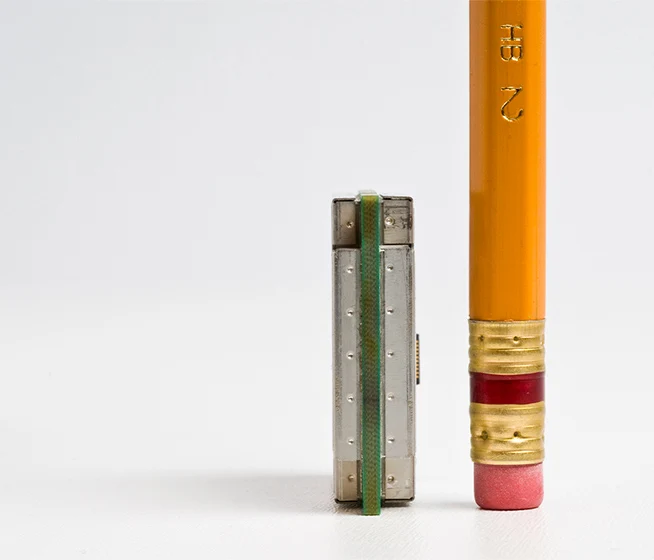

The new Iridium 9603 is the latest transceiver available from Iridium. The 9603 offers the smallest form factor of any commercial satellite transceiver available today and is also one-forth the volume and half the footprint of the Iridium 9602.

The Iridium 9603 is a revolution in scale, the compact transceiver is the worlds smallest commercially available two-way satellite data modem. It is designed especially for those who need to create smaller devices but still want to take advantage of having global coverage.

How it Works
The Iridium SBD 9603 is a single-board core transceiver that comes in a 'black box' format. The device's interfaces are provided through a single, multi-pin interface connector and an antenna connector, with additional end-user field application functions (e.g. GPS, microprocessor-based logic control, digital and analogue inputs and outputs).

The SBD 9603 does not incorporate or require a SIM card. It can be integreated into a variety of wireless data applications or retrofied into existing SBD-only applications. The Iridium 9603 supports Iridium's Short Burst Data capability, but not support voice, circut, switched data or short message service (SMS).

General Specifications

Dimensions\t31.5 x 29.6 x 8.1 cm
Weight\t11.4g
Operating Temperature\t-30°c to +70°c
Operating Humidity\t75% RH
Storage Temperature\t-40°c to +85°c
Frequency range\t1616 MHz to 1626.5 MHz
DC Power Input
Supply input voltage range\t5.0V +/- .2V DC
Idle current (average)\t45mA
Idle current (peak)\t195mA
Transmit current (peak)\t1.5A
Transmit current (average)\t190 mA
Receive current (peak)\t195mA
Receive current (average)\t45mA
SBD Message transfer - average current\t190mA
SBD Message transfer - average power\t1.0W

Key Features

Single-board transceiver
Very small form factor
No SIM card
Simple AT command interface
Automatic notification to the transceiver that a mobile-terminated message is queued at the gateway
Duplexing Method TDD (Time Domain Duplex)
Input/Output Impedance 50
Multiplexing Method TDMA/FDMA

Specification

item	value
Brand Name	Iridium
Place of Origin	Iridium
Dimensions	31.5 x 29.6 x 8.1 cm
Weight	11.4g
Operating Temperature	-30°c to +70°c
Operating Humidity	75% RH
Storage Temperature	-40°c to +85°c
Frequency Range	1616 MHz to 1626.5 MHz
Supply input voltage range	5.0V +/- .2V DC
Idle current (average)	45mA
Idle current (peak)	195mA
Internal SKU	665878756314
