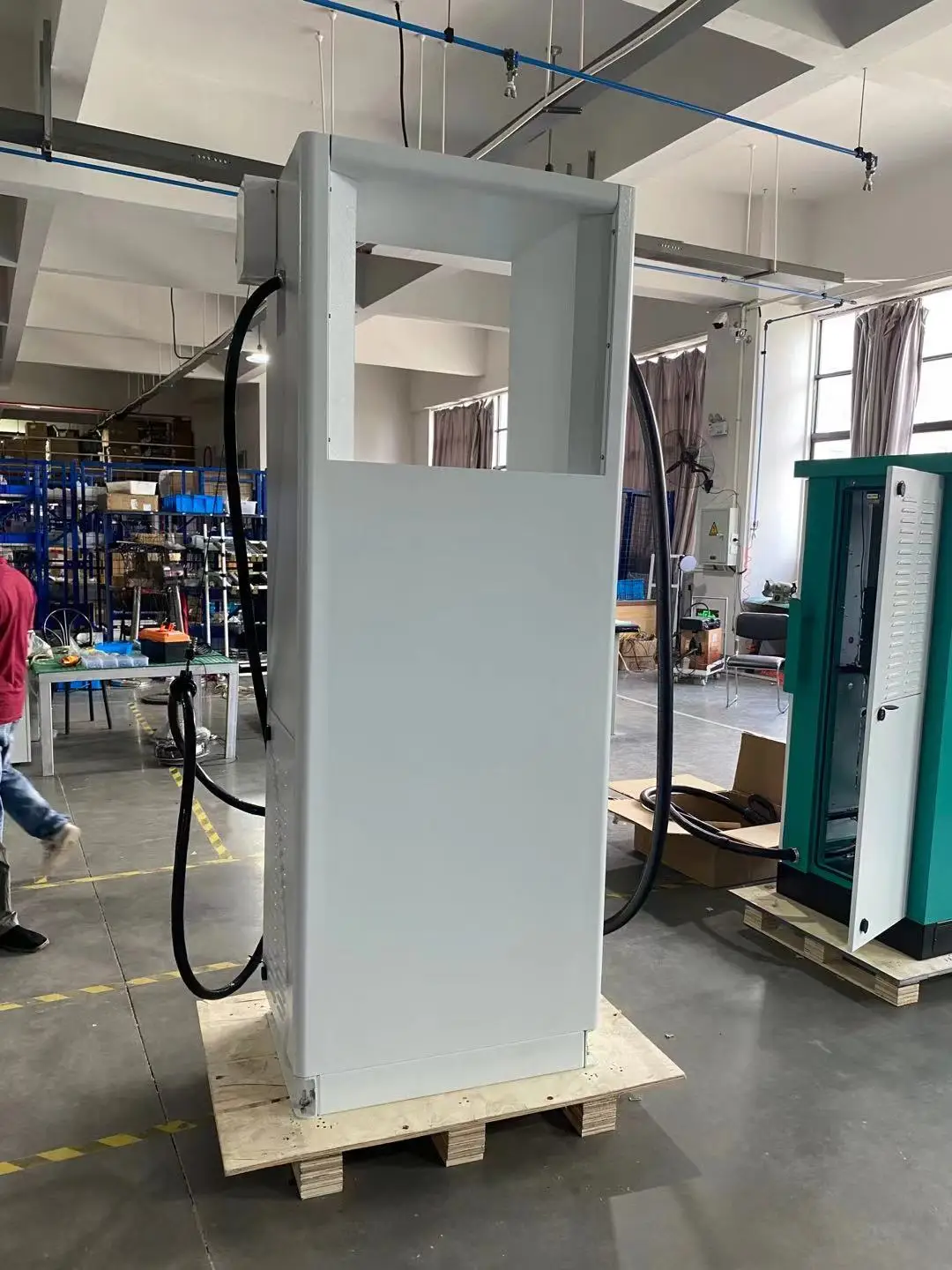

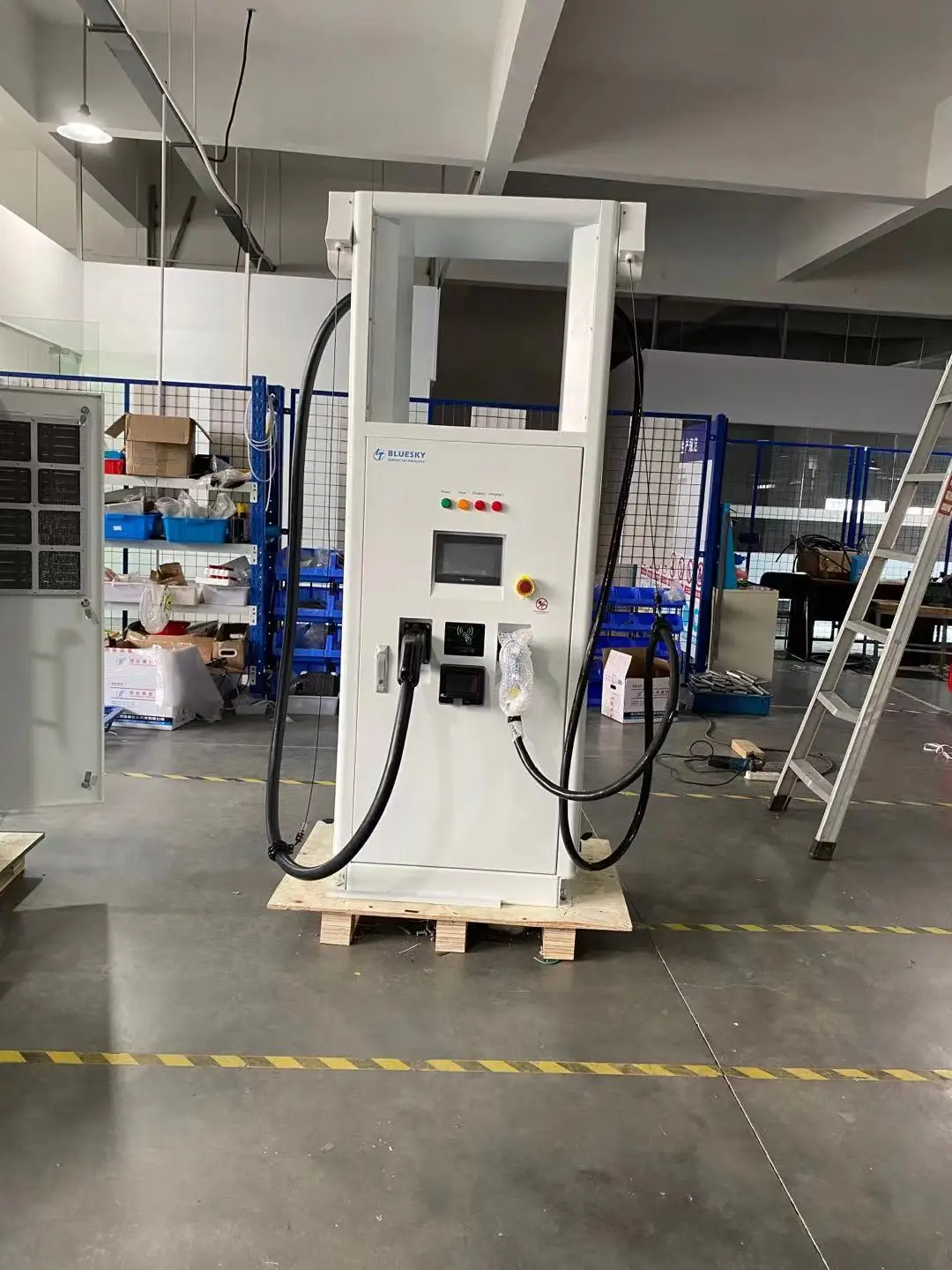

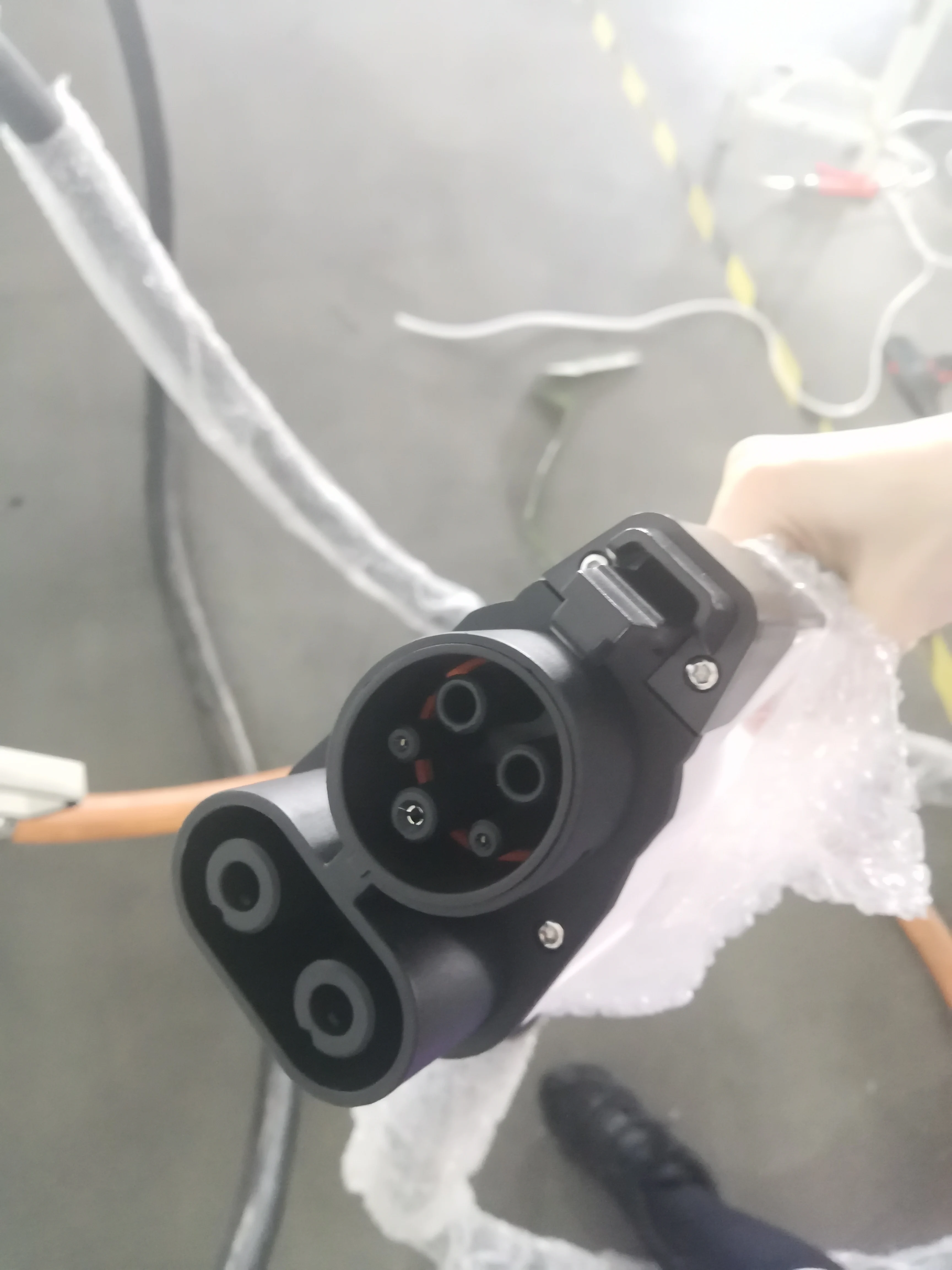

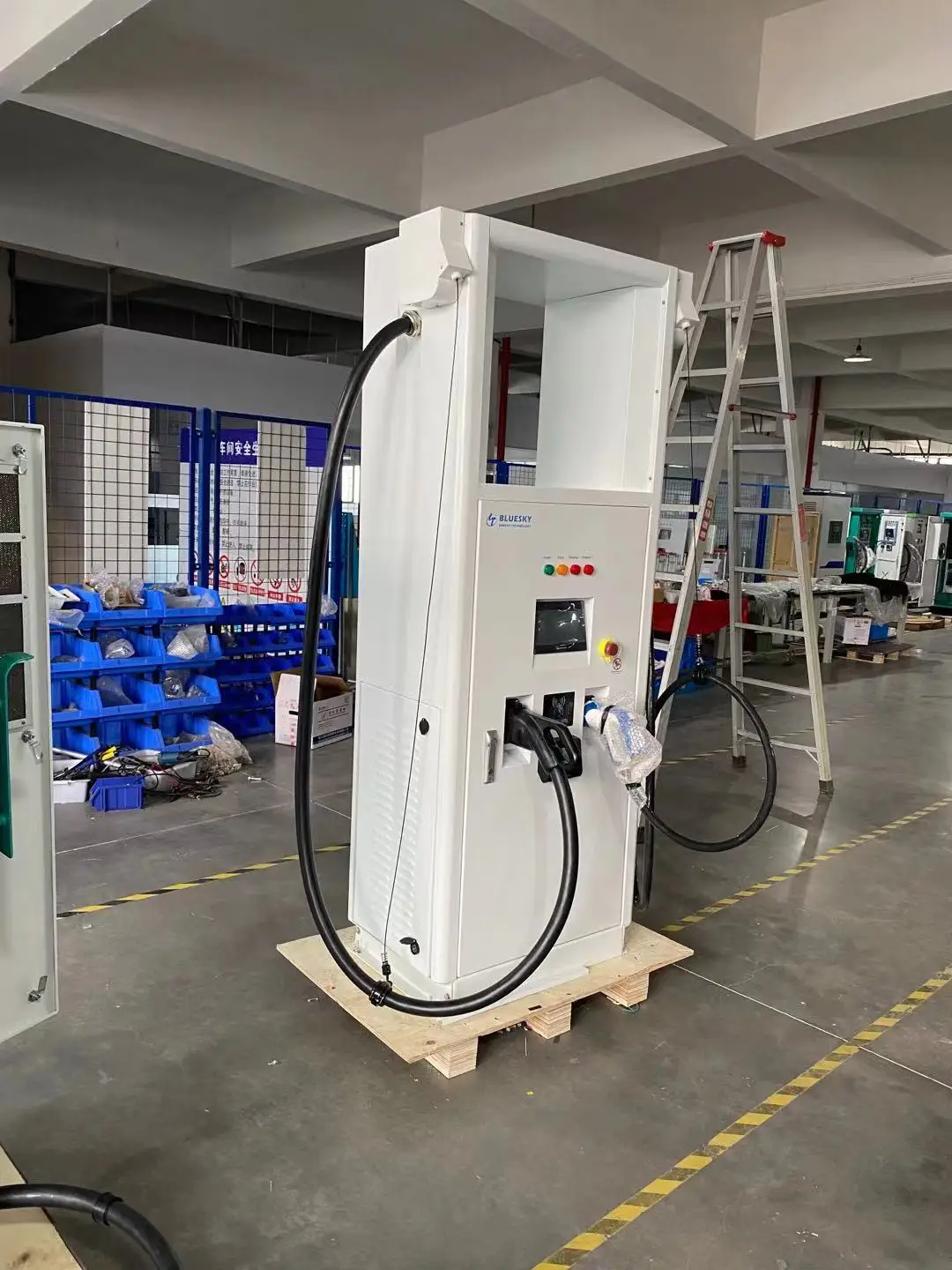

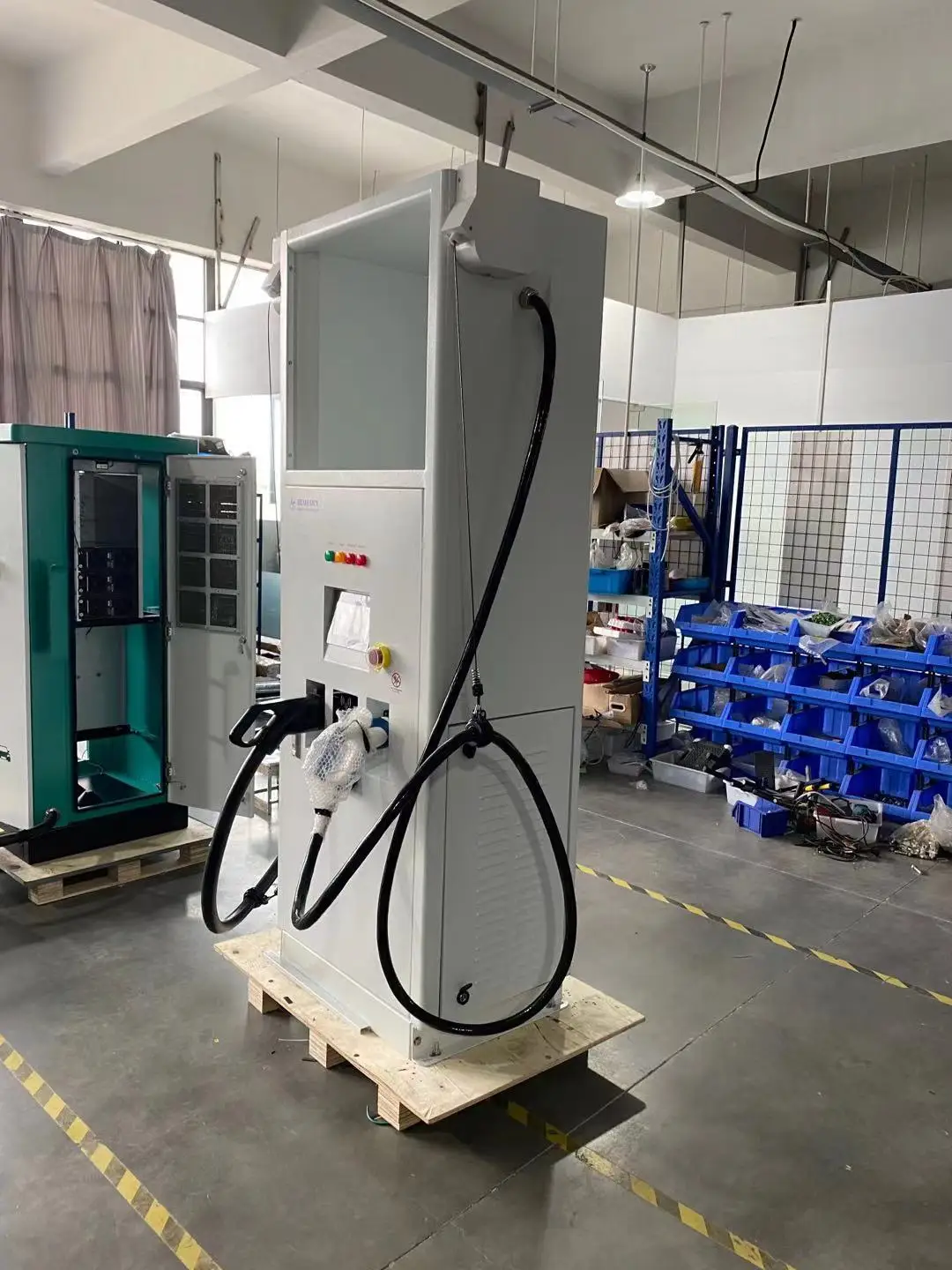

160kw ev charger ce сертифицированный DC CCS CHAdeMO китайский поставщик одноконнекторный коммерческий EVSE с платежной системой

Сохранить в закладки 11000000263582:


Цена:12 700,00 $ - 12 800,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


_01_02









































































General specifications



Environment



Indoor / outdoor



Operating temperature



,-20 ºC to +50 ºC(de-rating characteristic applies) Option: -35 ºC to +50 ºc



Storage temperature



,-40 ºC to +70 ºC



RFID system



ISO/IEC14443A/B, ISO/IEC15693, FeliCa™ 1, NFC reader mode, LEGIC Prime & Advant



Payments



Smart Card, Server based Online Payments or equivalent



Network connection



GSM / CDMA / 3G modem, 10/100 Base-T Ethernet



Interaction Display



Full-color  (7 in 800x480 TFT ) LCD display for driver interaction



Visual Indicators



Error indication, Presence of input supply indication, Charge process indication and other relevant information



safety protection



Over current, under voltage, over voltage, Residual current, Surge protection, Short circuit, Earth fault at input and output, Input phase reversal, Emergency shut-down with alarm, Over temperature, Protection against electric shock



Push Button



Mushroom type emergency stop switch (Red)



Supported Communication Protocols



OCPP1.6



Protection



IP54



Input Chracteristics



AC Supply System



Three-Phase, 5 Wire AC system (3Ph.+N+PE)



Nominal Input voltage



3Ø, 260~530VAC



Input Frequency



50Hz, ±10Hz




_04_05_06_07
