Products Description
BABY HOIST
This is the market-leading hoist in Japan.
BH-800A series
BABY HOIST is a portable, compact and lightweight hoist.
Installation of the hoist is just to hang it.
It can lift heavy loads up easily.
The machine can work in two-speed: high speed and low speed, and adjust the position of loads easily.
Slow start enable work with loads moving slightly.
BABY HOIST is fully furnished with safety devices.
■Winch Rating
Allowable operating time when driving in a cycle of "lifting 2m - pause 3 sec - lowering 2m - pause 3 sec" in rated voltage and load.

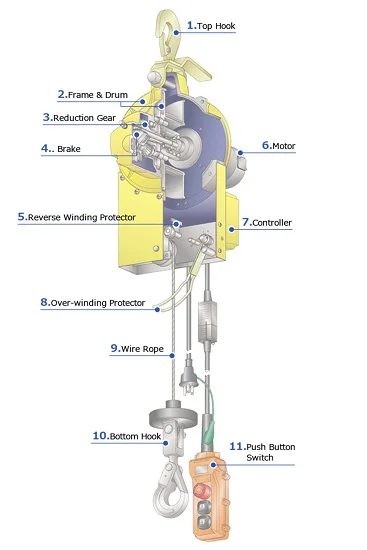

■Safety Devices
Over-winding Protector： It prevents wire rope from breaking and the machine from breaking down by over-winding.
Reverse Winding Protector： It detects wire rope loosening and reverse winding caused by irregular winding, and stops the machine automatically. Meanwhile, when wire rope is wound in reverse, brakes are disabled.
Slip Clutch： Slip clutch protects the machine when loads are caught and impact loading occurs.
Emergency Stop Button： An emergency stop button will stop the machine if there is an incident.
Plugging Prevention Function： The circuit preventing reverse operating doing damages to the machine is also installed.
■Option

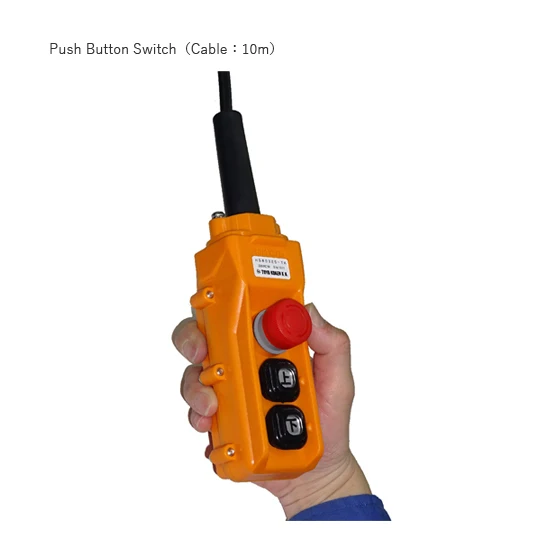

Relay Cable (10m) ： By connecting multiple relay cables, you can extend the push button switch cable to the hook path.
Rain Cover： It prevents invasion of rain and snow, and helps to reduce electric troubles. It is also made of tarpaulins with excellent durability.
This is the market-leading hoist in Japan.
BH-800A series
BABY HOIST is a portable, compact and lightweight hoist.
Installation of the hoist is just to hang it.
It can lift heavy loads up easily.
The machine can work in two-speed: high speed and low speed, and adjust the position of loads easily.
Slow start enable work with loads moving slightly.
BABY HOIST is fully furnished with safety devices.
■Winch Rating
Allowable operating time when driving in a cycle of "lifting 2m - pause 3 sec - lowering 2m - pause 3 sec" in rated voltage and load.
■Safety Devices
Over-winding Protector： It prevents wire rope from breaking and the machine from breaking down by over-winding.
Reverse Winding Protector： It detects wire rope loosening and reverse winding caused by irregular winding, and stops the machine automatically. Meanwhile, when wire rope is wound in reverse, brakes are disabled.
Slip Clutch： Slip clutch protects the machine when loads are caught and impact loading occurs.
Emergency Stop Button： An emergency stop button will stop the machine if there is an incident.
Plugging Prevention Function： The circuit preventing reverse operating doing damages to the machine is also installed.
■Option
Relay Cable (10m) ： By connecting multiple relay cables, you can extend the push button switch cable to the hook path.
Rain Cover： It prevents invasion of rain and snow, and helps to reduce electric troubles. It is also made of tarpaulins with excellent durability.
Specification
Model | Hook Path (m) | Rated Load (kg) | Lifting Speed (m/min) | ||||||
High | Low | ||||||||
First Layer | Last Layer | First Layer | Last Layer | ||||||
BH-815A | 15 | 250 | 9 | 11 | 2.9 | 3.2 | |||
BH-820A | 20 | 230 | 9 | 12 | 3 | 3.7 | |||

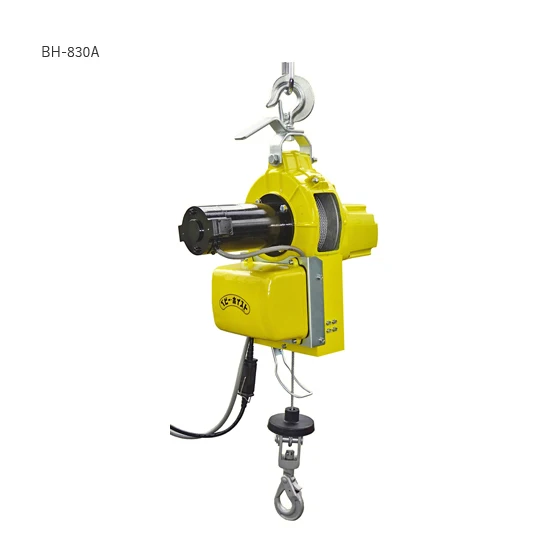

BH-830A | 30 | 180 | 10 | 14 | 3.2 | 4.5 | |||
Model | Motor Output (W) | Winch rating (min) | Wire Rope (m) | Hook Type | Weight (kg) | |||||
BH-815A | 600 | 15 | Φ5 × 16 | Self-locking Swive | 18 | |||||
BH-820A | 600 | 15 | Φ5 × 21 | Self-locking Swive | 18 | |||||
BH-830A | 600 | 15 | Φ5 × 31 | Self-locking Swive | 18 | |||||
Power Supply：Single Phase AC200-240V 50/60Hz | ||||||||||
Power Cable：1.25sq × 3c × 5m | ||||||||||
Certifications
Factory Information
Company Profile
TOYO KOKEN has a history of 60 years for winches and 40 years for manipulators, and our products used by many companies in a wide range of industries such as the construction and industrial machinery industry. Our products are designed under JIS (Japanese Industrial Standards), and we provide our customers with better products under the policies of ISO90001 and ISO14001.
Похожие товары
U-образный болт из полированной нержавеющей стали, метрический резьбовой болт и гайки

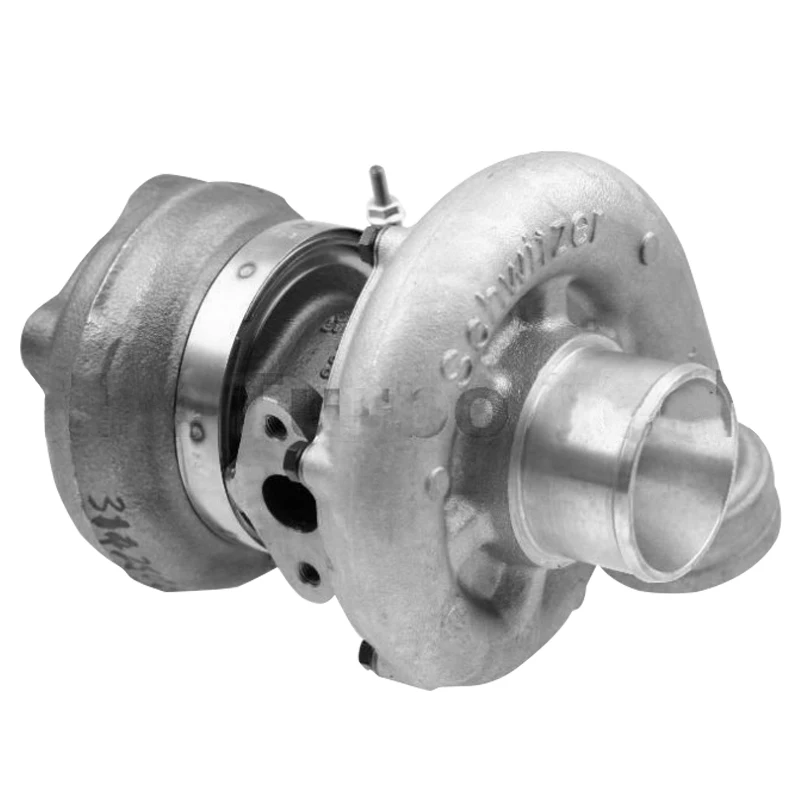

S2A Турбокомпрессор 04204836KZ DEUTZ промышленный двигатель 4.76LTR характеристики детали для
85,00 $ - 105,00 $
Европейский Шахматный набор, акриловая металлическая гравировка, акриловая игра, шахматная доска, золотой, черный набор шахматных досок
32,31 $ - 35,00 $
Китай тяжелый автомобиль HOWO 70 тонн добычи полезных ископаемых самосвал внедорожных
Лидер продаж от производителя, Индонезия, Горячие предложения, заполнение жира, PAMFIL Praline, заполнение жира

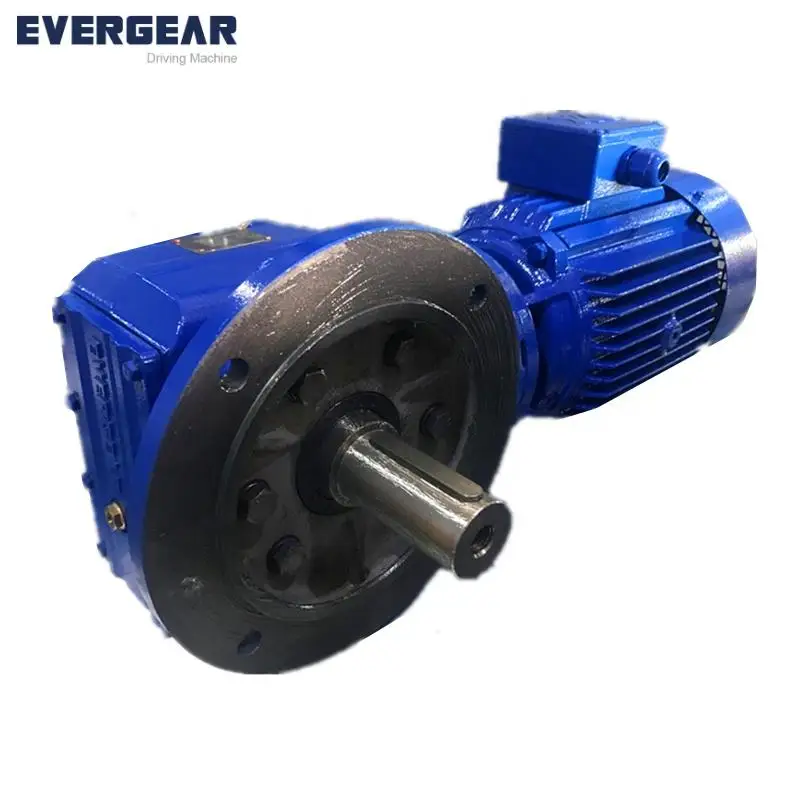

Серии ES винтовой об/мин DC мотор-редуктор
