Product Overview

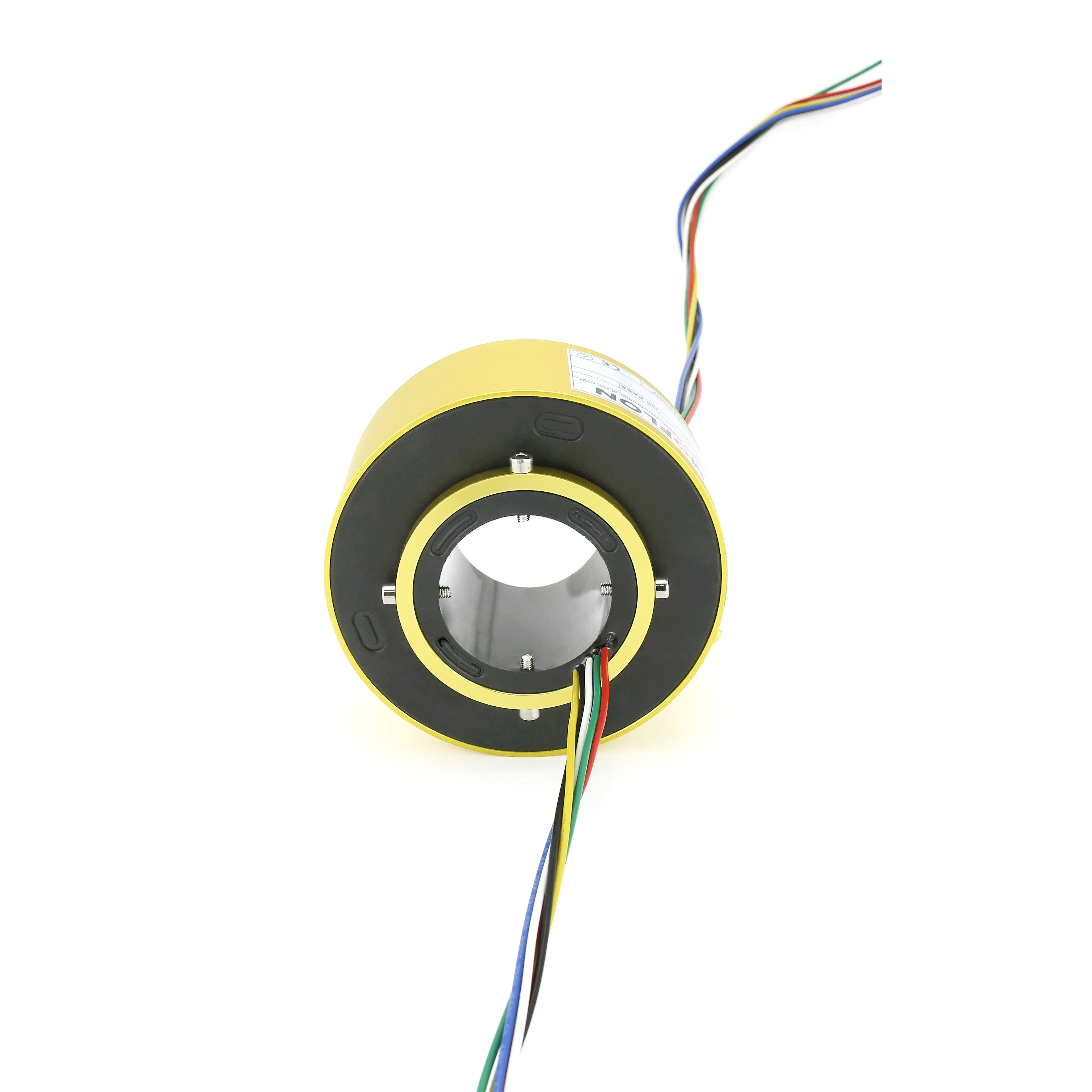

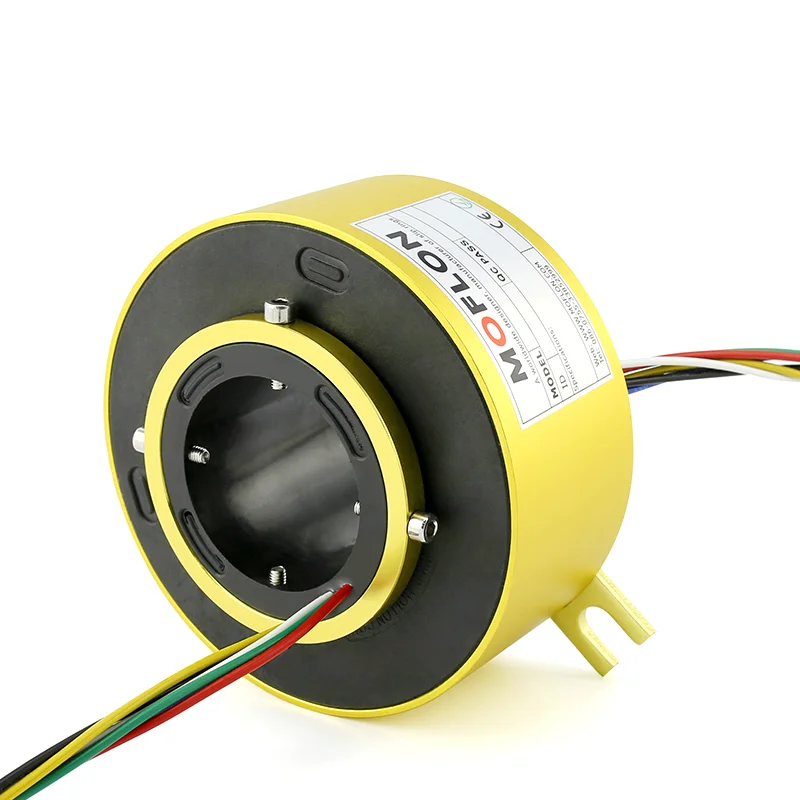

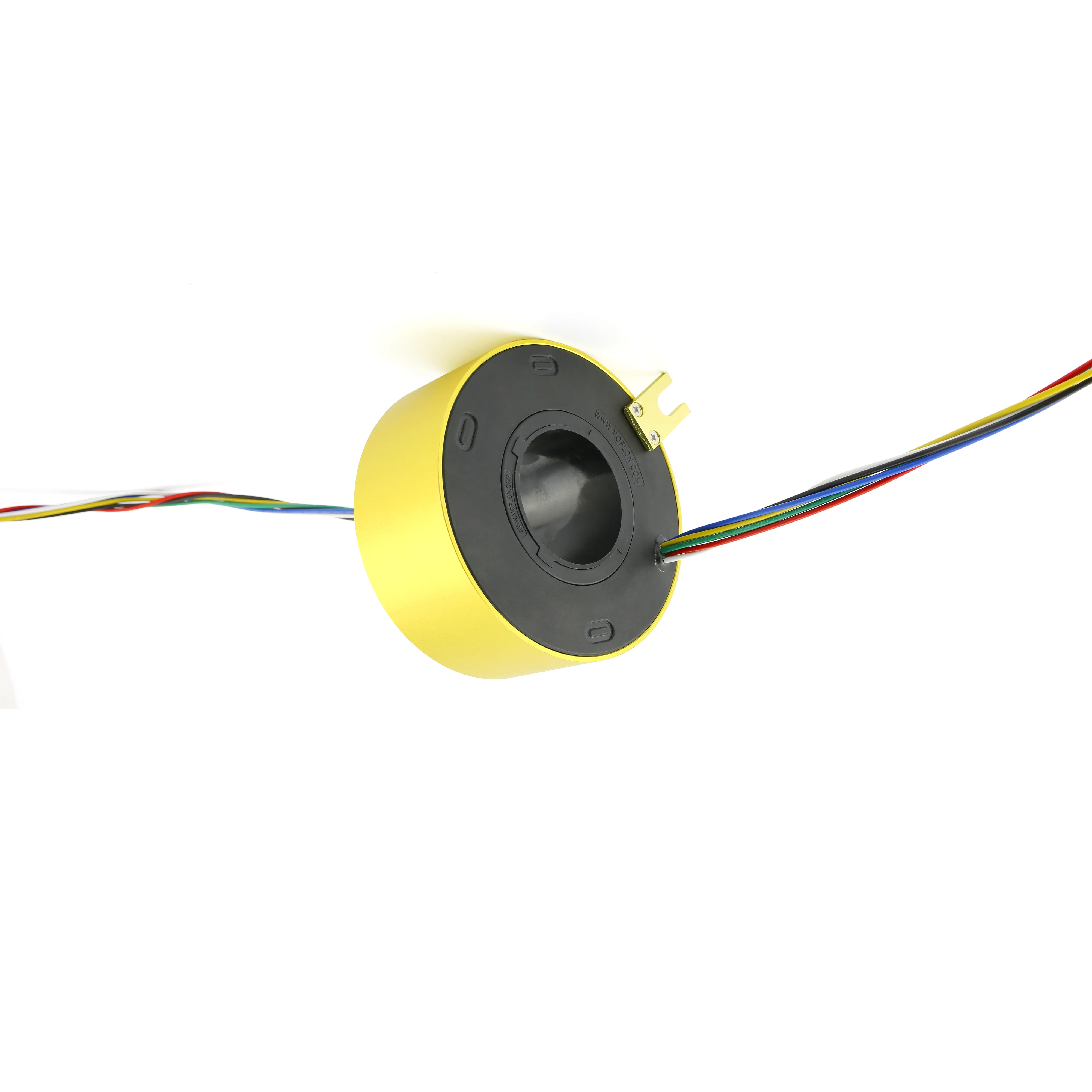

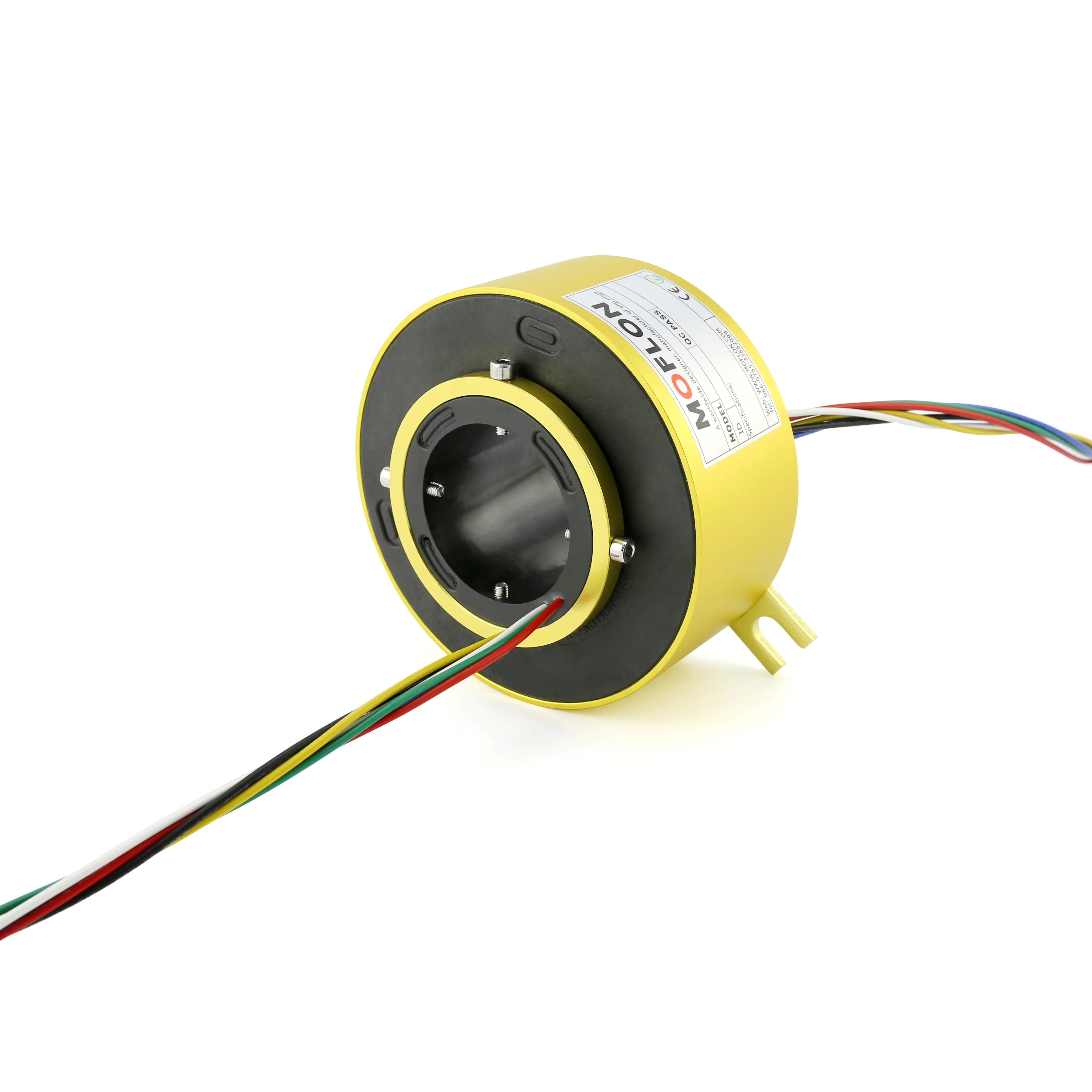

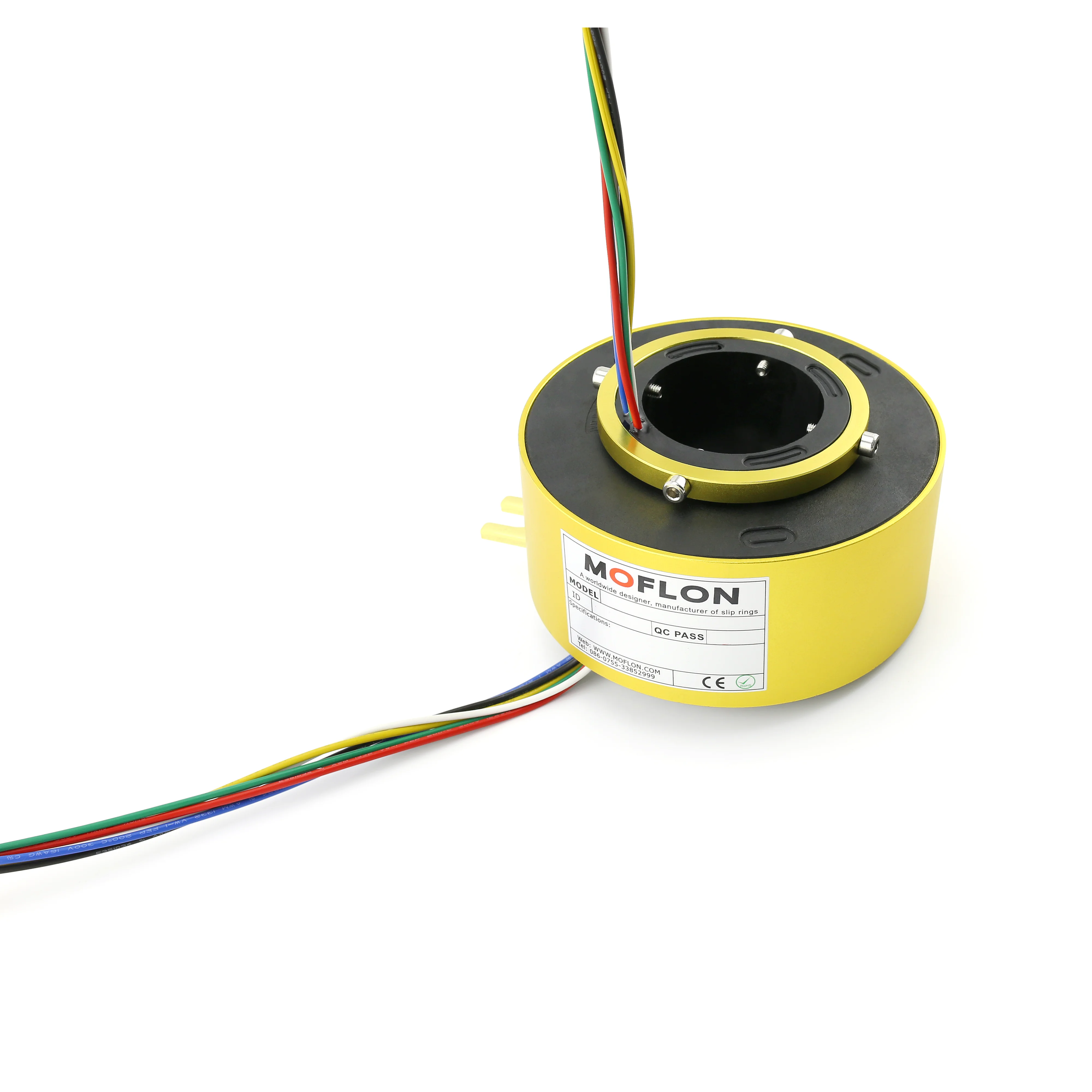

MT50119 Series
MT50119 series provides a 50mm through-bore for routing of hydraulic or pneumatic lines or hydraulic or
pneumatic rotating shaft installation, and a compact 119mm outside diameter,features long life, fiber
brush contact technology for ultimate performance in manychallenging applications.
MT50119 series are standard, off-the-shelf products, Color-coded lead wires are used onboth the stator
and rotor for simplified electrical connections.It can transmit signal(2A), 10A, multiple 10A current when
360° degree free rotating.
pneumatic rotating shaft installation, and a compact 119mm outside diameter,features long life, fiber
brush contact technology for ultimate performance in manychallenging applications.
MT50119 series are standard, off-the-shelf products, Color-coded lead wires are used onboth the stator
and rotor for simplified electrical connections.It can transmit signal(2A), 10A, multiple 10A current when
360° degree free rotating.
FEATURES AT A GLANCE
MT:through bore slip ring
50119:50-ID 50mm;119-OD 119mm
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
MT50119 Series Parts# List | ||||||
Part# | 10A | Signal or 5A | Length-L (mm) | |||
MT50119-S02 | 0 | 2 | 36 | |||
MT50119-P0210 | 2 | 0 | 36 | |||
MT50119-S03 | 0 | 3 | 39.8 | |||
MT50119-P0310 | 3 | 0 | 39.8 | |||
MT50119-S06 | 0 | 6 | 51.2 | |||
MT50119-P0210-S04 | 2 | 4 | 51.2 | |||
MT50119-P0410-S02 | 4 | 2 | 51.2 | |||
MT50119-P0610 | 6 | 0 | 51.2 | |||
MT50119-S12 | 0 | 12 | 74 | |||
MT50119-P0210-S10 | 2 | 10 | 74 | |||
MT50119-P0310-S09 | 3 | 9 | 74 | |||
MT50119-P0610-S06 | 6 | 6 | 74 | |||
MT50119-P0810-S04 | 8 | 4 | 74 | |||
MT50119-P1010-S02 | 10 | 2 | 74 | |||
MT50119-P1210 | 12 | 0 | 74 | |||
MT50119-S18 | 0 | 18 | 96.8 | |||
MT50119-P0210-S16 | 2 | 16 | 96.8 | |||
MT50119-P0610-S12 | 6 | 12 | 96.8 | |||
MT50119-P0810-S10 | 8 | 10 | 96.8 | |||
MT50119-P1010-S08 | 10 | 8 | 96.8 | |||
MT50119-P1210-S06 | 12 | 6 | 96.8 | |||
MT50119-P1410-S04 | 14 | 4 | 96.8 | |||
MT50119-P1610-S02 | 16 | 2 | 96.8 | |||
MT50119-S24 | 0 | 24 | 119.6 | |||
MT50119-P0410-S20 | 4 | 20 | 119.6 | |||
MT50119-P0610-S18 | 6 | 18 | 119.6 | |||
MT50119-P1210-S12 | 12 | 12 | 119.6 | |||
MT50119-P1810-S06 | 18 | 6 | 119.6 | |||
MT50119-P2410 | 24 | 0 | 119.6 | |||
MT50119-S30 | 0 | 30 | 142.4 | |||
MT50119-P0610-S24 | 6 | 24 | 142.4 | |||
MT50119-P1210-S18 | 12 | 18 | 142.4 | |||
MT50119-P1810-S12 | 18 | 12 | 142.4 | |||
MT50119-P2410-S06 | 24 | 6 | 142.4 | |||
MT50119-P3010 | 30 | 0 | 142.4 | |||
MT50119-S36 | 0 | 36 | 169.2 | |||
MT50119-P0610-S30 | 6 | 30 | 169.2 | |||
MT50119-P1210-S24 | 12 | 24 | 169.2 | |||
MT50119-P3610 | 36 | 0 | 169.2 | |||
MT50119-S42 | 0 | 42 | 192 | |||
MT50119-P0610-S36 | 6 | 36 | 192 | |||
MT50119-P1210-S30 | 12 | 30 | 192 | |||
MT50119-S48 | 0 | 48 | 217.8 | |||
MT50119-P0610-S42 | 6 | 42 | 217.8 | |||
MT50119-P0910-S39 | 9 | 39 | 217.8 | |||
MT50119-P1210-S36 | 12 | 36 | 217.8 | |||
MT50119-P1810-S30 | 18 | 30 | 217.8 | |||
MT50119-P2410-S24 | 24 | 24 | 217.8 | |||
MT50119-S60 | 0 | 60 | 263 | |||
MT50119-P0610-S54 | 6 | 54 | 263 | |||
MT50119-P0910-S51 | 9 | 51 | 263 | |||
MT50119-P1210-S48 | 12 | 48 | 263 | |||
MT50119-S72 | 0 | 72 | 312.6 | |||
MT50119-P0610-S66 | 6 | 66 | 312.6 | |||
MT50119-P1210-S60 | 12 | 60 | 312.6 | |||
MT50119-P2410-S48 | 24 | 48 | 312.6 | |||
MT50119-P3610-S36 | 36 | 36 | 312.6 | |||
MT50119-S84 | 0 | 84 | 358.2 | |||
MT50119-P1210-S72 | 12 | 72 | 358.2 | |||
MT50119-P2410-S60 | 24 | 60 | 358.2 | |||
MT50119-P3610-S48 | 36 | 48 | 358.2 | |||
MT50119-S96 | 0 | 96 | 403.8 | |||
MT50119-P1210-S84 | 12 | 84 | 403.8 | |||
MT50119-P2410-S72 | 24 | 72 | 403.8 | |||
MT50119-P3610-S60 | 36 | 60 | 403.8 | |||
MT50119-P4210-S54 | 42 | 54 | 403.8 | |||
MT50119-S108 | 0 | 108 | 453.4 | |||
MT50119-P1210-S96 | 12 | 96 | 453.4 | |||
MT50119-P2410-S84 | 24 | 84 | 453.4 | |||
MT50119-P3610-S72 | 36 | 72 | 453.4 | |||
MT50119-P4810-S60 | 48 | 60 | 453.4 | |||
Note: N channels 10A rings parallel can be used as 1 channel N*10A current. For example: 2 rings 10A parallel could be used as 1 wires 20A. 10A,5A (signal) can combine freely in any way .It can be customized based on standard slip ring , please contact customer service for more details . | ||||||
PRODUCT CONFIGURATION
Lead Wires Color Code
Ring | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Color | BLK | RED | YEL | GRY | BLU | WHT | BLK | RED | YEL |
10 | 11 | 12 | ||
GRN | BLU | WHT |
SALES AND SERVICE NETWORK
Successful Project
SLIP RING FOR CABLE REELS
MOFLON Provide High Performance 360° Rotary Solutions for Worldwide
MOFLON has been manufacturing and supplying slip rings and rotary unions to companies, contractors, and other end-users for more than 30 years now. Our company occupies an area of roughly 7000m2, and we have more than 300 employees. As a leading designer and manufacturer of slip rings, our solutions are applicable even in demanding applications, like commercial, industrial, aerospace, military, agriculture, Oil & Gas, and many other use cases. MOFLON products are designed for high-performance environments and flexible requirements .Typical slip ring applications include camera systems, wind turbines, robotics, packaging machines, medical equipment, food & beverage, plastic molding, automation systems, and semiconductor industries. MOFLON products are used to
transmit hydraulic oils, chemicals, water, air, and many other fluids from static to rotating systems.
transmit hydraulic oils, chemicals, water, air, and many other fluids from static to rotating systems.
With over 10,000 slip ring drawings, we have a rich experience with a wide variety of designs and applications. Mounting options include, but are not limited to, end-of-shift, over-the-shaft, and inside-the-shaft mounting. MOFLON slip rings are manufactured using the highest quality materials like solid coin silver rings, gold-gold contacts, graphite and silver brushes, stainless steel, and aluminum alloys. MOFLON employs state of the art CNC machines to carry out its functions and an experienced workforce to assemble slip rings.
Certifications
FAQ
1. About our factory .
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
MOFLON has been manufacturing and supplying slip rings and rotary unions to companies, contractors, and other end-users for more
than 30 years now
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits ,voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, MOQ is 1pcs ,we will offer drawing when we get the information of the slip ring you need .
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
MOFLON has been manufacturing and supplying slip rings and rotary unions to companies, contractors, and other end-users for more
than 30 years now
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits ,voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, MOQ is 1pcs ,we will offer drawing when we get the information of the slip ring you need .
Похожие товары
Индукционный мотор с нескользящим кольцом 3 кВт, Мотор Крана асинхронный
Трехфазный мотор с проскальзывающим кольцом раневой ротор индукционных моторов
2021 Оптовая Продажа геометрический камень смешанный стиль кольцо натуральный камень случайное кольцо ювелирное изделие цвет Циркон Кристалл бриллиантовое кольцо
0,22 $ - 0,70 $
Электрический citycoco новая версия 2020 электрический скутер Макс моторная рама время зарядки колеса велосипеда тормоза
23 573,39 ₽
Портативный магнитный Набор, магнитные шахматные игрушки, детские развивающие игрушки, набор магнитных игрушек, японская версия, китайский полипропиленовый пакет
0,40 $ - 0,50 $

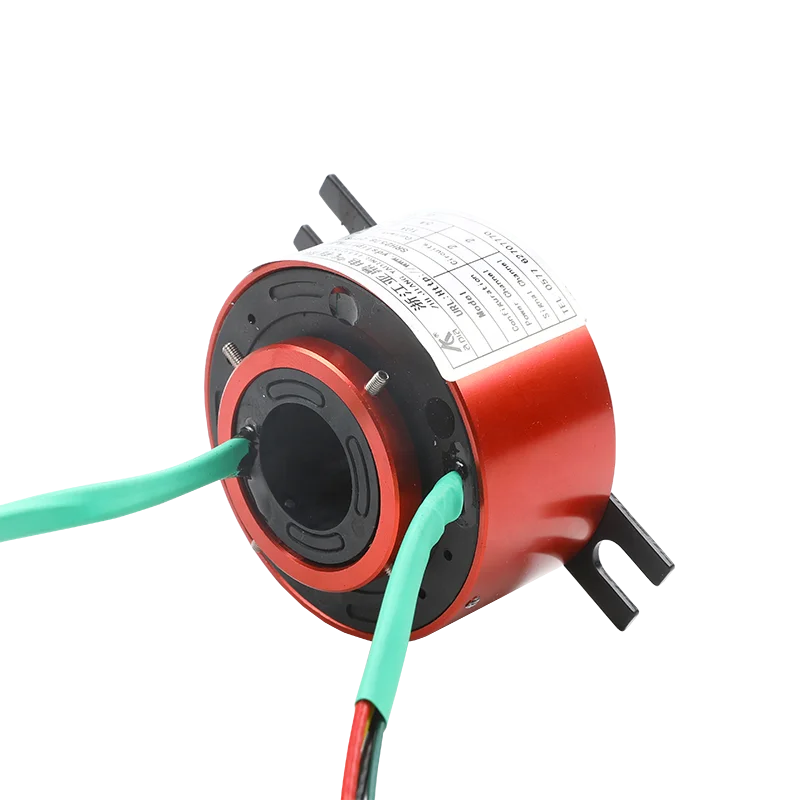

SRH2578-2p2s 25,4 мм сквозное отверстие высокоскоростной токосъемное кольцо HD сквозное отверстие скольжения кольцо мотор токосъёмное кольцо
50,00 $ - 60,00 $

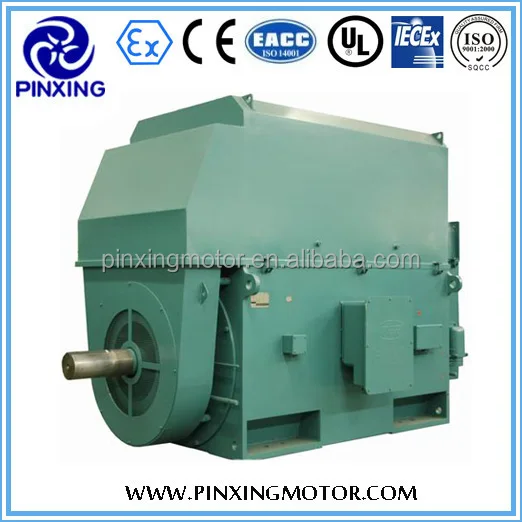

YRKK630-6, 6000 кВт, в, высокое напряжение, трехфазный скользящий кольцевой обмоток, индукционный электродвигатель
