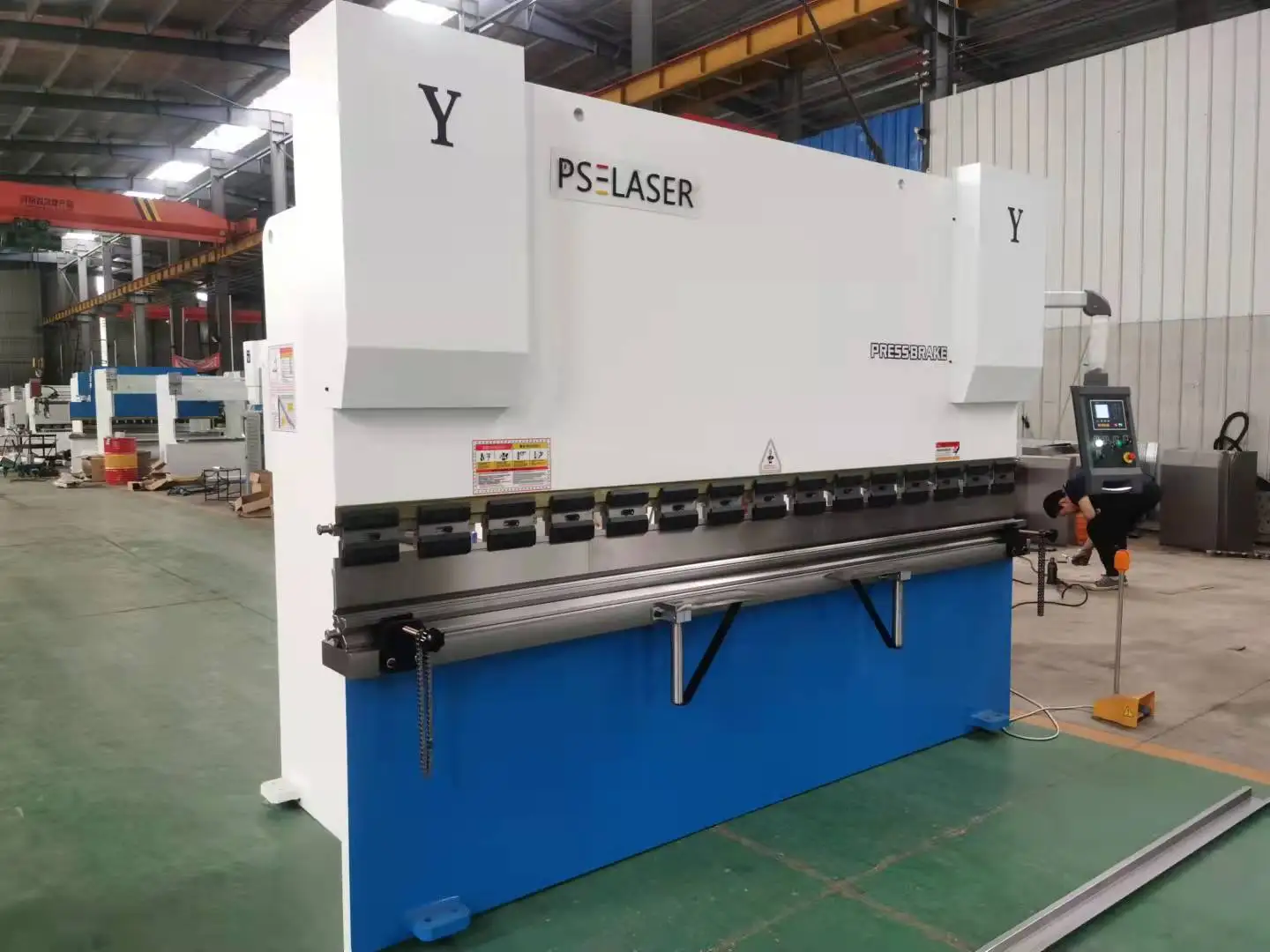

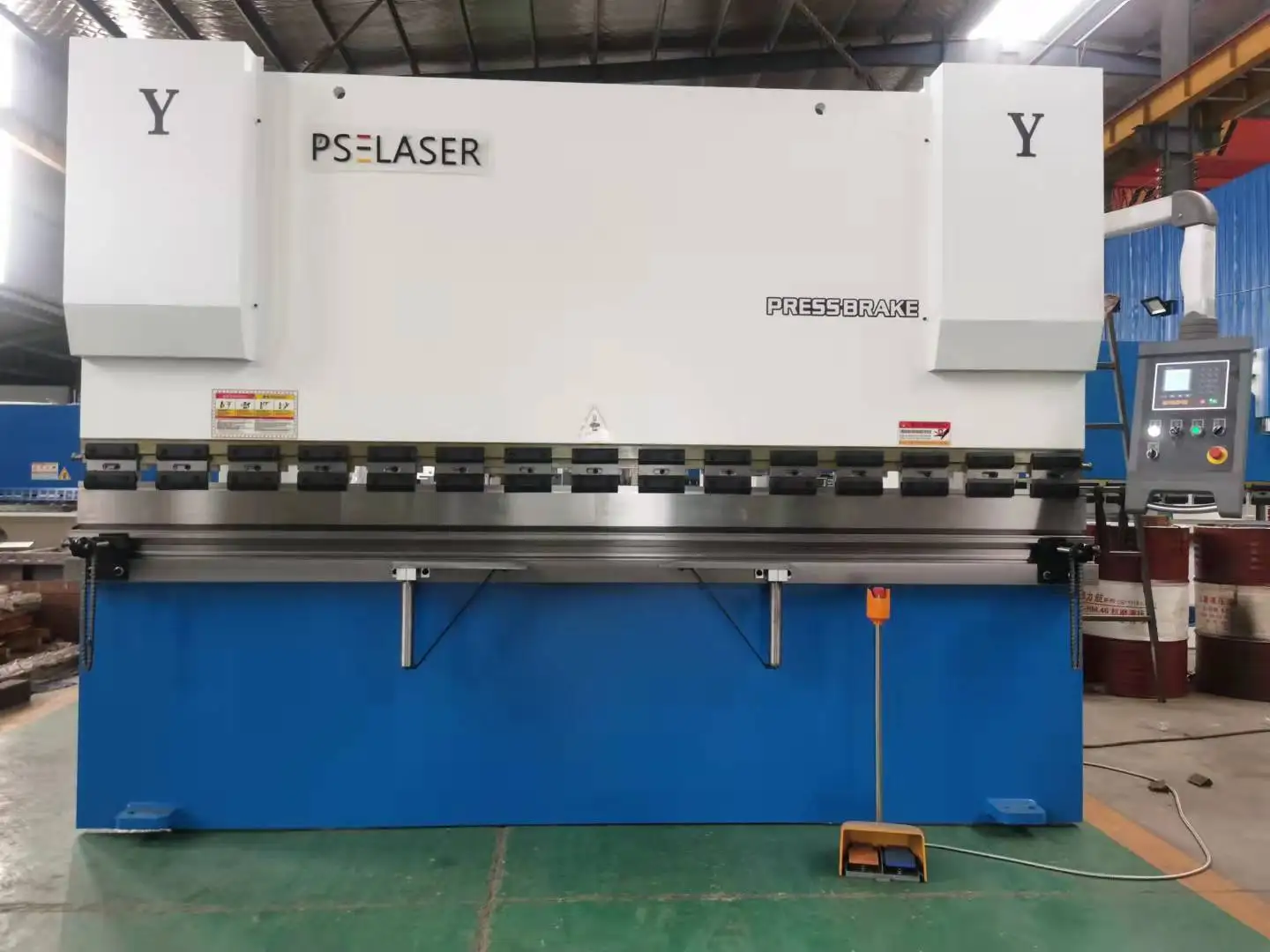

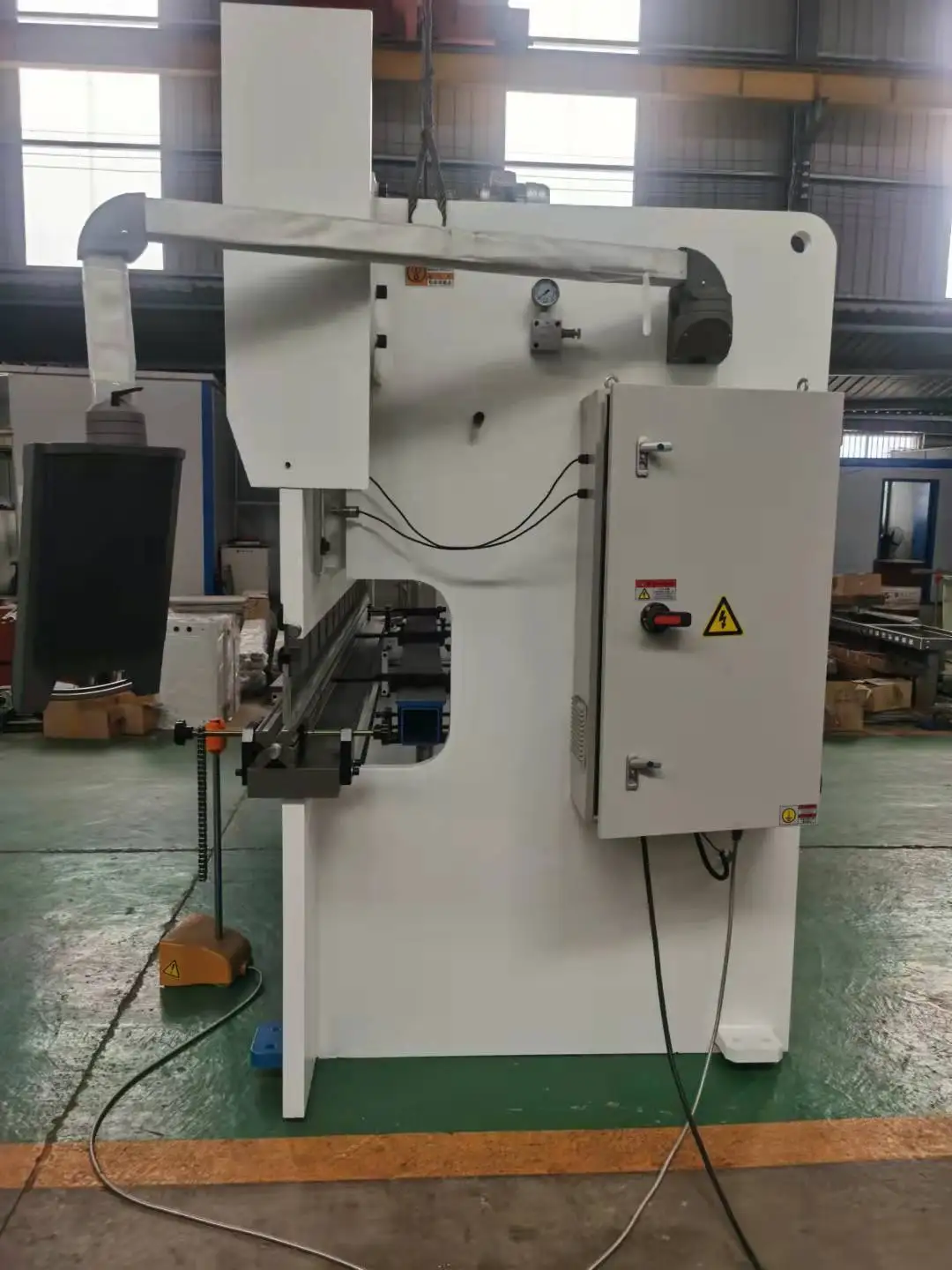

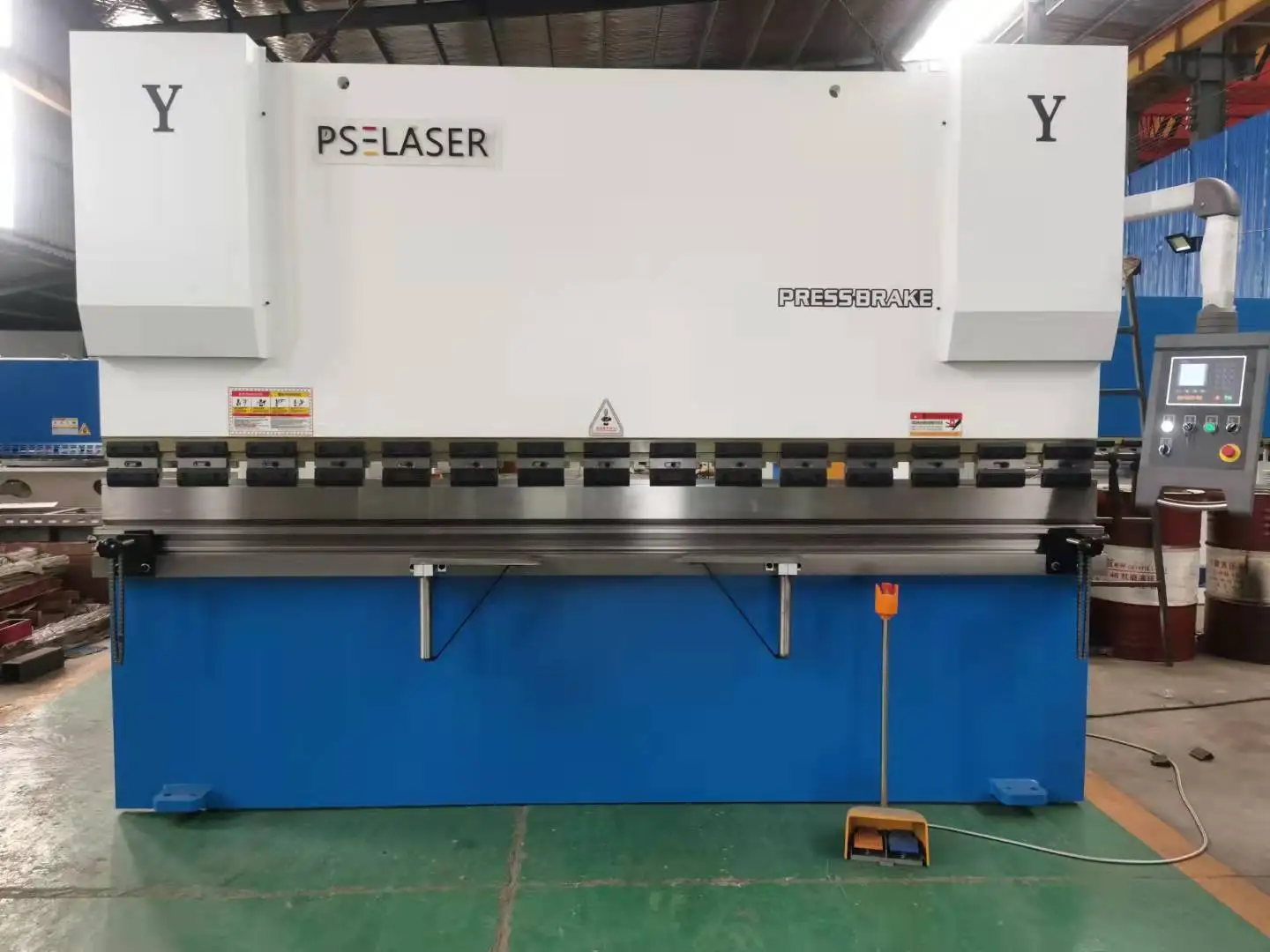

Гидравлический листогибочный станок с ЧПУ 100x3200

1. The whole EU streamlined design, heat treatment rack, high rigidity worktable, optional mechanical crowning device, to achieve precision bending.

2. Hydraulic synchronous control and Estun NC programmable logic controller ensure accurate repeatability and ease use.

3. Integrated hydraulic system (Bosch Rexroth Germany) allows automatically switch to slow bends in a quick way.

4. X axis and Y axis realize accurate positioning function by frequency converter through NC E21 system programming control.

5. Cutting-edge frequency response hydraulic control technology, more stable machine tools, more reliable operation.

6. The best ratio of parameters, optimal core configuration ensure stable performance, more convenient operation.

7. WC67K standard single-axis back gauge system and single-axis bending angle system, you can choose to add the V-axis crowning function, and select the appropriate mold to bend complex shape workpieces easily.

•

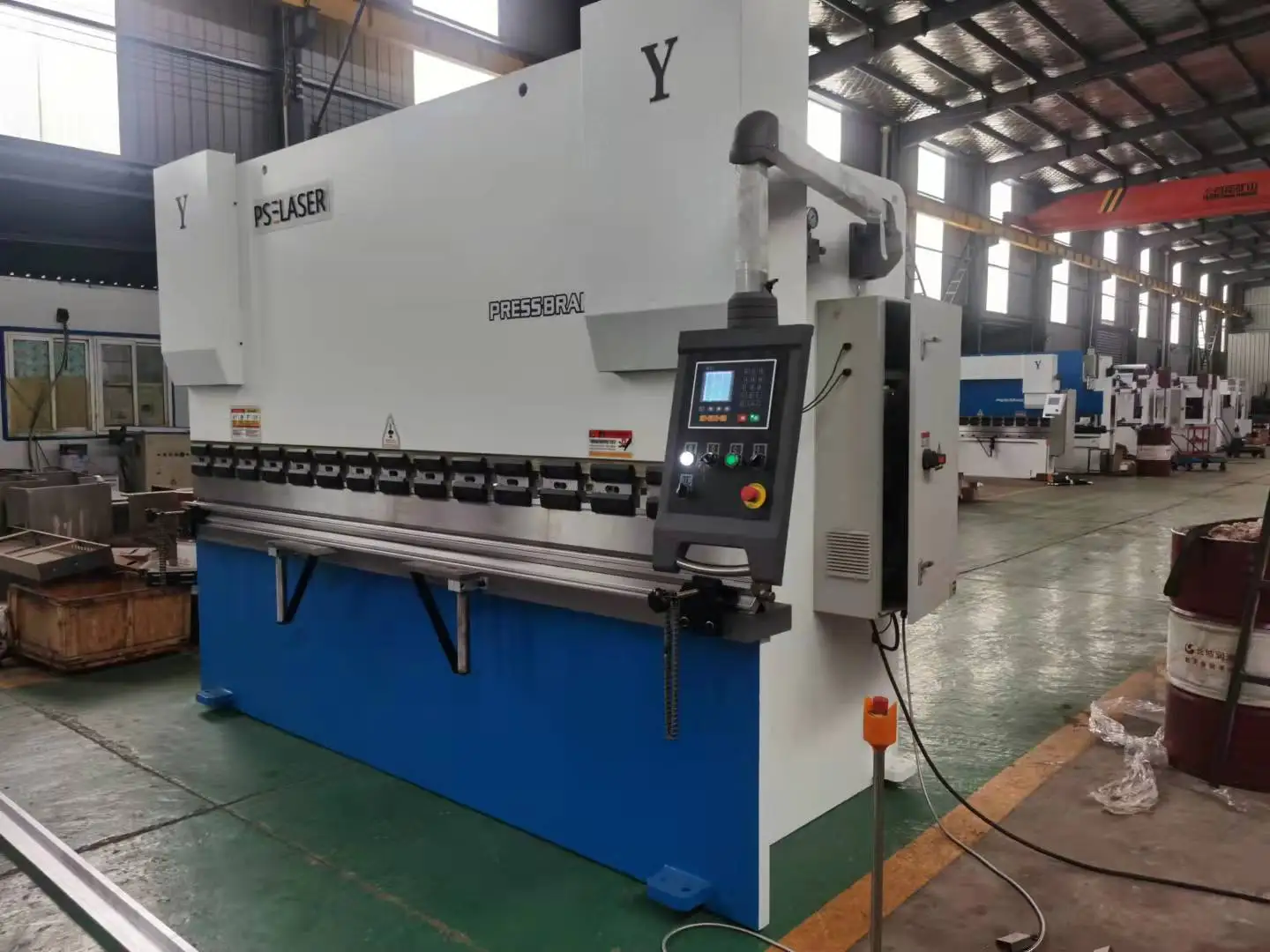

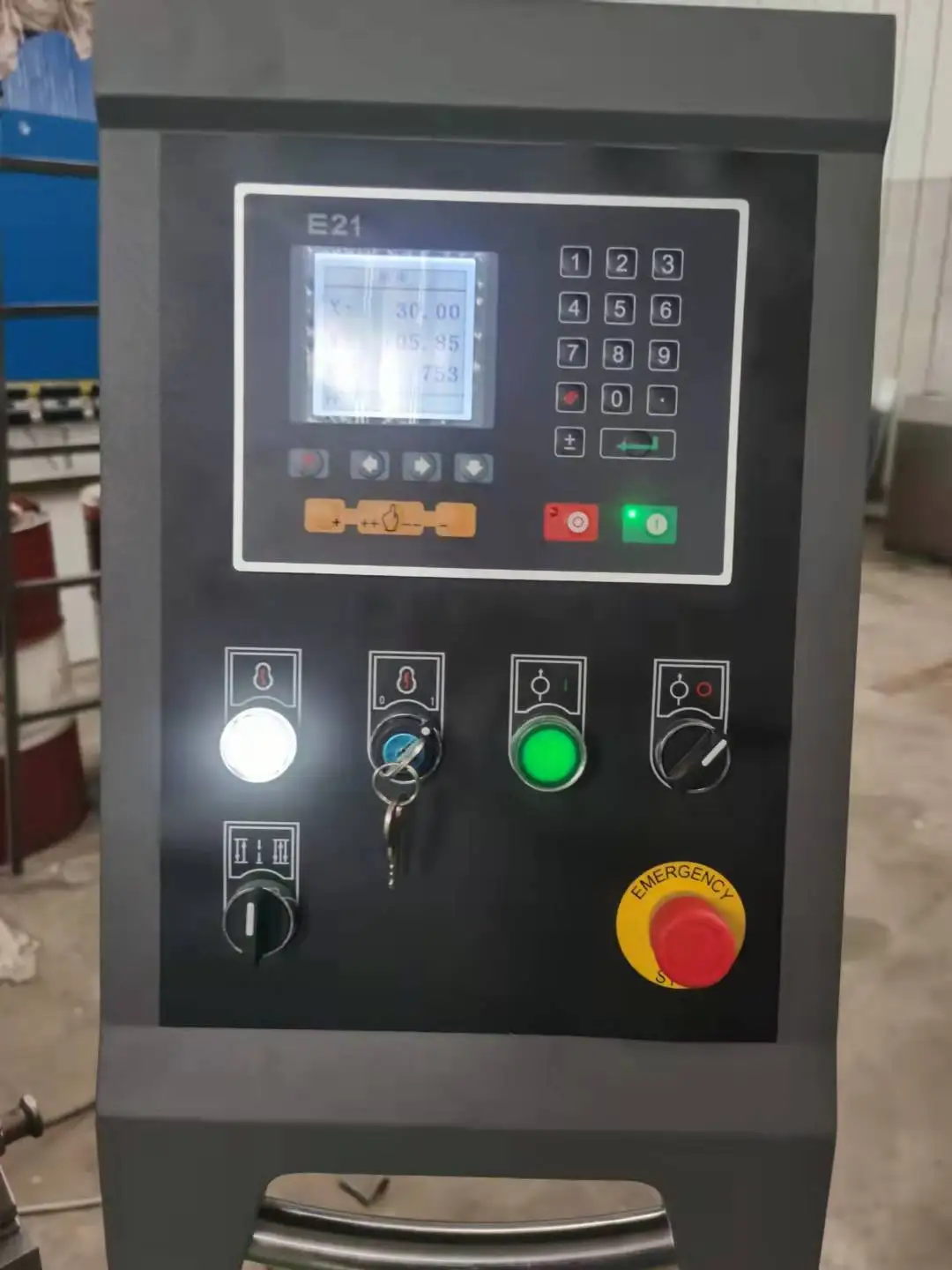

  Estun E21 NC control system

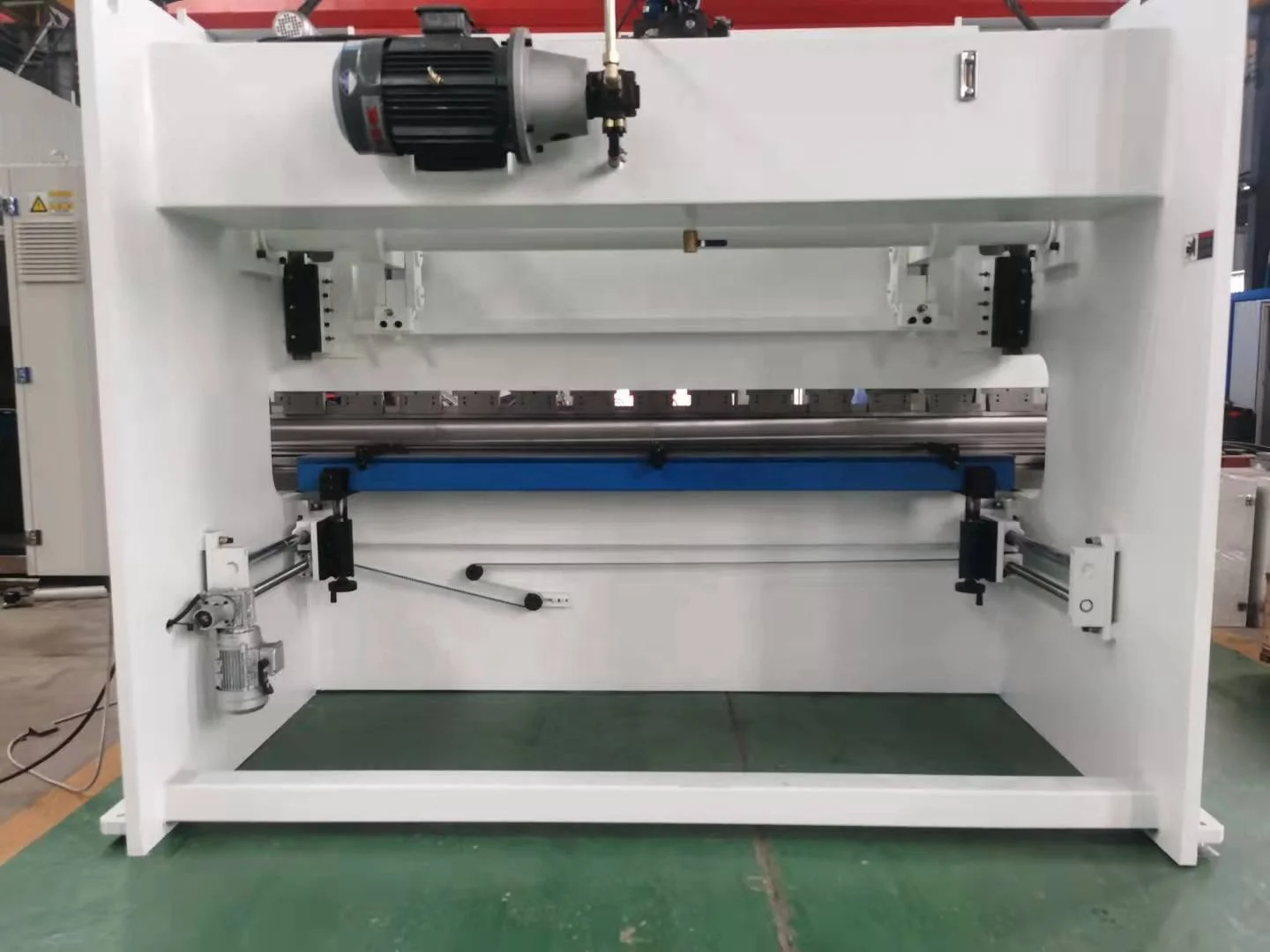

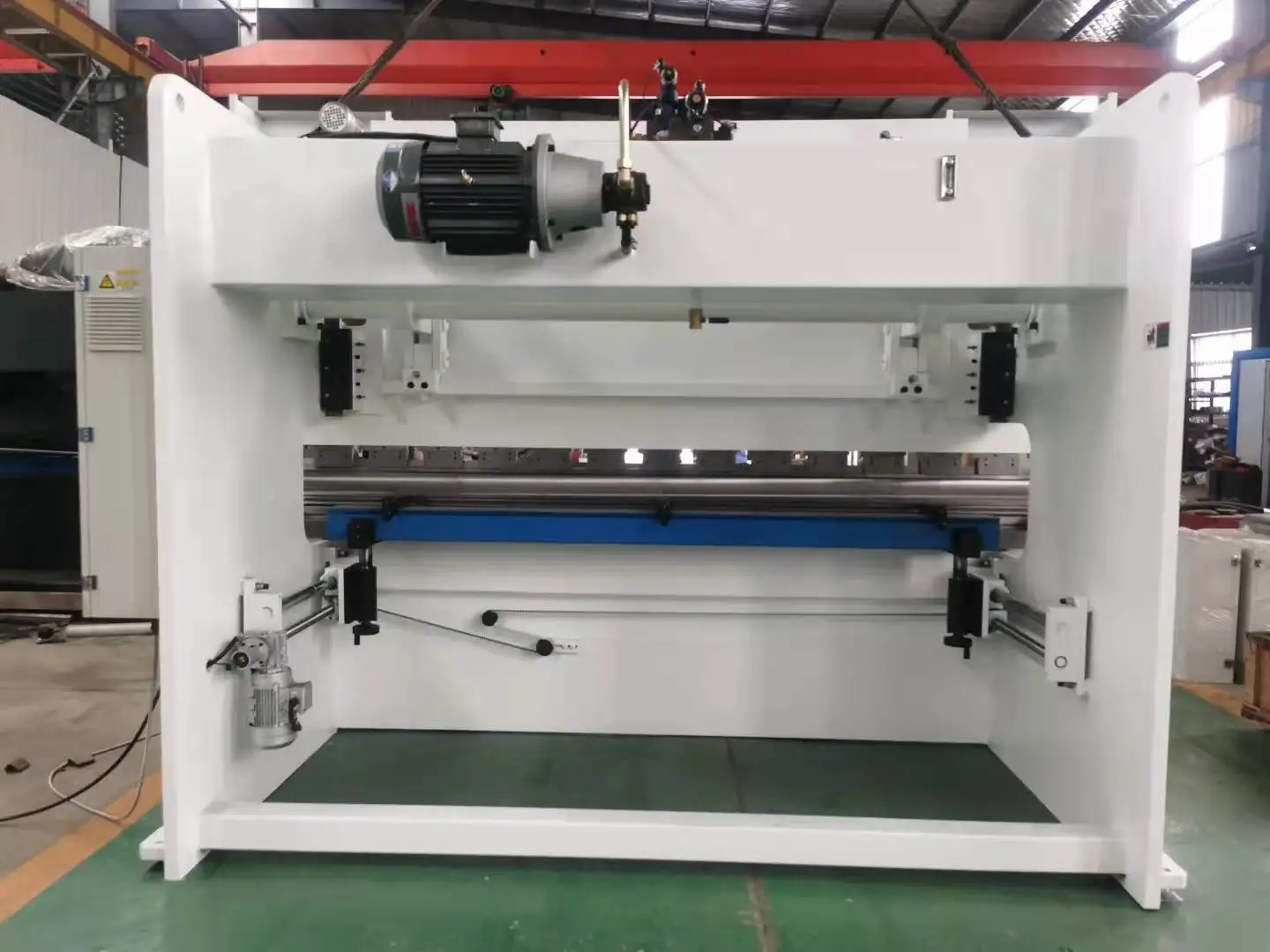

  X-axis and X-axis system control adjustment




  Delta frequency converter controls the positioning of X axis and Y axis

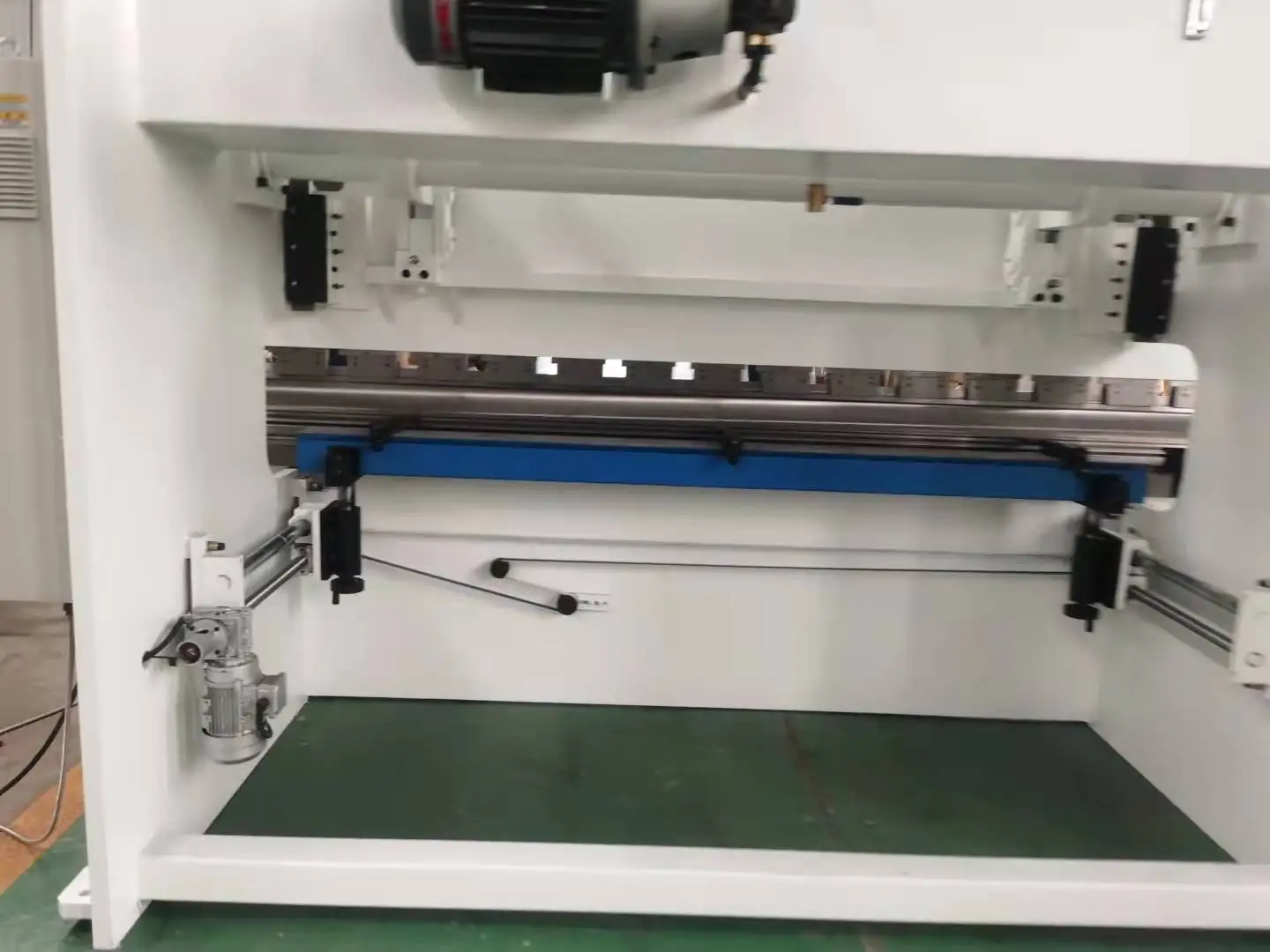

  Using HIWIN ball screw and light bar to ensure the accuracy of 0.05mm.




   Front holder support




   Germany Bosch Rexroth hydraulic valve block




   Germany EMB oil tube connector




   Germany Siemens main motor




   France Schneider Electric




   Hydraulic and electrical overload protection

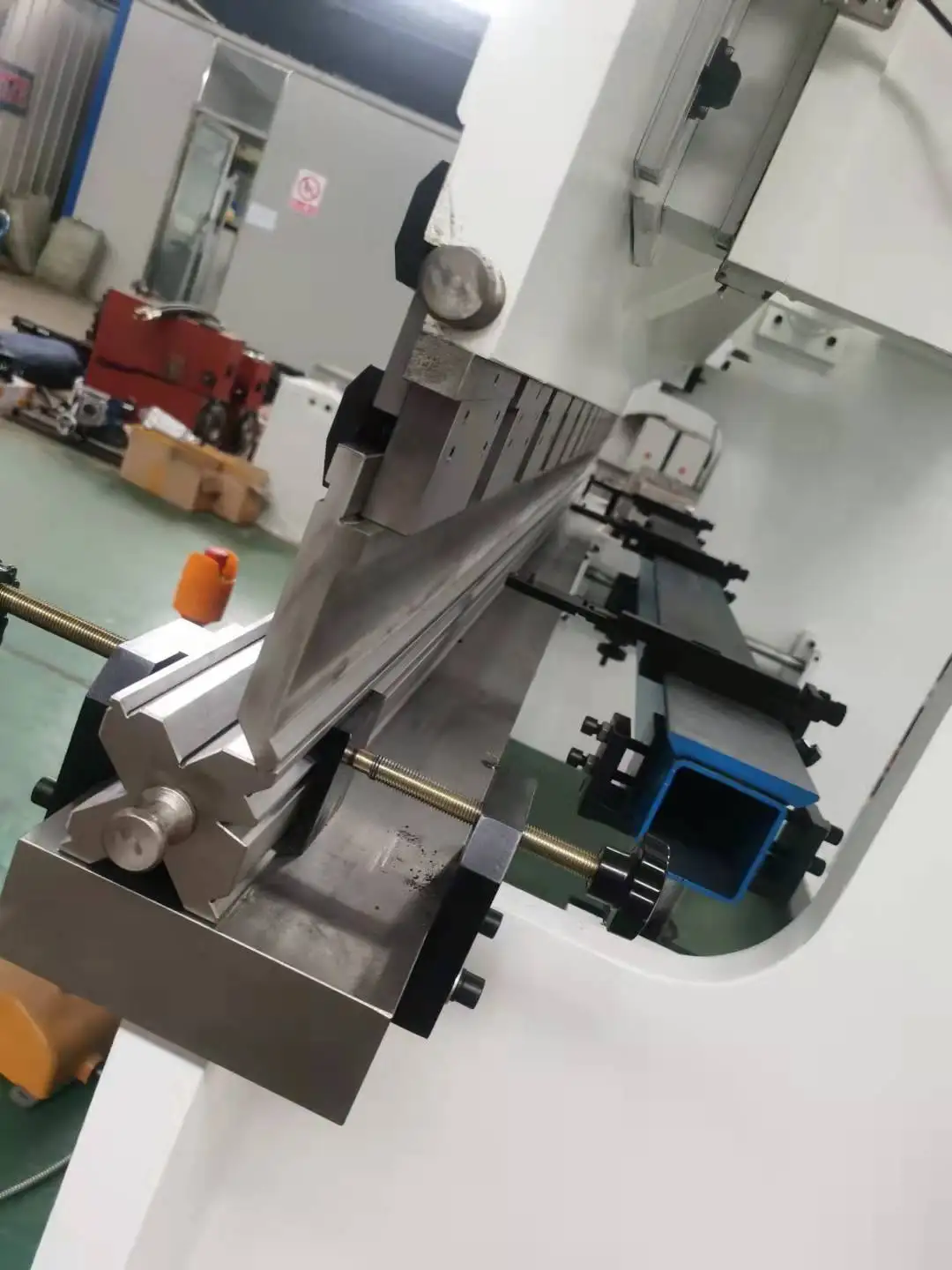

      Top and bottom dies (86 °, R0.6mm, material: 42CrMo)




          Hydraulic CNC Press Brake Machine with DA52S Controller




         Safety Standard:




   Front finger protection (safety light curtain)




   South Korea KACON foot switch (Safety grade 4)




   Rear metal safetyguard and CE standard




   Safety relay monitors foot switch, safety protection




   Safety standards (2006/42 / EC):




  Estun E21 NC Control System:




   Backgauge control




   Control the common motor or inverter




   Intelligent positioning




   Holding pressure unloading time setting




   Workpiece counting




   40 programs stored, 25 steps per program




   Unilateral positioning




   Concession function




   One-key backup / restore




   mm / inch




   Chinese / English
