MS-20L, высокая эффективность, полуавтомат 5-галлонная бутылка ПЭТ бутыло выдувные машины
5 800,00 $

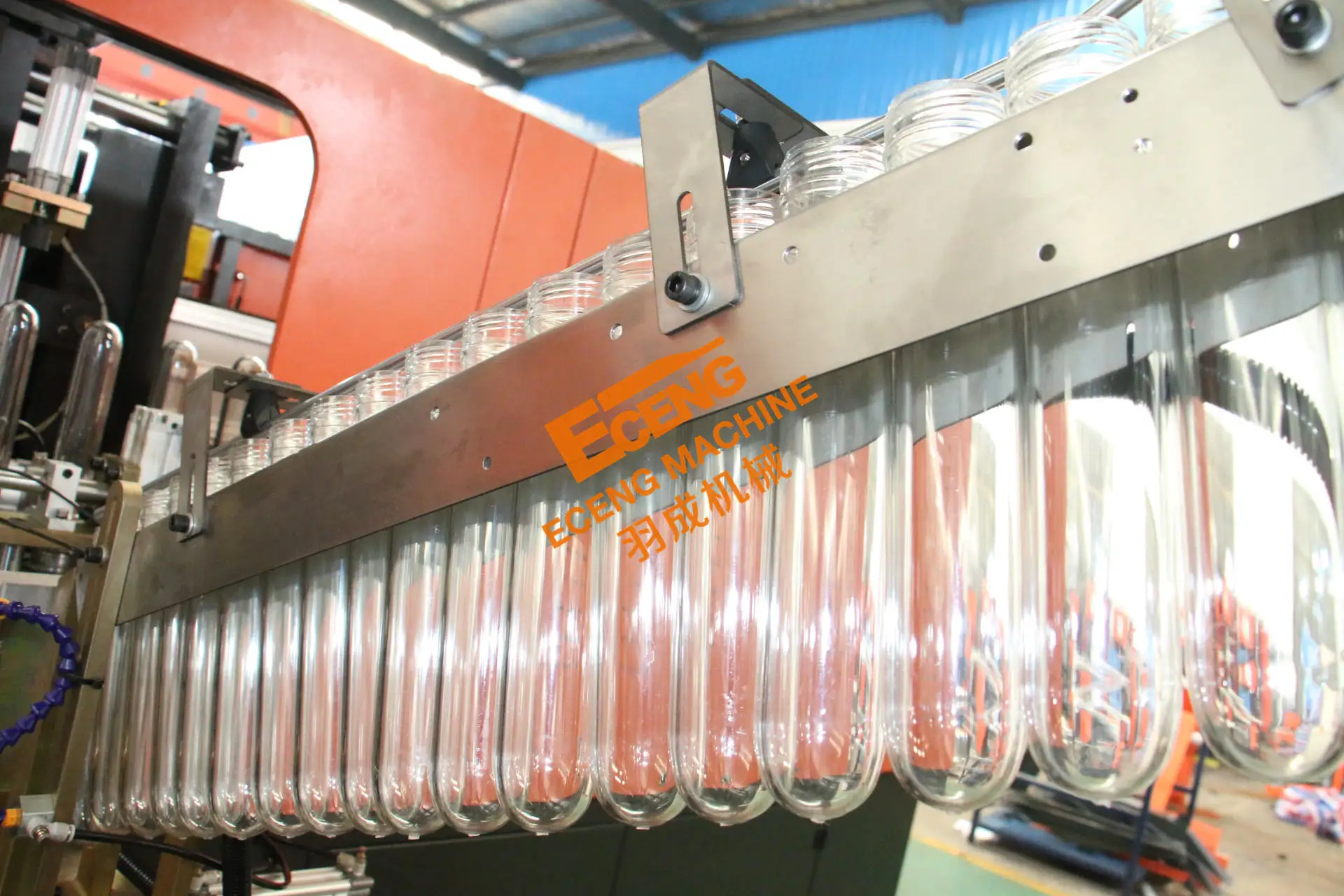

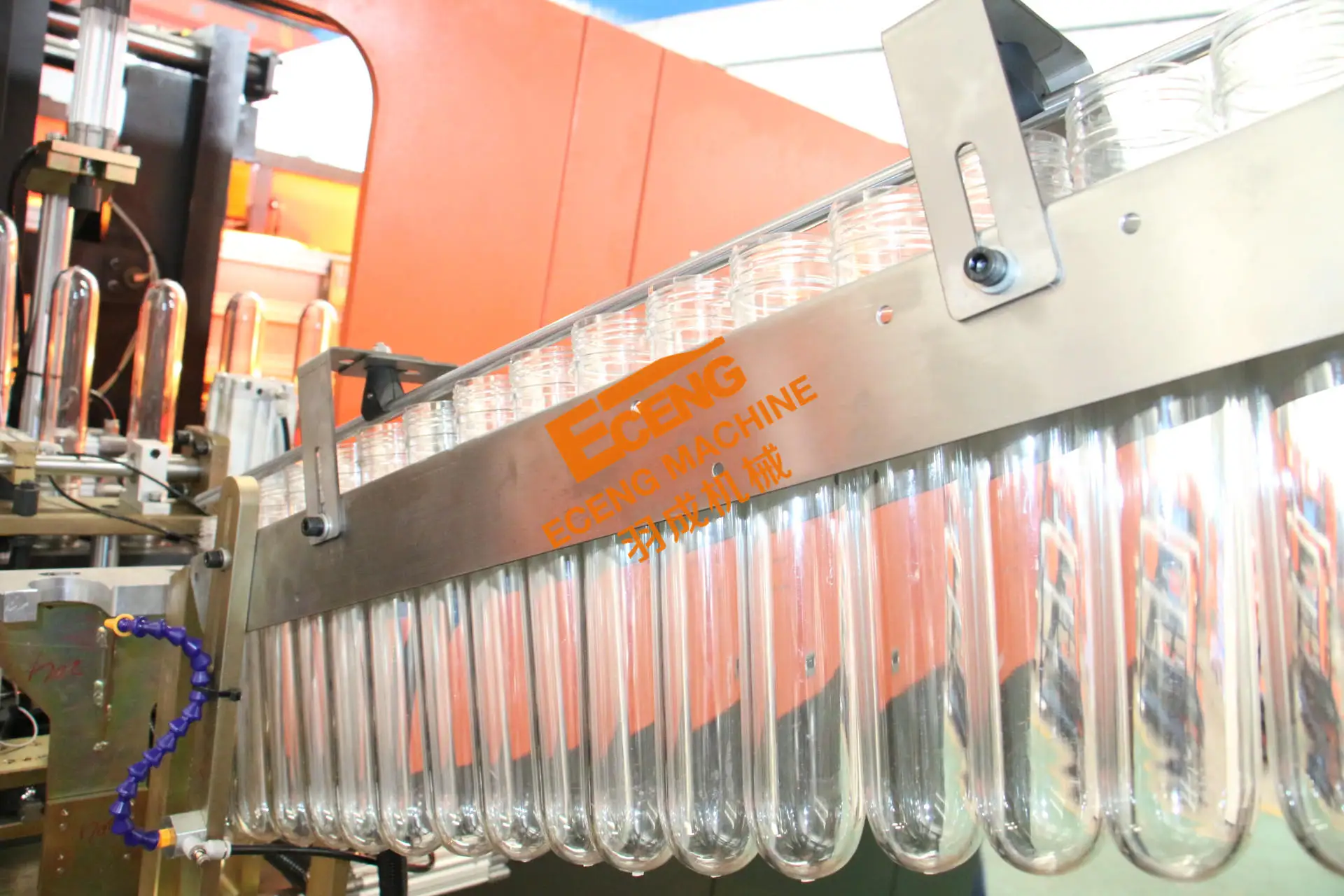

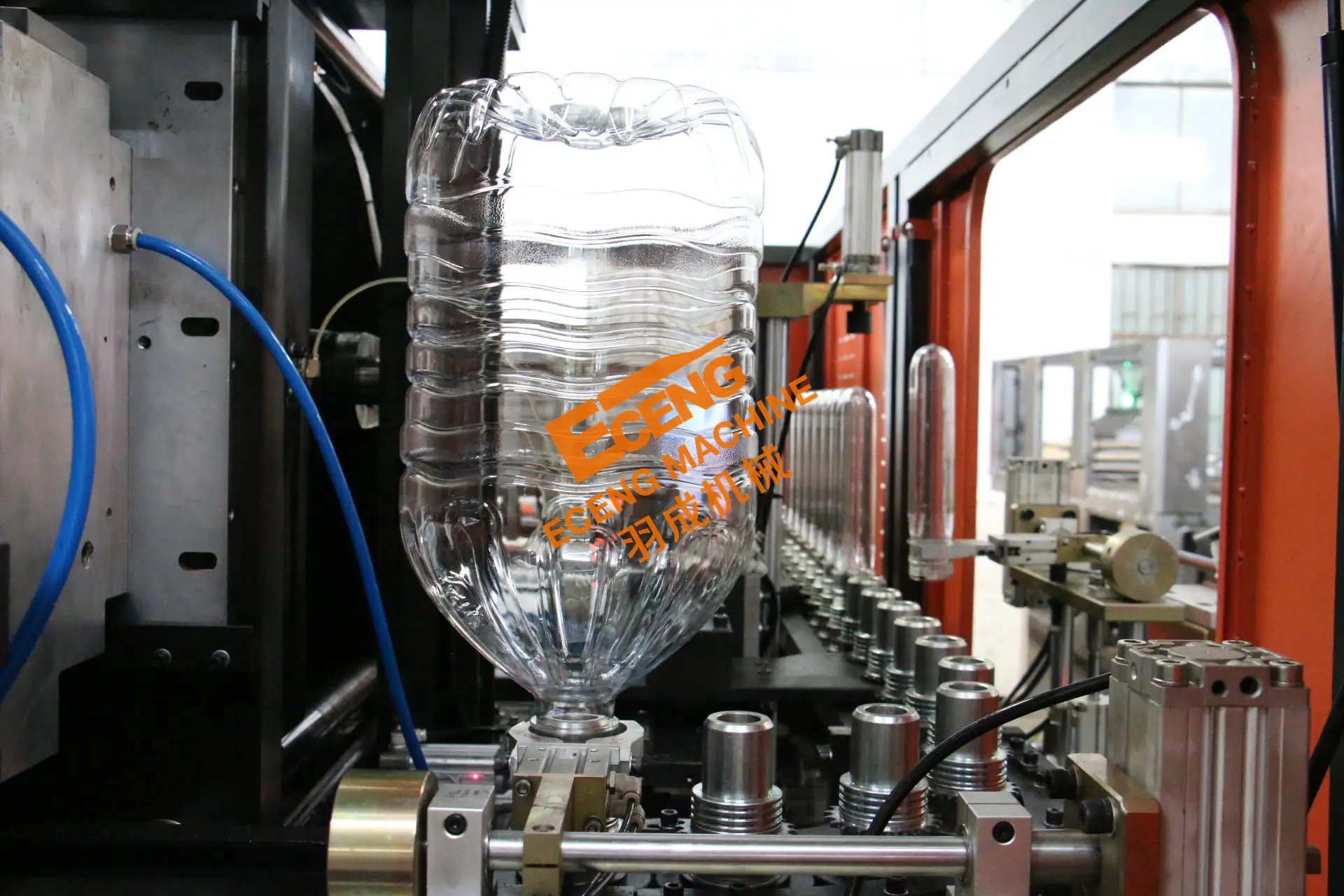

Машина для производства ПЭТ бутылок 1 полость 5 галлонов 20 литров
- Категория: >>>
- Поставщик: Jiangsu New Eceng Machinery Co. Ltd.
Сохранить в закладки 11000000323531:
Описание и отзывы
Характеристики
Product Description
Q20L1 is fully automatic 5gallon 20L 1 cavity big bottle PET blow molding machine. Capacity:400 bottles/hour. Appy to 10-20 Liter
mineral water bottle,pure water bottle,etc. Servo clamping,Servo stretching. All life-long technical support. Less labor,Easy
operaation and easy maintaince.
mineral water bottle,pure water bottle,etc. Servo clamping,Servo stretching. All life-long technical support. Less labor,Easy
operaation and easy maintaince.
Specification
Model | Q20L1 | ||
Bottle type specification | Cavity | 1 | |
Theory output bph | 400 | ||
Max.volum | 20L | ||
Bottle mouth maximum overall diameter | 150mm | ||
Bottle biggest diameter | 350mm | ||
Bottle maximum height | 550mm | ||
Power specification | Light tube quantity | 48pcs | |
Maximum heating power | 72KW | ||
All electric machine installation | 75KW | ||
Actual consumption | 52.5KW | ||
Air pressure specification | Work pressure | 7-9kg/cm2 | |
Low-pressure gas consumption | 1600L/min | ||
Blow bottle pressure | 25-35kg/cm2 | ||
Higher -pressure gas consumption | 2000-3000Ltr/min | ||
Air pressure specification | Work pressure | 5-6 kg/cm2 | |
Temperature range | 10℃ | ||
Consumption | 12000kcal/hr | ||
Forzen water flow | 88L/min | ||
Machine specification | Machine size | 5.2x2.0x2.0 | |
Machine weight | 6ton | ||

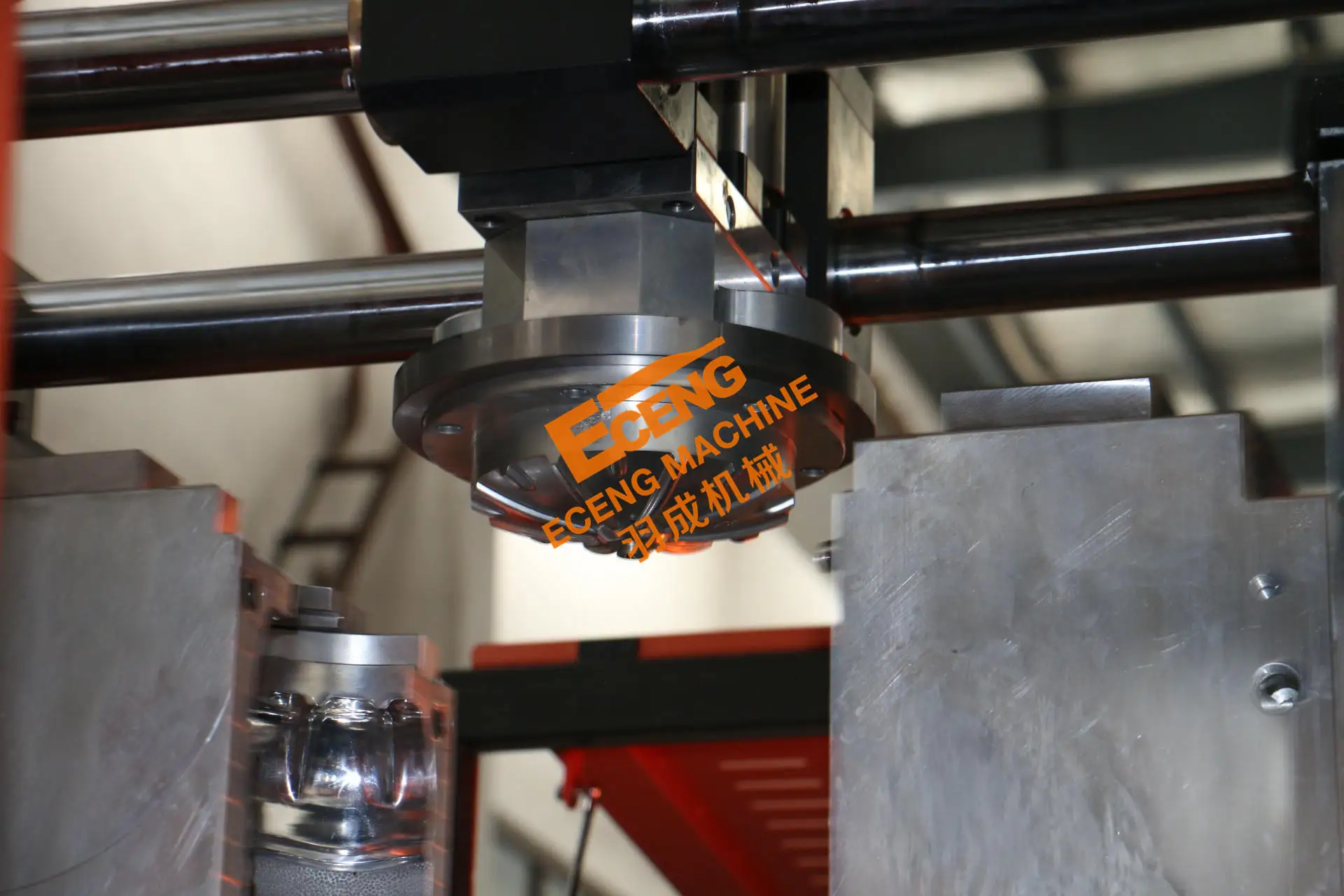

Mould
Technical features of 5 gallon stretch blow molding machine
1. Blowing system: create the high-pressure integration valve group, the single cavity productive capacity is increased by 60%.
2. Concentrated heating system: patent light box provides an even temperature, lamp distance 101mm rather than 240mm from othersand save power by more than 50%.
3. Stretching system: use linear sliding track framework instead of liner bearing, which offers an outstanding improvement of stability.
4. Main transmission system: adopt patent double strand roller chains technology, to assure the demands of stability and highspeed.
5. Hydraulic mould clamping system replace the traditional pneumatic clamping system ,booster pressure from one sides with 2 plateforming to assure the high clamping stability at a pass rage of 99.8%.
1. Blowing system: create the high-pressure integration valve group, the single cavity productive capacity is increased by 60%.
2. Concentrated heating system: patent light box provides an even temperature, lamp distance 101mm rather than 240mm from othersand save power by more than 50%.
3. Stretching system: use linear sliding track framework instead of liner bearing, which offers an outstanding improvement of stability.
4. Main transmission system: adopt patent double strand roller chains technology, to assure the demands of stability and highspeed.
5. Hydraulic mould clamping system replace the traditional pneumatic clamping system ,booster pressure from one sides with 2 plateforming to assure the high clamping stability at a pass rage of 99.8%.
Company Profile
ECENG MACHINE
1 / A standardized workshop with a total area of 20,000 square meters.
2/Founded in 2007,has 13 years of experience in blow molding machines.
3 / Located in Zhangjiagang, only 120km from Shanghai.
4/ The equipment will be tested and run for 24 hours before leaving the factory to ensure the smooth operation of the water pipeline and the stability of the pneumatic, electrical and mechanical.
5/The spare parts inventory is sufficient to ensure timely delivery and supply of spare parts.
ECENG Machine Sales Manager Team and Engineer Team.
1 / Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
2 / The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
4/ The equipment will be tested and run for 24 hours before leaving the factory to ensure the smooth operation of the water pipeline and the stability of the pneumatic, electrical and mechanical.
5/The spare parts inventory is sufficient to ensure timely delivery and supply of spare parts.
ECENG Machine Sales Manager Team and Engineer Team.
1 / Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
2 / The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
Product packaging
Exhibition
After Sale Sercive
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing
capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and
operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing
capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and
operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
FAQ
1.Your company is a trading company or a direct factory?
We are a direct factory located in Zhangjiagang City. Very close to Shanghai and Wuxi (airport and train provided). If you arrive in Shanghai or Wuxi, we can pick you up to visit our factory.
2.If we buy your machine, what is your guarantee or guarantee of quality?
We provide you with high-quality machines with 1-year warranty and lifetime technical support.
3.How to ensure the safety of your funds and deliver on time?
1/Through Alibaba's letter guarantee service, it will ensure on-time delivery and the quality of the equipment to be purchased.
2/Through the letter of credit, you can easily lock the delivery time.
3/After visiting the factory, you can ensure the authenticity of our bank account.
4.Check how ECENG MACHINE ensures quality!
1/In order to ensure the accuracy of each part, we are equipped with various professional processing equipment, and we have accumulated professional processing methods in the past few years.
2/Each component before assembly needs to be strictly controlled by inspectors.
3/After all equipment is completed, we will connect all machines and run the entire production line for at least 12 hours to ensure the stable operation of the customer’s factory.
We are a direct factory located in Zhangjiagang City. Very close to Shanghai and Wuxi (airport and train provided). If you arrive in Shanghai or Wuxi, we can pick you up to visit our factory.
2.If we buy your machine, what is your guarantee or guarantee of quality?
We provide you with high-quality machines with 1-year warranty and lifetime technical support.
3.How to ensure the safety of your funds and deliver on time?
1/Through Alibaba's letter guarantee service, it will ensure on-time delivery and the quality of the equipment to be purchased.
2/Through the letter of credit, you can easily lock the delivery time.
3/After visiting the factory, you can ensure the authenticity of our bank account.
4.Check how ECENG MACHINE ensures quality!
1/In order to ensure the accuracy of each part, we are equipped with various professional processing equipment, and we have accumulated professional processing methods in the past few years.
2/Each component before assembly needs to be strictly controlled by inspectors.
3/After all equipment is completed, we will connect all machines and run the entire production line for at least 12 hours to ensure the stable operation of the customer’s factory.
Похожие товары
A-F100 Заводская распродажа различные широко используется в хорошем рассеивания долговечность белый порошок
2,90 $ - 3,00 $

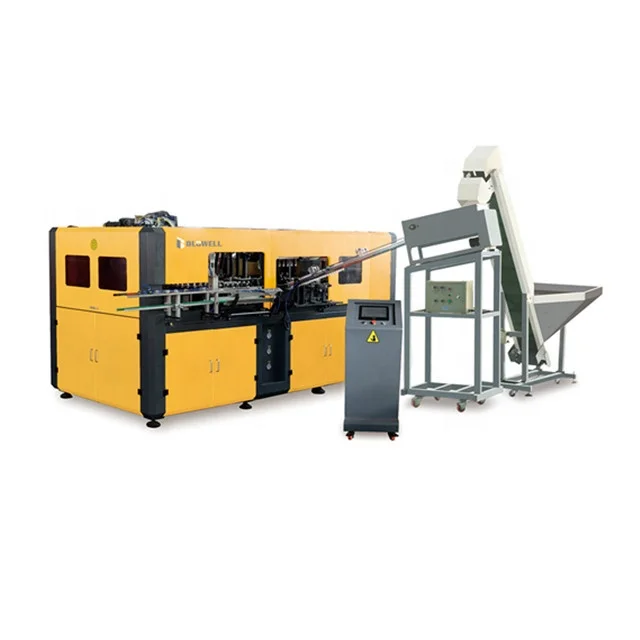

Полностью автоматическая машина для производства пластиковых бутылок объемом 19 литров и 20 литров, 5 галлонов

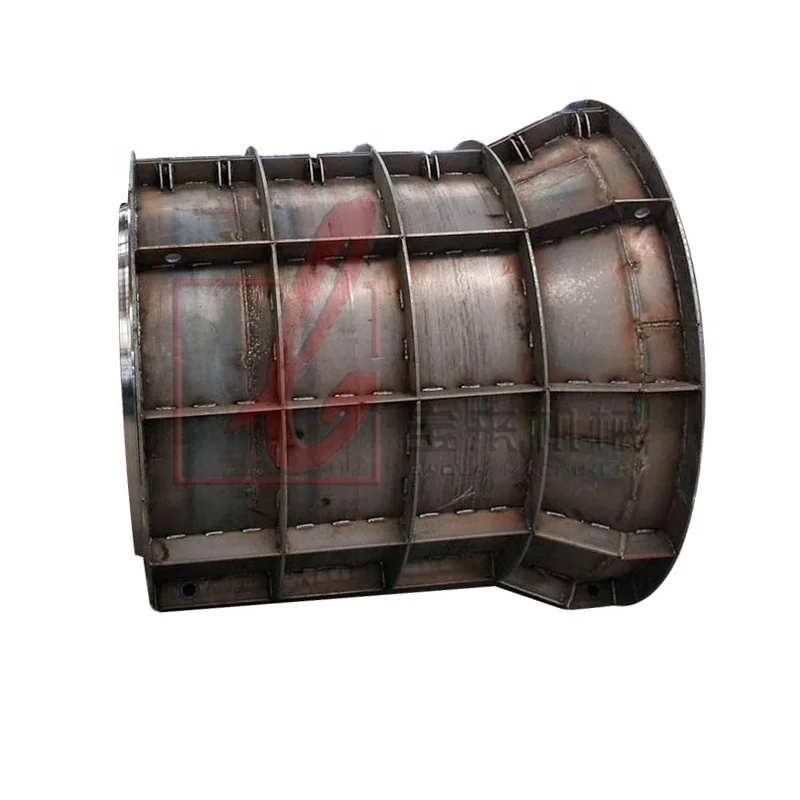

Формовочная машина для производства железобетонных труб/труб
