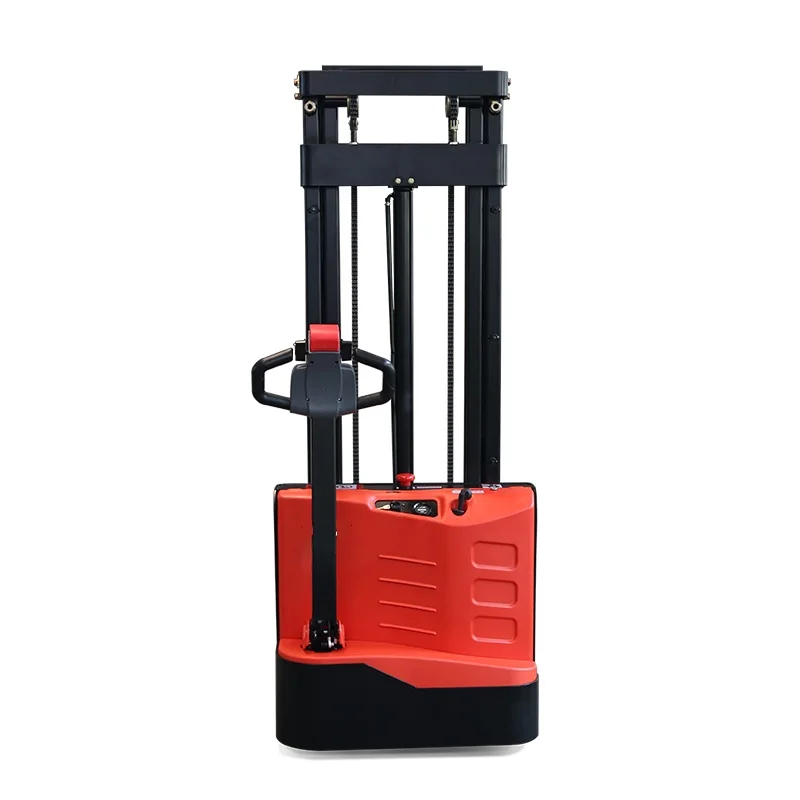

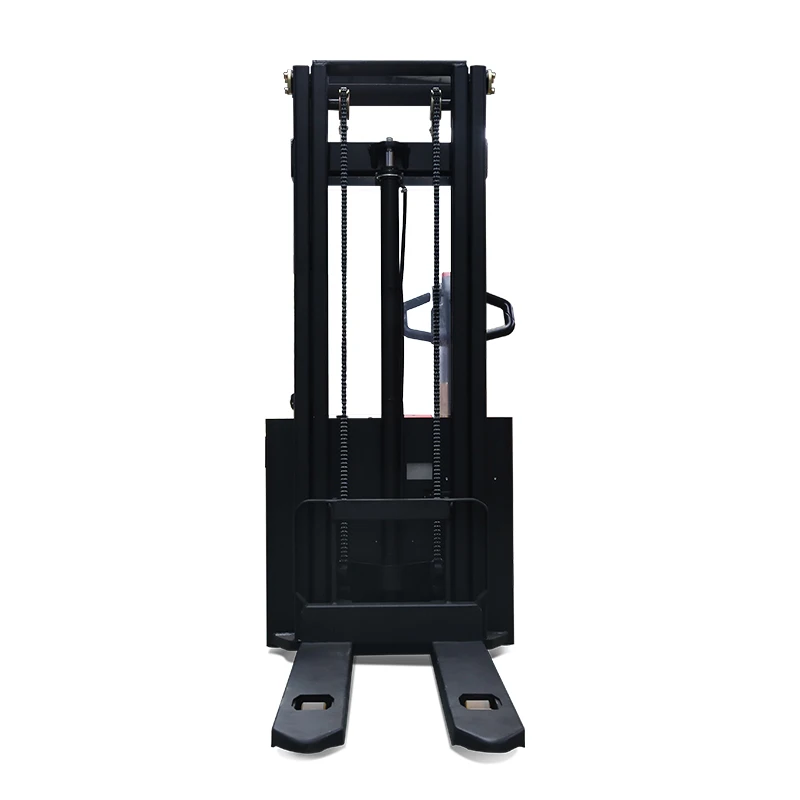

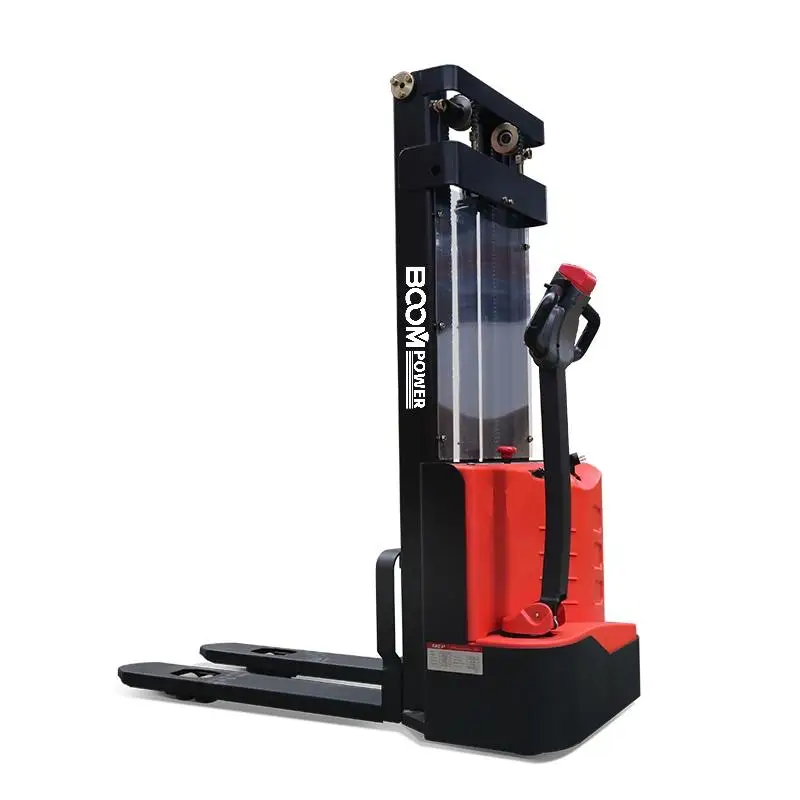

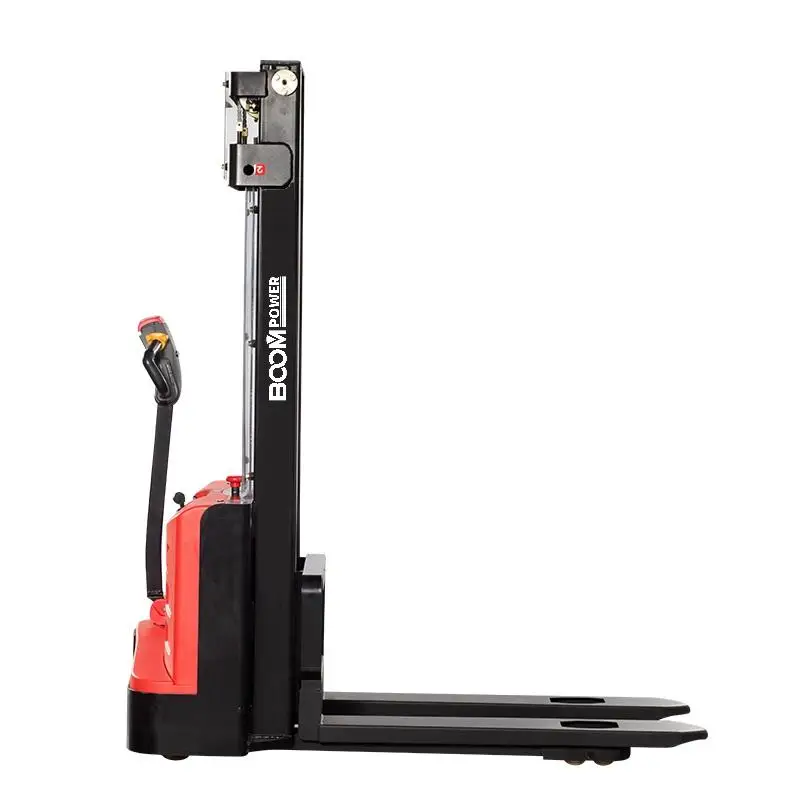

Product features of 1.2 ton BM12-12ES Electric Forklift Stacker
High performance, high reliability
◆High-strength structure design;◆Dedicated drive and hydraulic system to ensure high reliability of the whole vehicle operation;
◆Low-noise and low-fault hydraulic station, cylinders and pipelines that have undergone multi-layer testing and testing ensure the high reliability of the hydraulic system;
◆Reliable quality American AMP waterproof connectors and electrical components, all wires and cables are reliably protected and fixed, which greatly reduces electrical failures.
safer
◆The hydraulic system has an explosion-proof design, even if the tubing bursts, the mast will not drop quickly, improving safety;◆Emergency reverse driving function, so that the operator can avoid injury;
◆Emergency power-off switch, when the operation is out of control, it can easily cut off all power sources to avoid emergency accidents;
◆Multiple lifting limits make stacking safer;
◆After the fork is lifted to a certain height, the vehicle will automatically switch to the slow mode, which is safer;
◆Anti-skid braking function to prevent the car from sliding down when it loses control or is driving on a slope;
◆Bias control to avoid collision between the operator and the vehicle body during driving.
Easy to operate
◆Fully consider the ergonomic design of the handle head, and the function buttons are convenient and easy to operate;◆The longer control handle greatly reduces the force required to control the car, making the control lighter;
◆Compact design, ultra-small working radius;
◆Bias control greatly improves the field of vision;
◆Built-in charger, no need for special charging equipment.
Easy to maintain
◆Maintenance-free battery;◆Equipped with timer and electricity meter, it is convenient to remind the operator to charge in time and protect the battery;
◆The body is easy to disassemble and assemble. Only by unscrewing 2 screws and removing the back cover, the main key components can be inspected, repaired and replaced;
◆The controller self-diagnosis system, through the handheld unit to display the fault code, it is more convenient to solve the fault;
◆Low voltage automatic protection, prolong battery life.
Product Details
High-strength structure design
Fully consider the ergonomic design of the handle head, and the function buttons are convenient and easy to operate
The body is easy to disassemble and assemble. Only by unscrewing 2 screws and removing the back cover, the main key components can be inspected, repaired and replaced
Emergency power-off switch, when the operation is out of control, it can easily cut off all power sources to avoid emergency accidents
Product Paramenters
Feature | ||
Brand | BOOMPOWER | |
Model | BM12-12ES | |
Power Type | Electric | |
Operation Type | Walking | |
Rated Load | 1200(kg) | |
Load Center Distance | 600(mm) | |
Carrying Length | 790(mm) | |
Wheelbase | 1240(mm) | |
weight | ||
Weight (including battery) | 661(kg) | |
Tires, chassis | ||
Tyre type | Polyurethane | |
Size | ||
The lowest height after the mast is lowered | 2052(mm) | |
Maximum lifting height of standard mast | 2930(mm) | |
The height of the mast at the highest lift | 3487(mm) | |
Min/max height of handle | 860/1200(mm) | |
Height after the fork is lowered | 88(mm) | |
Vehicle length | 1740(mm) | |
The length of the vertical surface of the fork | 590(mm) | |
Overall width | 800(mm) | |
Fork size | 55/160/1150(mm) | |
Outer width of fork | 600(mm) | |
The pallet is 1000 × 1200 crossing aisle width | 560(mm) | |
The pallet is 800 × 1200 cross aisle width | 2225(mm) | |
The lowest height after the mast is lowered | 2150(mm) | |
Turning radius | 1408(mm) | |
Performance parameter | ||
Walking speed, fully loaded/unloaded | 4/4.5km/ h | |
Lifting speed, fully loaded/unloaded | 0.12/0.22m/ s | |
Lowering speed, fully loaded/unloaded | 0.12/0.11m/ s | |
Maximum gradeability, fully loaded/unloaded | 3/10% | |
Service brake type | Electromagnetic | |
Electric motor, power unit | ||
Drive motor rated power S2 60 minutes | 0.65(kW) | |
Lifting motor rated power S3 15% | 2.2kW | |
Battery voltage/nominal capacity | 2*12V/105Ah | |
Drive/lifting mechanism | ||
Drive control type | DC | |
Other parameters | ||
Steering type | mechanical | |
Noise level | 74dB (A) | |
