Лучшая цена в упаковке Bag in Box наполнитель наполнительная машина сумки коробке коробка упаковки для энергетических
- Категория: >>>
- Поставщик: Durzerd Packaging Machinery Co. Ltd.
Сохранить в закладки 11000000378816:
Описание и отзывы
Характеристики
Name | Automatic cartoning machine |
Model | ZD-100B |
Cartoning speed | 30-60 boxes/min |
Carton specifications | L(55-200)×W(14-90)×H(14-90)mm customize according to your requirement |
Carton quality requirement | 250~350g/m3 |
Power supply | Three-phase 380V 50Hz |
Main motor power | 1.5KW |
Compressed air pressure | 0.6~0.8Mpa |
Compressed air consumption | 20m3/h |
Noise | Less than 80dB |
Dimensions (L×W×H) | 4200×1100×1900 mm |
Weight | 1500KG |
Product Introduction:

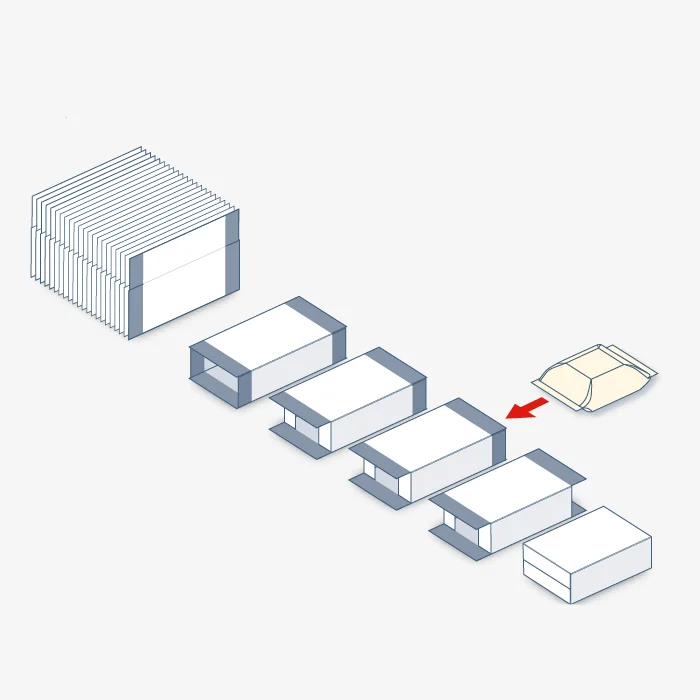

The cartoning machine is a special sachets bag model developed by our company according to market demand. It can realize a series of functions such as online automatic box opening, automatic box insertion, manual folding, automatic boxing of materials and manuals, box sealing, detection and so on.
The cartoning machine is a special sachets bag model developed by our company according to market demand. It can realize a series of functions such as online automatic box opening, automatic box insertion, manual folding, automatic boxing of materials and manuals, box sealing, detection and so on.

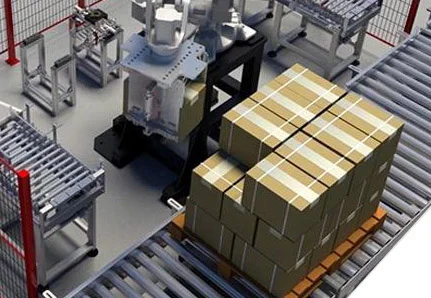

Commonly used hand grips of palletizing robots mainly include:

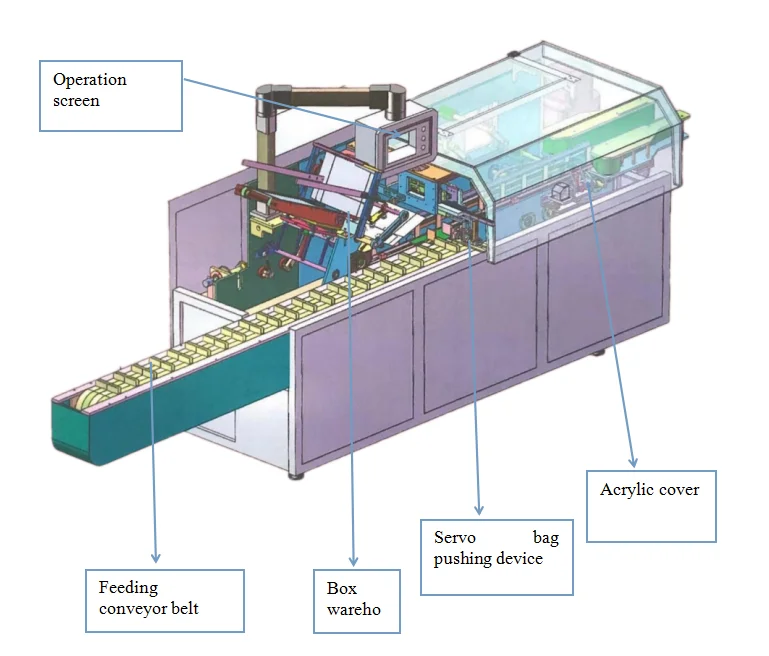

Conveying silo: In order to achieve the best feeding and boxing effect, we will customize the design of the conveying silo style according to the customer's products. According to the characteristics of the product, our silo may be different

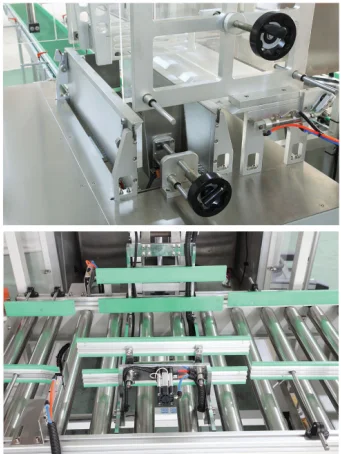

Box warehouse: In order to meet the customer's multi-specification product boxing requirements,
The box warehouse is designed as an adjustable mode, which is convenient for customers to change boxes of different specifications.
The box warehouse is designed as an adjustable mode, which is convenient for customers to change boxes of different specifications.
Material pushing device: servo material pushing, optical eye detection, no material will not be put into the box, which can avoid the appearance of empty boxes.
Carton close

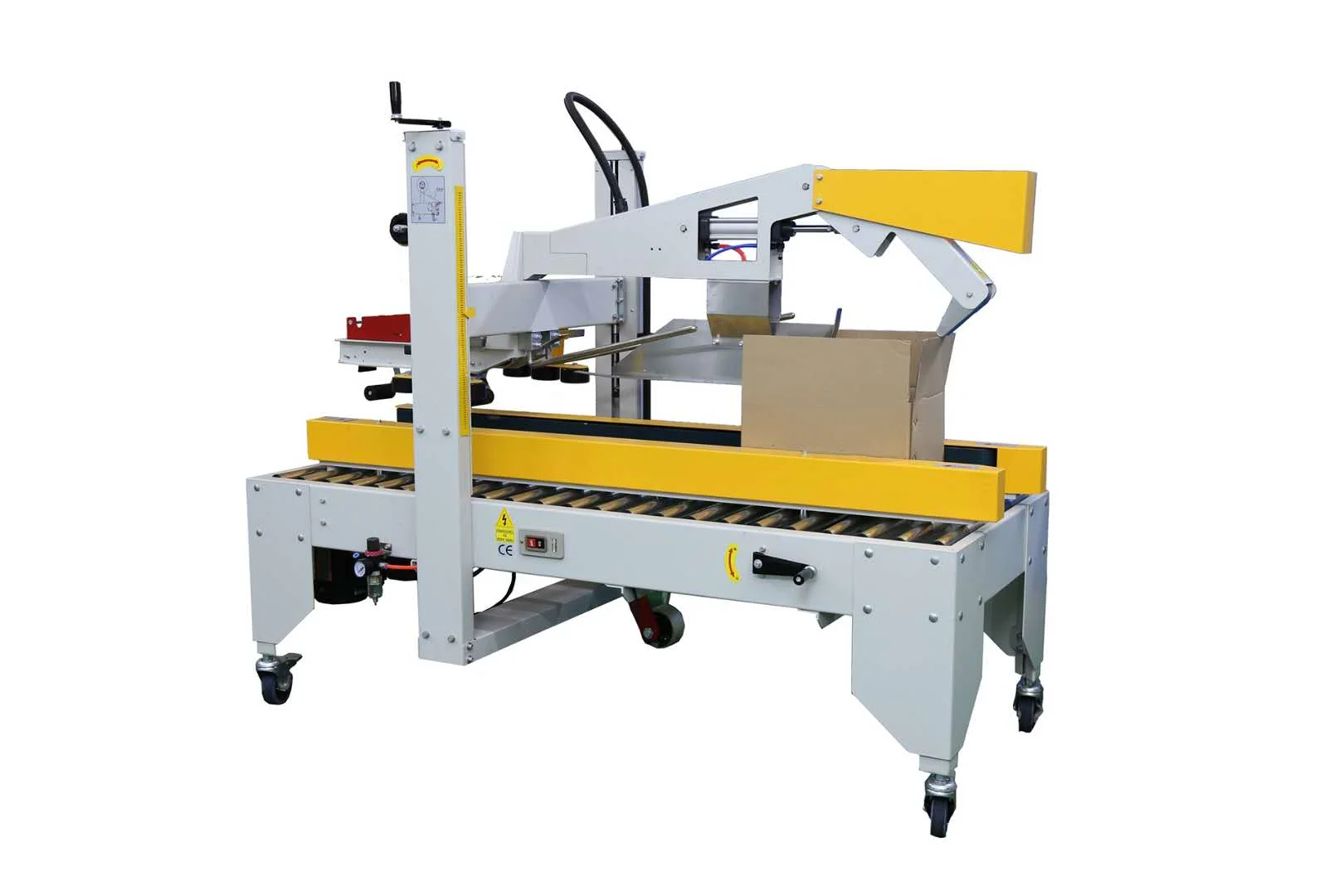

Hot melt glue and carton sealing

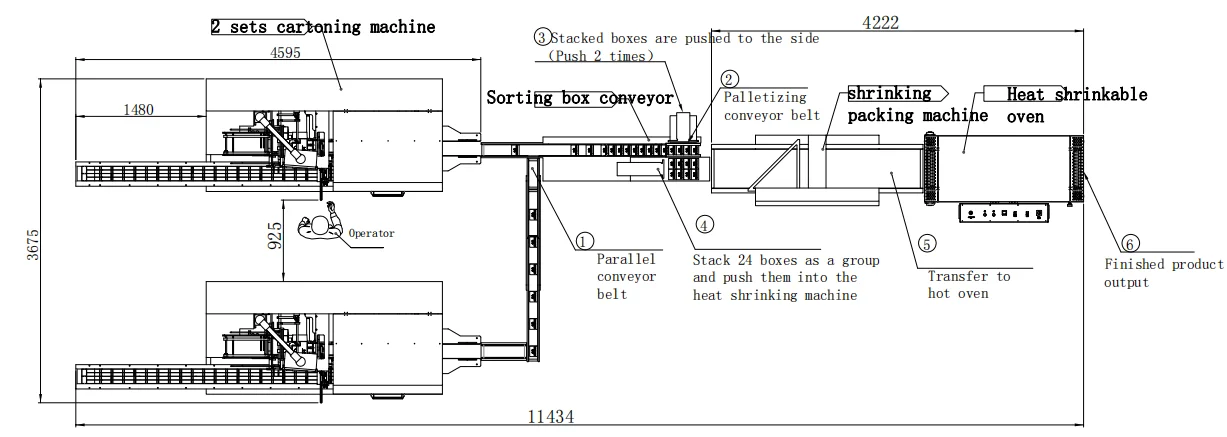

Finished product output port: with conveyor belt, can be connected to the three-dimensional packaging machine
Standard features
●PLC programme
●Germany sick photocell
●Vacuum assisted pre-break
●various size are avaliable in machine within machine size range
●without product, carton will be not sucked down
●Auto display trouble, alarm and count finished product
●Overload protection
Optional features
●hot melt glue (can be AMERICAN NORDSON, SWITZERLAND ROBATECH)
●other brand like SIMENS (inverter, PLC, touch screen)
Q1: Are you a factory or a trading company?
A1:We are the factory with manufacturing and self-supporting import and export rights for more than 25 years.
Q2: How to choose suitable packaging machine?
A2:Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3: How about the payment way?
A3:Payment can be T/T, L/C etc. we can provide FOB, CNF, CIF term by sea.
Q4: How to ensure the quality of the machine?
A4:We usually delivery the machine after successful inspection in our factory. We have our own quality control department,before the delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q5: How to install the equipment?
A5:We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay for round-trip air tickets, meals, room expenses and a daily subsidy of 150 US dollars.
A1:We are the factory with manufacturing and self-supporting import and export rights for more than 25 years.
Q2: How to choose suitable packaging machine?
A2:Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3: How about the payment way?
A3:Payment can be T/T, L/C etc. we can provide FOB, CNF, CIF term by sea.
Q4: How to ensure the quality of the machine?
A4:We usually delivery the machine after successful inspection in our factory. We have our own quality control department,before the delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q5: How to install the equipment?
A5:We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay for round-trip air tickets, meals, room expenses and a daily subsidy of 150 US dollars.
Похожие товары
Метанол, оптом, спирт, метанол, продажа
Пользовательская компьютерная голографическая этикетка для логотипа компании
Вьетнам Оптовая поставка кокоса на экспорт 100% натуральный свежий кокос
WILDSROF наружный производитель оптовая продажа водонепроницаемая портативная палатка для пикапа задняя фургона оборудование
56,30 $ - 59,99 $
BIOBASE bioten в наличии шины для легкового автомобиля клинико-анализ Микропланшетный считыватель BK-EL10C с 8-канальный Вертикальная оптическая система

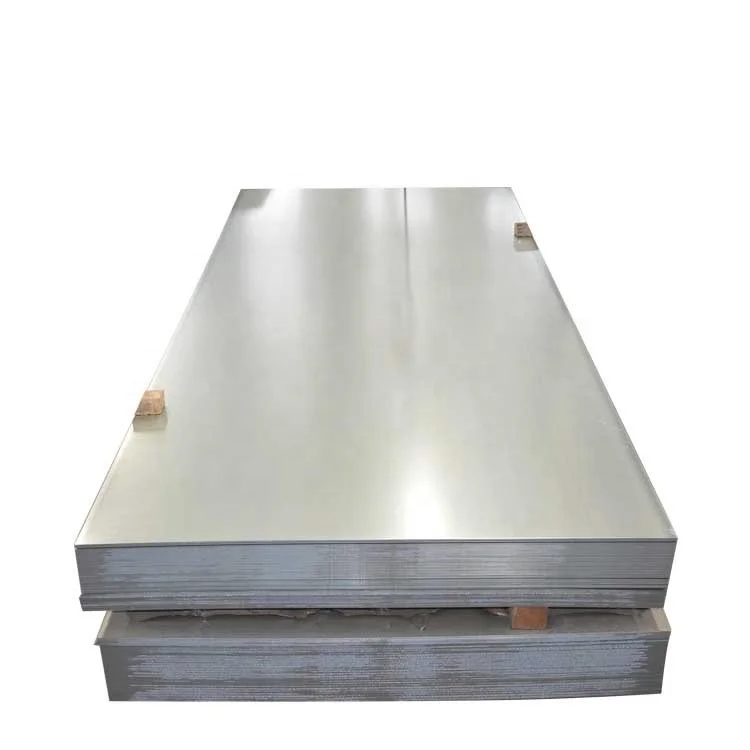

Стальные пластины dx51d z275 из оцинкованной стали холодные стальные железный
