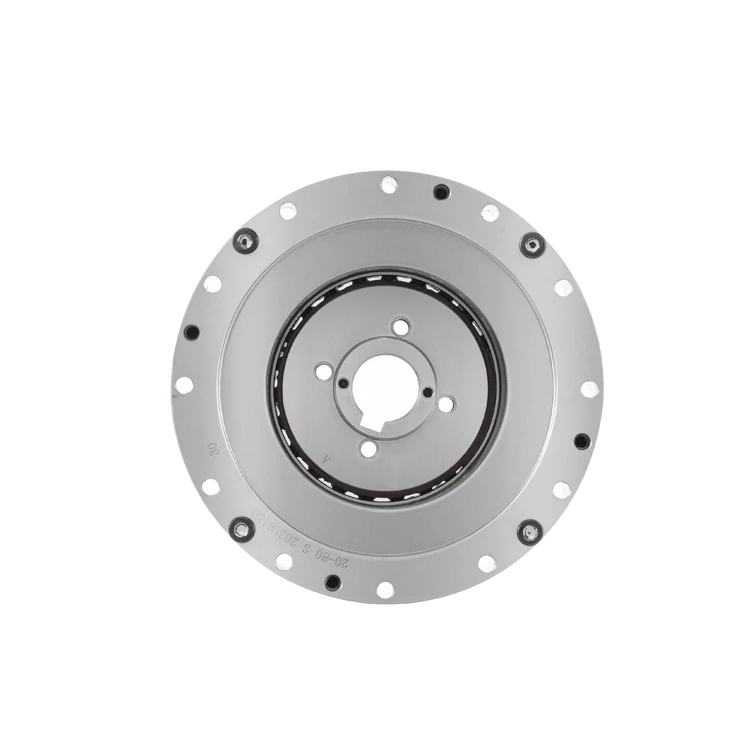

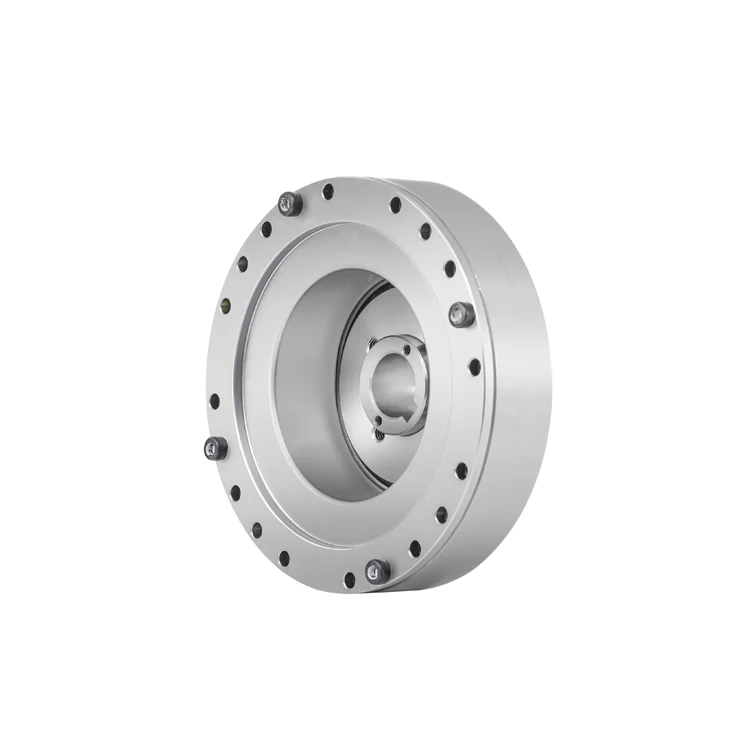

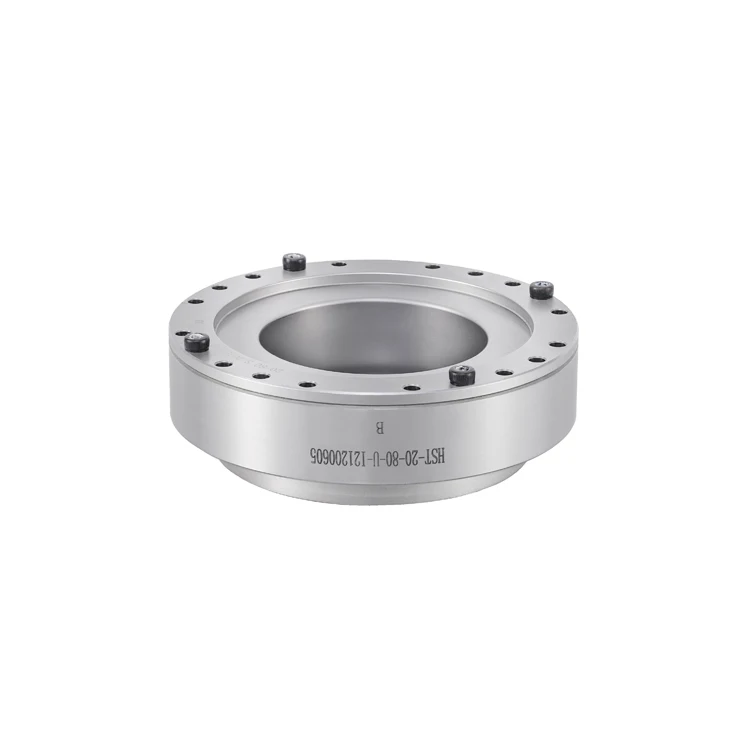

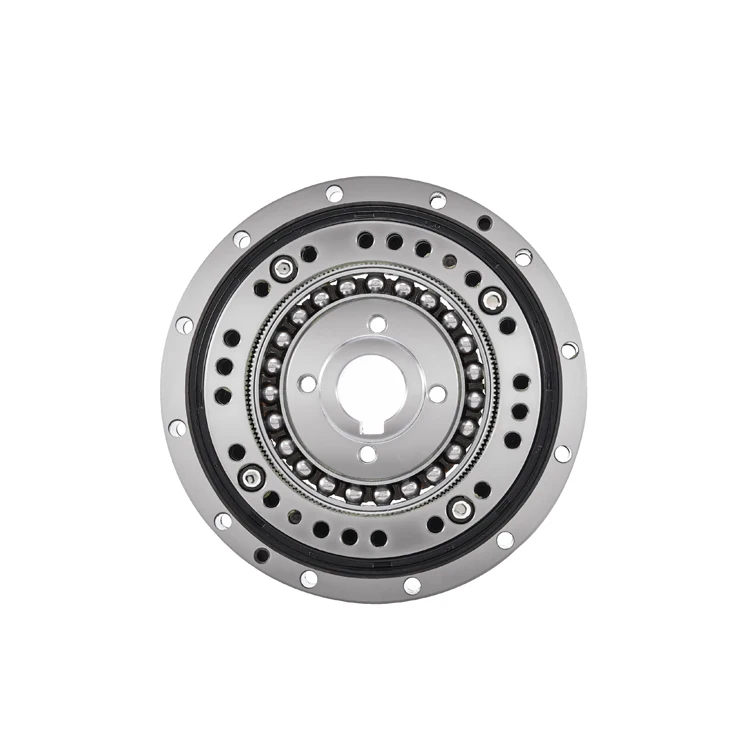

Привод коробки передач с гармоническим приводом для стоматологического оборудования
- Категория: >>>
- Поставщик: Shenzhen Diwager Technology Co. Ltd.
Сохранить в закладки 11000000405934:
Описание и отзывы
Характеристики
Overview
FEATURES AT A GLANCE
1.Flexspline are hollow flanging standard cylinder structure
2.The structure of the whole machine is compact. The input shaft is directly matched with the inner hole of the wave generator and connected through flat keys
connect.
3.It can be fixed at the circular spline and output at the flexspline.
4.The flexspline is fixed, and the circular spline output is connected.
2.The structure of the whole machine is compact. The input shaft is directly matched with the inner hole of the wave generator and connected through flat keys
connect.
3.It can be fixed at the circular spline and output at the flexspline.
4.The flexspline is fixed, and the circular spline output is connected.

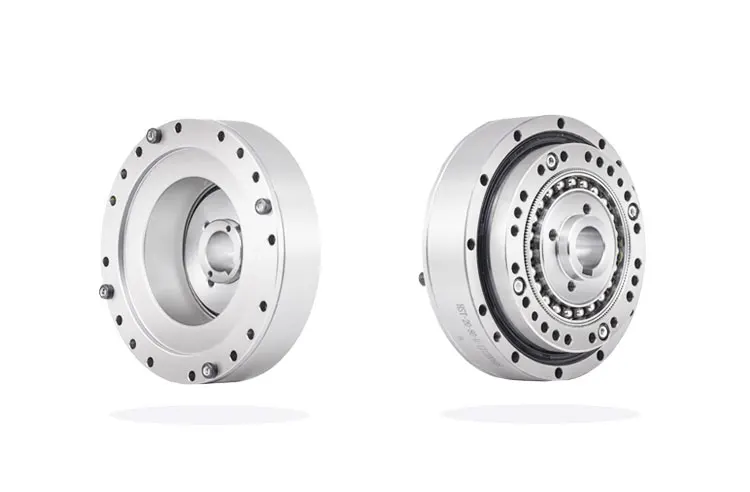

Right elevation
Left elevation
Front elevation
Products Description

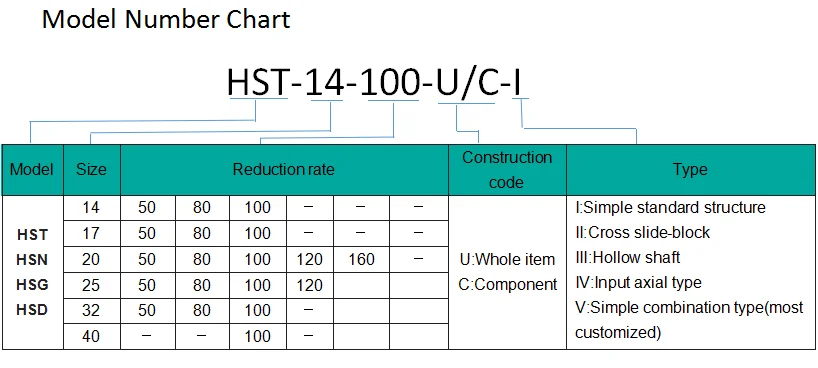

HST-III Parameter:
HST-I parameter
Model | Reduction Ratio | Rated torque at 2000r/min input | Permissible peak torque at start & stop | Permissible maximum value of the average load torque | ||||||
NM | kgfm | NM | kgfm | NM | kgfm | |||||
14 | 50 | 5.4 | 0.55 | 18 | 1.8 | 6.9 | 0.7 | |||
80 | 7.8 | 0.8 | 23 | 2.4 | 11 | 1.1 | ||||
100 | 7.8 | 0.8 | 28 | 2.9 | 11 | 1.1 | ||||
120 | 7.8 | 0.8 | 28 | 2.9 | 11 | 1.1 | ||||
17 | 50 | 16 | 1.6 | 34 | 3.5 | 26 | 2.6 | |||
80 | 22 | 2.2 | 43 | 4.4 | 27 | 2.7 | ||||
100 | 24 | 2.4 | 54 | 5.5 | 39 | 4.0 | ||||
120 | 24 | 2.4 | 54 | 5.5 | 39 | 4.0 | ||||
20 | 50 | 25 | 2.5 | 56 | 5.7 | 34 | 3.5 | |||
80 | 34 | 3.5 | 74 | 7.5 | 47 | 4.8 | ||||
100 | 40 | 4.1 | 82 | 8.4 | 49 | 5.0 | ||||
120 | 40 | 4.1 | 87 | 8.9 | 49 | 5.0 | ||||
160 | 40 | 4.1 | 92 | 9.4 | 49 | 5.0 | ||||
25 | 50 | 39 | 4.0 | 98 | 10 | 55 | 5.6 | |||
80 | 63 | 6.4 | 137 | 14 | 87 | 8.9 | ||||
100 | 67 | 6.8 | 157 | 16 | 108 | 11 | ||||
120 | 67 | 6.8 | 167 | 17 | 108 | 11 | ||||
32 | 50 | 76 | 7.8 | 216 | 22 | 108 | 11 | |||
80 | 118 | 12 | 304 | 31 | 167 | 17 | ||||
100 | 137 | 14 | 333 | 34 | 216 | 22 | ||||
120 | 137 | 14 | 353 | 36 | 216 | 22 | ||||
40 | 50 | 137 | 14 | 402 | 41 | 196 | 20 | |||
80 | 206 | 21 | 519 | 53 | 284 | 29 | ||||
100 | 265 | 27 | 568 | 58 | 372 | 38 | ||||
120 | 294 | 30 | 617 | 63 | 451 | 46 | ||||
Permissible maximum momentary torque | Permissible maximum input rotational speed(Grease) | Permissible average input rotational speed(Grease) | Backlash | Desian life | ||
NM | kgfm | r / min | r / min | Arc sec | Hour | |
35 | 3.6 | 8500 | 3500 | ≤20 | 10000 | |
47 | 4.8 | 15000 | ||||
54 | 5.5 | 15000 | ||||
54 | 5.5 | 15000 | ||||
70 | 7.1 | 7300 | 3500 | ≤20 | 10000 | |
87 | 8.9 | 15000 | ||||
110 | 11 | 15000 | ||||
86 | 8.8 | 15000 | ||||
98 | 10 | 6500 | 3500 | ≤20 | 10000 | |
127 | 13 | 15000 | ||||
147 | 15 | 15000 | ||||
147 | 15 | 15000 | ||||
147 | 15 | 15000 | ||||
186 | 19 | 5600 | 3500 | ≤20 | 10000 | |
255 | 26 | 15000 | ||||
284 | 29 | 15000 | ||||
304 | 31 | 15000 | ||||
382 | 39 | 4800 | 3500 | ≤20 | 10000 | |
568 | 58 | 15000 | ||||
647 | 66 | 15000 | ||||
686 | 70 | 15000 | ||||
686 | 70 | 4000 | 3000 | ≤20 | 10000 | |
980 | 100 | 15000 | ||||
1080 | 110 | 15000 | ||||
1180 | 120 | 15000 | ||||
Company Profile
DIWAGER ELECTRIC(GUANGDONG)Co,Ltd
other name is Chenggang Motor (Guangdong) Co., Ltd,which is a high-tech enterprise
devoting to research, development,manufature and sales of motors and reducers. It has been serving the Chinese mainland market for nearly 20 years and has achieved a high reputation and welcome.
The company's main products in elude AC, DC, deceleration, speed control, brake motor. Powercover from 6W to 3700W, which makes
these products greatly cater to market demand.
these products greatly cater to market demand.
Our company introduced German and Japanese technology in early 2016, together with investing a lot of capital to develop and produce DC dynamo (including flat plate, rod Type).With the characteristics of high speed, high precision and low noise, our products can better serve the intelligent market; the company continuously optimizes products and integrates high-quality resources to achieve product diversification and enhance competitiveness to meet the needs of customers.
The company's products are widely used in the electronics industry (such as Foxcorrn, Asus, Huawei, etc.), automotive industry(Japan Toyota, BYD, etc.), logistics warehousing (such as SF, Jingdong, Tmall, VIPshop, etc.), home appliance industry (such as Hisense, Gree, BOE, etc.), as well as stereo parking garages, tobacco, printing, textile, agricultural machinery, packaging, medical, processing and high-speed railindustries;
At present, our mainland's business sites are located in Beijing, Shandong, Tianjin, Qingdao, Shanghai, Suzhou, Kunshan,Wuxi, Changzhou, Nanjing, Hangzhou, Wenzhou, Xiamen, Guangzhou, Dongguan, Foshan, Shantou, Shenzhen, Chengdu and other regions. At the same time, the company actively established overseas companies to develop international markets such as India, Vietnam, Central and South America, Europe and Japan. The company in scribes and adheres to the fundamentals of quality, develops with credit, an dconti nuously in troduces excellent talents and advaneed equipment and technology.
The company's products are widely used in the electronics industry (such as Foxcorrn, Asus, Huawei, etc.), automotive industry(Japan Toyota, BYD, etc.), logistics warehousing (such as SF, Jingdong, Tmall, VIPshop, etc.), home appliance industry (such as Hisense, Gree, BOE, etc.), as well as stereo parking garages, tobacco, printing, textile, agricultural machinery, packaging, medical, processing and high-speed railindustries;
At present, our mainland's business sites are located in Beijing, Shandong, Tianjin, Qingdao, Shanghai, Suzhou, Kunshan,Wuxi, Changzhou, Nanjing, Hangzhou, Wenzhou, Xiamen, Guangzhou, Dongguan, Foshan, Shantou, Shenzhen, Chengdu and other regions. At the same time, the company actively established overseas companies to develop international markets such as India, Vietnam, Central and South America, Europe and Japan. The company in scribes and adheres to the fundamentals of quality, develops with credit, an dconti nuously in troduces excellent talents and advaneed equipment and technology.
Why Choose Us
1.20 years of marketing experience
2. 10-person R & D team to provide you with technical support
3. It is sold at home and abroad and exported to India, Vietnam, Central and South America, Europe and Japan
4. The product quality is guaranteed with a one-year warranty
5. Products can be customized
2. 10-person R & D team to provide you with technical support
3. It is sold at home and abroad and exported to India, Vietnam, Central and South America, Europe and Japan
4. The product quality is guaranteed with a one-year warranty
5. Products can be customized
Product packaging
SALES AND SERVICE NETWORK
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox
model for your refer.
Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox
model for your refer.
Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
