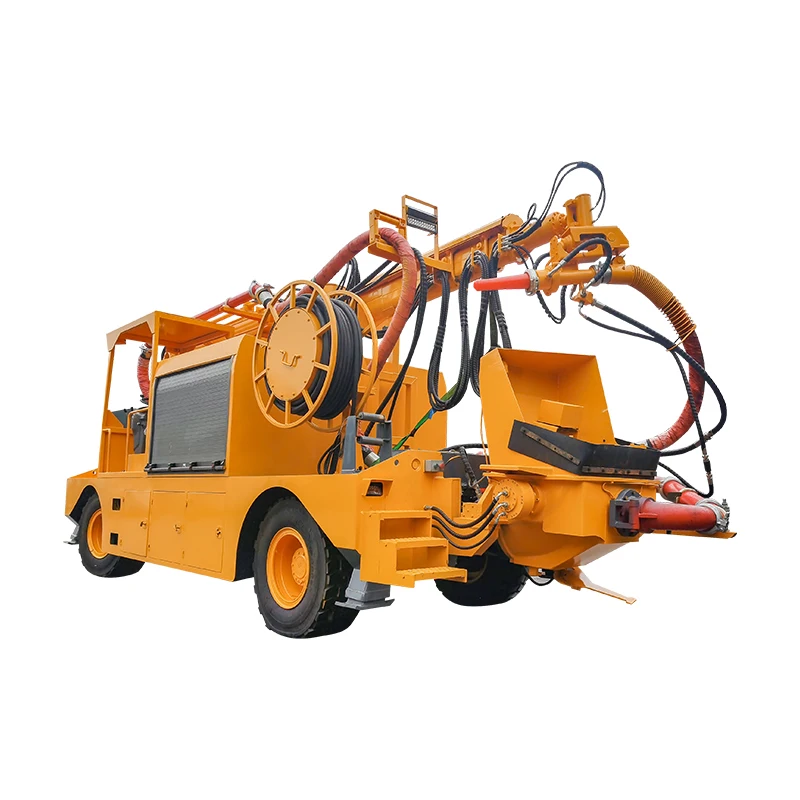

HSP 3016 30m 3/h туннельная система Распыления Бетона с роботизированной рукояткой
- Категория: >>>
- Поставщик: Gaode Equipment Co. Ltd.
Сохранить в закладки 11000000409996:
Описание и отзывы
Характеристики
Description
Description of concrete spray system with robotic arm
The series wet shotcrete system equipment are high-end equipment with top design and manufacture. They have multi-function and can be applied widely. This equipment are suitable for bigger fracture surface, project which need big output, and tunnel construction which need high efficiency shotcrete.
Application
Application of concrete spray system with robotic arm
HSP-3016 concrete spray system with robotic arm is best choice for tunnel construction like water conservancy and hydropower, railway, highway and so on.
Technical Data
Item | HSP3016 | |
Unity machine parameter | ||
L×W×H | 7770×2460×3180mm | |
Weight | 15000kg | |
wheel base | 3900 mm | |
front axle wheel track | 1800 mm | |
rear axle wheel track | 1800 mm | |
fuel tank capacity | 90 L | |
max. running speed | 22 Km/h | |
max. grade ability | 20% | |
min. ground clearance | 450 mm | |
min. turning radius | 5.5 m | |
braking distance | ≤10 m | |
Engine | Yuchai brand, 90kw | |
Arm and Leg parameter | ||
Spraying height | 16m | |
Spraying weight | 25m | |
big arm pitching angle | 0º ~ +65º | |
small arm pitching angle | +90º ~-110º | |
nozzle rotary angle | 360º | |
nozzle swing angle | 240º | |
Ground distance of front leg | 2500mm | |
Ground distance of rear leg | 2500mm | |
Center distance of front and rear leg | 6200mm | |
Control mode | Full remote control | |
Pump parameter | ||
rated output | 30 m3/h | |
outlet pressure | 75 Bar | |
convey cylinder inner diameter | Φ180 mm | |
convey cylinder stroke | 1000 mm | |
nozzle diameter | Φ50 mm | |
additive output | 9 L/min | |
additive system pressure | 10 Bar | |
Hopper volume | 0.4m3 | |
Conveying pipe | φ125~φ89 mm | |
Motor power | 55kw, 380v, 50hz | |
Features
Features of concrete spray system with robotic arm
1. Closed circuit hydraulic system running system, powerful chassis, wet mix braking system.
2. small turning radius, thus make a better operation.
3. Open-type cab, widely views.
4. Reasonable loading design makes the equipment with bigger anti-overturning moment.
5. Full hydraulic telescope and rotate robot arm make the machine with high carrying capability, steady movement, flexible operation, no construction dead zone.
6. Electric motor and diesel two-motor drive.
7. Convey cylinder with long stroke and big cylinder diameter can reduce the abrasion of resistant ring and plate and improve the stability of concrete spraying.
8. Hydraulic drive hopper vibrator, air cooler, cable reel, accelerator pump and water pump can proof electric leakage and pollution.
9. The ratio of accelerator and concrete is in fixed and can be monitored and adjusted by touch screen and remote control.
10.All operation can be controlled by wireless remote control thus reduce labor intensity and improve working efficiency.
2. small turning radius, thus make a better operation.
3. Open-type cab, widely views.
4. Reasonable loading design makes the equipment with bigger anti-overturning moment.
5. Full hydraulic telescope and rotate robot arm make the machine with high carrying capability, steady movement, flexible operation, no construction dead zone.
6. Electric motor and diesel two-motor drive.
7. Convey cylinder with long stroke and big cylinder diameter can reduce the abrasion of resistant ring and plate and improve the stability of concrete spraying.
8. Hydraulic drive hopper vibrator, air cooler, cable reel, accelerator pump and water pump can proof electric leakage and pollution.
9. The ratio of accelerator and concrete is in fixed and can be monitored and adjusted by touch screen and remote control.
10.All operation can be controlled by wireless remote control thus reduce labor intensity and improve working efficiency.
Main Spare Parts
Yuchai engine, power 90kw
Integrated hydraulic torque converter
Robotics With weighted bridge
Control system
Robotic arm valve set
Pump valve set
Related Products
Contact Us
Contact us for concrete spray system with robotic arm price
If you want us to help you recommend a suitable concrete spray system with robotic arm, please let me know the following questions:
1. What's the output do you want? 30m3/h?
2. What's the max. aggregate size of the material? 20mm or bigger?
3. Regards the voltage, 3 phase, 380v, 50HZ is ok for you? if not ok, please tell us whats the voltage at worksite.
2. What's the max. aggregate size of the material? 20mm or bigger?
3. Regards the voltage, 3 phase, 380v, 50HZ is ok for you? if not ok, please tell us whats the voltage at worksite.
