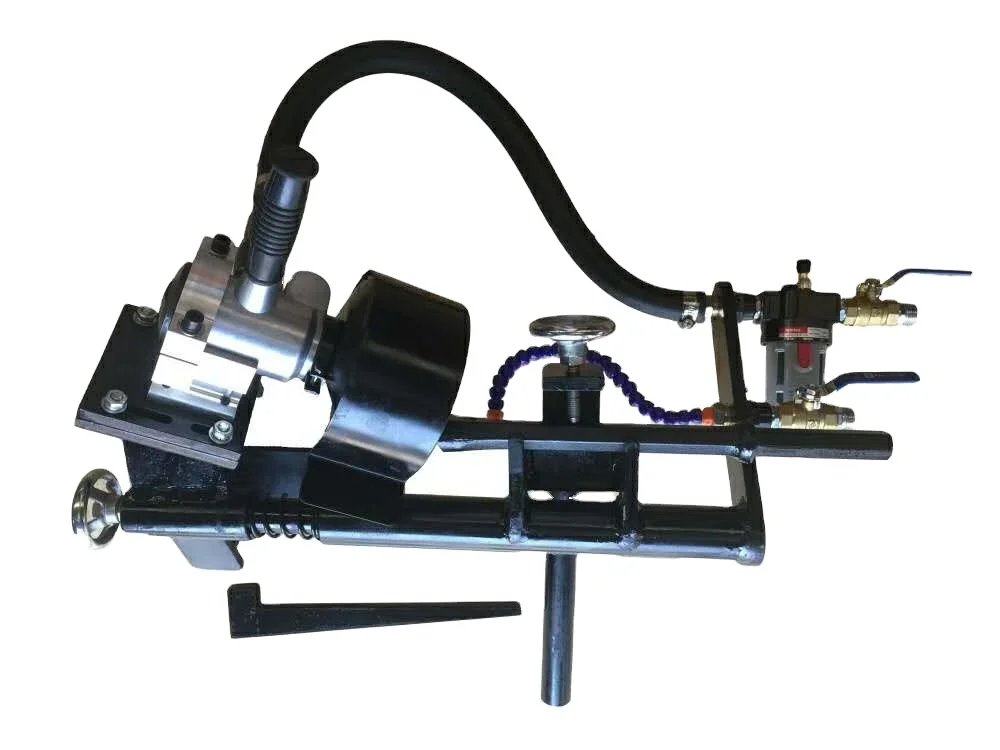

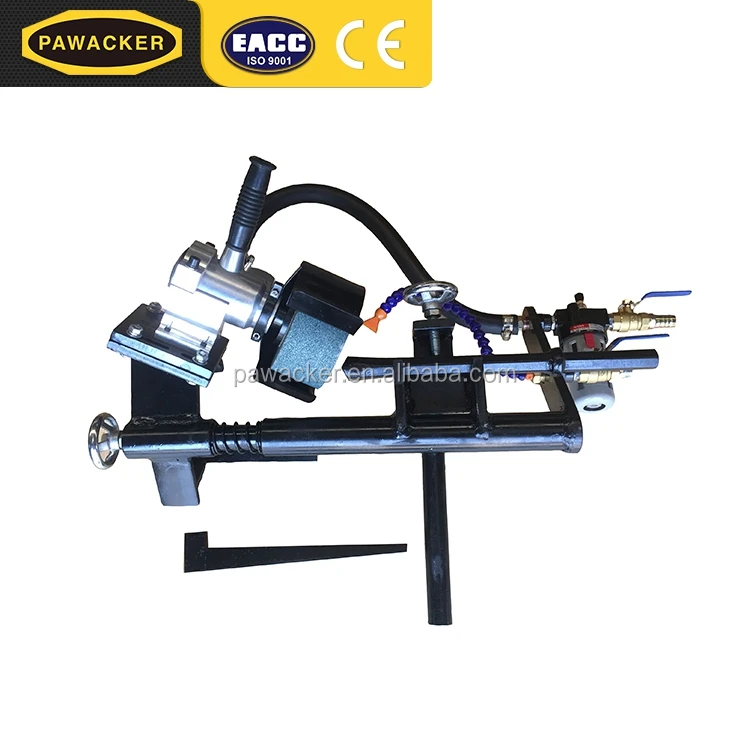

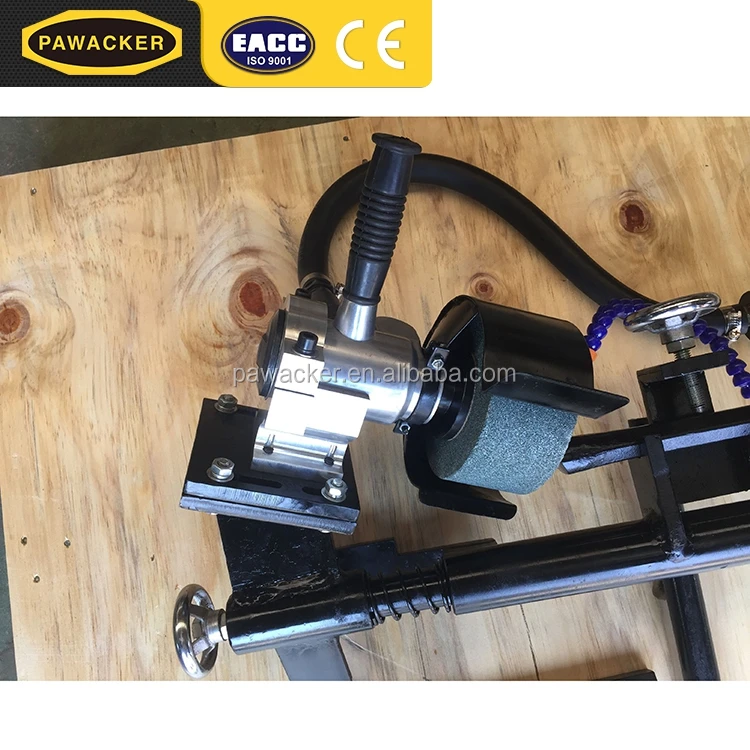

Manufacturer Portable Chisel Bit Pneumatic Grinder Bestlink China Model DS 125

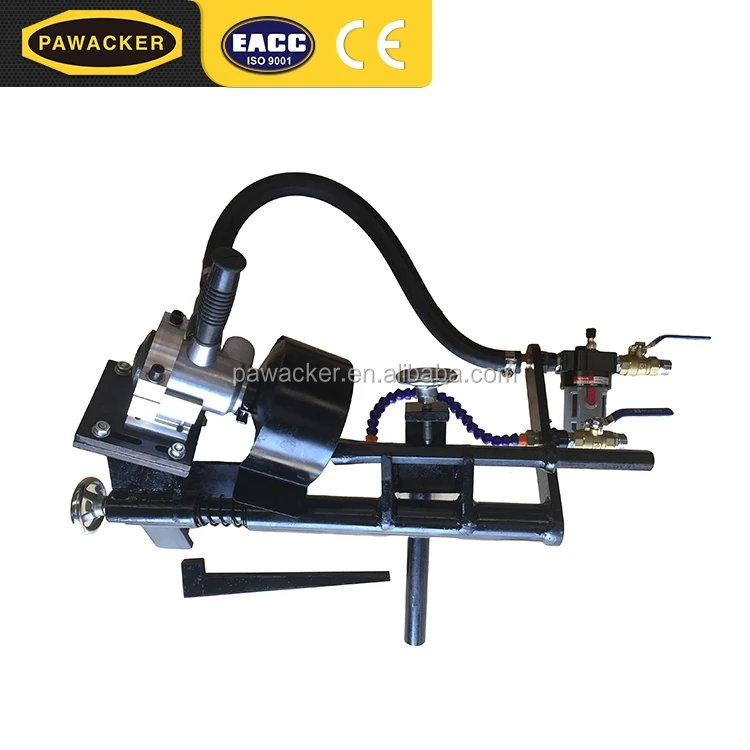

DS-125 Air grinding machine for (integral drill rod chisel type) milling machine surface grinder.
This pneumatic machine is designed for grinding the chisel bits and integral drill rods. Your worn bit or rod can be reused after being ground by our grinding machine to prolong their service life. It's capable of re-grinding of Blunted Drill Steel Rods at an angle of 110°. Since the BCG is subjected to arduous working conditions in the Mines, Quarries. The Grinder is now developed with specialized design and mounted on Drill Steel Rods, possessing high design and mounted on Drill Steel Rods, possessing high strength balance and easy to transport and simple to set up.
Pneumatic integral drill steel (chisel bit) grinder.
Pneumatic Integral Drill Rod & Chisel Bit Sharpen Grinder is a milling machine surface grinding, capable of re-grinding blunted drilling steel integral bits carbide at an angle of 110 degrees since this Integral Drill Steel Grinder is subjected for arduous working conditions in the Mines, Quarries. The Grinder is now developed with specialized design and mounted on Chisel bit type Integral Drill Steel Rods, possessing high design and mounted on Drill Steel Rods, possessing high strength balance and easy to transport and simple to set up.
| Weight | 30KG |
| Air comsuption | 2m³/min |
| Working pressure | 7BAR |
| cutting-edge angle | 110° |
| cutting-edge radius | 80mm |
| Power | 2HP(1.5KW) |
| Rotate speed | 4200r |
| Grinding wheels size (L*D*H) | 125*63*32mm |
| Grinder Inside hole (diameter) | 32mm |
| Air hose Diameter | 19mm |
| Dimensions (H*W*D) | 600*500*300MM |
