Сварные ленточные конвейеры из нержавеющей стали для пищевой промышленности
- Категория: >>>
- Поставщик: DYMCO LTD.
Сохранить в закладки 11000000466353:
Описание и отзывы
Характеристики
Products Description
「Welded Stainless Steel Belt」
Dymco's endless belt has excellent surface smoothness and fine weld seam.
Dymco's endless belt has excellent surface smoothness and fine weld seam.
Product Name | Welded Belt |
Brand Name | DW/Welded Belt |
Place Of Origin | Japan |
-Material selection
High-strength stainless steel
Grade can be designated by application.
Feature
・Excellent chemical resistance and heat durability, making it ideal for use in harsh environments.
・Low dust generation, ideal for use in clean rooms.
・Due to electric conductivity, it does not carry static electricity.
・Stainless steel can be recycled and is environmentally friendly.
・Uniform thickness
・Weld seam thickness is almost same to the base metal by precision butt welding.
・The belt surface can be processed to mirror surface finish.
・Heating and cooling of the belt is possible.
Use
・Antistatic transport of semiconductors and electronic components
・Transport of electronic components and medical supplies in a clean room
・Direct transportation of food by taking advantage of its cleanliness
・Drying and heating during transportation for resin sheets, printed circuit boards, electronic parts, etc. in UV furnaces by taking advantage of heat resistance
・Film molding that takes advantage of surface flatness
・Stop-and go transportation of metal parts with sharp edge and burr taking advantage of flatness and smooth belt surface
・Oil skimmer belt for floating oil recovery
・Band saw blade
・Stringer belt for solar cell manufacturing process
・Transportation of metal products with burrs caused by press punching in automobile parts manufacturing process
・Transportation of oil adherent products
・Semiconductor encapsulation package transfer
・Assembly and transportation of electronic parts (functional check, UV processing, trim &form)
・Transportation of chemical products (prevention of chemical adhesion due to static electricity)
High-strength stainless steel
Grade can be designated by application.
Feature
・Excellent chemical resistance and heat durability, making it ideal for use in harsh environments.
・Low dust generation, ideal for use in clean rooms.
・Due to electric conductivity, it does not carry static electricity.
・Stainless steel can be recycled and is environmentally friendly.
・Uniform thickness
・Weld seam thickness is almost same to the base metal by precision butt welding.
・The belt surface can be processed to mirror surface finish.
・Heating and cooling of the belt is possible.
Use
・Antistatic transport of semiconductors and electronic components
・Transport of electronic components and medical supplies in a clean room
・Direct transportation of food by taking advantage of its cleanliness
・Drying and heating during transportation for resin sheets, printed circuit boards, electronic parts, etc. in UV furnaces by taking advantage of heat resistance
・Film molding that takes advantage of surface flatness
・Stop-and go transportation of metal parts with sharp edge and burr taking advantage of flatness and smooth belt surface
・Oil skimmer belt for floating oil recovery
・Band saw blade
・Stringer belt for solar cell manufacturing process
・Transportation of metal products with burrs caused by press punching in automobile parts manufacturing process
・Transportation of oil adherent products
・Semiconductor encapsulation package transfer
・Assembly and transportation of electronic parts (functional check, UV processing, trim &form)
・Transportation of chemical products (prevention of chemical adhesion due to static electricity)
--Oil Skimmer
An oil skimmer is a device that collects floating waste oil from machines.
The steel belt type oil skimmer, which has a simple structure and can handle high lifts, will continue to play an active role in the future.
An oil skimmer is a device that collects floating waste oil from machines.
The steel belt type oil skimmer, which has a simple structure and can handle high lifts, will continue to play an active role in the future.
Applications
・Automobile factories
・Food factories
・Metal processing factories using lubricant oil for machines.
-- Fluoroplastic Coating
Fluoroplastics are a plastic that offers superb properties of heat resistance, smoothness, non-stick chemical resistance, low friction coefficient and excellent electric insulation.
Fluoroplastic coatings offers many advantages when applied to stainless steel over other materials like canvas, plastic or rubber where the advantages of non-stick release property is difficult to achieve.
・Heating process such as UV irradiation and sterilization, drying and heat sealing
・Image inspection process using the non-glare surface of coated belt
Fluoroplastics are a plastic that offers superb properties of heat resistance, smoothness, non-stick chemical resistance, low friction coefficient and excellent electric insulation.
Fluoroplastic coatings offers many advantages when applied to stainless steel over other materials like canvas, plastic or rubber where the advantages of non-stick release property is difficult to achieve.
・Heating process such as UV irradiation and sterilization, drying and heat sealing
・Image inspection process using the non-glare surface of coated belt
Use
・Viscous work transfer
・Sterilization / sterilization process
・Various image inspection processes
-Heat Sealer
【Manufacturable Range】
* No additional work such as drilling, V-guide, surface treatment is required.
Plate thickness : 0.05～0.5（mm）
Belt width :0.05t→5～100(mm)
0.08t→5～150(mm)
0.1t, 0.15t, 0.2t, 0.3t, 0.4t, 0.5t→5～400(mm)
Please contact us for further questions.
【Manufacturable Range】
* No additional work such as drilling, V-guide, surface treatment is required.
Plate thickness : 0.05～0.5（mm）
Belt width :0.05t→5～100(mm)
0.08t→5～150(mm)
0.1t, 0.15t, 0.2t, 0.3t, 0.4t, 0.5t→5～400(mm)
Please contact us for further questions.
Secured Packaging and Worldwide Shipping
Company Profile
DYMCO, LTD. has over 35 years of experience in providing stainless steel belts and conveyor systems for customers with various needs. The belt application covers electronic apparatus, aviation systems, medical appliances, food industries, general automation systems, packaging machines and an endless array of customized functions specifically designed to meet their requirements.
Our experience, quality management and proprietary technology sets us apart from any other similar equipment manufacturers in the world, producing stainless steel belts and conveyor systems that are used in top 500 companies around the world.
Похожие товары

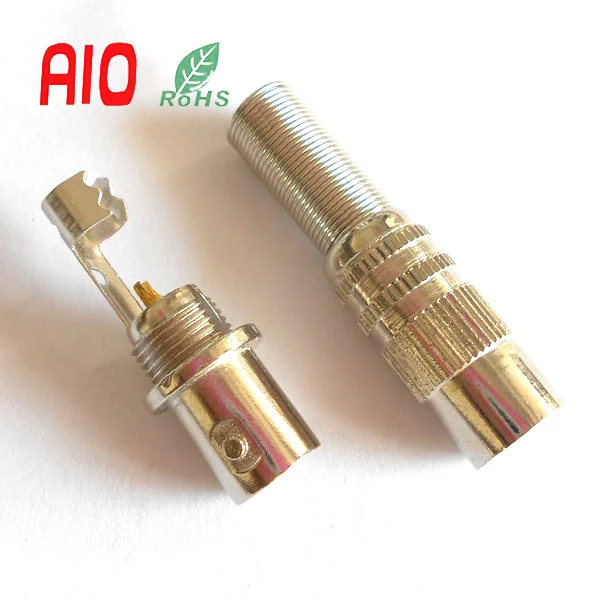

Разъем типа пайки типа мама CCTV BNC для коаксиального кабеля с пружиной
Практичный BLDC кондиционер компрессор Мотор для автомобиля
Изготовленный На Заказ производство 2,5 мм 2 Пружинные контакты SMT/SMD загружены латунь пружинный контакт Пружинные контакты SMT/SMD разъем
0,64 $ - 0,70 $

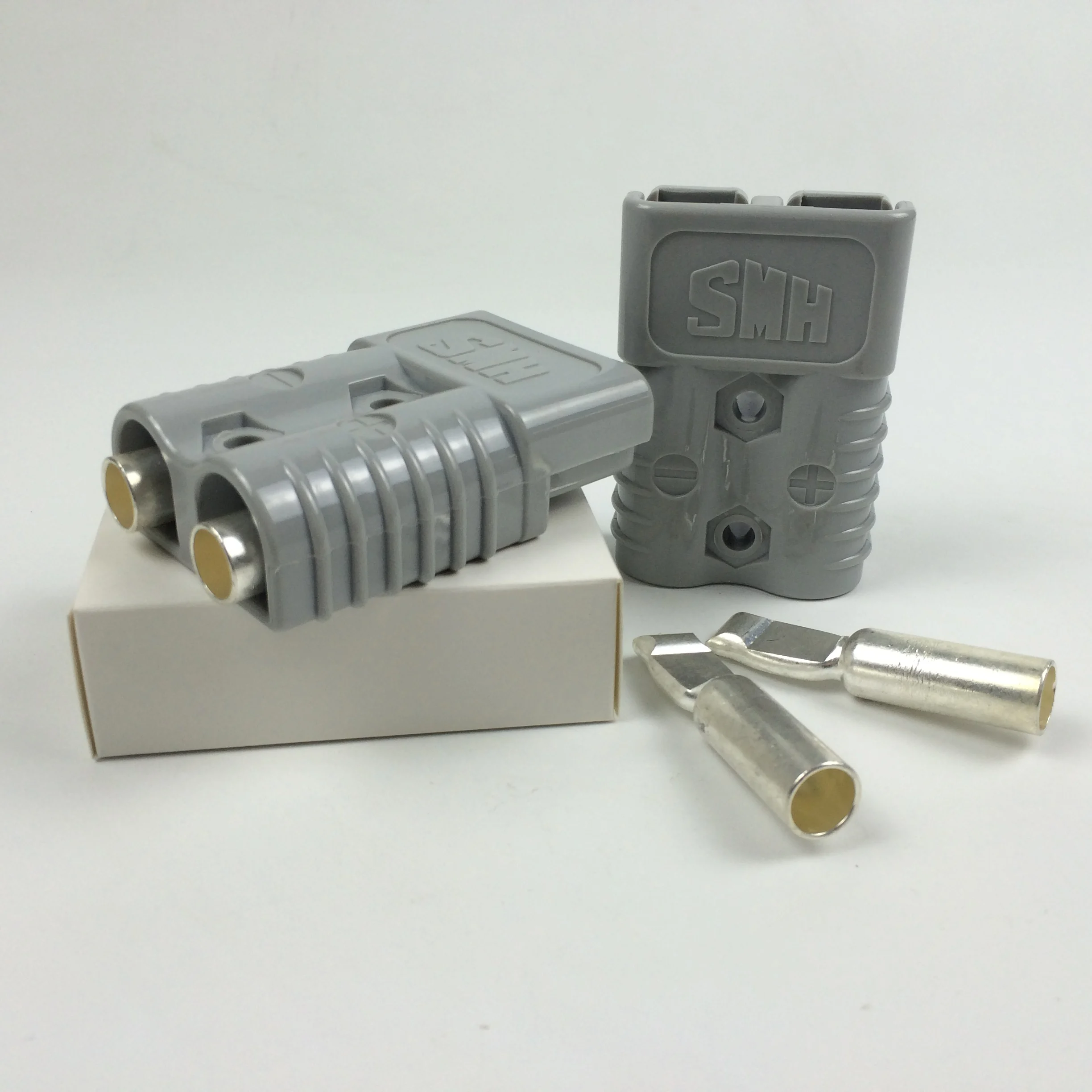

Коннектор для зарядки аккумулятора 175A 600V

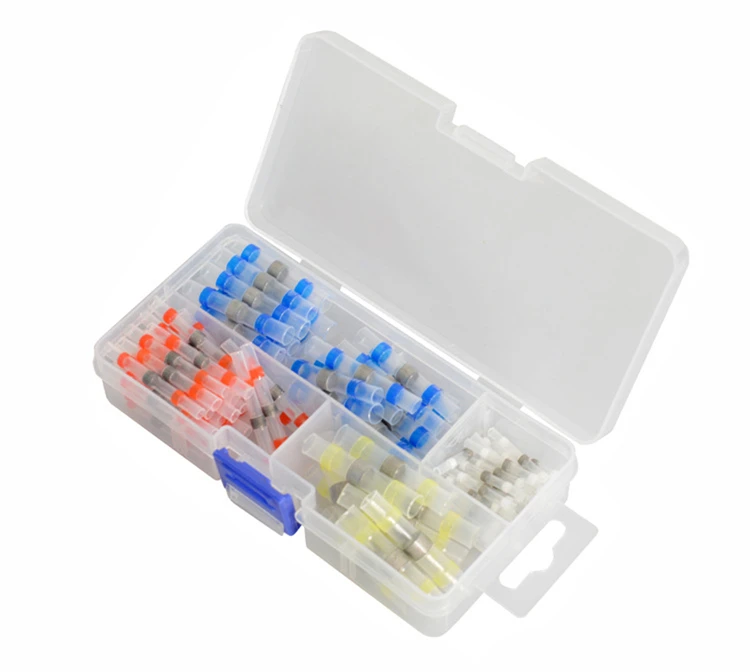

50 шт., Термоусадочные соединители для проводов, комплект водонепроницаемых автомобильных морских электрических клемм, вилка-вилка, стыковые соединения
2,40 $ - 3,20 $

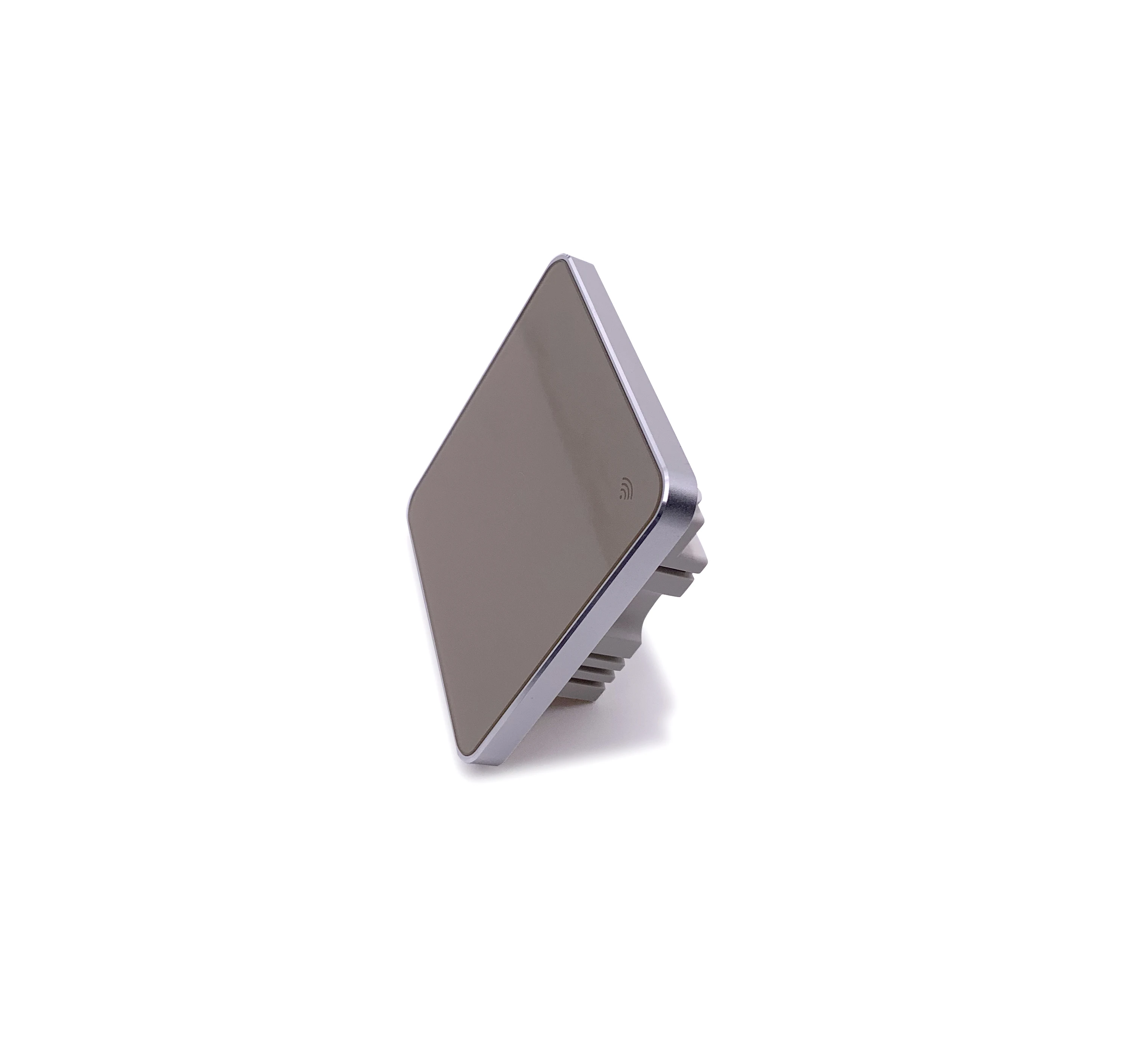

Электрический настенный выключатель вкл./выкл. Таймер умный выключатель света 1000 Вт
9,85 $ - 10,10 $

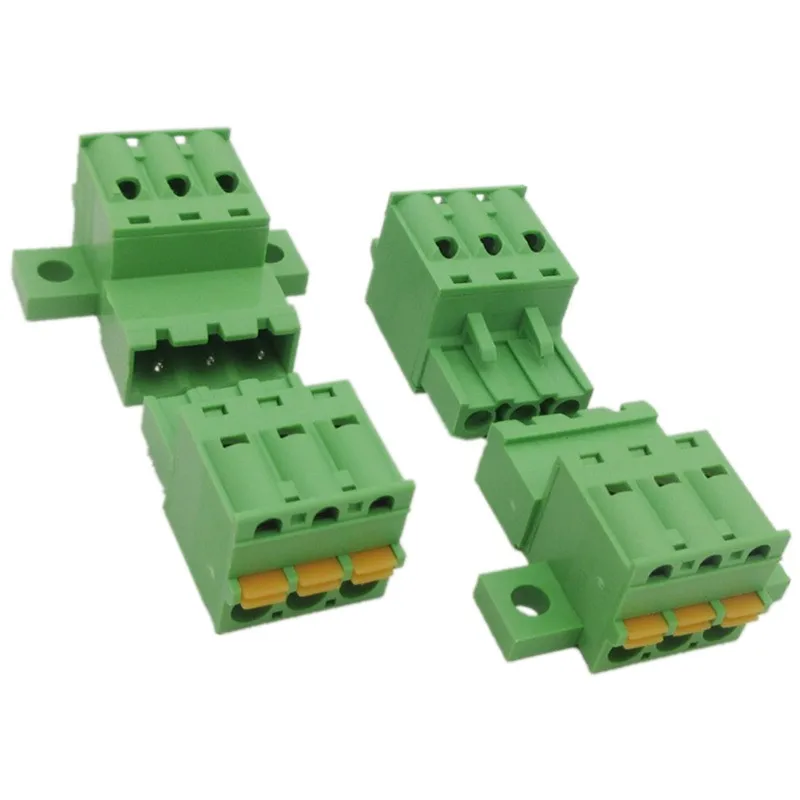

Соединитель стыковочной клеммы с пружинным шагом 5,08 мм для панели
