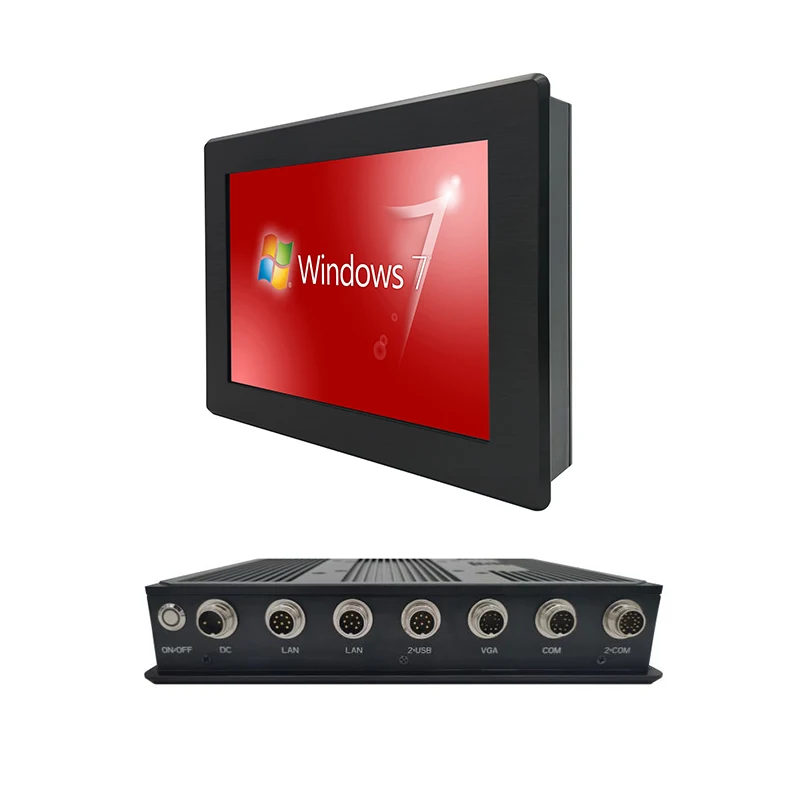

Встроенный компьютер типа Core 3Com Fan Mini Android Rugged Tablet Industrial Pc с Lpt 10,4 Inch Industrial Touch Panel Pc
441,00 $ - 693,00 $
Тонкие металлические индивидуальные стальные втулки для рукавов с большой гибкостью
- Категория: >>>
- Поставщик: DYMCO LTD.
Сохранить в закладки 11000000467354:
Описание и отзывы
Характеристики
Products Description
「Sleeve」
This product is a thin wall metal Sleeve having unique mechanical property of large flexibility as is shown in the picture.
This product is a thin wall metal Sleeve having unique mechanical property of large flexibility as is shown in the picture.
Product Name | Sleeve |
Brand Name | DYMCO Metal Sleeve |
Place Of Origin | Japan |
Features and Applications
1. Together with thin wall thickness and precise diameter, the Sleeve fits limited space and covers a mechanical core component.
Motor and rotor covers are typical examples.
Precise inner diameter protects parts inside and ensures the entire performance of mechanical unit.
Diameter tolerance is approximately +/-50 microns.
2. Flexible Sleeve provides surface contact rather than line contact with counterpart material like paper and/or plastic sheets.
The outer wall of Metal Sleeve in the fusing roll in a printer forms surface contact increasing heat transfer area.
Sleeve also gives uniformly distributed pressure in the contact area with plastic sheet materials.
3. Flexible Sleeve also works as a jacket roll in the air mandrel construction.
It bulges slightly by air pressure from the mandrel.
The roll surface replacement in printing machines, plastic sheet forming machines, etc. can be performed effortlessly in this manner.
When polished surface is required, the replacement of a polished Sleeve is easier than polishing the entire roll including the mandrel.
4. Metal surface does not degrade easily like rubber rolls.
This is another significant advantage in plastic sheet forming.
1. Together with thin wall thickness and precise diameter, the Sleeve fits limited space and covers a mechanical core component.
Motor and rotor covers are typical examples.
Precise inner diameter protects parts inside and ensures the entire performance of mechanical unit.
Diameter tolerance is approximately +/-50 microns.
2. Flexible Sleeve provides surface contact rather than line contact with counterpart material like paper and/or plastic sheets.
The outer wall of Metal Sleeve in the fusing roll in a printer forms surface contact increasing heat transfer area.
Sleeve also gives uniformly distributed pressure in the contact area with plastic sheet materials.
3. Flexible Sleeve also works as a jacket roll in the air mandrel construction.
It bulges slightly by air pressure from the mandrel.
The roll surface replacement in printing machines, plastic sheet forming machines, etc. can be performed effortlessly in this manner.
When polished surface is required, the replacement of a polished Sleeve is easier than polishing the entire roll including the mandrel.
4. Metal surface does not degrade easily like rubber rolls.
This is another significant advantage in plastic sheet forming.
Producible Range
We provide Welded Sleeve and Seamless Sleeve.
-Welded Sleeve : φ150mm and more, 0.1 ～ 0.3mm thick, length 500mm max
Metal sheets are cut and welded with high precision.
This process does not require the initial huge tooling cost.
A customer can try a few or several diameter tolerances and then choose the best specifications with moderate cost.
Metal sheets includes finely patterned electroformed nickel and etched pattern metal.
They are cut into pieces and those pieces are welded to form a Sleeve.
-Seamless Sleeve
Stainless Steel Sleeve manufactured by rotational type plastic working process: φ30-40mm, thickness 30 - 50 micron, length up to 400mm
Electroformed nickel Sleeve:φ500 max, thickness 100 - 300 micron thick, length 1200mm max
This process does not require the initial huge tooling cost.
A customer can try a few or several diameter tolerances and then choose the best specifications with moderate cost.
Metal sheets includes finely patterned electroformed nickel and etched pattern metal.
They are cut into pieces and those pieces are welded to form a Sleeve.
-Seamless Sleeve
Stainless Steel Sleeve manufactured by rotational type plastic working process: φ30-40mm, thickness 30 - 50 micron, length up to 400mm
Electroformed nickel Sleeve:φ500 max, thickness 100 - 300 micron thick, length 1200mm max
Remarks: The exact specifications shall be discussed and agreed in engineering discussion.
Secured Packaging and Worldwide Shipping
Company Profile
DYMCO, LTD. has over 35 years of experience in providing stainless steel belts and conveyor systems for customers with various needs. The belt application covers electronic apparatus, aviation systems, medical appliances, food industries, general automation systems, packaging machines and an endless array of customized functions specifically designed to meet their requirements.
Our experience, quality management and proprietary technology sets us apart from any other similar equipment manufacturers in the world, producing stainless steel belts and conveyor systems that are used in top 500 companies around the world.
Похожие товары
Новое поступление 2021, умные часы W13 Plus Wearfit Pro Sport Reloj Bt Phone Watch Series 6, умные часы W13 Plus W13 + 1,6 дюймов, Шэньчжэнь
15,99 $ - 16,99 $

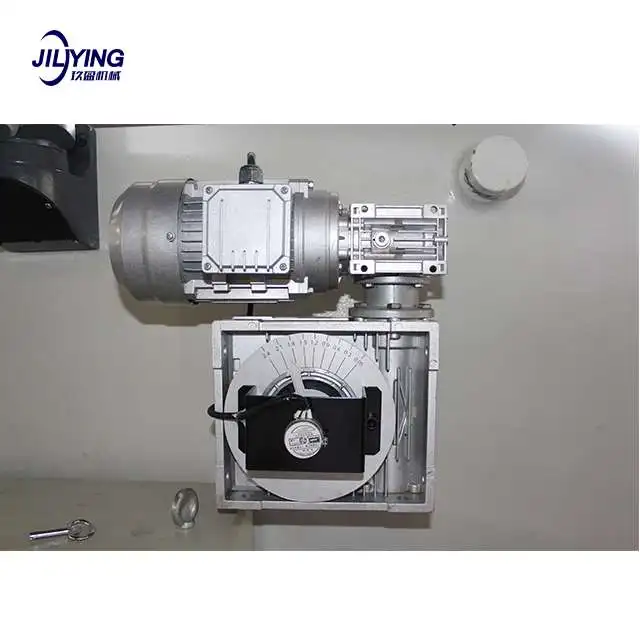

Профессиональный триммер для стрижки небольших Nc ножницы для резки листового металла/металлическая стригальная машина Q11 - 4*1300 ножницы для резки листового металла
1 600,00 $ - 1 800,00 $
Портативный мощный пылесборник для большой мастерской шлифовальный станок

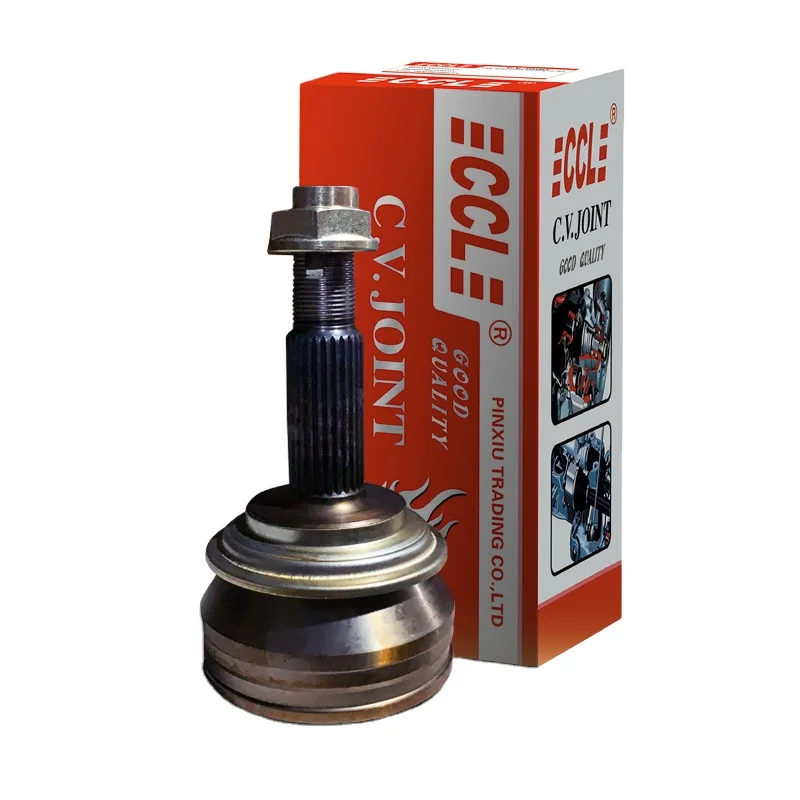

Поддержка пользовательского колеса MM * IN2Side/Front OUT26 * 55,75 Axle внешний CV шарнир для Toyota Corola Yaris Vios 43460-09X60/43410-12790
10,30 $ - 13,60 $
Двухъядерный процессор тонкий все в одном ITX-A70-43 материнская плата с 10 * USB/2 * COM/DC/LVDS/VGA/1 * LPT/TDP 19 Вт

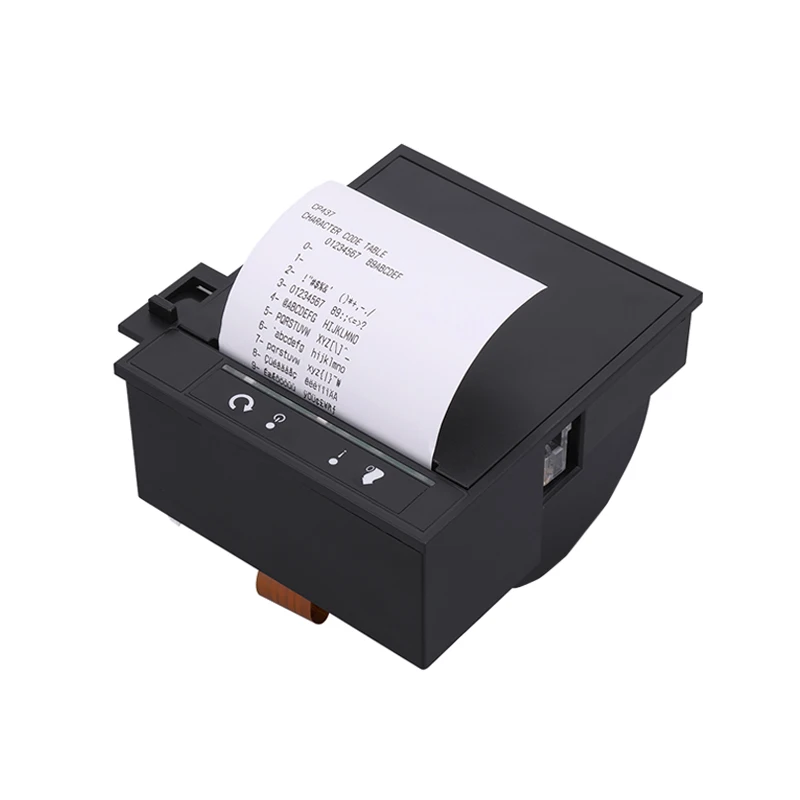

Небольшой встроенный чековый принтер HSPOS на базе Android, Встроенный принтер для этикеток с интерфейсом USB + LPT K35
55,10 $ - 57,30 $

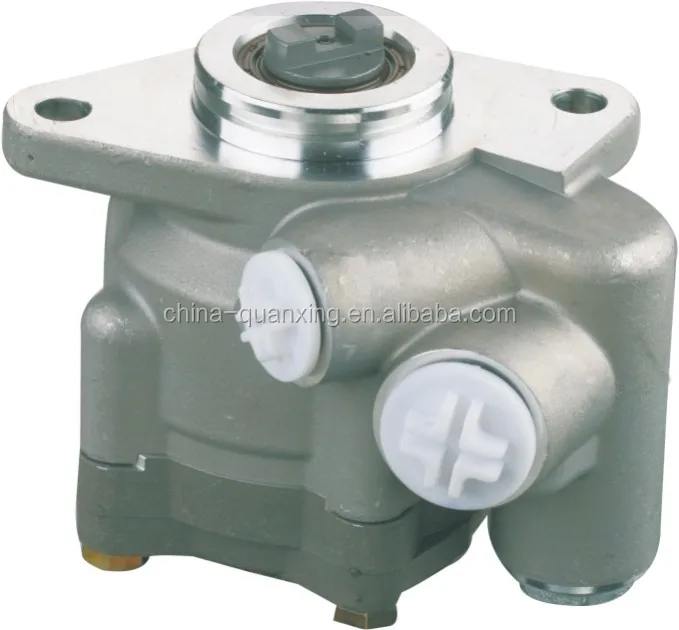

Насос гидроусилителя руля MAN 81.47101.6186/пройти 542 0439 10
