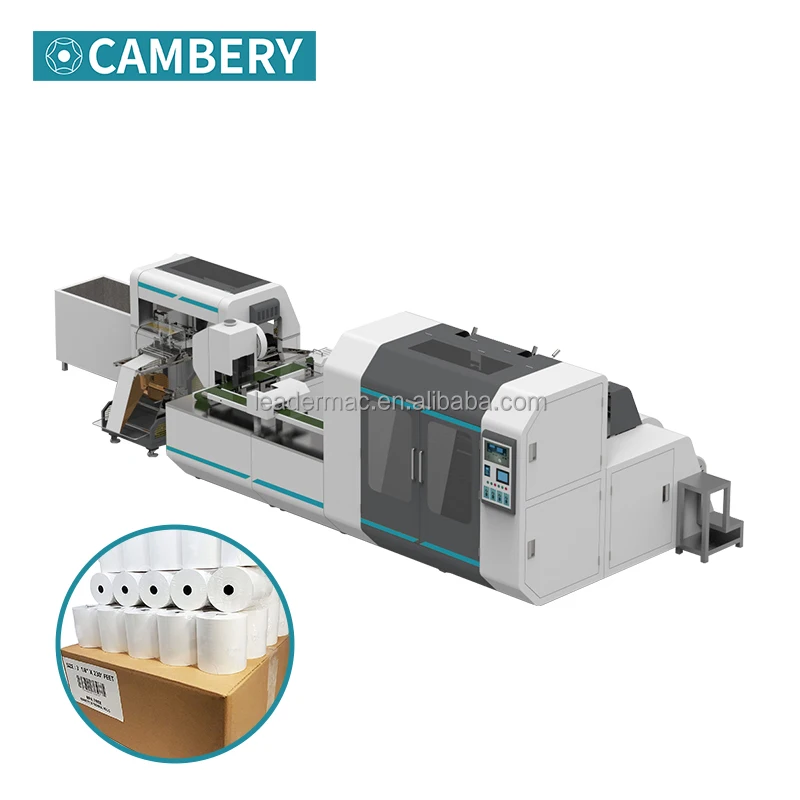

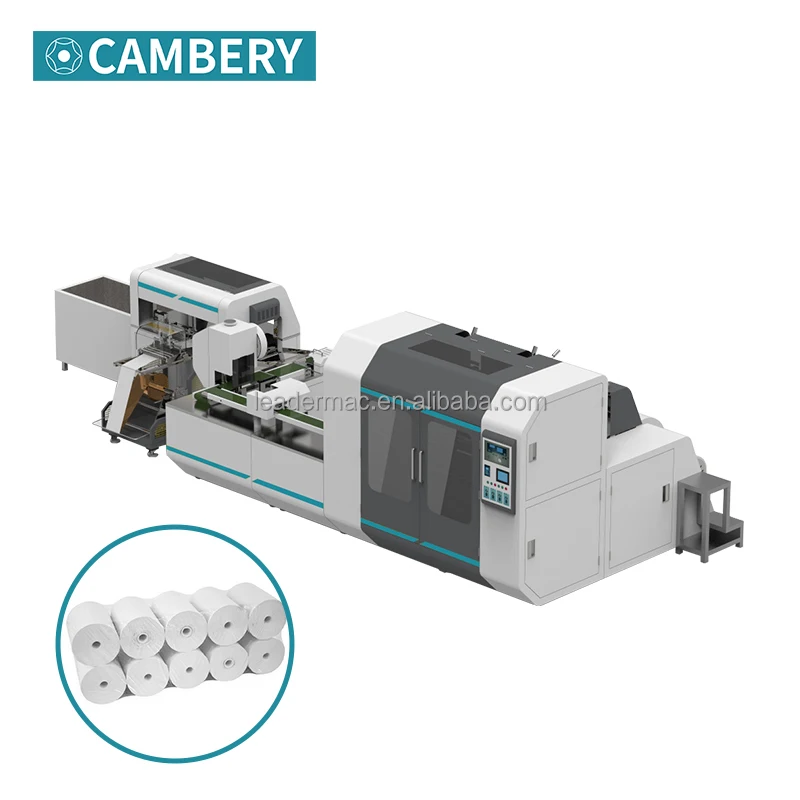

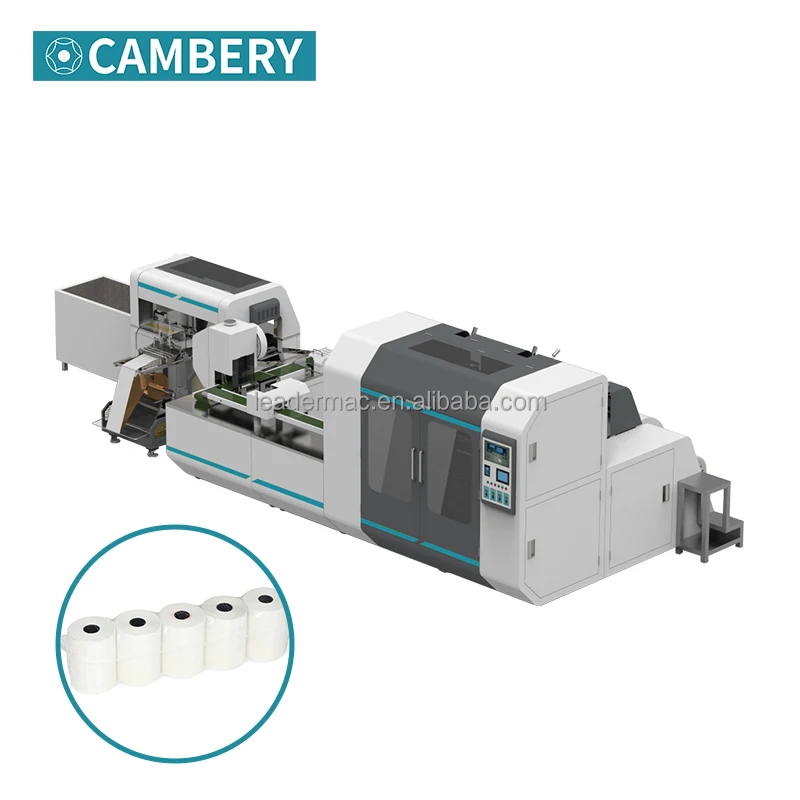

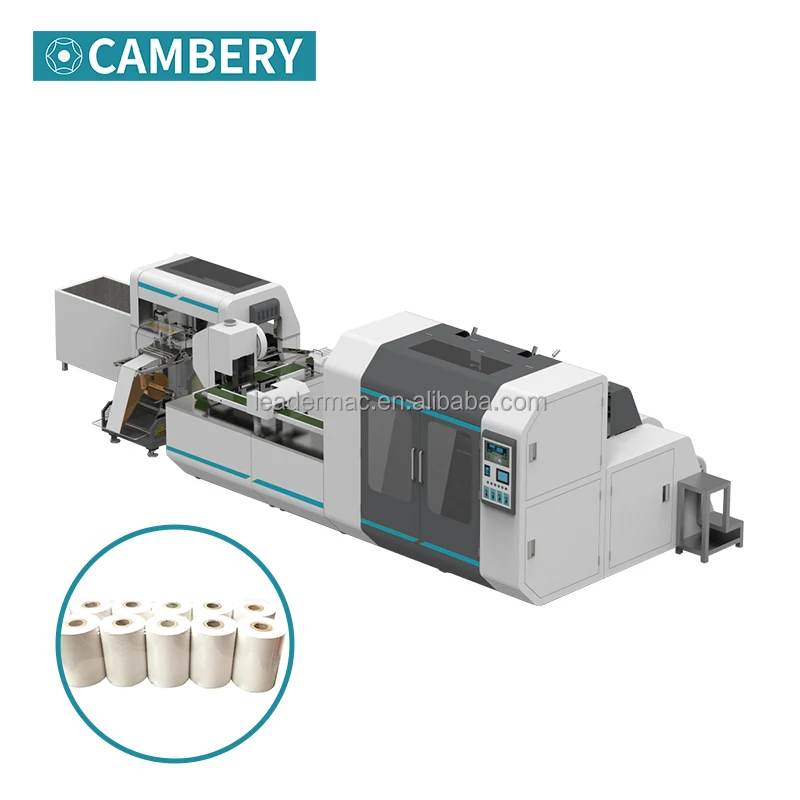

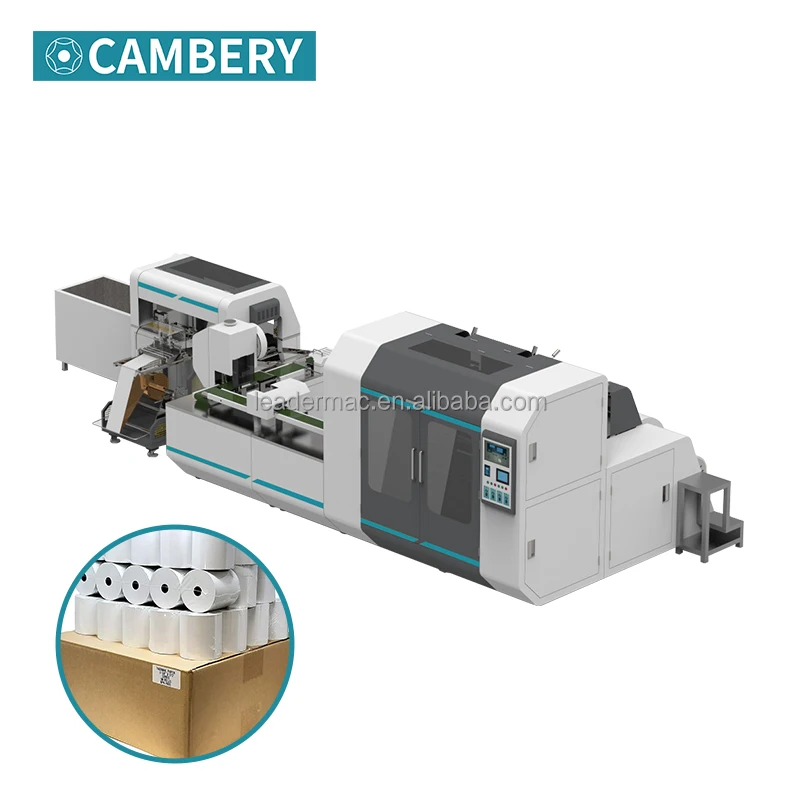

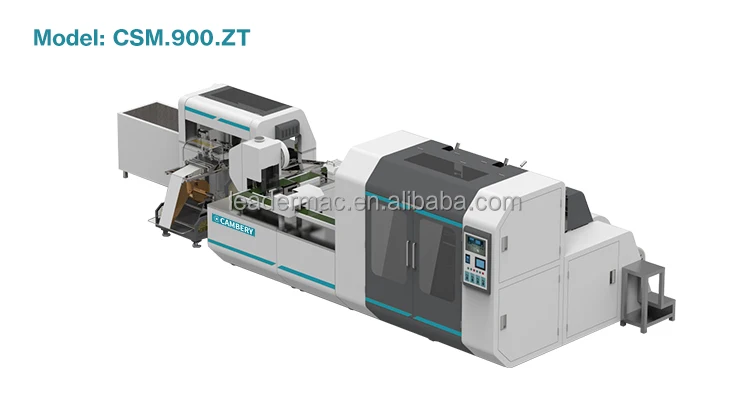

Hot Selling Fully Automatic Thermal Paper Rolls Slitting Rewinding Production Line
- Категория: >>>
- Поставщик: Foshan Leader Machinery Co. Ltd.
Сохранить в закладки 11000000477855:
Описание и отзывы
Характеристики
PRODUCT INFORMATION
TECHNICAL CHARACTERISTICS
Overall Size | Approx. 7000*3000*1900 mm |
Weight | Approx. 3000 kg |
Power Supply | 380V 50Hz or customized |
Total Power | 20 kW |
Air Pressure | 6 bar |
Rewinding Speed | Up to 200m/min1 |
Unwinding | Width: Up to 900mm Diameter: Up to 1100mm Core diameter: 3in. |
Web Control | Ultrasonic EPC |
Rewinding | Shaft-less Core size: φ15 to 26mm Rewinding diameter: φ30 to 85mm. |
Control System | PLC with 7 in. Full Color Touch Screen |
Electrical components | Schneider® or equivalent |
Remark:
1-The speed will be variety accordance with the material and rewinding parameter.
1-The speed will be variety accordance with the material and rewinding parameter.
Cycle Time / Production Estimates.
Core Size | Rewind Meter | Time per Cycle | Production per Hour |
15 to 26 mm | 50 meters | 20 to 30 sec. | 120 to 180 rolls (full web width) |
DETAILS DISPLAY

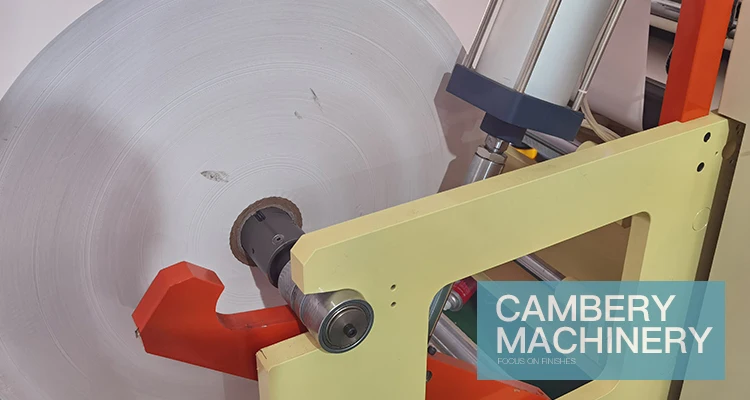

Unwinding:
● 35mm thick solid steel plates made foundation, with rigid steel tubes cross-connection.
● 3in. unwinding station, available for loading core size of 3in.
● Pneumatic material lifting system, reduce working intensity.
● Working width up to 900mm.
● Working diameter up to 1100mm.
● Magnetic brake for unwinding tension control, co-work with independent tension controller.

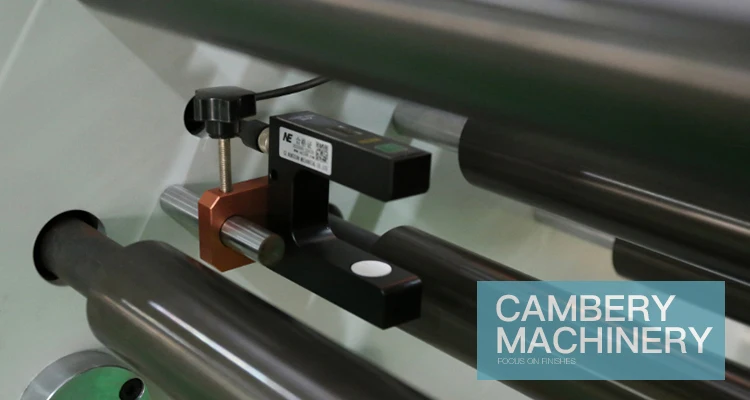

● Ultrasonic EPC sensor, and heavy duty liner actuator.
● 3in. unwinding station, available for loading core size of 3in.
● Pneumatic material lifting system, reduce working intensity.
● Working width up to 900mm.
● Working diameter up to 1100mm.
● Magnetic brake for unwinding tension control, co-work with independent tension controller.
● Ultrasonic EPC sensor, and heavy duty liner actuator.

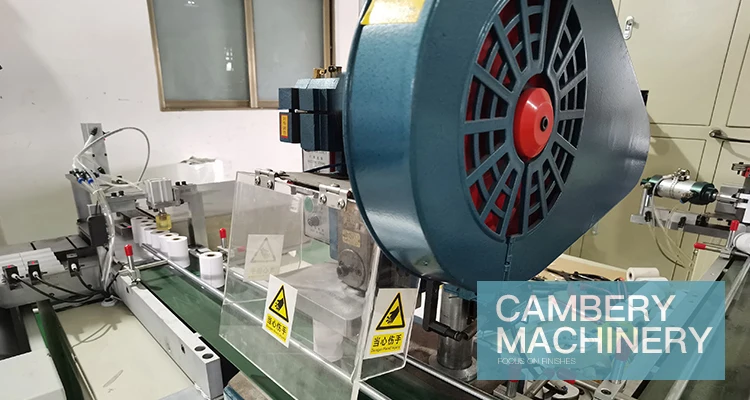

Rewinding:

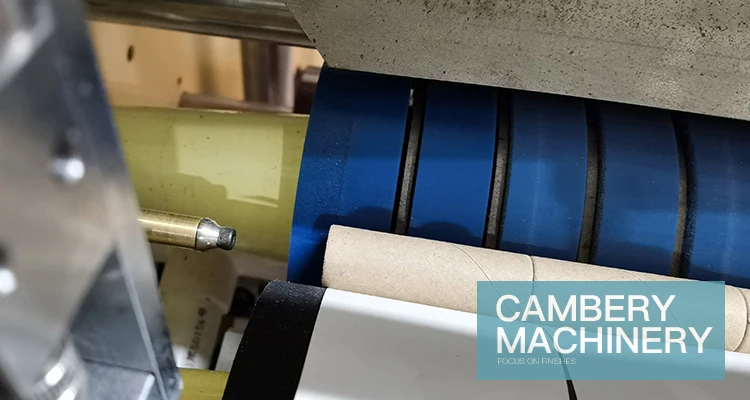

● Shaft-less rewinding, rewind chuck tips on two sides.
● Available paper core diameter range of 15mm to 26mm.

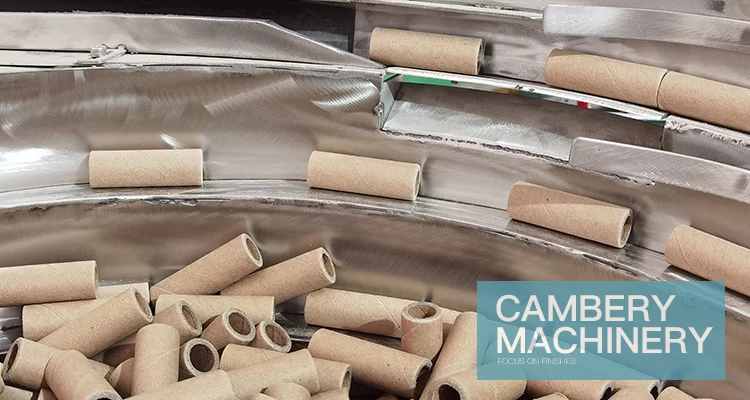

● Paper core auto load device.
- Paper core hopper on the side of the machine.
- Auto load the paper core to the transport convetor
- Movable separator to suit different core size.
- Un-interrupted feed-in and supplement.
● Adhesive-less core rewinding (Tail paper folded and blow to attach on the empty core).
● Rewinding diameter up to 80mm.

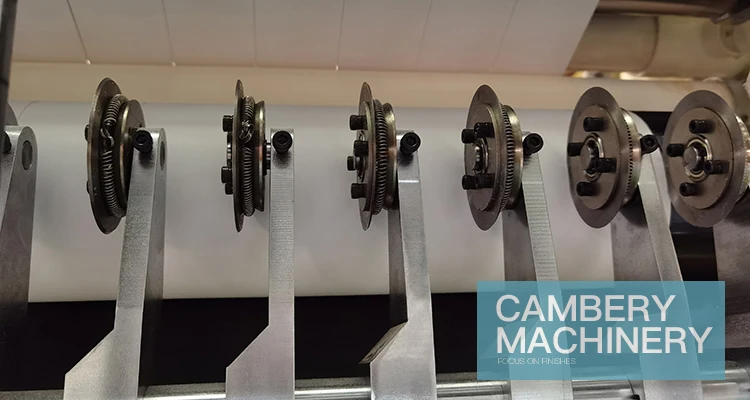

● Rotary type shearing blades, 10 sets.
● Auto push out once rewinding finished.
● Auto cut-off film/paper device.

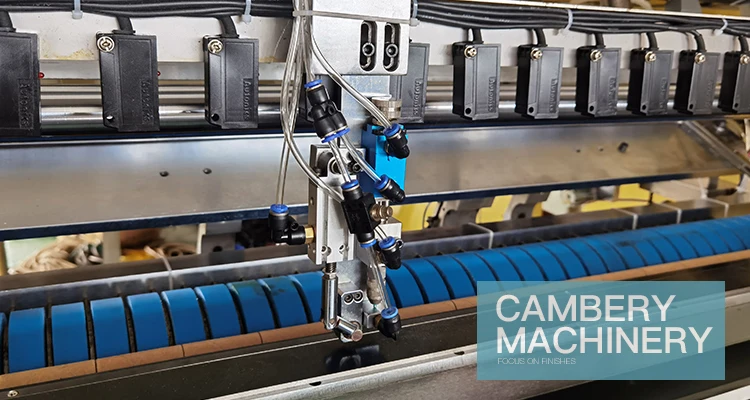

● Auto glue spray device for glue application on the paper tail, cold adhesive applied.
● Auto feed-out in transverse, by rubber conveyor.
● Available paper core diameter range of 15mm to 26mm.
● Paper core auto load device.
- Paper core hopper on the side of the machine.
- Auto load the paper core to the transport convetor
- Movable separator to suit different core size.
- Un-interrupted feed-in and supplement.
● Adhesive-less core rewinding (Tail paper folded and blow to attach on the empty core).
● Rewinding diameter up to 80mm.
● Rotary type shearing blades, 10 sets.
● Auto push out once rewinding finished.
● Auto cut-off film/paper device.
● Auto glue spray device for glue application on the paper tail, cold adhesive applied.
● Auto feed-out in transverse, by rubber conveyor.

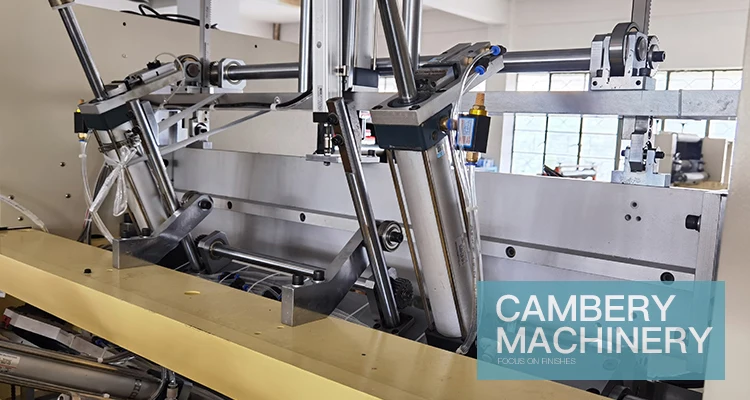

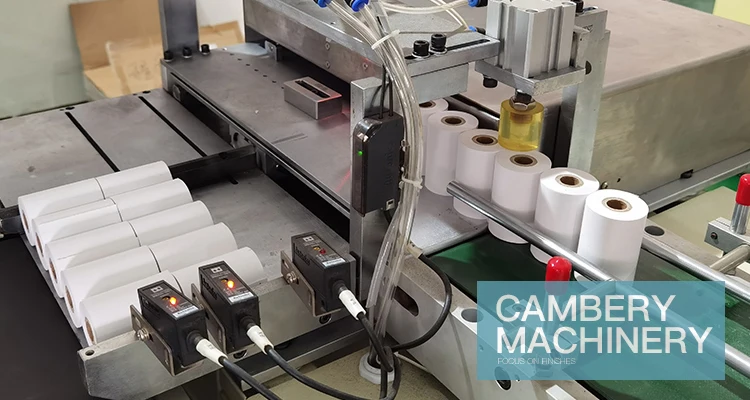

Packing:
● Auto separating device, separates the thermal paper rolls to one by one.
● Auto standing device, turn the thermal paper rolls up.
● Auto flating device, flatten the thermal paper rolls.

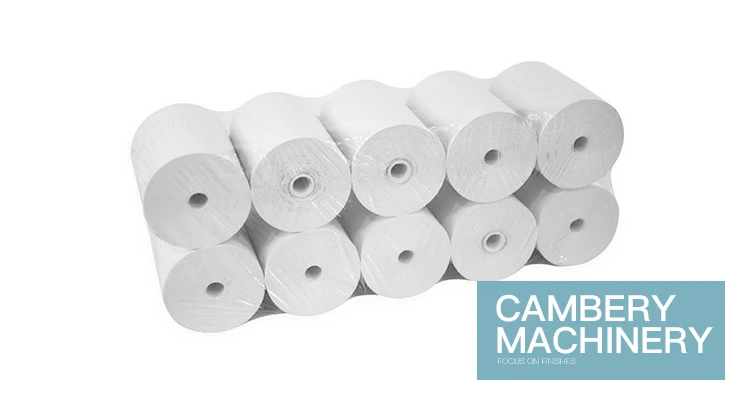

● Auto grouping device, groups the thermal paper rolls in a quantity.

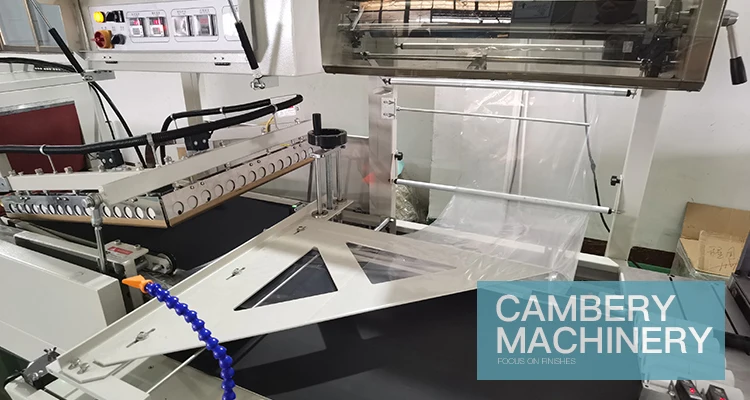

● Auto packing device, packs the grouped rolls with the POF foil.
● Auto shrinking device, shrinks the foils and feed-out.
● Auto standing device, turn the thermal paper rolls up.
● Auto flating device, flatten the thermal paper rolls.
● Auto grouping device, groups the thermal paper rolls in a quantity.
● Auto packing device, packs the grouped rolls with the POF foil.
● Auto shrinking device, shrinks the foils and feed-out.
Control:
● Panasonic® PLC control with 7in. touch screen.
● Max. rewinding speed up to 200m/min.
● Auto EPC edge position control system.
● Auto taper tension control system, auto tension adjust accordance with the diameter change.
● Max. rewinding speed up to 200m/min.
● Auto EPC edge position control system.
● Auto taper tension control system, auto tension adjust accordance with the diameter change.
Others:
● Waste paper collection device, the trimmed paper will be collected by tubes, and transported to the waste collection cabinet.
● Full safety cover, a steel formed safety guarding and PMMA observation window, protect the operator during the machine working.
● Full safety cover, a steel formed safety guarding and PMMA observation window, protect the operator during the machine working.
APPLICATION

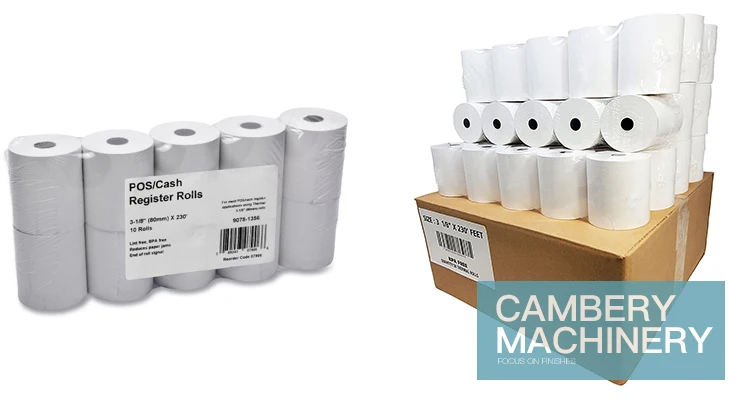

High speed and automated slitting machine, application for thermal paper, cash paper etc.
HOT SALE
COMPANY OVERVIEW
WELCOME TO VISIT US
Cooperation with up to 50 countries around the world.
Cooperation with up to 50 countries around the world.
OUR CERTIFICATION
FAQ
Q1. Warranty
A1. 12 months warranty is effective from the date of acceptance of the machine.
Q2. Payment Terms
A2. TT 30% down payment, 70% before shipment.
Q3. Delivery Time
A3. 15-30 working days from the receipt of the down payment.
Q4. Machine installation
A4. Cambery could assign the technician to the place for the on-site installation if requested by the purchaser.
Q5. Technical Support
A5. Every machine is assigned by a specialist. The response is available within 12 hours while the solution for the
troubleshooting is provided within 48 hours.
Q6. Demo and Testing
A6. Cambery built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’ demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.
A1. 12 months warranty is effective from the date of acceptance of the machine.
Q2. Payment Terms
A2. TT 30% down payment, 70% before shipment.
Q3. Delivery Time
A3. 15-30 working days from the receipt of the down payment.
Q4. Machine installation
A4. Cambery could assign the technician to the place for the on-site installation if requested by the purchaser.
Q5. Technical Support
A5. Every machine is assigned by a specialist. The response is available within 12 hours while the solution for the
troubleshooting is provided within 48 hours.
Q6. Demo and Testing
A6. Cambery built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’ demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.
Похожие товары
Гидравлический листогибочный станок, автоматический гибочный станок, гибочный станок для световых полюсов
Инструменты специального дизайна, гидравлический пресс для большого горла для изготовления фонаря на 12 м
300,00 $ - 800,00 $
Newly Stock Original French Kronenbourg 1664 Blanc Beer in bottles.
Тандемный гидравлический листогибочный станок для светового полюса

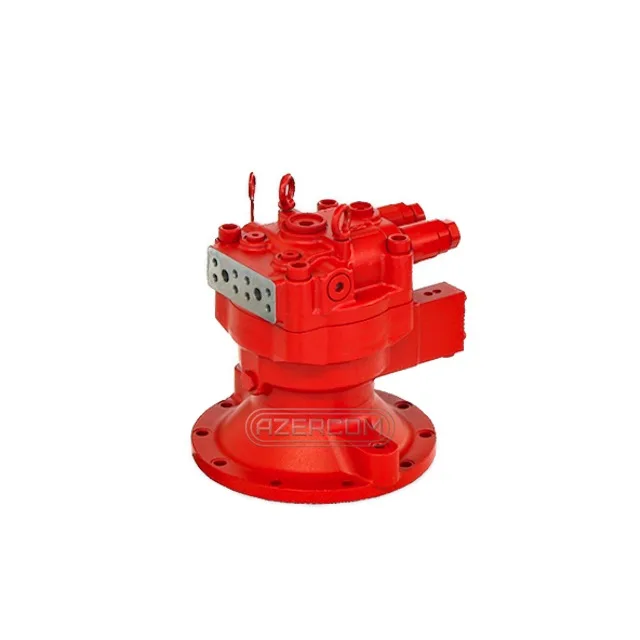

Поворотный мотор Kawasaki M2X55, поворотный мотор M2X63 M2X96 M2X120 M2X146 M2X150 M2X170 M2X210 M5X130

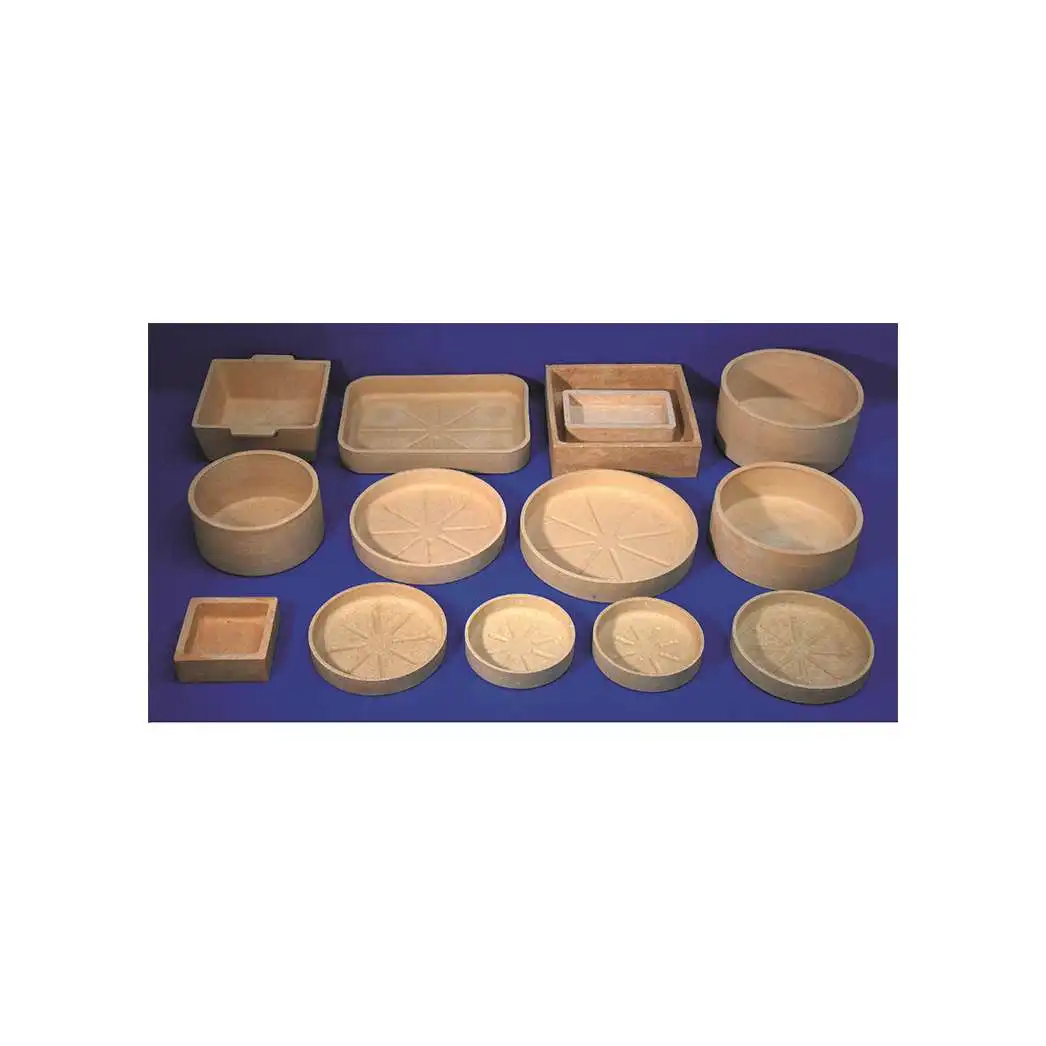

Саггар И Тигель

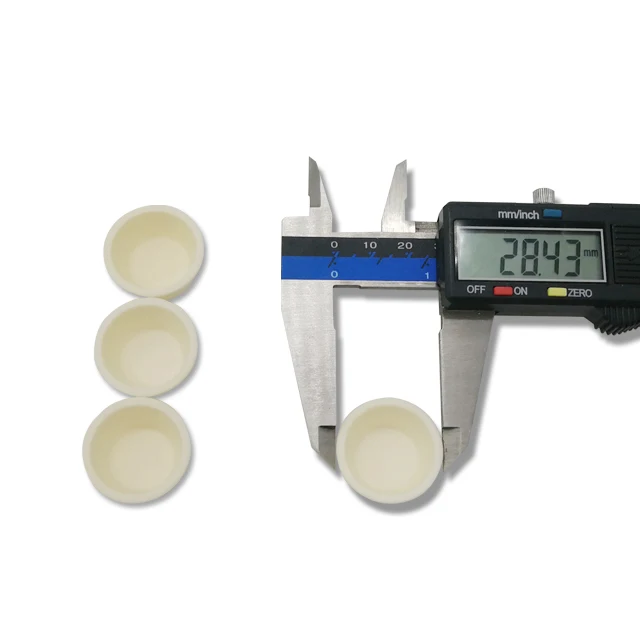

Высокотемпературный устойчивый глиноземный керамический тигель C799 чистоты 99.7% Al2O3
