14 4 V 4A Электрический гольф мобиль зарядное устройство lifepo4 полимерным аккумулятором rc литий ионный аккумулятор EP6012F4
- Категория: >>>
- Поставщик: Shenzhen Everpower Electronics Co. Ltd.
Сохранить в закладки 11000000641284:
Описание и отзывы
Характеристики
Products Description
BRIEF :

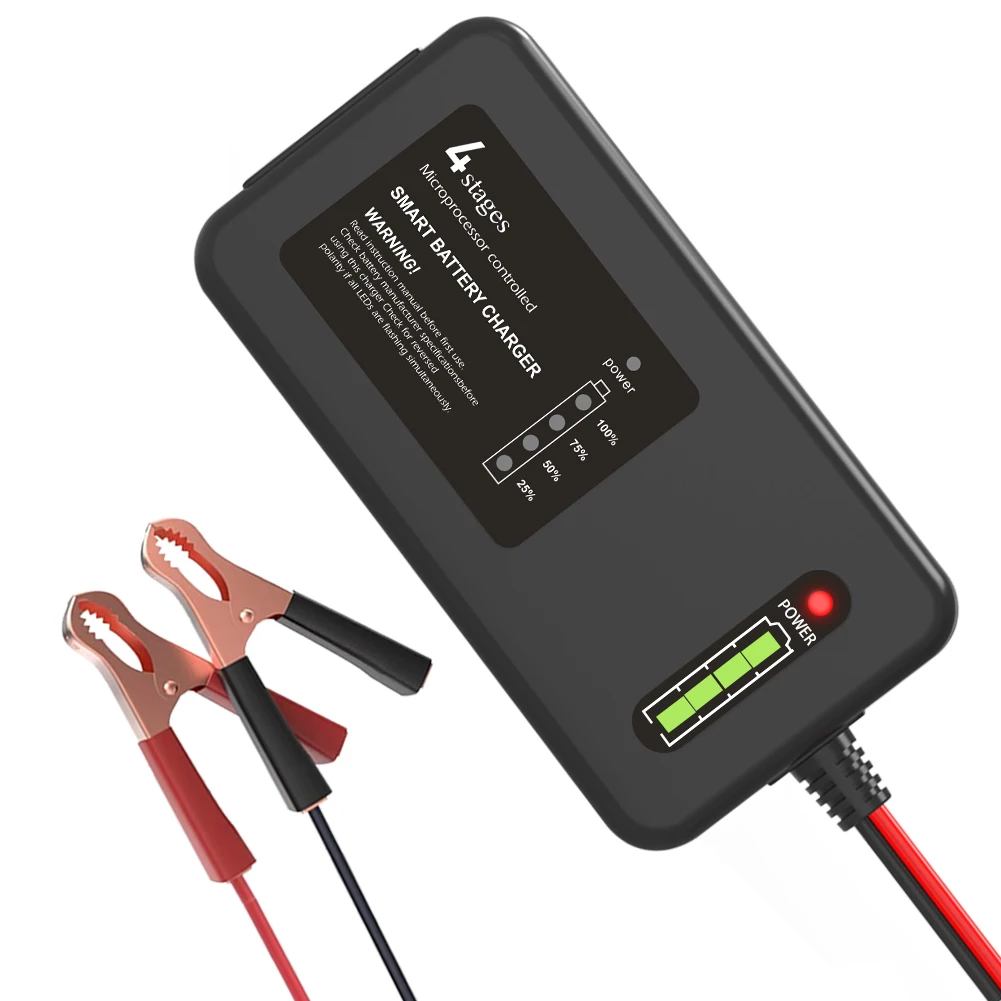

The device is a micro processor controlled smart battery charger that utilizes the latest technology in Li-ion lipo battery
charging,can be used with 3-50Ah batteries,for the best results,use with 5-30Ah batteries.
FEATURE :
* New charging technology for charging all li-ion/polymer battery pack
* Fully auto 4 stages charging process by MCU controller,
* automatically charging ending with Cut-Off output
* Small current pr-charge and constant big charging current for faster charging, optimized for battery pack`s cycle life

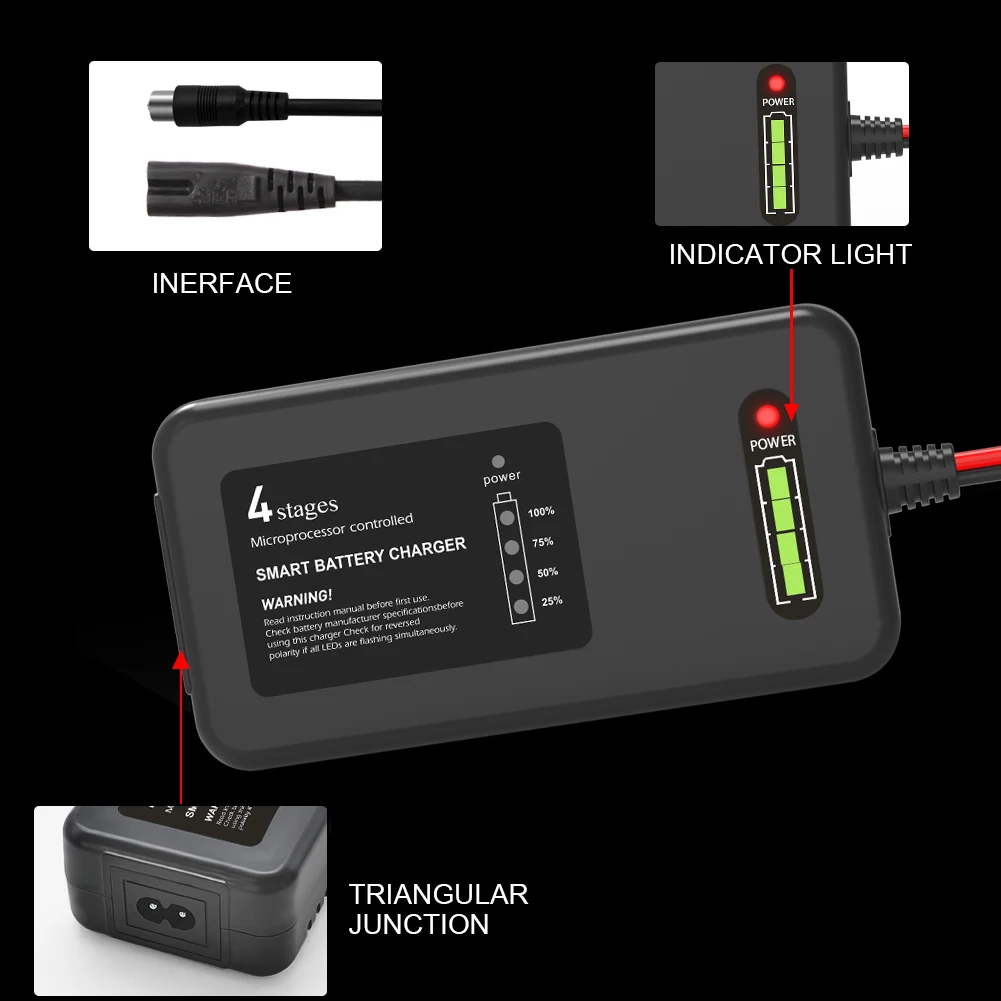

* 4 LEDs fuel gauge indicate the battery capacity from 25%~100% timely.
* 100V-240V AC input for worldwide power support.

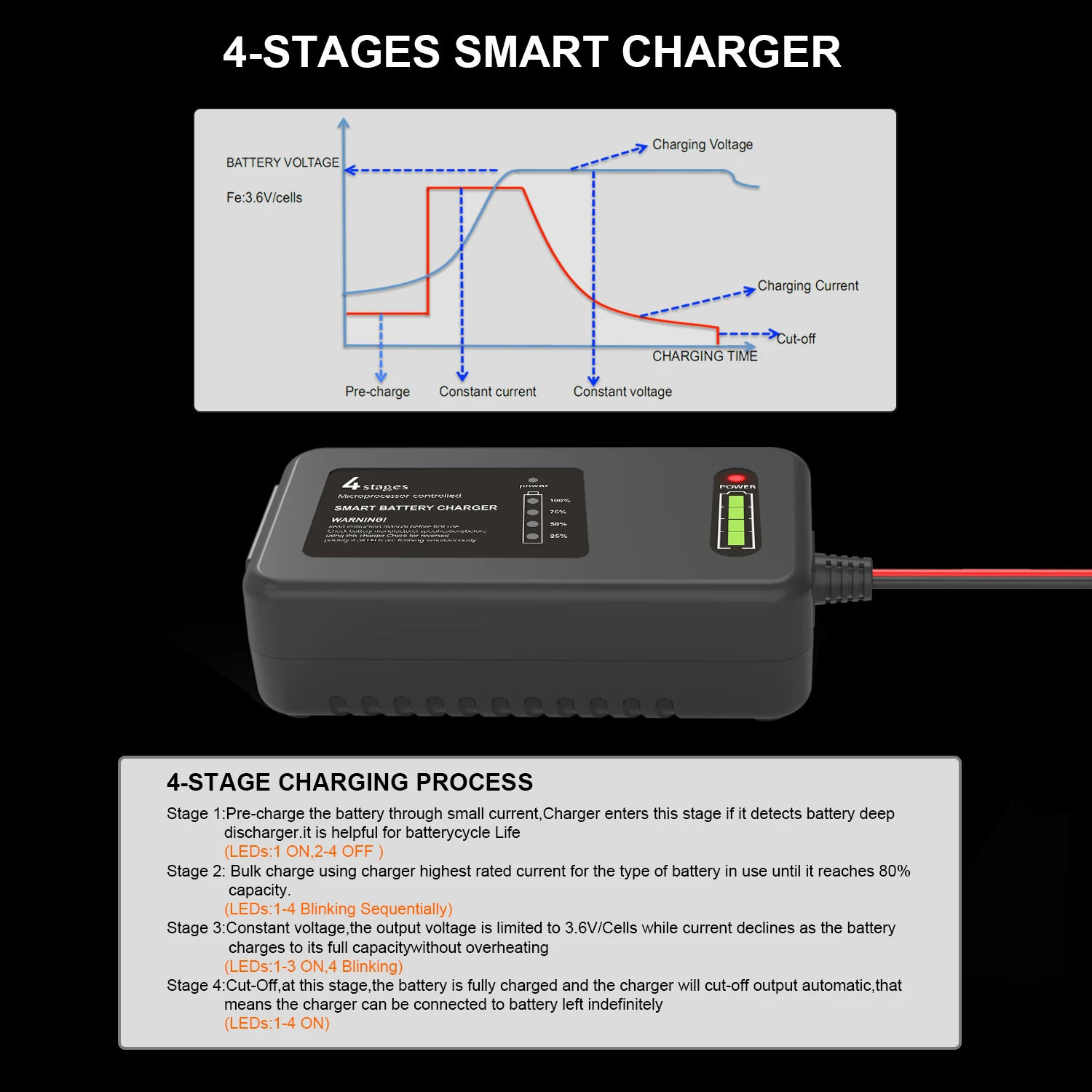

4-STAGE CHARGING PROCESS
Stage 1:Pre-charge battery through small current,Charger enters the stage if it detects
battery deep discharged,it is helpful for battery cycle life (LEDs:1 ON,2-4 OFF)
Stage 2: Bulk charge using charger highest rated current for the type of battery in use
until it reaches 80% capacity. (LEDs:1-4 Blinking Sequentially)
Stage 3:Constant Voltage,the output voltage is limited to 4.2V/Cells while current
declines follow as the battery charges to its full capacity without overheating
(LEDs:1-3 ON,4 Blinking)
Stage 4: Cut-off,At this stage,the battery is fully charged and the charger will cut-off
output automatic.(LEDs:1-4 ON)
The device is a micro processor controlled smart battery charger that utilizes the latest technology in Li-ion lipo battery
charging,can be used with 3-50Ah batteries,for the best results,use with 5-30Ah batteries.
FEATURE :
* New charging technology for charging all li-ion/polymer battery pack
* Fully auto 4 stages charging process by MCU controller,
* automatically charging ending with Cut-Off output
* Small current pr-charge and constant big charging current for faster charging, optimized for battery pack`s cycle life
* 4 LEDs fuel gauge indicate the battery capacity from 25%~100% timely.
* 100V-240V AC input for worldwide power support.
4-STAGE CHARGING PROCESS
Stage 1:Pre-charge battery through small current,Charger enters the stage if it detects
battery deep discharged,it is helpful for battery cycle life (LEDs:1 ON,2-4 OFF)
Stage 2: Bulk charge using charger highest rated current for the type of battery in use
until it reaches 80% capacity. (LEDs:1-4 Blinking Sequentially)
Stage 3:Constant Voltage,the output voltage is limited to 4.2V/Cells while current
declines follow as the battery charges to its full capacity without overheating
(LEDs:1-3 ON,4 Blinking)
Stage 4: Cut-off,At this stage,the battery is fully charged and the charger will cut-off
output automatic.(LEDs:1-4 ON)
What’s In The Box | EP6012L4 Battery Charger Clamps, Integrated Eyelets (M8) , 5.5*2.1mm/ 5.5*2.5mm and others User Guide & Warranty Information |
Operating Requirements | Line Voltage: 110V to 220V AC Frequency: 50Hz to 60Hz Operating Temperature: -4° to 122° F (-10° to 50° C) Storage Temperature: -22° to 122° F (-30° to 50° C) Relative Humidity: 0 to 95% Non-Condensing |
Charging | Current: 3.5 Amps DC Voltages: 16.8V Chemistry: 4 cells 14.8V Lithium BATTERY |
Protection | IP Rating: IP64 |

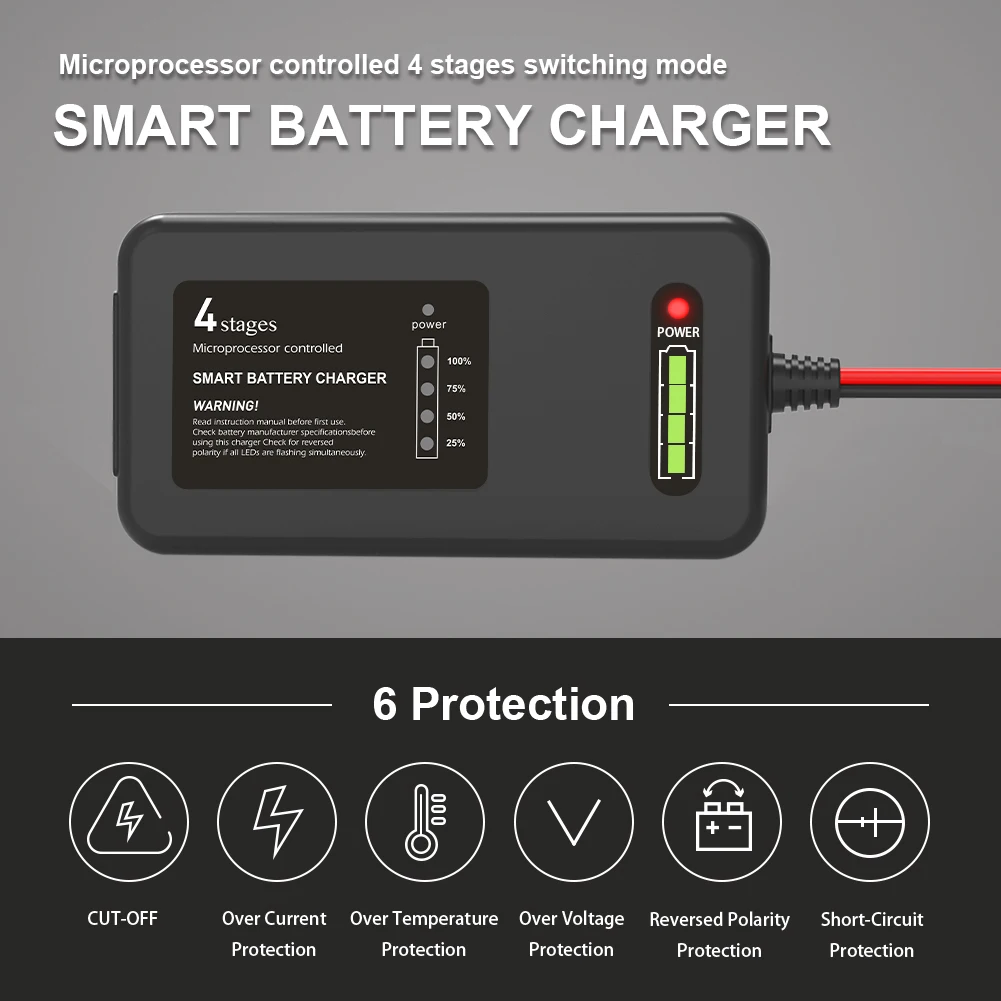

Safety | Short-Circuit: Yes Open-Circuit: Yes Overheating: Yes Overcharge: Yes Spark-Proof: Yes Reverse Polarity: Yes |
Product Parameters
Features:
* Input: 100-240Vac; Output: 14.4V 4.0A
* 5.5*2.1mm/ 5.5*2.5mm , sonme other DC connectors for 4 cells 12.8V LiFePO4 battery pack.
* Energy efficient and stable,Suitable for use with electronic devices that require 14.4V DC and consume less than 60W of power.
* Short circuit protection/ over current protection/ over voltage protection.

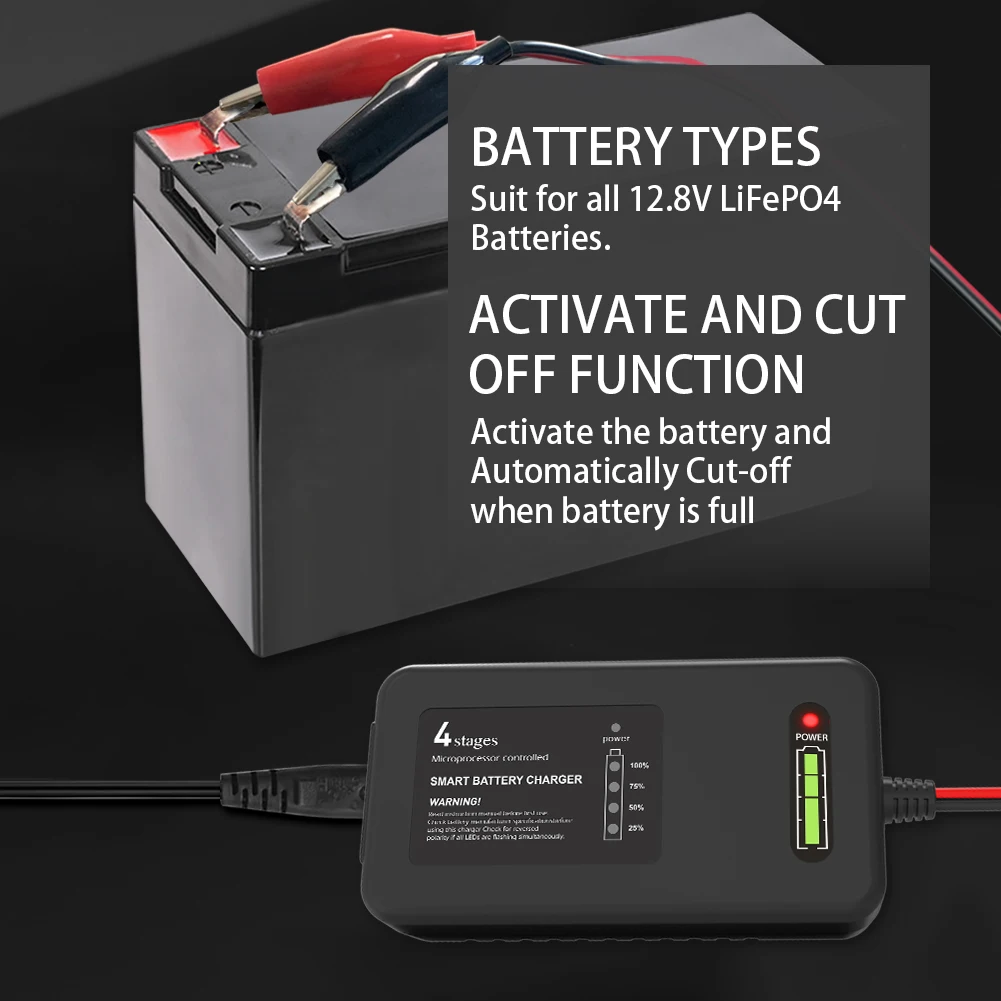

* Charge 12.8V 4 cells LiFePO4 rechargeable battery only .it stop automatically when the battery is full.
* Input: 100-240Vac; Output: 14.4V 4.0A
* 5.5*2.1mm/ 5.5*2.5mm , sonme other DC connectors for 4 cells 12.8V LiFePO4 battery pack.
* Energy efficient and stable,Suitable for use with electronic devices that require 14.4V DC and consume less than 60W of power.
* Short circuit protection/ over current protection/ over voltage protection.
* Charge 12.8V 4 cells LiFePO4 rechargeable battery only .it stop automatically when the battery is full.
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | EP |
Model Number | EP6012F4 |
Type | Plug-In Charger |

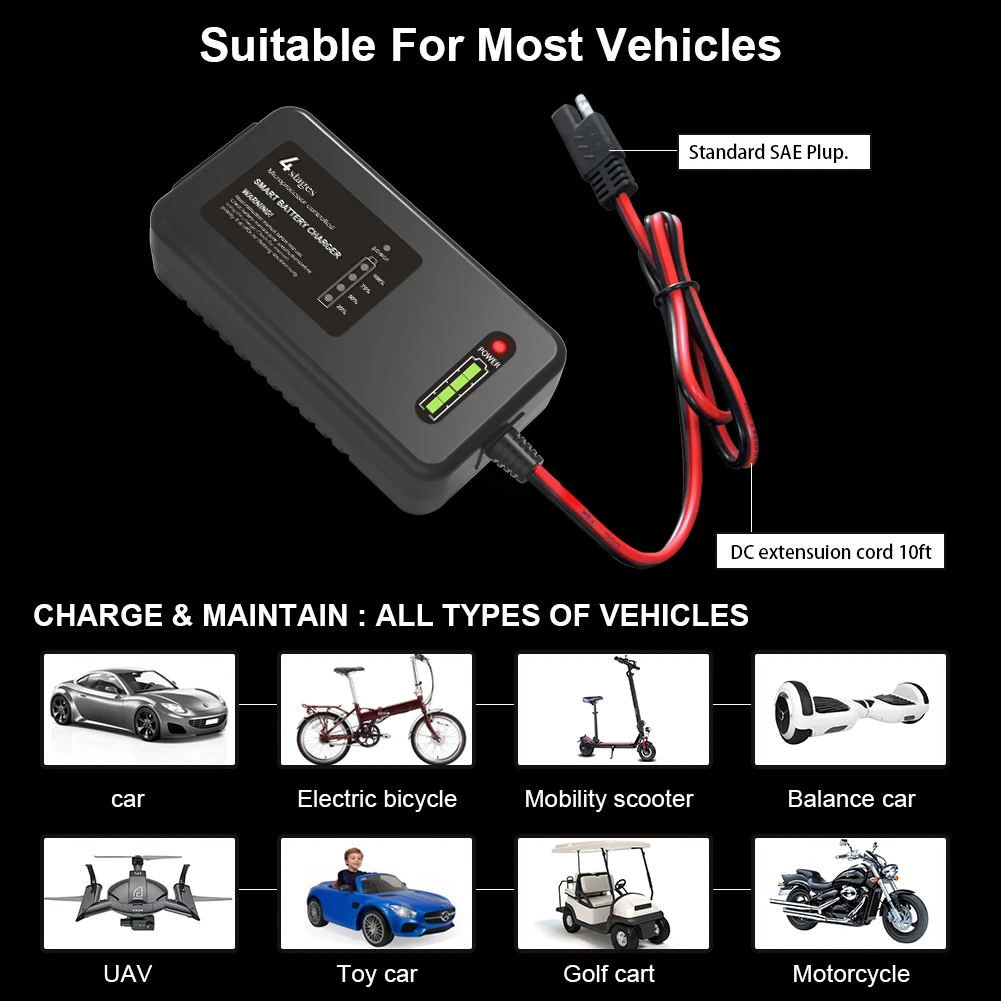

Use | Standard Battery, scooter, electric car, charge 4 cells 12.8V LiFePO4 battery |
Is LED Lamp Illumination | Yes |
Output | 14.4V 4A |
Output Power | 60W |
Input | 100-240V/1.2A |
Private Mold | YES |
Warranty | 18 Months |
Company Profile
Certifications
More Chargers
Factory Video
FAQ
1.Q1. Are you factory or trade company?
A: We are factory of more than 10 years export experience.
Q2. What is your terms of payment?
A: T/T 100% in advance ; or 30% as deposit, and 70% balance before delivery.
Q3. What is your terms of delivery?
A: EXW, FOB, FCA Shenzhen
Q4.Samples ?
A : 1-3 pieces samples will be available, the lead time is about 2-7 days.
Q5.How to order and cooperate with you ?
A1:Send your inquiry request → Feedback with quotation → Confirm quotation →Making samples if needed→Samples test →Price
confirmed→Proforma invoice provided→deposit payment→Mass production→balance payment→Packing →Delivery →After Service →Repeat
Order...
( Sometimes is 100%T/T bank transfer in advance . Large order usually pay 30% deposit to start the production, balance before
delivery )
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% burn-in and test chargers before delivery
Q7: How will you maintain our long-term business relationship?
A: Quality is priority.We will keep offering products good in quality and competitive in price to ensure our customers benefit ;
Q8:How to ship out the cargo?
A:According to customer request, by air, by express, by sea or by train delivery, all are available.
A: We are factory of more than 10 years export experience.
Q2. What is your terms of payment?
A: T/T 100% in advance ; or 30% as deposit, and 70% balance before delivery.
Q3. What is your terms of delivery?
A: EXW, FOB, FCA Shenzhen
Q4.Samples ?
A : 1-3 pieces samples will be available, the lead time is about 2-7 days.
Q5.How to order and cooperate with you ?
A1:Send your inquiry request → Feedback with quotation → Confirm quotation →Making samples if needed→Samples test →Price
confirmed→Proforma invoice provided→deposit payment→Mass production→balance payment→Packing →Delivery →After Service →Repeat
Order...
( Sometimes is 100%T/T bank transfer in advance . Large order usually pay 30% deposit to start the production, balance before
delivery )
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% burn-in and test chargers before delivery
Q7: How will you maintain our long-term business relationship?
A: Quality is priority.We will keep offering products good in quality and competitive in price to ensure our customers benefit ;
Q8:How to ship out the cargo?
A:According to customer request, by air, by express, by sea or by train delivery, all are available.
