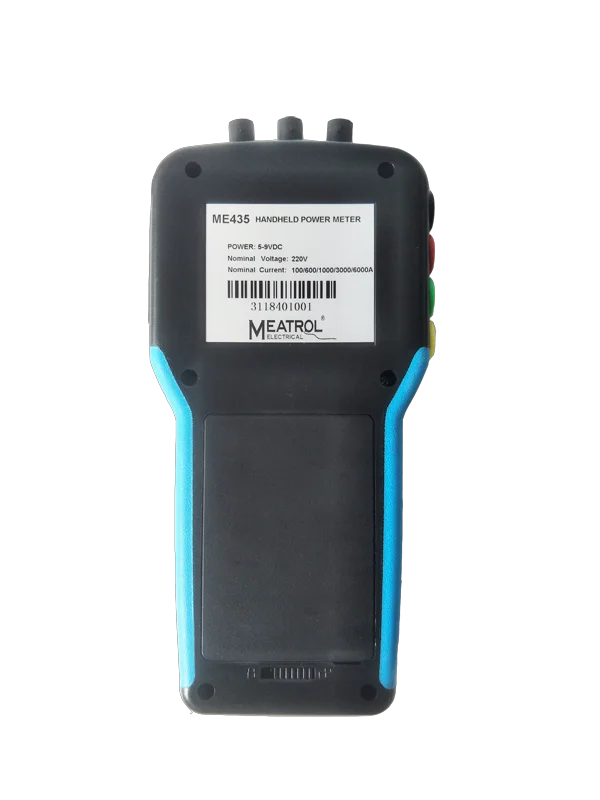

ME435 Электрический измеритель мощности регистратор данных о для

Сохранить в закладки 11000000706415:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Products Description




Connectivity advantages
Support Extra sensor:
3pcs BNC terminal 333mV CT
3pcs BNC terminal 320mV current clamp
3pcs BNC terminal Rogowski coil
Storage:
1GB SD card(Max 4GB) (save intervals 1 mins default)
Power:
4*AA battery(wroking time: approx 7 hours) Or USB Type-C


The power meter measures currents and voltages and reports real-time RMS values for all 3-phases and neutral. In addition, the power meter calculates power factor, realpower, reactive power, and more.

When any one-second real-time reading reaches its highest or lowest value, the power meter saves the minimum and maximum values in its nonvolatile memory. From the power meter display, you can: • view all min./max. values since the last reset and the reset date and time. • reset min./max.


Specification




Specification
Product component type
Handheld three phase rogowski power meter
Poles description
 3PH4W 3PH3W
1PH2W (L-N); 1PH2W(L-L); 1PH3W(L-L-N)
Input type
BNC terminal 333mV CT
BNC terminal Rogowski coil
Device application
Power analysis
Energy meter
Display
3.5 inch TFT screen display
Sampling rate
8k samples per second
Harmonic
52th Max
Power
4*AA battery (working time: approx 7 hours)
Or 9V DC power supply (included adaptor)
Mechanical characteristics
Weight
350g
Dimension
L*W*D:21.5*10*3.5CM
Storage
1 GB SD card (Max 4 GB) (save intervals 1 mins default)
Measurement accuracy
Rated current (5 level selectable)
100A(0.5% from 10A to 120A)
600A(0.5% from 10A to 720A)
1000A(0.5% from 10A to 1200A)
3000A(0.5% from 30A to 3600A)
6000A(0.5% from 60A to 7200A)
Rogwoski coil connect setting
100A                                            MRC-16
600A                                            MRC-36
1000A                                          Y-FCT-200 or Y-FCT-350 or NRC-100
3000A                                          NRC-150 or Y-FCT-510
6000A                                          NRC-200 or Y-FCT-800
ST08 current clamp
5A                                                 0.5% (100mA~5A) 1%(10mA~10mA)
10A                                               0.5% (100mA~10A) 1%(10mA~100mA)
CTs connect setting
Primary setting: from 1A to 999999A
Secondary setting: from 0.001mV to 333mV
Voltage
0.2% from 60V to 500V
Power factor
±0.005
Active/Apparent Power
IEC62053-22 Class 0.5
Reactive power
IEC62053-21 Class 2
Frequency
0.01% from 45 to 65Hz
Active energy
IEC62053-22 Class 0.5s
Reactive energy
IEC62053-21 Class 2
Wire diameter for terminals
Current input
BNC connector

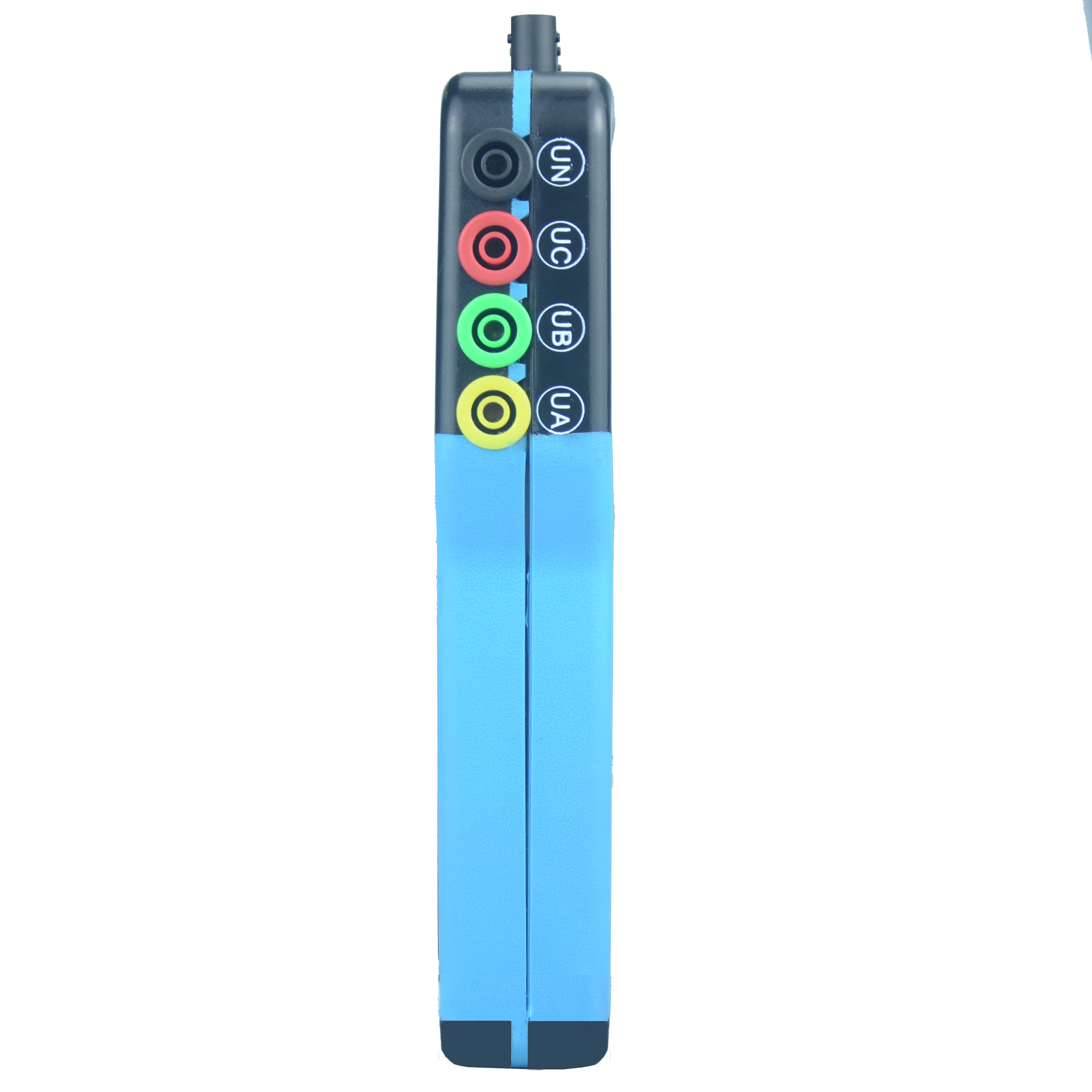

Voltage input
Banana plug
DC power supply
DC 5.5*2.1 plug
Environmental conditions
Operating temperature
 -25℃ to +55℃
Storage temperature
-40℃ to +85℃
Humidity rating
5 to 95% RH at 50℃(non-condensing)
Pollution degree
2
Overvoltage category
III,for distribution systems up to 277/480VAC
Dielectric withstand
As per IEC61010-1, Doubled insulated front panel display
Altitude
3000m Max
IP degree of protection
 IP20 conforming to IEC 60629
Colour
White
Contractual
12months


Company Profile






SHANGHAI PINYAN M&C TECHNOLOGY CO., LTD. founded in 2009.Brand name MEATROL ELECTRICAL, located in the High Technology park of Minhang district, Shanghai.
For a long time, we researched all function, application, feature of Rogowski coil and created the full-automatic winding machine especially for Rogowski. We have series coils for different application according to our rich experience. Our main products include flexible Rogowski coil, rigid Rogowski coil, split core current sensor, all kinds of output type integrator, power meter, power analyzer and so on.
We are good at all kinds of application for current measurement like power meter, power analyzer, High frequency waveform analysis, pulse current test, power transformer monitor, mA current measurement, harmonic tests, wind power generation, welding current monitor, frequency conversion and leakage protection, electric furnace etc.






FAQ


Q: What's MEATROL?
A: We are the No.1 manufacturer of Rogowski coil with meters in China over 12 years.

Q: How about your company product quality?
A: High quality, reasonable cost.

Q: What's your productivity?
A: Rogowski coil, Produced 200k pcs Rogowski coil per year.

Q: Do you support customization?
A: Any R&D requirement relate to Rogowski could be realized.
