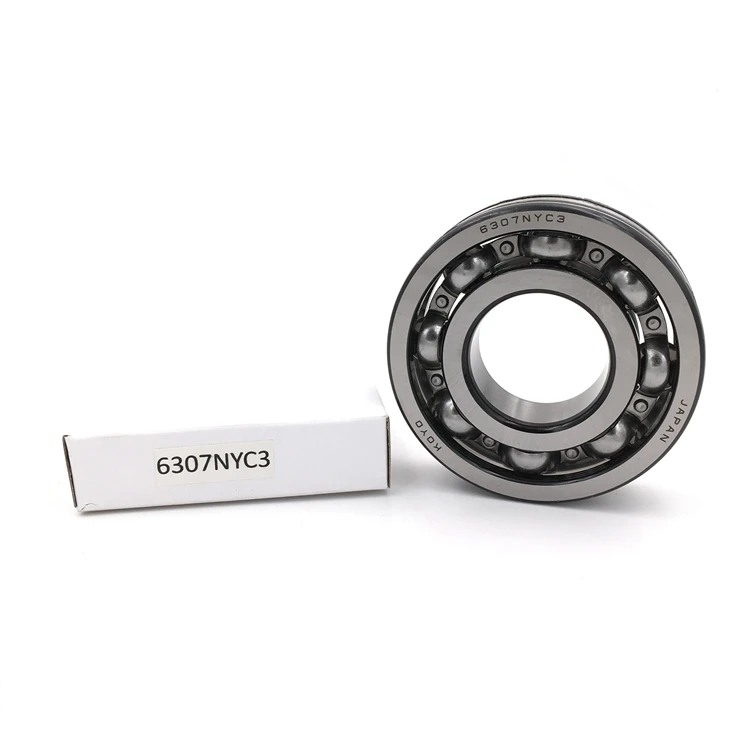

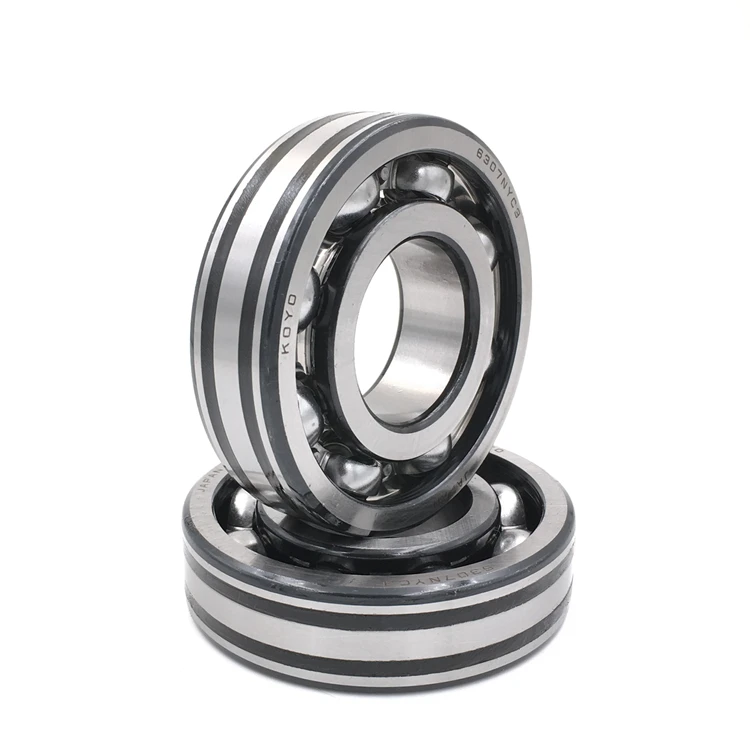

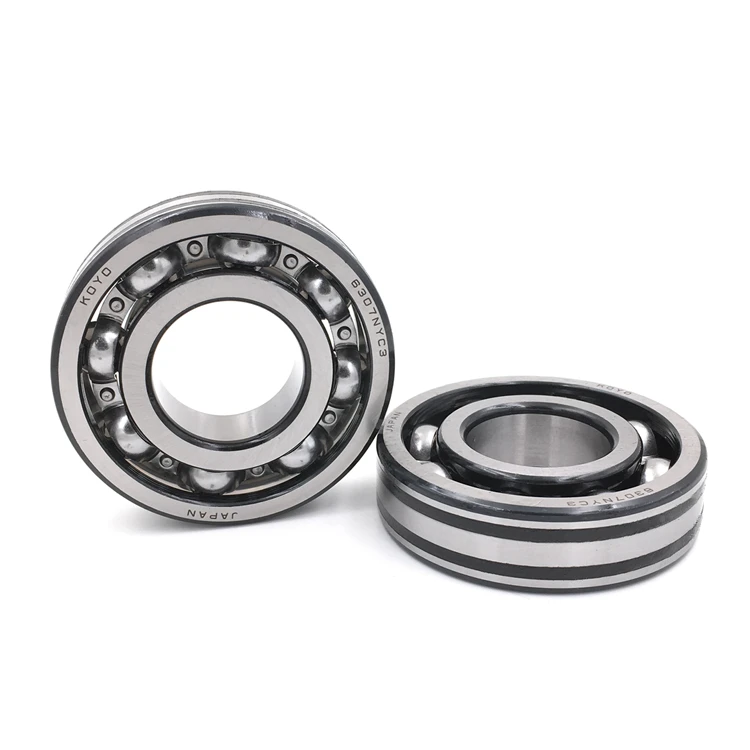

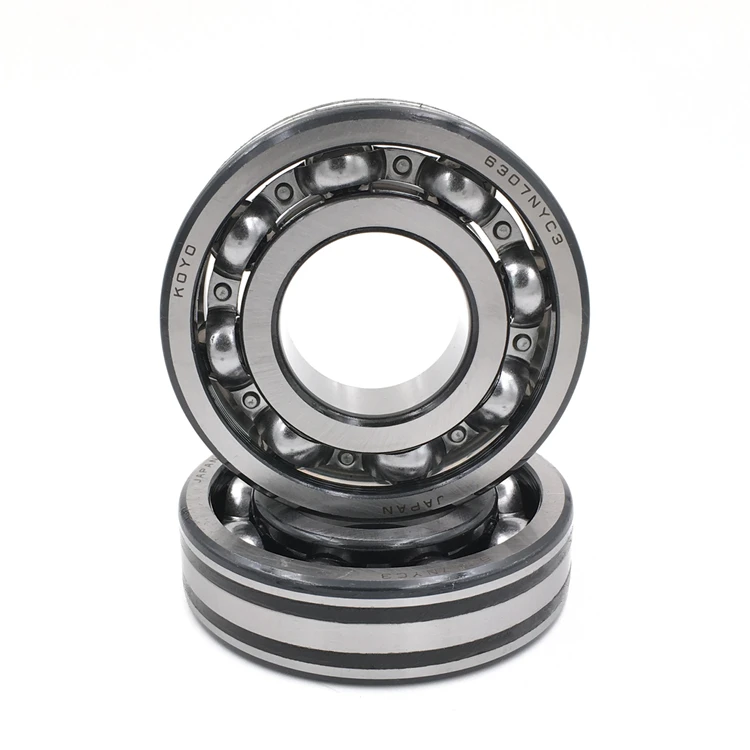

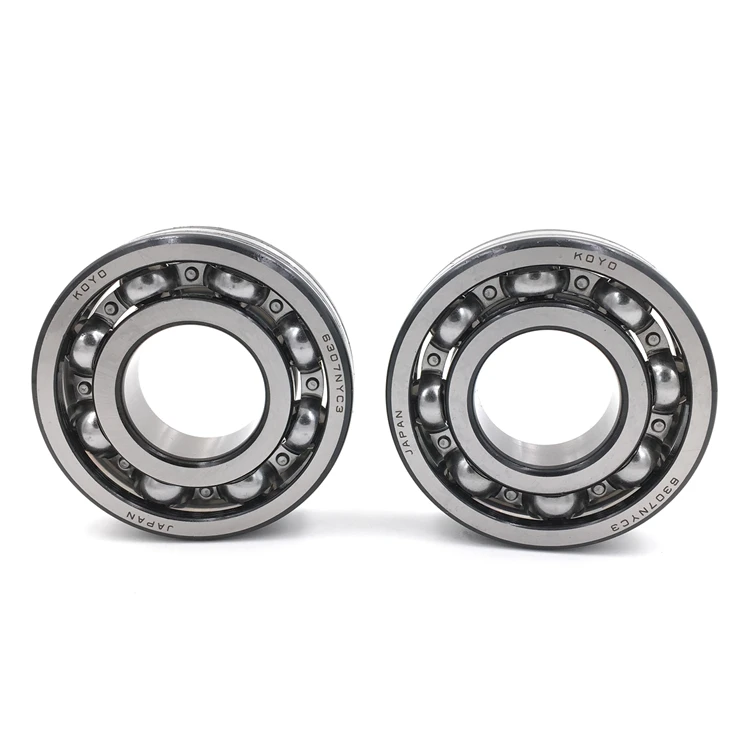

Высококачественный подшипник KOYO из хромистой стали 6307 шариковый с глубоким желобом

Высококачественный подшипник KOYO из хромистой стали 6307 шариковый с глубоким желобом

Категория: >>>
Поставщик: Shandong Youchi Bearing Co. Ltd.

Цена:2,52 $ - 2,65 $*

Количество:

В избранное

Описание и отзывы

Характеристики

High proformance Japan NACHI bearing 6306 deep groove ball bearing

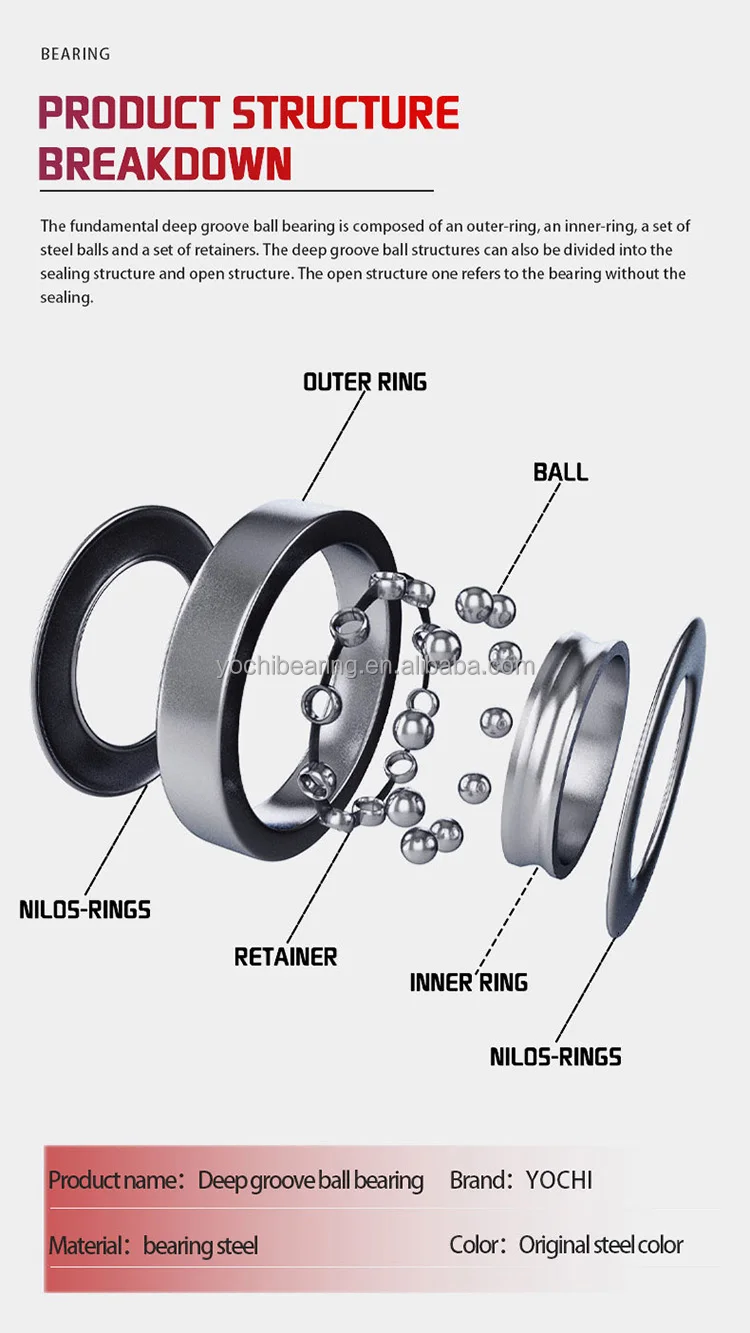

The basic deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls and a set of retainers.

Deep groove ball bearing type has single row and double row two kinds, deep groove ball structure is divided into sealed and open two kinds of structure, open refers to the bearing does not have a sealed structure, sealed deep groove ball is divided into dust-proof seal and oil-proof seal.

Dust-proof seal cover material for steel plate stamping, only play a simple prevent dust into the bearing raceway.

Oil-proof type is contact type oil seal, which can effectively prevent grease overflow in bearing.

Main applications of deep groove ball bearing:

low-power motors, automobile and tractor gearboxes, machine tool gearboxes, general machines, tools, etc

Product name	High proformance Japan NACHI bearing 6306 deep groove ball bearing
bearing materials	Chrome steel
Quality Certificate	ISO9001:2008
Feature	Low noise, less vibration, high precision and long life
Size(mm)	358021mm
weight(kg)	0.457kg
Row	Single Row
Application	Mining operations, paper mills, oil fields, marine industry, steel, electrical, construction machinery, various kinds of professional machinery and heavy industry of all types.

Product Description

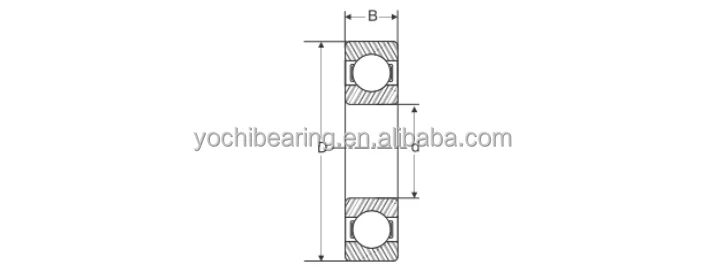

Model	d/mm	D/mm	T/mm	W/kg	Dynamic	Static
6300	10	35	11	0.053	8200	8200
6301	12	37	12	0.06	9750	9700
6302	15	42	13	0.082	11400	11400
6303	17	47	14	0.115	13600	13600
6304	20	52	15	0.142	15900	15900
6305	25	62	17	0.232	23600	20600
6306	30	72	19	0.346	26700	26700
6307	35	80	21	0.457	33500	33500
6308	40	90	23	0.639	40700	40500
6309	45	100	25	0.837	53000	53000
6310	50	110	27	1.082	62000	62000
6311	55	120	29	1.367	71600	71500
6312	60	130	31	1.71	82000	82000
6313	65	40	33	2.1	92700	92500
6314	70	150	35	2.55	104000	104000
6315	75	160	37	3.05	113000	113000
6316	80	170	39	3.61	123000	123000
6317	85	180	41	4.284	133000	97000
6318	90	190	43	4.97	143000	107000
6319	95	200	45	5.74	153000	119000
6320	100	215	47	7.09	173000	141000

category	introduction
RS	One side with rubber seal
2RS	Rubber seal on both sides
RZ	Single-sided synthetic rubber low friction seal with steel lining
Z	Metal sealing ring on one side
ZZ	Metal sealing ring on both sides
DU	bearing side with dust cover

Specification

item	value
Type	BALL
Structure	Deep Groove
Applicable Industries	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company
Bore Size	1mm - 100mm
Model Number	KOYO 6307
Precision Rating	P5
Seals Type	open
Number of Row	Single row
Place of Origin	Japan
Structure	Deep Groove
Packing	Original Package
Service	OEM Customized Services
Stock	Rich
Cage	Steel Cage.copper Cage.nylon Cage
Certificate	ISO9001:2008
Application	Automotive.tractor.construction Machinery.rolling Mill
Lubrication	Grease
Keywords	High Stability
Samples	Avaliable

Packing & Delivery

1.plastic bag+kraft paper+carton+plywood pallets
2.plastic tube+carton+plywood pallets
3.plastic bag+color box+carton+plywood pallets
4.as the client's requirment+Custom Packing

Products Total Show

why choose us

1.High speed, High Precision, Low Noise, Long Service Life

2.Widely esed

3.Large Inventories

4.High Quality and Competitive Prices

5.Various Brands

6. OEM is supported

7. The company has been adhering to the "quality first, customer first" principle, the best quality, lowest price products to meet customer needs.

Company Profile

The company ranks among the top in the bearing industry from the perspectives of financial strength, production scale, technical strength and sales performance, etc.

Shandong YOCHI Bearing Co., Ltd.is Located in the beautiful city of springs, Jinan.
We can provide various kind of bearings with high quality, low price, short delivery time.
The products include: deep groove ball bearings, self-aligning ball bearing,self-aligning roller bearing, spherical roller bearing,taper roller bearing, industry mining equipment bearing. hub bearing, auto equipment bearing and so on.

We can offer customized service to meet customers' requirements.
We welcome customers from all over the world to establish business relations and cooperate with us.

We are committed to be your most reliable bearing supplier.

FAQ

1. who are we?
We are based in Shandong, China, start from 2018,sell to South America(20.00%),Mid East(20.00%),South Asia(10.00%),North America(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Africa(5.00%),Central America(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?

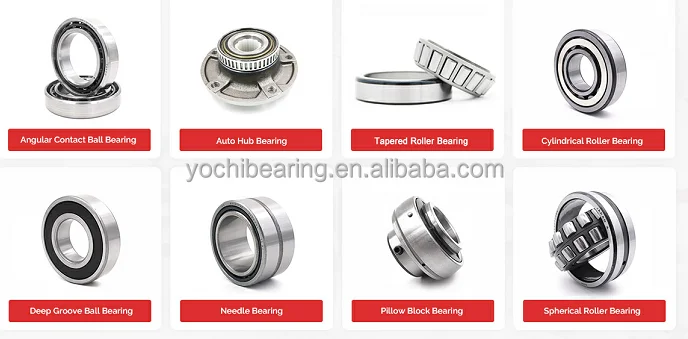

Bearing,Deep groove ball bearing,Taper roller bearings,Spherical roller bearings,Cylindrical roller bearings

4. why should you buy from us not from other suppliers?
Shandong Yochi Bearing Co., Ltd Is Establised In 2010, We Manufacture And Sale Of Different Brands Of Bearings ,With Short Production Period And Competitive Price.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
