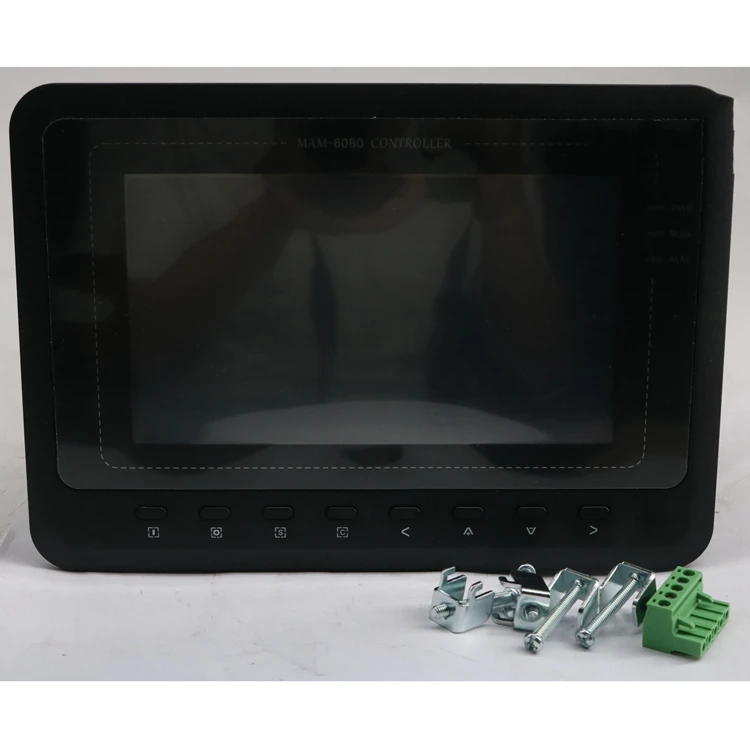

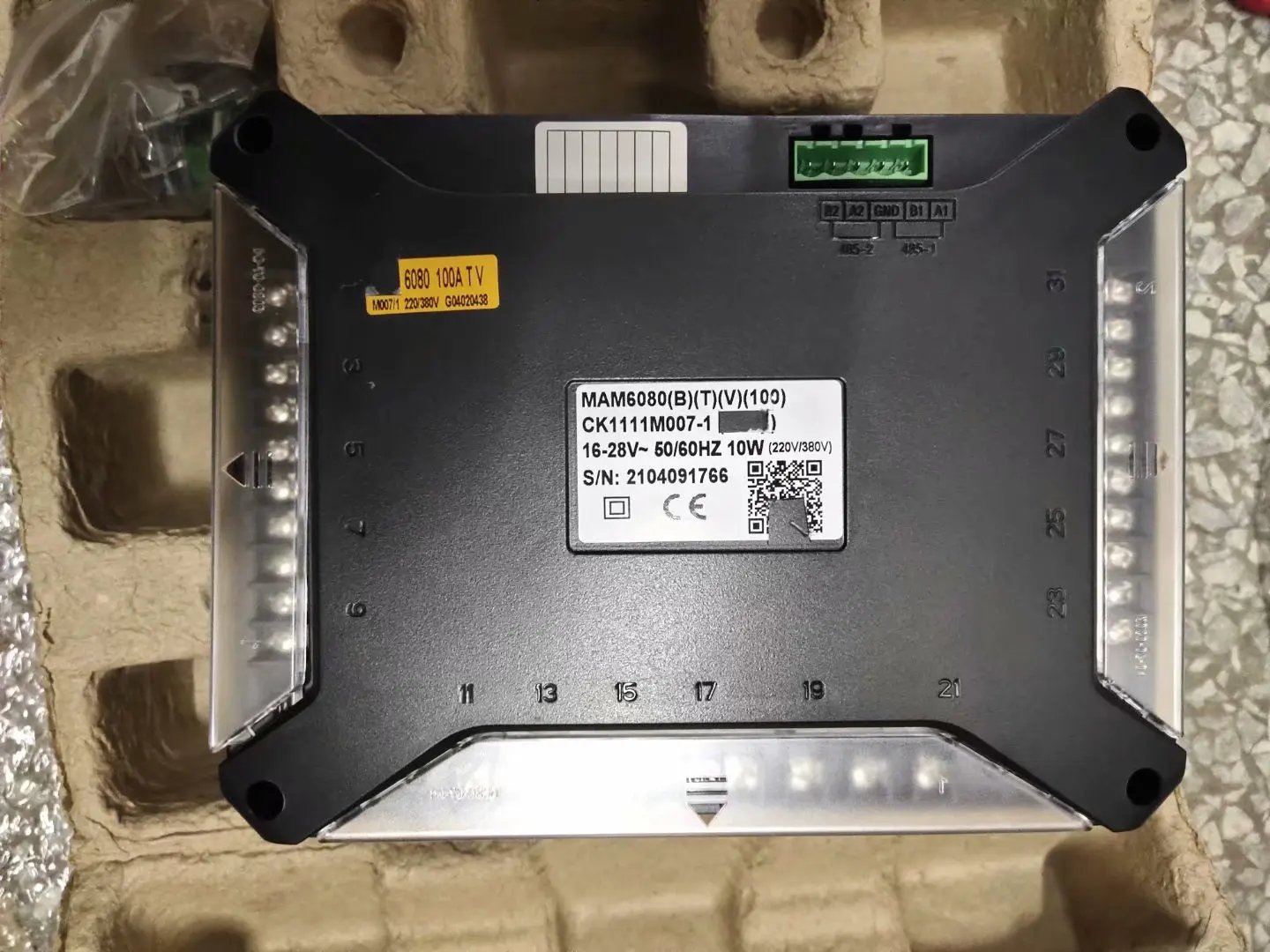

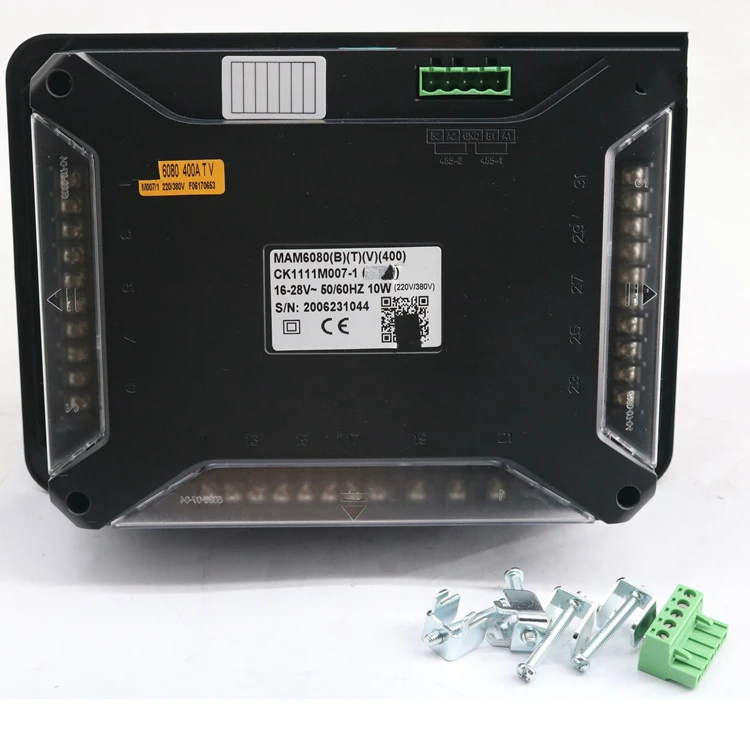

Air compressor controller MAM 6080 Variable-Speed Drive VSD compressor parts plc controller
Product Description
Working life | 80,000 Hours | Voltage | DC 16V-28V |
Model | MAM-6080 | Application | screw compressor |
Product size | 225*157*63.1mm | Material | Plastic |
Screen size | 206*149mm | Warranty | 1 year |
Digital Input | 6 | Power | 15W |
Digital Output | 6 | MOQ | 1 Piece |
Pressure | 4-20mA: 1pc | Temperature | PT100/PT1000: 1pc |
Terminal(Socket or screw ) | Screw | Pressure transmitter or Pressure switch | Optional |
Specifications & Features
Multiple run mode optional.

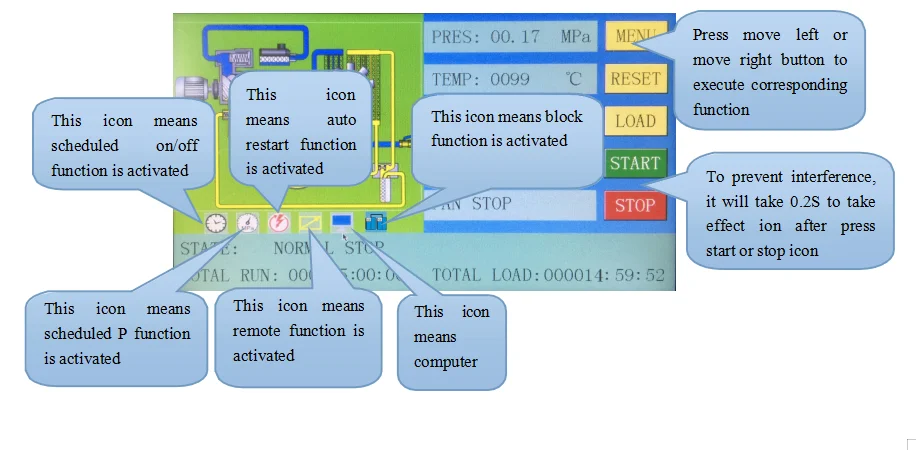

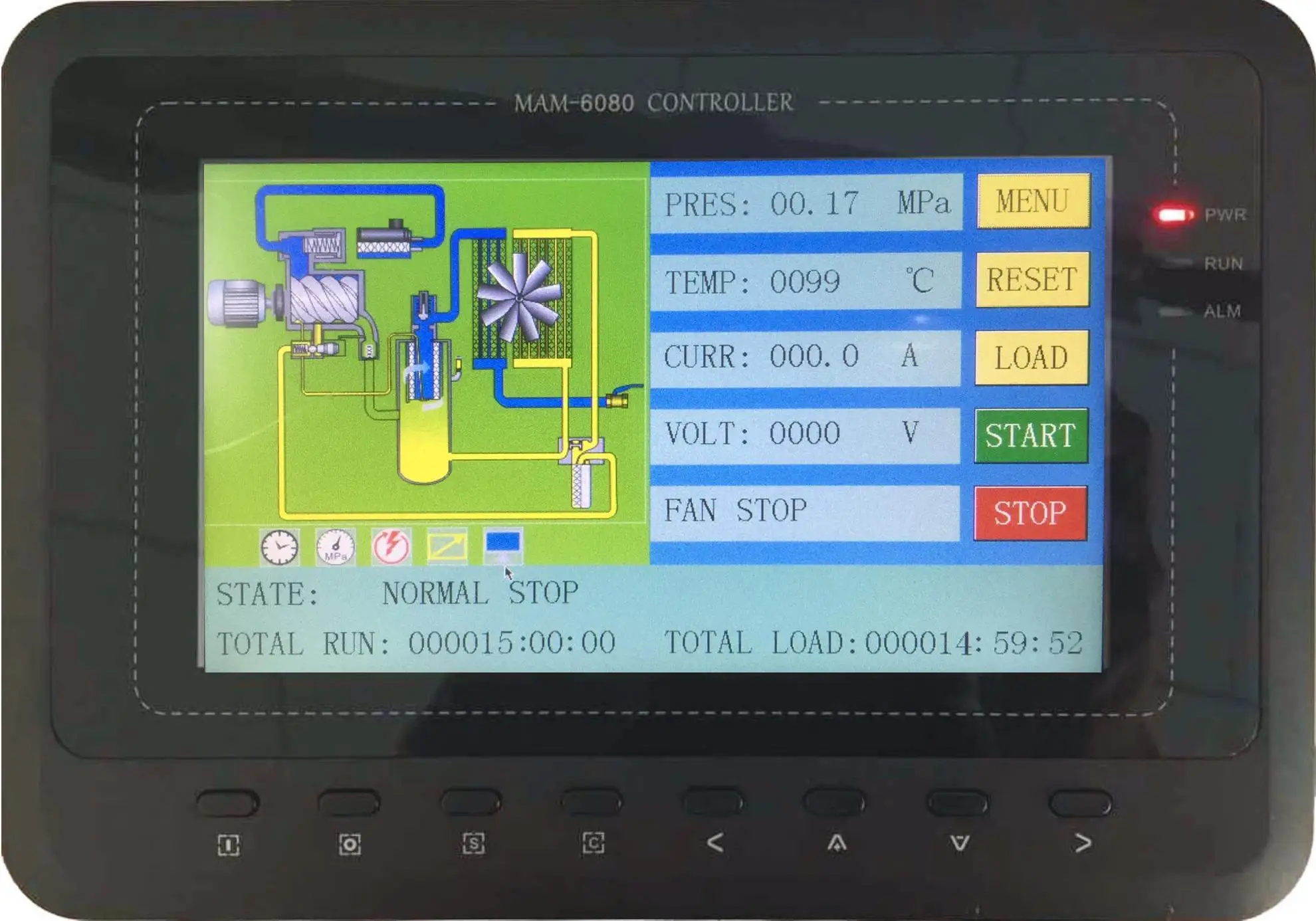

● 7 inch color screen ,with button and touch penal.
● Support real time power consumption and accumulative power consumption measurement.
● Scheduled on/off function and scheduled pressure function optional
● More accurate in writing frequency to control inverter through 485 communication
● Free to control all inverter supporting MODBUS RTU protocol.
● Open phase ,current overload ,current unbalance ,high voltage, low voltage protection for motor.
● High integration, high reliability, high cost performance
● 7 inch color screen ,with button and touch penal.
● Support real time power consumption and accumulative power consumption measurement.
● Scheduled on/off function and scheduled pressure function optional
● More accurate in writing frequency to control inverter through 485 communication
● Free to control all inverter supporting MODBUS RTU protocol.
● Open phase ,current overload ,current unbalance ,high voltage, low voltage protection for motor.
● High integration, high reliability, high cost performance

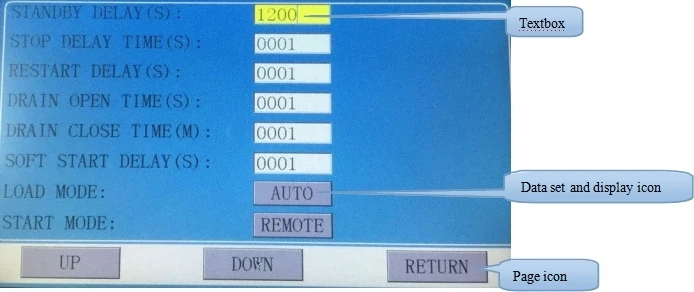

Run parameter
Menu | Preset Data | Function |
OIL FILTER | 0020H | Record total running time of oil filter. |
O/A SEPERATOR | 0020H | Record total running time of O/A separator. |
AIR FILTER | 0020H | Record total running time of air filter . |
LUBE | 0020H | Record total running time of lubricant. |
GREASE | 0020H | Record total running time of grease. |
SERIAL NO. | 00000000 | Display the serial number |
POWER | 0000V | Display power supply voltage |
MOTOR CURRENT | A：000.0A B：000.0A C：000.0A | Display motor current |
FAN CURRENT | A：000.0A B：000.0A C：000.0A | Display fan current |
MOTOR RATED SPEED | 0000 RPM | Display motor actual speed based on the calculation of motor frequency read |
MOTOR RATED POWER | 000.0 Hz | Display the output frequency of current motor inverter |
MOTOR OUTPUT CURRENT | 000.0 A | Display the output current of current motor inverter |
MOTOR OUTPUT VOLTAGE | 000.0 V | Display the output voltage of current motor inverter |
MOTOR OUTPUT POWER | 000.0 Kw | Display the real time output power of current motor inverter |
Please consult us for more details........
Company Profile
Dear Sir,
It gives us great pleasure to introduce ZAKF oil injected rotary screw air Compressor. Our company Honkong Jiubei Industry Limited is a large enterprises which is professional in air compressor and air compressor parts research, development and research. ZAKF is one of a famous compressor brand belong to Honkong Jiubei Industry Limited , ZAKF screw air compressor shipped to worldwide customer in Malaysia,Vietnam, Singapore, Indonesia, Thailand, India, Bangladesh,Sri Lanka, Mauritius, Australia, Saudi Arabia, Israel, Russia, Croatia, Brazil, Peru, USA, Mexico, Canada, Dominican Republic.... widely used in diverse industry.
ZAKF compressor design, manufacturing at a high starting point, advanced technology, superior level of systemization, its core competencies to guide the development trend of industry, stable and reliable. ZAKF import advanced technology from Europe, through constant practice and improvement, design a new generation of ZAKF air compressor.
Improved quality assurance manual, advanced production process, control management program files comprehensive, standardized, ensuring high quality brand products “ZAKF”, stable and durable. High quality, intimate service get the praise from users all over the world.
ZAKF compressor design, manufacturing at a high starting point, advanced technology, superior level of systemization, its core competencies to guide the development trend of industry, stable and reliable. ZAKF import advanced technology from Europe, through constant practice and improvement, design a new generation of ZAKF air compressor.
Improved quality assurance manual, advanced production process, control management program files comprehensive, standardized, ensuring high quality brand products “ZAKF”, stable and durable. High quality, intimate service get the praise from users all over the world.
Exhibition
Product packaging
Customer Photos
FAQ
Q:Are you a factory or trade company?
A:We are a factory,we provide screw Air compressors,Air receivers,UltraFilters,Dryers,Electronic condensate drains and Oil/Water separators.
Q:How to pay?
A:T/T and L/C,Western Union,Paypal.
Q:How about your monthly production?
A:8000sets/month.
Q: what’s the advantages of your company?
A:1. I have factory,the quality can be control.
A:We are a factory,we provide screw Air compressors,Air receivers,UltraFilters,Dryers,Electronic condensate drains and Oil/Water separators.
Q:How to pay?
A:T/T and L/C,Western Union,Paypal.
Q:How about your monthly production?
A:8000sets/month.
Q: what’s the advantages of your company?
A:1. I have factory,the quality can be control.
2. the price is good
3. I have professional team
4. we can be your oem factory
5.Excellent after service. 6. we have inverter compressor, it can save energy.
Q:How to package&delivery?
A:we will use standard wooden case to package and shipped after finishing payment.
Q:How many services you will provide about air compressor?
A:we will provie perfect before-sales and after-sales for each machine.
Q:How to package&delivery?
A:we will use standard wooden case to package and shipped after finishing payment.
Q:How many services you will provide about air compressor?
A:we will provie perfect before-sales and after-sales for each machine.
Contact us
contact us
Sales Manager:Grace
Cellphone / Wechat / Whatsapp: +8613414280001
Tel: 0086-769-81624099
Dongguan City Jiubei Compressor Parts Co.,LTD
HONGKONG JIUBEI INDUSTRY LIMITED
E-mail: grace@cnjiubei.com
zakf2@screwaircompressor.cn
Skype: part.fg18
www.screwaircompressor.cn
www.screwaircompressor.cn
Похожие товары

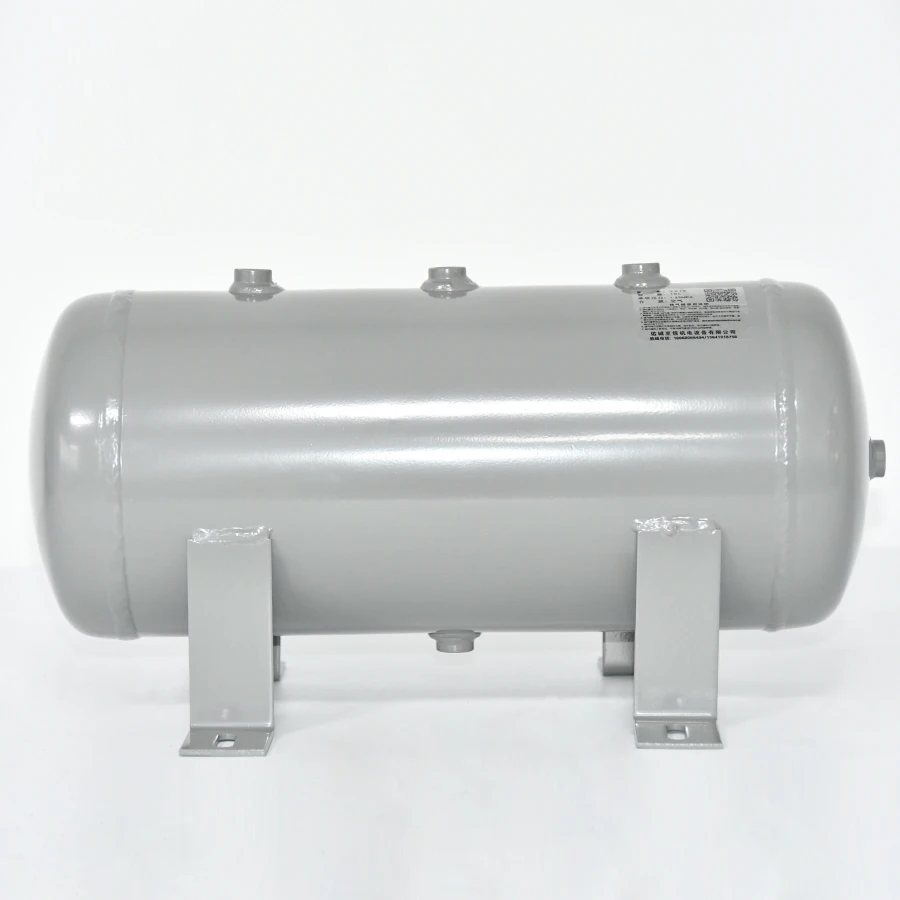

Резервуар для воздуха объем 10 л воздушный компрессор маленький горизонтальный вакуумный резервуар буфера
Высокое качество концом воздуха винта

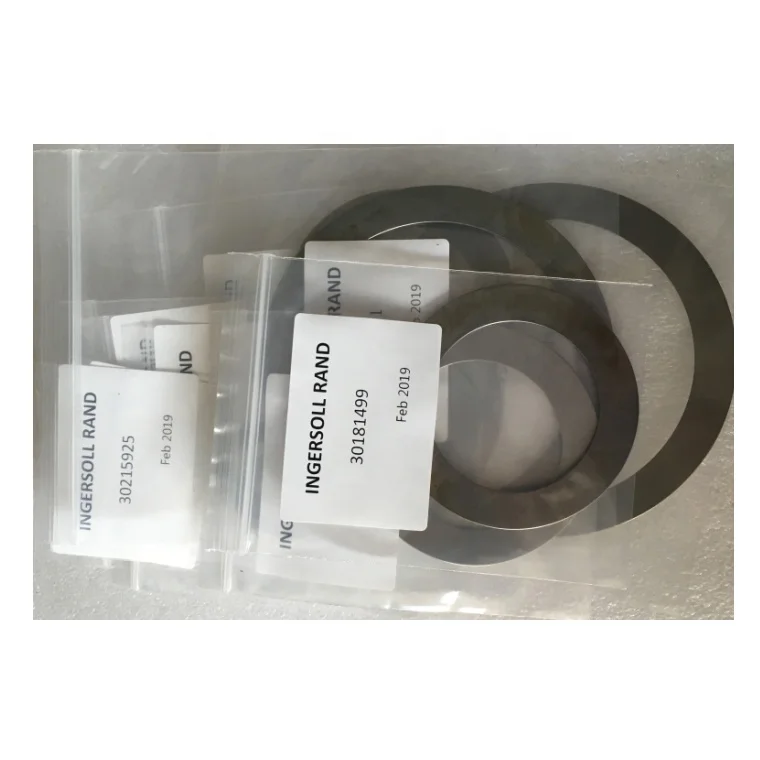

Вторичная Входная клапанная пластина 30181499 запасные части для воздушного компрессора ingersoll
45,00 $ - 60,00 $
Автоматическая сушилка для сжатого воздуха, 22 кВт, 30 л.с., 3,5 м, 3/мин, мини сушилка для сжатого воздуха, распродажа
360,00 $ - 450,00 $
Резервуар для сжатого воздуха высокого давления м3 вертикальный резервуар
330,00 $ - 410,00 $

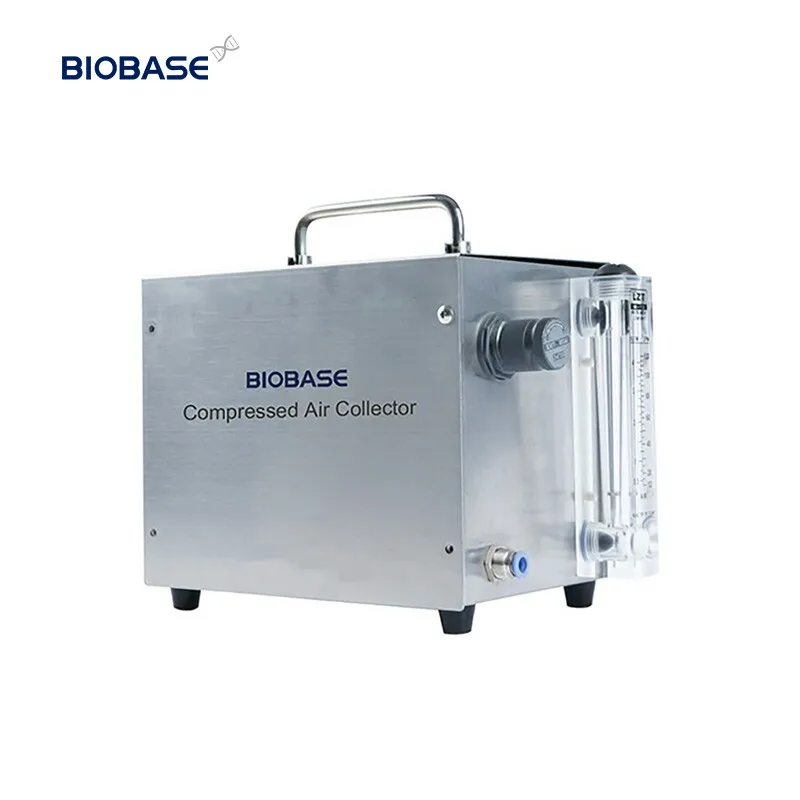

BIOBASE коллектор для пробоотбора сжатого воздуха счетчика частиц

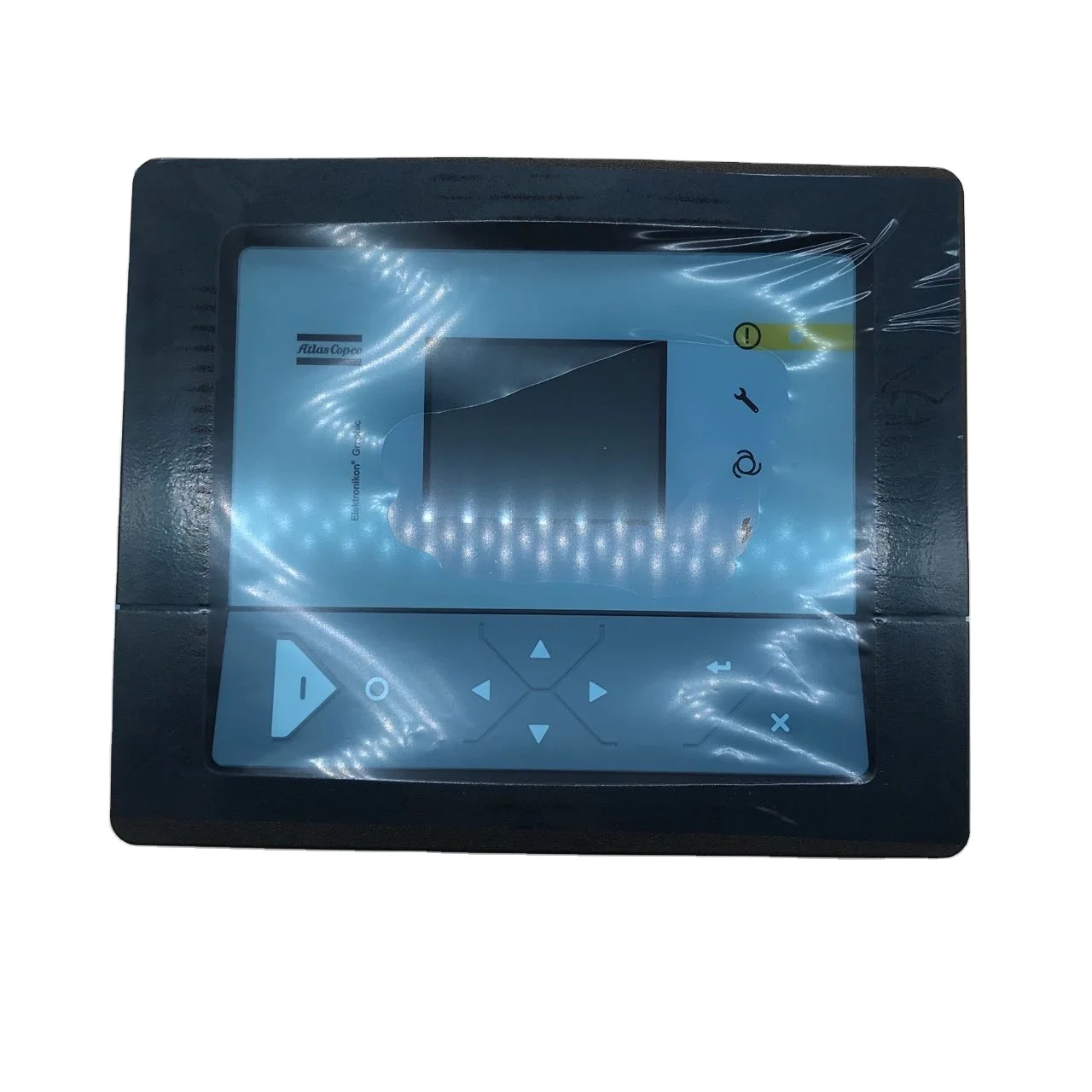

Контроллер воздушного компрессора electronikon 1900520013 1900520011 панель контроллера elektronikon для
