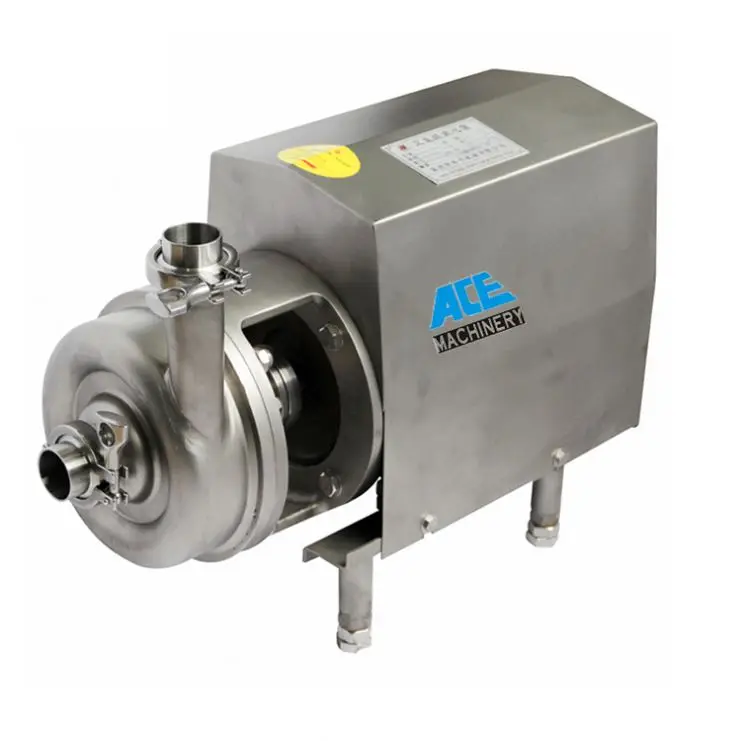

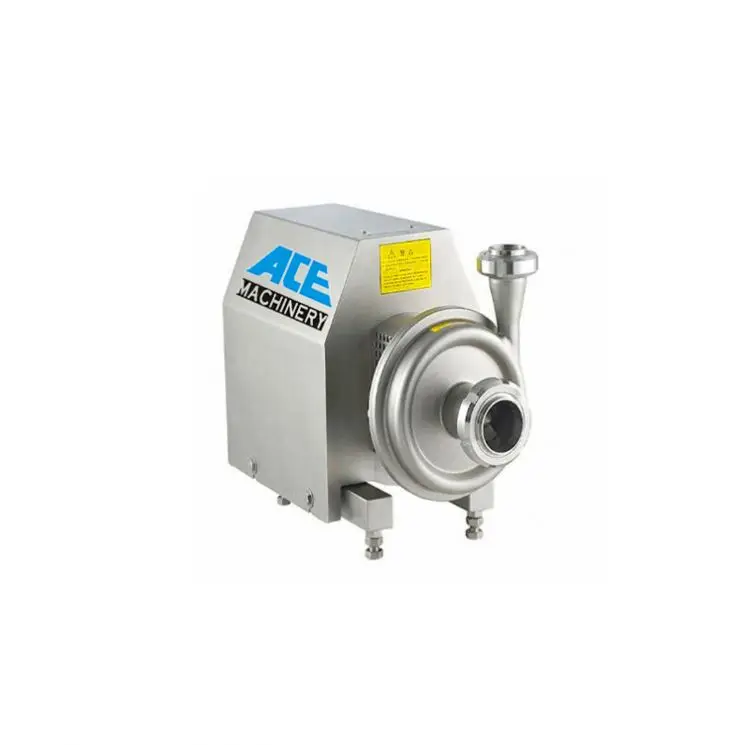

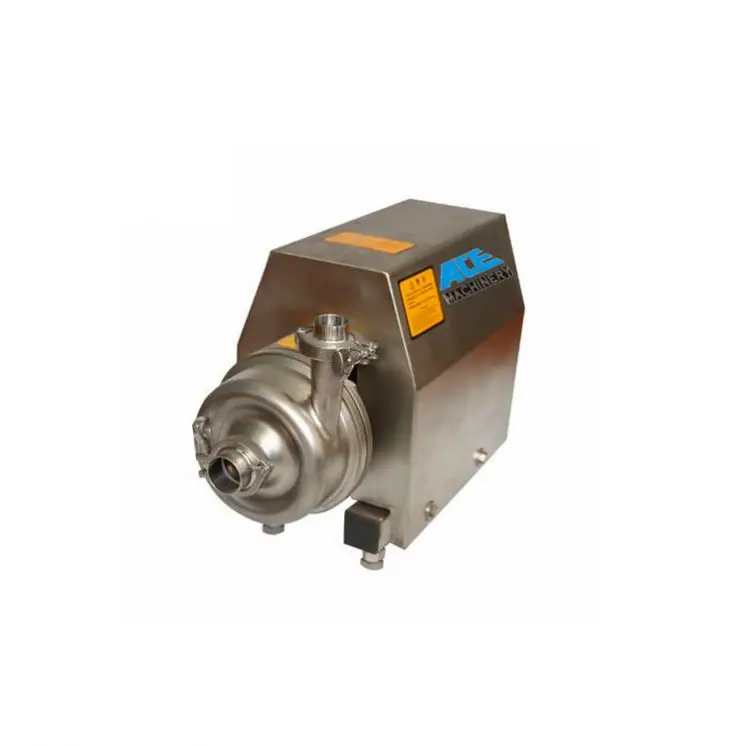

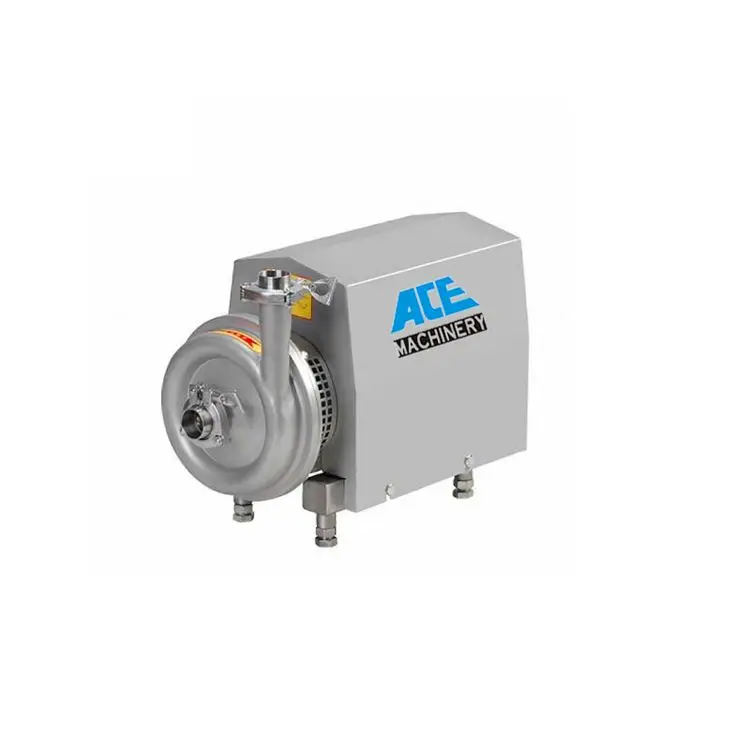

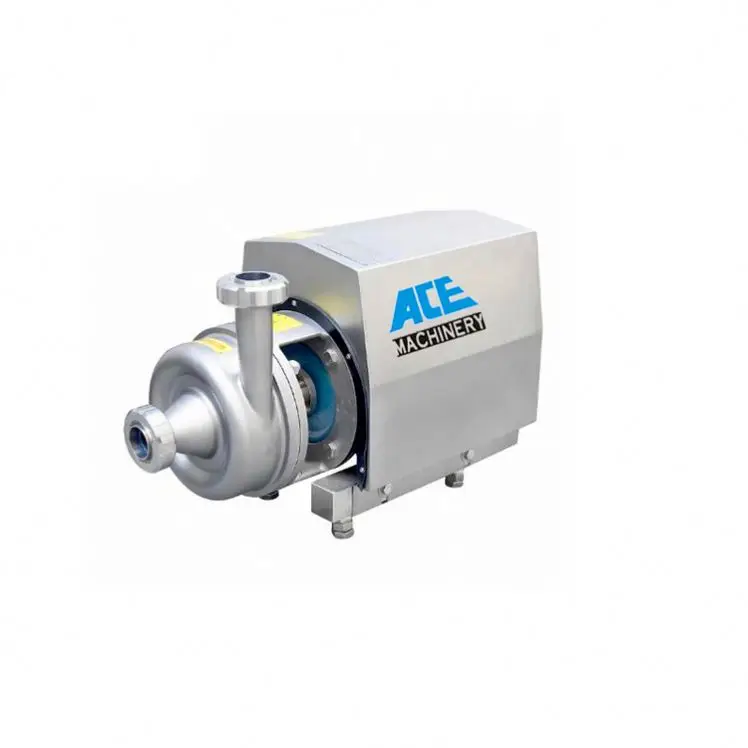

Новый дизайн нержавеющая сталь 304 316 используется для пищевого перистальтического насоса вина
- Категория: >>>
- Поставщик: Wenzhou Ace Machinery Co. Ltd.
Сохранить в закладки 11000000853214:
Описание и отзывы
Характеристики
New Design Stainless Steel 304 316 Used For Food Wine Peristaltic Pump
Video

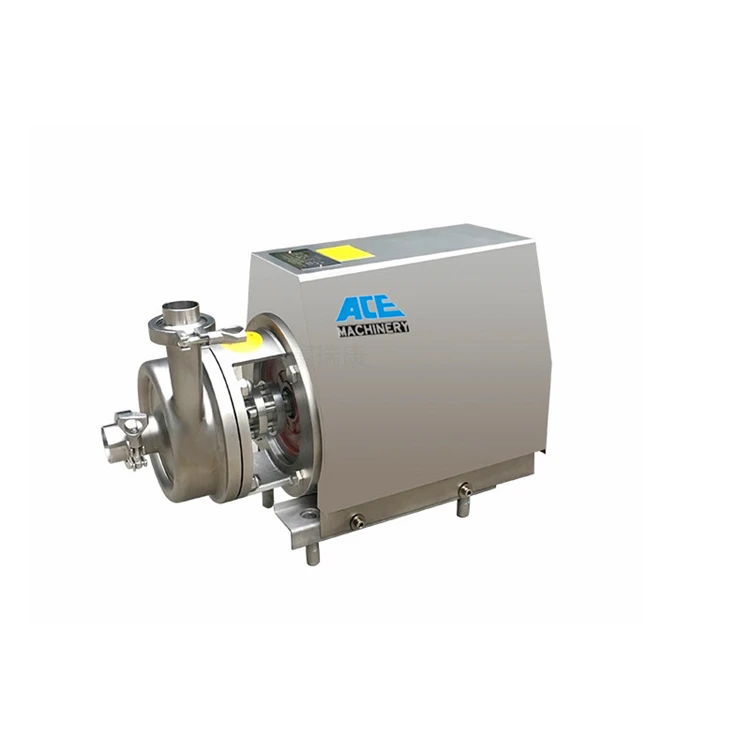

Products Description
Electric motor drives the impeller to rotate, so that the liquid centrifugal force, due to centrifugal force, the liquid is thrown
into the side of the pump, or into the next level impeller, so that the impeller inlet pressure is reduced, and the role of
pressure in the suction liquid pressure difference, pressure difference between the liquid suction pump, the centrifugal pump does not stop the rotation, the liquid flowing into the suction or discharge.
into the side of the pump, or into the next level impeller, so that the impeller inlet pressure is reduced, and the role of
pressure in the suction liquid pressure difference, pressure difference between the liquid suction pump, the centrifugal pump does not stop the rotation, the liquid flowing into the suction or discharge.
Product Features:
1) Material:SUS304/ SUS 316L
2) Flow rate: 1 - 40T/h
3) Pump head: 12 - 40 meter
4) Motor: Domestic/ABB/Siemens
5) Power: 0.55-18.5kw
6) Voltage: 220V/380V/415V/440V, can be customized
7) Connection type: Clamp, Union, Flange
8) Inlet size: 32-102mm, can be customized
9) Outlet size: 25-89mm, can be customized
10) Max. Inlet pressure: 0.3Mpa
11) Temperature range: -10 °C to +140 °C (EPDM)
2) Flow rate: 1 - 40T/h
3) Pump head: 12 - 40 meter
4) Motor: Domestic/ABB/Siemens
5) Power: 0.55-18.5kw
6) Voltage: 220V/380V/415V/440V, can be customized
7) Connection type: Clamp, Union, Flange
8) Inlet size: 32-102mm, can be customized
9) Outlet size: 25-89mm, can be customized
10) Max. Inlet pressure: 0.3Mpa
11) Temperature range: -10 °C to +140 °C (EPDM)
Profile type | Sanitary centrifugal pumps | ||||
material | SS304 or SS316L | ||||
Pressure | 0-8bar | ||||
Flow Viscosity | 1-50pas | ||||
Impeller type | Closed impeller/Open impeller | ||||
temperature | 0-140 celsius degree | ||||
mechnical seal type | Sinlge mechanical seal | Double flushed mechanical seal | |||
connection type | Clamp | Union | Flange | ||
motor type | Normal | Ex-Proof | inverter | ||
motor cover | Round/Square | ||||
Speed | 2900RPM/3400RPM | ||||
Sanitary Centrifugal pump Model Sheet | ||||||||
Model | FLOW(T/H) | Lift(M) | Speed(RPM) | Motor(KW) | ||||
ACE-1-14 | 1T | 14 | 2900/3400 | 0.55 | ||||
ACE-3-16 | 3T | 16 | 2900/3400 | 0.75 | ||||
ACE-3-20 | 3T | 20 | 2900/3400 | 1.1 | ||||
ACE-5-24 | 5T | 24 | 2900/3400 | 1.5 | ||||
ACE-3-30 | 3T | 30 | 2900/3400 | 2.2 | ||||
ACE-5-36 | 5T | 36 | 2900/3400 | 2.2 | ||||
ACE-10-24 | 10T | 24 | 2900/3400 | 2.2 | ||||
ACE-15-24 | 15T | 24 | 2900/3400 | 3 | ||||
ACE-10-36 | 10T | 36 | 2900/3400 | 3 | ||||
ACE-20-24 | 20T | 24 | 2900/3400 | 4 | ||||
ACE-15-36 | 15T | 36 | 2900/3400 | 4 | ||||
ACE-20-36 | 20T | 36 | 2900/3400 | 5.5 | ||||
ACE-30-36 | 30T | 36 | 2900/3400 | 7.5 | ||||
ACE-40-36 | 40T | 36 | 2900/3400 | 11 | ||||
We can customize the equipment according to customer requirements. | ||||||||
Applicable to the fields of food, dairy, beverage, pharmacy, cosmetic etc industry.
1. Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
1. Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
2. Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
3. Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo,Shoe Polish etc.
4. Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Biological Products etc.

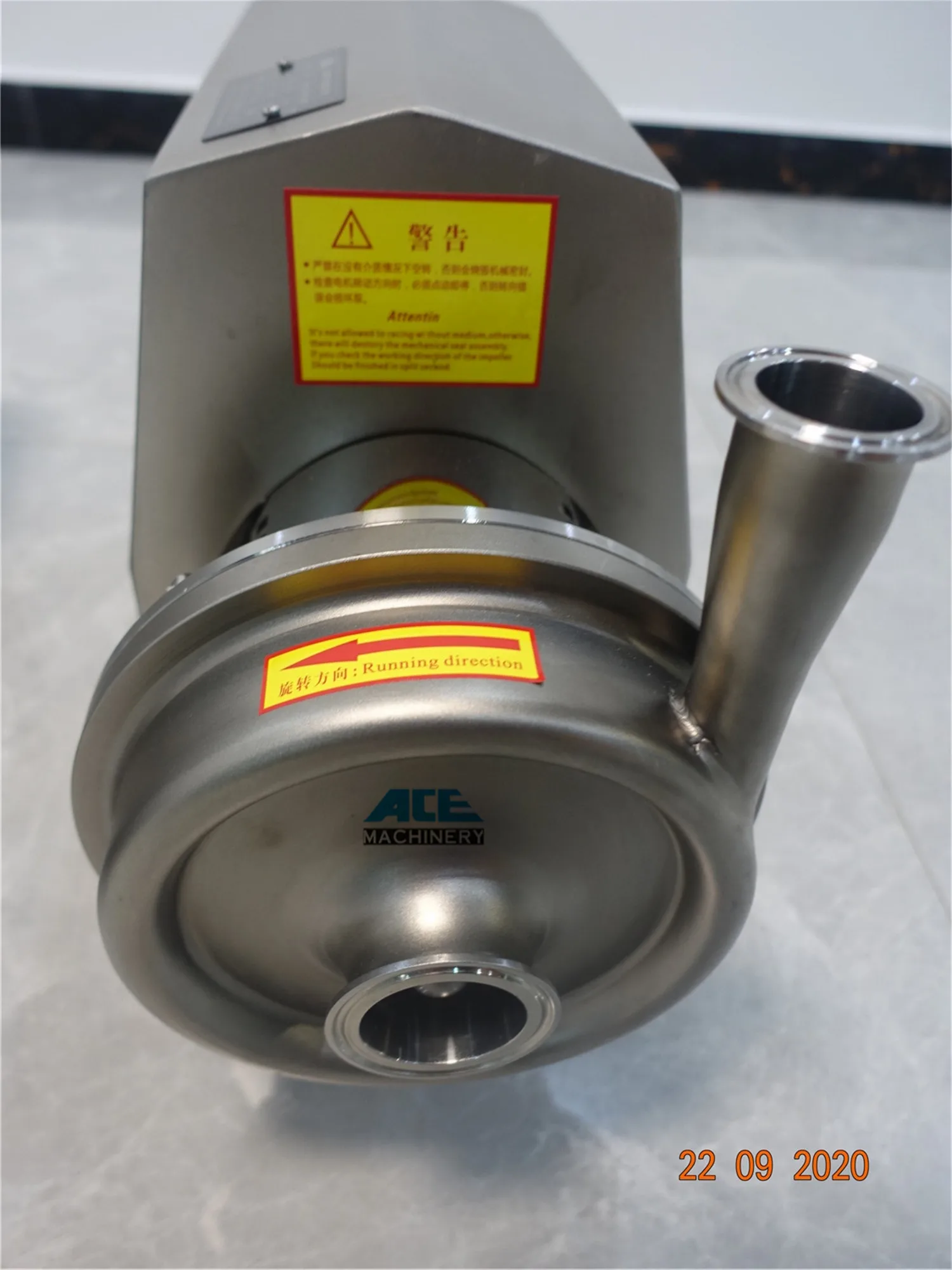

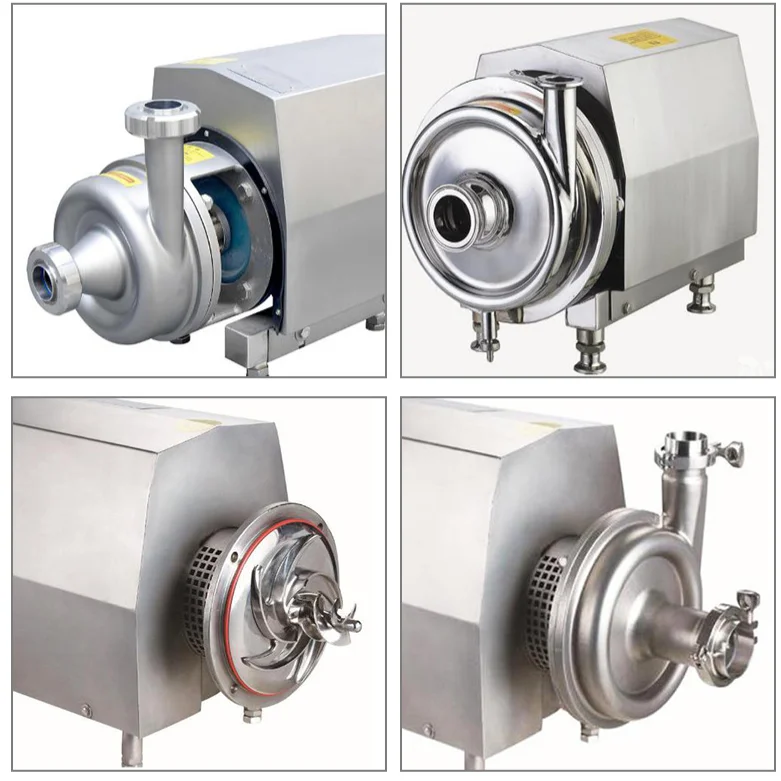

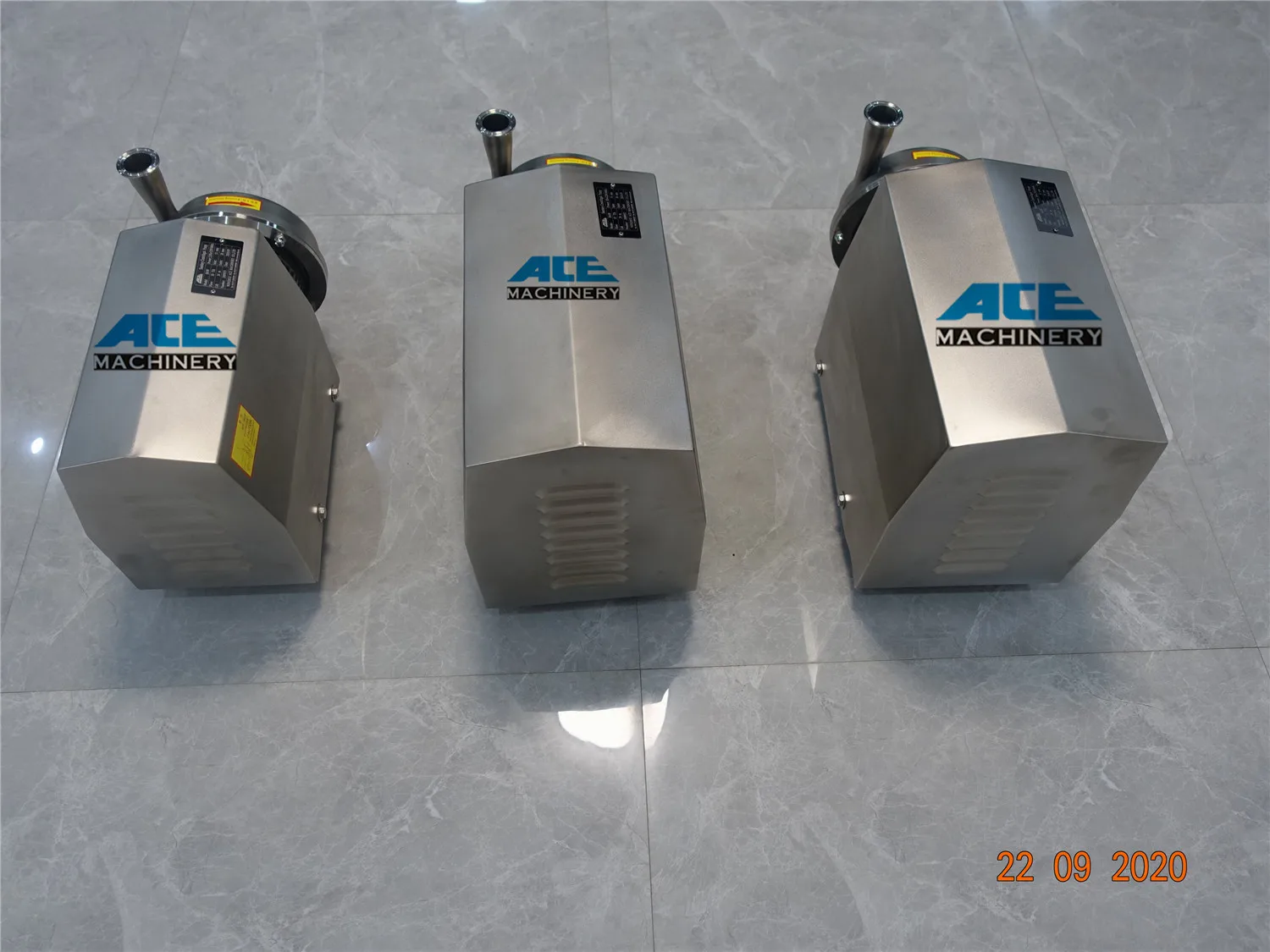

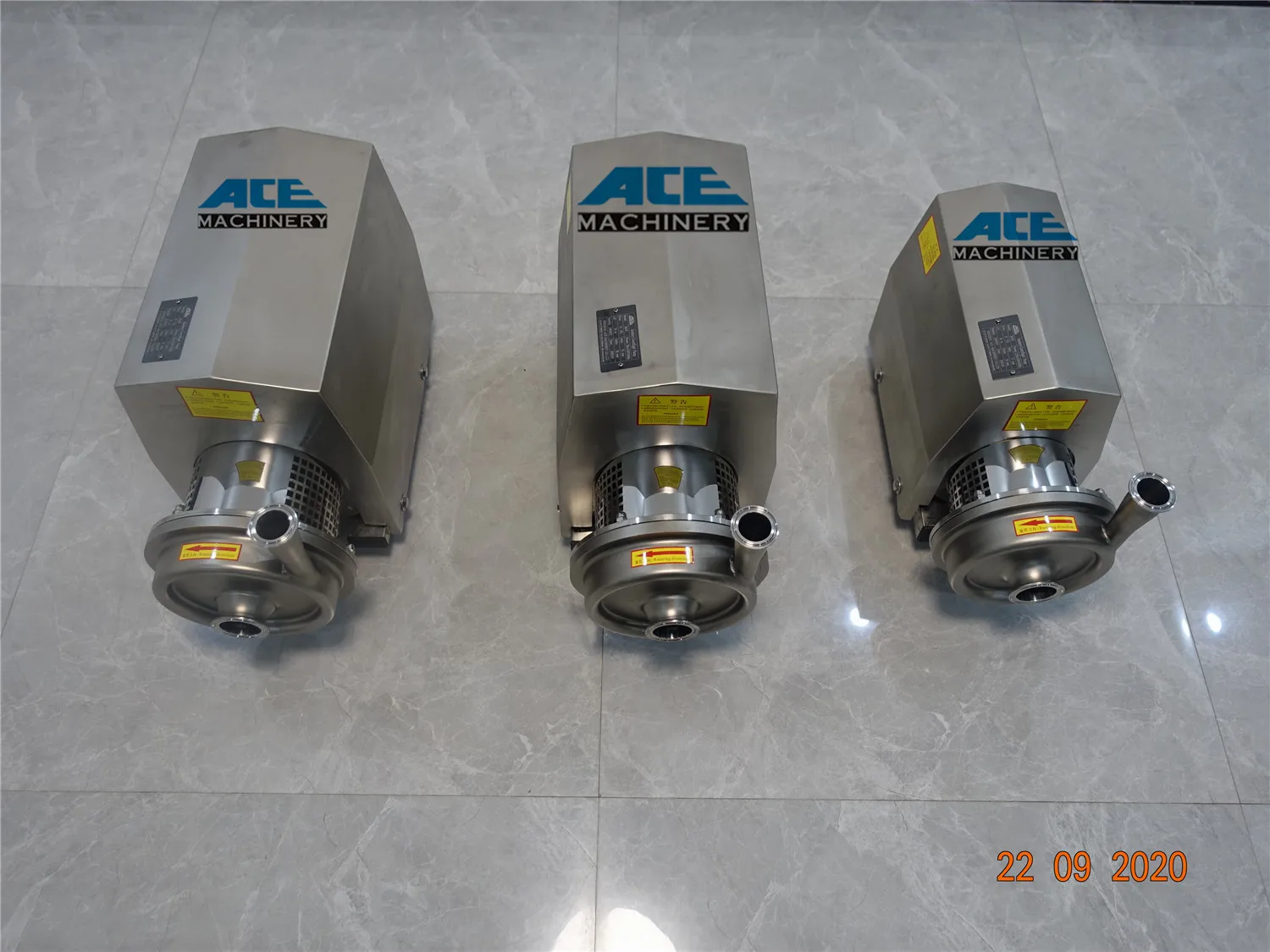

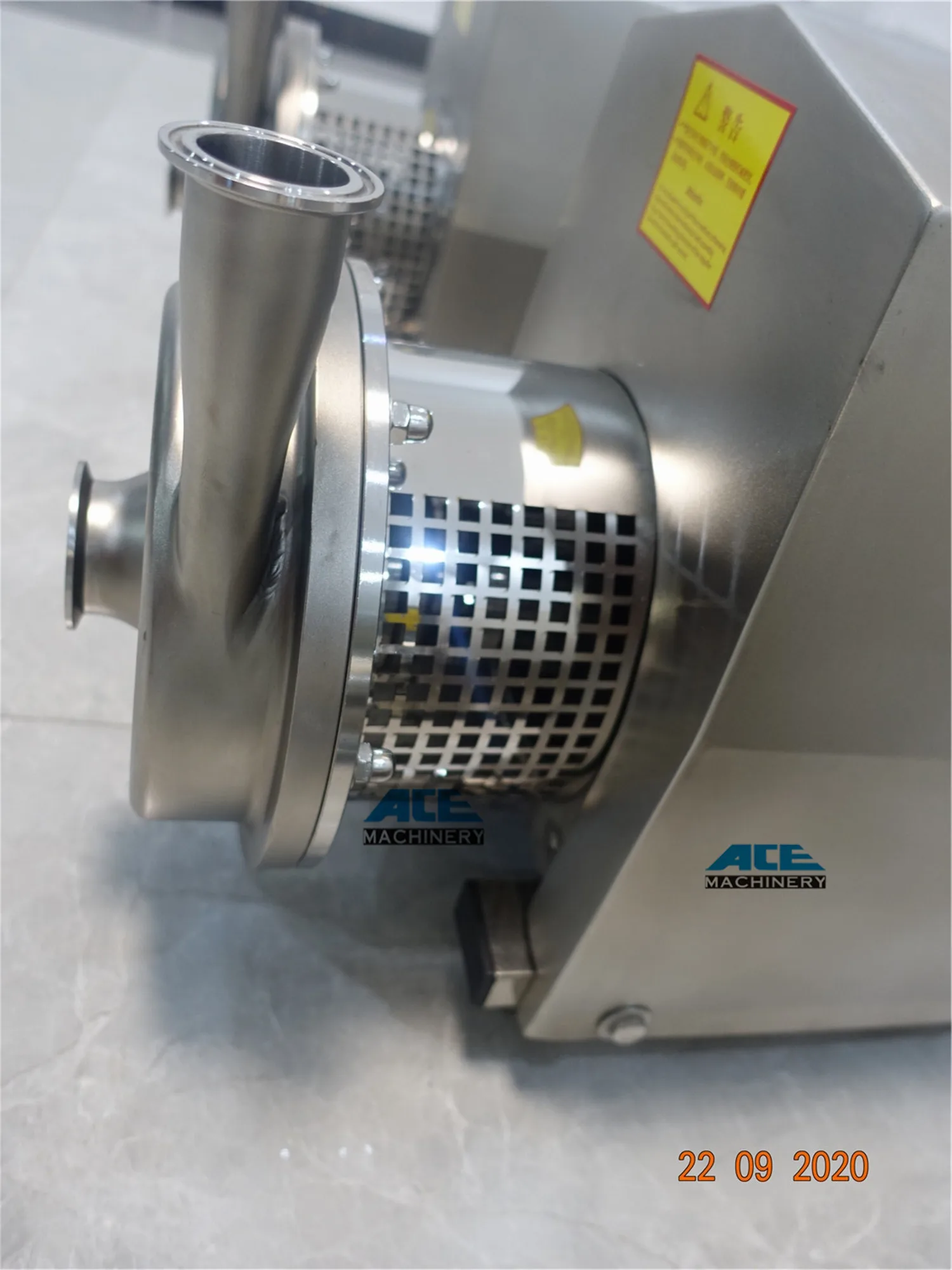

Details Images
Other pumps
Screw Pumps
Single screw pump is used in all fields widely to feed kinds of medium, running at a constant pressure continuously, without and damage when feeding medium, and change the gauging through adjusting rotation speed
Homogenization pump
The machine disperses, shears and emulsifiers the material in shortest time, and the diameter range of the particles gets smaller
so that fine and stable produced.
so that fine and stable produced.
Lobe Pumps
Rotor pump is suitable for transporting high viscosity, ensity and any medium containing particle.

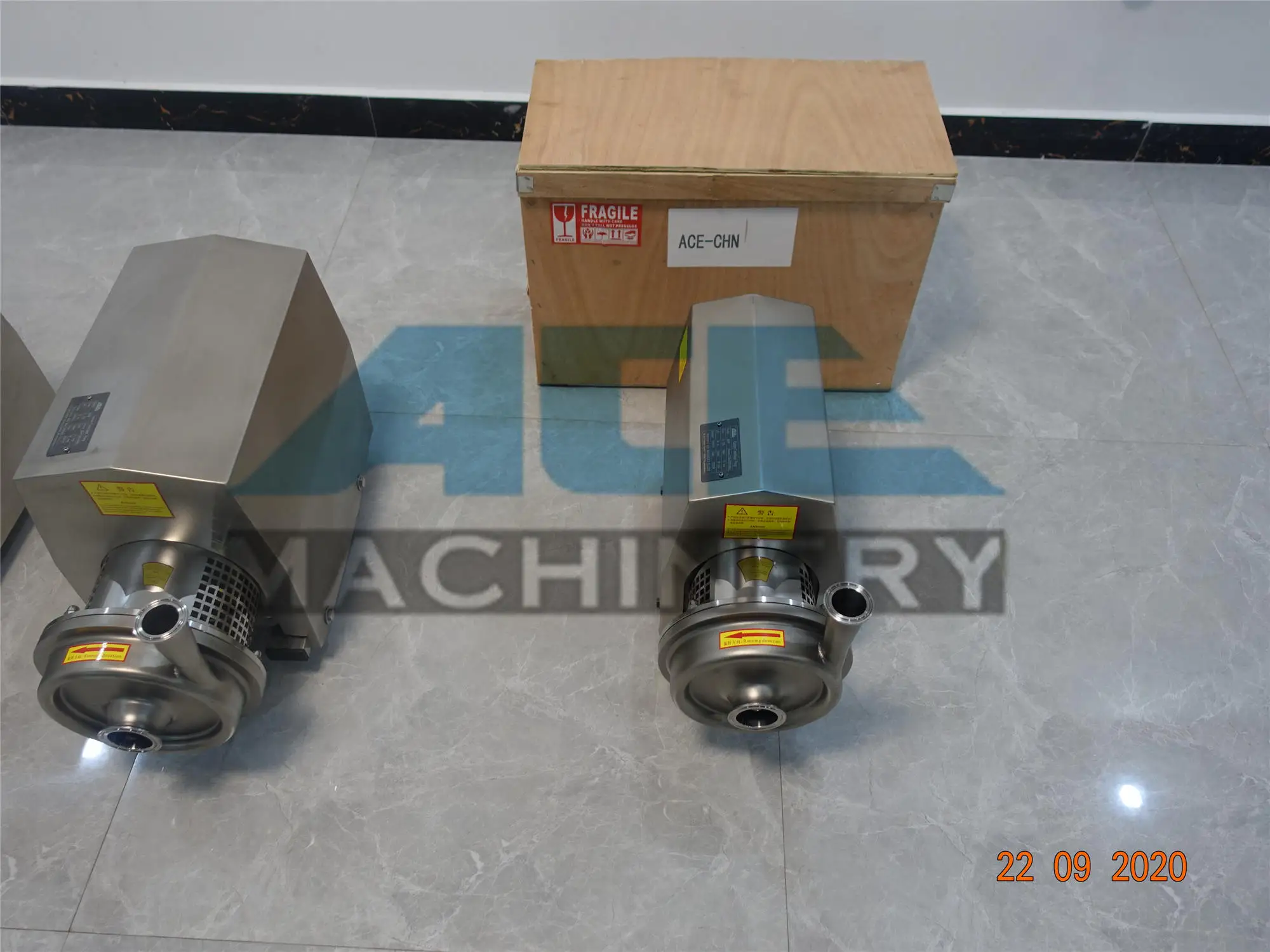

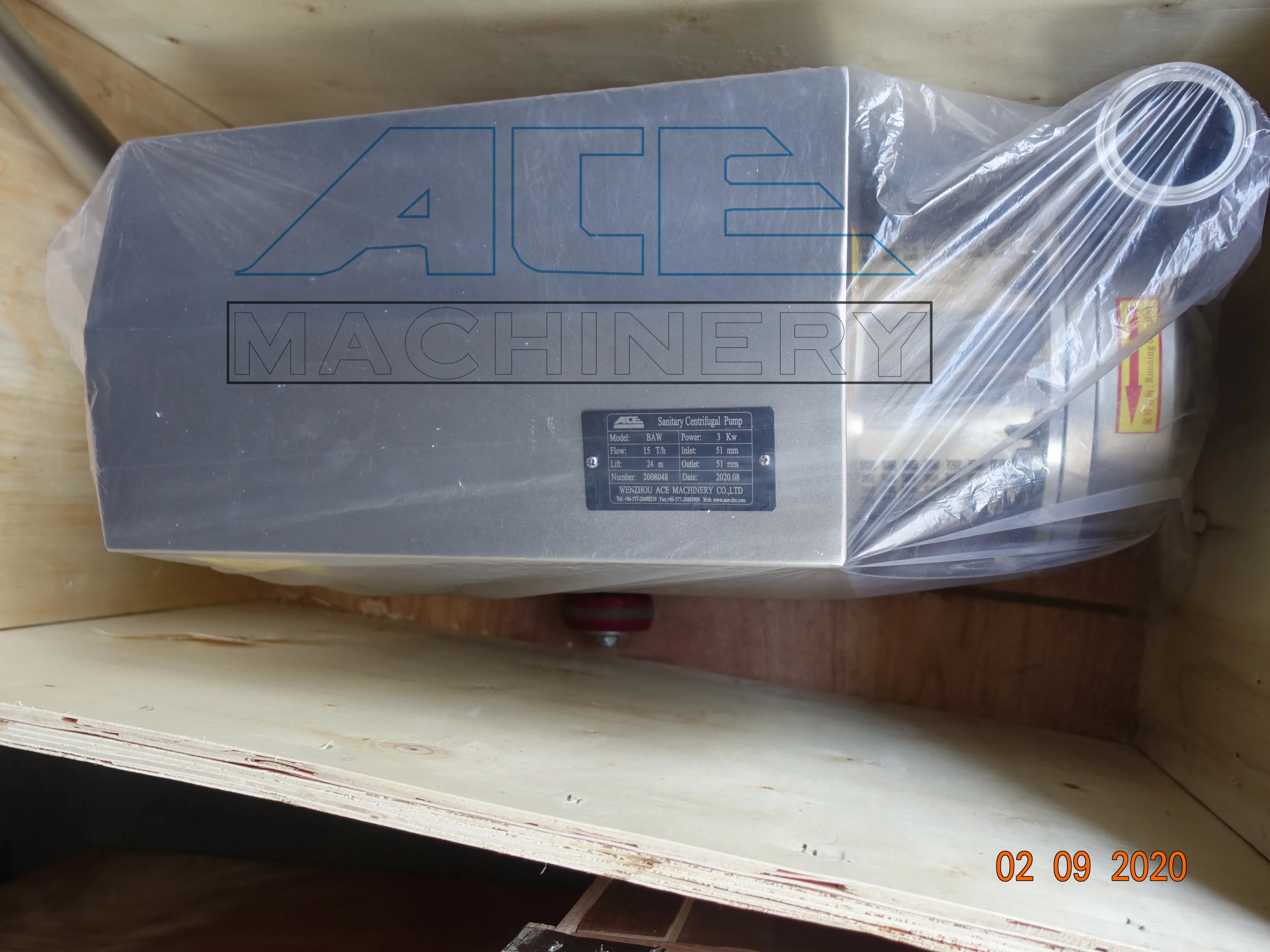

Packaging & Shipping
We are experienced in the whole packing and shipping process,and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Contact Us
Похожие товары
Антикоррозийный насос постоянного тока 310, дезинфицирующее средство для рук, самовсасывающий гелевый насос на кислотной основе, микроперистальтический насос
0,76 $ - 0,90 $
Хорошая цена BT100-2J лабораторного использования более гибкий tubepump Перистальтический Насос
Новинка 2021, высококачественное вышитое бисером кружево разных цветов, тяжелые 3D цветочные кружева
0,45 $ - 0,50 $

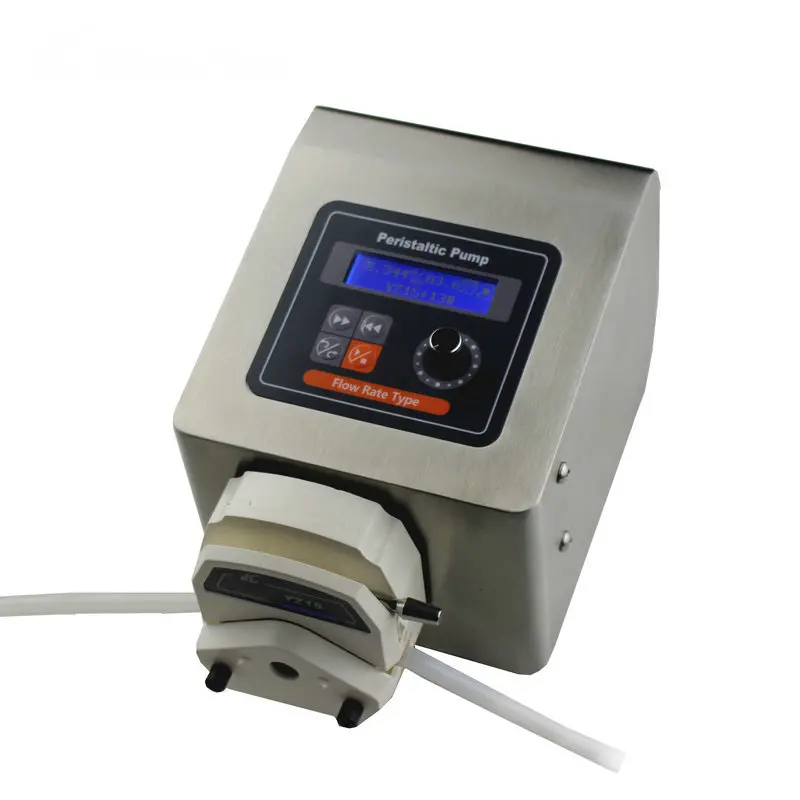

Сделано в Китае, превосходное качество, светодиодный дисплей, лабораторный небольшой перистальтический насос для розлива жидкости

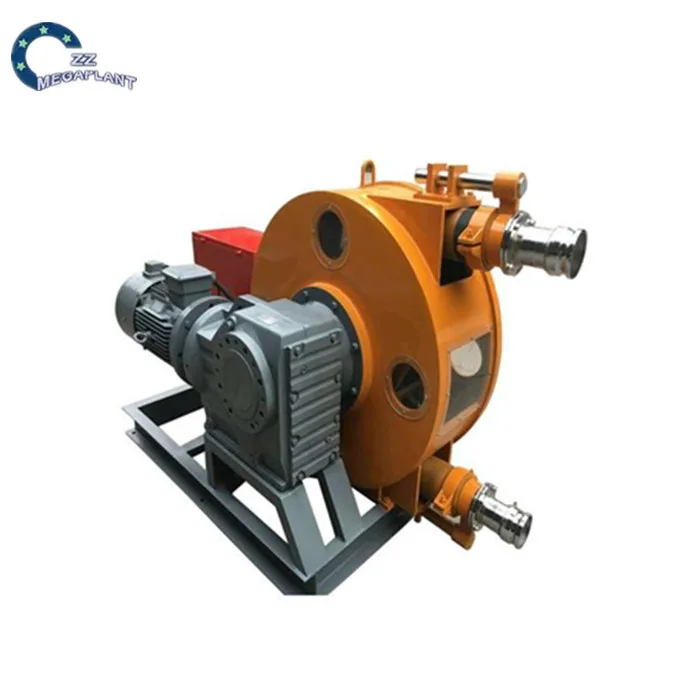

Фабричное производство, регулируемый перистальтический насос, китайский Перистальтический Насос
