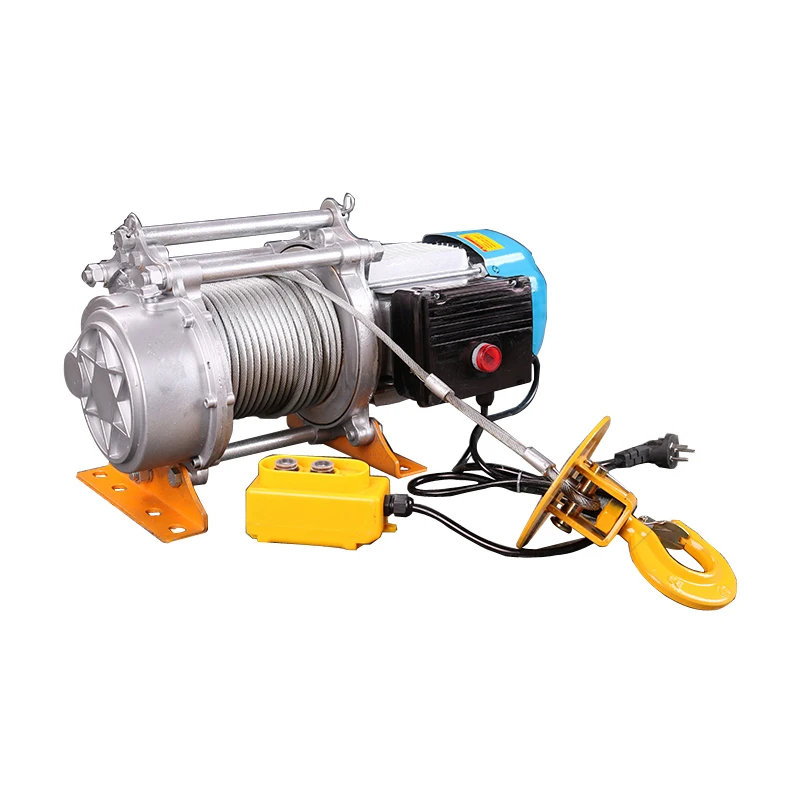

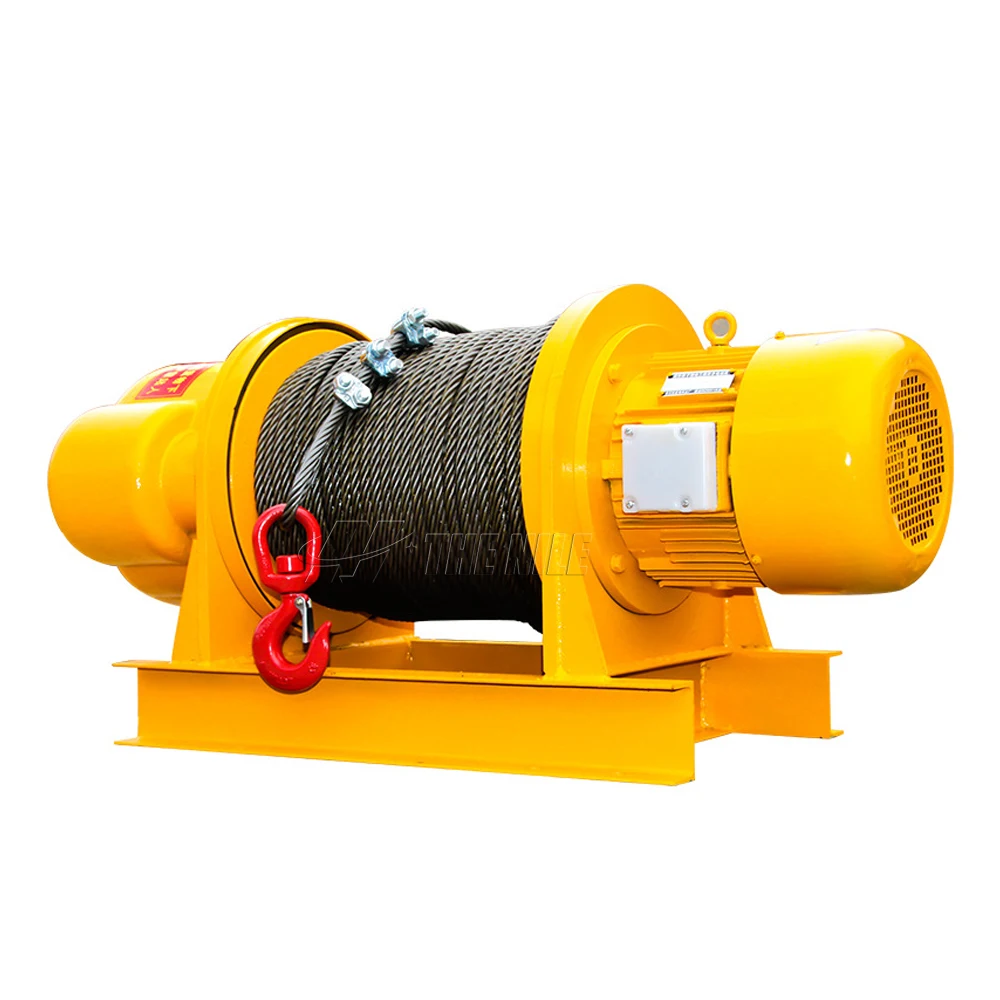

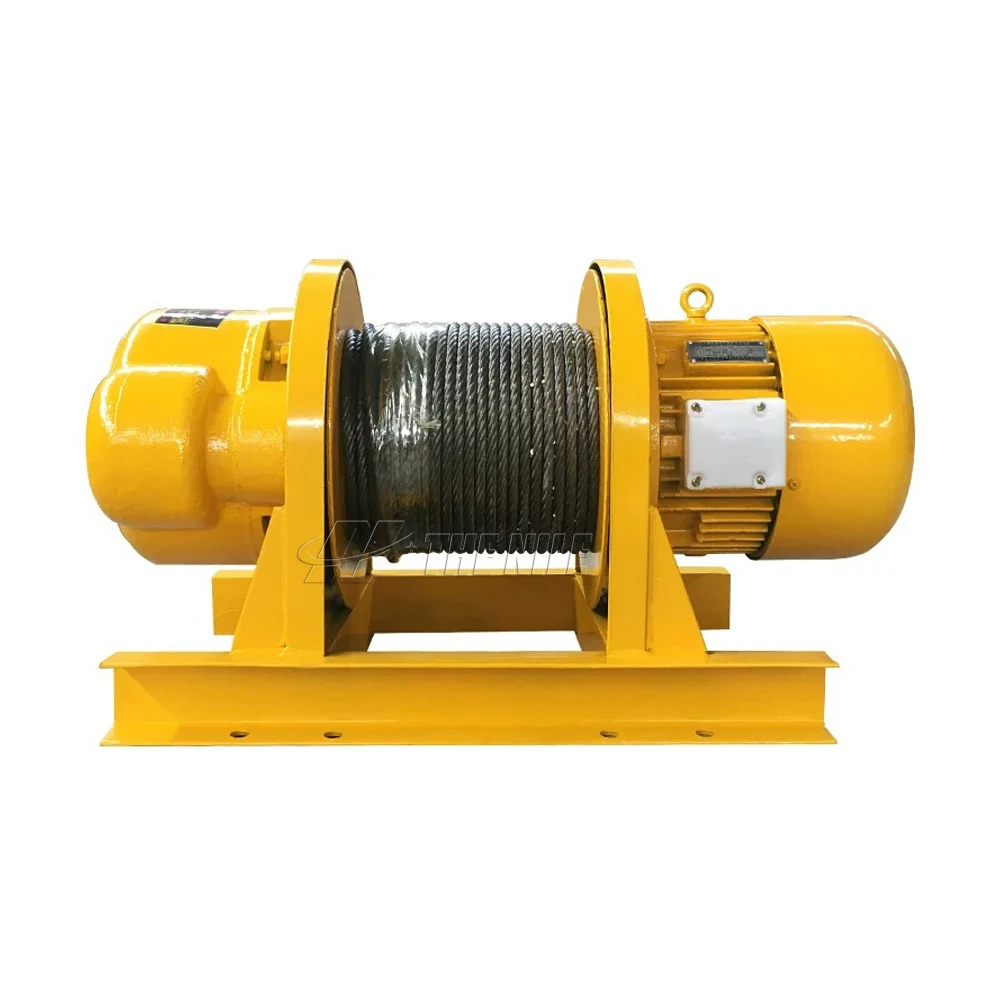

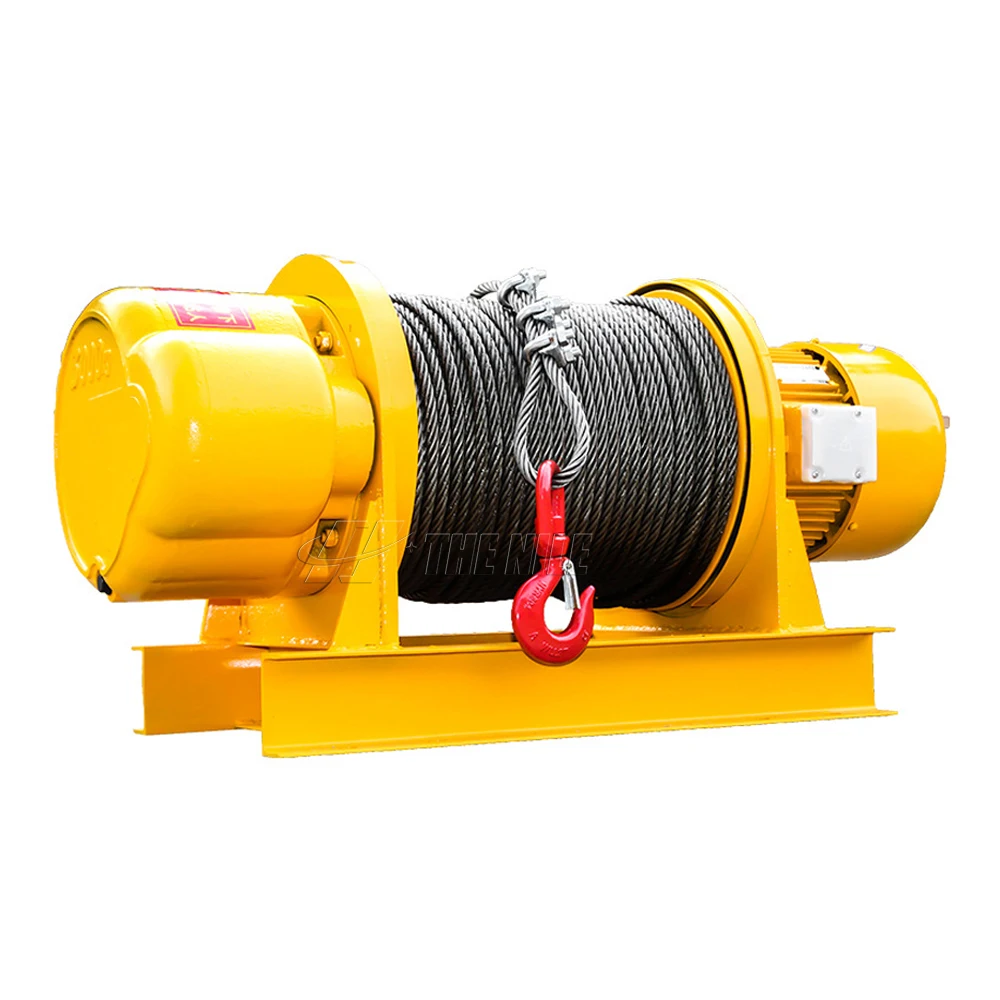

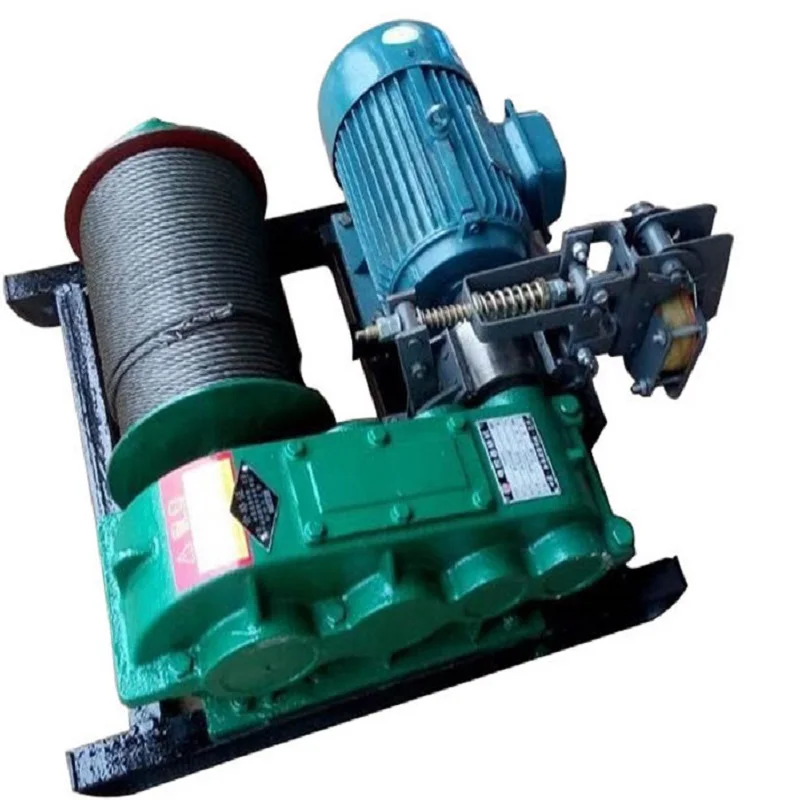

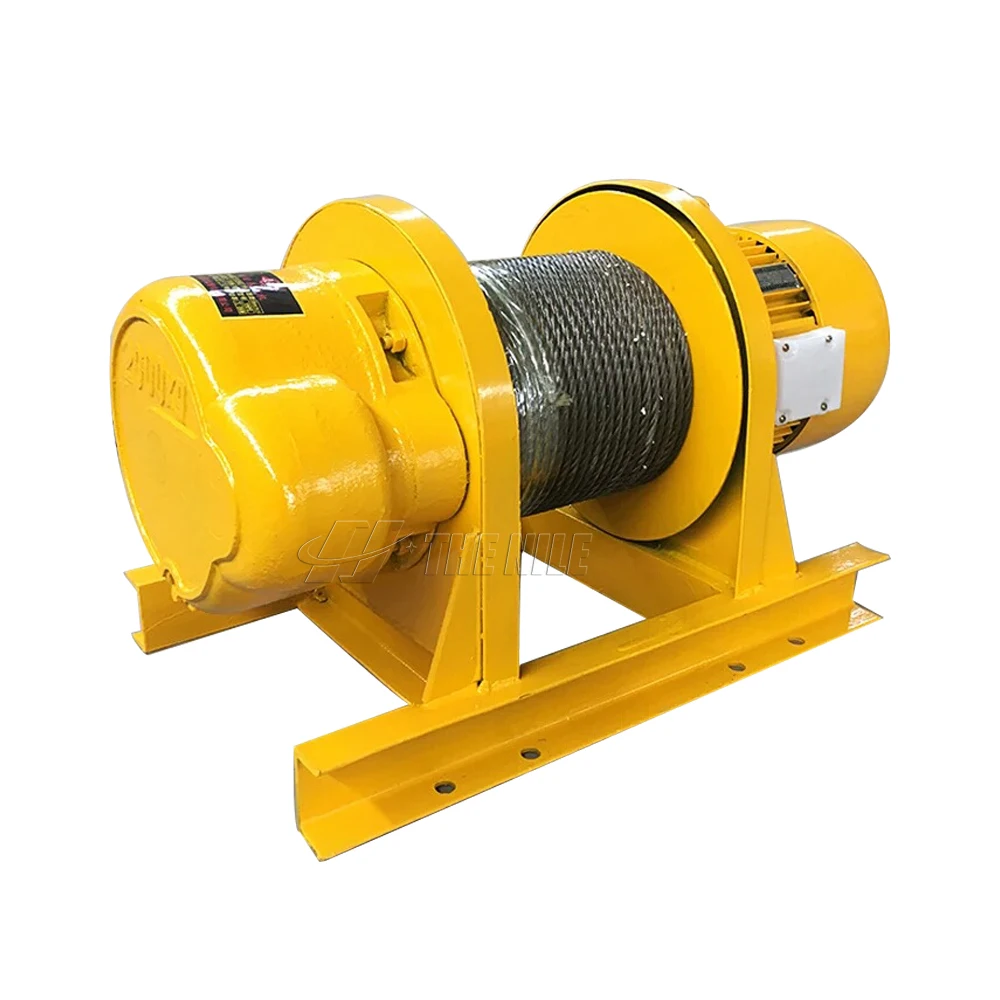

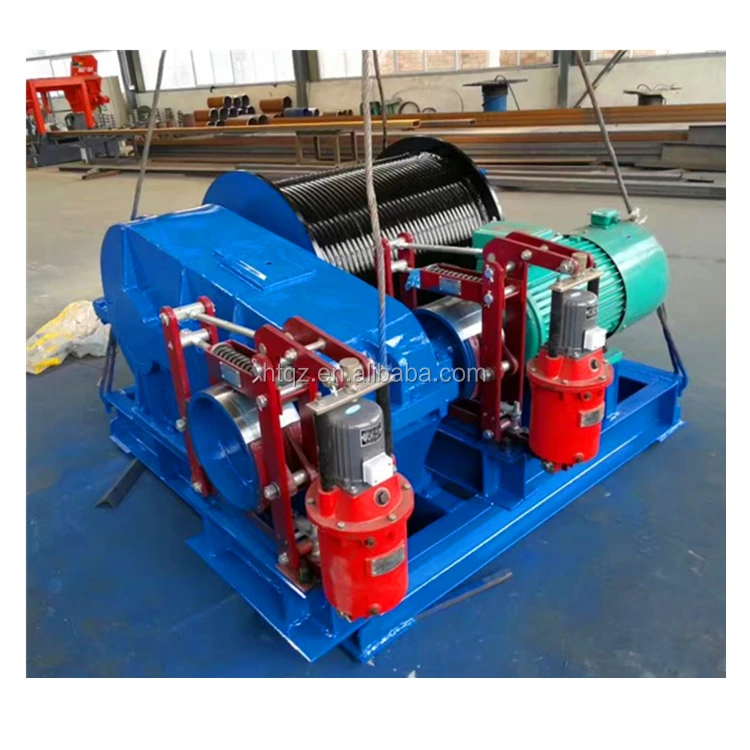

Electric winch consists of motor, coupling, brake, gearbox and drum, mounted together on the rack, it is a device that mechanically drives a reel and winding rope to complete the traction work. It can vertical lift or horizontal and inclined drag heavy object. Electric winch widely used in construction, water conservancy, forestry, mines, docks and other materials lifting or towing.

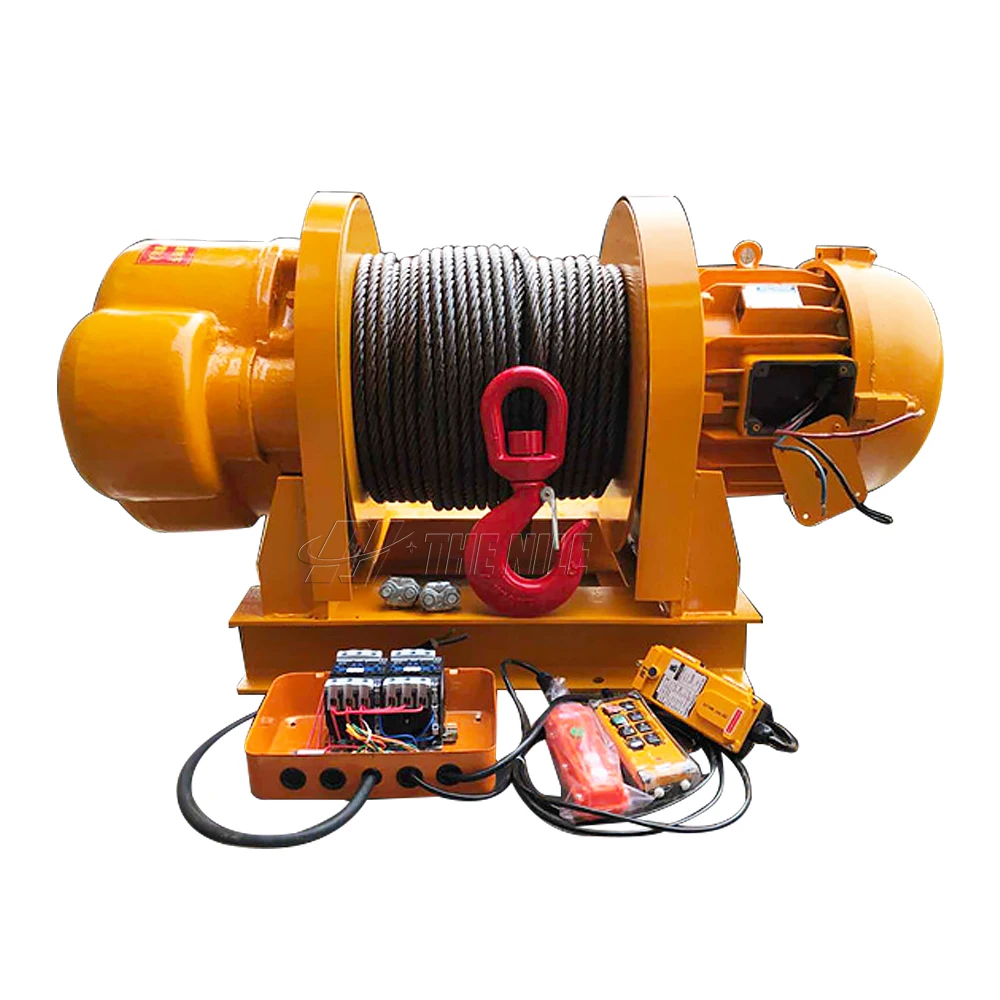

Electric winch can customize the volume, quantity, direction of rope, the single row rope, lifting speed, fixed direction, same rise and drop, and working voltage, etc., It can also be equipped with wire rope, electric control box, handle switch, hook, wireless remote control, etc.
Electric winch adopts cone-type electromagnetic braking device, the motor working brake is separated, the motor stop braking is closed immediately, which plays the role of quick braking.
The electric winch can be used alone or as a component of machinery such as lifting, road building and mine lifting, large amount of rope winding, easy to move and simplicity of operator.
Model | DT-1T | DT-2T | DT-3T | DT-5T | DT-10T | ||||
Rated load weight(t) | 1 | 2 | 3 | 5 | 10 | ||||
Lifting altitude(m) | 1-100 | ||||||||
Lifting speed(m/min) | 16/8 | 16/8 | 16/8 | 16/8 | 14/7 | ||||
Rope diameter (mm) | 7.7 | 11 | 13 | 15.5 | 19.5 | ||||
Rated voltage | 380vV 50HZ | ||||||||
Power(kw) | 1.5 | 3 | 4.5 | 7.5 | 13 | ||||
Bare metal weight(kg) | 85 | 140 | 178 | 258 | 650 | ||||
The electric winch adopts winding drum, which is easy to operate and has a large amount of rope winding.
High quality steel, not easy to break, safe and reliable
Welded structure to avoid the safety hidden danger caused by screw loosening and enhance the stability of the product.
Uniform oil immersion of each wire rope, prolonging the service life of the wire rope, and lasting for a long time
Packaging | ||
Weight | 190kg | |
Packaging Details | Standard export wooden box packaging, or selection of packaging methods according to customer requirements | |
The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machine,drying and calcinating as well as beneficiation equipments,fine sand recyling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry ,wharf,granary,chemical industry.Our products have been spreaded all over China,and also exported to European, American, Asian, African countries and enjoyed great popularity among our customers.
Our company owns an experienced and skilled sales and service team which compose a perfect service network.We will send the professional engineers to the installation sites and provide guidance for the installation,commissioning and initial run as well as planning administration of the equipments after purchase.
Every year, we export our grinders and crushers to South Asia, Africa, South America, middle East and other regions. Our Machines enjoy a high reputation in the foreign market. You are very welcomed to visit our factory, and hope there are chance for us to have a long term cooperation.
Pre-sale services:
(1) Advice of model choice.
(2) Design and manufacture machines according to customer's special requirements
(3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program
After-sale services :
(1) Arrange technicians to go to the site to guide installation
(2) If your machine is out of warranty period, you can go to the Nile's overseas office to buy spare parts.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.
